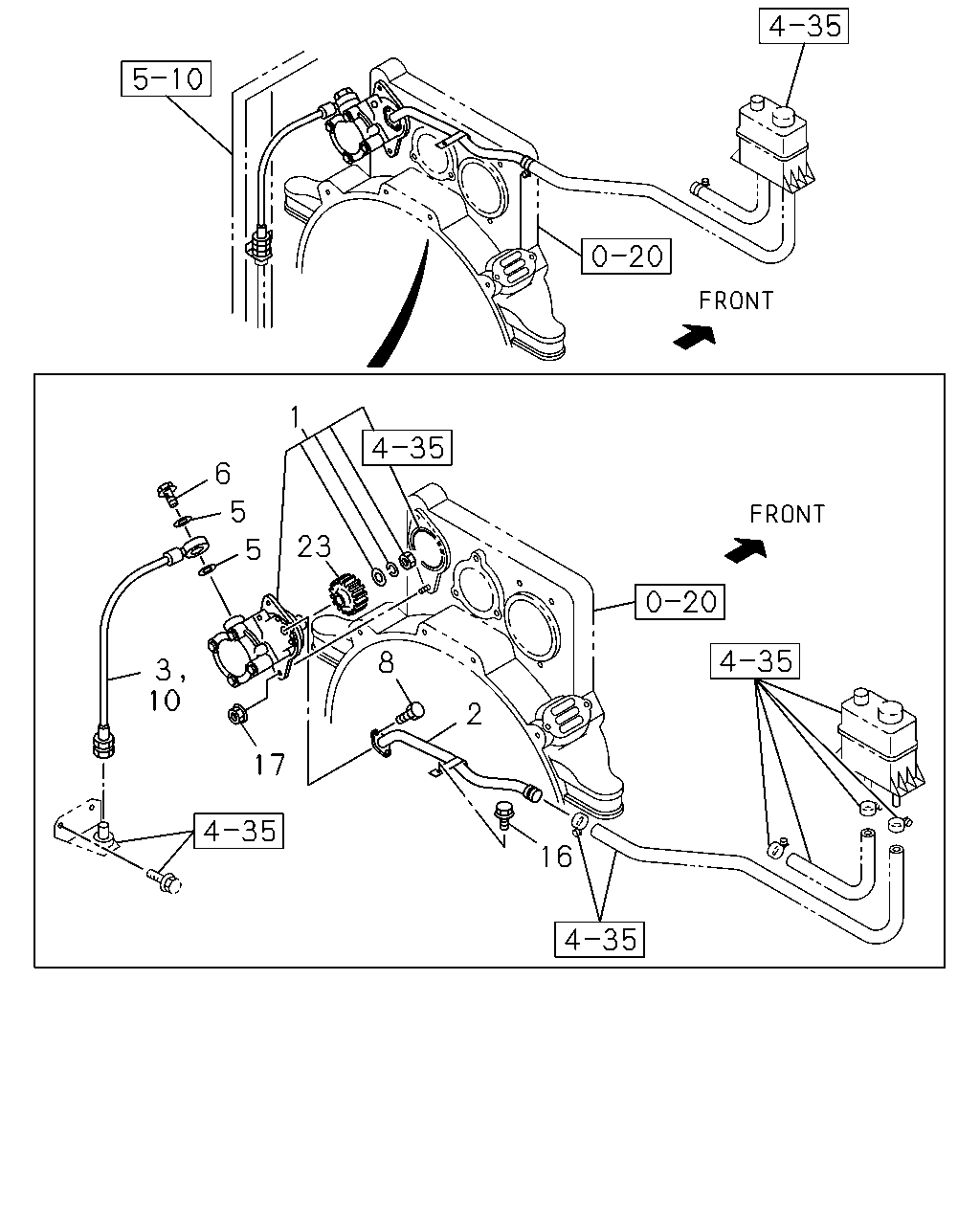

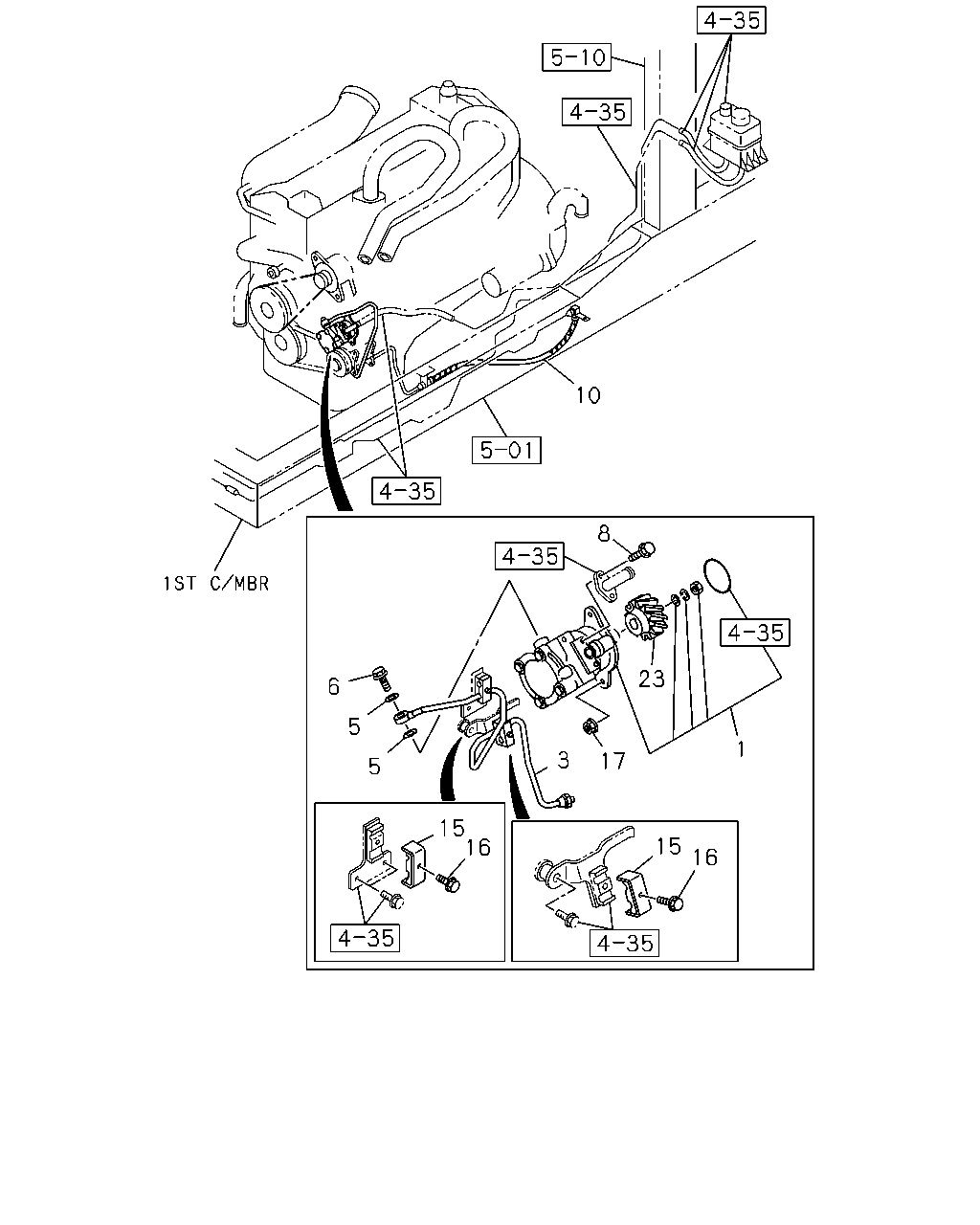

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#5399) — 127 parça

10 8 23 6 5 1 3 17 5 15 16 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-447-0	01	1	9603-9901	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-0	01	1	9902-9904		●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-0	01	1	9905-	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-19500-563-2	01	1	9902-		●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-640-0	01	1	9603-9604	●	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-637-0	01	1	9605-9901	●	●	●
3	PIPE; OIL,CHARGE,P/S	1-13313-637-0	01	1	9902-9902		●	●
3	PIPE; OIL,CHARGE,P/S L TYPE ENG<90L>	1-13313-637-0	01	1	9903-9904		●	●
3	PIPE; OIL,CHARGE,P/S L TYPE ENG<90L>	1-13313-637-1	01	1	9905-	●	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09364-893-0	01	1	9706-9810		●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9811-9901		●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L),10PE1N(61L) L=510	1-09365-044-0	01	1	9905-		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-9702	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-087-0	02	1	9703-9708	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9703-9708			●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9709-9801	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9802-9901	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9802-9901		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	9902-9904		●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-9907	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L),10PE1N(61L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-9907		●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9908-	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L),10PE1N(61L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9908-		●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L) M18X36	1-09675-174-0	01	1	9603-9901	●	●	●
6	BOLT; EYE,P/S PIPE M18X36	1-09675-174-0	01	1	9902-9904		●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) M18X36	1-09675-174-0	01	1	9905-9909	●	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) M18X36	1-09675-174-0	01	1	9910-	●	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	9706-9901		●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L) M18X40	1-09675-153-0	01	1	9905-		●
8	BOLT; OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9603-9901	●	●	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	9902-9904		●	●
8	BOLT; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) M8X16 FLANGE	0-28080-816-0	02	1	9905-9909	●	●	●
8	BOLT; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) M8X16 FLANGE	0-28080-816-0	02	1	9910-	●	●	●
8	BOLT; OIL PIPE V TYPE ENG<91L> M8X12 FLANGE	0-28080-812-0	02	1	9905-		●	●
8	BOLT; OIL PIPE 8PE1S(59L),10PE1S(60L) M8X12 FLANGE	0-28080-812-0	02	1	9603-9901		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9603-9901	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=430	0-09671-430-0	01	1	9902-9904		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9905-	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> L=510	1-09364-893-0	01	1	9603-9810		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> L=510	1-09365-044-0	01	1	9811-9901		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> L=510	1-09365-044-0	01	1	9905-9905		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> EXC. ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9905-		●	●
15	CLIP; OIL PIPE SUCTION 6WA1 TC-S(56L)	1-09701-195-1	02	1	9603-9901	●	●	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-1	02	1	9902-9904		●	●
15	CLIP; OIL PIPE SUCTION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L)	1-09701-195-1	02	1	9905-9909	●	●	●
15	CLIP; OIL PIPE SUCTION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L)	1-09701-195-2	02	1	9910-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L) M6X35 FLANGE	0-28680-635-0	02	1	9603-9901	●	●	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	9902-9904		●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) M6X35 FLANGE	0-28680-635-0	02	1	9905-9909	●	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) M6X35 FLANGE	0-28680-635-0	02	1	9910-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L) M8X14 FLANGE	0-28080-814-0	01	1	9603-9901		●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X14 FLANGE	0-28080-814-0	01	1	9905-		●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9603-9803	●	●	●
17	NUT; POWER STRG PUMP 8PE1S(59L),10PE1S(60L) M10 FLANGE	0-91150-110-0	02	1	9804-9805		●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9806-9901	●	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9902-9904		●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●
23	GEAR; OIL PUMP 6WA1 TC-S(56L) Z=20	1-19581-023-2	01	1	9603-9901	●	●	●
23	GEAR; OIL PUMP Z=20	1-19581-023-2	01	1	9902-9904		●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) Z=20	1-19581-023-2	01	1	9905-9909	●	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) Z=20	1-19581-023-2	01	1	9910-9910	●	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) Z=20	1-19581-038-0	01	1	9911-	●	●	●
23	GEAR; OIL PUMP V TYPE ENG<91L> Z=20	1-19581-011-2	01	1	9905-		●	●
23	GEAR; OIL PUMP 8PE1S(59L),10PE1S(60L) Z=20	1-19581-011-2	01	1	9603-9901		●	●

1 6 5 23 5 8 3 10 2 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-447-0	01	1	9603-9901	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-0	01	1	9902-9904		●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-0	01	1	9905-	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-19500-563-2	01	1	9902-		●	●
2	PIPE ASM; OIL,SUCTION V TYPE ENG<91L>	1-13313-692-0	01	1	9905-		●	●
2	PIPE ASM; OIL,SUCTION 8PE1S(59L),10PE1S(60L)	1-13313-568-0	01	1	9603-9608		●	●
2	PIPE ASM; OIL,SUCTION 8PE1S(59L),10PE1S(60L)	1-13313-692-0	01	1	9609-9901		●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-640-0	01	1	9603-9604	●	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-637-0	01	1	9605-9901	●	●	●
3	PIPE; OIL,CHARGE,P/S	1-13313-637-0	01	1	9902-9902		●	●
3	PIPE; OIL,CHARGE,P/S L TYPE ENG<90L>	1-13313-637-0	01	1	9903-9904		●	●
3	PIPE; OIL,CHARGE,P/S L TYPE ENG<90L>	1-13313-637-1	01	1	9905-	●	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09364-893-0	01	1	9706-9810		●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9811-9901		●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L),10PE1N(61L) L=510	1-09365-044-0	01	1	9905-		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-9702	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-087-0	02	1	9703-9708	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9703-9708			●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9709-9801	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9802-9901	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9802-9901		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	9902-9904		●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-9907	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L),10PE1N(61L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-9907		●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9908-	●	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L),10PE1N(61L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9908-		●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L) M18X36	1-09675-174-0	01	1	9603-9901	●	●	●
6	BOLT; EYE,P/S PIPE M18X36	1-09675-174-0	01	1	9902-9904		●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) M18X36	1-09675-174-0	01	1	9905-9909	●	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) M18X36	1-09675-174-0	01	1	9910-	●	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	9706-9901		●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L) M18X40	1-09675-153-0	01	1	9905-		●
8	BOLT; OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9603-9901	●	●	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	9902-9904		●	●
8	BOLT; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) M8X16 FLANGE	0-28080-816-0	02	1	9905-9909	●	●	●
8	BOLT; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) M8X16 FLANGE	0-28080-816-0	02	1	9910-	●	●	●
8	BOLT; OIL PIPE V TYPE ENG<91L> M8X12 FLANGE	0-28080-812-0	02	1	9905-		●	●
8	BOLT; OIL PIPE 8PE1S(59L),10PE1S(60L) M8X12 FLANGE	0-28080-812-0	02	1	9603-9901		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9603-9901	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=430	0-09671-430-0	01	1	9902-9904		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9905-	●	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> L=510	1-09364-893-0	01	1	9603-9810		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> L=510	1-09365-044-0	01	1	9811-9901		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> L=510	1-09365-044-0	01	1	9905-9905		●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> EXC. ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9905-		●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L) M6X35 FLANGE	0-28680-635-0	02	1	9603-9901	●	●	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	9902-9904		●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) M6X35 FLANGE	0-28680-635-0	02	1	9905-9909	●	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) M6X35 FLANGE	0-28680-635-0	02	1	9910-	●	●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L) M8X14 FLANGE	0-28080-814-0	01	1	9603-9901		●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X14 FLANGE	0-28080-814-0	01	1	9905-		●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9603-9803	●	●	●
17	NUT; POWER STRG PUMP 8PE1S(59L),10PE1S(60L) M10 FLANGE	0-91150-110-0	02	1	9804-9805		●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9806-9901	●	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9902-9904		●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●
23	GEAR; OIL PUMP 6WA1 TC-S(56L) Z=20	1-19581-023-2	01	1	9603-9901	●	●	●
23	GEAR; OIL PUMP Z=20	1-19581-023-2	01	1	9902-9904		●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) Z=20	1-19581-023-2	01	1	9905-9909	●	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) Z=20	1-19581-023-2	01	1	9910-9910	●	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) Z=20	1-19581-038-0	01	1	9911-	●	●	●
23	GEAR; OIL PUMP V TYPE ENG<91L> Z=20	1-19581-011-2	01	1	9905-		●	●
23	GEAR; OIL PUMP 8PE1S(59L),10PE1S(60L) Z=20	1-19581-011-2	01	1	9603-9901		●	●
