Sayfa 1-40 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶

1-40 — FUEL TANK (#53989) — 107 parça

485 485 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1012-1303	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1304-	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1304-		●
300	03.162 BOLT; BRKT TO BODY 4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1012-1303	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1304-	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98099-503-0	01	1	1304-		●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1012-1303	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1304-	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (C)	8-98105-710-0	01	1	1304-		●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98041-728-0	01	1	1012-	●
485	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1012-	●
485	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-	●

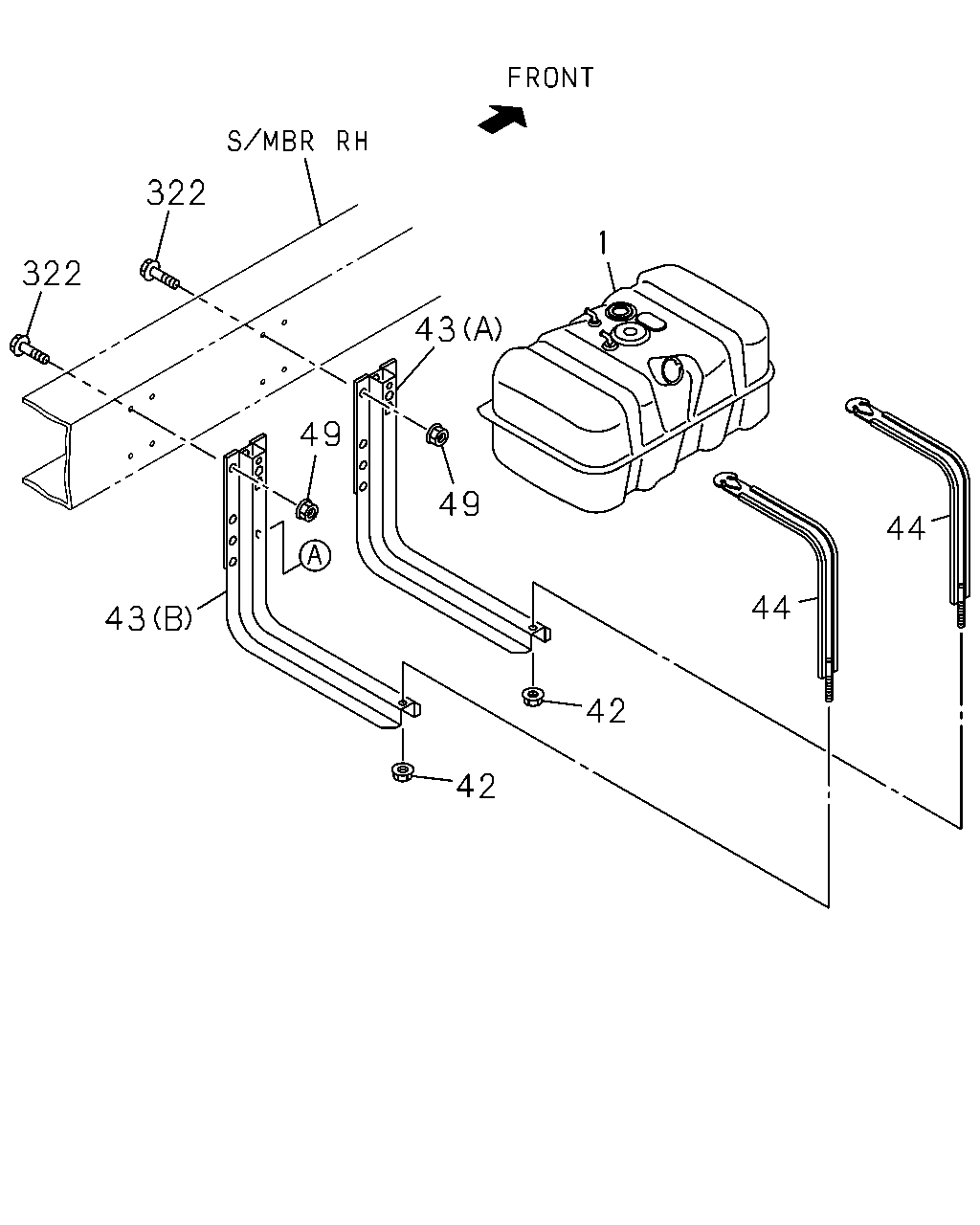

322 1 322 43 49 49 44 44 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1012-1303	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1304-	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1012-1303	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1304-	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1012-1303	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1304-	●	●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1012-1303	●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1304-	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1012-1303	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1304-	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-1303	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1304-	●	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1012-1303	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1304-	●	●

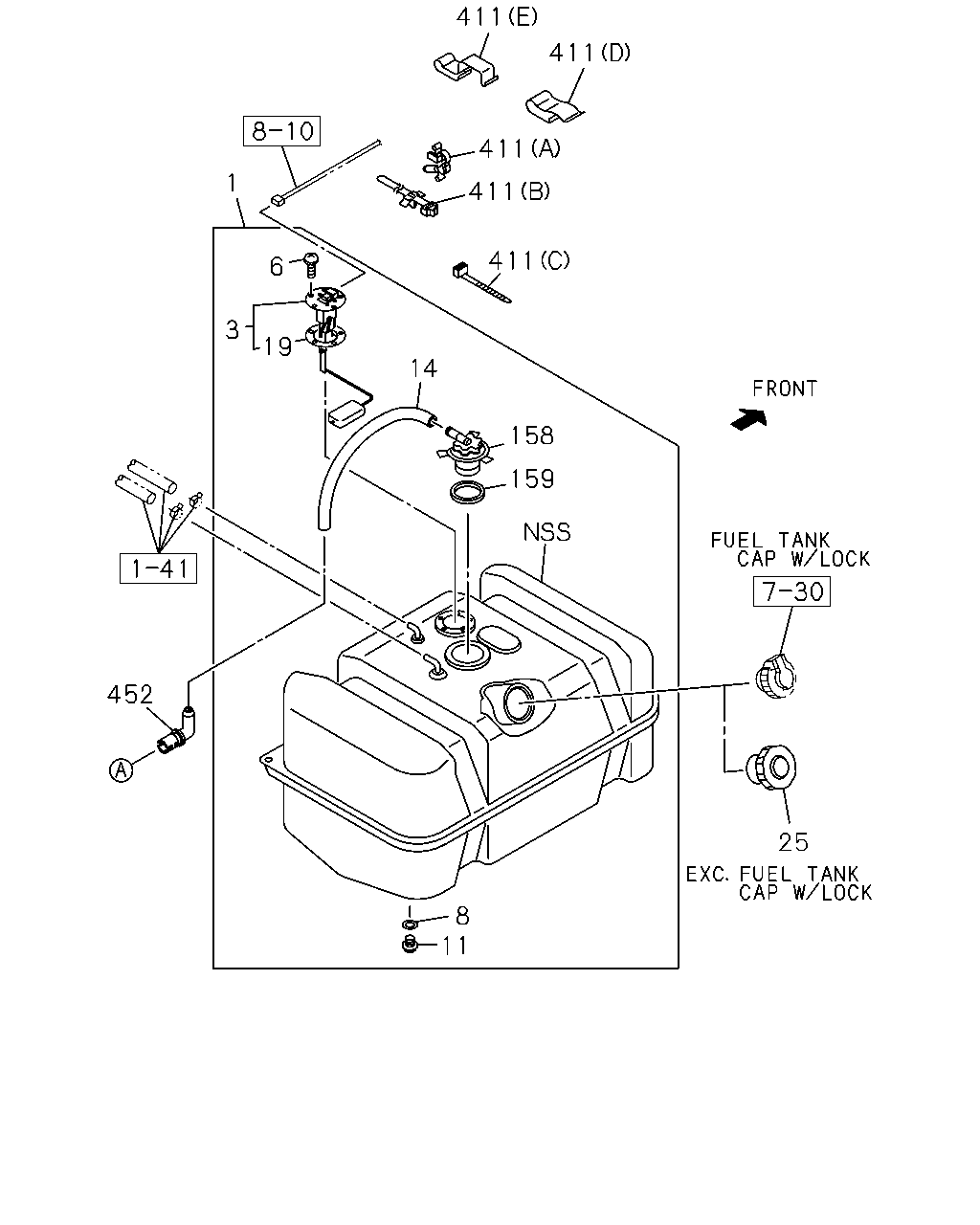

411 411 411 1 411 411 6 3 19 14 158 159 452 25 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1012-1303	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1304-	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1012-1303	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1304-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1012-1303	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1304-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1012-1303	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1304-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1012-1303	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1304-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1012-1303	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1304-	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1012-1303	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1304-	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1012-1303	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1304-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1012-1303	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1304-	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1012-1303	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1304-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1203-1407	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1012-1412	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1012-1303	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1304-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (E) T=4.5 & 9	8-97371-947-0	02	1	1304-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	05	1	1012-1303	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	05	1	1304-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D) T=5.5	8-97371-951-0	05	1	1304-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1012-1303	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1304-1412	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1501-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1501-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1012-1303	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1304-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	06	1	1012-1012	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	06	1	1012-1303	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	06	1	1012-1303	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	06	1	1304-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	06	1	1304-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	06	1	1304-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1012-1412	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	01	1	1012-1412	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1012-1303	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1304-	●	●

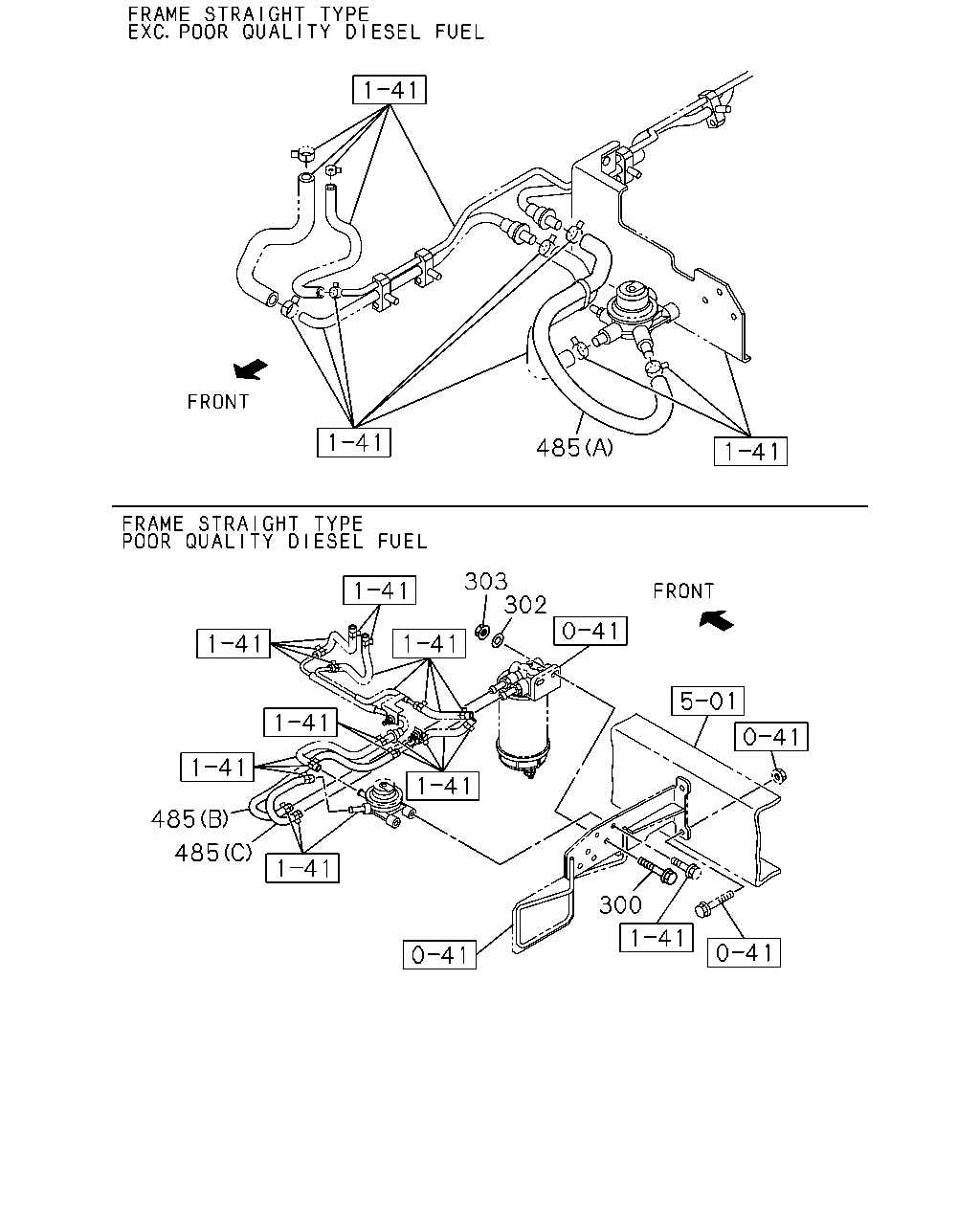

485 303 302 300 485 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1012-1303	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1304-	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1304-		●
300	03.162 BOLT; BRKT TO BODY 4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1012-1303	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1304-	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1304-		●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1012-1303	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1304-	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91180-110-0	02	1	1304-		●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1012-1303	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	1304-	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98099-503-0	01	1	1304-		●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1012-1303	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	1304-	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (C)	8-98105-710-0	01	1	1304-		●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98041-728-0	01	1	1012-	●
485	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1012-	●
485	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-	●

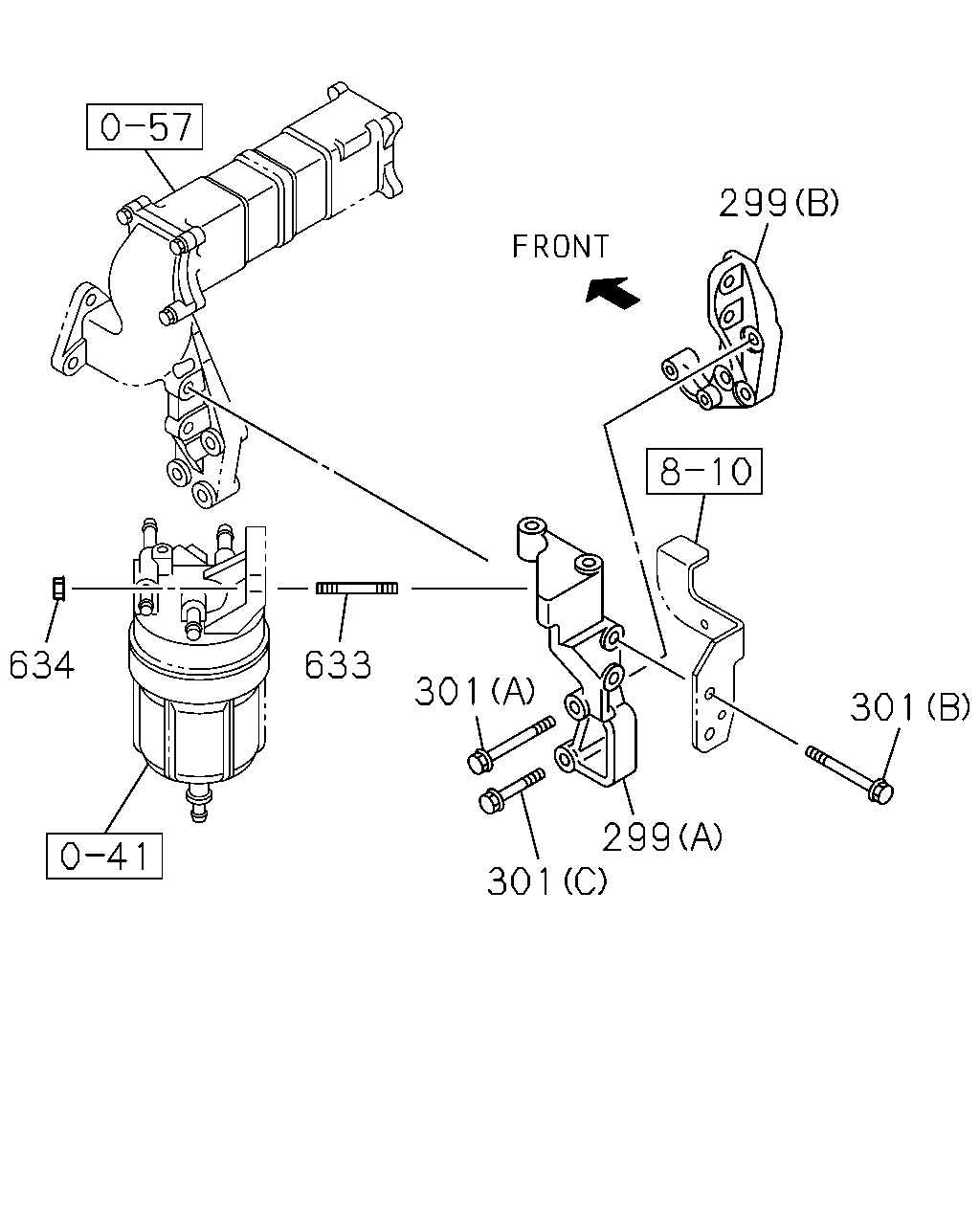

299 634 633 301 301 299 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (A)	8-98023-175-3	01	1	1012-1303	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (A)	8-98023-175-3	01	1	1304-	●	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (B)	8-98074-132-1	01	1	1012-1303	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ) (B)	8-98074-132-1	01	1	1304-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1012-1303	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1304-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1012-1303	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1304-	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 09.181 (C) M12X80	0-28151-280-0	01	1	1012-1303	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 09.181 (C) M12X80	0-28151-280-0	01	1	1304-	●	●
633	03.162 STUD; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.275 M8X25 L=37	0-41010-825-0	02	1	1012-1303	●
633	03.162 STUD; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.275 M8X25 L=37	0-41010-825-0	02	1	1304-	●	●
634	03.162 NUT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
634	03.162 NUT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
