Sayfa 1-01 - Isuzu EPC

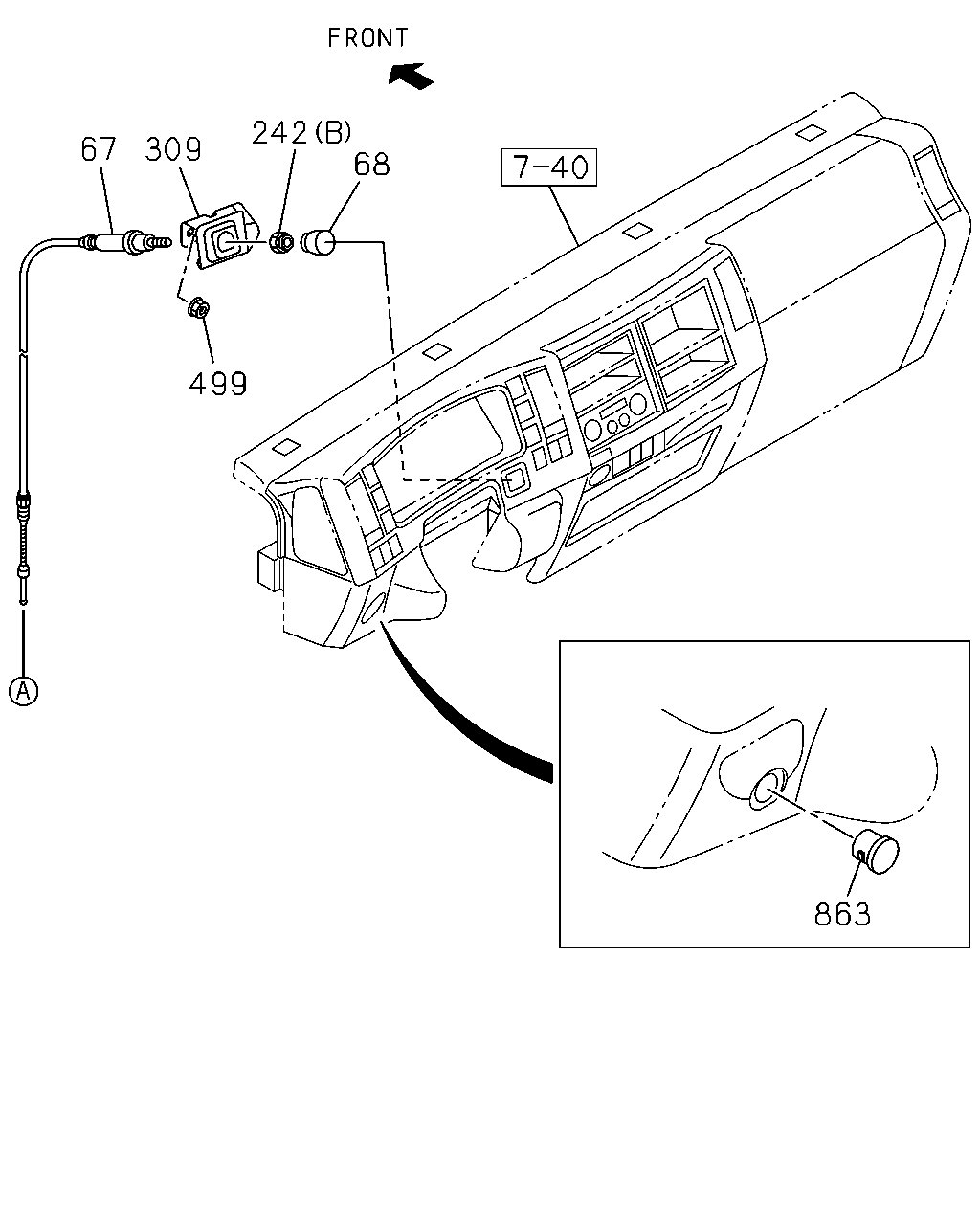

242 68 67 309 499 863

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH)	8-98124-109-3	01	1	1012-	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH)	8-97853-765-1	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 4HG1 ENG(RJH) (B) M18	8-97853-233-0	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1012-1303	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1304-	●	●
309	03.483 BRACKET; IDLE CONT CABLE 4HG1 ENG(RJH)	8-98124-979-1	01	1	1012-	●
499	03.483 NUT; IDLE CONT CABLE 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
863	03.463 COVER; SENSOR 4HG1 ENG(RJH) GRAY	8-97408-816-0	01	1	1012-	●

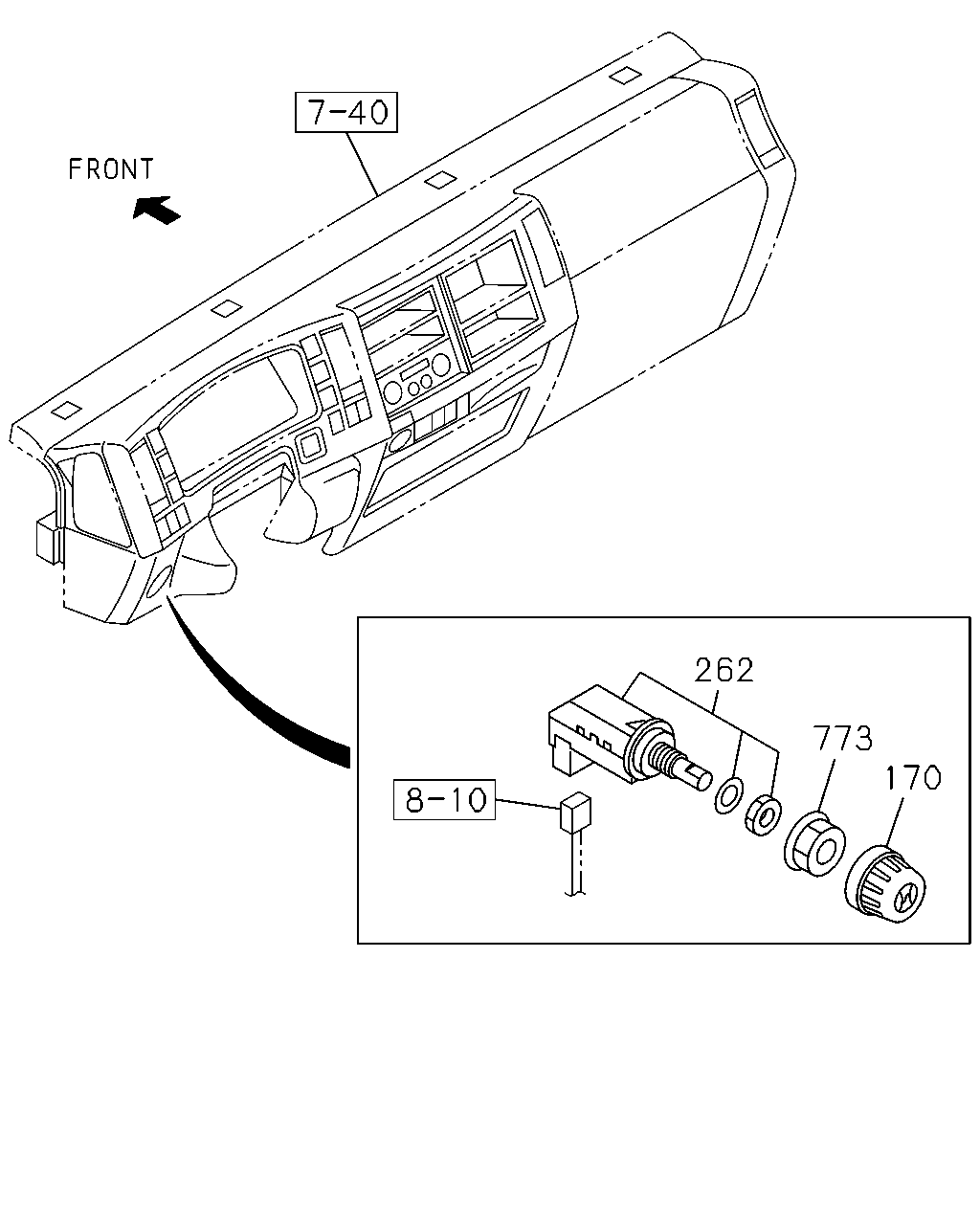

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	03.480 KNOB	8-98013-420-0	01	1	1012-1012	●
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-98013-420-0	01	1	1101-1303	●
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-98013-420-0	01	1	1304-	●	●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-98013-418-0	01	1	1012-1303	●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-98013-418-0	01	1	1304-	●	●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	1012-1303	●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	1304-	●	●

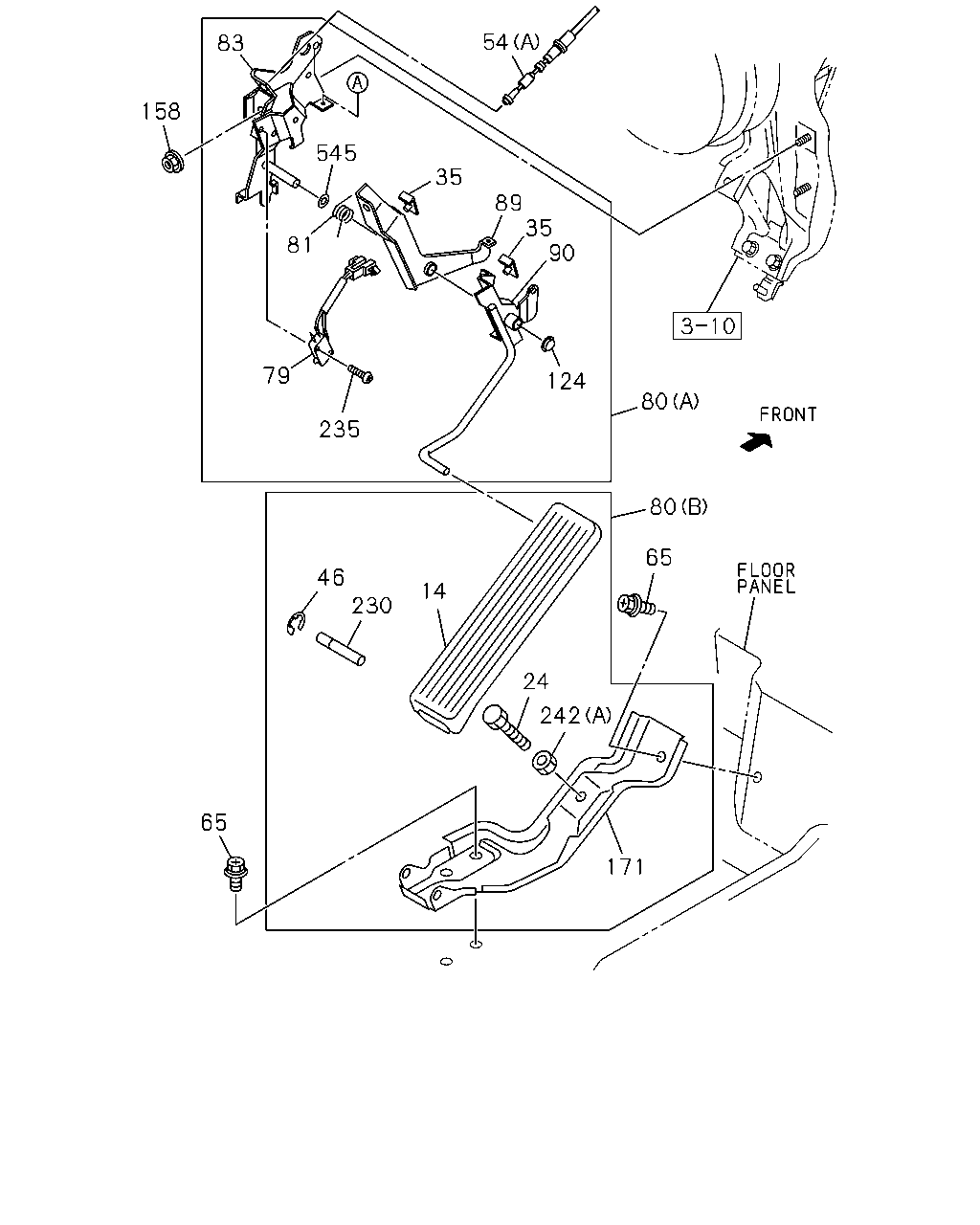

54 83 158 545 35 89 35 90 81 79 124 80 235 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-1303	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1304-	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	1012-1303	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	1304-	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH)	8-97302-305-0	01	1	1012-	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-1303	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1304-	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	1012-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2758	8-98099-703-4	01	1	1012-	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1012-1303	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1304-	●	●
79	03.451 SWITCH; ACCEL PEDAL 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.636	8-97855-192-0	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1304-	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A)	8-98038-417-2	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (A)	8-98128-704-1	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1304-	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH)	8-98031-665-0	01	1	1012-	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1012-1303	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1304-	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-98093-897-0	01	1	1012-	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH)	8-97857-617-4	01	1	1012-	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH)	8-98093-899-1	01	1	1012-	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-1303	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1304-	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1012-	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-1303	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1304-	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1012-1303	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1304-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1012-1303	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1304-	●	●
235	03.452 SCREW; PEDAL TO SW 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING	0-71340-316-0	02	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 4HG1 ENG(RJH) (B) M18	8-97853-233-0	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1012-1303	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1304-	●	●
545	03.463 WASHER; NYLON 4HG1 ENG(RJH) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	1012-	●

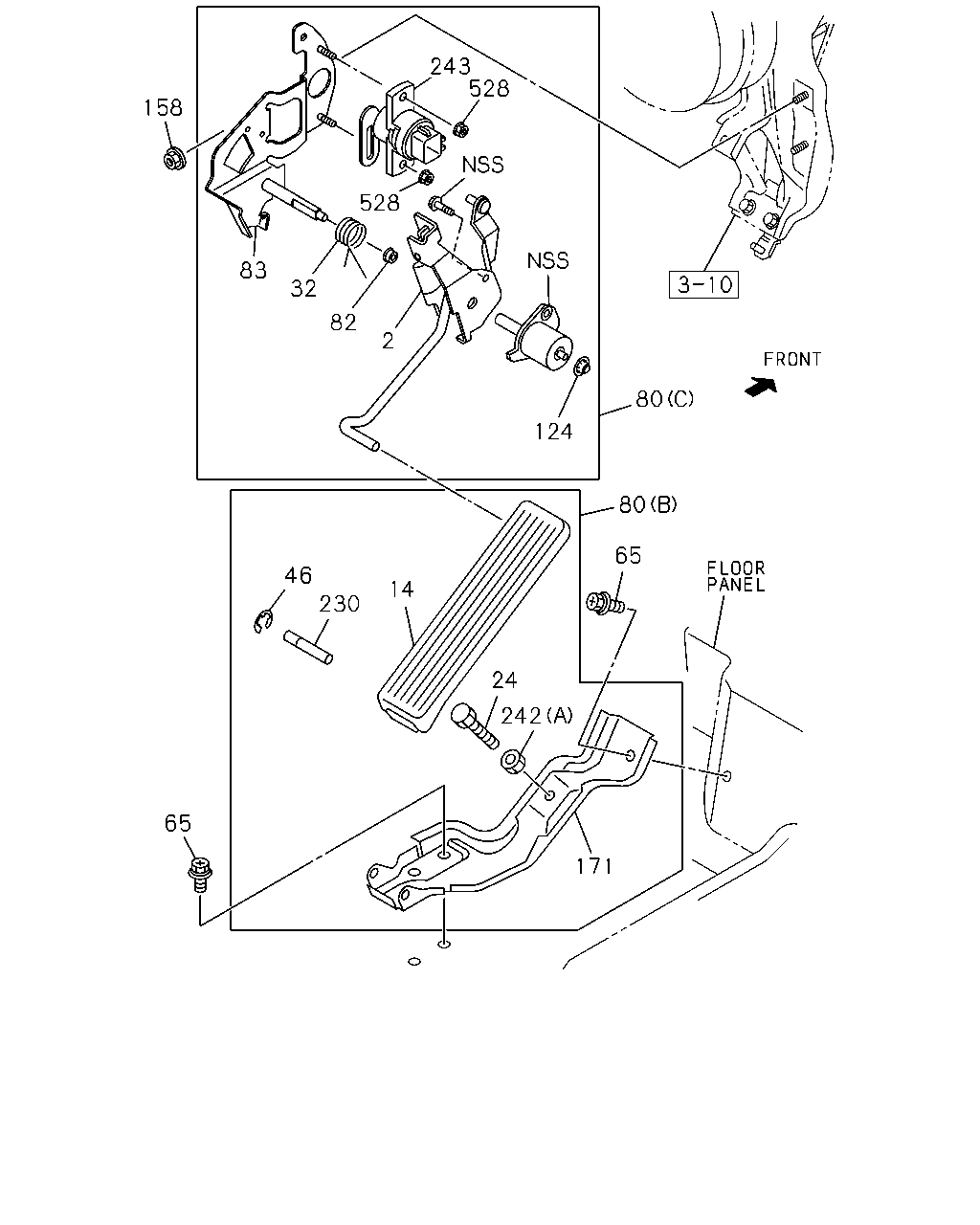

243 528 158 528 83 32 82 2 80 124 80 65 46 14 230 24 242 65 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.454 LEVER; ENG CONT 4HK1-TCN ENG(RDQ)	8-98002-158-2	01	1	1012-1303	●
2	03.454 LEVER; ENG CONT 4HK1-TCN ENG(RDQ)	8-98002-158-2	01	1	1304-	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-1303	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1304-	●	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	1012-1303	●
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE	8-98049-562-0	01	1	1304-	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-98031-665-0	01	1	1012-1303	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-98031-665-0	01	1	1304-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-1303	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1304-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1012-1303	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1304-	●	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97387-358-3	01	1	1304-	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A)	8-98038-417-2	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> (A)	8-98128-704-1	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1304-	●	●
82	03.463 BUSHING; ENG CONT LVR 4HK1-TCN ENG(RDQ)	8-97581-053-0	01	1	1012-1303	●
82	03.463 BUSHING; ENG CONT LVR 4HK1-TCN ENG(RDQ)	8-97581-053-0	01	1	1304-	●	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1012-1303	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1304-	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-98093-897-0	01	1	1012-	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-1303	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1304-	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1012-	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-1303	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1304-	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1012-1303	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1304-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1012-1303	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1304-	●	●
242	03.483 NUT; ACCEL PEDAL 4HG1 ENG(RJH) (B) M18	8-97853-233-0	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1012-1303	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE	8-98040-024-0	01	1	1304-	●	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-98131-263-0	01	1	1012-1303	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-98131-263-0	01	1	1304-	●	●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	1012-1303	●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	1304-	●	●

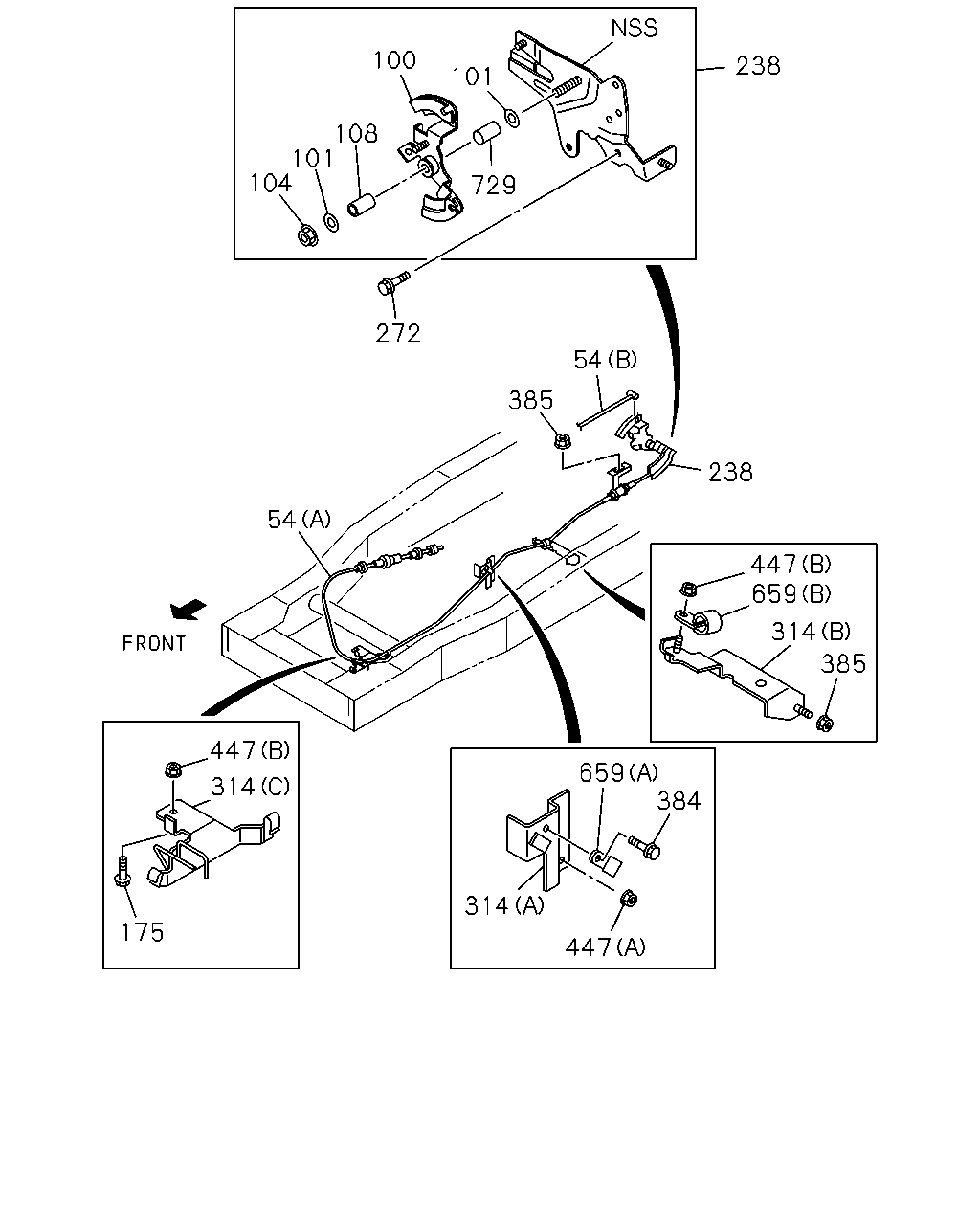

100 238 101 108 101 104 729 272 54 385 238 54 447 659 314 385 447 659 384 314 314 175 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	1012-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2758	8-98099-703-4	01	1	1012-	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	1012-	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	1012-	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	1012-	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
238	03.463 LEVER; ACCEL CONT 4HG1 ENG(RJH)	8-97118-729-0	01	1	1012-	●
272	03.454 BOLT; LEVER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (A)	8-98100-387-1	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (B)	8-98120-569-1	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (C)	8-98146-419-1	01	1	1012-	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1 ENG(RJH) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
385	03.481 NUT; CLIP 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
447	03.452 NUT; BRKT,CONT WIRE 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●
447	03.452 NUT; BRKT,CONT WIRE 4HG1 ENG(RJH) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1012-	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 04.785 (A) ID=16 L=28	0-95235-552-0	01	1	1012-	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
