◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#5397) — 36 parça

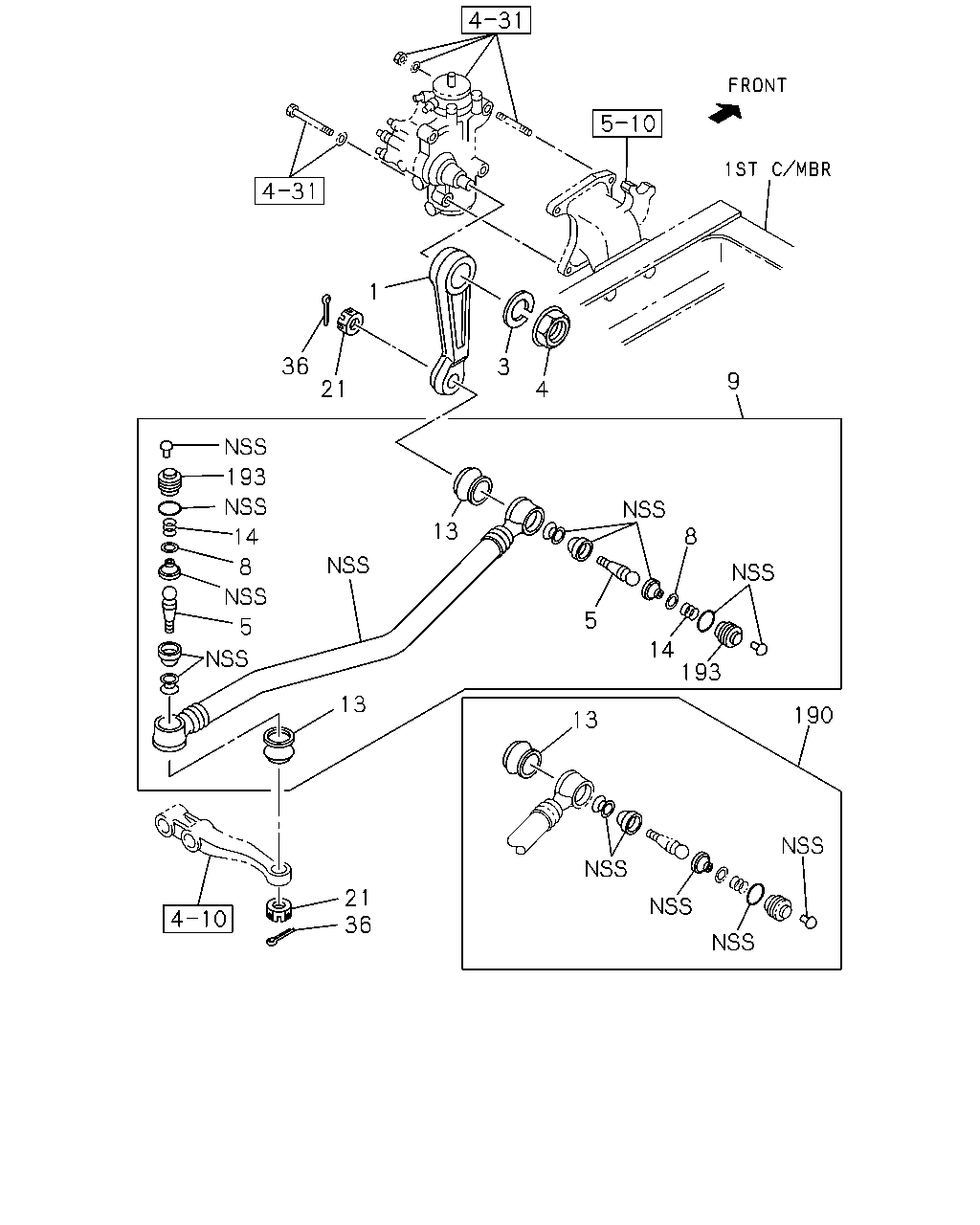

çizim 39658
1 36 3 9 21 4 193 13 8 14 8 5 5 14 193 13 190 13 21 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; PITMAN,STRG 1-44341-443-0 01 1 9603-9901 ● ● ●
1 ARM; PITMAN,STRG 1-44341-443-0 01 1 9902-9904 ● ●
1 ARM; PITMAN,STRG 1-44341-443-0 01 1 9905- ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9603-9901 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9902-9904 ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9905- ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9603-9901 ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9902-9904 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9905- ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9603-9901 ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9902-9904 ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 9905- ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9603-9901 ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9902-9904 ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9905- ● ● ●
9 LINK; DRAG 1-44380-151-0 01 1 9603-9901 ● ● ●
9 LINK; DRAG 1-44380-151-1 01 1 9902-9904 ● ●
9 LINK; DRAG 1-44380-151-1 01 1 9905- ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9603-9901 ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9902-9904 ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 9905- ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9603-9901 ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9902-9904 ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9905- ● ● ●
21 NUT; LK,JOINT BALL
W/SLOTTED M24 SLOTTED 		1-09442-020-0 02 1 9603-9901 ● ● ●
21 NUT; LK,JOINT BALL
W/SLOTTED M24 SLOTTED 		1-09442-020-0 02 1 9902-9904 ● ●
21 NUT; LK,JOINT BALL
W/SLOTTED M24 SLOTTED 		1-09442-020-0 02 1 9905- ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9603-9901 ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9902-9904 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9905- ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9603-9901 ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9902-9904 ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9905- ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9603-9901 ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9902-9904 ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
