0-52 — OIL AND VACUUM PIPING; ENGINE (#53969) — 35 parça
çizim 175183
3 3 3 2 1 3 2 202 89 202 86 202 89 46 83 202 46 27 340
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6 		8-97331-137-1 01 1 1102- ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
(A) M10X21 FLANGE 		8-97372-239-0 01 1 1012- ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 1012- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 1012- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012- ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1012- ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ●
202 01.531 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 1012- ●

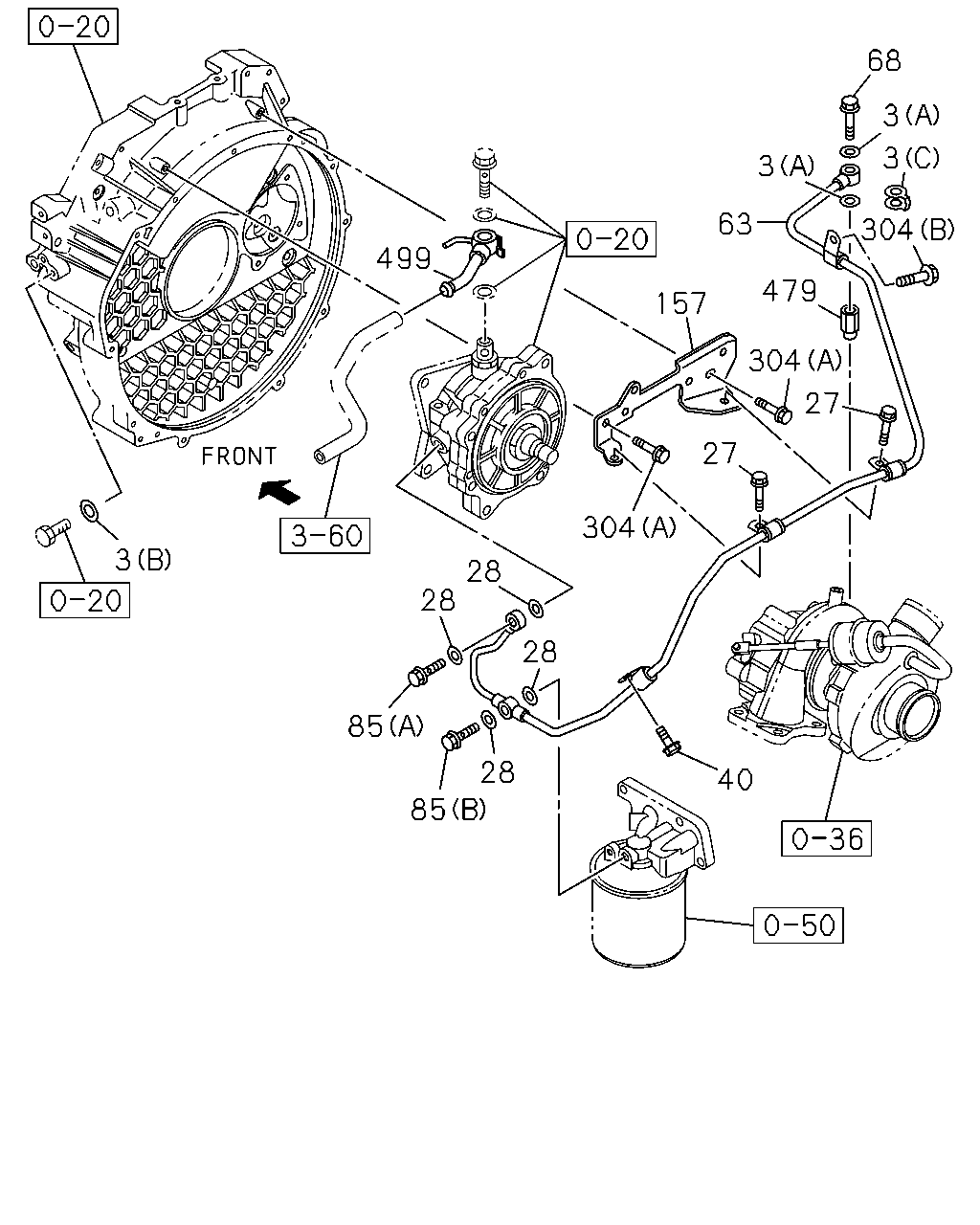

çizim 175185
3 499 157 63 3 68 3 3 304 479 304 27 27 304 28 28 28 85 28 85 40
BalonParca AdiParca NoAdetTipApplied Date A B
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6 		8-97331-137-1 01 1 1102- ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
40 01.531 BOLT; OIL PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98092-070-0 01 1 1012- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-1 01 1 1012- ●
85 01.531 BOLT; EYE,OIL PIPE FIX
(A) M10X22 		1-09675-028-0 01 1 1012- ●
85 01.531 BOLT; EYE,OIL PIPE FIX
(B) M10X28 		8-98037-823-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-98077-403-0 01 1 1012- ●
304 01.540 BOLT; BRKT,OIL PIPE
00.029 (A) M10X16 FLANGE 		0-28151-016-0 02 1 1012- ●
304 01.540 BOLT; BRKT,OIL PIPE
01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 1012- ●
499 04.681 PIPE; VACUUM 8-98075-832-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
