◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#53967) — 34 parça

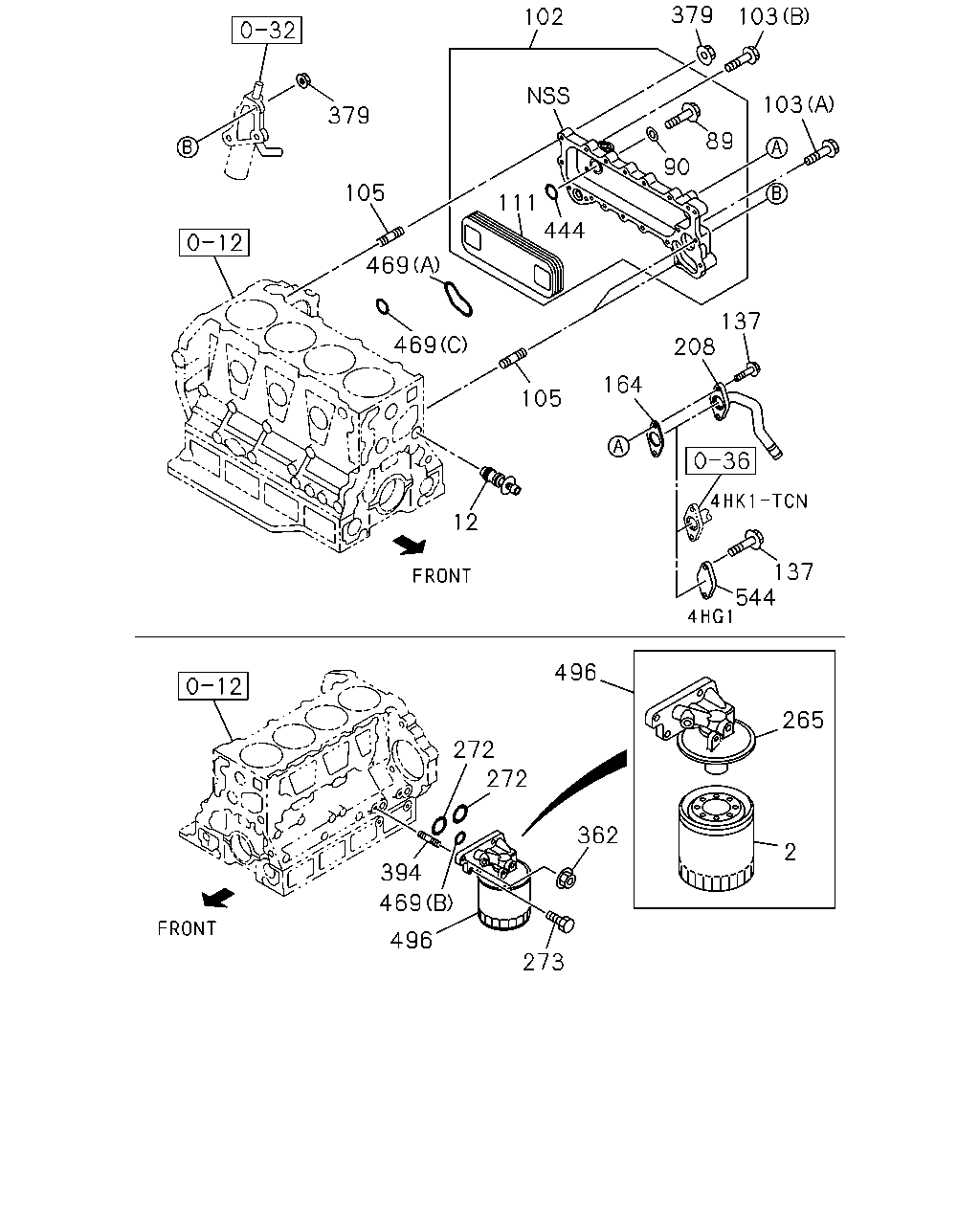

çizim 175184
379 103 102 103 379 89 90 105 111 444 469 137 208 469 164 105 12 137 544 496 265 272 272 362 2 394 469 496 273
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER 8-97148-270-1 01 1 1012- ● ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-031-0 01 1 1012- ● ●
12 01.540 VALVE ASM; BYPASS 8-97013-566-2 01 1 1012- ● ●
89 01.540 BOLT; ELEMENT TO CASE
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 1012-1211 ●
89 01.540 BOLT; ELEMENT TO CASE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1012-1211 ●
89 01.540 BOLT; ELEMENT TO CASE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1212- ● ●
90 01.540 GASKET; BOLT,OIL COOLER
01.550 		1-21729-043-0 04 1 1012- ● ●
102 01.540 COOLER ASM; OIL 8-97385-200-6 01 1 1012- ●
102 01.540 COOLER ASM; OIL 8-98085-312-5 01 1 1012- ●
103 01.540 BOLT; OIL COOLER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 07 1 1012- ●
103 01.540 BOLT; OIL COOLER
03.162 (B) M8X35 FLANGE 		0-28050-835-0 07 1 1012- ●
103 01.540 BOLT; OIL COOLER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 08 1 1012- ●
103 01.540 BOLT; OIL COOLER
03.162 (B) M8X35 FLANGE 		0-28050-835-0 08 1 1012- ●
105 01.540 STUD; OIL COOLER
M8X52 L=63 		8-97016-314-0 03 1 1012- ● ●
111 01.540 CORE; OIL COOLER 8-97334-101-1 01 1 1012- ●
111 01.540 CORE; OIL COOLER 8-97334-100-2 01 1 1012- ●
137 01.840 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ●
164 01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-684-0 01 1 1012- ● ●
208 01.540 PIPE; WATER,HTR 8-97146-519-0 01 1 1012- ●
265 01.837 BODY; OIL FILTER 8-97096-677-4 01 1 1012- ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 02 1 1012- ● ●
273 01.840 BOLT; OIL FILTER
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ●
273 01.840 BOLT; OIL FILTER
M10X30 		0-59331-030-0 03 1 1012- ●
362 01.837 NUT; OIL FILTER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ●
362 01.837 NUT; OIL FILTER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
379 01.540 NUT; OIL COOLER
01.062 M8 FLANGE 		0-91180-108-0 03 1 1012- ● ●
394 01.837 STUD; OIL FILTER
M10X25 L=48.5 		0-49241-025-0 02 1 1012- ●
394 01.837 STUD; OIL FILTER
M10X25 L=48.5 		0-49241-025-0 01 1 1012- ●
444 01.550 GASKET; ELEMENT TO BODY 8-97384-130-0 02 1 1012- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94338-878-1 01 1 1012- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8 		8-94399-339-0 01 1 1012- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE 		8-98045-447-0 01 1 1012- ● ●
496 01.835 FILTER ASM; OIL 8-97148-268-4 01 1 1012- ● ●
544 08.845 COVER; HEATER 8-97147-028-0 01 1 1012- ●
