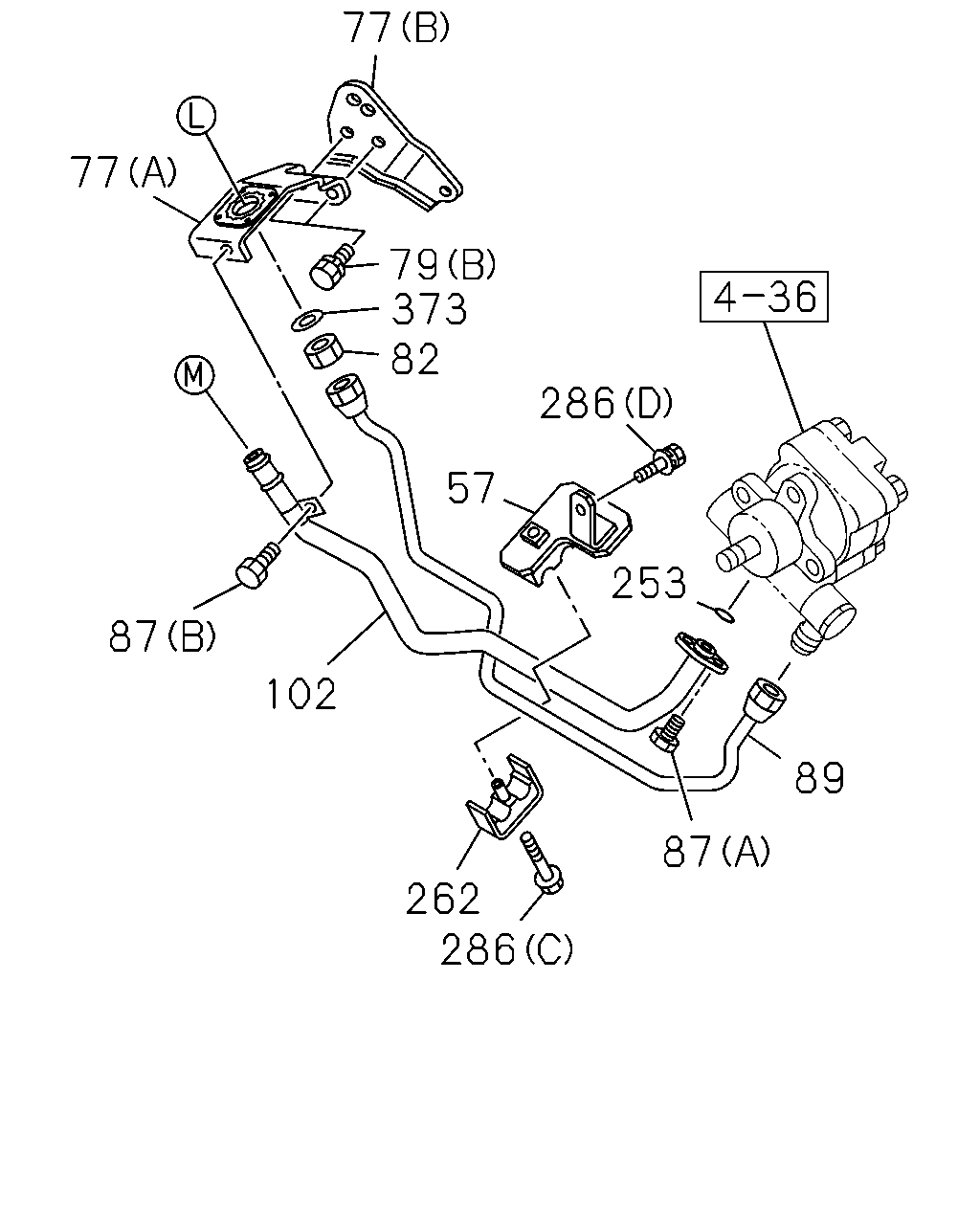

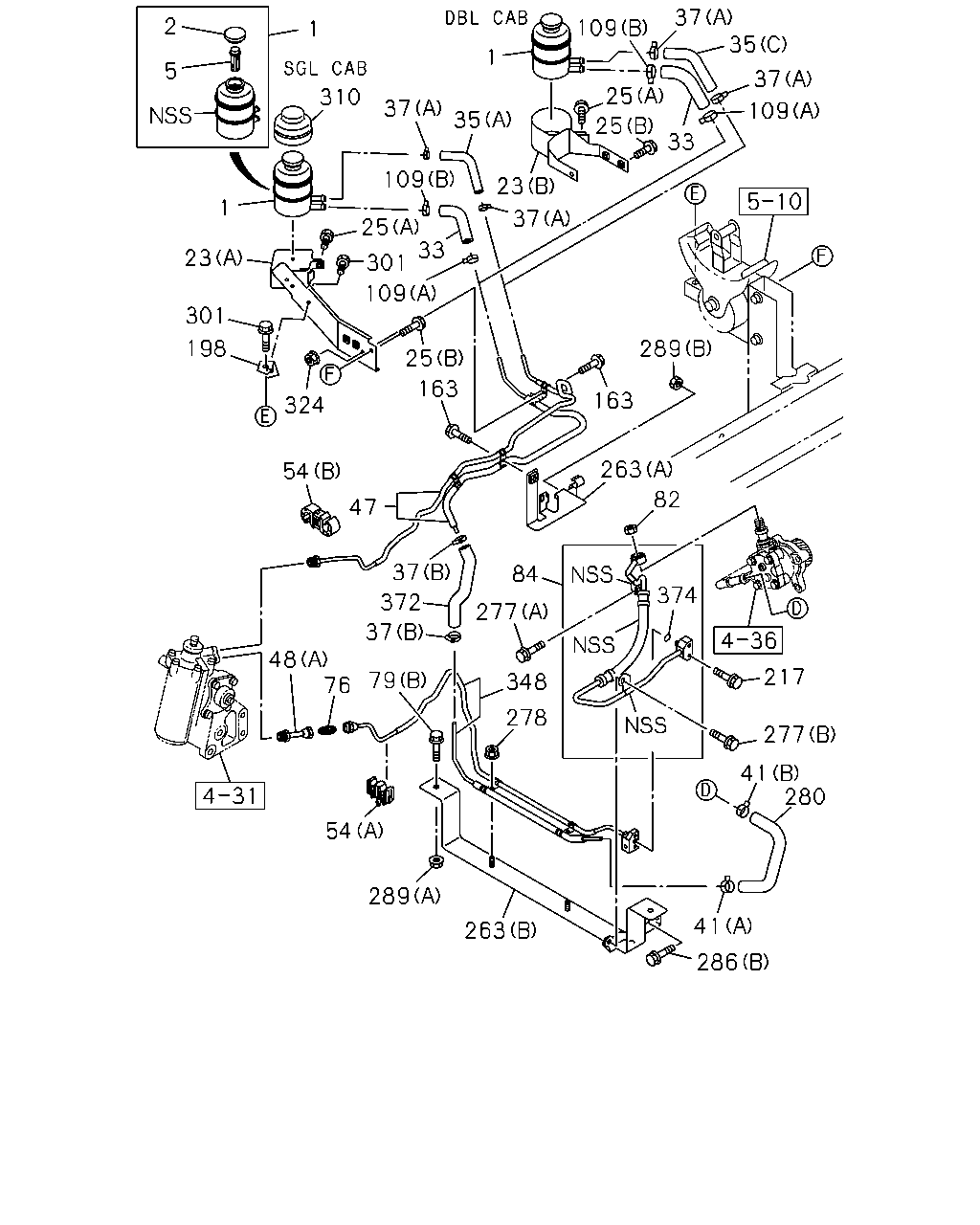

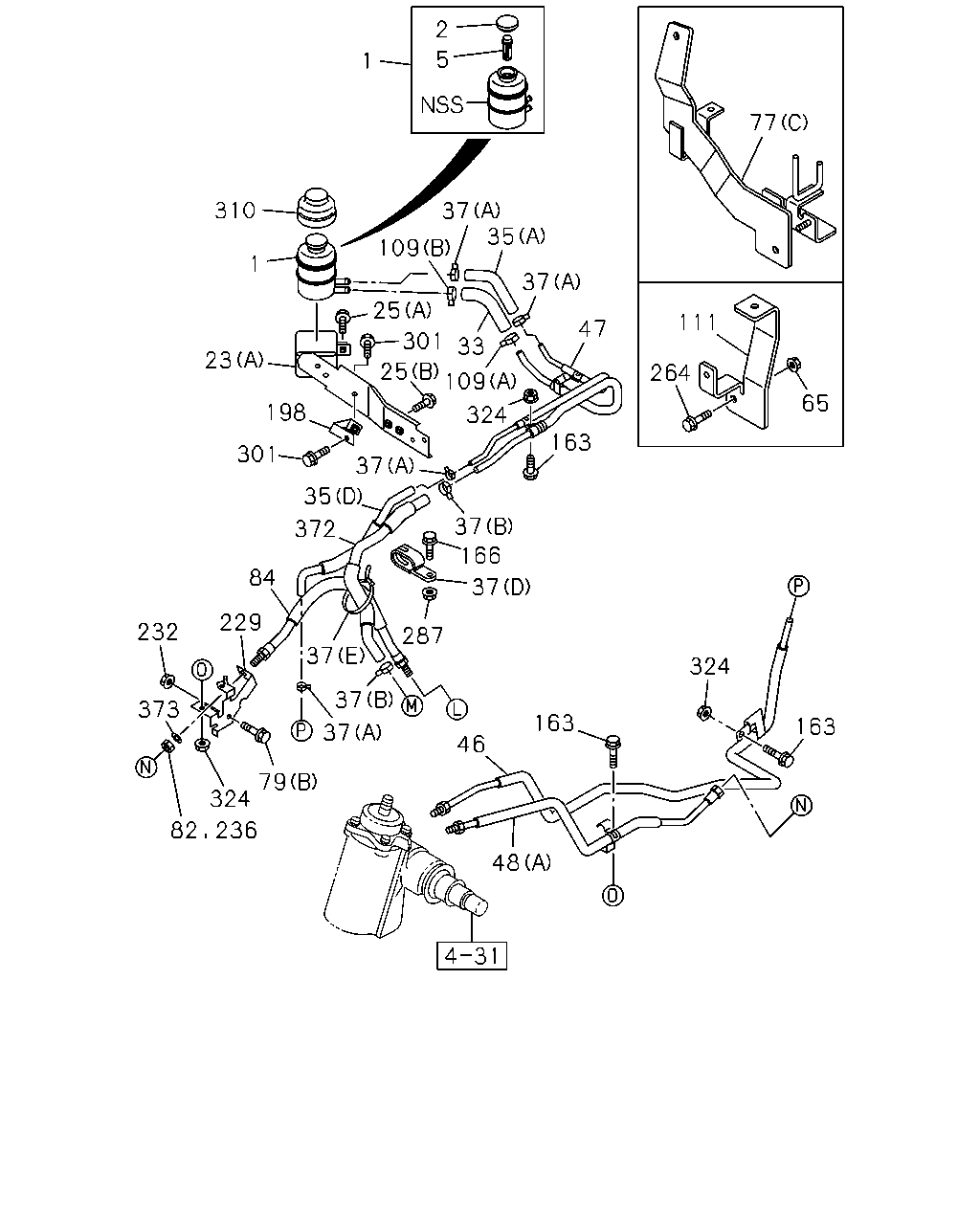

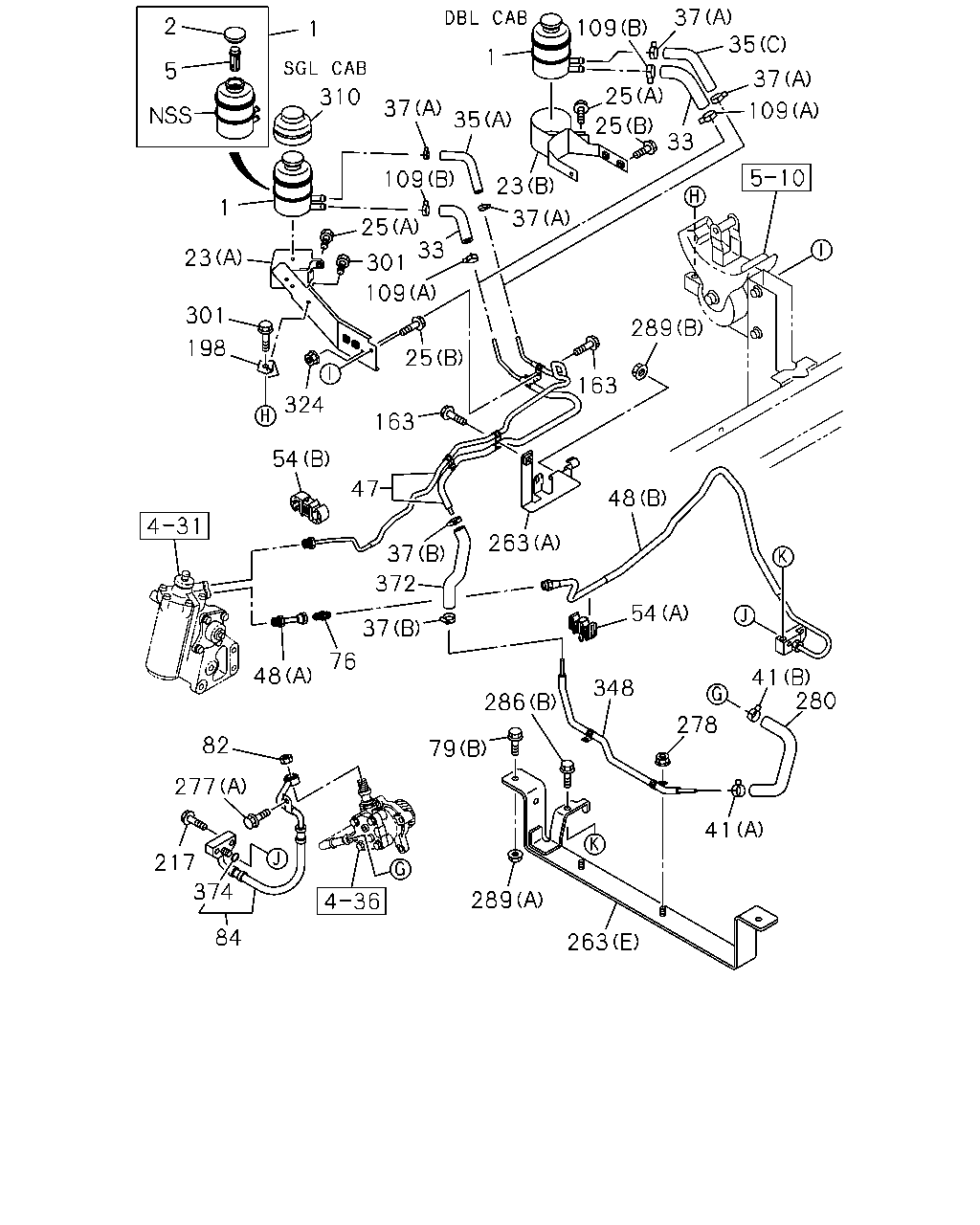

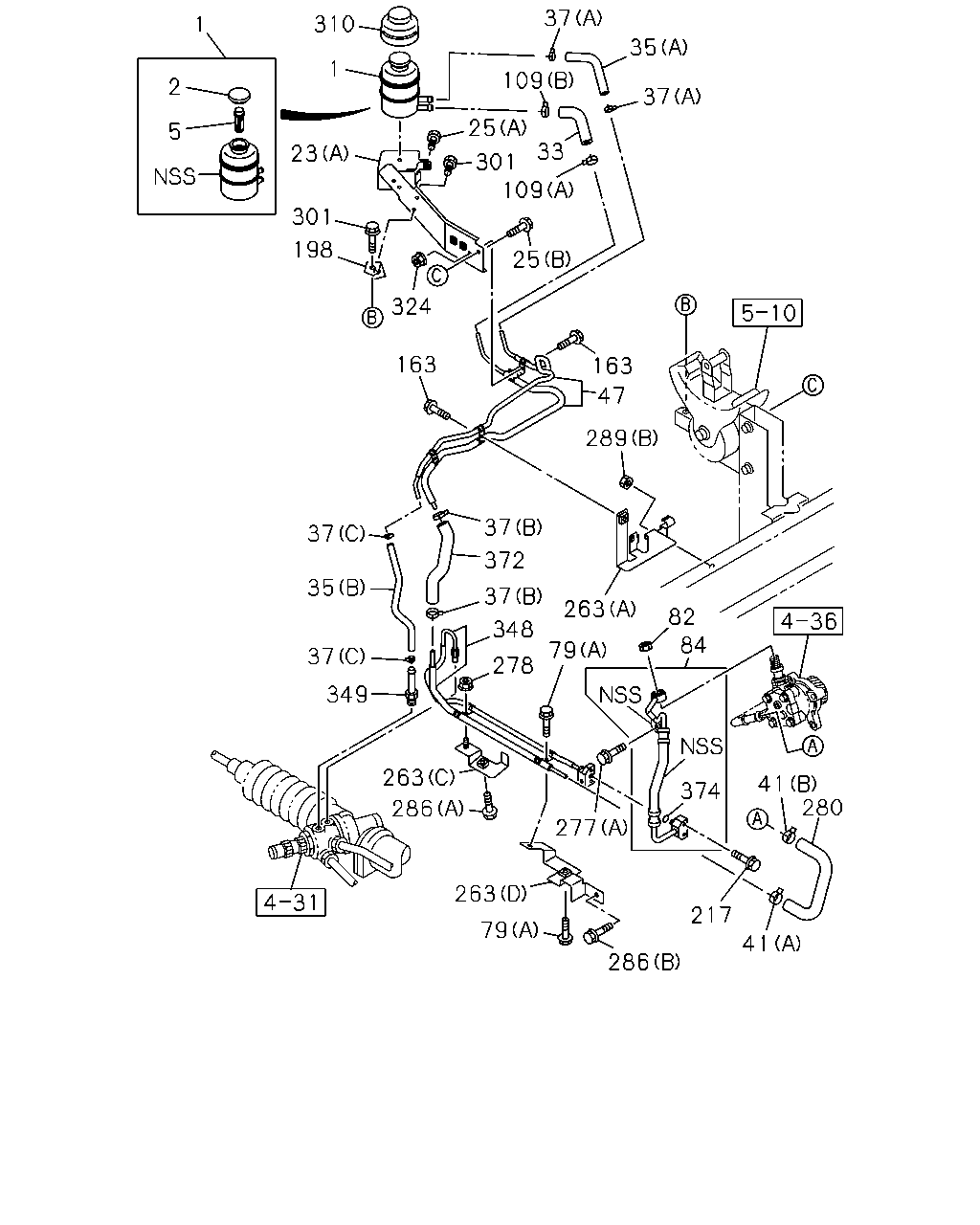

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#53964) — 671 parça

1 2 5 310 1 109 37 37 35 25 25 23 33 37 37 35 25 109 1 23 301 324 198 54 25 301 163 47 163 109 33 289 263 37 372 37 48 76 79 84 374 85 109 277 217 277 41 280 41 278 348 54 289 263 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0710-0803	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0710-0803	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0710-0803	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	0710-	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	0804-			●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0710-0803	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0804-			●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0710-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-			●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98117-895-0	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) (B)	8-98054-272-1	01	1	0710-0803	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98054-272-1	01	1	0804-0804	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98054-272-1	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0710-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (D)	8-98090-804-2	01	1	0804-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	0804-1011			●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	1012-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0710-0803	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0804-1005	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-			●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (E) L=250	5-09707-030-1	01	1	0804-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) (B) ID=21	8-94242-034-0	01	1	0710-0803	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	0912-	●	●	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0710-0803	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0804-	●	●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-224-0	01	1	0710-0803	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-224-0	01	1	0804-1011	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98064-711-3	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98174-014-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-227-0	01	1	0710-0803		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-227-0	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98054-228-0	01	1	0804-			●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A)	8-98063-796-1	01	1	0804-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB) (A)	8-98041-027-0	01	1	0710-0803		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	0804-	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-105-0	01	1	1401-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB) (B) ID=12 & 12	1-09709-280-1	01	1	0803-0803		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	0805-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0710-0803		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0804-	●	●	●	●
76	06.673 UNION; OIL PIPE 4JJ1-TCS ENG(LFB) M16 STRAIGHT L=42	0-92123-010-0	01	1	0710-0803		●
76	06.673 UNION; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	0804-	●	●	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0804	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0809	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0810-0909	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.206 (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0710-0803		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98027-970-3	01	1	0710-0803	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	0804-	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	0804-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98032-376-4	01	1	0710-0803		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	0804-1312	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) (A) ID=21	8-94242-034-0	01	1	0907-0911			●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 04.681 (A) ID=21	8-98150-355-0	01	1	0912-			●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003			●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-0906	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-			●	●
163	06.671 BOLT; OIL PIPE 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	0710-0803	●
198	06.672 STAY; OIL TANK,POWER STEERING AUSTRALIA EQUIPMENT(B13)	8-98082-763-0	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0710-0803		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. AUSTRALIA EQUIPMENT(B13)	8-98011-885-1	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-		●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-0803	●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0804-	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (C)	8-98028-334-2	01	1	0710-0803	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	0804-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (D)	8-98028-335-2	01	1	0710-0803	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	0804-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	0710-0803	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	0804-	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (B)	8-98032-325-2	01	1	0710-0803		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	0804-1312	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0710-0803		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0804-1002	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●	●	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0803		●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB)	8-98027-972-0	01	1	0710-0803	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB)	8-98041-245-2	01	1	0710-0803		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	0804-	●	●	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.034 (D) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0803	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-0803		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0710-0803		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0804-	●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0710-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-			●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB)	8-98027-337-2	01	1	0710-0803	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-337-2	01	1	0804-1012	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1101-	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB)	8-98085-486-1	01	1	0710-0803		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	0804-1312	●	●	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-	●	●	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98090-807-1	01	1	0804-1101	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1102-	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98054-269-0	01	1	0710-0803	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	0804-1312	●	●	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	0710-0803	●	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	0804-	●	●	●	●

37 310 1 35 1 109 2 37 25 5 33 23 301 109 301 198 25 324 163 163 47 289 37 37 372 35 37 263 82 84 348 79 37 278 349 263 41 280 374 286 277 263 217 79 41 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0710-0803	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0710-0803	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0710-0803	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	0710-	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	0804-			●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0710-0803	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0804-			●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0710-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-			●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98117-895-0	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) (B)	8-98054-272-1	01	1	0710-0803	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98054-272-1	01	1	0804-0804	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98054-272-1	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0710-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (D)	8-98090-804-2	01	1	0804-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	0804-1011			●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	1012-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0710-0803	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0804-1005	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-			●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (E) L=250	5-09707-030-1	01	1	0804-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) (B) ID=21	8-94242-034-0	01	1	0710-0803	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	0912-	●	●	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0710-0803	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0804-	●	●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-224-0	01	1	0710-0803	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-224-0	01	1	0804-1011	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98064-711-3	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98174-014-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-227-0	01	1	0710-0803		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-227-0	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98054-228-0	01	1	0804-			●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0804	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0809	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0810-0909	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.206 (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0710-0803		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	02	1	0804-0901	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	01	1	0902-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0710-0803	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98027-970-3	01	1	0710-0803	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	0804-	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	0804-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98032-376-4	01	1	0710-0803		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	0804-1312	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) (A) ID=21	8-94242-034-0	01	1	0907-0911			●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 04.681 (A) ID=21	8-98150-355-0	01	1	0912-			●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003			●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-0906	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-			●	●
163	06.671 BOLT; OIL PIPE 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	0710-0803	●
198	06.672 STAY; OIL TANK,POWER STEERING AUSTRALIA EQUIPMENT(B13)	8-98082-763-0	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0710-0803		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. AUSTRALIA EQUIPMENT(B13)	8-98011-885-1	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-		●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-0803	●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0804-	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (C)	8-98028-334-2	01	1	0710-0803	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	0804-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (D)	8-98028-335-2	01	1	0710-0803	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	0804-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	0710-0803	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	0804-	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (B)	8-98032-325-2	01	1	0710-0803		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	0804-1312	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0710-0803		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0804-1002	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●	●	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0803		●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB)	8-98027-972-0	01	1	0710-0803	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB)	8-98041-245-2	01	1	0710-0803		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	0804-	●	●	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.034 (D) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0803	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-0803		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0710-0803		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0804-	●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0710-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-			●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB)	8-98027-337-2	01	1	0710-0803	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-337-2	01	1	0804-1012	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1101-	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB)	8-98085-486-1	01	1	0710-0803		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	0804-1312	●	●	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-	●	●	●	●
349	06.671 PIPE; OIL,P/S RETURN 4JJ1-TCS ENG(LFB)	8-98008-162-1	01	1	0710-0803	●
349	06.671 PIPE; OIL,P/S RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98008-162-1	01	1	0804-	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98090-807-1	01	1	0804-1101	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1102-	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98054-269-0	01	1	0710-0803	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	0804-1312	●	●	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	0710-0803	●	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	0804-	●	●	●	●

1 2 5 77 111 264 65 37 109 310 35 1 25 23 198 301 37 35 372 84 229 232 373 324 82 236 79 37 37 37 46 48 163 324 163 287 301 33 25 324 109 37 47 163 37 37 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0710-0803	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0710-0803	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0710-0803	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	0710-	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	0804-			●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0710-0803	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0804-			●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0710-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-			●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98117-895-0	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) (B)	8-98054-272-1	01	1	0710-0803	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98054-272-1	01	1	0804-0804	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98054-272-1	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0710-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (D)	8-98090-804-2	01	1	0804-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	0804-1011			●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	1012-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0710-0803	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0804-1005	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-			●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (E) L=250	5-09707-030-1	01	1	0804-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1-TC ENG(RDT)	8-98063-797-2	01	1	0804-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-224-0	01	1	0710-0803	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-224-0	01	1	0804-1011	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98064-711-3	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98174-014-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-227-0	01	1	0710-0803		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-227-0	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98054-228-0	01	1	0804-			●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A)	8-98063-796-1	01	1	0804-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB) (A)	8-98041-027-0	01	1	0710-0803		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	0804-	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-105-0	01	1	1401-	●	●	●	●
65	06.672 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (B)	8-97075-615-0	01	1	0804-0804	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (B)	8-97075-615-0	01	1	0804-0809	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (B)	8-97075-615-0	01	1	0810-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (A)	8-97208-424-0	01	1	0804-0804	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (A)	8-97208-424-0	01	1	0804-0809	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (A)	8-97208-424-0	01	1	0810-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (C)	8-98090-755-1	01	1	0804-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0804	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0809	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0810-0909	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.206 (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0710-0803		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	02	1	0804-0901	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	01	1	0902-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0710-0803	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98027-970-3	01	1	0710-0803	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	0804-	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	0804-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98032-376-4	01	1	0710-0803		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	0804-1312	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) (A) ID=21	8-94242-034-0	01	1	0907-0911			●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 04.681 (A) ID=21	8-98150-355-0	01	1	0912-			●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003			●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB>	8-98252-357-0	01	1	1312-	●	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB>	8-98252-357-0	01	1	1312-	●	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB>	8-98252-357-0	01	1	1312-	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT)	8-98095-026-1	01	1	0804-1311	●	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB>	8-98095-026-1	01	1	1312-	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD)	8-98095-026-1	01	1	1312-	●
111	06.672 BRACKET; OIL PIPE 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB>	8-98095-026-1	01	1	1312-		●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-0906	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-			●	●
163	06.671 BOLT; OIL PIPE 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
166	06.672 BOLT; CLIP 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	0710-0803	●
198	06.672 STAY; OIL TANK,POWER STEERING AUSTRALIA EQUIPMENT(B13)	8-98082-763-0	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0710-0803		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. AUSTRALIA EQUIPMENT(B13)	8-98011-885-1	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-		●
229	06.606 BRACKET; HOSE,POWER STRG 4JB1-TC ENG(RDT)	8-98063-795-1	01	1	0804-	●	●
232	06.672 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
236	06.672 NUT; FLEX HOSE,P/S PIPING 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	01	1	0902-	●	●
264	06.672 BOLT; PIPE BRKT 4JB1-TC ENG(RDT) 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0804-1402	●	●
264	06.672 BOLT; PIPE BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1403-	●	●
287	06.672 NUT; CLIP 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0710-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-			●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98090-807-1	01	1	0804-1101	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1102-	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98054-269-0	01	1	0710-0803	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	0804-1312	●	●	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0804-0906	●	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●	●

1 2 5 310 1 23 301 324 109 198 301 33 25 109 37 1 35 23 163 289 25 163 47 54 372 263 37 48 37 76 82 277 217 374 84 289 263 79 286 348 278 41 280 41 54 48 37 109 25 25 109 33 37 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0710-0803	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0710-0803	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0804-	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0710-0803	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	0710-	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	0804-			●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0710-0803	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0804-			●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0710-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-			●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98117-895-0	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB) (B)	8-98054-272-1	01	1	0710-0803	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98054-272-1	01	1	0804-0804	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98054-272-1	01	1	0805-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0710-1011	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (D)	8-98090-804-2	01	1	0804-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	0804-1011			●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98054-265-0	01	1	1012-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0710-0803	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0804-1005	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0906	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-			●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0804-0906	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911			●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 08.846 (D) ID=24X2 L=25	1-09700-710-0	01	1	0804-	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (E) L=250	5-09707-030-1	01	1	0804-	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) (B) ID=21	8-94242-034-0	01	1	0710-0803	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.681 (B) ID=21	8-98150-355-0	01	1	0912-	●	●	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0710-0803	●	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	01	1	0804-	●	●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-224-0	01	1	0710-0803	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-224-0	01	1	0804-1011	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1012-	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98064-711-3	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT)	8-98174-014-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98054-227-0	01	1	0710-0803		●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-227-0	01	1	0804-1011	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98054-228-0	01	1	0804-			●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A)	8-98063-796-1	01	1	0804-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB) (A)	8-98041-027-0	01	1	0710-0803		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	0804-	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-105-0	01	1	1401-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB) (B) ID=12 & 12	1-09709-280-1	01	1	0803-0803		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	0805-	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0710-0803		●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0804-	●	●	●	●
76	06.673 UNION; OIL PIPE 4JJ1-TCS ENG(LFB) M16 STRAIGHT L=42	0-92123-010-0	01	1	0710-0803		●
76	06.673 UNION; OIL PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	0804-	●	●	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0804	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0809	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0810-0909	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.206 (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0710-0803		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	02	1	0804-0901	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	01	1	0902-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0710-0803	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98027-970-3	01	1	0710-0803	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	0804-	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	0804-	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98032-376-4	01	1	0710-0803		●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	0804-1312	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) (A) ID=21	8-94242-034-0	01	1	0907-0911			●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 04.681 (A) ID=21	8-98150-355-0	01	1	0912-			●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0710-0803	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0804-0906	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003			●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-0906	●	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-			●	●
163	06.671 BOLT; OIL PIPE 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	0710-0803	●
198	06.672 STAY; OIL TANK,POWER STEERING AUSTRALIA EQUIPMENT(B13)	8-98082-763-0	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0710-0803		●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. AUSTRALIA EQUIPMENT(B13)	8-98011-885-1	01	1	0804-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-		●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-0803	●	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0804-	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (C)	8-98028-334-2	01	1	0710-0803	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	0804-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (D)	8-98028-335-2	01	1	0710-0803	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	0804-	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (A)	8-98008-078-0	01	1	0710-0803	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	0804-	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) (B)	8-98032-325-2	01	1	0710-0803		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	0804-1312	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0710-0803		●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0804-1002	●	●	●	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●	●	●	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0803		●
278	06.670 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB)	8-98027-972-0	01	1	0710-0803	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB)	8-98041-245-2	01	1	0710-0803		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	0804-	●	●	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.034 (D) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0803	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-0803		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0710-0803		●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0804-	●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0710-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-0906	●	●
324	06.660 NUT; OIL PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
324	06.660 NUT; OIL PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-			●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB)	8-98027-337-2	01	1	0710-0803	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98027-337-2	01	1	0804-1012	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1101-	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB)	8-98085-486-1	01	1	0710-0803		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	0804-1312	●	●	●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-	●	●	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98090-807-1	01	1	0804-1101	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1102-	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98054-269-0	01	1	0710-0803	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-269-0	01	1	0804-1312	●	●	●	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	0710-0803	●	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	0804-	●	●	●	●

77 77 79 373 82 57 253 286 102 87 262 286 87 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
57	06.672 BRACKET; POWER STRG PIPE 4JB1-TC ENG(RDT)	8-97312-558-3	01	1	0804-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (B)	8-97075-615-0	01	1	0804-0804	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (B)	8-97075-615-0	01	1	0804-0809	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (B)	8-97075-615-0	01	1	0810-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (A)	8-97208-424-0	01	1	0804-0804	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (A)	8-97208-424-0	01	1	0804-0809	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (A)	8-97208-424-0	01	1	0810-	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (C)	8-98090-755-1	01	1	0804-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0804	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0804-0809	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0810-0909	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.206 (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0710-0803		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 (B) M12X30 FLANGE	0-28651-230-0	02	1	0804-	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	02	1	0804-0901	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 M16	8-94370-339-0	01	1	0902-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0710-0803	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0804-1303	●	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) (A) M8X14 FLANGE	8-98219-171-0	02	1	1304-	●	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) 00.206 (B) M6X20	8-94279-112-0	01	1	0804-	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JB1-TC ENG(RDT)	8-97312-556-0	01	1	0804-1303	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JB1-TC ENG(RDT)	8-98218-675-0	01	1	1304-	●	●
102	06.671 PIPE; SUCTION,P/S 4JB1-TC ENG(RDT)	8-97312-557-1	01	1	0804-1303	●	●
102	06.671 PIPE; SUCTION,P/S 4JB1-TC ENG(RDT)	8-98218-669-0	01	1	1304-	●	●
253	06.673 GASKET; OIL PIPE 4JB1-TC ENG(RDT) 06.609 ID=11.0	9-09561-111-0	01	1	0804-	●	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT)	8-97300-961-1	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) 00.034 (D) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0804-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0803	●	●
286	06.672 BOLT; CLIP,P/S HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●	●	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0804-0906	●	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
