4-31 — STEERING COLUMN AND SHAFT (#5396) — 342 parça

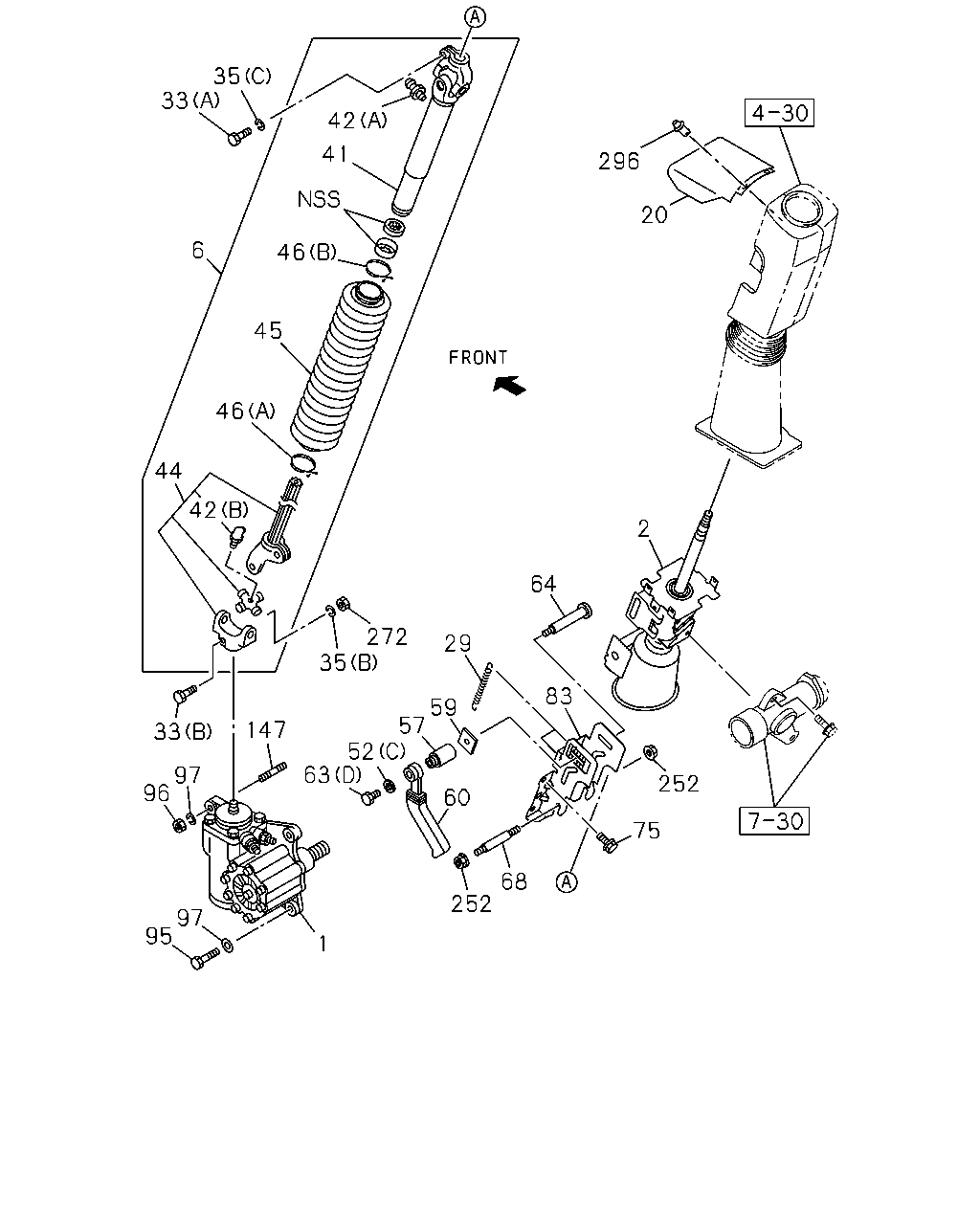

çizim 8466
35 33 42 41 296 20 6 46 45 46 44 42 2 64 272 35 29 83 59 57 52 63 147 33 97 96 252 60 75 68 252 97 95 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-845-0 01 1 9603-9705 ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRIGID ZONE KIT<YL3> 		1-44000-845-0 01 1 9706-9901 ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-861-2 01 1 9902-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> EXC. FRIGID ZONE KIT<YL3> 		1-44000-861-2 01 1 9905- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> 		1-44000-849-0 01 1 9706-9901 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-866-1 01 1 9902-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>,FRIGID ZONE KIT<YL3> 		1-44000-866-1 01 1 9905- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> 		1-44000-867-0 01 1 9905-0007 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-867-1 01 1 0008- ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9603-9804 ● ● ●
2 SHAFT ASM; STRG 1-44131-158-0 01 1 9805-9806 ● ● ●
2 SHAFT ASM; STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44130-740-0 01 1 9905- ● ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9807-9901 ● ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9902-9904 ● ●
2 SHAFT ASM; STRG
EXC. AIR BAG(TFQ) 		1-44130-689-0 01 1 9905- ● ● ●
6 SHAFT; STRG LWR 1-44135-301-0 01 1 9603-9804 ● ● ●
6 SHAFT; STRG LWR
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44135-315-0 01 1 9905- ● ● ●
20 COVER; STRG SHAFT 1-72438-121-2 01 1 9603-9901 ● ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9902-9904 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9905- ● ● ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9603-9804 ● ● ●
29 SPRING; COLUMN
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-136-0 02 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9603-9901 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9902-9904 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9603-9804 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-9901 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9902-9904 ● ●
33 BOLT; STRG SHAFT TO UNIT
EXC. AIR BAG(TFQ) (A) 		1-44139-153-0 01 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) SHAFT-YOKE UPPER 		1-44139-141-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9603-9804 ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805-9901 ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9902-9904 ● ●
35 WASHER; LK,STRG SHAFT
EXC. AIR BAG(TFQ) (A) 		1-44139-154-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9603-9901 ● ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9902-9904 ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
AIR BAG(TFQ) CAB UP +110MM<TGG> (C) 		1-44139-142-0 01 1 9905- ● ● ●
41 YOKE; SLEEVE,STRG 1-44135-303-0 01 1 9603-9804 ● ● ●
41 YOKE; SLEEVE,STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44135-304-0 01 1 9905- ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) M6 STRAIGHT 		9-09031-006-0 01 1 9603-9804 ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9804 ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) SLEEVE-YOKE M6 STRAIGHT 		9-09031-006-0 01 1 9905- ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
AIR BAG(TFQ) CAB UP +110MM<TGG> (B) UNIVERSAL PT1/8 ELBOW 		9-09031-210-0 01 1 9905- ● ● ●
44 SHAFT; SPLINE,STRG 1-44135-305-0 01 1 9603-9804 ● ● ●
44 SHAFT; SPLINE,STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44135-316-0 01 1 9905- ● ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9603-9804 ● ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-9901 ● ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9902-9904 ● ●
45 BOOT; STRG SHAFT
EXC. AIR BAG(TFQ) 		1-44139-155-0 01 1 9905- ● ● ●
45 BOOT; STRG SHAFT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44139-138-0 01 1 9905- ● ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9603-9804 ● ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9603-9804 ● ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-9901 ● ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9902-9904 ● ●
46 CLIP; BOOT
EXC. AIR BAG(TFQ) (C) 		1-44139-156-0 02 1 9905- ● ● ●
46 CLIP; BOOT
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) LOWER 		1-44139-139-0 01 1 9905- ● ● ●
46 CLIP; BOOT
AIR BAG(TFQ) CAB UP +110MM<TGG> (B) UPPER 		1-44139-140-0 01 1 9905- ● ● ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9603-9804 ● ● ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9603-9804 ● ● ●
52 WASHER; PL,ADJ LEVER
AIR BAG(TFQ) CAB UP +110MM<TGG> (C) 		1-44227-154-0 01 1 9905- ● ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9603-9804 ● ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-9901 ● ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9902-9904 ● ●
57 NUT; ADJ BOLT
EXC. AIR BAG(TFQ) 		1-44227-151-0 01 1 9905- ● ● ●
57 NUT; ADJ BOLT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-159-0 01 1 9905- ● ● ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9603-9804 ● ● ●
59 COLLAR; DIST,ADJ BOLT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-127-0 01 1 9905- ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9603-9804 ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-9901 ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9902-9904 ● ●
60 LEVER; ADJ,STRG COLUMN
EXC. AIR BAG(TFQ) 		1-44227-144-0 01 1 9905- ● ● ●
60 LEVER; ADJ,STRG COLUMN
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-155-0 01 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9603-9804 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-9901 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9902-9904 ● ●
63 BOLT; ADJ LEVER,TILT STRG
EXC. AIR BAG(TFQ) (A) 		1-44227-145-0 01 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-9901 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9902-9904 ● ●
63 BOLT; ADJ LEVER,TILT STRG
EXC. AIR BAG(TFQ) (B) 		1-44227-149-0 01 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> (D) 		1-44227-126-0 01 1 9905- ● ● ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9603-9804 ● ● ●
64 BOLT; ADJ,PROTECTOR
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-156-0 01 1 9905- ● ● ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9603-9804 ● ● ●
68 PIN; TILT CENTER
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-158-0 01 1 9905- ● ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9603-9606 ● ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9901 ● ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9902-9904 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9905- ● ● ●
83 BRACKET; TILT STRG UPR
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-157-0 01 1 9905- ● ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9603-9901 ● ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9902-9904 ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9905- ● ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9603-9901 ● ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9902-9904 ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9905- ● ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9603-9901 ● ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9902-9904 ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9905- ● ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9603-9901 ● ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9902-9904 ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9905- ● ● ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9603-9804 ● ● ●
252 NUT; TILT CENTER BOLT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-135-0 02 1 9905- ● ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9603-9901 ● ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9902-9904 ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9905- ● ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9603-9901 ● ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9902-9904 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9905- ● ● ●

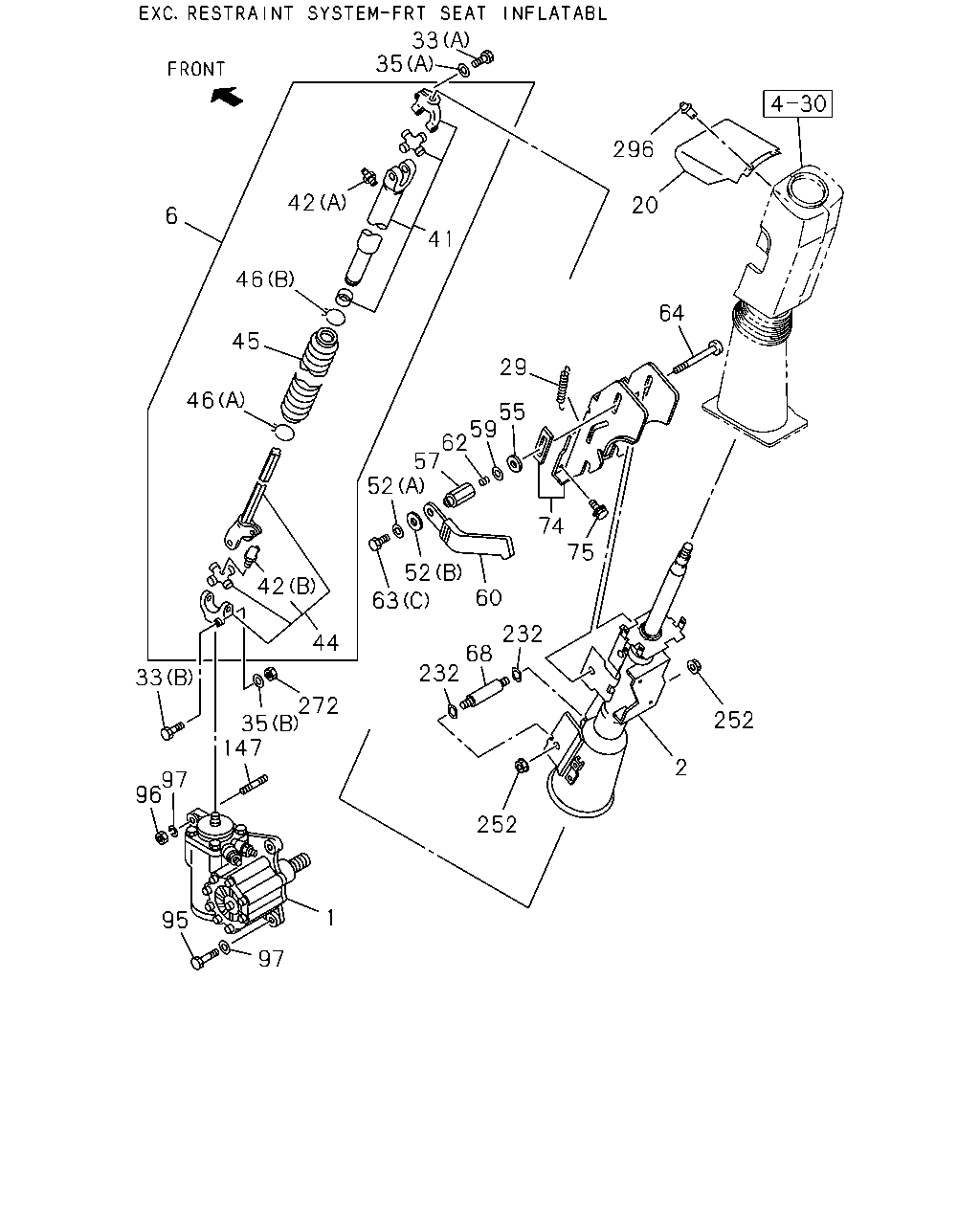

çizim 8792
33 35 296 20 64 29 55 59 62 57 52 52 63 232 60 68 232 74 75 252 2 252 272 44 42 33 35 97 96 1 95 97 147 6 46 45 46 42 41
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-845-0 01 1 9603-9705 ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRIGID ZONE KIT<YL3> 		1-44000-845-0 01 1 9706-9901 ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-861-2 01 1 9902-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> EXC. FRIGID ZONE KIT<YL3> 		1-44000-861-2 01 1 9905- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> 		1-44000-849-0 01 1 9706-9901 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-866-1 01 1 9902-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>,FRIGID ZONE KIT<YL3> 		1-44000-866-1 01 1 9905- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> 		1-44000-867-0 01 1 9905-0007 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-867-1 01 1 0008- ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9603-9804 ● ● ●
2 SHAFT ASM; STRG 1-44131-158-0 01 1 9805-9806 ● ● ●
2 SHAFT ASM; STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44130-740-0 01 1 9905- ● ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9807-9901 ● ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9902-9904 ● ●
2 SHAFT ASM; STRG
EXC. AIR BAG(TFQ) 		1-44130-689-0 01 1 9905- ● ● ●
6 SHAFT; STRG LWR 1-44135-301-0 01 1 9603-9804 ● ● ●
6 SHAFT; STRG LWR
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44135-315-0 01 1 9905- ● ● ●
20 COVER; STRG SHAFT 1-72438-121-2 01 1 9603-9901 ● ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9902-9904 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9905- ● ● ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9603-9804 ● ● ●
29 SPRING; COLUMN
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-136-0 02 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9603-9901 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9902-9904 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9603-9804 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-9901 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9902-9904 ● ●
33 BOLT; STRG SHAFT TO UNIT
EXC. AIR BAG(TFQ) (A) 		1-44139-153-0 01 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) SHAFT-YOKE UPPER 		1-44139-141-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9603-9804 ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805-9901 ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9902-9904 ● ●
35 WASHER; LK,STRG SHAFT
EXC. AIR BAG(TFQ) (A) 		1-44139-154-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9603-9901 ● ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9902-9904 ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
AIR BAG(TFQ) CAB UP +110MM<TGG> (C) 		1-44139-142-0 01 1 9905- ● ● ●
41 YOKE; SLEEVE,STRG 1-44135-303-0 01 1 9603-9804 ● ● ●
41 YOKE; SLEEVE,STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44135-304-0 01 1 9905- ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) M6 STRAIGHT 		9-09031-006-0 01 1 9603-9804 ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9804 ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) SLEEVE-YOKE M6 STRAIGHT 		9-09031-006-0 01 1 9905- ● ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
AIR BAG(TFQ) CAB UP +110MM<TGG> (B) UNIVERSAL PT1/8 ELBOW 		9-09031-210-0 01 1 9905- ● ● ●
44 SHAFT; SPLINE,STRG 1-44135-305-0 01 1 9603-9804 ● ● ●
44 SHAFT; SPLINE,STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44135-316-0 01 1 9905- ● ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9603-9804 ● ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-9901 ● ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9902-9904 ● ●
45 BOOT; STRG SHAFT
EXC. AIR BAG(TFQ) 		1-44139-155-0 01 1 9905- ● ● ●
45 BOOT; STRG SHAFT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44139-138-0 01 1 9905- ● ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9603-9804 ● ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9603-9804 ● ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-9901 ● ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9902-9904 ● ●
46 CLIP; BOOT
EXC. AIR BAG(TFQ) (C) 		1-44139-156-0 02 1 9905- ● ● ●
46 CLIP; BOOT
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) LOWER 		1-44139-139-0 01 1 9905- ● ● ●
46 CLIP; BOOT
AIR BAG(TFQ) CAB UP +110MM<TGG> (B) UPPER 		1-44139-140-0 01 1 9905- ● ● ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9603-9804 ● ● ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9603-9804 ● ● ●
52 WASHER; PL,ADJ LEVER
AIR BAG(TFQ) CAB UP +110MM<TGG> (C) 		1-44227-154-0 01 1 9905- ● ● ●
55 PLATE; GUIDE 1-44227-132-0 01 1 9603-9804 ● ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9603-9804 ● ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-9901 ● ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9902-9904 ● ●
57 NUT; ADJ BOLT
EXC. AIR BAG(TFQ) 		1-44227-151-0 01 1 9905- ● ● ●
57 NUT; ADJ BOLT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-159-0 01 1 9905- ● ● ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9603-9804 ● ● ●
59 COLLAR; DIST,ADJ BOLT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-127-0 01 1 9905- ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9603-9804 ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-9901 ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9902-9904 ● ●
60 LEVER; ADJ,STRG COLUMN
EXC. AIR BAG(TFQ) 		1-44227-144-0 01 1 9905- ● ● ●
60 LEVER; ADJ,STRG COLUMN
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-155-0 01 1 9905- ● ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9603-9804 ● ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-9901 ● ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9902-9904 ● ●
62 SPRING; LK,LEVER
EXC. AIR BAG(TFQ) 		1-44227-153-0 02 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9603-9804 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-9901 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9902-9904 ● ●
63 BOLT; ADJ LEVER,TILT STRG
EXC. AIR BAG(TFQ) (A) 		1-44227-145-0 01 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-9901 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9902-9904 ● ●
63 BOLT; ADJ LEVER,TILT STRG
EXC. AIR BAG(TFQ) (B) 		1-44227-149-0 01 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> (D) 		1-44227-126-0 01 1 9905- ● ● ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9603-9804 ● ● ●
64 BOLT; ADJ,PROTECTOR
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-156-0 01 1 9905- ● ● ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9603-9804 ● ● ●
68 PIN; TILT CENTER
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-158-0 01 1 9905- ● ● ●
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9603-9804 ● ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9603-9606 ● ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9901 ● ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9902-9904 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9905- ● ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9603-9901 ● ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9902-9904 ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9905- ● ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9603-9901 ● ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9902-9904 ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9905- ● ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9603-9901 ● ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9902-9904 ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9905- ● ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9603-9901 ● ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9902-9904 ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9905- ● ● ●
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9603-9804 ● ● ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9603-9804 ● ● ●
252 NUT; TILT CENTER BOLT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-135-0 02 1 9905- ● ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9603-9901 ● ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9902-9904 ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9905- ● ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9603-9901 ● ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9902-9904 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9905- ● ● ●

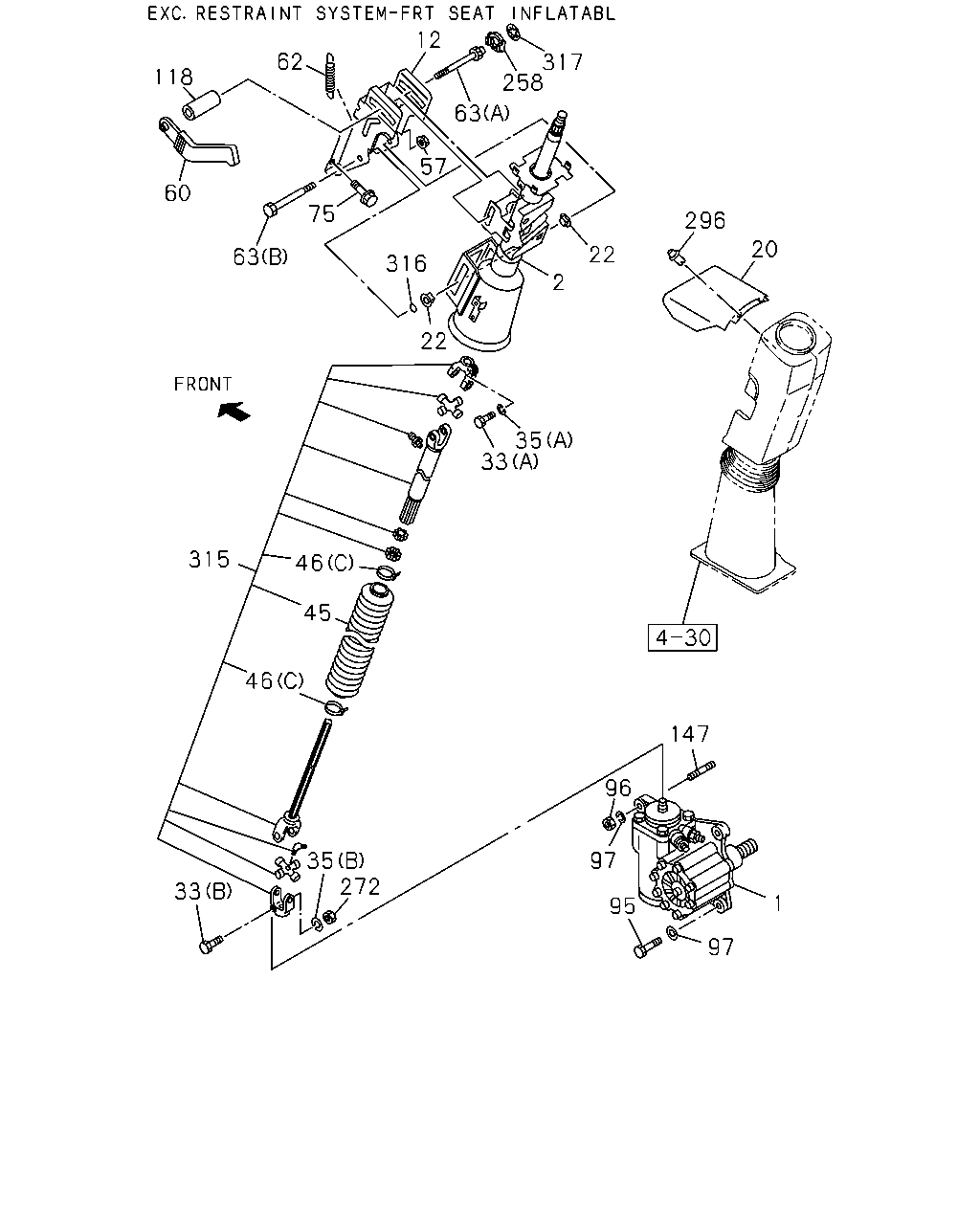

çizim 41980
12 62 317 258 118 63 57 60 75 296 20 22 63 316 2 22 35 33 315 46 45 46 147 96 97 35 272 33 1 95 97
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-845-0 01 1 9603-9705 ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRIGID ZONE KIT<YL3> 		1-44000-845-0 01 1 9706-9901 ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-861-2 01 1 9902-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> EXC. FRIGID ZONE KIT<YL3> 		1-44000-861-2 01 1 9905- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> 		1-44000-849-0 01 1 9706-9901 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-866-1 01 1 9902-9904 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>,FRIGID ZONE KIT<YL3> 		1-44000-866-1 01 1 9905- ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> 		1-44000-867-0 01 1 9905-0007 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRIGID ZONE KIT<YL3> EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-867-1 01 1 0008- ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9603-9804 ● ● ●
2 SHAFT ASM; STRG 1-44131-158-0 01 1 9805-9806 ● ● ●
2 SHAFT ASM; STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44130-740-0 01 1 9905- ● ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9807-9901 ● ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9902-9904 ● ●
2 SHAFT ASM; STRG
EXC. AIR BAG(TFQ) 		1-44130-689-0 01 1 9905- ● ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-9901 ● ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9902-9904 ● ●
12 BRACKET; LWR,STRG COLUMN
EXC. AIR BAG(TFQ) 		1-44227-143-0 01 1 9905- ● ● ●
20 COVER; STRG SHAFT 1-72438-121-2 01 1 9603-9901 ● ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9902-9904 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9905- ● ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805-9901 ● ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9902-9904 ● ●
22 BUSHING; STRG COLUMN
EXC. AIR BAG(TFQ) 		1-44227-150-0 02 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9603-9901 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9902-9904 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) SHAFT-YOKE LOWER M10X50 		1-09000-489-0 01 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9603-9804 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-9901 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9902-9904 ● ●
33 BOLT; STRG SHAFT TO UNIT
EXC. AIR BAG(TFQ) (A) 		1-44139-153-0 01 1 9905- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) SHAFT-YOKE UPPER 		1-44139-141-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9603-9804 ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805-9901 ● ● ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9902-9904 ● ●
35 WASHER; LK,STRG SHAFT
EXC. AIR BAG(TFQ) (A) 		1-44139-154-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9603-9901 ● ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9902-9904 ● ●
35 WASHER; LK,STRG SHAFT
(B) SHAFT-YOKE ID=10.2 		9-09150-810-0 01 1 9905- ● ● ●
35 WASHER; LK,STRG SHAFT
AIR BAG(TFQ) CAB UP +110MM<TGG> (C) 		1-44139-142-0 01 1 9905- ● ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9603-9804 ● ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-9901 ● ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9902-9904 ● ●
45 BOOT; STRG SHAFT
EXC. AIR BAG(TFQ) 		1-44139-155-0 01 1 9905- ● ● ●
45 BOOT; STRG SHAFT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44139-138-0 01 1 9905- ● ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9603-9804 ● ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9603-9804 ● ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-9901 ● ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9902-9904 ● ●
46 CLIP; BOOT
EXC. AIR BAG(TFQ) (C) 		1-44139-156-0 02 1 9905- ● ● ●
46 CLIP; BOOT
AIR BAG(TFQ) CAB UP +110MM<TGG> (A) LOWER 		1-44139-139-0 01 1 9905- ● ● ●
46 CLIP; BOOT
AIR BAG(TFQ) CAB UP +110MM<TGG> (B) UPPER 		1-44139-140-0 01 1 9905- ● ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9603-9804 ● ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-9901 ● ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9902-9904 ● ●
57 NUT; ADJ BOLT
EXC. AIR BAG(TFQ) 		1-44227-151-0 01 1 9905- ● ● ●
57 NUT; ADJ BOLT
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-159-0 01 1 9905- ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9603-9804 ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-9901 ● ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9902-9904 ● ●
60 LEVER; ADJ,STRG COLUMN
EXC. AIR BAG(TFQ) 		1-44227-144-0 01 1 9905- ● ● ●
60 LEVER; ADJ,STRG COLUMN
AIR BAG(TFQ) CAB UP +110MM<TGG> 		1-44227-155-0 01 1 9905- ● ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9603-9804 ● ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-9901 ● ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9902-9904 ● ●
62 SPRING; LK,LEVER
EXC. AIR BAG(TFQ) 		1-44227-153-0 02 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9603-9804 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-9901 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9902-9904 ● ●
63 BOLT; ADJ LEVER,TILT STRG
EXC. AIR BAG(TFQ) (A) 		1-44227-145-0 01 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-9901 ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9902-9904 ● ●
63 BOLT; ADJ LEVER,TILT STRG
EXC. AIR BAG(TFQ) (B) 		1-44227-149-0 01 1 9905- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
AIR BAG(TFQ) CAB UP +110MM<TGG> (D) 		1-44227-126-0 01 1 9905- ● ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9603-9606 ● ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9901 ● ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9902-9904 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9905- ● ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9603-9901 ● ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9902-9904 ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9905- ● ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9603-9901 ● ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9902-9904 ● ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9905- ● ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9603-9901 ● ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9902-9904 ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9905- ● ● ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-9901 ● ● ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9902-9904 ● ●
118 NUT; LEVER,TILT BOLT
EXC. AIR BAG(TFQ) 		1-44227-146-0 01 1 9905- ● ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9603-9901 ● ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9902-9904 ● ●
147 STUD; STRG UNIT
M18X27 L=76 M18X49 L=76 		1-09300-107-0 01 1 9905- ● ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805-9901 ● ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9902-9904 ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC
EXC. AIR BAG(TFQ) 		1-44227-147-0 01 1 9905- ● ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9603-9901 ● ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9902-9904 ● ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9905- ● ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9603-9901 ● ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9902-9904 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9905- ● ● ●
315 JOINT; SPLINE 1-44135-338-0 01 1 9805-9806 ● ● ●
315 JOINT; SPLINE 1-44135-343-0 01 1 9807-9901 ● ● ●
315 JOINT; SPLINE
EXC. CAB UP +110MM<TGG> 		1-44135-343-0 01 1 9902-9904 ● ●
315 JOINT; SPLINE
EXC. AIR BAG(TFQ),CAB UP +110MM<TGG> 		1-44135-343-0 01 1 9905- ● ●
315 JOINT; SPLINE
CAB UP +110MM<TGG> 		1-44135-345-0 01 1 9902-9904 ● ●
315 JOINT; SPLINE
EXC. AIR BAG(TFQ) 		1-44135-345-0 01 1 9905- ●
315 JOINT; SPLINE
CAB UP +110MM<TGG> EXC. AIR BAG(TFQ) 		1-44135-345-0 01 1 9905- ● ●
316 RING 1-44139-152-0 01 1 9805-9806 ● ● ●
316 RING 1-44227-152-0 01 1 9807-9901 ● ● ●
316 RING 1-44227-152-0 01 1 9902-9904 ● ●
316 RING
EXC. AIR BAG(TFQ) 		1-44227-152-0 01 1 9905- ● ● ●
317 NUT; PUSH 1-44227-148-0 01 1 9805-9901 ● ● ●
317 NUT; PUSH 1-44227-148-0 01 1 9902-9904 ● ●
317 NUT; PUSH
EXC. AIR BAG(TFQ) 		1-44227-148-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
