◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#53958) — 461 parça

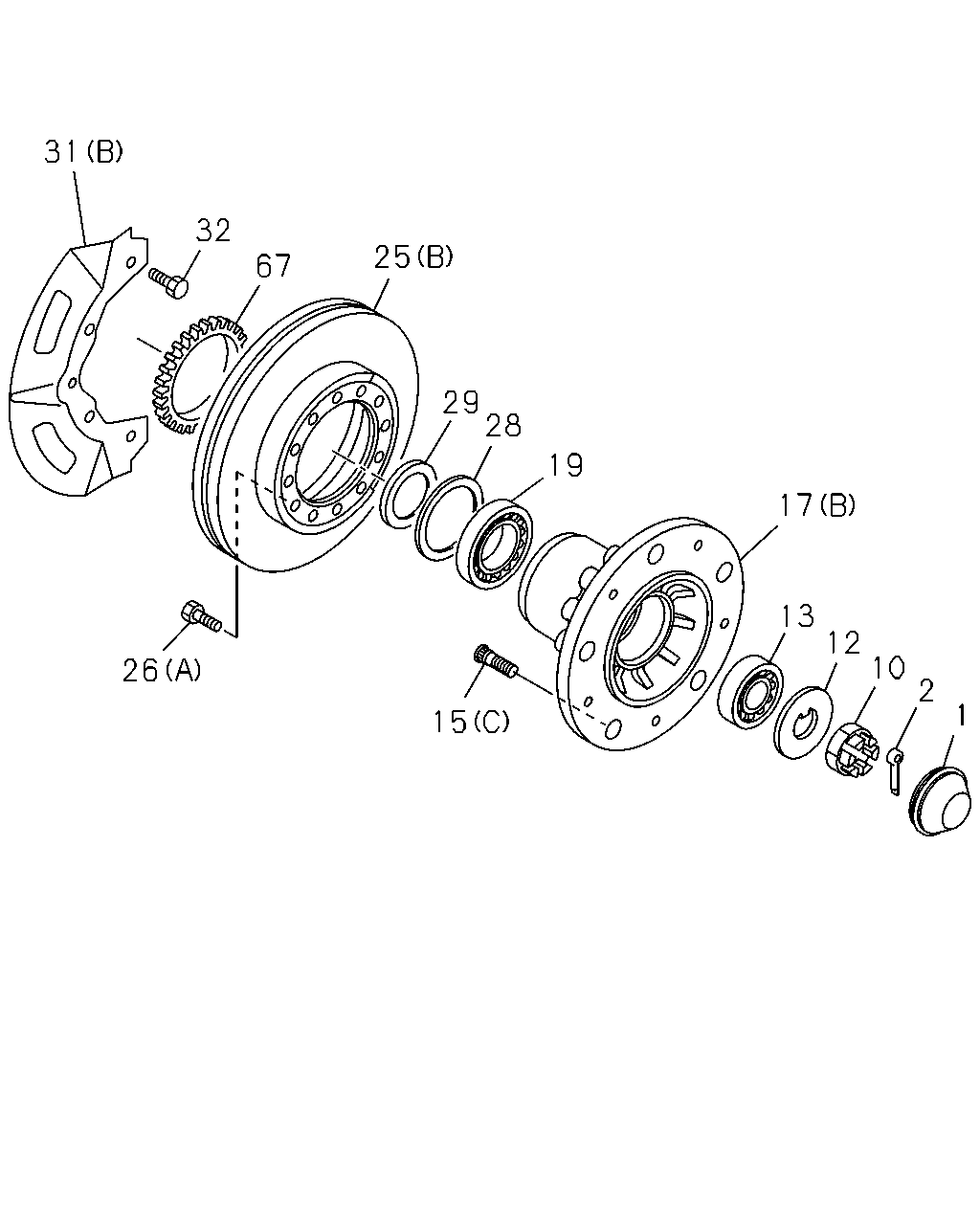

çizim 154784
31 32 25 67 29 28 19 17 13 12 10 2 26 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98276-604-0 02 1 1408-1511 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 02 1 1408-1511 ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98331-242-0 02 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98331-242-0 02 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97360-101-0 01 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 01 1 1407-1511 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98331-242-0 01 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0710-0803 ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0804-0910 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-101-0 02 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97360-101-0 02 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0911-1406 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-101-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1407-1407 ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OD=4.6 L=40 		0-81125-040-0 01 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0710-0803 ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0804-0910 ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=4.6 L=40 		0-81125-040-0 02 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OD=4.6 L=40 		0-81125-040-0 02 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0911- ● ● ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.022 		8-94247-357-1 01 1 0911- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0710-0803 ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0804-0910 ● ● ● ●
10 05.812 NUT; FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.022 		8-94247-357-1 02 1 0911- ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.022 		8-94247-357-1 02 1 0911- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0911- ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0710-0803 ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94247-356-1 02 1 0804-1502 ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0804-1502 ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.812 		8-98282-435-0 02 1 1503- ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		9-00093-172-0 01 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0710-0803 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0804-0910 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK 		9-00093-172-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		9-00093-172-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0911- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0710-0803 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0804-0910 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-134-0 01 1 0911- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) M14X39 LH THREAD 		8-97126-491-1 06 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) M14X39 RH THREAD 		8-97126-490-1 06 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-98028-533-1 05 1 0710-0803 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-98028-532-1 05 1 0710-0803 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-1301 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 04 1 1302- ●
17 06.307 HUB; FRT AXLE
(A) 		8-98049-155-0 02 1 0710-0803 ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-155-0 02 1 0804-0910 ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-155-0 01 1 0911- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-154-0 02 1 0804- ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
(D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
(D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) 		8-94420-597-1 02 1 0804-0809 ●
17 06.307 HUB; FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (C) 		8-94420-597-1 02 1 0804-0809 ●
17 06.307 HUB; FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) 		8-94420-597-1 02 1 0810- ●
17 06.307 HUB; FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (C) 		8-94420-597-1 02 1 0810- ●
17 06.307 HUB; FRT AXLE
(B) 		8-97035-160-0 02 1 0710-0803 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97035-160-0 02 1 0804- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.313 NTN 		8-98008-156-1 02 1 1206- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-97034-255-0 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-97034-255-0 02 1 0804-0910 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-97034-255-0 01 1 0911- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-94336-289-0 02 1 0804- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT 		8-94248-088-2 02 1 0804-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0804-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT 		8-98171-254-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK 		9-00093-149-0 02 1 0804-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0804-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
(A) 		8-98001-343-0 02 1 0710-0803 ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98001-343-0 02 1 0804-0910 ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98001-343-0 02 1 0911- ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98001-342-0 02 1 0804-1308 ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98248-893-0 02 1 1309- ●
25 05.809 ROTOR; DISC BRK,FRT
(B) 		8-97387-229-0 02 1 0710-0803 ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97387-229-0 02 1 0804- ● ●
26 05.812 BOLT; BRK,DISC TO HUB
(B) 		8-98021-781-0 10 1 0710-0803 ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-98021-781-0 10 1 0804-0910 ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-98021-781-0 10 1 0911- ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-98021-780-0 12 1 0804- ●
26 05.812 BOLT; BRK,DISC TO HUB
(A) 		8-94474-923-0 24 1 0710-0803 ●
26 05.812 BOLT; BRK,DISC TO HUB
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94474-923-0 24 1 0804- ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97211-082-0 02 1 0911- ●
28 06.326 SEAL; OIL,FRT HUB 8-97211-082-0 02 1 0710-0803 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) 		8-97211-082-0 02 1 0804-0910 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97211-082-0 01 1 0911- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0710-0803 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94248-117-1 02 1 0804- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0804- ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0710-0803 ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN 		8-97234-513-0 02 1 0804- ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0804- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-97353-961-1 01 1 0710-0803 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97353-961-1 01 1 0804- ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-97353-960-1 01 1 0710-0803 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97353-960-1 01 1 0804- ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-98037-377-0 02 1 0710-0803 ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98037-377-0 02 1 0804- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M8X10 W/LK WASHER 		8-98029-928-0 06 1 0911- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98029-928-0 06 1 0710-0803 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER 		8-98029-928-0 06 1 0804-0910 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M8X10 W/LK WASHER 		8-98029-928-0 03 1 0911- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0710-0803 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0804- ● ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97387-157-1 01 1 0911- ●
67 05.811 ROTOR; SENSOR 8-97387-157-1 02 1 0710-0803 ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97387-157-1 02 1 0804-0910 ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97387-157-1 02 1 0911- ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 0710-0803 ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97387-159-0 02 1 0804- ● ●

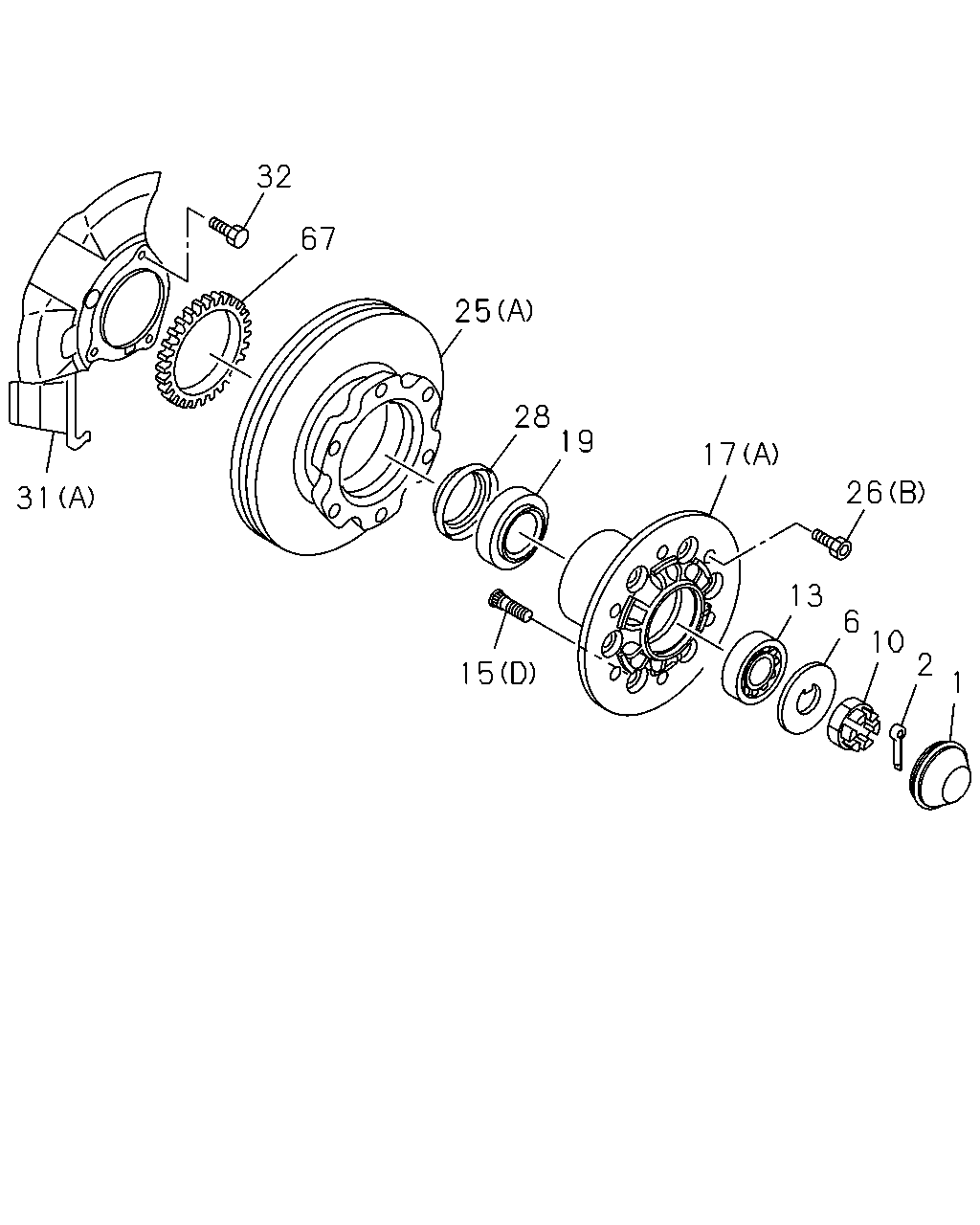

çizim 154786
32 67 25 28 19 17 26 31 13 6 10 2 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98276-604-0 02 1 1408-1511 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 02 1 1408-1511 ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98331-242-0 02 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98331-242-0 02 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97360-101-0 01 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 01 1 1407-1511 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98331-242-0 01 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0710-0803 ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0804-0910 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-101-0 02 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97360-101-0 02 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0911-1406 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-101-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1407-1407 ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OD=4.6 L=40 		0-81125-040-0 01 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0710-0803 ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0804-0910 ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=4.6 L=40 		0-81125-040-0 02 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OD=4.6 L=40 		0-81125-040-0 02 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0911- ● ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.321 		8-94247-356-1 02 1 0911-1502 ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98282-435-0 02 1 1503- ●
6 05.812 WASHER; LK,FRT HUB
06.321 		8-94247-356-1 02 1 0710-0803 ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) 06.321 		8-94247-356-1 02 1 0804-0910 ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.321 		8-94247-356-1 01 1 0911-1502 ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98282-435-0 01 1 1503- ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.022 		8-94247-357-1 01 1 0911- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0710-0803 ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0804-0910 ● ● ● ●
10 05.812 NUT; FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.022 		8-94247-357-1 02 1 0911- ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.022 		8-94247-357-1 02 1 0911- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0911- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		9-00093-172-0 01 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0710-0803 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0804-0910 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK 		9-00093-172-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		9-00093-172-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0911- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0710-0803 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0804-0910 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-134-0 01 1 0911- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) M14X39 LH THREAD 		8-97126-491-1 06 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) M14X39 RH THREAD 		8-97126-490-1 06 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-98028-533-1 05 1 0710-0803 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-98028-532-1 05 1 0710-0803 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-1301 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 04 1 1302- ●
17 06.307 HUB; FRT AXLE
(A) 		8-98049-155-0 02 1 0710-0803 ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-155-0 02 1 0804-0910 ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-155-0 01 1 0911- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-154-0 02 1 0804- ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
(D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
(D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) 		8-94420-597-1 02 1 0804-0809 ●
17 06.307 HUB; FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (C) 		8-94420-597-1 02 1 0804-0809 ●
17 06.307 HUB; FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) 		8-94420-597-1 02 1 0810- ●
17 06.307 HUB; FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (C) 		8-94420-597-1 02 1 0810- ●
17 06.307 HUB; FRT AXLE
(B) 		8-97035-160-0 02 1 0710-0803 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97035-160-0 02 1 0804- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.313 NTN 		8-98008-156-1 02 1 1206- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-97034-255-0 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-97034-255-0 02 1 0804-0910 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-97034-255-0 01 1 0911- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-94336-289-0 02 1 0804- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT 		8-94248-088-2 02 1 0804-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0804-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT 		8-98171-254-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK 		9-00093-149-0 02 1 0804-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0804-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
(A) 		8-98001-343-0 02 1 0710-0803 ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98001-343-0 02 1 0804-0910 ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98001-343-0 02 1 0911- ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98001-342-0 02 1 0804-1308 ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98248-893-0 02 1 1309- ●
25 05.809 ROTOR; DISC BRK,FRT
(B) 		8-97387-229-0 02 1 0710-0803 ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97387-229-0 02 1 0804- ● ●
26 05.812 BOLT; BRK,DISC TO HUB
(B) 		8-98021-781-0 10 1 0710-0803 ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-98021-781-0 10 1 0804-0910 ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-98021-781-0 10 1 0911- ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-98021-780-0 12 1 0804- ●
26 05.812 BOLT; BRK,DISC TO HUB
(A) 		8-94474-923-0 24 1 0710-0803 ●
26 05.812 BOLT; BRK,DISC TO HUB
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94474-923-0 24 1 0804- ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97211-082-0 02 1 0911- ●
28 06.326 SEAL; OIL,FRT HUB 8-97211-082-0 02 1 0710-0803 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) 		8-97211-082-0 02 1 0804-0910 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97211-082-0 01 1 0911- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0710-0803 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94248-117-1 02 1 0804- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0804- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-97353-961-1 01 1 0710-0803 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97353-961-1 01 1 0804- ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-97353-960-1 01 1 0710-0803 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97353-960-1 01 1 0804- ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-98037-377-0 02 1 0710-0803 ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98037-377-0 02 1 0804- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M8X10 W/LK WASHER 		8-98029-928-0 06 1 0911- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98029-928-0 06 1 0710-0803 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) M8X10 W/LK WASHER 		8-98029-928-0 06 1 0804-0910 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M8X10 W/LK WASHER 		8-98029-928-0 03 1 0911- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0710-0803 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0804- ● ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97387-157-1 01 1 0911- ●
67 05.811 ROTOR; SENSOR 8-97387-157-1 02 1 0710-0803 ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97387-157-1 02 1 0804-0910 ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97387-157-1 02 1 0911- ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 0710-0803 ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97387-159-0 02 1 0804- ● ●

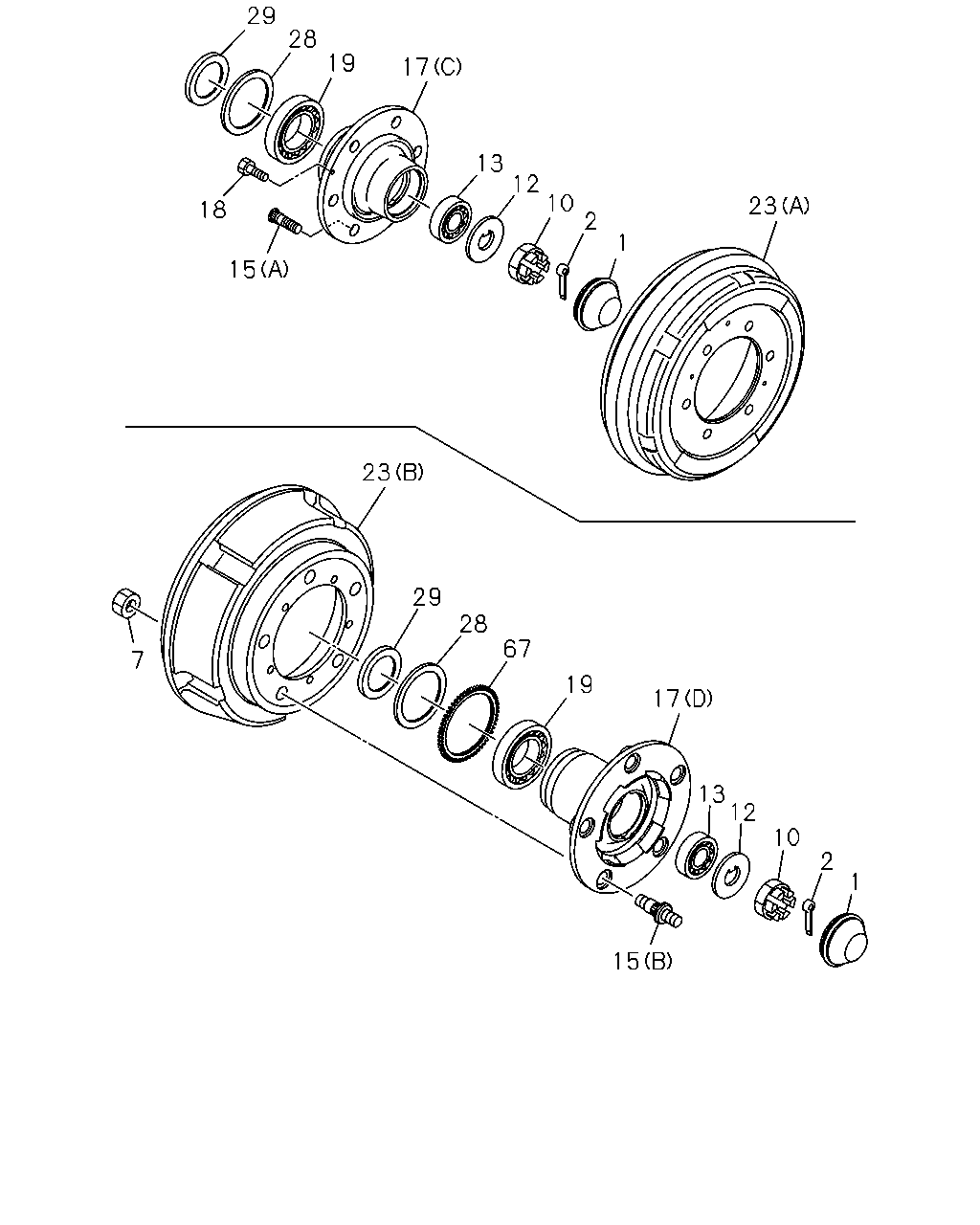

çizim 155006
29 28 19 17 13 12 10 2 23 18 1 15 23 29 28 67 7 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98276-604-0 02 1 1408-1511 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 02 1 1408-1511 ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98331-242-0 02 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98331-242-0 02 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97360-101-0 01 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98276-604-0 01 1 1407-1511 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98331-242-0 01 1 1512- ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0710-0803 ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0804-0910 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-101-0 02 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97360-101-0 02 1 0911-1406 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0911-1406 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-101-0 02 1 1407-1407 ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1407-1407 ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OD=4.6 L=40 		0-81125-040-0 01 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0710-0803 ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0804-0910 ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=4.6 L=40 		0-81125-040-0 02 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OD=4.6 L=40 		0-81125-040-0 02 1 0911- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0911- ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> M20 		0-91110-520-0 20 1 0804- ●
7 05.812 NUT; FRT HUB
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> M20 		0-91110-520-0 10 1 0804-0906 ●
7 05.812 NUT; FRT HUB
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> M20 		0-91110-520-0 10 1 0804-0906 ●
7 05.812 NUT; FRT HUB
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) M20 		0-91110-520-0 10 1 0804-0906 ●
7 05.812 NUT; FRT HUB
M20 		0-91110-520-0 10 1 0804-0906 ●
7 05.812 NUT; FRT HUB
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> M20 		0-91110-520-0 10 1 0907- ●
7 05.812 NUT; FRT HUB
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> M20 		0-91110-520-0 10 1 0907- ●
7 05.812 NUT; FRT HUB
M20 		0-91110-520-0 10 1 0907- ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.022 		8-94247-357-1 01 1 0911- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0710-0803 ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0804-0910 ● ● ● ●
10 05.812 NUT; FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.022 		8-94247-357-1 02 1 0911- ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.022 		8-94247-357-1 02 1 0911- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0911- ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0710-0803 ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94247-356-1 02 1 0804-1502 ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0804-1502 ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.812 		8-98282-435-0 02 1 1503- ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		9-00093-172-0 01 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0710-0803 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0804-0910 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK 		9-00093-172-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		9-00093-172-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0911- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0710-0803 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0804-0910 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0911- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS 		5-87610-134-0 01 1 0911- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) M14X39 LH THREAD 		8-97126-491-1 06 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) M14X39 RH THREAD 		8-97126-490-1 06 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804-0906 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0907- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) M14X50 LH THREAD 		9-42332-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0804-0809 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) M14X50 RH THREAD 		9-42331-605-5 06 1 0810- ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-98028-533-1 05 1 0710-0803 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-98028-532-1 05 1 0710-0803 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-1301 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 04 1 1302- ●
17 06.307 HUB; FRT AXLE
(A) 		8-98049-155-0 02 1 0710-0803 ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-155-0 02 1 0804-0910 ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-155-0 01 1 0911- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98049-154-0 02 1 0804- ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
(D) 		8-94365-459-0 02 1 0804-0906 ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
(D) 		8-94365-459-0 02 1 0907- ●
17 06.307 HUB; FRT AXLE
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) 		8-94420-597-1 02 1 0804-0809 ●
17 06.307 HUB; FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (C) 		8-94420-597-1 02 1 0804-0809 ●
17 06.307 HUB; FRT AXLE
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (C) 		8-94420-597-1 02 1 0810- ●
17 06.307 HUB; FRT AXLE
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (C) 		8-94420-597-1 02 1 0810- ●
17 06.307 HUB; FRT AXLE
(B) 		8-97035-160-0 02 1 0710-0803 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97035-160-0 02 1 0804- ● ●
18 06.022 BOLT; DRUM TO HUB
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> 04.012 M6X18 		0-20800-618-0 02 1 0804-0809 ●
18 06.022 BOLT; DRUM TO HUB
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) 04.012 M6X18 		0-20800-618-0 02 1 0804-0809 ●
18 06.022 BOLT; DRUM TO HUB
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> 04.012 M6X18 		0-20800-618-0 02 1 0810- ●
18 06.022 BOLT; DRUM TO HUB
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) 04.012 M6X18 		0-20800-618-0 02 1 0810- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.313 NTN 		8-98008-156-1 02 1 1206- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-97034-255-0 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-97034-255-0 02 1 0804-0910 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-97034-255-0 01 1 0911- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) NSK 		8-94336-289-0 02 1 0804- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT 		8-94248-088-2 02 1 0804-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0804-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) JTEKT 		8-98171-254-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0710-0803 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) NSK 		9-00093-149-0 02 1 0804-1009 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0804-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0804-0906 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0804-0906 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) EXC. INDONESIA EQUIPMENT(B00),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0804-0906 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ) (B) 		8-97094-434-2 02 1 0804-0906 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0804-0906 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0907- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0907- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) EXC. INDONESIA EQUIPMENT(B00),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0907- ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0907- ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX 15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H),FRT&RR 7-16-10 5 .5FX16-25(89C) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) 		8-97085-071-1 02 1 0804-0809 ●
23 05.809 DRUM; BRK,FRT
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5 FX15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (A) 		8-97085-071-1 02 1 0804-0809 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) 		8-97085-071-2 02 1 0810-1306 ●
23 05.809 DRUM; BRK,FRT
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) 		8-97085-071-2 02 1 0810-1306 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT), FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT &RR 7.5-15-10 5.5FX15-25(09V) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) 		8-98242-348-0 02 1 1307- ●
23 05.809 DRUM; BRK,FRT
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.0R-16- 10 DISC 5.50FX16-25(CUU) (A) 		8-98242-348-0 02 1 1307- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0804- ●
23 05.809 DRUM; BRK,FRT
INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B) 		8-94385-650-3 02 1 0804- ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97211-082-0 02 1 0911- ●
28 06.326 SEAL; OIL,FRT HUB 8-97211-082-0 02 1 0710-0803 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) 		8-97211-082-0 02 1 0804-0910 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97211-082-0 01 1 0911- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0710-0803 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94248-117-1 02 1 0804- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0804- ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0710-0803 ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) NTN 		8-97234-513-0 02 1 0804- ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0804- ● ● ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97387-157-1 01 1 0911- ●
67 05.811 ROTOR; SENSOR 8-97387-157-1 02 1 0710-0803 ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97387-157-1 02 1 0804-0910 ●
67 05.811 ROTOR; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97387-157-1 02 1 0911- ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 0710-0803 ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97387-159-0 02 1 0804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
