◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶

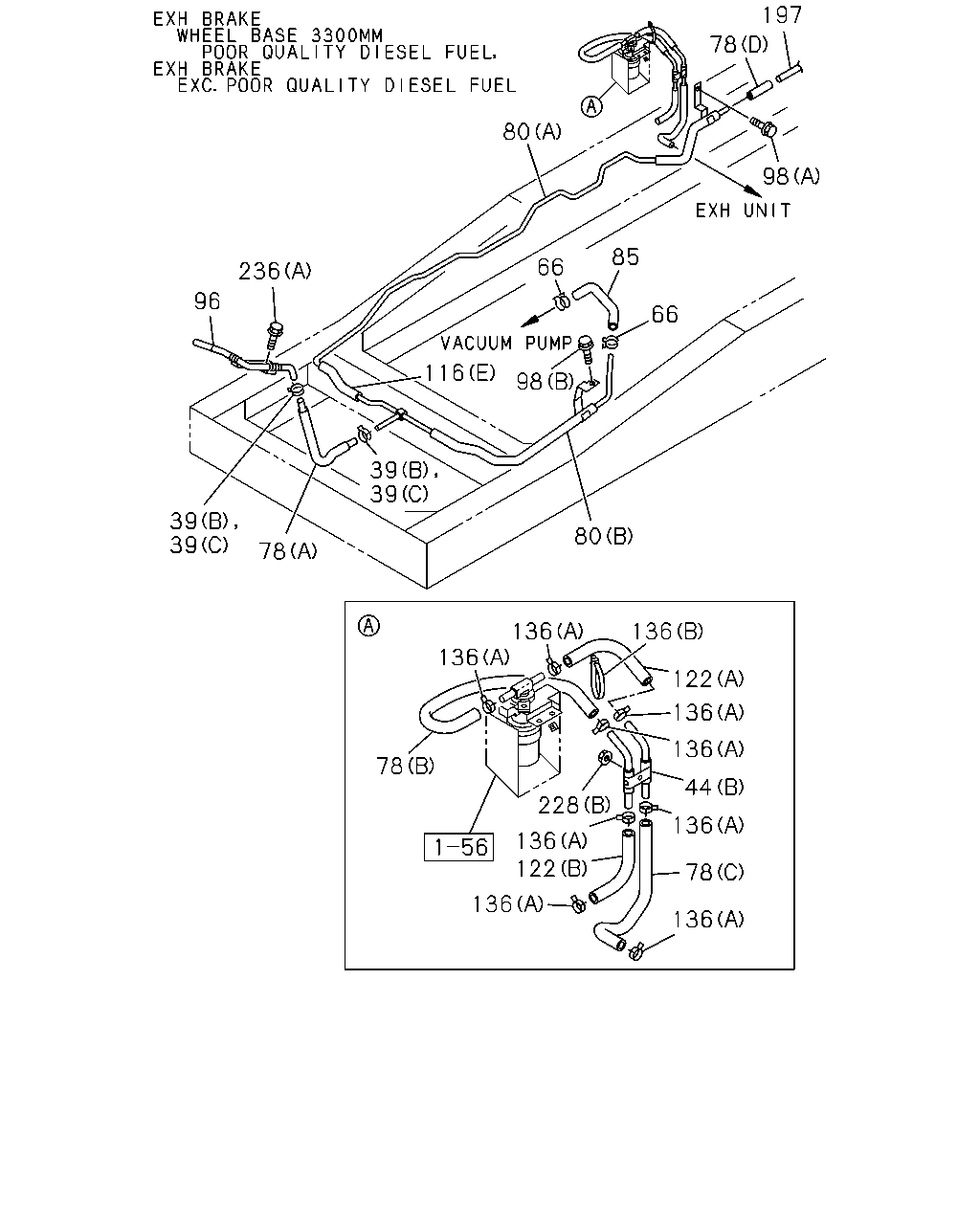

3-60 — BRAKE PIPING; VACUUM (#53955) — 1743 parça

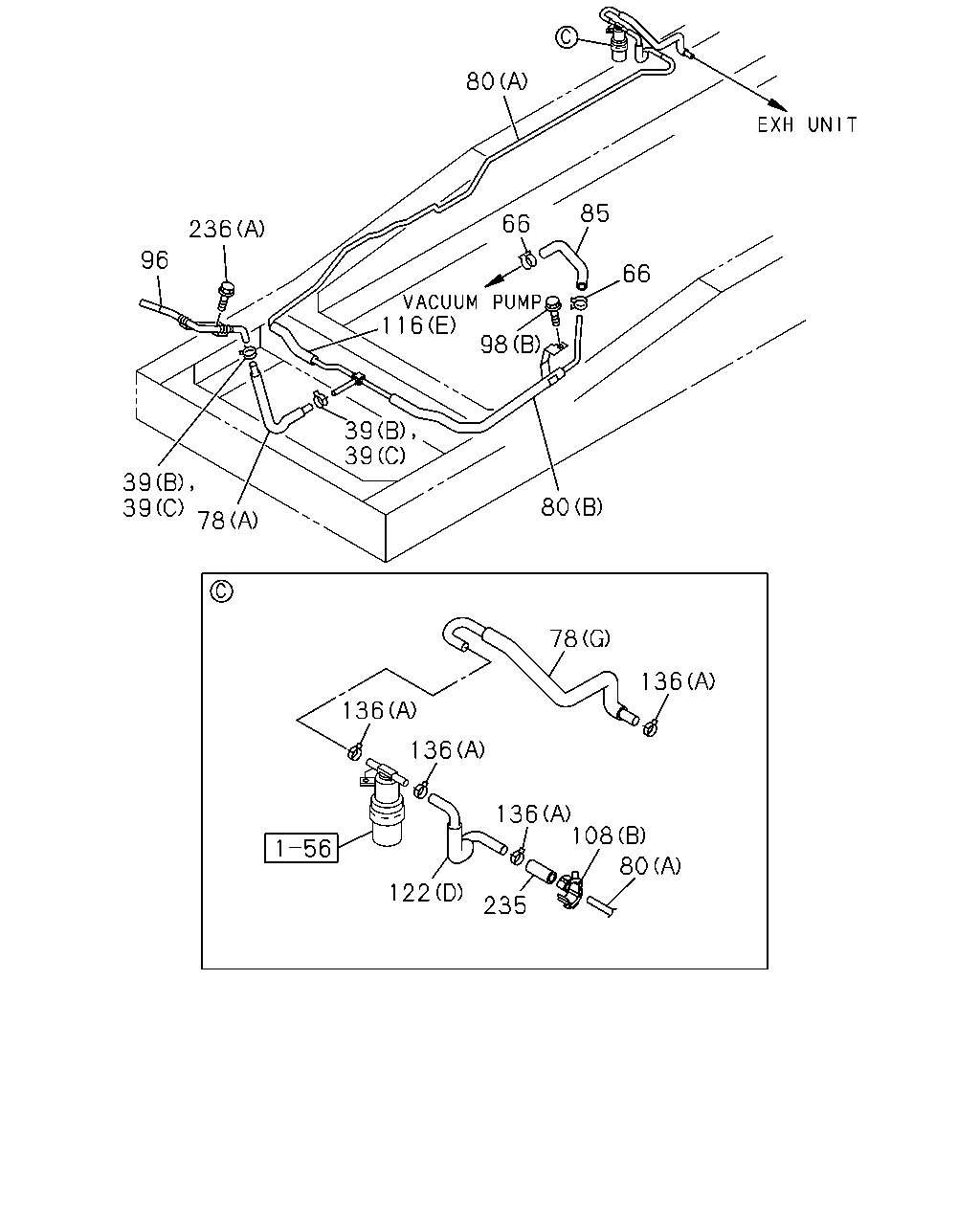

çizim 154661
80 85 66 236 96 66 116 98 39 39 39 39 80 78 78 136 136 136 136 108 80 122 235
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCC ENG(RDU) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0804-0906 ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (F) 		8-98076-069-1 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-690-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98042-691-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E) 		8-98098-174-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98068-245-0 01 1 0804-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98171-283-0 01 1 1009- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8>, HEAVYDUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXHAUST BRAKE<NF8> (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (D) 		8-98113-754-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (D) 		8-98113-754-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. EXHAUST BRAKE<NF8> (C) 		8-98056-001-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68),EXHAUST BRAKE<NF8> (C) 		8-98061-466-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98064-565-3 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),HEA VY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10),HEAVY DUTYFRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0804- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98092-071-0 01 1 0804-0810 ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98135-573-0 01 1 0811- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 		8-98113-809-0 01 1 0804-1311 ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98113-809-0 01 1 0804-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0710-0803 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0804-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
98 04.931 BOLT; VAC PIPE FIX
EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710-0803 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0804- ● ● ● ●
108 04.931 GROMMET; PIPE
4JJ1-TCC ENG(RDU) 02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCC ENG(RDU) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-689-2 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98089-657-0 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) (D) 		8-98064-717-1 01 1 0804- ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 (B) L=140 		5-09707-031-1 01 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 (A) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
4JJ1-TCC ENG(RDU) 03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0904- ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0804-0906 ● ● ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●

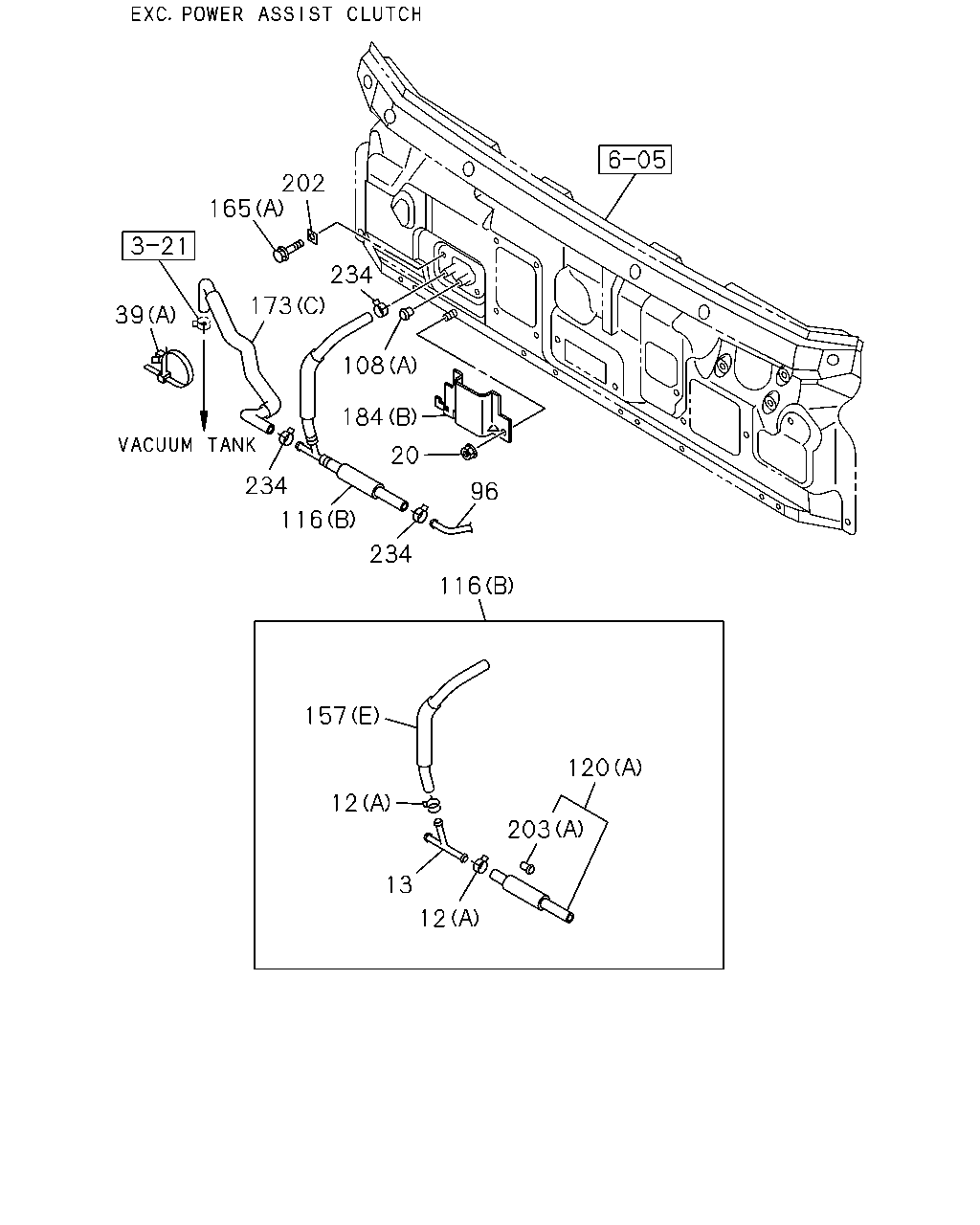

çizim 154774
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) ID=18 L=80 		1-09701-069-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=18 L=80 		1-09701-069-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0710-0803 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0804- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0710-0803 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0804- ● ● ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0710-0803 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0804-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 0907- ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0710-0803 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0804- ● ● ● ●
108 04.931 GROMMET; PIPE
4JJ1-TCC ENG(RDU) 02.343 (B) ID=17 		8-94128-319-2 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCC ENG(RDU) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0804- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0804- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0804- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0804-1001 ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 0710-0803 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 0804-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 0710-0803 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 0804-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-0 01 1 0710-0711 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JJ1-TCS ENG(LFB) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0712-0803 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0804-1012 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0804-1012 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 0804-1012 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1101- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1104- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-0803 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1104-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712-0803 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0804- ● ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710-0803 ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0804- ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710-0803 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0804- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0710-0803 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0804- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0802-0803 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0804- ● ● ● ●

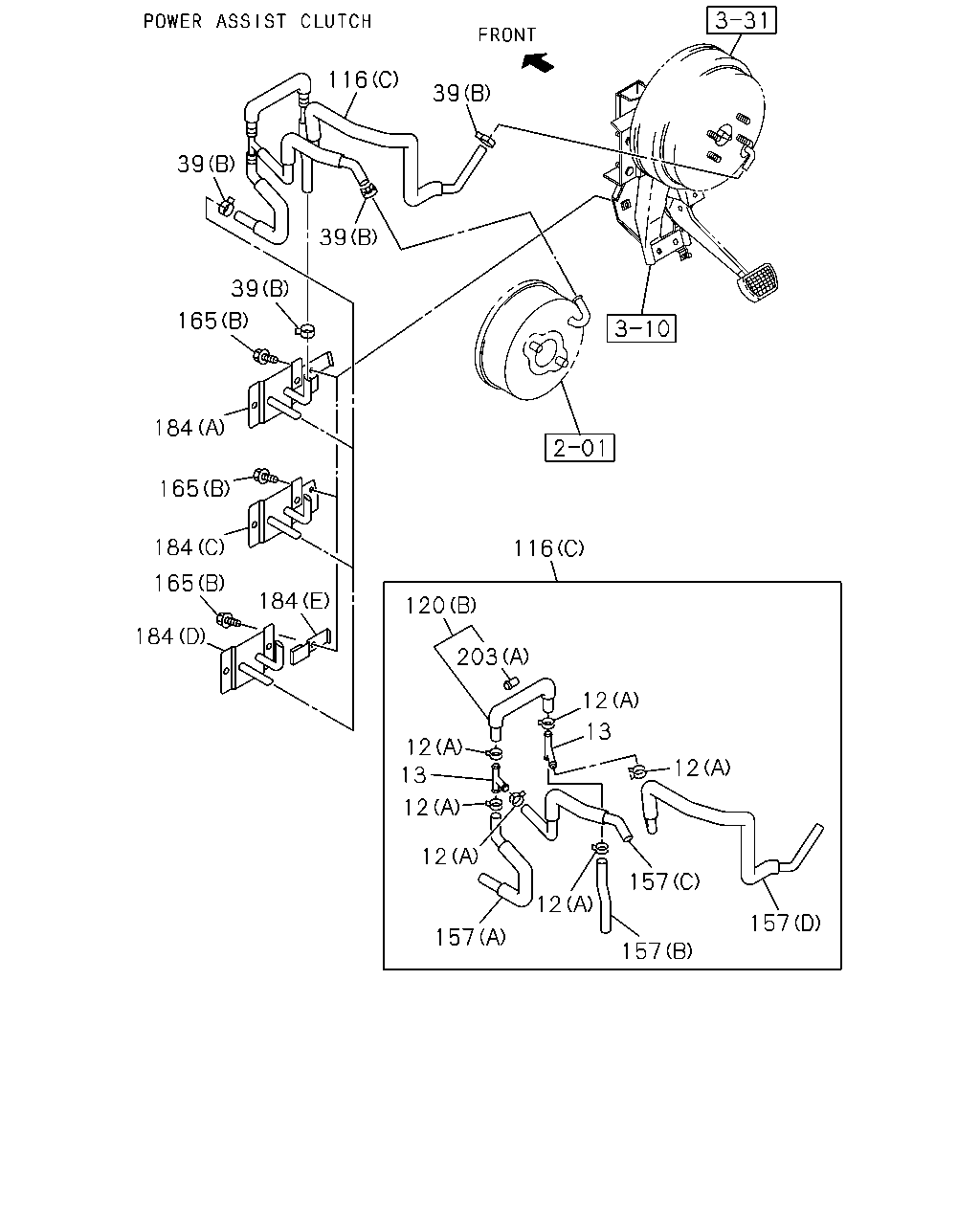

çizim 154776
116 39 39 39 39 165 184 165 184 165 184 184 120 116 12 13 12 13 12 12 12 12 157 157 157 157 203
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) ID=18 L=80 		1-09701-069-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=18 L=80 		1-09701-069-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0710-0803 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0804- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0710-0803 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCC ENG(RDU) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0804- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0804- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0804- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0804-1001 ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1104- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-0803 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1104-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712-0803 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0804- ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710-0803 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0804- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0710-0803 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0804- ● ● ● ●
çizim 154777
39 116 39 165 165 165 184 184 184 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCC ENG(RDU) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0804-1001 ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1104- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-0803 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1104-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712-0803 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0804- ● ● ● ●
çizim 154781
197 78 80 98 85 66 236 96 66 116 98 39 39 39 39 80 78 136 78 122 136 136 158 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCC ENG(RDU) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0804-0906 ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (F) 		8-98076-069-1 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-690-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98042-691-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E) 		8-98098-174-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98068-245-0 01 1 0804-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98171-283-0 01 1 1009- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8>, HEAVYDUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXHAUST BRAKE<NF8> (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (D) 		8-98113-754-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (D) 		8-98113-754-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. EXHAUST BRAKE<NF8> (C) 		8-98056-001-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68),EXHAUST BRAKE<NF8> (C) 		8-98061-466-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98064-565-3 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),HEA VY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10),HEAVY DUTYFRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0804- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98092-071-0 01 1 0804-0810 ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98135-573-0 01 1 0811- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 		8-98113-809-0 01 1 0804-1311 ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98113-809-0 01 1 0804-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0710-0803 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0804-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
98 04.931 BOLT; VAC PIPE FIX
EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCC ENG(RDU) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-689-2 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98089-657-0 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) (D) 		8-98064-717-1 01 1 0804- ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 (B) L=140 		5-09707-031-1 01 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 (A) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
158 04.681 CLIP; HOSE
4JB1-TC ENG(RDT) (A) ID=18-24 L=14.5 		1-09709-298-0 01 1 0804- ● ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) ID=18-24 L=14.5 		1-09709-298-0 01 1 0804- ● ●
158 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) 02.559 (B) ID=28 H=45 L=30 		1-09700-707-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98145-534-0 01 1 0904- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-852-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-852-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-801-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-805-2 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-727-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-730-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-730-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0904- ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0804-0906 ● ● ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
çizim 154787
66 85 236 96 236 98 66 39 39 39 39 80 78
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCC ENG(RDU) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0804-0906 ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (F) 		8-98076-069-1 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-690-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98042-691-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E) 		8-98098-174-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98068-245-0 01 1 0804-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98171-283-0 01 1 1009- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8>, HEAVYDUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXHAUST BRAKE<NF8> (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (D) 		8-98113-754-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (D) 		8-98113-754-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. EXHAUST BRAKE<NF8> (C) 		8-98056-001-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68),EXHAUST BRAKE<NF8> (C) 		8-98061-466-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98064-565-3 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),HEA VY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10),HEAVY DUTYFRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0804- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98092-071-0 01 1 0804-0810 ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98135-573-0 01 1 0811- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 		8-98113-809-0 01 1 0804-1311 ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98113-809-0 01 1 0804-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0710-0803 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0804-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
98 04.931 BOLT; VAC PIPE FIX
EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0904- ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0804-0906 ● ● ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
çizim 154788
197 78 80 98 85 66 236 96 66 116 98 39 39 39 39 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98145-928-0 01 1 0904- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A) 		8-98039-806-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) (A) 		8-98039-806-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-806-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-808-2 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98039-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (B) 		8-98042-654-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-654-0 01 1 0804-1009 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-654-0 01 1 0804-1009 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-654-0 01 1 1010- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-654-0 01 1 1010- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCC ENG(RDU) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0804-0906 ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (F) 		8-98076-069-1 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-690-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98042-691-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E) 		8-98098-174-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98068-245-0 01 1 0804-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98171-283-0 01 1 1009- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8>, HEAVYDUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXHAUST BRAKE<NF8> (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (D) 		8-98113-754-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (D) 		8-98113-754-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. EXHAUST BRAKE<NF8> (C) 		8-98056-001-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68),EXHAUST BRAKE<NF8> (C) 		8-98061-466-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98064-565-3 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),HEA VY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10),HEAVY DUTYFRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0804- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98092-071-0 01 1 0804-0810 ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98135-573-0 01 1 0811- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 		8-98113-809-0 01 1 0804-1311 ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98113-809-0 01 1 0804-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0710-0803 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0804-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
98 04.931 BOLT; VAC PIPE FIX
EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCC ENG(RDU) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-689-2 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98089-657-0 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) (D) 		8-98064-717-1 01 1 0804- ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 (B) L=140 		5-09707-031-1 01 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 (A) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98145-534-0 01 1 0904- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-852-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-852-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-801-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-805-2 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-727-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-730-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-730-0 01 1 0804- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0804- ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0804-1009 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0804-1009 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0904- ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0804-0906 ● ● ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
çizim 154790
202 165 234 173 12 12 184 163 234 116 20 173 96 157 116 234 120 234 12 203 39 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) ID=18 L=80 		1-09701-069-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=18 L=80 		1-09701-069-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0710-0803 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0804- ● ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0710-0803 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0804- ● ● ● ●
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0710-0803 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0804-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0804- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0710-0803 ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCC ENG(RDU) (E) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0804- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0804- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0804- ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0710-0803 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0804- ● ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0710-0803 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0804- ● ● ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 0710-0803 ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 0804- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0804-1001 ● ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0710-0803 ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0804- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 0710-0803 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98055-936-1 01 1 0804-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 0710-0803 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98055-937-1 01 1 0804-1012 ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1101- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-0 01 1 0710-0711 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JJ1-TCS ENG(LFB) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0712-0803 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0804-1012 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-870-1 01 1 0804-1012 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 0804-1012 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1101- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98155-345-0 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1104- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0710-0803 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0804-1001 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1103 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1104-1311 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0710-0711 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0712-0803 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0804- ● ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0710-0803 ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0804- ● ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0710-0803 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0804- ● ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0710-0803 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0804- ● ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0802-0803 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0804- ● ● ● ●
çizim 154992
98 80 236 66 66 39 39 85 80 96 39 39 78 136 122 78 136 136 158 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0710-0803 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
4JJ1-TCC ENG(RDU) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 08 1 0710-0801 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0802-0803 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 0710-0801 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0804-0906 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCC ENG(RDU) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0804-0906 ● ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (A) 		8-97389-745-1 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (F) 		8-98076-069-1 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-690-1 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-690-1 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98189-223-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98042-691-2 01 1 0710-0803 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 0804-1009 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98042-691-2 01 1 1010-1104 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-224-0 01 1 1105- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E) 		8-98098-174-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98068-245-0 01 1 0804-1008 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) (G) 		8-98171-283-0 01 1 1009- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98071-771-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98069-854-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8>, HEAVYDUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98164-356-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) (A) 		8-98065-063-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (A) 		8-98065-063-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98042-655-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98042-655-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98042-655-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98078-739-0 01 1 0804-1005 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (D) 		8-98164-357-0 01 1 1006-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (D) 		8-98164-357-0 01 1 1312- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXHAUST BRAKE<NF8> (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (D) 		8-98113-754-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (D) 		8-98113-754-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98255-707-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98255-707-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> (D) 		8-98289-413-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (D) 		8-98289-413-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> (E) 		8-98113-755-0 01 1 0804-1311 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98255-706-0 01 1 1312-1408 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98255-706-0 01 1 1312-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (E) 		8-98271-927-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (E) 		8-98271-927-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEAVY DUTY FRAME<6WB> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (A) 		8-98056-002-2 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) EXHAUST BRAKE<NF8> (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXHAUST BRAKE<NF8> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A) 		8-98056-002-2 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. EXHAUST BRAKE<NF8> (C) 		8-98056-001-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68),EXHAUST BRAKE<NF8> (C) 		8-98061-466-1 01 1 0804- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98064-565-3 01 1 0710-0803 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-565-3 01 1 0804-1309 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),HEA VY DUTY FRAME<6WB> (A) 		8-98064-565-3 01 1 1310- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) (A) 		8-98066-971-0 01 1 0804-1309 ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. MALAYSIA EQUIPMENT(B10),HEAVY DUTYFRAME<6WB> (A) 		8-98066-971-0 01 1 1310- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-94438-244-0 01 1 0804-1005 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98164-368-0 01 1 1006-1011 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 		8-98179-707-0 01 1 1012-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 		8-98179-707-0 01 1 1312- ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98075-176-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98075-176-0 01 1 0804- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98092-071-0 01 1 0710-0803 ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98092-071-0 01 1 0804-0810 ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 		8-98135-573-0 01 1 0811- ● ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 		8-98113-809-0 01 1 0804-1311 ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98113-809-0 01 1 0804-1311 ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> 		8-98255-708-0 01 1 1312- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0710-0803 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0804-0906 ● ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JJ1-TCC ENG(RDU) 		8-98039-736-1 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CON DITIONER(C68) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ●
98 04.931 BOLT; VAC PIPE FIX
EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (C) 		8-98076-068-1 01 1 0804- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98042-689-2 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-689-2 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98189-222-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) (A) 		8-98089-657-0 01 1 0710-0803 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 0804-1009 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98089-657-0 01 1 1010-1104 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98189-226-0 01 1 1105- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) (D) 		8-98064-717-1 01 1 0804- ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 04 1 0804-0906 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 04.930 (A) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) 03.162 (A) ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 03.162 (B) L=140 		5-09707-031-1 01 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 0804-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140 		5-09707-031-1 01 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) 04.930 (A) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16 		8-94238-568-0 02 1 0804-0911 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-1009 ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16 		8-98008-098-0 02 1 1010- ● ●
158 04.681 CLIP; HOSE
4JB1-TC ENG(RDT) (A) ID=18-24 L=14.5 		1-09709-298-0 01 1 0804- ● ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) ID=18-24 L=14.5 		1-09709-298-0 01 1 0804- ● ●
158 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) 02.559 (B) ID=28 H=45 L=30 		1-09700-707-0 01 1 0804- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0904- ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0804-0906 ● ● ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
çizim 154993
12 12 197 237 12 198 12 12 237 238 44 228 12 12 158 127 128 12 127 128 197 12 12 238 12 12 12 198 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) ID=18 L=80 		1-09701-069-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=18 L=80 		1-09701-069-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98145-928-0 01 1 0904- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A) 		8-98039-806-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) (A) 		8-98039-806-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-806-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-808-2 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98039-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (B) 		8-98042-654-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-654-0 01 1 0804-1009 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-654-0 01 1 0804-1009 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-654-0 01 1 1010- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-654-0 01 1 1010- ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-0803 ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
127 04.930 BOLT; CLIP
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0804- ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
128 04.930 NUT; CLIP
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
158 04.681 CLIP; HOSE
4JB1-TC ENG(RDT) (A) ID=18-24 L=14.5 		1-09709-298-0 01 1 0804- ● ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A) ID=18-24 L=14.5 		1-09709-298-0 01 1 0804- ● ●
158 04.681 CLIP; HOSE
4JJ1-TCC ENG(RDU) 02.559 (B) ID=28 H=45 L=30 		1-09700-707-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98145-534-0 01 1 0904- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-852-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-852-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-801-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-805-2 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-727-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-730-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-730-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-98039-787-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 		8-98039-787-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-787-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97371-687-0 01 1 0804- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-788-1 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-788-1 01 1 0804-0903 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-788-1 01 1 0904- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-788-1 01 1 0904- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98063-388-0 01 1 0710-0803 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98063-388-0 01 1 0804- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0804- ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0804-1009 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0804-1009 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (C) L=170 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 03.630 (C) L=170 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (C) L=170 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) (B) 		8-98034-429-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98034-429-0 01 1 0804-0903 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0804-0903 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98034-429-0 01 1 0904- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0904- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98036-102-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98039-790-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98039-789-1 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-789-1 01 1 0804-0903 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-789-1 01 1 0904- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-789-1 01 1 0904- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 		8-98039-792-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98039-792-0 01 1 0804-1008 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98171-286-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-0903 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-0903 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-0903 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0804-0903 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0904-1008 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0904-1008 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0904-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0904-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 1009- ●
çizim 154996
12 237 12 44 197 12 12 228 12 238 198 12 237 106 12 12 44 12 12 197 44 12 198 237 228 12 238 236 12 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0804- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 04.930 (B) ID=16 		8-94238-568-0 04 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 04 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) ID=18 L=80 		1-09701-069-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=18 L=80 		1-09701-069-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) 04.930 (B) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (B) ID=16 		8-94238-568-0 02 1 0904-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 04.930 (E) ID=10 H=40 		8-94462-219-0 01 1 0804- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0710-0803 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0804-0903 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=16.5 & 16.5 		8-94468-380-0 01 1 0904- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98145-928-0 01 1 0904- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A) 		8-98039-806-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) (A) 		8-98039-806-0 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-806-0 01 1 0804- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-808-2 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98039-807-1 01 1 0710-0803 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-807-1 01 1 0804- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) (B) 		8-98042-654-0 01 1 0710-0803 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-654-0 01 1 0804-1009 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-654-0 01 1 0804-1009 ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B) 		8-98042-654-0 01 1 1010- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98042-654-0 01 1 1010- ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76 		8-97170-259-0 01 1 0710-0803 ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) ID=10X2 & 4.76 		8-97170-259-0 01 1 0804-0903 ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) ID=10X2 & 4.76 		8-97170-259-0 01 1 0904- ● ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) ID=10X2 & 4.76 		8-97170-259-0 01 1 0904- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98145-534-0 01 1 0904- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-98089-483-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-725-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-728-0 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-852-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-852-1 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-852-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-801-1 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-801-1 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98039-805-2 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 		8-98039-805-2 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-805-2 01 1 0804- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-727-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-727-0 01 1 0804- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98064-730-0 01 1 0710-0803 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-730-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-98039-787-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 		8-98039-787-0 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-787-0 01 1 0804- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97371-687-0 01 1 0804- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-788-1 01 1 0710-0803 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-788-1 01 1 0804-0903 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-788-1 01 1 0904- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-788-1 01 1 0904- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98063-388-0 01 1 0710-0803 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98063-388-0 01 1 0804- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0804- ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0804-1009 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0804-1009 ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
228 04.930 NUT; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0904- ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0803 ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0804-0906 ● ● ● ●
236 04.930 BOLT; PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (C) L=170 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 03.630 (C) L=170 SERVICED BY L=3000 		0-08258-300-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (C) L=170 SERVICED BY L=3000 		0-08258-300-0 01 1 0804- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) (B) 		8-98034-429-0 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98034-429-0 01 1 0804-0903 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0804-0903 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98034-429-0 01 1 0904- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) (B) 		8-98034-429-0 01 1 0904- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98036-102-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98039-790-0 01 1 0804- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A) 		8-98039-789-1 01 1 0710-0803 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-789-1 01 1 0804-0903 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-789-1 01 1 0904- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98039-789-1 01 1 0904- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (D) 		8-98039-792-0 01 1 0710-0803 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98039-792-0 01 1 0804-1008 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98171-286-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 		8-97377-521-0 01 1 0710-0803 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-0903 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-0903 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0804-0903 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0804-0903 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0904-1008 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0904-1008 ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 0904-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 0904-1008 ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ● ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) 		8-97377-521-0 01 1 1009- ●
238 04.892 ORIFICE; VACUUM HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) EXC. REAR WIDE TREAD(V4T) 		8-97377-521-0 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
