◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#53953) — 99 parça

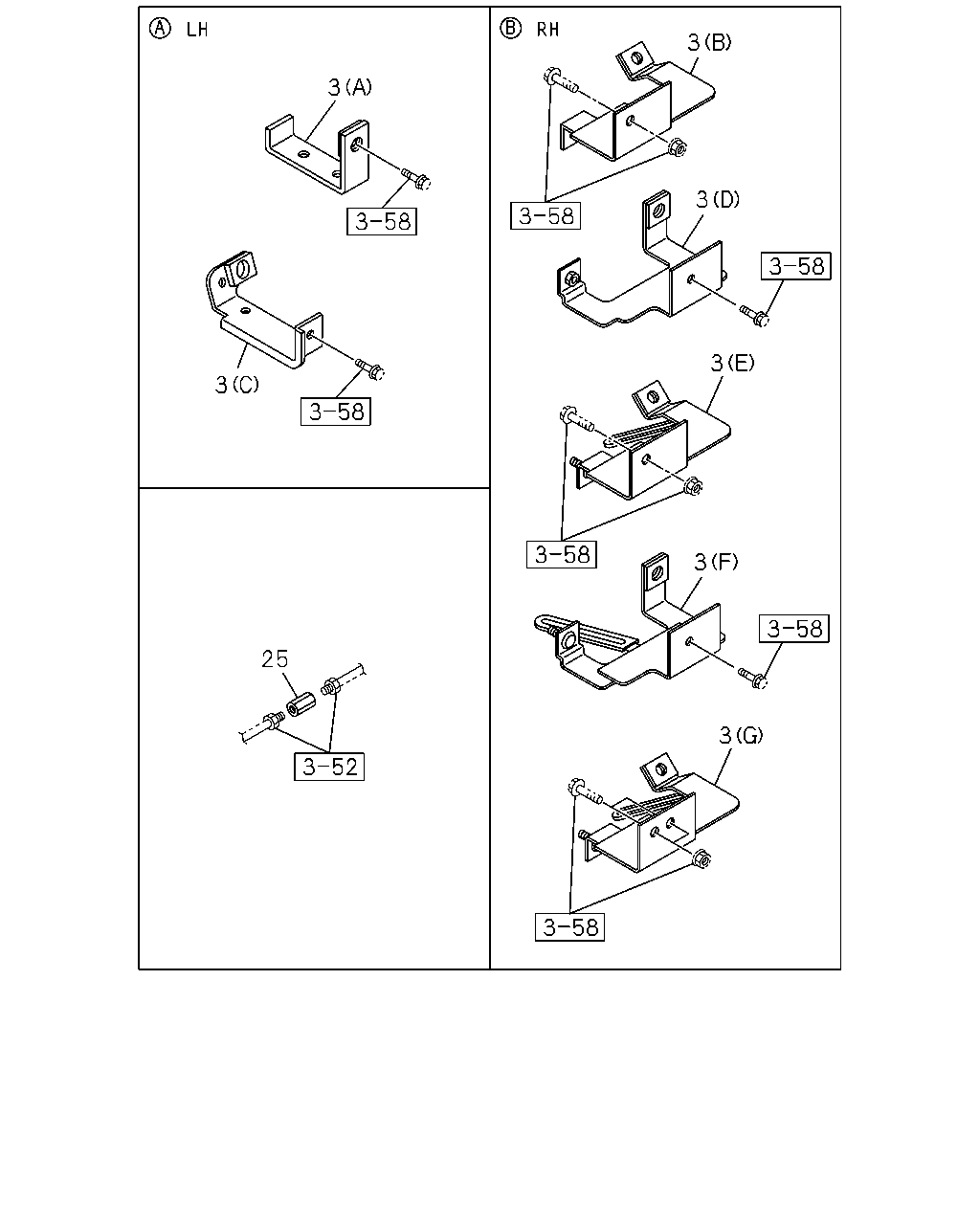

çizim 154655
3 3 3 3 3 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) 		8-97251-436-0 01 1 0804-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD) (C) 		8-97251-436-0 01 1 0804-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C) 		8-97251-436-0 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) SINGLE RR TIRE(6TD) (C) 		8-97251-436-0 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D) 		8-97300-282-0 01 1 0804-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (F) 		8-98117-513-0 01 1 0904- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 0710-0803 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-97205-198-0 01 1 0804-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 0804-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 0804-0906 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-97205-198-0 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) (A) 		8-97205-198-0 01 1 0907- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-97046-936-0 01 1 0710-0803 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-97046-936-0 01 1 0804-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97046-936-0 01 1 0804-0903 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (E) 		8-98117-511-0 01 1 0904-0911 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98117-511-0 01 1 0904-0911 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (G) 		8-98153-296-0 01 1 0912- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98153-296-0 01 1 0912- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 0710-0803 ●
25 04.686 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 0804- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0710-0803 ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 0710-0803 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0710-0803 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804-0906 ● ● ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 0804-0906 ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0804-0906 ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0804-0906 ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 0804-0906 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804-0906 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0907- ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 0907- ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0907- ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0907- ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 0907- ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) M10 STRAIGHT 		0-92107-005-0 01 1 0907- ● ●
25 04.686 CONNECTOR
4JJ1-TCC ENG(RDU) M10 STRAIGHT 		0-92107-005-0 01 1 0907- ●

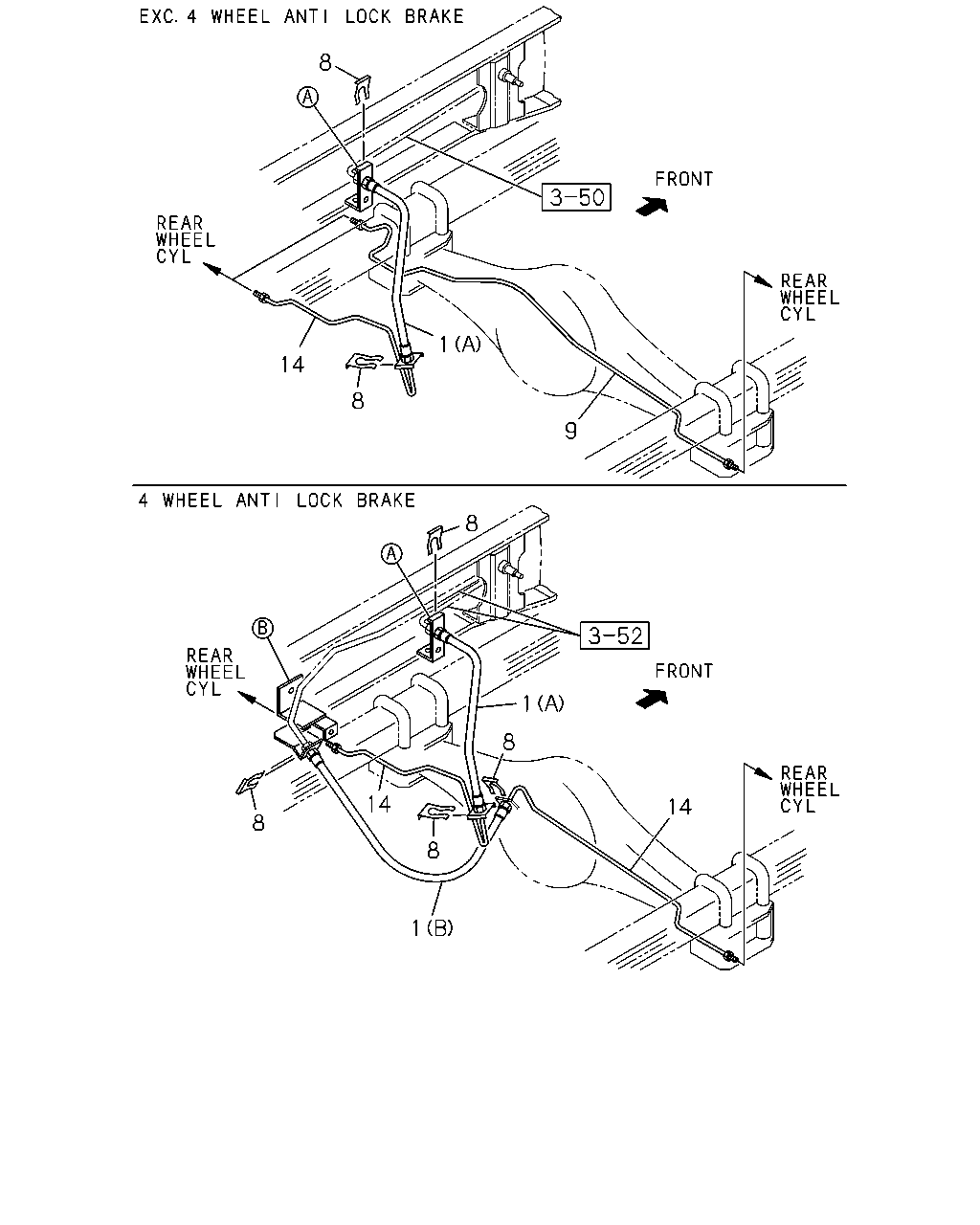

çizim 154778
8 1 14 8 8 1 8 14 14 8 8 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (B) L=345 		8-97230-284-1 01 1 0804- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0710-0803 ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0804- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 0710-0803 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B) L=430 		8-97077-458-0 01 1 0804- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0804- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0710-0803 ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0804- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0804- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0804- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98021-870-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-870-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98021-870-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD), SMALL DOUBLE RR TIRE(6YE) 		8-98034-198-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-864-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-864-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-861-0 01 1 0804-0901 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-861-0 01 1 0902- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98045-395-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD), SMALL DOUBLE RR TIRE(6YE) 		8-98045-394-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) BRK WHL LK CONT LSPV<6PH> SMALL DOUBLE RR TIRE(6YE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-610-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97089-922-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. INDONESIA EQUIPMENT(B00),HONG KONGEQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE <JE5> 		8-98067-256-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE 8-98067-256-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-873-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLO W<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLERR TIRE(6YE) 		8-98021-869-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98021-869-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-869-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. INDONESIA EQUIPMENT(B00),HONG KONGEQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE <JE5> 		8-98021-869-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98021-869-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD), SMALL DOUBLE RR TIRE(6YE) 		8-98034-192-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98034-192-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-860-0 01 1 0804-0901 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-860-0 01 1 0804-0901 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-860-0 01 1 0804-0901 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-860-0 01 1 0902- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-860-0 01 1 0902- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-860-0 01 1 0902- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,BRK WHL LK CONT LSPV<6PH> 		8-98021-862-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,BRK WHL LK CONT LSPV<6PH> 		8-98021-877-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) BRK WHL LK CONT LSPV<6PH> SMALL DOUBLE RR TIRE(6YE) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-607-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-608-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-871-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-871-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE (6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98021-871-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, FULL FLATLOW<6GL>,BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98021-871-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-879-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-879-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE (6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98021-879-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, FULL FLATLOW<6GL>,BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98021-879-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 		8-98034-193-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98034-193-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>,BRK WHL LK CONT LSPV<6PH>,SINGLE R R TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98034-193-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 		8-98034-196-0 01 1 0710-0803 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98034-196-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>,BRK WHL LK CONT LSPV<6PH>,SINGLE R R TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98034-196-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98021-872-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
