Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#53951) — 157 parça

130 131 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	04.686 BRACKET; SPEED SENSOR (A)	8-98035-634-0	01	1	0710-0803	●
130	04.686 BRACKET; SPEED SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98035-634-0	01	1	0804-	●
130	04.686 BRACKET; SPEED SENSOR (A)	8-98035-633-0	01	1	0710-0803	●
130	04.686 BRACKET; SPEED SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98035-633-0	01	1	0804-	●
130	04.686 BRACKET; SPEED SENSOR (B)	8-97080-060-2	02	1	0710-0803	●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97080-060-2	02	1	0804-	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0710-0803	●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0804-	●	●

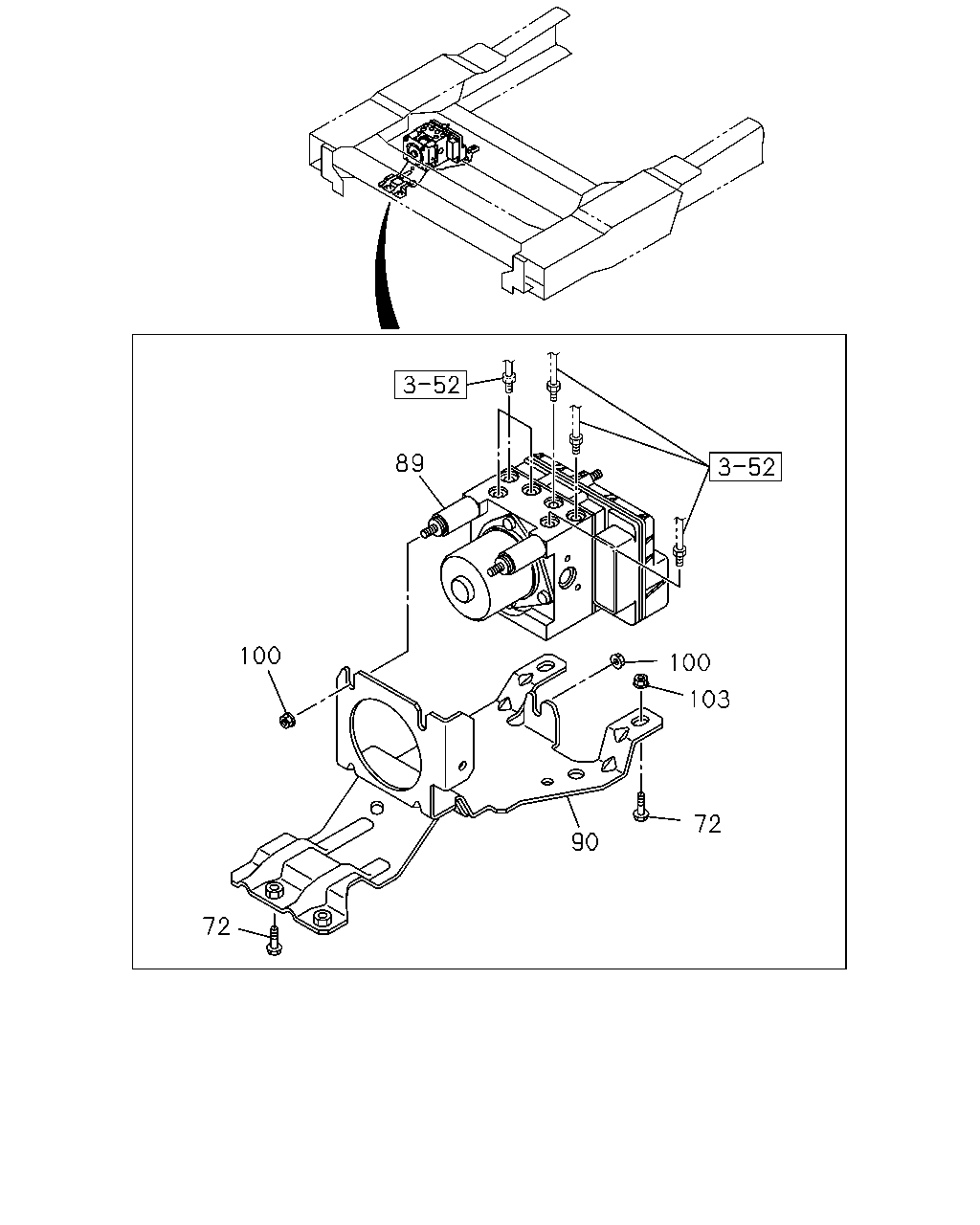

100 100 103 72 90 72 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-0803	●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0804-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98081-562-1	01	1	0710-0803	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98081-562-1	01	1	0804-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98158-007-1	01	1	1007-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98081-561-1	01	1	0804-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1007-	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97386-355-0	01	1	0710-0803	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97386-355-0	01	1	0804-	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 M8 FLANGE	0-91180-108-0	03	1	0710-0803	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	03	1	0804-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-		●

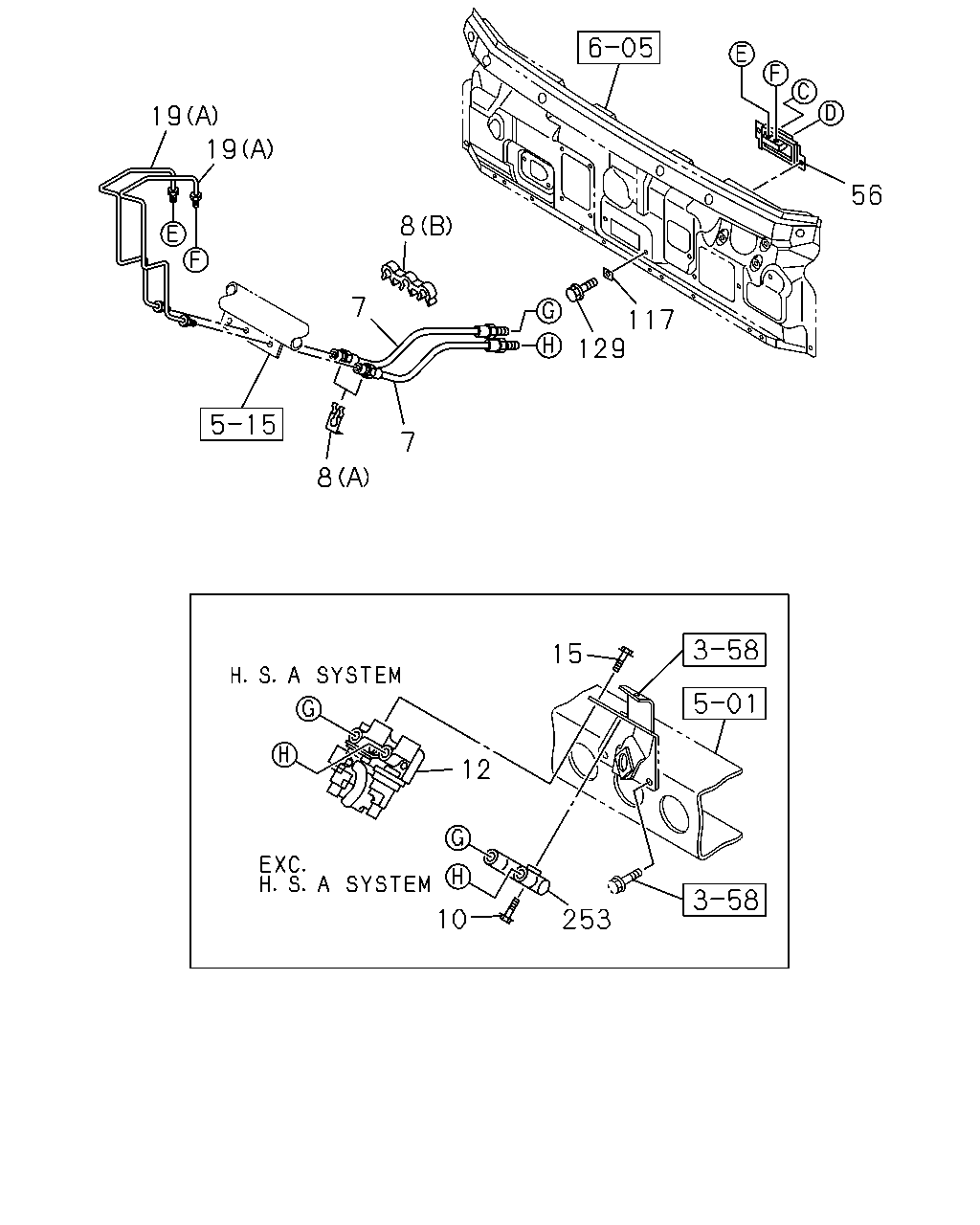

19 19 56 8 7 117 129 7 8 15 12 10 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	0710-0803	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	0804-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0710-0803	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0804-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	0710-0803	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	0804-	●	●	●	●
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0710-0803	●	●
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0804-0906	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0804-0906			●	●
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0907-	●	●
10	04.686 BOLT; JOINT 4JJ1-TCC ENG(RDU) 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0907-			●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97331-331-2	01	1	0710-0803	●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97331-331-2	01	1	0804-1107	●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-364-1	01	1	1108-	●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97331-328-2	01	1	0804-1107	●	●
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98173-768-0	01	1	1108-	●	●
15	04.730 BOLT; HSA VALVE H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0710-0803	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0804-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0710-0803	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0804-0906	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCC ENG(RDU) (A)	8-98012-095-1	02	1	0907-			●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-282-1	01	1	0710-1005	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98154-265-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-281-1	01	1	0710-0803	●
56	04.686 BRACKET; UNION,BRK	8-97389-281-1	01	1	0710-0803		●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-281-1	01	1	0804-1005	●
56	04.686 BRACKET; UNION,BRK	8-97389-281-1	01	1	0804-1005		●	●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98154-264-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK	8-98154-264-1	01	1	1006-		●	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0710-0803	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0804-	●	●	●	●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0710-0803	●	●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0804-0809	●	●	●	●
129	04.710 BOLT; BRKT 08.857 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-0803	●	●
129	04.710 BOLT; BRKT 08.857 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●	●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.ASYSTEM<6EP> 04.686	8-97120-033-2	01	1	0804-0906	●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	0804-0906			●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.ASYSTEM<6EP> 04.686	8-97120-033-2	01	1	0907-	●
253	04.840 JOINT 4JJ1-TCC ENG(RDU) 04.686	8-97120-033-2	01	1	0907-			●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.ASYSTEM<6EP>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0804-0906	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.ASYSTEM<6EP> 04.686	5-47456-009-1	01	1	0804-0906		●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0804-0906				●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.ASYSTEM<6EP>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0907-	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, H.S.ASYSTEM<6EP> 04.686	5-47456-009-1	01	1	0907-		●
253	04.840 JOINT 4JJ1-TCC ENG(RDU) 04.686	5-47456-009-1	01	1	0907-				●
253	04.840 JOINT EXC. H.S.A SYSTEM<6EP>	8-97038-940-1	01	1	0710-0803	●	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP>	8-97038-940-1	01	1	0804-	●	●

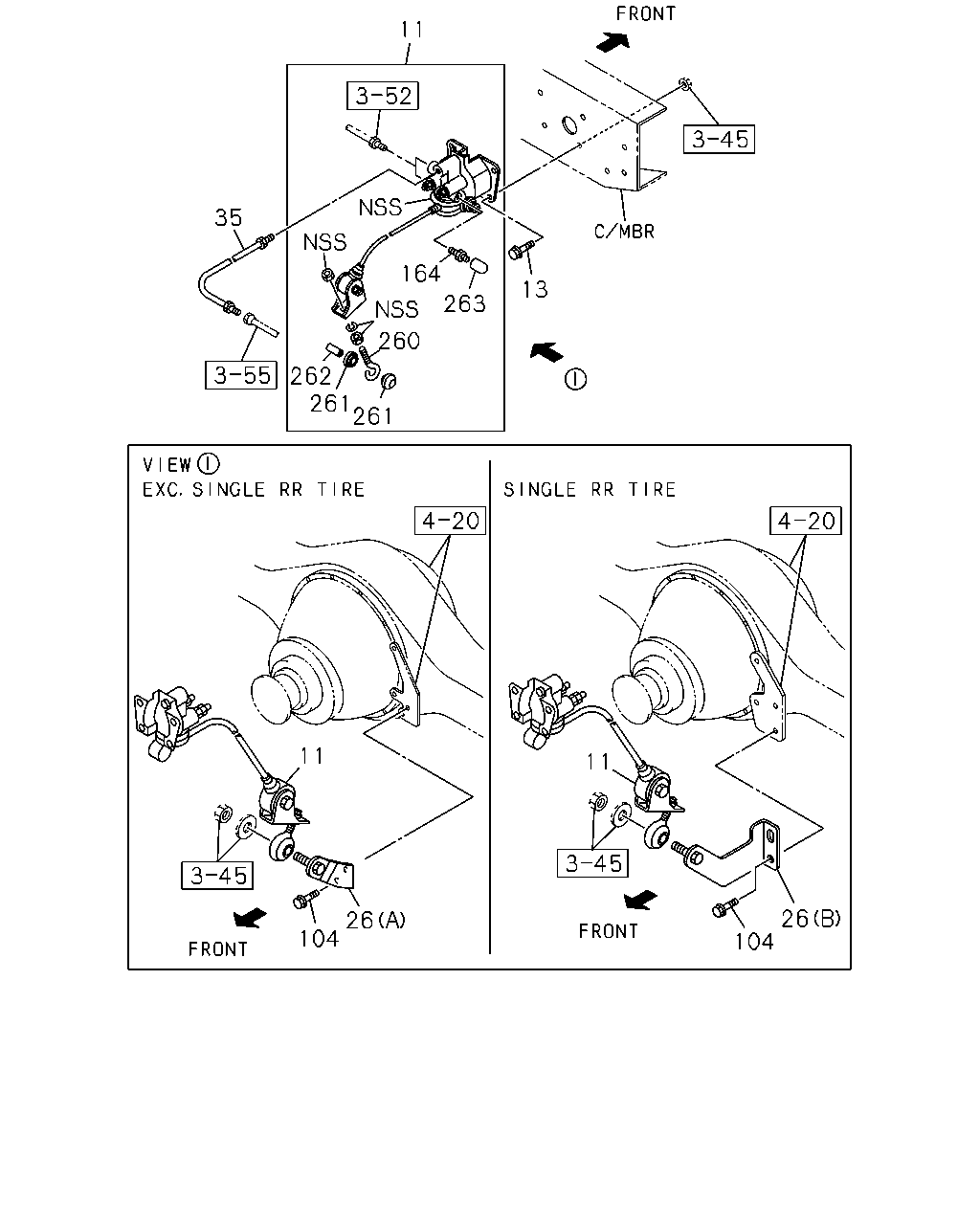

11 35 164 13 263 260 262 261 261 11 11 26 104 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 04.730	8-94368-455-2	01	1	0804-	●
11	04.686 VALVE; BRK CONT SINGLE RR TIRE(6TD) 04.730	8-94368-455-2	01	1	0804-		●
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 04.730	8-97070-721-0	01	1	0804-	●
11	04.686 VALVE; BRK CONT EXC. SINGLE RR TIRE(6TD) 04.730	8-97070-721-0	01	1	0804-		●
13	04.686 BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0804-	●
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0804-		●
26	04.730 BRACKET; PROPORTIONING VLV REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> SMALL DOUBLE RR TIRE(6YE) (A)	8-98029-821-0	01	1	0804-	●
26	04.730 BRACKET; PROPORTIONING VLV REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A)	8-98029-821-0	01	1	0804-	●
26	04.730 BRACKET; PROPORTIONING VLV EXC. SINGLE RR TIRE(6TD) (A)	8-98029-821-0	01	1	0804-		●
26	04.730 BRACKET; PROPORTIONING VLV REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) (B)	8-98029-822-0	01	1	0804-	●
26	04.730 BRACKET; PROPORTIONING VLV SINGLE RR TIRE(6TD) (B)	8-98029-822-0	01	1	0804-		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-98064-716-0	01	1	0804-0906	●
35	04.685 PIPE; BRK,VLV TO RR AXLE SINGLE RR TIRE(6TD)	8-98064-716-0	01	1	0804-0906		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-98064-716-0	01	1	0907-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCC ENG(RDU) SINGLE RR TIRE(6TD)	8-98064-716-0	01	1	0907-		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-97389-540-0	01	1	0804-0906	●
35	04.685 PIPE; BRK,VLV TO RR AXLE EXC. SINGLE RR TIRE(6TD)	8-97389-540-0	01	1	0804-0906		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-97389-540-0	01	1	0907-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD)	8-97389-540-0	01	1	0907-		●
104	04.730 BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-	●
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-		●
164	04.730 SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	0804-	●
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	0804-		●
260	04.685 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97173-366-0	01	1	0804-	●
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	0804-		●
261	04.685 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97145-631-0	02	1	0804-	●
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	0804-		●
262	04.685 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97139-186-0	01	1	0804-	●
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	0804-		●
263	04.685 CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	0804-	●
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	0804-		●

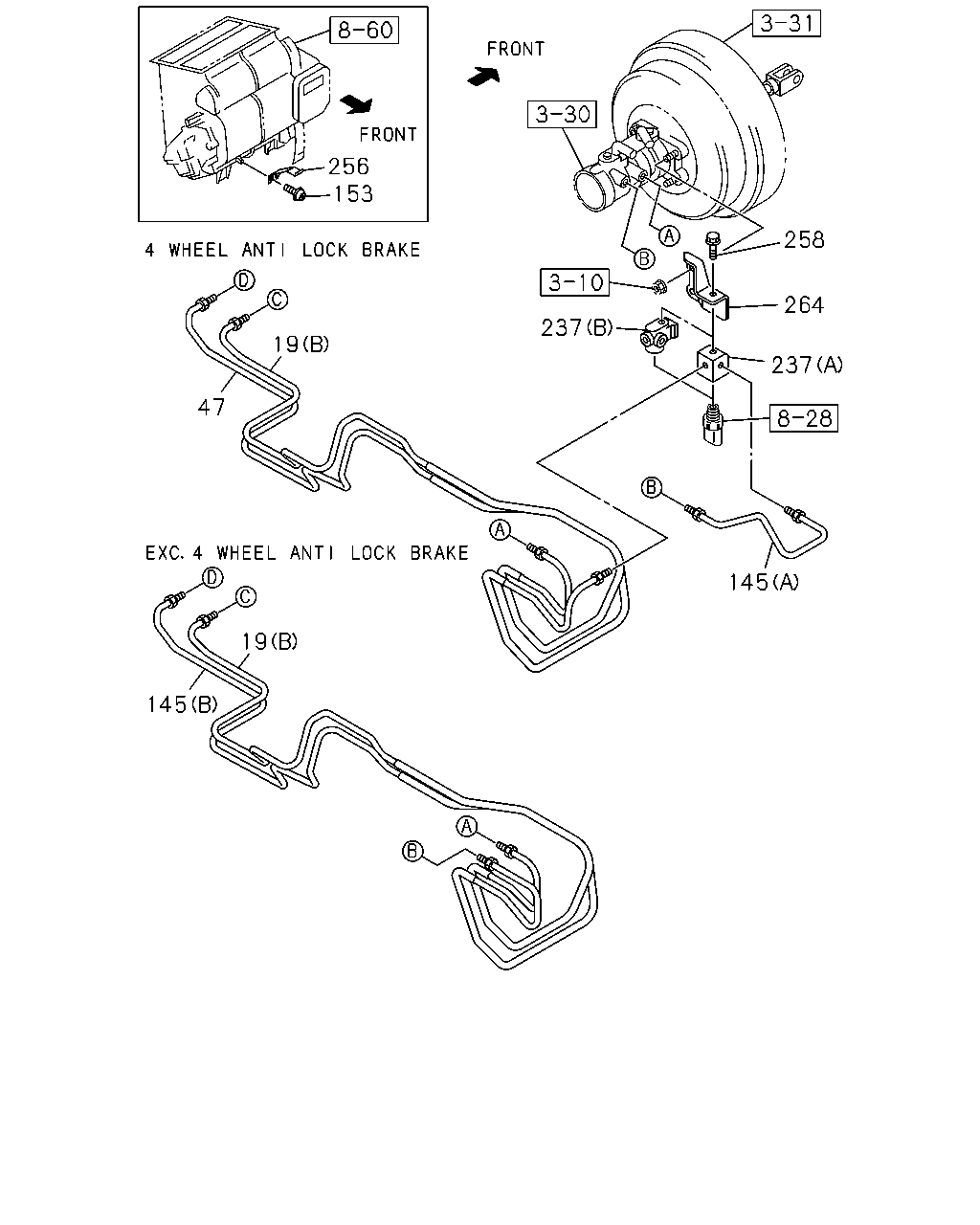

256 153 258 264 237 19 237 47 145 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0710-0803	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0804-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0710-0803	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0804-0906	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCC ENG(RDU) (A)	8-98012-095-1	02	1	0907-			●	●
47	04.685 PIPE; OIL,FRT BRK	8-98005-586-3	01	1	0710-0803	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98005-586-3	01	1	0804-0906	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	0907-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-98042-422-0	01	1	0710-0803	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98042-422-0	01	1	0804-0906	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=201	8-98133-407-0	01	1	0907-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97389-295-3	01	1	0804-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-97389-295-3	01	1	0804-			●	●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0710-0803	●	●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0804-0808	●	●	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0809-0809	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0809-0809		●	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0810-1001	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0810-1001		●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0810-1001				●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-		●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-				●
237	04.840 CONNECTOR; MODULATOR (A)	8-98007-865-3	01	1	0710-0803	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98007-865-3	01	1	0804-0906	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	0907-	●	●
256	04.840 BRACKET; BRK PIPE	8-98034-784-1	01	1	0710-0803	●	●
256	04.840 BRACKET; BRK PIPE	8-98034-784-1	01	1	0804-0808	●	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0809-0809	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98034-784-1	01	1	0809-0809		●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-98034-784-1	01	1	0810-1001	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98034-784-1	01	1	0810-1001		●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98034-784-1	01	1	0810-1001				●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005		●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005				●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-		●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-				●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0710-0803	●	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	0804-	●	●

35 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 04.730	8-94368-455-2	01	1	0804-	●
11	04.686 VALVE; BRK CONT SINGLE RR TIRE(6TD) 04.730	8-94368-455-2	01	1	0804-		●
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 04.730	8-97070-721-0	01	1	0804-	●
11	04.686 VALVE; BRK CONT EXC. SINGLE RR TIRE(6TD) 04.730	8-97070-721-0	01	1	0804-		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-98064-716-0	01	1	0804-0906	●
35	04.685 PIPE; BRK,VLV TO RR AXLE SINGLE RR TIRE(6TD)	8-98064-716-0	01	1	0804-0906		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-98064-716-0	01	1	0907-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCC ENG(RDU) SINGLE RR TIRE(6TD)	8-98064-716-0	01	1	0907-		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-97389-540-0	01	1	0804-0906	●
35	04.685 PIPE; BRK,VLV TO RR AXLE EXC. SINGLE RR TIRE(6TD)	8-97389-540-0	01	1	0804-0906		●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-97389-540-0	01	1	0907-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JJ1-TCC ENG(RDU) EXC. SINGLE RR TIRE(6TD)	8-97389-540-0	01	1	0907-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
