◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#53948) — 86 parça

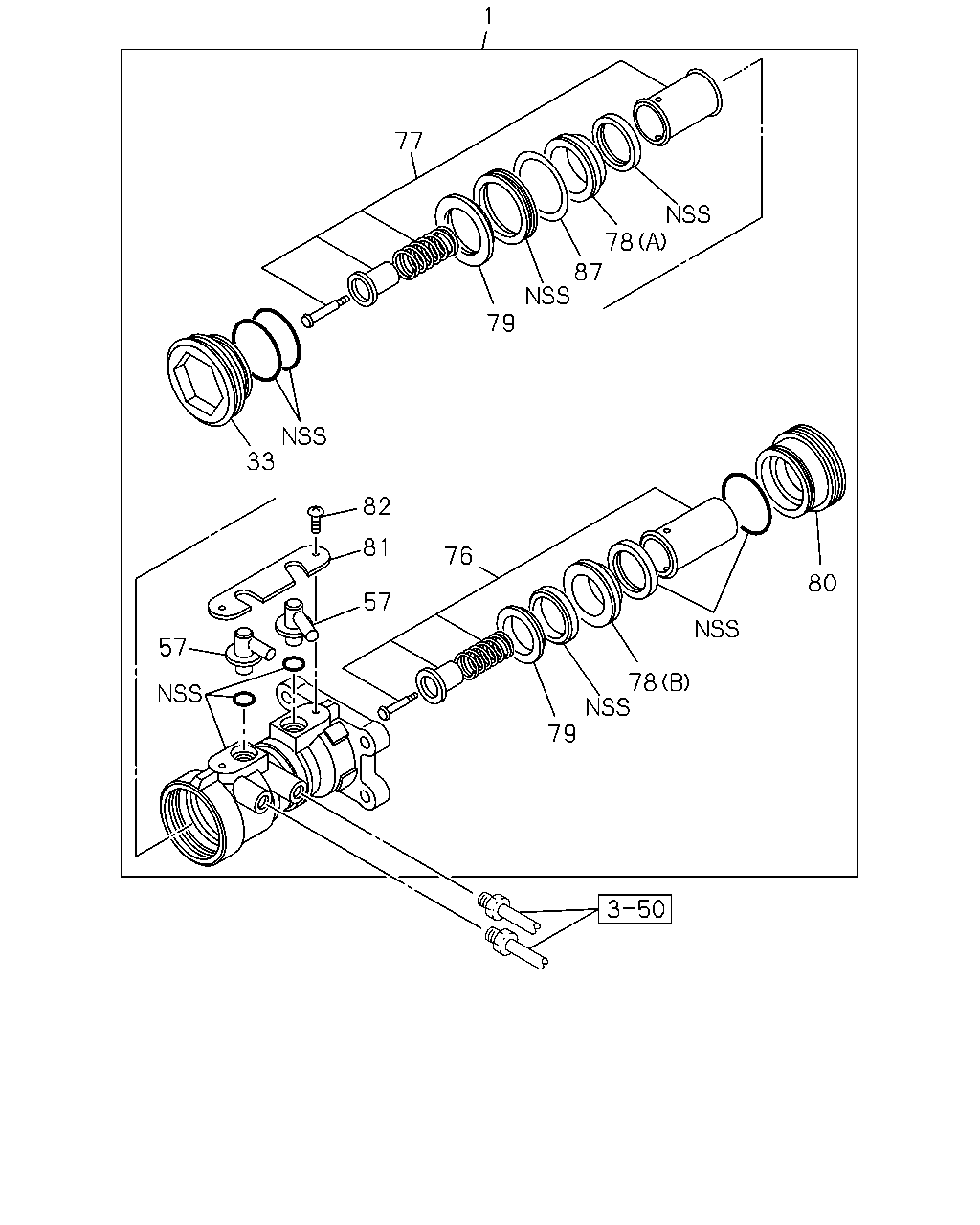

çizim 154766
1 77 78 87 79 33 82 81 76 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-599-0 01 1 0710-0803 ●
1 04.650 CYLINDER ASM; BRK MASTER
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-599-0 01 1 0804- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-98032-599-0 01 1 0804- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-599-0 01 1 0804- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-599-0 01 1 0804- ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-600-0 01 1 0710-0803 ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-600-0 01 1 0804- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-98032-600-0 01 1 0804- ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0710-0803 ●
33 04.661 PLUG; END,M/CYL
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-696-0 01 1 0804- ● ●
33 04.661 PLUG; END,M/CYL
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 0804- ● ●
33 04.661 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-696-0 01 1 0804- ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0804- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 0710-0803 ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-697-0 01 1 0804- ● ●
33 04.661 PLUG; END,M/CYL
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-97186-697-0 01 1 0804- ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0710-0803 ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0804- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0710-0803 ●
76 04.653 PISTON ASM; PRIMARY
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-636-0 01 1 0804- ● ●
76 04.653 PISTON ASM; PRIMARY
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 0804- ● ●
76 04.653 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-636-0 01 1 0804- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0804- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0710-0803 ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-643-0 01 1 0804- ● ●
76 04.653 PISTON ASM; PRIMARY
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-97224-643-0 01 1 0804- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0710-0803 ●
77 04.653 PISTON ASM; SECONDARY
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-635-0 01 1 0804- ● ●
77 04.653 PISTON ASM; SECONDARY
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 0804- ● ●
77 04.653 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-635-0 01 1 0804- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0804- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0710-0803 ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-642-0 01 1 0804- ● ●
77 04.653 PISTON ASM; SECONDARY
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-97224-642-0 01 1 0804- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0710-0803 ●
78 04.651 BUSHING; MASTER CYL
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-454-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-454-0 01 1 0804- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0710-0803 ●
78 04.651 BUSHING; MASTER CYL
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-310-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-310-0 01 1 0804- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0710-0803 ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-455-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (A) 		8-97130-455-0 01 1 0804- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0710-0803 ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-312-0 01 1 0804- ● ●
78 04.651 BUSHING; MASTER CYL
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) 		8-97217-312-0 01 1 0804- ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0710-0803 ●
79 04.651 SUPPORTER; CUP
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-462-0 02 1 0804- ● ●
79 04.651 SUPPORTER; CUP
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 0804- ● ●
79 04.651 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-462-0 02 1 0804- ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0804- ● ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 0710-0803 ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-463-0 02 1 0804- ● ●
79 04.651 SUPPORTER; CUP
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-97130-463-0 02 1 0804- ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0710-0803 ●
80 04.651 COVER; MASTER CYL
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-448-0 01 1 0804- ● ●
80 04.651 COVER; MASTER CYL
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 0804- ● ●
80 04.651 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-448-0 01 1 0804- ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0804- ● ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 0710-0803 ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-449-0 01 1 0804- ● ●
80 04.651 COVER; MASTER CYL
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-97130-449-0 01 1 0804- ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0710-0803 ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0804- ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0710-0803 ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0804- ● ● ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0710-0803 ●
87 04.662 SPACER; CUP
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-458-0 01 1 0804- ● ●
87 04.662 SPACER; CUP
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 0804- ● ●
87 04.662 SPACER; CUP
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-458-0 01 1 0804- ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0804- ● ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 0710-0803 ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-459-0 01 1 0804- ● ●
87 04.662 SPACER; CUP
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-97130-459-0 01 1 0804- ●

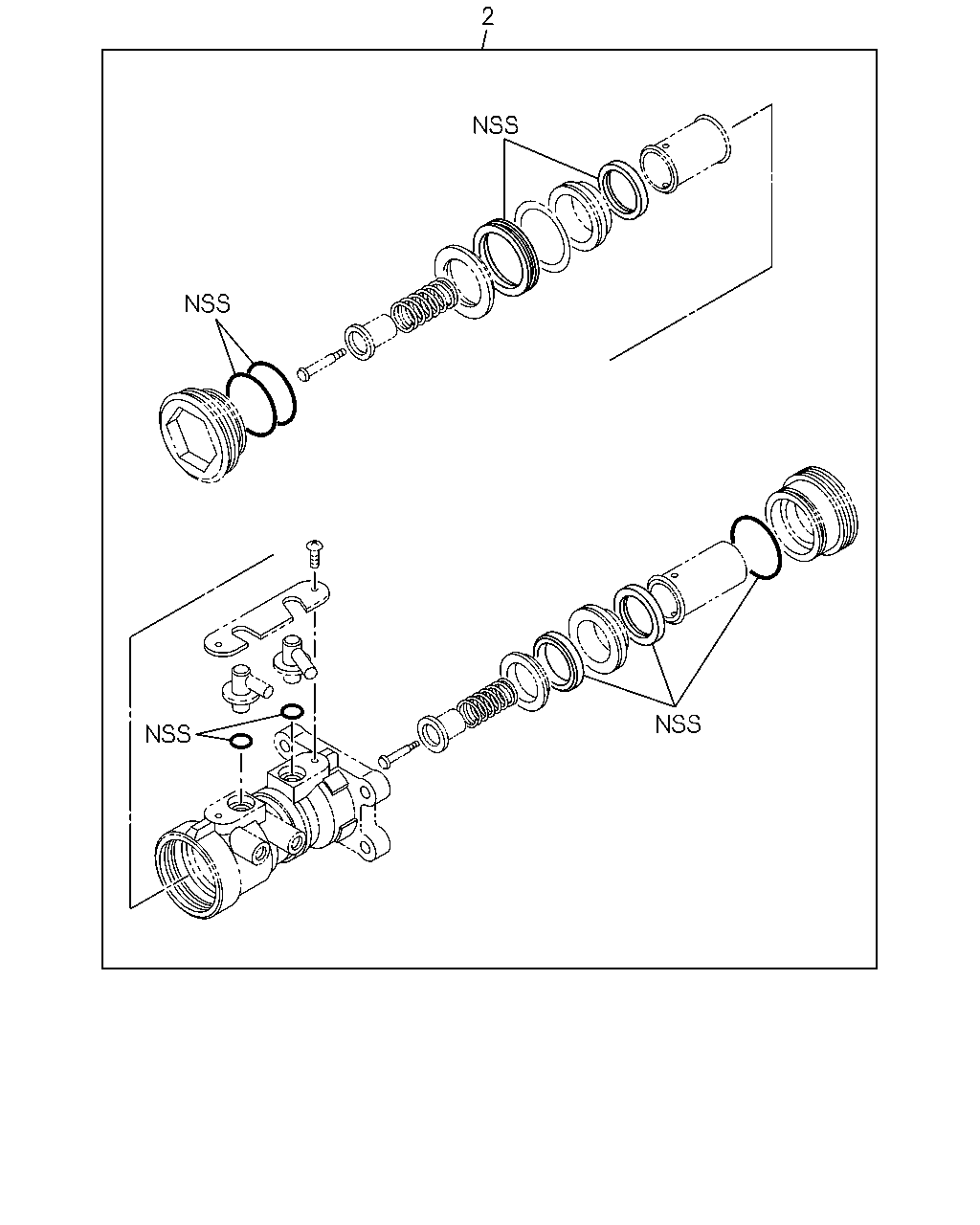

çizim 154770
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0710-0803 ●
2 04.649 REPAIR KIT; BRK,M/CYL
INDONESIA EQUIPMENT(B00) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-470-0 01 1 0804- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 0804- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-470-0 01 1 0804- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0804- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0710-0803 ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-471-0 01 1 0804- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 		8-97130-471-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
