Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#53945) — 236 parça

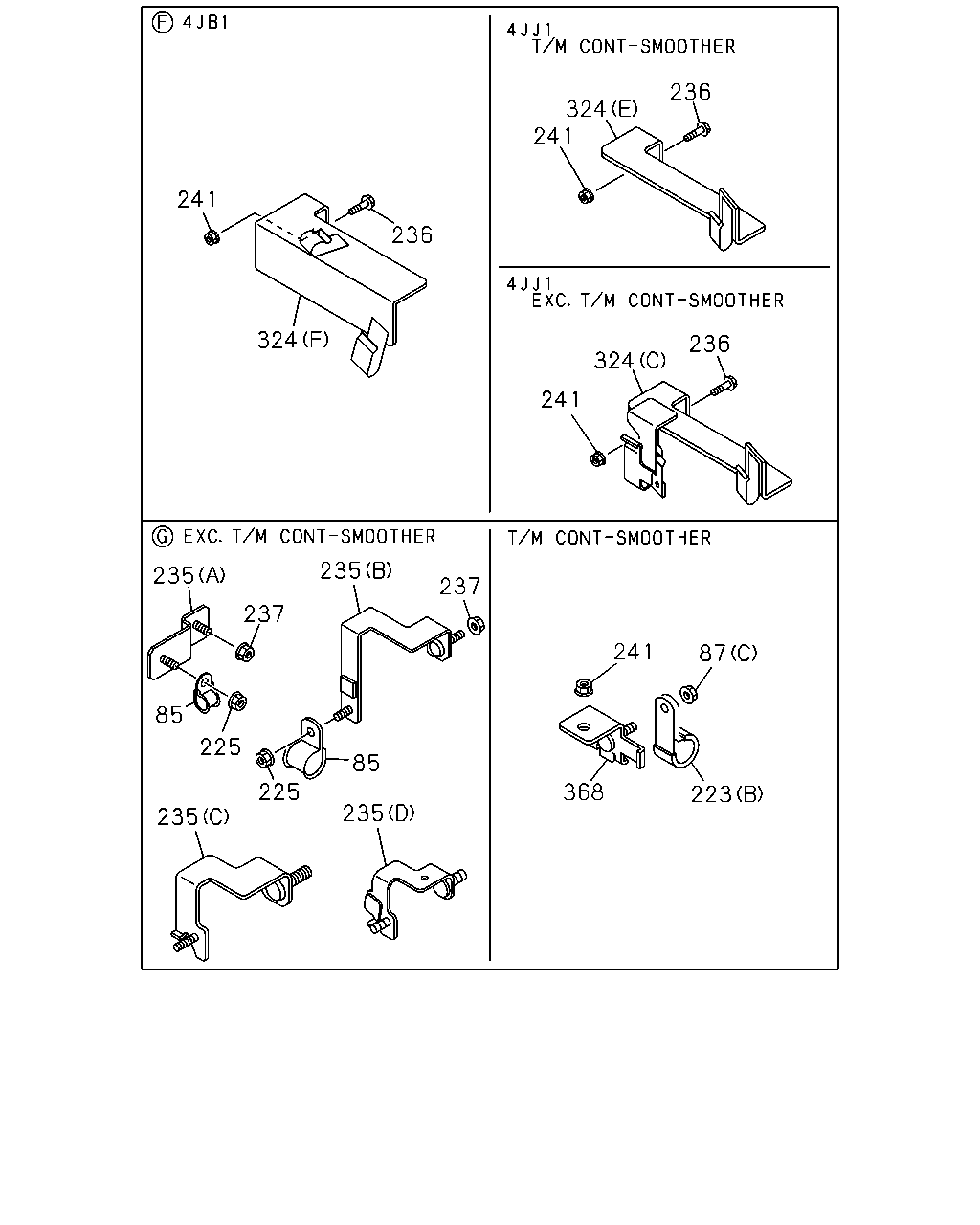

241 324 236 324 236 241 324 241 236 235 235 237 237 85 225 85 225 235 235 241 87 368 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
85	04.785 CLIP; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	0710-0803	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0710-0803		●
85	04.785 CLIP; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	0804-	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0804-		●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-0803	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0710-0803	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0804-	●	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (B) ID=13 L=20	1-09701-138-1	01	1	0710-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0710-0803	●
223	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0710-0803		●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
223	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●	●
225	04.785 NUT; CABLE CLIP 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●
225	04.785 NUT; CABLE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803		●
225	04.785 NUT; CABLE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (C)	8-98232-255-0	01	1	1301-1311	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (C)	8-98232-255-0	01	1	1301-1311	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> (D)	8-98255-956-0	01	1	1312-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) EXC. HEAVY DUTY FRAME<6WB> (D)	8-98255-956-0	01	1	1312-	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MSB5M(RM5),M/T MSB5S(R45) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98106-619-1	01	1	0804-1212	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MSB5M(RM5) (B)	8-98106-619-1	01	1	0804-1212		●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) (B)	8-98106-619-1	01	1	1301-1311	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (B)	8-98106-619-1	01	1	1301-1311	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98106-619-1	01	1	1301-1311		●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98106-619-1	01	1	1312-	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (B)	8-98106-619-1	01	1	1312-	●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98106-619-1	01	1	1312-		●
235	04.785 BRACKET; CONT CABLE TO FRAME 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (B)	8-98106-619-1	01	1	1312-		●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-352-0	01	1	0710-0803	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-352-0	01	1	0804-	●	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●	●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
236	04.785 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-			●	●
237	04.785 NUT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0711		●
237	04.785 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-0803	●	●
237	04.785 NUT; BRKT TO FRAME 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●		●	●
237	04.785 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●
237	04.785 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-	●	●
241	04.785 NUT; BRKT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
241	04.785 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (F)	8-98064-280-1	01	1	1301-1311	●	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (F)	8-98064-280-1	01	1	1301-1311	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> (F)	8-98064-280-1	01	1	1312-	●	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98064-280-1	01	1	1312-	●
324	04.785 BRACKET (D)	8-98032-783-1	01	1	0710-0803	●
324	04.785 BRACKET FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98032-783-1	01	1	0804-	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98038-563-0	01	1	0710-0803	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98038-563-0	01	1	0804-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) (F)	8-98106-757-1	01	1	0804-1212	●	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) (F)	8-98106-757-1	01	1	1301-1311	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (F)	8-98106-757-1	01	1	1301-1311	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (F)	8-98106-757-1	01	1	1301-1311		●
324	04.785 BRACKET 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-		●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-		●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98003-642-1	01	1	0710-0803	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98003-642-1	01	1	0804-	●	●	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98026-099-2	01	1	0710-0803	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98026-099-2	01	1	0804-	●	●	●	●
324	04.785 BRACKET (B)	8-98034-115-0	01	1	0710-0803		●
324	04.785 BRACKET EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98034-115-0	01	1	0804-	●
324	04.785 BRACKET (B)	8-98034-115-0	01	1	0804-		●	●	●
368	04.785 BRACKET; T/M SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-863-1	01	1	0710-	●

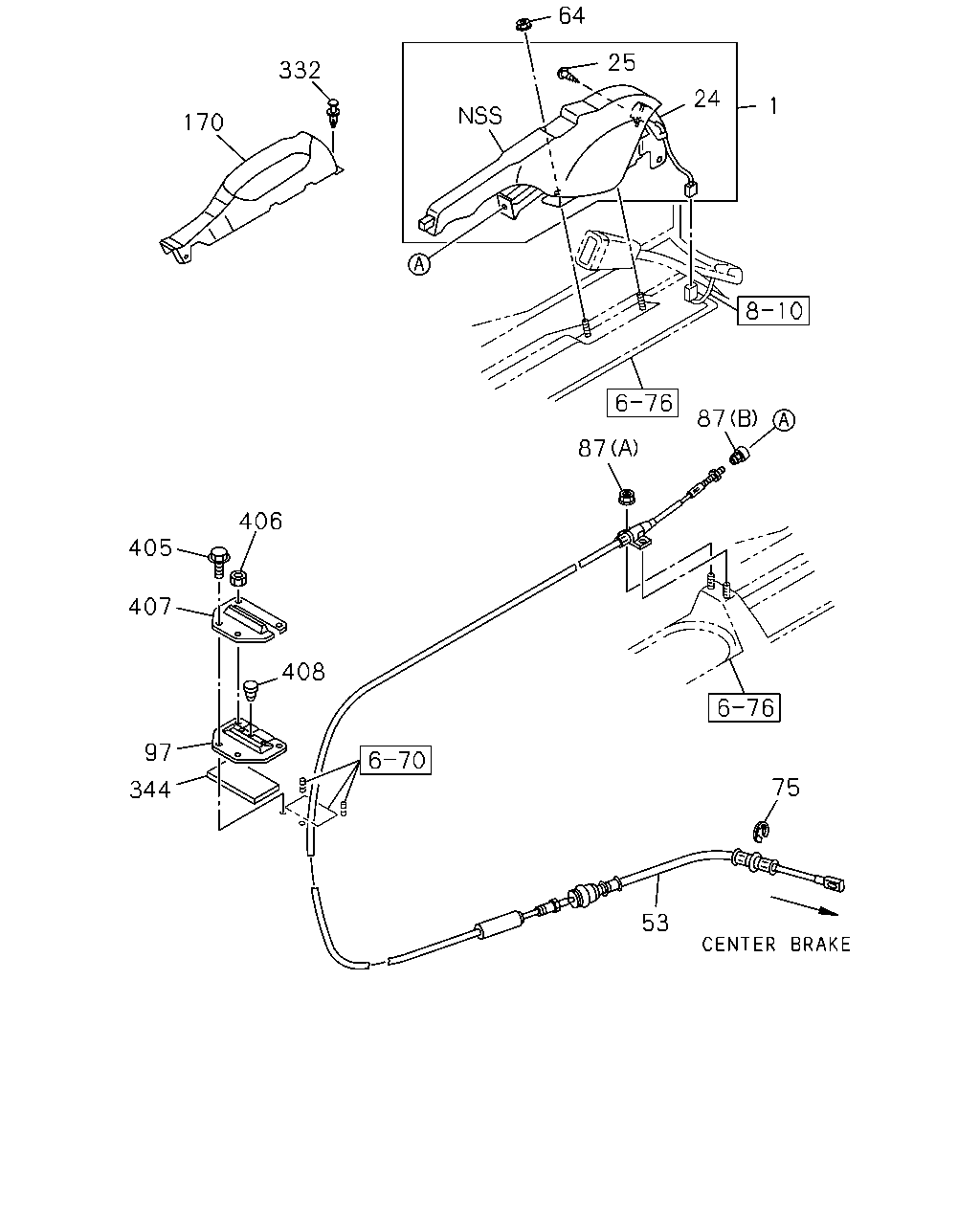

64 25 332 24 1 170 87 87 406 405 407 408 97 75 344 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0710-0803	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0804-1303	●	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1304-	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0710-0803	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0804-1303	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1304-	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0710-0803	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0804-	●	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00)	8-98232-256-0	01	1	1301-1311	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD)	8-98232-256-0	01	1	1301-1311	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB>	8-98232-256-0	01	1	1312-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) EXC. HEAVY DUTY FRAME<6WB>	8-98232-256-0	01	1	1312-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-067-5	01	1	0804-1205	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5)	8-98070-067-5	01	1	0804-1205		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98222-721-0	01	1	1206-1212	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5)	8-98222-721-0	01	1	1206-1212		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ)	8-98222-721-0	01	1	1301-1311	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10)	8-98222-721-0	01	1	1301-1311	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-98222-721-0	01	1	1301-1311		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) EXC. HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-832-3	01	1	0710-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-832-3	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98042-108-0	01	1	0710-0710	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM)	8-98042-108-0	01	1	0710-0710		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-912-0	01	1	0711-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM)	8-98102-912-0	01	1	0711-0803		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-912-0	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM)	8-98102-912-0	01	1	0804-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM)	8-98102-912-0	01	1	0804-			●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-834-3	01	1	0710-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-834-3	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98056-000-0	01	1	0710-0710	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-913-0	01	1	0711-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-913-0	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST)	8-98102-913-0	01	1	0804-		●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0710-0803	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0804-	●	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0710-0803	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0804-	●
75	04.790 RING; SNAP,HAND BRK CABLE M/T MSB5M(RM5),M/T MYY5T(RSM),M/T MYY6S(RST) ID=12	0-91805-512-0	01	1	0804-		●
75	04.790 RING; SNAP,HAND BRK CABLE M/T MYY5T(RSM) ID=12	0-91805-512-0	01	1	0804-			●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-0803	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0710-0803	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0804-	●	●	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	0710-0803	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	0804-	●	●	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97406-170-1	01	1	0710-0803	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97406-170-1	01	1	0804-	●	●	●	●
332	04.785 CLIP; COVER GRAY	8-97406-171-0	01	1	0710-0803	●	●
332	04.785 CLIP; COVER GRAY	8-97406-171-0	01	1	0804-	●	●	●	●
344	04.595 GASKET; DASH LWR 04.047	8-97096-753-0	01	1	0710-0801	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	0802-	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0710-0803	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0804-	●	●	●	●
406	04.785 NUT; GROMMET 01.540 M6 FLANGE	0-91180-206-0	02	1	0710-0711	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-0803	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	0710-0803	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	0804-	●	●	●	●
408	04.785 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010	8-97371-108-0	02	1	0710-	●

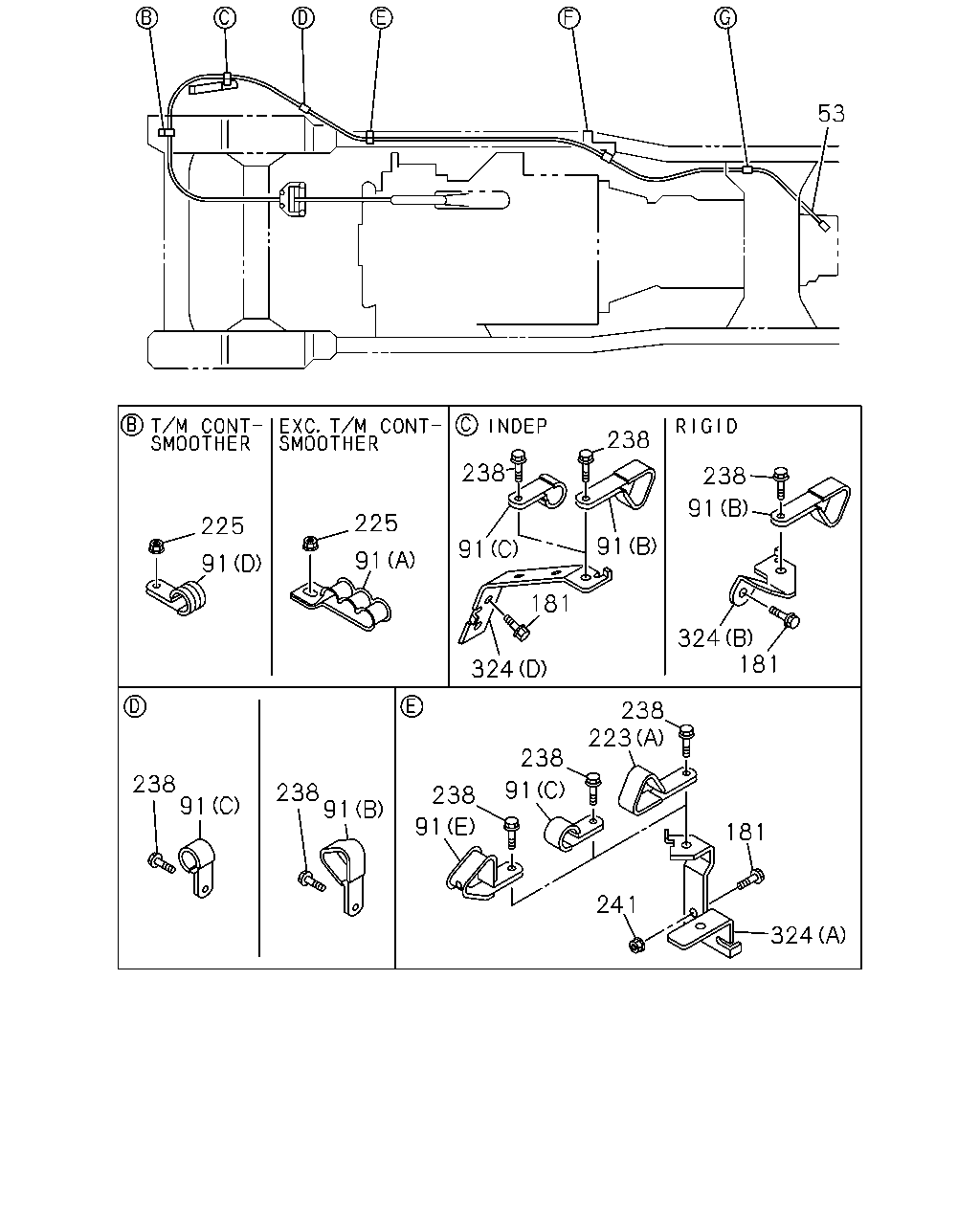

53 238 238 238 91 225 225 91 91 91 91 181 324 181 324 238 223 238 238 91 91 238 91 238 91 181 241 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00)	8-98232-256-0	01	1	1301-1311	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD)	8-98232-256-0	01	1	1301-1311	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB>	8-98232-256-0	01	1	1312-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) EXC. HEAVY DUTY FRAME<6WB>	8-98232-256-0	01	1	1312-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-067-5	01	1	0804-1205	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5)	8-98070-067-5	01	1	0804-1205		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98222-721-0	01	1	1206-1212	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) M/T MSB5M(RM5)	8-98222-721-0	01	1	1206-1212		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ)	8-98222-721-0	01	1	1301-1311	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10)	8-98222-721-0	01	1	1301-1311	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-98222-721-0	01	1	1301-1311		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) EXC. HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB>	8-98222-721-0	01	1	1312-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-832-3	01	1	0710-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-832-3	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98042-108-0	01	1	0710-0710	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM)	8-98042-108-0	01	1	0710-0710		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-912-0	01	1	0711-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM)	8-98102-912-0	01	1	0711-0803		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-912-0	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM)	8-98102-912-0	01	1	0804-		●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM)	8-98102-912-0	01	1	0804-			●	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-834-3	01	1	0710-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-834-3	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98056-000-0	01	1	0710-0710	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-913-0	01	1	0711-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-913-0	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY6S(RST)	8-98102-913-0	01	1	0804-		●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (D) ID=19 L=32	1-09701-235-0	01	1	0710-	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-622-0	01	1	0710-0803	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0710-0803		●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-622-0	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	0804-		●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0710-0803	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0804-0906	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0907-	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	02	1	0710-0803	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	02	1	0804-0906	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	02	1	0907-	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B)	8-97036-333-1	02	1	0710-0803	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCS ENG(LFB) 04.047 (B)	8-97036-333-1	02	1	0710-0803		●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B)	8-97036-333-1	02	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1-TC ENG(RDT) 04.047 (B)	8-97036-333-1	02	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (B)	8-97036-333-1	02	1	0804-		●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1-TCC ENG(RDU) 04.047 (B)	8-97036-333-1	02	1	0804-			●	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1-TC ENG(RDT) 04.047 (E)	8-97036-332-1	01	1	0804-	●	●
181	04.785 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●
181	04.785 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●	●	●
181	04.785 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-0803		●
181	04.785 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0804-	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0804-		●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (B) ID=13 L=20	1-09701-138-1	01	1	0710-	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0710-0803	●
223	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0710-0803		●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
223	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●	●
225	04.785 NUT; CABLE CLIP 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●
225	04.785 NUT; CABLE CLIP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803		●
225	04.785 NUT; CABLE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●	●
238	04.785 BOLT; CLIP TO BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0804-	●	●
238	04.785 BOLT; CLIP TO BRKT 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0710-0803	●	●
238	04.785 BOLT; CLIP TO BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0804-	●	●	●	●
241	04.785 NUT; BRKT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
241	04.785 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (F)	8-98064-280-1	01	1	1301-1311	●	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (F)	8-98064-280-1	01	1	1301-1311	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> (F)	8-98064-280-1	01	1	1312-	●	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98064-280-1	01	1	1312-	●
324	04.785 BRACKET (D)	8-98032-783-1	01	1	0710-0803	●
324	04.785 BRACKET FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98032-783-1	01	1	0804-	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98038-563-0	01	1	0710-0803	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98038-563-0	01	1	0804-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) (F)	8-98106-757-1	01	1	0804-1212	●	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) (F)	8-98106-757-1	01	1	1301-1311	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (F)	8-98106-757-1	01	1	1301-1311	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (F)	8-98106-757-1	01	1	1301-1311		●
324	04.785 BRACKET 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-	●
324	04.785 BRACKET 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-		●
324	04.785 BRACKET 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (F)	8-98106-757-1	01	1	1312-		●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98003-642-1	01	1	0710-0803	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98003-642-1	01	1	0804-	●	●	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98026-099-2	01	1	0710-0803	●	●
324	04.785 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98026-099-2	01	1	0804-	●	●	●	●
324	04.785 BRACKET (B)	8-98034-115-0	01	1	0710-0803		●
324	04.785 BRACKET EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98034-115-0	01	1	0804-	●
324	04.785 BRACKET (B)	8-98034-115-0	01	1	0804-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
