◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#53943) — 109 parça

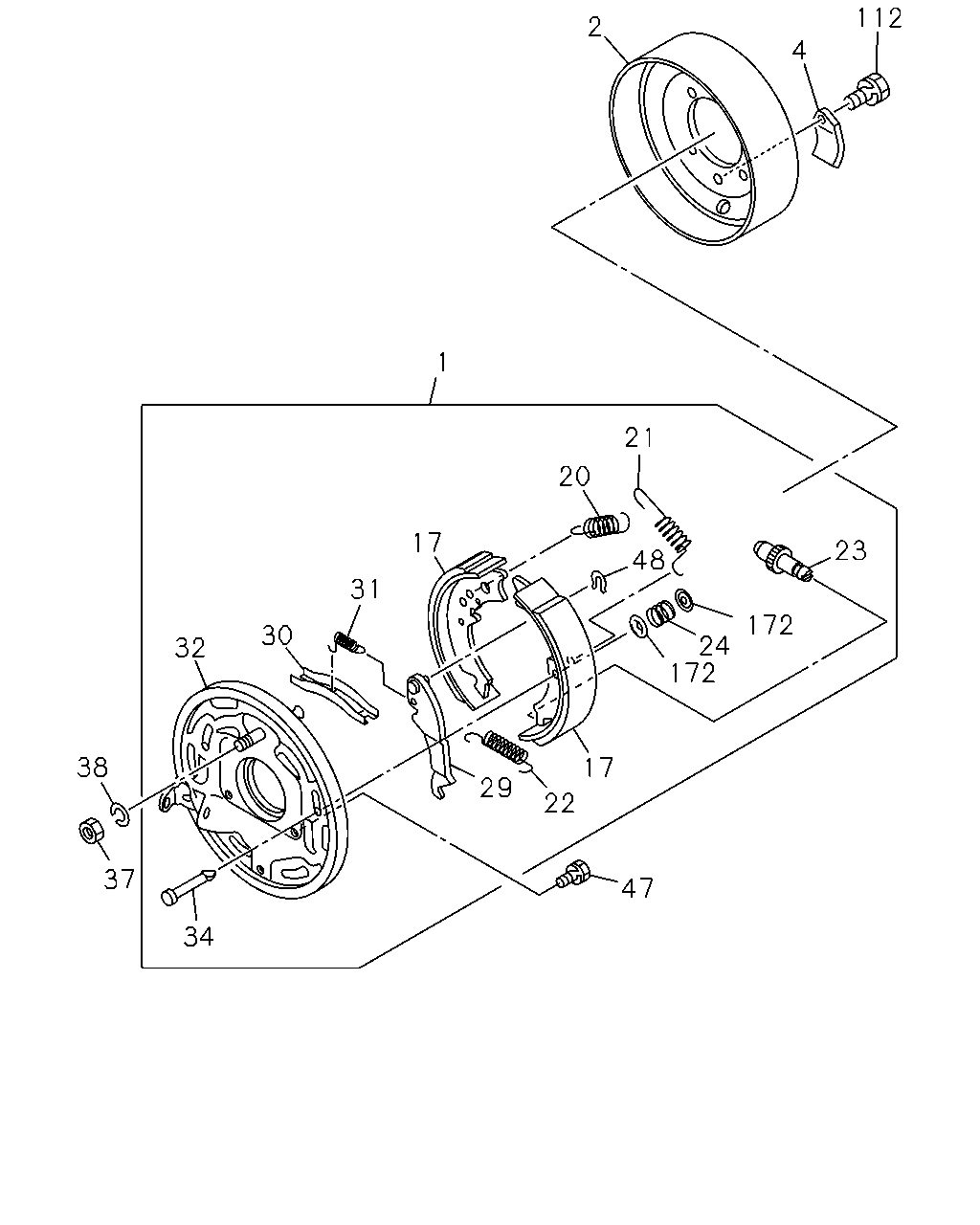

çizim 154648
112 2 4 1 21 20 17 23 48 31 172 30 24 172 32 38 17 29 22 37 47 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97034-553-2 01 1 0804- ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-922-0 01 1 0710-0803 ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-922-0 01 1 0804- ● ● ● ●
2 05.605 DRUM; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46210-005-3 01 1 0804- ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97033-989-1 01 1 0710-0803 ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97033-989-1 01 1 0804- ● ● ● ●
4 05.606 COVER; ADJ HOLE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-42319-003-0 01 1 0804- ● ●
4 05.606 COVER; ADJ HOLE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-820-0 01 1 0710-0803 ● ●
4 05.606 COVER; ADJ HOLE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-820-0 01 1 0804- ● ● ● ●
17 05.606 SHOE; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97042-933-1 02 1 0804- ● ●
17 05.606 SHOE; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97020-250-2 02 1 0710-0803 ● ●
17 05.606 SHOE; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97020-250-2 02 1 0804- ● ● ● ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-553-1 01 1 0804- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-552-1 01 1 0804- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 0710-0803 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 0804- ● ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-340-1 01 1 0804- ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94107-618-0 01 1 0710-0803 ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94107-618-0 01 1 0804- ● ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-47165-025-0 01 1 0804- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-954-0 01 1 0710-0803 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-954-0 01 1 0804- ● ● ● ●
24 05.605 SPRING; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09941-062-1 02 1 0804- ● ●
24 05.605 SPRING; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-155-0 02 1 0710-0803 ● ●
24 05.605 SPRING; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-155-1 02 1 0804- ● ● ● ●
29 04.591 LEVER; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94128-765-0 01 1 0804- ● ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-949-0 01 1 0710-0803 ● ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-949-0 01 1 0804- ● ● ● ●
30 05.605 STRUT; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46251-007-0 01 1 0804- ● ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-953-0 01 1 0710-0803 ● ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-953-0 01 1 0804- ● ● ● ●
31 05.605 SPRING; SHOE TO STRUT
M/T MSB5M(RM5),M/T MSB5S(R45) 05.606 		9-09942-521-1 01 1 0804- ● ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-158-0 01 1 0710-0803 ● ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-158-0 01 1 0804- ● ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-46213-601-2 01 1 0804- ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97308-176-0 01 1 0710-0803 ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97308-176-0 01 1 0804- ● ● ● ●
34 05.605 PIN; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 05.043 		9-47162-034-0 02 1 0804- ● ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-955-0 02 1 0710-0803 ● ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-955-0 02 1 0804- ● ● ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) M12 		8-97033-122-0 01 1 0804- ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 0710-0803 ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 0804- ● ● ● ●
38 05.610 WASHER; LK,SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) 02.559 ID=8.2 		0-91510-808-0 02 1 0804- ● ●
47 05.610 BOLT; SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98073-190-0 02 1 0804- ● ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 05.158 		9-46349-005-1 01 1 0804- ● ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-958-0 01 1 0710-0803 ● ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-958-0 01 1 0804- ● ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
M/T MYY5T(RSM),M/T MYY6S(RST) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0710-0803 ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0804- ● ● ● ●
172 05.605 CUP; SHOE HOLD
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94378-404-0 04 1 0804- ● ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-956-0 04 1 0710-0803 ● ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-956-0 04 1 0804- ● ● ● ●

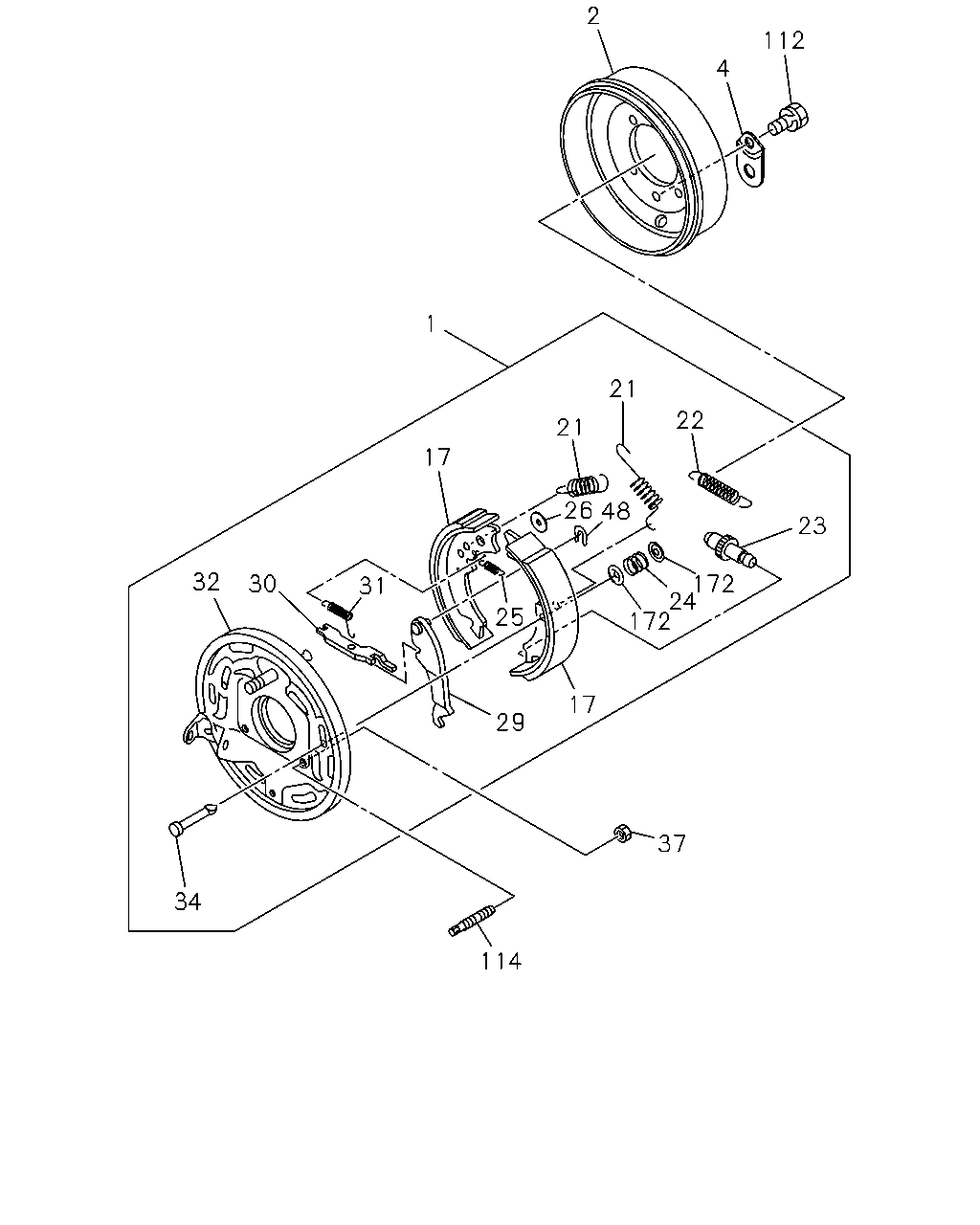

çizim 154760
2 112 4 1 21 22 21 17 23 32 31 30 172 24 172 25 17 29 37 34 114 26 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97034-553-2 01 1 0804- ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-922-0 01 1 0710-0803 ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-922-0 01 1 0804- ● ● ● ●
2 05.605 DRUM; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46210-005-3 01 1 0804- ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97033-989-1 01 1 0710-0803 ● ●
2 05.605 DRUM; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97033-989-1 01 1 0804- ● ● ● ●
4 05.606 COVER; ADJ HOLE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-42319-003-0 01 1 0804- ● ●
4 05.606 COVER; ADJ HOLE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-820-0 01 1 0710-0803 ● ●
4 05.606 COVER; ADJ HOLE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-820-0 01 1 0804- ● ● ● ●
17 05.606 SHOE; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97042-933-1 02 1 0804- ● ●
17 05.606 SHOE; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97020-250-2 02 1 0710-0803 ● ●
17 05.606 SHOE; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97020-250-2 02 1 0804- ● ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-552-1 01 1 0804- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 0710-0803 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 0804- ● ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-340-1 01 1 0804- ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94107-618-0 01 1 0710-0803 ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 05.605 		8-94107-618-0 01 1 0804- ● ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-47165-025-0 01 1 0804- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-954-0 01 1 0710-0803 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-954-0 01 1 0804- ● ● ● ●
24 05.605 SPRING; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09941-062-1 02 1 0804- ● ●
24 05.605 SPRING; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-155-0 02 1 0710-0803 ● ●
24 05.605 SPRING; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-155-1 02 1 0804- ● ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-156-0 01 1 0710-0803 ● ●
25 05.605 SPRING; SHOE ALIGNMENT
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-156-0 01 1 0804- ● ● ● ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-959-0 01 1 0710-0803 ● ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-959-0 01 1 0804- ● ● ● ●
29 04.591 LEVER; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94128-765-0 01 1 0804- ● ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-949-0 01 1 0710-0803 ● ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-949-0 01 1 0804- ● ● ● ●
30 05.605 STRUT; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46251-007-0 01 1 0804- ● ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-953-0 01 1 0710-0803 ● ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-953-0 01 1 0804- ● ● ● ●
31 05.605 SPRING; SHOE TO STRUT
M/T MSB5M(RM5),M/T MSB5S(R45) 05.606 		9-09942-521-1 01 1 0804- ● ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-158-0 01 1 0710-0803 ● ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94132-158-0 01 1 0804- ● ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-46213-601-2 01 1 0804- ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97308-176-0 01 1 0710-0803 ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97308-176-0 01 1 0804- ● ● ● ●
34 05.605 PIN; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 05.043 		9-47162-034-0 02 1 0804- ● ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-955-0 02 1 0710-0803 ● ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-955-0 02 1 0804- ● ● ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) M12 		8-97033-122-0 01 1 0804- ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 0710-0803 ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 0804- ● ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 05.158 		9-46349-005-1 01 1 0804- ● ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-958-0 01 1 0710-0803 ● ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-958-0 01 1 0804- ● ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
M/T MYY5T(RSM),M/T MYY6S(RST) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0710-0803 ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0804- ● ● ● ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-929-0 04 1 0710-0803 ● ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98029-929-0 04 1 0804- ● ● ● ●
172 05.605 CUP; SHOE HOLD
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94378-404-0 04 1 0804- ● ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-956-0 04 1 0710-0803 ● ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98043-956-0 04 1 0804- ● ● ● ●
