◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#5394) — 2091 parça

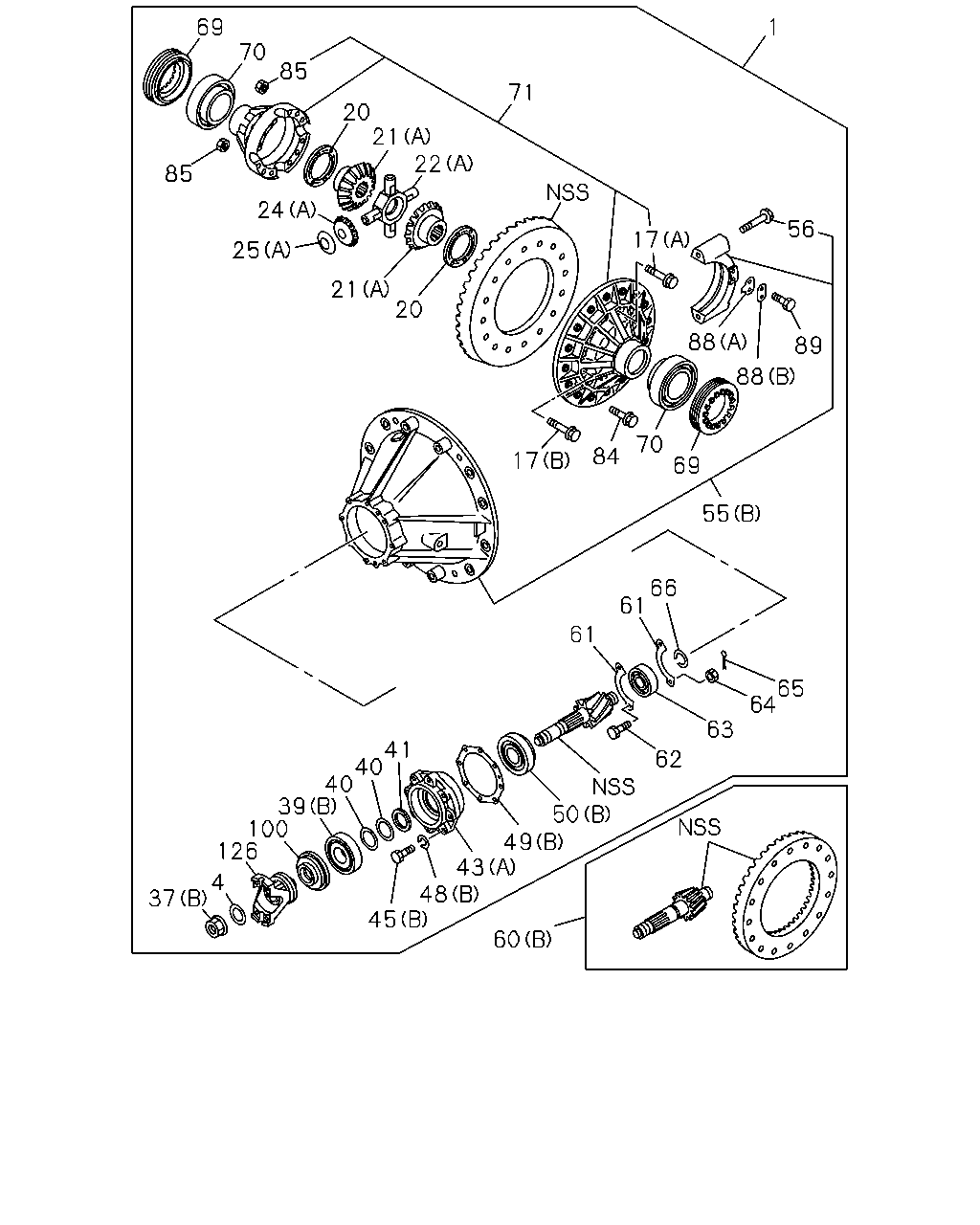

çizim 5735
69 1 70 85 71 20 21 22 85 24 56 17 25 21 20 88 89 88 70 84 17 69 55 66 61 61 65 64 63 41 40 40 39 100 126 62 50 49 43 48 45 4 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-374-0 01 1 9902-9902 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/6 		1-41002-034-0 01 1 9903-9904 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 9603-9811 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41001-654-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/8 		1-41001-612-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/8 		1-41002-062-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-062-0 01 1 9902-9904 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-062-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-062-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9905-9908 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-042-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-211-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> FORWARD 41/8 		1-41002-211-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 9603- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41001-656-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-614-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41002-064-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> REARWARD 39/8 		1-41002-064-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9905-9908 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41002-044-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 9603-9901 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41001-616-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-066-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-066-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41001-570-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41002-054-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-054-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-415-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-415-0 01 1 9809-9901 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD 41/6 		1-41001-290-0 01 1 9603-9707 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 41/6 		1-41001-290-0 01 1 9603-9707 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD 41/6 		1-41001-290-0 01 1 9708-9810 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. REAR AXLE RT260<C2B> REARWARD 41/6 		1-41001-290-0 01 1 9708-9810 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD 41/6 		1-41001-290-0 01 1 9811-9901 ● ● ● ● ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/6 		1-41001-290-0 01 1 9902- ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41001-568-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41001-568-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41002-034-0 01 1 9703-9808 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41002-034-0 01 1 9703-9808 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41002-034-0 01 1 9809-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9809-9901 ●
4 GASKET; FLANGE,FINAL PINION
CXZ;REARWARD ID=57 		1-09623-386-0 01 1 9603-9901 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
CXZ;REARWARD ID=57 		1-09623-386-0 01 1 9902-9904 ● ● ●
4 GASKET; FLANGE,FINAL PINION
CXZ;REARWARD ID=57 		1-09623-386-0 01 1 9905-9905 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
SHORT CHASSIS(CX***C) CXZ;REARWARD ID=57 		1-09623-386-0 01 1 9906-0006 ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
CXZ;REARWARD ID=57 		1-09623-386-0 01 1 0007- ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
REARWARD ID=35.7 T=5 		1-09623-379-0 01 1 9902-9902 ●
17 BOLT; DIFF CAGE SETTING
(A) REARWARD M14X85 		1-09044-023-0 08 1 9902-9902 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=2.80 		1-41562-073-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=2.90 		1-41562-074-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.00 		1-41562-075-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.10 		1-41562-076-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.20 		1-41562-077-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.30 		1-41562-078-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.40 		1-41562-079-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) REARWARD Z=16 		1-41561-084-1 02 1 9902-9902 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(A) REARWARD 		1-41521-035-0 01 1 9902-9902 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-1 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-1 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-2 01 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(A) REARWARD Z=10 		1-41551-024-0 04 1 9902-9902 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(A) REARWARD 		1-41552-020-0 04 1 9902-9902 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9905- ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9603-9901 ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9902-9904 ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9905-9905 ● ● ● ●
37 NUT; DRIVING PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9906-0006 ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 0007- ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 FLANGE 		1-09449-043-1 01 1 9603-9801 ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9802-9901 ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9902-9904 ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9905- ● ● ● ●
37 NUT; DRIVING PINION
(B) REARWARD M30 FLANGE 		1-09449-066-1 01 1 9902-9902 ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9603-9901 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9905-9905 ● ● ● ●
39 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9906-0006 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 0007- ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9603-9901 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9905-9905 ● ● ● ●
39 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9906-0006 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-1 01 1 0007- ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-0 01 1 9703-9901 ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-1 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-0 01 1 9703-9901 ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-1 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
(B) REARWARD NSK 		1-09812-026-0 01 1 9902-9902 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9909- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=7.60 		1-41229-237-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=7.80 		1-41229-238-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.00 		1-41229-239-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.20 		1-41229-240-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.40 		1-41229-241-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.60 		1-41229-242-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.80 		1-41229-243-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=9.00 		1-41229-244-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0007- ● ● ● ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-063-0 01 1 9902-9902 ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9603-9901 ● ● ● ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9902-9904 ● ● ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9905- ● ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9603-9901 ● ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9902-9904 ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9905- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9603-9901 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9902-9904 ● ● ●
45 BOLT; FINAL PINION CAGE
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9905-0006 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 0007- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9603-9901 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9902-9904 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9905- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) REARWARD M12X40 		9-02361-240-0 06 1 9902-9902 ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9603-9901 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9902-9904 ● ● ●
48 WASHER; LK,FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9905-0006 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 0007- ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) REARWARD ID=12.2 		9-09150-512-0 06 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-021-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-051-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-052-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-053-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-0 01 1 9603-9901 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD NSK 		1-09812-073-1 01 1 9905-0006 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-1 01 1 0007- ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-0 01 1 9603-9901 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-1 01 1 9905-0006 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-1 01 1 0007- ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9703-9901 ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-0 01 1 9703-9901 ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-1 01 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(B) REARWARD NSK 		1-09812-041-2 01 1 9902-9902 ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-105-0 01 1 9902-9902 ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9603-9901 ● ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9902-9904 ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9905- ● ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9603-9901 ● ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9902-9904 ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9905- ● ● ● ●
56 BOLT; BRG CAP
REARWARD M14X95 FLANGE 		1-09070-027-0 04 1 9902-9902 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9603-9901 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9603-9901 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9902-9904 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9902-9904 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9905- ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9905- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-528-0 01 1 9902-9902 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/6 		1-41210-473-0 01 1 9903- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-466-0 01 1 9603-9811 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-466-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-605-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/8 		1-41210-477-0 01 1 9603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 39/8 		1-41210-467-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 39/8 		1-41210-607-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 39/8 		1-41210-478-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 39/8 		1-41210-478-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/9 		1-41210-468-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/9 		1-41210-479-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/9 		1-41210-479-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/9 		1-41210-608-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/6 		1-41210-473-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) REARWARD 41/6 		1-41210-462-0 01 1 9603-9707 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) REARWARD 41/6 		1-41210-462-0 01 1 9603-9707 ●
60 GEAR SET; FINAL DRIVE,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) REARWARD 41/6 		1-41210-462-0 01 1 9708-9810 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. REAR AXLE RT260<C2B> (B) REARWARD 41/6 		1-41210-462-0 01 1 9708-9810 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) REARWARD 41/6 		1-41210-462-0 01 1 9811-9901 ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/6 		1-41210-462-0 01 1 9902-9902 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/6 		1-41210-601-0 01 1 9903- ●
61 RETAINER; PILOT BRG,PINION
REARWARD 		9-41227-006-0 02 1 9902-9902 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9603-9901 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9603-9901 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9902-9904 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9902-9904 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9905- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9905- ● ● ● ●
62 BOLT; RET
REARWARD M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9902-9902 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9603-9901 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9603-9901 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9902-9904 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9902-9904 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9905- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
REARWARD NSK 		1-09810-062-1 01 1 9902-9902 ●
63 BEARING; PINION PILOT
REARWARD JTEKT 		1-09810-063-2 01 1 9902-9902 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9905- ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9603-9707 ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9603-9707 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9901 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9901 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9902-9904 ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9902-9904 ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9905-9908 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9905-9908 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9909- ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9909- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9603-9901 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9603-9901 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9902-9904 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9902-9904 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9905-9908 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9905-9908 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9909- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9909- ● ● ● ●
66 RING; SNAP,PILOT BRG
REARWARD OD=32.2 		1-09588-065-1 01 1 9902-9902 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9603-9901 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9603-9901 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9902-9904 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9902-9904 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9905- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
REARWARD M115 H=20 		1-41121-039-0 01 1 9902-9902 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
REARWARD M115 H=26 		1-41121-028-0 01 1 9902-9902 ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703-9901 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703-9901 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9902-9904 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9902-9904 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9905- ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9905- ● ● ● ●
70 BEARING; DIFF CAGE
REARWARD JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 9902-9902 ●
71 CAGE ASM; DIFF,FINAL DRIVE
REARWARD 		1-41510-240-0 01 1 9902-9902 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9603-9901 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9603-9901 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9902-9904 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9902-9904 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9905- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9905- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 9603-9901 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 9603-9901 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 9905- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9902-9904 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9902-9904 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9603-9901 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9603-9901 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
REARWARD M14X29.5 FLANGE 		1-09070-085-0 16 1 9902-9902 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9905- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9905- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9603-9901 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9603-9901 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9902-9904 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9902-9904 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9905-9908 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9905-9908 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9909- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9909- ● ● ● ●
85 NUT; DIFF CAGE SETTING
REARWARD M14 		1-09400-077-1 08 1 9902-9902 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) REARWARD T=2.3 		9-41124-015-0 02 1 9902-9902 ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9603-9901 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9603-9901 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9902-9904 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9902-9904 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9905- ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9905- ● ● ● ●
100 SEAL; OIL,FINAL PINION
CXZ;REARWARD NOK 		1-09625-322-0 01 1 9603-9901 ● ● ● ●
100 SEAL; OIL,FINAL PINION
CXZ;REARWARD NOK 		1-09625-322-0 01 1 9902-9904 ● ● ●
100 SEAL; OIL,FINAL PINION
SHORT CHASSIS(CX***C) CXZ;REARWARD NOK 		1-09625-322-0 01 1 9905-0006 ● ● ● ●
100 SEAL; OIL,FINAL PINION
CXZ;REARWARD NOK 		1-09625-322-0 01 1 0007- ● ● ● ●
100 SEAL; OIL,FINAL PINION
REARWARD TKK 		1-09625-432-0 01 1 9902-9902 ●
100 SEAL; OIL,FINAL PINION
REARWARD NOK 		1-09625-484-0 01 1 9902-9902 ●
126 COUPLING; DRIVING PINION
REARWARD 		1-37245-069-6 01 1 9902-9902 ●
126 COUPLING; DRIVING PINION
REARWARD 		1-37245-225-1 01 1 9603-9901 ● ● ● ●
126 COUPLING; DRIVING PINION
REARWARD 		1-37245-225-1 01 1 9902-9902 ● ● ●
126 COUPLING; DRIVING PINION
REARWARD 		1-37245-336-0 01 1 9903-9904 ● ● ●
126 COUPLING; DRIVING PINION
REARWARD 		1-37245-336-0 01 1 9905- ● ● ● ●

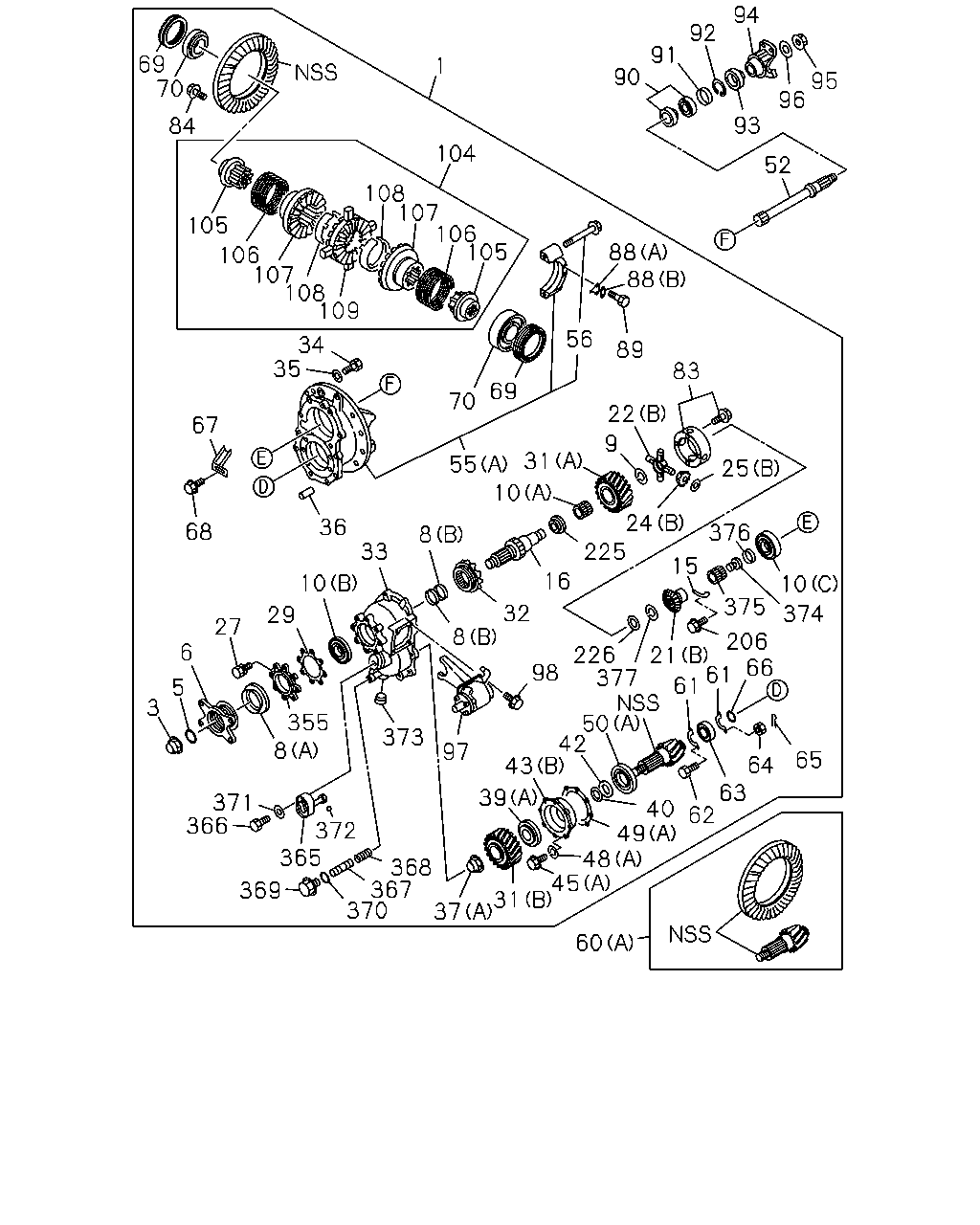

çizim 7358
94 92 91 69 70 1 90 95 96 93 84 104 52 108 107 106 105 105 88 88 106 107 108 109 56 34 35 89 83 69 70 22 67 9 31 55 25 10 376 24 36 68 8 33 225 15 16 10 10 375 32 8 374 29 27 206 66 6 226 377 50 42 43 21 61 98 61 5 3 355 8 373 97 65 64 63 62 39 371 366 40 49 48 45 31 372 365 368 367 370 369 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-374-0 01 1 9902-9902 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/6 		1-41002-034-0 01 1 9903-9904 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 9603-9811 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41001-654-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/8 		1-41001-612-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/8 		1-41002-062-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-062-0 01 1 9902-9904 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-062-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-062-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9905-9908 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-042-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-211-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> FORWARD 41/8 		1-41002-211-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 9603- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41001-656-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-614-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41002-064-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> REARWARD 39/8 		1-41002-064-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9905-9908 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41002-044-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 9603-9901 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41001-616-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-066-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-066-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41001-570-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41002-054-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-054-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-415-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-415-0 01 1 9809-9901 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD 41/6 		1-41001-290-0 01 1 9603-9707 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 41/6 		1-41001-290-0 01 1 9603-9707 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD 41/6 		1-41001-290-0 01 1 9708-9810 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. REAR AXLE RT260<C2B> REARWARD 41/6 		1-41001-290-0 01 1 9708-9810 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD 41/6 		1-41001-290-0 01 1 9811-9901 ● ● ● ● ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/6 		1-41001-290-0 01 1 9902- ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41001-568-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41001-568-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41002-034-0 01 1 9703-9808 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41002-034-0 01 1 9703-9808 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41002-034-0 01 1 9809-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9809-9901 ●
3 NUT; INPUT SHAFT
FORWARD M46 FLANGE 		1-09449-071-0 01 1 9603-9901 ● ● ● ●
3 NUT; INPUT SHAFT
FORWARD M46 FLANGE 		1-09449-071-0 01 1 9902-9904 ● ● ●
3 NUT; INPUT SHAFT
FORWARD M46 FLANGE 		1-09449-071-0 01 1 9905- ● ● ● ●
5 GASKET; INPUT SHAFT
FORWARD ID=57 		1-09623-386-0 01 1 9603-9901 ● ● ● ●
5 GASKET; INPUT SHAFT
FORWARD ID=57 		1-09623-386-0 01 1 9902-9904 ● ● ●
5 GASKET; INPUT SHAFT
FORWARD ID=57 		1-09623-386-0 01 1 9905- ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9603-9901 ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9902-9902 ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9903-9904 ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9905- ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9603-9901 ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9903-9904 ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9905-9908 ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9909-9910 ● ● ●
6 FLANGE ASM; INPUT SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 		1-37245-265-2 01 1 9909-9910 ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9911- ● ● ●
6 FLANGE ASM; INPUT SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 		1-37245-265-2 01 1 9911- ● ●
8 SEAL; OIL,INPUT SHAFT
(A) FORWARD 		1-09625-323-0 01 1 9603-9901 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) FORWARD 		1-09625-323-0 01 1 9902-9904 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) FORWARD 		1-09625-323-0 01 1 9905- ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) FORWARD 		1-41349-145-0 02 1 9603-9901 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) FORWARD 		1-41349-145-0 02 1 9902-9904 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) FORWARD 		1-41349-145-0 02 1 9905- ● ● ● ●
9 RING; SNAP,BRG,INPUT
FORWARD 		1-09588-192-0 01 1 9603-9901 ● ● ● ●
9 RING; SNAP,BRG,INPUT
FORWARD 		1-09588-192-0 01 1 9902-9904 ● ● ●
9 RING; SNAP,BRG,INPUT
FORWARD 		1-09588-192-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD JTEKT 		1-09811-346-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD JTEKT 		1-09811-346-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD JTEKT 		1-09811-346-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD NSK 		1-09811-347-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD NSK 		1-09811-347-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD NSK 		1-09811-347-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD NSK 		1-09812-094-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD NSK 		1-09812-094-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD NSK 		1-09812-094-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD JTEKT 		1-09812-182-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD JTEKT 		1-09812-182-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD JTEKT 		1-09812-182-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD NSK 		1-09812-183-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD NSK 		1-09812-183-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD NSK 		1-09812-183-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD JTEKT 		1-09812-198-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD JTEKT 		1-09812-198-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD JTEKT 		1-09812-198-0 01 1 9905- ● ● ● ●
15 CATCHER; OIL
FORWARD 		1-41129-007-0 01 1 9603-9901 ● ● ● ●
15 CATCHER; OIL
FORWARD 		1-41129-007-0 01 1 9902-9904 ● ● ●
15 CATCHER; OIL
FORWARD 		1-41129-007-0 01 1 9905- ● ● ● ●
16 SHAFT ASM; INPUT
FORWARD 		1-41341-025-0 01 1 9603-9901 ● ● ● ●
16 SHAFT ASM; INPUT
FORWARD 		1-41341-025-0 01 1 9902-9904 ● ● ●
16 SHAFT ASM; INPUT
FORWARD 		1-41341-025-0 01 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) REARWARD Z=16 		1-41561-084-1 02 1 9902-9902 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(A) REARWARD 		1-41521-035-0 01 1 9902-9902 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-1 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-1 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-2 01 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(A) REARWARD Z=10 		1-41551-024-0 04 1 9902-9902 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(A) REARWARD 		1-41552-020-0 04 1 9902-9902 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9905- ● ● ● ●
27 BOLT; BRG RET
FORWARD M12X35 W/LK WASHER 		0-50051-235-0 08 1 9603-9901 ● ● ● ●
27 BOLT; BRG RET
FORWARD M12X35 W/LK WASHER 		0-50051-235-0 08 1 9902-9904 ● ● ●
27 BOLT; BRG RET
FORWARD M12X35 W/LK WASHER 		0-50051-235-0 08 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.30 		1-41349-146-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.30 		1-41349-146-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=0.30 		1-41349-146-0 AR 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.40 		1-41349-147-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.40 		1-41349-147-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=0.40 		1-41349-147-0 AR 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.50 		1-41349-148-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.50 		1-41349-148-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=0.50 		1-41349-148-0 AR 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=1.000 		1-41349-149-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=1.000 		1-41349-149-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=1.000 		1-41349-149-0 AR 1 9905- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) FORWARD Z=16 		1-41351-030-0 01 1 9603-9901 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) FORWARD Z=16 		1-41351-030-0 01 1 9902-9904 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) FORWARD Z=16 		1-41351-030-0 01 1 9905- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) FORWARD Z=31 		1-41352-029-0 01 1 9603-9901 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) FORWARD Z=31 		1-41352-029-0 01 1 9902-9904 ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) FORWARD Z=31 		1-41352-029-0 01 1 9905- ● ● ● ●
32 SLEEVE; CLU,DIFF LK
FORWARD 		1-41355-038-0 01 1 9603-9901 ● ● ● ●
32 SLEEVE; CLU,DIFF LK
FORWARD 		1-41355-038-0 01 1 9902-9904 ● ● ●
32 SLEEVE; CLU,DIFF LK
FORWARD 		1-41355-038-0 01 1 9905- ● ● ● ●
33 CASE; POWER DIVIDER
FORWARD 		1-41321-024-1 01 1 9603-9901 ● ● ● ●
33 CASE; POWER DIVIDER
FORWARD 		1-41321-024-1 01 1 9902-9904 ● ● ●
33 CASE; POWER DIVIDER
FORWARD 		1-41321-024-1 01 1 9905- ● ● ● ●
34 BOLT; CASE TO CARRIER
FORWARD M14X40 		0-23801-440-0 10 1 9603-9901 ● ● ● ●
34 BOLT; CASE TO CARRIER
FORWARD M14X40 		0-23801-440-0 10 1 9902-9904 ● ● ●
34 BOLT; CASE TO CARRIER
FORWARD M14X40 		0-23801-440-0 10 1 9905- ● ● ● ●
35 WASHER; CASE TO CARRIER
FORWARD ID=14.2 		9-09150-814-0 10 1 9603-9901 ● ● ● ●
35 WASHER; CASE TO CARRIER
FORWARD ID=14.2 		9-09150-814-0 10 1 9902-9904 ● ● ●
35 WASHER; CASE TO CARRIER
FORWARD ID=14.2 		9-09150-814-0 10 1 9905- ● ● ● ●
36 PIN; STRAIGHT
FORWARD OD=14 L=28 		9-08161-428-0 02 1 9603-9901 ● ● ● ●
36 PIN; STRAIGHT
FORWARD OD=14 L=28 		9-08161-428-0 02 1 9902-9904 ● ● ●
36 PIN; STRAIGHT
FORWARD OD=14 L=28 		9-08161-428-0 02 1 9905- ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9603-9901 ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9902-9904 ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9905-9905 ● ● ● ●
37 NUT; DRIVING PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9906-0006 ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 0007- ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 FLANGE 		1-09449-043-1 01 1 9603-9801 ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9802-9901 ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9902-9904 ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9905- ● ● ● ●
37 NUT; DRIVING PINION
(B) REARWARD M30 FLANGE 		1-09449-066-1 01 1 9902-9902 ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9603-9901 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9905-9905 ● ● ● ●
39 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9906-0006 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 0007- ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9603-9901 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9905-9905 ● ● ● ●
39 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9906-0006 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-1 01 1 0007- ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-0 01 1 9703-9901 ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-1 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-0 01 1 9703-9901 ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-1 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
(B) REARWARD NSK 		1-09812-026-0 01 1 9902-9902 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9909- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.60 		1-41229-237-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.60 		1-41229-237-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.60 		1-41229-237-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.80 		1-41229-238-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.80 		1-41229-238-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.80 		1-41229-238-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.00 		1-41229-239-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.00 		1-41229-239-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.00 		1-41229-239-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.20 		1-41229-240-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.20 		1-41229-240-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.20 		1-41229-240-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.40 		1-41229-241-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.40 		1-41229-241-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.40 		1-41229-241-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.60 		1-41229-242-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.60 		1-41229-242-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.60 		1-41229-242-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.80 		1-41229-243-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.80 		1-41229-243-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.80 		1-41229-243-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=9.00 		1-41229-244-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=9.00 		1-41229-244-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=9.00 		1-41229-244-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
REARWARD T=15.75 		1-41219-004-0 01 1 9902-9902 ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-063-0 01 1 9902-9902 ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9603-9901 ● ● ● ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9902-9904 ● ● ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9905- ● ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9603-9901 ● ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9902-9904 ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9905- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9603-9901 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9902-9904 ● ● ●
45 BOLT; FINAL PINION CAGE
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9905-0006 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 0007- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9603-9901 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9902-9904 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9905- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) REARWARD M12X40 		9-02361-240-0 06 1 9902-9902 ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9603-9901 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9902-9904 ● ● ●
48 WASHER; LK,FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9905-0006 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 0007- ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) REARWARD ID=12.2 		9-09150-512-0 06 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-021-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-051-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-052-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-053-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-0 01 1 9603-9901 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD NSK 		1-09812-073-1 01 1 9905-0006 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-1 01 1 0007- ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-0 01 1 9603-9901 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-1 01 1 9905-0006 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-1 01 1 0007- ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9703-9901 ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-0 01 1 9703-9901 ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-1 01 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(B) REARWARD NSK 		1-09812-041-2 01 1 9902-9902 ●
52 SHAFT; OUTPUT
FORWARD 		1-41343-020-0 01 1 9603-9901 ● ● ● ●
52 SHAFT; OUTPUT
FORWARD 		1-41343-020-0 01 1 9902-9904 ● ● ●
52 SHAFT; OUTPUT
FORWARD 		1-41343-020-0 01 1 9905- ● ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-105-0 01 1 9902-9902 ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9603-9901 ● ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9902-9904 ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9905- ● ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9603-9901 ● ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9902-9904 ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9905- ● ● ● ●
56 BOLT; BRG CAP
REARWARD M14X95 FLANGE 		1-09070-027-0 04 1 9902-9902 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9603-9901 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9603-9901 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9902-9904 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9902-9904 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9905- ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9905- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-528-0 01 1 9902-9902 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/6 		1-41210-473-0 01 1 9903- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-466-0 01 1 9603-9811 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-466-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-605-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/8 		1-41210-477-0 01 1 9603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 39/8 		1-41210-467-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 39/8 		1-41210-607-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 39/8 		1-41210-478-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 39/8 		1-41210-478-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/9 		1-41210-468-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/9 		1-41210-479-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/9 		1-41210-479-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/9 		1-41210-608-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/6 		1-41210-473-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) REARWARD 41/6 		1-41210-462-0 01 1 9603-9707 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) REARWARD 41/6 		1-41210-462-0 01 1 9603-9707 ●
60 GEAR SET; FINAL DRIVE,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) REARWARD 41/6 		1-41210-462-0 01 1 9708-9810 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. REAR AXLE RT260<C2B> (B) REARWARD 41/6 		1-41210-462-0 01 1 9708-9810 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) REARWARD 41/6 		1-41210-462-0 01 1 9811-9901 ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/6 		1-41210-462-0 01 1 9902-9902 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/6 		1-41210-601-0 01 1 9903- ●
61 RETAINER; PILOT BRG,PINION
REARWARD 		9-41227-006-0 02 1 9902-9902 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9603-9901 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9603-9901 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9902-9904 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9902-9904 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9905- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9905- ● ● ● ●
62 BOLT; RET
REARWARD M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9902-9902 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9603-9901 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9603-9901 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9902-9904 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9902-9904 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9905- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
REARWARD NSK 		1-09810-062-1 01 1 9902-9902 ●
63 BEARING; PINION PILOT
REARWARD JTEKT 		1-09810-063-2 01 1 9902-9902 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9905- ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9603-9707 ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9603-9707 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9901 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9901 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9902-9904 ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9902-9904 ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9905-9908 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9905-9908 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9909- ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9909- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9603-9901 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9603-9901 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9902-9904 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9902-9904 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9905-9908 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9905-9908 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9909- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9909- ● ● ● ●
66 RING; SNAP,PILOT BRG
REARWARD OD=32.2 		1-09588-065-1 01 1 9902-9902 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9603-9901 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9603-9901 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9902-9904 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9902-9904 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9905- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9905- ● ● ● ●
67 PICKUP; OIL,CARRIER
FORWARD 		1-41129-008-0 01 1 9603-9901 ● ● ● ●
67 PICKUP; OIL,CARRIER
FORWARD 		1-41129-008-0 01 1 9902-9904 ● ● ●
67 PICKUP; OIL,CARRIER
FORWARD 		1-41129-008-0 01 1 9905- ● ● ● ●
68 BOLT; OIL PICKUP FIX
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9603-9901 ● ● ● ●
68 BOLT; OIL PICKUP FIX
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9902-9904 ● ● ●
68 BOLT; OIL PICKUP FIX
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
REARWARD M115 H=20 		1-41121-039-0 01 1 9902-9902 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
REARWARD M115 H=26 		1-41121-028-0 01 1 9902-9902 ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703-9901 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703-9901 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9902-9904 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9902-9904 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9905- ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9905- ● ● ● ●
70 BEARING; DIFF CAGE
REARWARD JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 9902-9902 ●
83 CAGE ASM; DIFF
FORWARD 		1-41510-224-0 01 1 9603-9901 ● ● ● ●
83 CAGE ASM; DIFF
FORWARD 		1-41510-224-0 01 1 9902-9904 ● ● ●
83 CAGE ASM; DIFF
FORWARD 		1-41510-224-0 01 1 9905- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9902-9904 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9902-9904 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9603-9901 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9603-9901 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
REARWARD M14X29.5 FLANGE 		1-09070-085-0 16 1 9902-9902 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9905- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) REARWARD T=2.3 		9-41124-015-0 02 1 9902-9902 ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9603-9901 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9603-9901 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9902-9904 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9902-9904 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9905- ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9905- ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD NSK 		1-09812-068-0 02 1 9603-9901 ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD NSK 		1-09812-068-0 02 1 9902-9904 ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD NSK 		1-09812-068-0 02 1 9905- ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD JTEKT 		1-09812-069-0 02 1 9603-9901 ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD JTEKT 		1-09812-069-0 02 1 9902-9904 ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD JTEKT 		1-09812-069-0 02 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.60 		1-41349-020-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.60 		1-41349-020-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.60 		1-41349-020-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.70 		1-41349-021-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.70 		1-41349-021-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.70 		1-41349-021-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.80 		1-41349-022-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.80 		1-41349-022-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.80 		1-41349-022-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.90 		1-41349-023-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.90 		1-41349-023-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.90 		1-41349-023-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.00 		1-41349-024-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.00 		1-41349-024-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.00 		1-41349-024-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.10 		1-41349-025-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.10 		1-41349-025-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.10 		1-41349-025-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.20 		1-41349-026-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.20 		1-41349-026-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.20 		1-41349-026-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.30 		1-41349-027-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.30 		1-41349-027-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.30 		1-41349-027-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.50 		1-41349-091-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.50 		1-41349-091-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.50 		1-41349-091-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.40 		1-41349-092-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.40 		1-41349-092-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.40 		1-41349-092-0 AR 1 9905- ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
FORWARD OD=90.5 		9-09180-185-0 01 1 9603-9901 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
FORWARD OD=90.5 		9-09180-185-0 01 1 9902-9904 ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
FORWARD OD=90.5 		9-09180-185-0 01 1 9905- ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
FORWARD 		1-09625-217-0 01 1 9603-9901 ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
FORWARD 		1-09625-217-0 01 1 9902-9904 ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
FORWARD 		1-09625-217-0 01 1 9905- ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT
FORWARD 		1-37245-130-1 01 1 9603-9901 ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT
FORWARD 		1-37245-130-1 01 1 9902-9904 ● ● ●
94 FLANGE ASM; OUTPUT SHAFT
FORWARD 		1-37245-130-1 01 1 9905- ● ● ● ●
95 NUT; OUTPUT SHAFT
FORWARD M36 FLANGE 		1-09449-067-0 01 1 9603-9901 ● ● ● ●
95 NUT; OUTPUT SHAFT
FORWARD M36 FLANGE 		1-09449-067-0 01 1 9902-9904 ● ● ●
95 NUT; OUTPUT SHAFT
FORWARD M36 FLANGE 		1-09449-067-0 01 1 9905- ● ● ● ●
96 GASKET; SHAFT,OUTPUT
FORWARD ID=42 		1-09623-387-0 01 1 9603-9901 ● ● ● ●
96 GASKET; SHAFT,OUTPUT
FORWARD ID=42 		1-09623-387-0 01 1 9902-9904 ● ● ●
96 GASKET; SHAFT,OUTPUT
FORWARD ID=42 		1-09623-387-0 01 1 9905- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-052-1 01 1 9603-9702 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-0 01 1 9703-9901 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-0 01 1 9902-9904 ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-1 01 1 9905- ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X50 FLANGE 		0-28181-050-0 01 1 9603-9901 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X50 FLANGE 		0-28181-050-0 01 1 9902-9904 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X50 FLANGE 		0-28181-050-0 01 1 9905- ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X25 FLANGE 		0-28781-025-0 03 1 9603-9901 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X25 FLANGE 		0-28781-025-0 03 1 9902-9904 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X25 FLANGE 		0-28781-025-0 03 1 9905- ● ● ● ●
104 DIFF ASM; NO SPIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 9905- ●
104 DIFF ASM; NO SPIN
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 9809-9901 ●
105 GEAR; SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 9905- ●
105 GEAR; SIDE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 9809-9901 ●
106 SPRING; NO SPIN DIFF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 9905- ●
106 SPRING; NO SPIN DIFF
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 9809-9901 ●
107 CLUTCH; DRIVEN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 9905- ●
107 CLUTCH; DRIVEN
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 9809-9901 ●
108 RING; HOLD OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 9905- ●
108 RING; HOLD OUT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 9809-9901 ●
109 SPIDER; DIFF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 9905- ●
109 SPIDER; DIFF
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 9809-9901 ●
206 BOLT; OIL CATCHER
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9603-9901 ● ● ● ●
206 BOLT; OIL CATCHER
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9902-9904 ● ● ●
206 BOLT; OIL CATCHER
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=5.9 		1-41552-024-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=5.9 		1-41552-024-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=5.9 		1-41552-024-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.0 		1-41552-025-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.0 		1-41552-025-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.0 		1-41552-025-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.1 		1-41552-026-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.1 		1-41552-026-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.1 		1-41552-026-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.2 		1-41552-027-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.2 		1-41552-027-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.2 		1-41552-027-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.3 		1-41552-028-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.3 		1-41552-028-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.3 		1-41552-028-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.4 		1-41552-029-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.4 		1-41552-029-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.4 		1-41552-029-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.5 		1-41552-030-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.5 		1-41552-030-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.5 		1-41552-030-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.6 		1-41552-031-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.6 		1-41552-031-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.6 		1-41552-031-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.7 		1-41552-032-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.7 		1-41552-032-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.7 		1-41552-032-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.8 		1-41552-033-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.8 		1-41552-033-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.8 		1-41552-033-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.9 		1-41552-034-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.9 		1-41552-034-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.9 		1-41552-034-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.0 		1-41552-035-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.0 		1-41552-035-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=7.0 		1-41552-035-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.1 		1-41552-036-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.1 		1-41552-036-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=7.1 		1-41552-036-2 AR 1 9905- ● ● ● ●
226 WASHER; THRUST
FORWARD 		1-41562-267-0 01 1 9603-9901 ● ● ● ●
226 WASHER; THRUST
FORWARD 		1-41562-267-0 01 1 9902-9904 ● ● ●
226 WASHER; THRUST
FORWARD 		1-41562-267-0 01 1 9905- ● ● ● ●
355 RETAINER; BRG
FORWARD 		1-41227-011-0 01 1 9603-9901 ● ● ● ●
355 RETAINER; BRG
FORWARD 		1-41227-011-0 01 1 9902-9904 ● ● ●
355 RETAINER; BRG
FORWARD 		1-41227-011-0 01 1 9905-9906 ● ● ●
355 RETAINER; BRG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 		1-41227-016-0 01 1 9907- ● ● ●
355 RETAINER; BRG
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 		1-41227-014-1 01 1 9905- ●
365 PUMP ASM; OIL
FORWARD 		1-41381-008-0 01 1 9603-9901 ● ● ● ●
365 PUMP ASM; OIL
FORWARD 		1-41381-008-0 01 1 9902-9904 ● ● ●
365 PUMP ASM; OIL
FORWARD 		1-41381-008-1 01 1 9905- ● ● ● ●
366 BOLT; PUMP
FORWARD M8X40 		0-10805-840-0 04 1 9603-9901 ● ● ● ●
366 BOLT; PUMP
FORWARD M8X40 		0-10805-840-0 04 1 9902-9904 ● ● ●
366 BOLT; PUMP
FORWARD M8X40 		0-10805-840-0 04 1 9905- ● ● ● ●
367 STRAINER; OIL PUMP
FORWARD 		1-41383-003-0 01 1 9603-9901 ● ● ● ●
367 STRAINER; OIL PUMP
FORWARD 		1-41383-003-0 01 1 9902-9904 ● ● ●
367 STRAINER; OIL PUMP
FORWARD 		1-41383-003-0 01 1 9905- ● ● ● ●
368 SPRING; STRAINER
FORWARD 		1-09580-504-0 01 1 9603-9901 ● ● ● ●
368 SPRING; STRAINER
FORWARD 		1-09580-504-0 01 1 9902-9904 ● ● ●
368 SPRING; STRAINER
FORWARD 		1-09580-504-0 01 1 9905- ● ● ● ●
369 PLUG; STRAINER
FORWARD M24X17 FLANGE 		1-09604-023-0 01 1 9603-9901 ● ● ● ●
369 PLUG; STRAINER
FORWARD M24X17 FLANGE 		1-09604-023-0 01 1 9902-9904 ● ● ●
369 PLUG; STRAINER
FORWARD M24X17 FLANGE 		1-09604-023-0 01 1 9905- ● ● ● ●
370 GASKET; STRAINER
FORWARD ID=26.8 		1-09623-058-0 01 1 9603-9901 ● ● ● ●
370 GASKET; STRAINER
FORWARD ID=26.8 		1-09623-058-0 01 1 9902-9904 ● ● ●
370 GASKET; STRAINER
FORWARD ID=26.8 		1-09623-058-0 01 1 9905- ● ● ● ●
371 WASHER; LK,PUMP
FORWARD ID=8.2 		9-09150-808-0 04 1 9603-9901 ● ● ● ●
371 WASHER; LK,PUMP
FORWARD ID=8.2 		9-09150-808-0 04 1 9902-9904 ● ● ●
371 WASHER; LK,PUMP
FORWARD ID=8.2 		9-09150-808-0 04 1 9905- ● ● ● ●
372 BALL; CASE
FORWARD 		9-00097-517-0 01 1 9603-9901 ● ● ● ●
372 BALL; CASE
FORWARD 		9-00097-517-0 01 1 9902-9904 ● ● ●
372 BALL; CASE
FORWARD 		9-00097-517-0 01 1 9905- ● ● ● ●
373 PLUG; CASE
FORWARD PT1/4 		1-09605-019-0 01 1 9603-9901 ● ● ● ●
373 PLUG; CASE
FORWARD PT1/4 		1-09605-019-0 01 1 9902-9904 ● ● ●
373 PLUG; CASE
FORWARD PT1/4 		1-09605-019-0 01 1 9905- ● ● ● ●
374 PLUG; INPUT SHAFT
FORWARD 		1-09609-020-1 01 1 9603-9901 ● ● ● ●
374 PLUG; INPUT SHAFT
FORWARD 		1-09609-020-1 01 1 9902-9904 ● ● ●
374 PLUG; INPUT SHAFT
FORWARD 		1-09609-020-1 01 1 9905- ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD JTEKT 		1-09811-348-0 01 1 9603-9901 ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD JTEKT 		1-09811-348-0 01 1 9902-9904 ● ● ●
375 BEARING; SIDE GEAR
FORWARD JTEKT 		1-09811-348-0 01 1 9905- ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD NSK 		1-09811-362-0 01 1 9603-9901 ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD NSK 		1-09811-362-0 01 1 9902-9904 ● ● ●
375 BEARING; SIDE GEAR
FORWARD NSK 		1-09811-362-0 01 1 9905- ● ● ● ●
376 SPACER; BRG,SIDE GEAR
FORWARD 		1-41349-150-0 01 1 9603-9901 ● ● ● ●
376 SPACER; BRG,SIDE GEAR
FORWARD 		1-41349-150-0 01 1 9902-9904 ● ● ●
376 SPACER; BRG,SIDE GEAR
FORWARD 		1-41349-150-0 01 1 9905- ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR
FORWARD 		1-09587-091-0 01 1 9603-9901 ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR
FORWARD 		1-09587-091-0 01 1 9902-9904 ● ● ●
377 RING; SNAP,BRG,SIDE GEAR
FORWARD 		1-09587-091-0 01 1 9905- ● ● ● ●
çizim 8793
94 92 1 91 90 95 96 17 69 93 90 17 71 20 21 22 21 52 70 84 88 88 85 24 25 20 85 56 34 35 89 83 54 70 69 22 53 9 67 31 25 10 55 376 24 15 8 36 33 225 68 16 10 10 206 32 8 29 374 375 66 61 377 61 39 42 43 27 6 98 355 8 373 65 97 64 63 62 5 3 50 40 372 41 49 48 366 371 365 368 367 370 31 45 37 369 60 21 226
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-374-0 01 1 9902-9902 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/6 		1-41002-034-0 01 1 9903-9904 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 9603-9811 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 9811- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41001-654-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/8 		1-41001-612-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/8 		1-41002-062-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-062-0 01 1 9902-9904 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-062-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-062-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9905-9908 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/8 		1-41002-042-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-042-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/8 		1-41002-211-0 01 1 9905-9910 ●
1 DRIVE ASM; FINAL,RR
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> FORWARD 41/8 		1-41002-211-0 01 1 9911- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/8 		1-41001-395-0 01 1 9603- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/8 		1-41001-656-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41001-614-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 39/8 		1-41002-064-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT<C5X> REARWARD 39/8 		1-41002-064-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9905-9908 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8 		1-41002-044-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 39/8 		1-41002-044-0 01 1 9909- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 9603-9901 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41001-616-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-066-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/9 		1-41001-396-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/9 		1-41002-066-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41001-570-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> FORWARD 41/6 		1-41002-054-0 01 1 9703-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-054-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-415-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-415-0 01 1 9809-9901 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD 41/6 		1-41001-290-0 01 1 9603-9707 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD 41/6 		1-41001-290-0 01 1 9603-9707 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD 41/6 		1-41001-290-0 01 1 9708-9810 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. REAR AXLE RT260<C2B> REARWARD 41/6 		1-41001-290-0 01 1 9708-9810 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> BRAKE LINING MATERIAL NON ASBESTOS<SKR> REARWARD 41/6 		1-41001-290-0 01 1 9811-9901 ● ● ● ● ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/6 		1-41001-290-0 01 1 9902- ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41001-568-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41001-568-0 01 1 9603-9702 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41002-034-0 01 1 9703-9808 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6 		1-41002-034-0 01 1 9703-9808 ●
1 DRIVE ASM; FINAL,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD 41/6 		1-41002-034-0 01 1 9809-9901 ●
1 DRIVE ASM; FINAL,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/6 		1-41002-034-0 01 1 9809-9901 ●
3 NUT; INPUT SHAFT
FORWARD M46 FLANGE 		1-09449-071-0 01 1 9603-9901 ● ● ● ●
3 NUT; INPUT SHAFT
FORWARD M46 FLANGE 		1-09449-071-0 01 1 9902-9904 ● ● ●
3 NUT; INPUT SHAFT
FORWARD M46 FLANGE 		1-09449-071-0 01 1 9905- ● ● ● ●
5 GASKET; INPUT SHAFT
FORWARD ID=57 		1-09623-386-0 01 1 9603-9901 ● ● ● ●
5 GASKET; INPUT SHAFT
FORWARD ID=57 		1-09623-386-0 01 1 9902-9904 ● ● ●
5 GASKET; INPUT SHAFT
FORWARD ID=57 		1-09623-386-0 01 1 9905- ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9603-9901 ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9902-9902 ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9903-9904 ●
6 FLANGE ASM; INPUT SHAFT
P115 PROP SHAFT<C5X> FORWARD 		1-37245-267-2 01 1 9905- ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9603-9901 ● ● ● ●
6 FLANGE ASM; INPUT SHAFT
P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9903-9904 ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9905-9908 ● ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9909-9910 ● ● ●
6 FLANGE ASM; INPUT SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 		1-37245-265-2 01 1 9909-9910 ● ●
6 FLANGE ASM; INPUT SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 		1-37245-265-2 01 1 9911- ● ● ●
6 FLANGE ASM; INPUT SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P90 PROP SHAFT<C5T> BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, LIMITED SLIP DIFF VAR2<G86> FORWARD 		1-37245-265-2 01 1 9911- ● ●
8 SEAL; OIL,INPUT SHAFT
(A) FORWARD 		1-09625-323-0 01 1 9603-9901 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) FORWARD 		1-09625-323-0 01 1 9902-9904 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) FORWARD 		1-09625-323-0 01 1 9905- ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) FORWARD 		1-41349-145-0 02 1 9603-9901 ● ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) FORWARD 		1-41349-145-0 02 1 9902-9904 ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) FORWARD 		1-41349-145-0 02 1 9905- ● ● ● ●
9 RING; SNAP,BRG,INPUT
FORWARD 		1-09588-192-0 01 1 9603-9901 ● ● ● ●
9 RING; SNAP,BRG,INPUT
FORWARD 		1-09588-192-0 01 1 9902-9904 ● ● ●
9 RING; SNAP,BRG,INPUT
FORWARD 		1-09588-192-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD JTEKT 		1-09811-346-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD JTEKT 		1-09811-346-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD JTEKT 		1-09811-346-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD NSK 		1-09811-347-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD NSK 		1-09811-347-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(A) FORWARD NSK 		1-09811-347-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD NSK 		1-09812-094-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD NSK 		1-09812-094-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD NSK 		1-09812-094-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD JTEKT 		1-09812-182-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD JTEKT 		1-09812-182-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD JTEKT 		1-09812-182-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD NSK 		1-09812-183-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD NSK 		1-09812-183-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(C) FORWARD NSK 		1-09812-183-0 01 1 9905- ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD JTEKT 		1-09812-198-0 01 1 9603-9901 ● ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD JTEKT 		1-09812-198-0 01 1 9902-9904 ● ● ●
10 BEARING; INPUT SHAFT
(B) FORWARD JTEKT 		1-09812-198-0 01 1 9905- ● ● ● ●
15 CATCHER; OIL
FORWARD 		1-41129-007-0 01 1 9603-9901 ● ● ● ●
15 CATCHER; OIL
FORWARD 		1-41129-007-0 01 1 9902-9904 ● ● ●
15 CATCHER; OIL
FORWARD 		1-41129-007-0 01 1 9905- ● ● ● ●
16 SHAFT ASM; INPUT
FORWARD 		1-41341-025-0 01 1 9603-9901 ● ● ● ●
16 SHAFT ASM; INPUT
FORWARD 		1-41341-025-0 01 1 9902-9904 ● ● ●
16 SHAFT ASM; INPUT
FORWARD 		1-41341-025-0 01 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) REARWARD M14X85 		1-09044-023-0 08 1 9902-9902 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9603-9901 ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9902-9904 ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=2.80 		1-41562-073-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=2.90 		1-41562-074-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.00 		1-41562-075-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.10 		1-41562-076-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.20 		1-41562-077-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.30 		1-41562-078-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
REARWARD T=3.40 		1-41562-079-0 AR 1 9902-9902 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9603-9901 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9902-9904 ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) REARWARD Z=16 		1-41561-084-1 02 1 9902-9902 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-086-0 02 1 9905- ● ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9603-9901 ● ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9902-9904 ● ● ●
21 GEAR; SIDE,DIFF
(B) FORWARD Z=16 		1-41561-103-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(A) REARWARD 		1-41521-035-0 01 1 9902-9902 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-0 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-1 01 1 9905- ● ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-1 01 1 9603-9901 ● ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-1 01 1 9902-9904 ● ● ●
22 SPIDER; DIFF PINION
(B) FORWARD 		1-41521-049-2 01 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(A) REARWARD Z=10 		1-41551-024-0 04 1 9902-9902 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-025-0 04 1 9905- ● ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9603-9901 ● ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9902-9904 ● ● ●
24 GEAR; PINION,DIFF
(B) FORWARD Z=10 		1-41551-031-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(A) REARWARD 		1-41552-020-0 04 1 9902-9902 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 9905- ● ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9603-9901 ● ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9902-9904 ● ● ●
25 WASHER; THRUST,PINION
(B) FORWARD T=1.6 		1-41552-023-0 04 1 9905- ● ● ● ●
27 BOLT; BRG RET
FORWARD M12X35 W/LK WASHER 		0-50051-235-0 08 1 9603-9901 ● ● ● ●
27 BOLT; BRG RET
FORWARD M12X35 W/LK WASHER 		0-50051-235-0 08 1 9902-9904 ● ● ●
27 BOLT; BRG RET
FORWARD M12X35 W/LK WASHER 		0-50051-235-0 08 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.30 		1-41349-146-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.30 		1-41349-146-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=0.30 		1-41349-146-0 AR 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.40 		1-41349-147-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.40 		1-41349-147-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=0.40 		1-41349-147-0 AR 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.50 		1-41349-148-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=0.50 		1-41349-148-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=0.50 		1-41349-148-0 AR 1 9905- ● ● ● ●
29 SHIM; BRG RET
FORWARD T=1.000 		1-41349-149-0 AR 1 9603-9901 ● ● ● ●
29 SHIM; BRG RET
FORWARD T=1.000 		1-41349-149-0 AR 1 9902-9904 ● ● ●
29 SHIM; BRG RET
FORWARD T=1.000 		1-41349-149-0 AR 1 9905- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) FORWARD Z=16 		1-41351-030-0 01 1 9603-9901 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) FORWARD Z=16 		1-41351-030-0 01 1 9902-9904 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) FORWARD Z=16 		1-41351-030-0 01 1 9905- ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) FORWARD Z=31 		1-41352-029-0 01 1 9603-9901 ● ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) FORWARD Z=31 		1-41352-029-0 01 1 9902-9904 ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) FORWARD Z=31 		1-41352-029-0 01 1 9905- ● ● ● ●
32 SLEEVE; CLU,DIFF LK
FORWARD 		1-41355-038-0 01 1 9603-9901 ● ● ● ●
32 SLEEVE; CLU,DIFF LK
FORWARD 		1-41355-038-0 01 1 9902-9904 ● ● ●
32 SLEEVE; CLU,DIFF LK
FORWARD 		1-41355-038-0 01 1 9905- ● ● ● ●
33 CASE; POWER DIVIDER
FORWARD 		1-41321-024-1 01 1 9603-9901 ● ● ● ●
33 CASE; POWER DIVIDER
FORWARD 		1-41321-024-1 01 1 9902-9904 ● ● ●
33 CASE; POWER DIVIDER
FORWARD 		1-41321-024-1 01 1 9905- ● ● ● ●
34 BOLT; CASE TO CARRIER
FORWARD M14X40 		0-23801-440-0 10 1 9603-9901 ● ● ● ●
34 BOLT; CASE TO CARRIER
FORWARD M14X40 		0-23801-440-0 10 1 9902-9904 ● ● ●
34 BOLT; CASE TO CARRIER
FORWARD M14X40 		0-23801-440-0 10 1 9905- ● ● ● ●
35 WASHER; CASE TO CARRIER
FORWARD ID=14.2 		9-09150-814-0 10 1 9603-9901 ● ● ● ●
35 WASHER; CASE TO CARRIER
FORWARD ID=14.2 		9-09150-814-0 10 1 9902-9904 ● ● ●
35 WASHER; CASE TO CARRIER
FORWARD ID=14.2 		9-09150-814-0 10 1 9905- ● ● ● ●
36 PIN; STRAIGHT
FORWARD OD=14 L=28 		9-08161-428-0 02 1 9603-9901 ● ● ● ●
36 PIN; STRAIGHT
FORWARD OD=14 L=28 		9-08161-428-0 02 1 9902-9904 ● ● ●
36 PIN; STRAIGHT
FORWARD OD=14 L=28 		9-08161-428-0 02 1 9905- ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9603-9901 ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9902-9904 ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9905-9905 ● ● ● ●
37 NUT; DRIVING PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 9906-0006 ● ● ● ●
37 NUT; DRIVING PINION
(B) CXZ;REARWARD M46 FLANGE 		1-09449-071-0 01 1 0007- ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 FLANGE 		1-09449-043-1 01 1 9603-9801 ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9802-9901 ● ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9902-9904 ● ● ●
37 NUT; DRIVING PINION
(A) FORWARD M42 		1-09449-061-0 01 1 9905- ● ● ● ●
37 NUT; DRIVING PINION
(B) REARWARD M30 FLANGE 		1-09449-066-1 01 1 9902-9902 ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9603-9901 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9905-9905 ● ● ● ●
39 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 9906-0006 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-075-0 01 1 0007- ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9603-9901 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9905-9905 ● ● ● ●
39 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD JTEKT 		1-09812-076-0 01 1 9906-0006 ● ● ● ●
39 BEARING; FINAL PINION
(B) CXZ;REARWARD JTEKT 		1-09812-076-1 01 1 0007- ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-0 01 1 9703-9901 ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-073-1 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-0 01 1 9703-9901 ● ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-0 01 1 9902-9904 ● ● ●
39 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-074-1 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
(B) REARWARD NSK 		1-09812-026-0 01 1 9902-9902 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9603-9901 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9902-9904 ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9905-9908 ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9909- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9909- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=7.60 		1-41229-237-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=7.80 		1-41229-238-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.00 		1-41229-239-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.20 		1-41229-240-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.40 		1-41229-241-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.60 		1-41229-242-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=8.80 		1-41229-243-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0007- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9603-9901 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9902-9904 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
SHORT CHASSIS(CX***C) T=9.00 		1-41229-244-0 AR 1 9905-0006 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0007- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.60 		1-41229-237-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.60 		1-41229-237-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.60 		1-41229-237-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.80 		1-41229-238-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.80 		1-41229-238-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=7.80 		1-41229-238-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.00 		1-41229-239-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.00 		1-41229-239-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.00 		1-41229-239-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.20 		1-41229-240-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.20 		1-41229-240-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.20 		1-41229-240-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.40 		1-41229-241-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.40 		1-41229-241-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.40 		1-41229-241-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.60 		1-41229-242-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.60 		1-41229-242-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.60 		1-41229-242-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.80 		1-41229-243-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.80 		1-41229-243-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=8.80 		1-41229-243-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=9.00 		1-41229-244-0 AR 1 9603-9901 ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=9.00 		1-41229-244-0 AR 1 9902-9904 ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
FORWARD T=9.00 		1-41229-244-0 AR 1 9905- ● ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
REARWARD T=15.75 		1-41219-004-0 01 1 9902-9902 ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-063-0 01 1 9902-9902 ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9603-9901 ● ● ● ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9902-9904 ● ● ●
43 CAGE; FINAL PINION
(A) REARWARD 		1-41151-030-0 01 1 9905- ● ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9603-9901 ● ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9902-9904 ● ● ●
43 CAGE; FINAL PINION
(B) FORWARD T=53 		1-41151-053-0 01 1 9905- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9603-9901 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9902-9904 ● ● ●
45 BOLT; FINAL PINION CAGE
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 9905-0006 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) CXZ;REARWARD M16X55 		0-16806-655-0 08 1 0007- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9603-9901 ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9902-9904 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) FORWARD M16X40 		1-09070-107-0 08 1 9905- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) REARWARD M12X40 		9-02361-240-0 06 1 9902-9902 ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9603-9901 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9902-9904 ● ● ●
48 WASHER; LK,FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 9905-0006 ● ● ● ●
48 WASHER; LK,FINAL PINION
(B) CXZ;REARWARD ID=16.2 		9-09150-516-0 08 1 0007- ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) REARWARD ID=12.2 		9-09150-512-0 06 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-021-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-051-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-052-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-053-1 AR 1 9902-9902 ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.50 		1-41154-024-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=1.00 		1-41154-025-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.30 		1-41154-057-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(B) REARWARD T=0.40 		1-41154-058-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.50 		1-41154-071-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=1.000 		1-41154-072-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.30 		1-41154-073-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9603-9901 ● ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9902-9904 ● ● ●
49 SHIM; FINAL PINION CAGE
(A) FORWARD T=0.40 		1-41154-074-0 AR 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-0 01 1 9603-9901 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXZ;REARWARD NSK 		1-09812-073-1 01 1 9905-0006 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXZ;REARWARD NSK 		1-09812-073-1 01 1 0007- ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-0 01 1 9603-9901 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
SHORT CHASSIS(CX***C) (B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-1 01 1 9905-0006 ● ● ● ●
50 BEARING; FINAL PINION
(B) CXM;FORWARD,CXZ;REARWARD JTEKT 		1-09812-074-1 01 1 0007- ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9703-9901 ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD NSK 		1-09812-075-0 01 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-0 01 1 9703-9901 ● ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-0 01 1 9902-9904 ● ● ●
50 BEARING; FINAL PINION
(A) FORWARD JTEKT 		1-09812-076-1 01 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
(B) REARWARD NSK 		1-09812-041-2 01 1 9902-9902 ●
52 SHAFT; OUTPUT
FORWARD 		1-41343-020-0 01 1 9603-9901 ● ● ● ●
52 SHAFT; OUTPUT
FORWARD 		1-41343-020-0 01 1 9902-9904 ● ● ●
52 SHAFT; OUTPUT
FORWARD 		1-41343-020-0 01 1 9905- ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9603-9901 ● ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9603-9901 ● ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9902-9904 ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9902-9904 ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9905- ● ● ● ●
53 NUT; FINAL DRIVE SET
M16 		9-99110-516-0 01 1 9905- ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9603-9901 ● ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9603-9901 ● ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9902-9904 ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9902-9904 ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9905- ● ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 9905- ● ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-105-0 01 1 9902-9902 ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9603-9901 ● ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9902-9904 ● ● ●
55 CARRIER; DIFF
(B) REARWARD 		1-41110-109-0 01 1 9905- ● ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9603-9901 ● ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9902-9904 ● ● ●
55 CARRIER; DIFF
(A) FORWARD 		1-41310-050-0 01 1 9905- ● ● ● ●
56 BOLT; BRG CAP
REARWARD M14X95 FLANGE 		1-09070-027-0 04 1 9902-9902 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9603-9901 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9603-9901 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9902-9904 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9902-9904 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9905- ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9905- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-528-0 01 1 9902-9902 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/6 		1-41210-473-0 01 1 9903- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-466-0 01 1 9603-9811 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-466-0 01 1 9811-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/8 		1-41210-605-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/8 		1-41210-477-0 01 1 9603- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 39/8 		1-41210-467-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 39/8 		1-41210-607-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 39/8 		1-41210-478-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 39/8 		1-41210-478-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/9 		1-41210-468-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/9 		1-41210-479-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/9 		1-41210-479-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/9 		1-41210-608-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
(A) FORWARD 41/6 		1-41210-473-0 01 1 9603-9901 ●
60 GEAR SET; FINAL DRIVE,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) REARWARD 41/6 		1-41210-462-0 01 1 9603-9707 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) REARWARD 41/6 		1-41210-462-0 01 1 9603-9707 ●
60 GEAR SET; FINAL DRIVE,RR
SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) REARWARD 41/6 		1-41210-462-0 01 1 9708-9810 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. REAR AXLE RT260<C2B> (B) REARWARD 41/6 		1-41210-462-0 01 1 9708-9810 ●
60 GEAR SET; FINAL DRIVE,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) REARWARD 41/6 		1-41210-462-0 01 1 9811-9901 ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/6 		1-41210-462-0 01 1 9902-9902 ●
60 GEAR SET; FINAL DRIVE,RR
(B) REARWARD 41/6 		1-41210-601-0 01 1 9903- ●
61 RETAINER; PILOT BRG,PINION
REARWARD 		9-41227-006-0 02 1 9902-9902 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9603-9901 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9603-9901 ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9902-9904 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9902-9904 ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9905- ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9905- ● ● ● ●
62 BOLT; RET
REARWARD M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9902-9902 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9603-9901 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9603-9901 ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9902-9904 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9902-9904 ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9905- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
REARWARD NSK 		1-09810-062-1 01 1 9902-9902 ●
63 BEARING; PINION PILOT
REARWARD JTEKT 		1-09810-063-2 01 1 9902-9902 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9603-9901 ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9902-9904 ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9905- ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9603-9707 ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9603-9707 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9901 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9901 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9902-9904 ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9902-9904 ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9905-9908 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9905-9908 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9909- ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9909- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9603-9901 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9603-9901 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9902-9904 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9902-9904 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9905-9908 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9905-9908 ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9909- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9909- ● ● ● ●
66 RING; SNAP,PILOT BRG
REARWARD OD=32.2 		1-09588-065-1 01 1 9902-9902 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9603-9901 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9603-9901 ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9902-9904 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9902-9904 ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9905- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9905- ● ● ● ●
67 PICKUP; OIL,CARRIER
FORWARD 		1-41129-008-0 01 1 9603-9901 ● ● ● ●
67 PICKUP; OIL,CARRIER
FORWARD 		1-41129-008-0 01 1 9902-9904 ● ● ●
67 PICKUP; OIL,CARRIER
FORWARD 		1-41129-008-0 01 1 9905- ● ● ● ●
68 BOLT; OIL PICKUP FIX
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9603-9901 ● ● ● ●
68 BOLT; OIL PICKUP FIX
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9902-9904 ● ● ●
68 BOLT; OIL PICKUP FIX
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
REARWARD M115 H=20 		1-41121-039-0 01 1 9902-9902 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9603-9901 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9902-9904 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
REARWARD M115 H=26 		1-41121-028-0 01 1 9902-9902 ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9603-9702 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703-9901 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703-9901 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9902-9904 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9902-9904 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9905- ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9905- ● ● ● ●
70 BEARING; DIFF CAGE
REARWARD JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 9902-9902 ●
71 CAGE ASM; DIFF,FINAL DRIVE
REARWARD 		1-41510-240-0 01 1 9902-9902 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9603-9901 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9603-9901 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9902-9904 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9902-9904 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9905- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9905- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 9603-9901 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 9603-9901 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 9905- ●
83 CAGE ASM; DIFF
FORWARD 		1-41510-224-0 01 1 9603-9901 ● ● ● ●
83 CAGE ASM; DIFF
FORWARD 		1-41510-224-0 01 1 9902-9904 ● ● ●
83 CAGE ASM; DIFF
FORWARD 		1-41510-224-0 01 1 9905- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9902-9904 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9902-9904 ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9603-9901 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9603-9901 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
REARWARD M14X29.5 FLANGE 		1-09070-085-0 16 1 9902-9902 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9905- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9905- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9603-9901 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9603-9901 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9902-9904 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9902-9904 ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9905-9908 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9905-9908 ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9909- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9909- ● ● ● ●
85 NUT; DIFF CAGE SETTING
REARWARD M14 		1-09400-077-1 08 1 9902-9902 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9603-9901 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9902-9904 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) REARWARD T=2.3 		9-41124-015-0 02 1 9902-9902 ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9603-9901 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9603-9901 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9902-9904 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9902-9904 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9905- ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9905- ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD NSK 		1-09812-068-0 02 1 9603-9901 ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD NSK 		1-09812-068-0 02 1 9902-9904 ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD NSK 		1-09812-068-0 02 1 9905- ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD JTEKT 		1-09812-069-0 02 1 9603-9901 ● ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD JTEKT 		1-09812-069-0 02 1 9902-9904 ● ● ●
90 BEARING; OUTPUT SHAFT
FORWARD JTEKT 		1-09812-069-0 02 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.60 		1-41349-020-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.60 		1-41349-020-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.60 		1-41349-020-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.70 		1-41349-021-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.70 		1-41349-021-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.70 		1-41349-021-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.80 		1-41349-022-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.80 		1-41349-022-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.80 		1-41349-022-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.90 		1-41349-023-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.90 		1-41349-023-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.90 		1-41349-023-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.00 		1-41349-024-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.00 		1-41349-024-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.00 		1-41349-024-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.10 		1-41349-025-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.10 		1-41349-025-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.10 		1-41349-025-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.20 		1-41349-026-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.20 		1-41349-026-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.20 		1-41349-026-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.30 		1-41349-027-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.30 		1-41349-027-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.30 		1-41349-027-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.50 		1-41349-091-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.50 		1-41349-091-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=4.50 		1-41349-091-0 AR 1 9905- ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.40 		1-41349-092-0 AR 1 9603-9901 ● ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.40 		1-41349-092-0 AR 1 9902-9904 ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
FORWARD T=5.40 		1-41349-092-0 AR 1 9905- ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
FORWARD OD=90.5 		9-09180-185-0 01 1 9603-9901 ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
FORWARD OD=90.5 		9-09180-185-0 01 1 9902-9904 ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
FORWARD OD=90.5 		9-09180-185-0 01 1 9905- ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
FORWARD 		1-09625-217-0 01 1 9603-9901 ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
FORWARD 		1-09625-217-0 01 1 9902-9904 ● ● ●
93 SEAL; OIL,OUTPUT SHAFT
FORWARD 		1-09625-217-0 01 1 9905- ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT
FORWARD 		1-37245-130-1 01 1 9603-9901 ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT
FORWARD 		1-37245-130-1 01 1 9902-9904 ● ● ●
94 FLANGE ASM; OUTPUT SHAFT
FORWARD 		1-37245-130-1 01 1 9905- ● ● ● ●
95 NUT; OUTPUT SHAFT
FORWARD M36 FLANGE 		1-09449-067-0 01 1 9603-9901 ● ● ● ●
95 NUT; OUTPUT SHAFT
FORWARD M36 FLANGE 		1-09449-067-0 01 1 9902-9904 ● ● ●
95 NUT; OUTPUT SHAFT
FORWARD M36 FLANGE 		1-09449-067-0 01 1 9905- ● ● ● ●
96 GASKET; SHAFT,OUTPUT
FORWARD ID=42 		1-09623-387-0 01 1 9603-9901 ● ● ● ●
96 GASKET; SHAFT,OUTPUT
FORWARD ID=42 		1-09623-387-0 01 1 9902-9904 ● ● ●
96 GASKET; SHAFT,OUTPUT
FORWARD ID=42 		1-09623-387-0 01 1 9905- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-052-1 01 1 9603-9702 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-0 01 1 9703-9901 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-0 01 1 9902-9904 ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-1 01 1 9905- ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X50 FLANGE 		0-28181-050-0 01 1 9603-9901 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X50 FLANGE 		0-28181-050-0 01 1 9902-9904 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X50 FLANGE 		0-28181-050-0 01 1 9905- ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X25 FLANGE 		0-28781-025-0 03 1 9603-9901 ● ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X25 FLANGE 		0-28781-025-0 03 1 9902-9904 ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
FORWARD M10X25 FLANGE 		0-28781-025-0 03 1 9905- ● ● ● ●
206 BOLT; OIL CATCHER
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9603-9901 ● ● ● ●
206 BOLT; OIL CATCHER
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9902-9904 ● ● ●
206 BOLT; OIL CATCHER
FORWARD M8X12 FLANGE 		8-94479-696-1 02 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=5.9 		1-41552-024-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=5.9 		1-41552-024-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=5.9 		1-41552-024-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.0 		1-41552-025-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.0 		1-41552-025-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.0 		1-41552-025-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.1 		1-41552-026-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.1 		1-41552-026-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.1 		1-41552-026-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.2 		1-41552-027-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.2 		1-41552-027-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.2 		1-41552-027-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.3 		1-41552-028-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.3 		1-41552-028-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.3 		1-41552-028-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.4 		1-41552-029-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.4 		1-41552-029-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.4 		1-41552-029-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.5 		1-41552-030-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.5 		1-41552-030-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.5 		1-41552-030-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.6 		1-41552-031-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.6 		1-41552-031-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.6 		1-41552-031-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.7 		1-41552-032-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.7 		1-41552-032-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.7 		1-41552-032-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.8 		1-41552-033-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.8 		1-41552-033-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.8 		1-41552-033-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.9 		1-41552-034-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=6.9 		1-41552-034-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=6.9 		1-41552-034-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.0 		1-41552-035-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.0 		1-41552-035-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=7.0 		1-41552-035-2 AR 1 9905- ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.1 		1-41552-036-1 AR 1 9603-9901 ● ● ● ●
225 WASHER; THRUST
FORWARD T=7.1 		1-41552-036-1 AR 1 9902-9904 ● ● ●
225 WASHER; THRUST
FORWARD T=7.1 		1-41552-036-2 AR 1 9905- ● ● ● ●
226 WASHER; THRUST
FORWARD 		1-41562-267-0 01 1 9603-9901 ● ● ● ●
226 WASHER; THRUST
FORWARD 		1-41562-267-0 01 1 9902-9904 ● ● ●
226 WASHER; THRUST
FORWARD 		1-41562-267-0 01 1 9905- ● ● ● ●
355 RETAINER; BRG
FORWARD 		1-41227-011-0 01 1 9603-9901 ● ● ● ●
355 RETAINER; BRG
FORWARD 		1-41227-011-0 01 1 9902-9904 ● ● ●
355 RETAINER; BRG
FORWARD 		1-41227-011-0 01 1 9905-9906 ● ● ●
355 RETAINER; BRG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 		1-41227-016-0 01 1 9907- ● ● ●
355 RETAINER; BRG
CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 		1-41227-014-1 01 1 9905- ●
365 PUMP ASM; OIL
FORWARD 		1-41381-008-0 01 1 9603-9901 ● ● ● ●
365 PUMP ASM; OIL
FORWARD 		1-41381-008-0 01 1 9902-9904 ● ● ●
365 PUMP ASM; OIL
FORWARD 		1-41381-008-1 01 1 9905- ● ● ● ●
366 BOLT; PUMP
FORWARD M8X40 		0-10805-840-0 04 1 9603-9901 ● ● ● ●
366 BOLT; PUMP
FORWARD M8X40 		0-10805-840-0 04 1 9902-9904 ● ● ●
366 BOLT; PUMP
FORWARD M8X40 		0-10805-840-0 04 1 9905- ● ● ● ●
367 STRAINER; OIL PUMP
FORWARD 		1-41383-003-0 01 1 9603-9901 ● ● ● ●
367 STRAINER; OIL PUMP
FORWARD 		1-41383-003-0 01 1 9902-9904 ● ● ●
367 STRAINER; OIL PUMP
FORWARD 		1-41383-003-0 01 1 9905- ● ● ● ●
368 SPRING; STRAINER
FORWARD 		1-09580-504-0 01 1 9603-9901 ● ● ● ●
368 SPRING; STRAINER
FORWARD 		1-09580-504-0 01 1 9902-9904 ● ● ●
368 SPRING; STRAINER
FORWARD 		1-09580-504-0 01 1 9905- ● ● ● ●
369 PLUG; STRAINER
FORWARD M24X17 FLANGE 		1-09604-023-0 01 1 9603-9901 ● ● ● ●
369 PLUG; STRAINER
FORWARD M24X17 FLANGE 		1-09604-023-0 01 1 9902-9904 ● ● ●
369 PLUG; STRAINER
FORWARD M24X17 FLANGE 		1-09604-023-0 01 1 9905- ● ● ● ●
370 GASKET; STRAINER
FORWARD ID=26.8 		1-09623-058-0 01 1 9603-9901 ● ● ● ●
370 GASKET; STRAINER
FORWARD ID=26.8 		1-09623-058-0 01 1 9902-9904 ● ● ●
370 GASKET; STRAINER
FORWARD ID=26.8 		1-09623-058-0 01 1 9905- ● ● ● ●
371 WASHER; LK,PUMP
FORWARD ID=8.2 		9-09150-808-0 04 1 9603-9901 ● ● ● ●
371 WASHER; LK,PUMP
FORWARD ID=8.2 		9-09150-808-0 04 1 9902-9904 ● ● ●
371 WASHER; LK,PUMP
FORWARD ID=8.2 		9-09150-808-0 04 1 9905- ● ● ● ●
372 BALL; CASE
FORWARD 		9-00097-517-0 01 1 9603-9901 ● ● ● ●
372 BALL; CASE
FORWARD 		9-00097-517-0 01 1 9902-9904 ● ● ●
372 BALL; CASE
FORWARD 		9-00097-517-0 01 1 9905- ● ● ● ●
373 PLUG; CASE
FORWARD PT1/4 		1-09605-019-0 01 1 9603-9901 ● ● ● ●
373 PLUG; CASE
FORWARD PT1/4 		1-09605-019-0 01 1 9902-9904 ● ● ●
373 PLUG; CASE
FORWARD PT1/4 		1-09605-019-0 01 1 9905- ● ● ● ●
374 PLUG; INPUT SHAFT
FORWARD 		1-09609-020-1 01 1 9603-9901 ● ● ● ●
374 PLUG; INPUT SHAFT
FORWARD 		1-09609-020-1 01 1 9902-9904 ● ● ●
374 PLUG; INPUT SHAFT
FORWARD 		1-09609-020-1 01 1 9905- ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD JTEKT 		1-09811-348-0 01 1 9603-9901 ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD JTEKT 		1-09811-348-0 01 1 9902-9904 ● ● ●
375 BEARING; SIDE GEAR
FORWARD JTEKT 		1-09811-348-0 01 1 9905- ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD NSK 		1-09811-362-0 01 1 9603-9901 ● ● ● ●
375 BEARING; SIDE GEAR
FORWARD NSK 		1-09811-362-0 01 1 9902-9904 ● ● ●
375 BEARING; SIDE GEAR
FORWARD NSK 		1-09811-362-0 01 1 9905- ● ● ● ●
376 SPACER; BRG,SIDE GEAR
FORWARD 		1-41349-150-0 01 1 9603-9901 ● ● ● ●
376 SPACER; BRG,SIDE GEAR
FORWARD 		1-41349-150-0 01 1 9902-9904 ● ● ●
376 SPACER; BRG,SIDE GEAR
FORWARD 		1-41349-150-0 01 1 9905- ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR
FORWARD 		1-09587-091-0 01 1 9603-9901 ● ● ● ●
377 RING; SNAP,BRG,SIDE GEAR
FORWARD 		1-09587-091-0 01 1 9902-9904 ● ● ●
377 RING; SNAP,BRG,SIDE GEAR
FORWARD 		1-09587-091-0 01 1 9905- ● ● ● ●
çizim 39770
97 244 241 242 205 356 384 383 380 287 381 360 292
BalonParca AdiParca NoAdetTipApplied Date A B C D E
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-052-1 01 1 9603-9702 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-0 01 1 9703-9901 ● ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-0 01 1 9902-9904 ● ● ●
97 SHIFT UNIT; DIFF LOCK
FORWARD 		1-48260-060-1 01 1 9905- ● ● ● ●
205 WASHER; PL
FORWARD DIFF LOCK ID=10.5 OD=18 		9-09160-510-0 01 1 9603-9901 ● ● ● ●
205 WASHER; PL
FORWARD DIFF LOCK ID=10.5 OD=18 		9-09160-510-0 01 1 9902-9904 ● ● ●
205 WASHER; PL
FORWARD DIFF LOCK ID=10.5 OD=18 		9-09160-510-0 01 1 9905- ● ● ● ●
241 COVER; SHIFT HSG
FORWARD DIFF LOCK 		1-48266-012-1 01 1 9603-9901 ● ● ● ●
241 COVER; SHIFT HSG
FORWARD DIFF LOCK 		1-48266-012-1 01 1 9902-9904 ● ● ●
241 COVER; SHIFT HSG
FORWARD DIFF LOCK 		1-48266-012-1 01 1 9905- ● ● ● ●
242 BOLT; COVER
FORWARD DIFF LOCK M8X20 		0-20800-820-0 04 1 9603-9901 ● ● ● ●
242 BOLT; COVER
FORWARD DIFF LOCK M8X20 		0-20800-820-0 04 1 9902-9904 ● ● ●
242 BOLT; COVER
FORWARD DIFF LOCK M8X20 		0-20800-820-0 04 1 9905- ● ● ● ●
244 GASKET; COVER
FORWARD DIFF LOCK 		1-48269-062-0 01 1 9603-9901 ● ● ● ●
244 GASKET; COVER
FORWARD DIFF LOCK 		1-48269-062-0 01 1 9902-9904 ● ● ●
244 GASKET; COVER
FORWARD DIFF LOCK 		1-48269-062-0 01 1 9905- ● ● ● ●
287 PISTON; SHIFT UNIT
FORWARD DIFF LOCK 		1-48262-011-1 01 1 9603-9702 ● ● ● ●
287 PISTON; SHIFT UNIT
FORWARD DIFF LOCK 		1-48262-012-0 01 1 9703-9901 ● ● ● ●
287 PISTON; SHIFT UNIT
FORWARD DIFF LOCK 		1-48262-012-0 01 1 9902-9904 ● ● ●
287 PISTON; SHIFT UNIT
FORWARD DIFF LOCK 		1-48262-012-0 01 1 9905- ● ● ● ●
292 SPRING; PISTON
FORWARD DIFF LOCK 		1-48265-007-0 01 1 9603-9901 ● ● ● ●
292 SPRING; PISTON
FORWARD DIFF LOCK 		1-48265-007-0 01 1 9902-9904 ● ● ●
292 SPRING; PISTON
FORWARD DIFF LOCK 		1-48265-007-0 01 1 9905- ● ● ● ●
356 NIPPLE; SHIFT UNIT
FORWARD DIFF LOCK M20 & PT1/4 ELBOW 		1-48269-012-0 01 1 9603-9702 ● ● ● ●
356 NIPPLE; SHIFT UNIT
FORWARD DIFF LOCK M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9703-9901 ● ● ● ●
356 NIPPLE; SHIFT UNIT
FORWARD DIFF LOCK M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9902-9904 ● ● ●
356 NIPPLE; SHIFT UNIT
FORWARD DIFF LOCK M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9905- ● ● ● ●
360 FORK; SHIFT
FORWARD DIFF LOCK 		1-48269-066-0 01 1 9603-9901 ● ● ● ●
360 FORK; SHIFT
FORWARD DIFF LOCK 		1-48269-066-0 01 1 9902-9904 ● ● ●
360 FORK; SHIFT
FORWARD DIFF LOCK 		1-48269-066-0 01 1 9905- ● ● ● ●
380 GASKET; PISTON
FORWARD DIFF LOCK 		1-48269-064-0 01 1 9603-9901 ● ● ● ●
380 GASKET; PISTON
FORWARD DIFF LOCK 		1-48269-064-0 01 1 9902-9904 ● ● ●
380 GASKET; PISTON
FORWARD DIFF LOCK 		1-48269-064-0 01 1 9905- ● ● ● ●
381 ROD; SHIFT
FORWARD DIFF LOCK 		1-48263-005-0 01 1 9603-9901 ● ● ● ●
381 ROD; SHIFT
FORWARD DIFF LOCK 		1-48263-005-0 01 1 9902-9904 ● ● ●
381 ROD; SHIFT
FORWARD DIFF LOCK 		1-48263-005-0 01 1 9905- ● ● ● ●
383 BOLT; SET,SHIFT UNIT
FORWARD DIFF LOCK M10X45 		0-20801-045-0 01 1 9603-9901 ● ● ● ●
383 BOLT; SET,SHIFT UNIT
FORWARD DIFF LOCK M10X45 		0-20801-045-0 01 1 9902-9904 ● ● ●
383 BOLT; SET,SHIFT UNIT
FORWARD DIFF LOCK M10X45 		0-20801-045-0 01 1 9905- ● ● ● ●
384 NUT; LK,SHIFT UNIT
FORWARD DIFF LOCK M10 		9-09111-410-0 01 1 9603-9901 ● ● ● ●
384 NUT; LK,SHIFT UNIT
FORWARD DIFF LOCK M10 		9-09111-410-0 01 1 9902-9904 ● ● ●
384 NUT; LK,SHIFT UNIT
FORWARD DIFF LOCK M10 		9-09111-410-0 01 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
