Sayfa 2-26 - Isuzu EPC

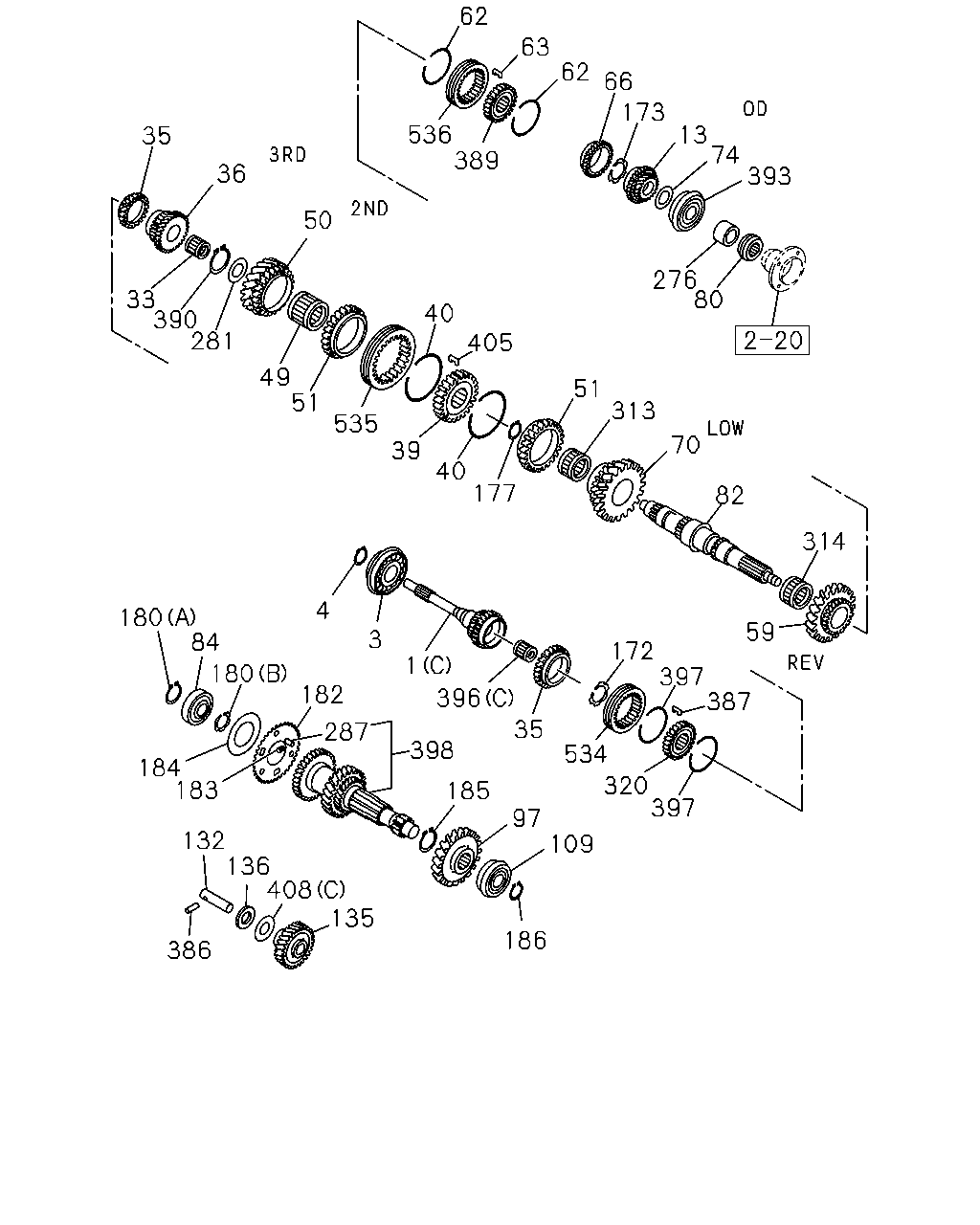

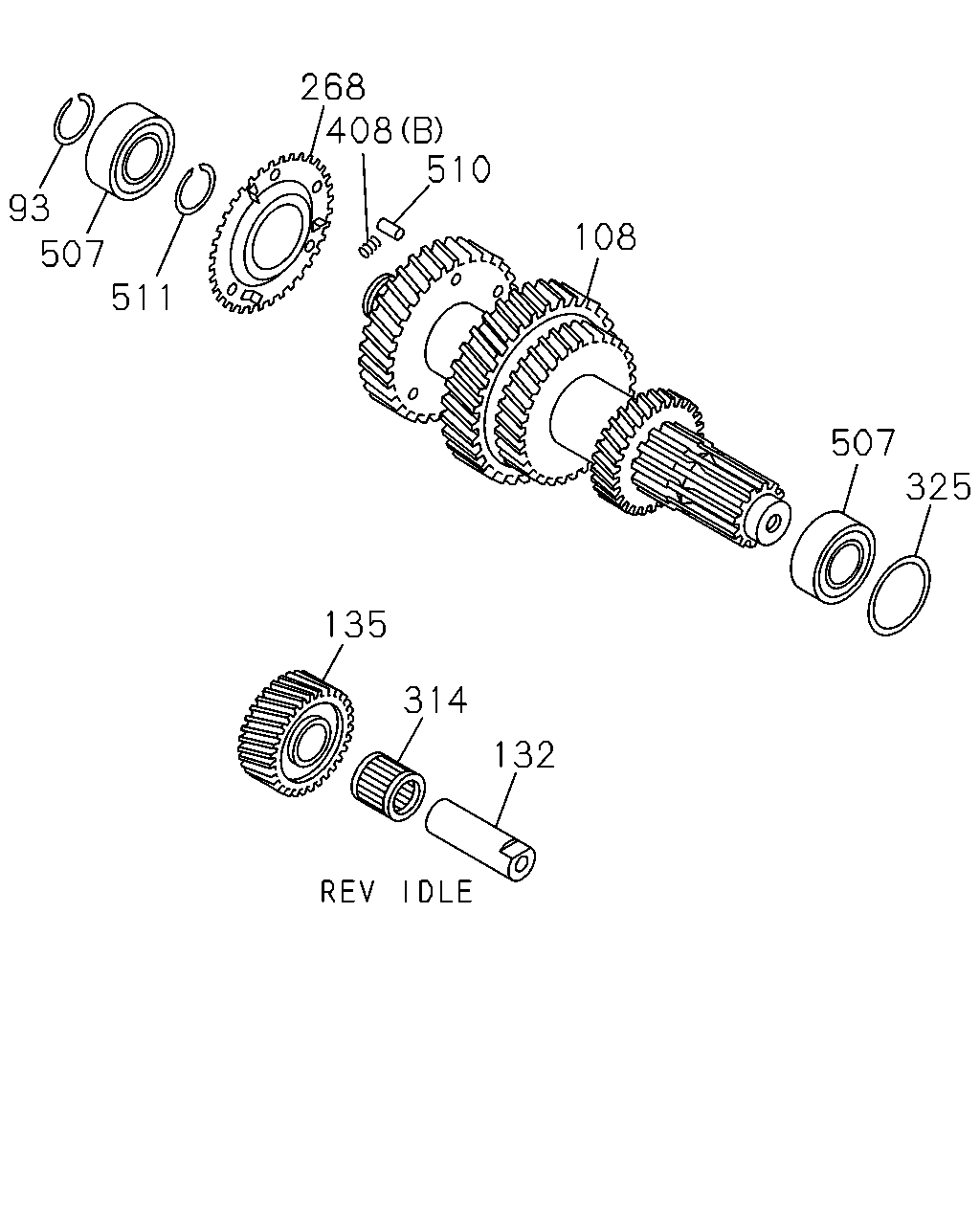

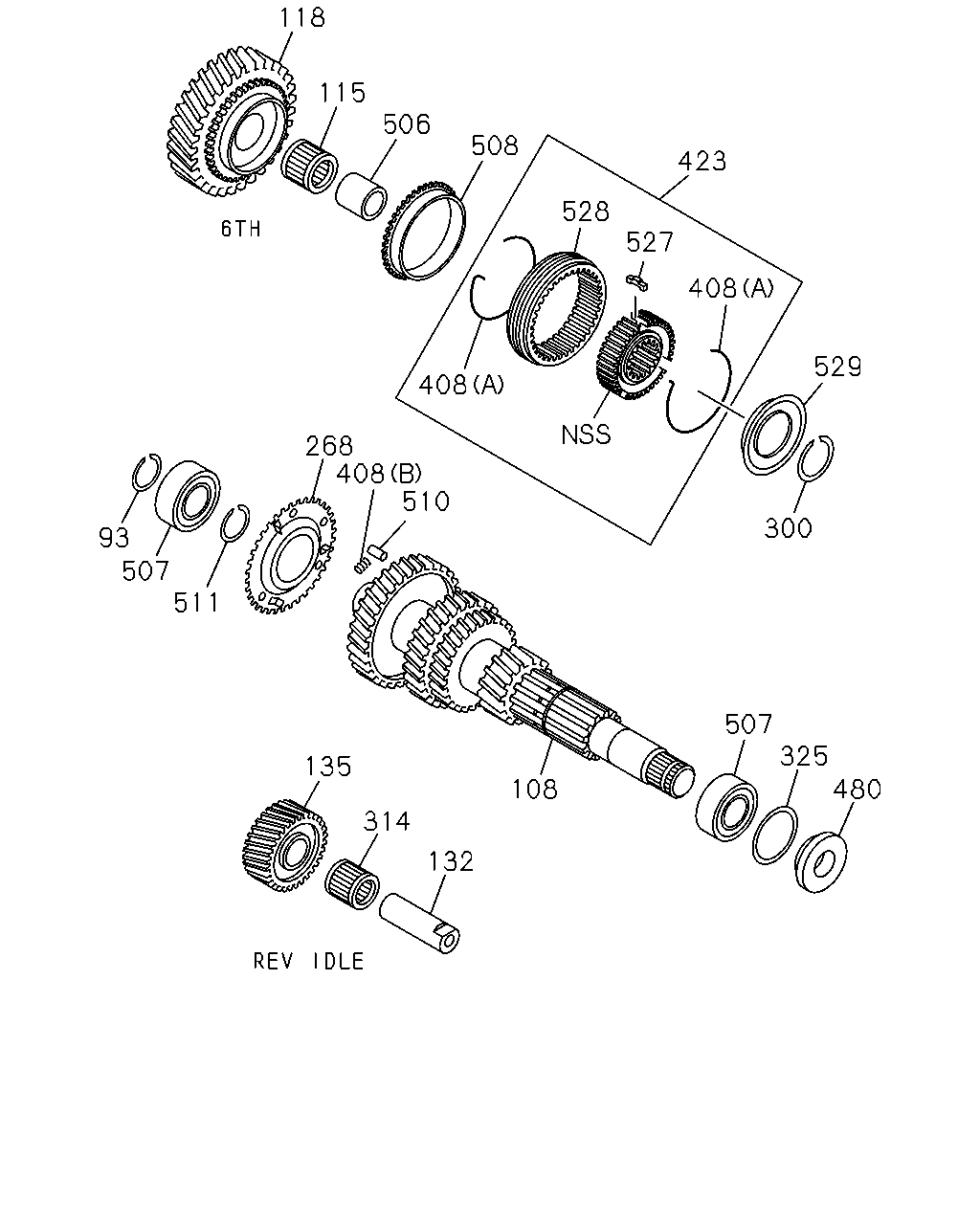

2-26 — MANUAL TRANSMISSION GEAR (#53931) — 548 parça

62 63 62 66 173 536 389 13 74 393 35 36 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 1 180 182 396 35 287 398 534 184 183 320 397 185 97 132 136 408 135 109 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0710-0803	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0804-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0710-0803	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0804-0903	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) Z=28	8-98031-849-0	01	1	0904-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0710-0803		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0804-0903		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A) Z=26	8-98021-266-0	01	1	0904-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0710-0803		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0804-0903		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) Z=26	8-98021-267-0	01	1	0904-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=30	8-97177-684-0	01	1	0804-1010			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=30	8-98179-969-1	01	1	1011-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=28	8-97177-683-0	01	1	0804-1010				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=28	8-98179-968-1	01	1	1011-				●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-742-0	01	1	1210-1210			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) NSK	8-98189-742-0	01	1	1211-			●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0710-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-2	01	1	0804-1209			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.408 NSK	8-94178-732-2	01	1	1210-1210			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0804-1209			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.352 JTEKT	8-94462-615-0	01	1	1210-1210			●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JB1-TC ENG(RDT) 08.934 ID=37.0	9-09180-040-0	01	1	0804-			●	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT) Z=25	8-97373-011-0	01	1	0804-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT) Z=24	8-97373-008-0	01	1	0804-				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-746-0	01	1	1210-1210			●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG(RDT)	8-98189-746-0	01	1	1211-			●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG(RDT)	8-94317-158-0	01	1	0804-1209			●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-94317-158-0	01	1	1210-1210			●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=36	8-98190-426-0	02	1	1210-1210			●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-98190-426-0	02	1	1211-			●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-94128-775-2	02	1	0804-1209			●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=36	8-94128-775-2	02	1	1210-1210			●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0710-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=33	8-97372-905-0	01	1	0804-1010			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=31	8-97174-923-0	01	1	0804-1010				●
39	04.384 HUB; CLU,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-97177-689-0	01	1	0804-			●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-960-0	02	1	1210-1210			●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JB1-TC ENG(RDT)	8-98189-960-0	02	1	1211-			●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JB1-TC ENG(RDT)	8-97023-708-0	02	1	0804-1209			●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97023-708-0	02	1	1210-1210			●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-747-0	01	1	1210-1210			●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG(RDT) NSK	8-98189-747-0	01	1	1211-			●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG(RDT) 04.419 NSK	5-09811-014-0	01	1	0804-1209			●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.419 NSK	5-09811-014-0	01	1	1210-1210			●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0710-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=36	8-97373-143-1	01	1	0804-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=34	8-97174-955-0	01	1	0804-				●
51	04.383 RING; BLOCK,LOW & 2ND 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=42	8-98190-428-0	02	1	1210-1210			●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-98190-428-0	02	1	1211-			●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-97074-619-3	02	1	0804-1209			●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=42	8-97074-619-3	02	1	1210-1210			●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=41	8-98190-291-1	01	1	1210-1210			●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-98190-291-1	01	1	1211-			●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0710-	●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0804-1209			●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=41	8-97206-006-0	01	1	1210-1210			●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-962-0	02	1	1210-1210			●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JB1-TC ENG(RDT)	8-98189-962-0	02	1	1211-			●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JB1-TC ENG(RDT)	8-97023-710-0	02	1	0804-1209			●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97023-710-0	02	1	1210-1210			●	●
63	04.384 INSERT; SYN,REV & 5TH 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98190-418-0	03	1	1210-1210			●	●
63	04.384 INSERT; SYN,REV & 5TH 4JB1-TC ENG(RDT)	8-98190-418-0	03	1	1211-			●	●
63	04.384 INSERT; SYN,REV & 5TH 4JB1-TC ENG(RDT)	9-33263-613-0	03	1	0804-1209			●	●
63	04.384 INSERT; SYN,REV & 5TH 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	9-33263-613-0	03	1	1210-1210			●	●
66	04.383 RING; BLOCK,SYN 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=36	8-98190-426-0	01	1	1210-1210			●	●
66	04.383 RING; BLOCK,SYN 4JB1-TC ENG(RDT) Z=36	8-98190-426-0	01	1	1211-			●	●
66	04.383 RING; BLOCK,SYN 4JB1-TC ENG(RDT) Z=36	8-94128-775-2	01	1	0804-1209			●	●
66	04.383 RING; BLOCK,SYN 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=36	8-94128-775-2	01	1	1210-1210			●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0710-0803	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0804-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0710-0803	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0804-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0804-1010			●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-98180-095-1	01	1	1011-			●	●
74	04.419 WASHER; THRUST,REV GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-569-0	01	1	1210-1210			●	●
74	04.419 WASHER; THRUST,REV GEAR 4JB1-TC ENG(RDT)	8-98188-569-0	01	1	1211-			●	●
74	04.419 WASHER; THRUST,REV GEAR 4JB1-TC ENG(RDT)	8-97207-176-0	01	1	0804-1209			●	●
74	04.419 WASHER; THRUST,REV GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97207-176-0	01	1	1210-1210			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=4	8-98190-429-0	01	1	1210-1210			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-98190-429-0	01	1	1211-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0710-	●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0804-1209			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=4	8-97207-146-0	01	1	1210-1210			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0710-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0710-		●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0804-			●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-745-0	01	1	1210-1210			●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG(RDT) NSK	8-98189-745-0	01	1	1211-			●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG(RDT) NSK	5-09800-062-2	01	1	0804-1209			●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) NSK	5-09800-062-2	01	1	1210-1210			●	●
97	04.415 GEAR; 5TH,COUNTER 4JB1-TC ENG(RDT) Z=53	8-97169-511-0	01	1	0804-			●
97	04.415 GEAR; 5TH,COUNTER 4JB1-TC ENG(RDT) Z=55	8-97372-900-0	01	1	0804-				●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-744-0	01	1	1210-1210			●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1-TC ENG(RDT)	8-98189-744-0	01	1	1211-			●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1-TC ENG(RDT)	8-97095-913-1	01	1	0804-1209			●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97095-913-1	01	1	1210-1210			●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-378-0	01	1	1210-1210			●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	8-98189-378-0	01	1	1211-			●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0710-	●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0804-1209			●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	9-33351-604-1	01	1	1210-1210			●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0710-	●	●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0804-			●	●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-533-0	01	1	1210-1210			●	●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG(RDT)	8-98188-533-0	01	1	1211-			●	●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG(RDT)	8-97081-579-2	01	1	0804-1209			●	●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97081-579-2	01	1	1210-1210			●	●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.75	8-94402-405-0	01	1	0804-			●	●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.80	8-94402-406-0	01	1	0804-			●	●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.85	8-94402-407-0	01	1	0804-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.85	8-94151-522-0	01	1	0804-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.90	8-94151-523-0	01	1	0804-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.95	8-94151-524-0	01	1	0804-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=2.00	8-94157-747-0	01	1	0804-			●	●
177	04.384 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) ID=44.5	8-98189-990-0	01	1	1210-1210			●	●
177	04.384 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) ID=44.5	8-98189-990-0	01	1	1211-			●	●
177	04.384 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.422 ID=44.5	5-09589-010-0	01	1	0804-1209			●	●
177	04.384 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.422 ID=44.5	5-09589-010-0	01	1	1210-1210			●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (B) ID=38.5	8-98189-991-0	01	1	1210-1210			●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) (B) ID=38.5	8-98189-991-0	01	1	1211-			●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) (B) ID=38.5	8-94146-483-0	01	1	0804-1209			●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (B) ID=38.5	8-94146-483-0	01	1	1210-1210			●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) 08.934 (A) ID=32.2	9-09180-035-0	01	1	0804-			●	●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-586-0	01	1	1210-1210				●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98188-586-0	01	1	1211-				●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-585-0	01	1	1210-1210			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98188-585-0	01	1	1211-			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-97095-984-0	01	1	0804-1209			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97095-984-0	01	1	1210-1210			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94129-632-1	01	1	0804-1209				●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-94129-632-1	01	1	1210-1210				●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-380-0	03	1	1210-1210			●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98189-380-0	03	1	1211-			●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94132-168-0	03	1	0804-1209			●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-94132-168-0	03	1	1210-1210			●	●
184	04.422 SPRING; CLUSTER GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-350-0	01	1	1210-1210			●	●
184	04.422 SPRING; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98189-350-0	01	1	1211-			●	●
184	04.422 SPRING; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94128-790-1	01	1	0804-1209			●	●
184	04.422 SPRING; CLUSTER GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-94128-790-1	01	1	1210-1210			●	●
185	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) ID=41.5	9-09180-045-0	01	1	0804-			●	●
186	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) ID=29.6	9-09180-032-0	01	1	0804-			●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-906-0	01	1	1210-1210			●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG(RDT)	8-98188-906-0	01	1	1211-			●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG(RDT)	8-97207-175-0	01	1	0804-1209			●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97207-175-0	01	1	1210-1210			●	●
281	04.419 WASHER; THRUST,MAINSHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-466-0	01	1	1210-1210			●	●
281	04.419 WASHER; THRUST,MAINSHAFT 4JB1-TC ENG(RDT)	8-98188-466-0	01	1	1211-			●	●
281	04.419 WASHER; THRUST,MAINSHAFT 4JB1-TC ENG(RDT)	5-33271-007-0	01	1	0804-1209			●	●
281	04.419 WASHER; THRUST,MAINSHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	5-33271-007-0	01	1	1210-1210			●	●
287	04.422 PIN; COUNTER GEAR 4JB1-TC ENG(RDT)	8-94402-462-0	01	1	0804-1405			●	●
287	04.422 PIN; COUNTER GEAR 4JB1-TC ENG(RDT)	8-98190-445-0	03	1	1406-			●	●
287	04.422 PIN; COUNTER GEAR 4JB1-TC ENG(RDT)	8-98190-445-0	03	1	1406-			●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-748-0	01	1	1210-1210			●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT)	8-98189-748-0	01	1	1211-			●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) NSK	8-94317-161-0	01	1	0804-1209			●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) NSK	8-94317-161-0	01	1	1210-1210			●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) JTEKT	8-97010-547-0	01	1	0804-1209			●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) JTEKT	8-97010-547-0	01	1	1210-1210			●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-749-0	01	1	1210-1210			●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-98189-749-0	01	1	1211-			●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0710-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0804-1209			●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) NSK	8-97207-174-0	01	1	1210-1210			●	●
320	04.384 HUB; CLU,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-97177-690-0	01	1	0804-			●	●
386	04.435 PIN; REV SHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98190-093-0	01	1	1210-1210			●	●
386	04.435 PIN; REV SHAFT 4JB1-TC ENG(RDT)	8-98190-093-0	01	1	1211-			●	●
386	04.435 PIN; REV SHAFT 4JB1-TC ENG(RDT)	8-94128-794-0	01	1	0804-1209			●	●
386	04.435 PIN; REV SHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-94128-794-0	01	1	1210-1210			●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-965-0	03	1	1210-1210			●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JB1-TC ENG(RDT)	8-98189-965-0	03	1	1211-			●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JB1-TC ENG(RDT)	5-33263-001-0	03	1	0804-1209			●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	5-33263-001-0	03	1	1210-1210			●	●
389	04.384 HUB; CLU,REV & 5TH 4JB1-TC ENG(RDT) Z=36	8-97373-144-0	01	1	0804-			●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.75	8-94151-520-0	01	1	0804-			●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.80	8-94151-521-0	01	1	0804-			●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.416 T=1.85	8-94151-522-0	01	1	0804-			●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.416 T=1.90	8-94151-523-0	01	1	0804-			●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-743-0	01	1	1210-1210			●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-98189-743-0	01	1	1211-			●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0710-	●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-1	01	1	0804-1209			●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97207-512-1	01	1	1210-1210			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-970-0	01	1	1210-1210			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-98189-970-0	01	1	1211-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0710-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0710-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-97161-658-0	01	1	0804-1209			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97161-658-0	01	1	1210-1210			●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-962-0	02	1	1210-1210			●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JB1-TC ENG(RDT)	8-98189-962-0	02	1	1211-			●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JB1-TC ENG(RDT)	8-97023-710-0	02	1	0804-1209			●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97023-710-0	02	1	1210-1210			●	●
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT) Z=49-34-22-14	8-97381-658-0	01	1	0804-			●
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT) Z=51-34-22-14	8-97204-104-0	01	1	0804-				●
405	04.384 INSERT; SYN,LOW & 2ND 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-965-0	03	1	1210-1210			●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JB1-TC ENG(RDT)	8-98189-965-0	03	1	1211-			●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JB1-TC ENG(RDT)	5-33263-001-0	03	1	0804-1209			●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	5-33263-001-0	03	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-98189-347-0	01	1	1211-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0710-	●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0804-1209			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210			●	●
534	04.395 SLEEVE; HUB,4TH-3RD 4JB1-TC ENG(RDT) Z=36	8-97177-134-0	01	1	0804-			●	●
535	04.395 SLEEVE; HUB,LOW-2ND 4JB1-TC ENG(RDT) Z=42	8-97177-133-0	01	1	0804-			●	●
536	04.395 SLEEVE; HUB,REV-5TH 4JB1-TC ENG(RDT) Z=36	8-97177-135-0	01	1	0804-			●	●

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0710-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0710-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0710-	●	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0710-0803	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0804-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0710-0803	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0804-0903	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) Z=45-49-33-20	8-97326-590-1	01	1	0904-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0710-0803		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0804-0903		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) Z=47-39-33-20	8-97380-627-1	01	1	0904-		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0710-0803		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0804-0903		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) Z=47-39-33-20	8-97252-639-1	01	1	0904-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0710-		●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	0710-		●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-378-0	01	1	1210-1210			●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	8-98189-378-0	01	1	1211-			●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0710-	●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0804-1209			●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	9-33351-604-1	01	1	1210-1210			●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0710-	●	●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0804-			●	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0710-0803	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0804-	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0710-0803		●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0804-0903		●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ)	8-97252-684-1	01	1	0904-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	0710-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0710-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	0710-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	0710-		●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-749-0	01	1	1210-1210			●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-98189-749-0	01	1	1211-			●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0710-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0804-1209			●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) NSK	8-97207-174-0	01	1	1210-1210			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0710-	●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-98189-347-0	01	1	1211-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0710-	●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0804-1209			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210			●	●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	0710-		●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	0710-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	0710-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0710-	●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	0710-		●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	0710-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	0710-	●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	0710-		●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	0710-		●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	0710-		●

77 169 342 517 24 516 288 393 335 531 59 80 120 515 396 298 260 505 396 82 501 500 70 504 41 503 120 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 467 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0710-0803	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0804-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0710-0803	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0804-0903	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) Z=28	8-98031-849-0	01	1	0904-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0710-0803		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0804-0903		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A) Z=26	8-98021-266-0	01	1	0904-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0710-0803		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0804-0903		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) Z=26	8-98021-267-0	01	1	0904-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=30	8-97177-684-0	01	1	0804-1010			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=30	8-98179-969-1	01	1	1011-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=28	8-97177-683-0	01	1	0804-1010				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=28	8-98179-968-1	01	1	1011-				●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-742-0	01	1	1210-1210			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) NSK	8-98189-742-0	01	1	1211-			●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0710-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-2	01	1	0804-1209			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.408 NSK	8-94178-732-2	01	1	1210-1210			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0804-1209			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.352 JTEKT	8-94462-615-0	01	1	1210-1210			●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0710-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0710-	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0710-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0710-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	0710-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0710-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=33	8-97372-905-0	01	1	0804-1010			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=31	8-97174-923-0	01	1	0804-1010				●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0710-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0710-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=36	8-97373-143-1	01	1	0804-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=34	8-97174-955-0	01	1	0804-				●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=41	8-98190-291-1	01	1	1210-1210			●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-98190-291-1	01	1	1211-			●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0710-	●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0804-1209			●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=41	8-97206-006-0	01	1	1210-1210			●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0710-0803	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0804-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0710-0803	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0804-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0804-1010			●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-98180-095-1	01	1	1011-			●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	0710-		●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=4	8-98190-429-0	01	1	1210-1210			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-98190-429-0	01	1	1211-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0710-	●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0804-1209			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=4	8-97207-146-0	01	1	1210-1210			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0710-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0710-		●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0804-			●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	0710-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0710-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0710-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	0710-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0710-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0710-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0710-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0710-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0710-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	0710-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0710-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	0710-	●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-743-0	01	1	1210-1210			●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-98189-743-0	01	1	1211-			●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0710-	●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-1	01	1	0804-1209			●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97207-512-1	01	1	1210-1210			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-970-0	01	1	1210-1210			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-98189-970-0	01	1	1211-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0710-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0710-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-97161-658-0	01	1	0804-1209			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97161-658-0	01	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-98189-347-0	01	1	1211-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0710-	●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0804-1209			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210			●	●
467	04.317 COLLAR; SHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0710-0803	●	●
467	04.317 COLLAR; SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0804-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0710-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0710-	●	●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0710-0803	●	●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0804-	●	●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0710-0803	●	●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0804-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0710-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0710-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0710-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0710-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0710-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0710-	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0710-	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0710-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0710-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0710-	●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0710-0803	●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0804-	●	●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0710-0803	●	●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0804-	●	●

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0710-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0710-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0710-	●	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0710-0803	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0804-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0710-0803	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0804-0903	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) Z=45-49-33-20	8-97326-590-1	01	1	0904-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0710-0803		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0804-0903		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) Z=47-39-33-20	8-97380-627-1	01	1	0904-		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0710-0803		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0804-0903		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) Z=47-39-33-20	8-97252-639-1	01	1	0904-		●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-378-0	01	1	1210-1210			●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	8-98189-378-0	01	1	1211-			●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0710-	●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0804-1209			●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	9-33351-604-1	01	1	1210-1210			●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0710-	●	●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0804-			●	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0710-0803	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0804-	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0710-0803		●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0804-0903		●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ)	8-97252-684-1	01	1	0904-		●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-749-0	01	1	1210-1210			●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-98189-749-0	01	1	1211-			●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0710-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0804-1209			●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) NSK	8-97207-174-0	01	1	1210-1210			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0710-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0710-	●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-98189-347-0	01	1	1211-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0710-	●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0804-1209			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210			●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0710-	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	0710-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	0710-	●	●

519 517 24 516 342 288 393 335 531 59 80 120 396 298 260 515 505 396 82 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 120 323 501 50 396 525 525 523 408 467 526 28 505 396 36 408 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0710-0803	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0804-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0710-0803	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0804-0903	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) Z=28	8-98031-849-0	01	1	0904-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0710-0803		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0804-0903		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A) Z=26	8-98021-266-0	01	1	0904-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0710-0803		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0804-0903		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B) Z=26	8-98021-267-0	01	1	0904-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=30	8-97177-684-0	01	1	0804-1010			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=30	8-98179-969-1	01	1	1011-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=28	8-97177-683-0	01	1	0804-1010				●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (C) Z=28	8-98179-968-1	01	1	1011-				●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) NSK	8-98189-742-0	01	1	1210-1210			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) NSK	8-98189-742-0	01	1	1211-			●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0710-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-2	01	1	0804-1209			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.408 NSK	8-94178-732-2	01	1	1210-1210			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0804-1209			●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) 04.352 JTEKT	8-94462-615-0	01	1	1210-1210			●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0710-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0710-	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0710-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0710-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0710-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=33	8-97372-905-0	01	1	0804-1010			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=31	8-97174-923-0	01	1	0804-1010				●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0710-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0710-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=36	8-97373-143-1	01	1	0804-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=34	8-97174-955-0	01	1	0804-				●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=41	8-98190-291-1	01	1	1210-1210			●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-98190-291-1	01	1	1211-			●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0710-	●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0804-1209			●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=41	8-97206-006-0	01	1	1210-1210			●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0710-0803	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0804-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0710-0803	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0804-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0804-1010			●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-98180-095-1	01	1	1011-			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) Z=4	8-98190-429-0	01	1	1210-1210			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-98190-429-0	01	1	1211-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0710-	●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0804-1209			●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) Z=4	8-97207-146-0	01	1	1210-1210			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0710-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0710-		●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0804-			●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	0710-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0710-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0710-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0710-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0710-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0710-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0710-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0710-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	0710-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0710-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	0710-	●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98189-743-0	01	1	1210-1210			●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-98189-743-0	01	1	1211-			●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0710-	●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-1	01	1	0804-1209			●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-97207-512-1	01	1	1210-1210			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-970-0	01	1	1210-1210			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-98189-970-0	01	1	1211-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0710-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0710-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (C)	8-97161-658-0	01	1	0804-1209			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97161-658-0	01	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-98189-347-0	01	1	1211-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0710-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0710-	●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (C)	8-97081-577-0	01	1	0804-1209			●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210			●	●
467	04.317 COLLAR; SHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0710-0803	●	●
467	04.317 COLLAR; SHAFT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0804-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0710-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0710-	●	●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0710-0803	●	●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0804-	●	●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0710-0803	●	●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0804-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0710-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0710-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0710-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0710-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0710-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0710-	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0710-	●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	0710-	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0710-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0710-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0710-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0710-	●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0710-0803	●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0804-	●	●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0710-0803	●	●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0804-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
