Sayfa 2-03 - Isuzu EPC

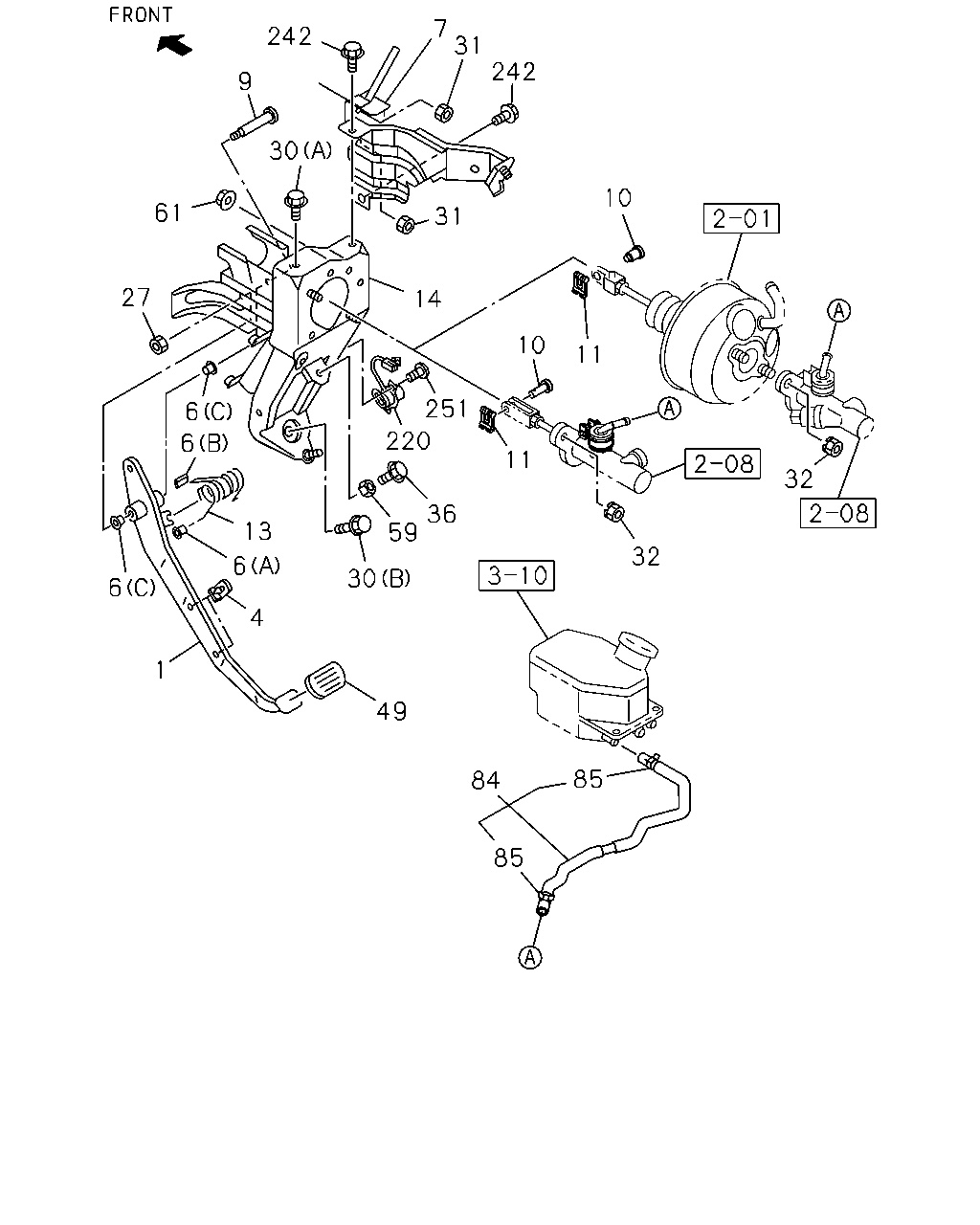

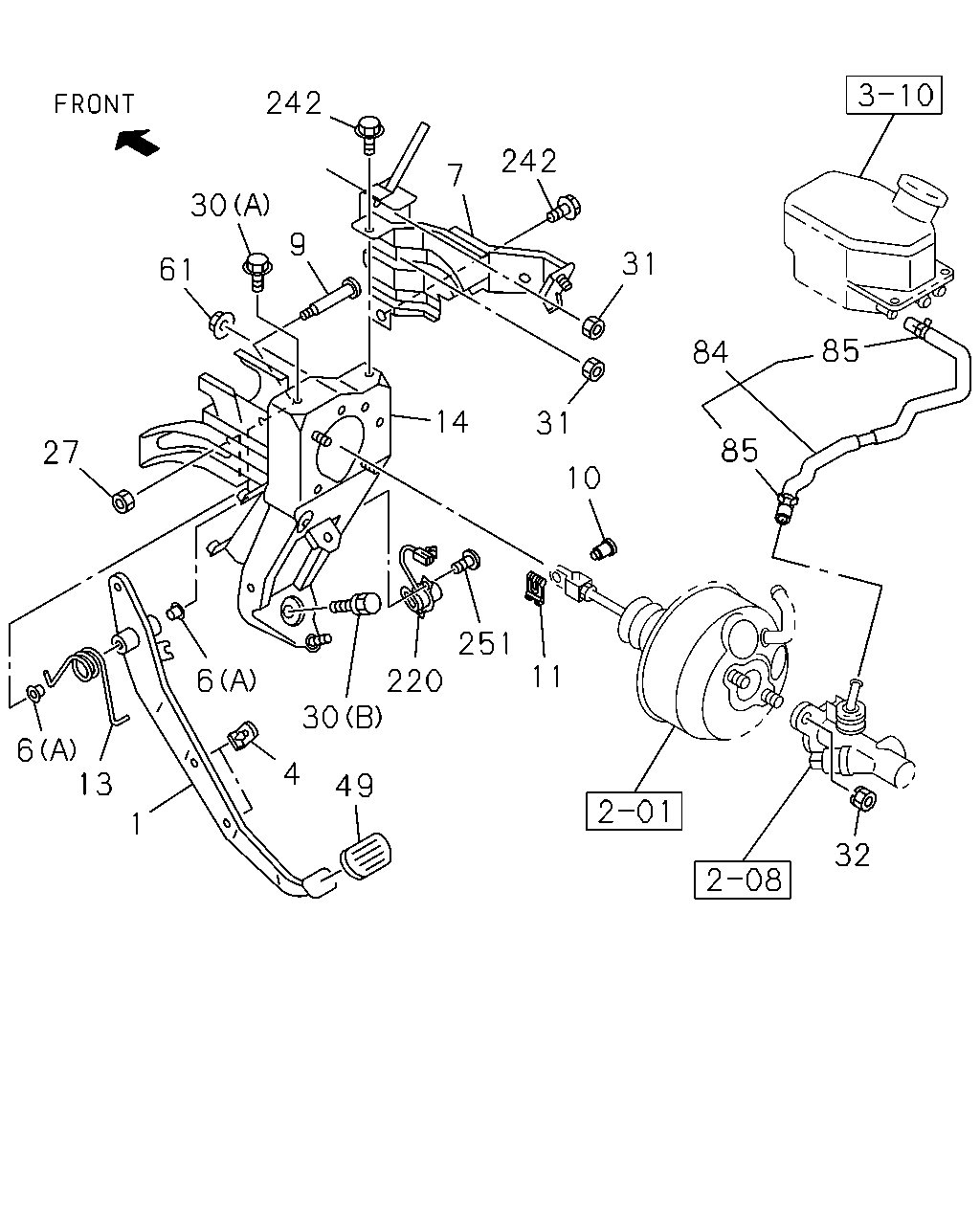

2-03 — CLUTCH PEDAL AND CONTROL (#53923) — 136 parça

7 31 242 242 9 30 10 61 31 27 14 10 11 251 6 220 6 11 32 36 59 13 32 6 6 30 4 1 49 85 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-484-0	01	1	0710-0803	●	●
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-484-0	01	1	0804-	●	●	●	●
1	00.830 PEDAL; CLU 4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-753-0	01	1	0710-0803	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-753-0	01	1	0804-	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-485-0	01	1	0710-	●	●
1	00.830 PEDAL; CLU 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-752-0	01	1	0710-0803	●	●	●	●
1	00.830 PEDAL; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-752-0	01	1	0804-	●	●	●	●
4	00.829 STOPPER; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-534-1	02	1	0710-0803	●	●
4	00.829 STOPPER; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-534-1	02	1	0804-	●	●	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C)	8-94238-596-0	02	1	0710-0803	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C)	8-94238-596-0	02	1	0804-	●	●	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	0710-0803	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	0804-	●	●	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	0710-0803	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	0804-	●	●	●	●
7	00.829 BRACKET; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-186-4	01	1	0710-0803	●	●
7	00.829 BRACKET; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-186-4	01	1	0804-	●	●	●	●
9	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97866-667-0	01	1	0710-0803	●	●
9	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97866-667-0	01	1	0804-	●	●	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97387-230-0	01	1	0710-0803	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97387-230-0	01	1	0804-1007	●	●	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-98147-657-0	01	1	1008-	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	0710-0803	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	0804-	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-621-1	01	1	0710-0803	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-621-1	01	1	0804-	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	0710-0803	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	0804-	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-482-4	01	1	0710-0803	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-482-4	01	1	0804-	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-751-0	01	1	0710-0803	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-751-0	01	1	0804-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-483-4	01	1	0710-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-750-0	01	1	0710-0803	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-750-0	01	1	0804-	●	●	●	●
27	00.833 NUT; FULCRUM PIN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0710-0803	●	●
27	00.833 NUT; FULCRUM PIN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0804-	●	●	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	0710-0803	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	0804-	●	●	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 (B) M10X22 W/PL WASHER	8-98033-926-0	01	1	0710-0803	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 (B) M10X22 W/PL WASHER	8-98033-926-0	01	1	0804-0903	●	●	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	0904-	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0710-0803	●	●
31	01.153 NUT; MTG BRKT TO BODY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0804-	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	0710-0803	●	●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	0804-	●	●	●	●
36	00.833 BOLT; STOPPER,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EXHAUST BRAKE<NF8> 00.841 M10X35	0-20851-035-0	01	1	0804-	●	●
49	00.829 RUBBER; PAD,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-413-2	01	1	0710-0803	●	●
49	00.829 RUBBER; PAD,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-413-2	01	1	0804-	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EXHAUST BRAKE<NF8> M10	0-91110-510-0	01	1	0804-	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	04	1	0710-0803	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	04	1	0804-	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-510-4	01	1	0710-0803	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-510-4	01	1	0804-1208	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98218-205-1	01	1	1209-	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	0710-0803	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	0804-1208	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1209-	●	●	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681	8-98031-178-0	02	1	0710-0801	●
85	00.785 CLIP; HOSE TO M/CYL 04.681	8-98031-178-0	02	1	0710-0801		●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681	8-98031-178-0	02	1	0802-0803	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681	8-98031-178-0	02	1	0804-1208	●	●	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98168-080-0	02	1	1209-	●	●	●	●
220	04.329 SENSOR; CLUTCH POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-80250-014-0	01	1	0710-0710	●	●
220	04.329 SENSOR; CLUTCH H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-80250-014-0	01	1	0710-	●	●
242	00.785 BOLT; BRKT,CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE	0-28450-816-0	02	1	0710-0803	●	●
242	00.785 BOLT; BRKT,CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE	0-28450-816-0	02	1	0804-	●	●	●	●
251	04.054 BOLT; SENSOR POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16	0-52000-616-0	02	1	0710-0710	●	●
251	04.054 BOLT; SENSOR H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16	0-52000-616-0	02	1	0710-	●	●

242 242 7 30 9 31 61 85 84 14 31 85 27 10 251 11 6 220 30 6 13 4 49 1 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-484-0	01	1	0710-0803	●	●
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-484-0	01	1	0804-	●	●	●	●
1	00.830 PEDAL; CLU 4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-753-0	01	1	0710-0803	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-753-0	01	1	0804-	●	●
1	00.830 PEDAL; CLU H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-485-0	01	1	0710-	●	●
1	00.830 PEDAL; CLU 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-752-0	01	1	0710-0803	●	●	●	●
1	00.830 PEDAL; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-752-0	01	1	0804-	●	●	●	●
4	00.829 STOPPER; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-534-1	02	1	0710-0803	●	●
4	00.829 STOPPER; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-534-1	02	1	0804-	●	●	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C)	8-94238-596-0	02	1	0710-0803	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C)	8-94238-596-0	02	1	0804-	●	●	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	0710-0803	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	0804-	●	●	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	0710-0803	●	●
6	00.831 BUSHING; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	0804-	●	●	●	●
7	00.829 BRACKET; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-186-4	01	1	0710-0803	●	●
7	00.829 BRACKET; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-186-4	01	1	0804-	●	●	●	●
9	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97866-667-0	01	1	0710-0803	●	●
9	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97866-667-0	01	1	0804-	●	●	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97387-230-0	01	1	0710-0803	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-97387-230-0	01	1	0804-1007	●	●	●	●
10	00.833 PIN; CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634	8-98147-657-0	01	1	1008-	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	0710-0803	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98007-161-0	01	1	0804-	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-621-1	01	1	0710-0803	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-621-1	01	1	0804-	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	0710-0803	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-014-0	01	1	0804-	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-482-4	01	1	0710-0803	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98002-482-4	01	1	0804-	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-751-0	01	1	0710-0803	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98034-751-0	01	1	0804-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98002-483-4	01	1	0710-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-750-0	01	1	0710-0803	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-98034-750-0	01	1	0804-	●	●	●	●
27	00.833 NUT; FULCRUM PIN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0710-0803	●	●
27	00.833 NUT; FULCRUM PIN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0804-	●	●	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	0710-0803	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	0804-	●	●	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 (B) M10X22 W/PL WASHER	8-98033-926-0	01	1	0710-0803	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 (B) M10X22 W/PL WASHER	8-98033-926-0	01	1	0804-0903	●	●	●	●
30	00.829 BOLT; CLU MTG BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	0904-	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0710-0803	●	●
31	01.153 NUT; MTG BRKT TO BODY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0804-	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	0710-0803	●	●
32	00.777 NUT; BRKT TO CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	02	1	0804-	●	●	●	●
49	00.829 RUBBER; PAD,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-413-2	01	1	0710-0803	●	●
49	00.829 RUBBER; PAD,CLU PEDAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97853-413-2	01	1	0804-	●	●	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	04	1	0710-0803	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER	8-94279-050-0	04	1	0804-	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-510-4	01	1	0710-0803	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-510-4	01	1	0804-1208	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98218-205-1	01	1	1209-	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	0710-0803	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98025-422-1	01	1	0804-1208	●	●	●	●
84	00.785 HOSE; RUBBER,CLU LINE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-98218-207-1	01	1	1209-	●	●	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681	8-98031-178-0	02	1	0710-0801	●
85	00.785 CLIP; HOSE TO M/CYL 04.681	8-98031-178-0	02	1	0710-0801		●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681	8-98031-178-0	02	1	0802-0803	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681	8-98031-178-0	02	1	0804-1208	●	●	●	●
85	00.785 CLIP; HOSE TO M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98168-080-0	02	1	1209-	●	●	●	●
220	04.329 SENSOR; CLUTCH POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-80250-014-0	01	1	0710-0710	●	●
220	04.329 SENSOR; CLUTCH H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-80250-014-0	01	1	0710-	●	●
242	00.785 BOLT; BRKT,CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE	0-28450-816-0	02	1	0710-0803	●	●
242	00.785 BOLT; BRKT,CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE	0-28450-816-0	02	1	0804-	●	●	●	●
251	04.054 BOLT; SENSOR POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16	0-52000-616-0	02	1	0710-0710	●	●
251	04.054 BOLT; SENSOR H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16	0-52000-616-0	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
