3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
IDENTIFICATION LABEL FOR KD<6UT>
(E)
|
8-98214-259-0 |
01 |
1 |
1204- |
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JB1-TC ENG(RDT)
EURO1 SPECIFICATION(NT1)
(D)
|
8-98122-678-1 |
01 |
1 |
0810-1208 |
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(A)
|
8-98014-286-1 |
01 |
1 |
0710-1203 |
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(A)
|
8-98014-286-1 |
01 |
1 |
1204- |
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(C)
|
8-98072-125-0 |
01 |
1 |
0804-0805 |
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
EURO2 SPECIFICATION(NT2)
(C)
|
8-98072-125-1 |
01 |
1 |
0806-1208 |
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(C)
|
8-98072-125-1 |
01 |
1 |
1209-1209 |
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
EURO2 SPECIFICATION(NT2)
(C)
|
8-98072-125-1 |
01 |
1 |
1210-1210 |
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(C)
|
8-98072-125-1 |
01 |
1 |
1210- |
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
|
8-98005-237-0 |
01 |
1 |
0710- |
● |
● |
|
|
| |
11 |
03.609 PIPE; EXH,RR
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
EURO1 SPECIFICATION(NT1)
|
8-98072-125-1 |
01 |
1 |
1210-1210 |
● |
● |
|
|
| |
11 |
03.609 PIPE; EXH,RR
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
EURO1 SPECIFICATION(NT1)
|
8-98072-125-1 |
01 |
1 |
0810-1208 |
● |
● |
|
|
| |
11 |
03.609 PIPE; EXH,RR
4JB1-TC ENG(RDT)
EURO1 SPECIFICATION(NT1)
|
8-98122-678-1 |
01 |
1 |
1209-1209 |
● |
|
|
|
| |
11 |
03.609 PIPE; EXH,RR
4JB1-TC ENG(RDT)
EURO2 SPECIFICATION(NT2)
EXC. MALAYSIA EQUIPMENT(B10)
|
8-98122-678-1 |
01 |
1 |
1209-1209 |
● |
|
|
|
| |
11 |
03.609 PIPE; EXH,RR
4JB1-TC ENG(RDT)
EURO1 SPECIFICATION(NT1),EURO2
SPECIFICATION(NT2)
|
8-98122-678-1 |
01 |
1 |
1209-1209 |
|
● |
|
|
| |
11 |
03.609 PIPE; EXH,RR
4JB1-TC ENG(RDT)
EURO1 SPECIFICATION(NT1)
|
8-98122-678-1 |
01 |
1 |
1210- |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1-TC ENG(RDT)
(A)
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
0804- |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
(A)
M10 FLANGE
|
8-97096-192-1 |
03 |
1 |
0710-0803 |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
(A)
M10 FLANGE
|
8-97096-192-1 |
03 |
1 |
0804- |
● |
● |
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0903 |
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0903 |
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0903 |
|
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
|
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0804-0805 |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0806-0808 |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
EURO2 SPECIFICATION(NT2)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0806-0808 |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0809- |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0804- |
● |
● |
● |
● |
| |
70 |
03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
70 |
03.706 BOLT; BRKT
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
70 |
03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804- |
|
● |
● |
|
| |
70 |
03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804- |
|
● |
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
|
● |
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804- |
● |
● |
● |
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. INDONESIA EQUIPMENT(B00)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804- |
|
|
● |
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804- |
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EXC. REAR WIDE TREAD(V4T)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
● |
● |
● |
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
● |
● |
|
|
| |
81 |
03.704 NUT; BRKT
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
|
● |
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
|
● |
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804- |
|
|
● |
|
| |
84 |
03.611 GASKET; EXH PIPE
4JB1-TC ENG(RDT)
EXHAUST BRAKE<NF8>
03.704
(C)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
03.704
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JB1-TC ENG(RDT)
EXC. EXHAUST BRAKE<NF8>
03.704
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(A)
ID=65
|
8-97148-757-1 |
01 |
1 |
0710- |
● |
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(A)
ID=65
|
8-97148-757-1 |
01 |
1 |
0710- |
● |
|
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU)
(D)
ID=64
|
8-97373-108-0 |
01 |
1 |
0804- |
● |
● |
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JB1-TC ENG(RDT)
(B)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JB1-TC ENG(RDT)
(C)
ID=51.5
|
8-97373-141-0 |
02 |
1 |
0804- |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
(A)
|
8-97373-158-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(A)
|
8-97373-158-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(A)
|
8-97373-158-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
(A)
|
8-97373-158-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-97373-158-0 |
01 |
1 |
0804-0903 |
● |
● |
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-97373-158-0 |
01 |
1 |
0804-0903 |
● |
● |
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(A)
|
8-97373-158-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(A)
|
8-97373-158-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
(A)
|
8-97373-158-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(A)
|
8-97373-158-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
● |
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
● |
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-97373-158-0 |
01 |
1 |
0904-1308 |
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
● |
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
● |
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
|
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
(A)
|
8-97373-158-0 |
01 |
1 |
1309- |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JB1-TC ENG(RDT)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804-0903 |
|
|
● |
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JB1-TC ENG(RDT)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU)
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0904- |
|
|
● |
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
0804- |
|
● |
● |
|
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
95 |
03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
95 |
03.708 BOLT; BRKT
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804- |
|
● |
● |
|
| |
95 |
03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804- |
|
● |
|
|
| |
97 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
97 |
03.708 WASHER; PL,CLAMP
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
97 |
03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804- |
|
● |
● |
|
| |
97 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804- |
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0803 |
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
● |
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
|
● |
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
|
|
● |
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JB1-TC ENG(RDT)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804-0903 |
|
|
● |
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
4JB1-TC ENG(RDT)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0904- |
|
|
● |
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JB1-TC ENG(RDT)
02.334
(B)
M8
|
0-91110-508-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
WHEEL BASE 2400MM(24W)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804-0903 |
● |
● |
● |
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
WHEEL BASE 3300MM(33W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804-0903 |
|
● |
● |
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0904- |
● |
|
● |
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
WHEEL BASE 2400MM(24W)
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
WHEEL BASE 2400MM(24W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EXC. SINGLE RR TIRE(6TD)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0904- |
|
|
● |
|
| |
125 |
03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
125 |
03.708 NUT; CLAMP
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
125 |
03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804- |
|
● |
● |
|
| |
125 |
03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0804- |
|
● |
|
|
| |

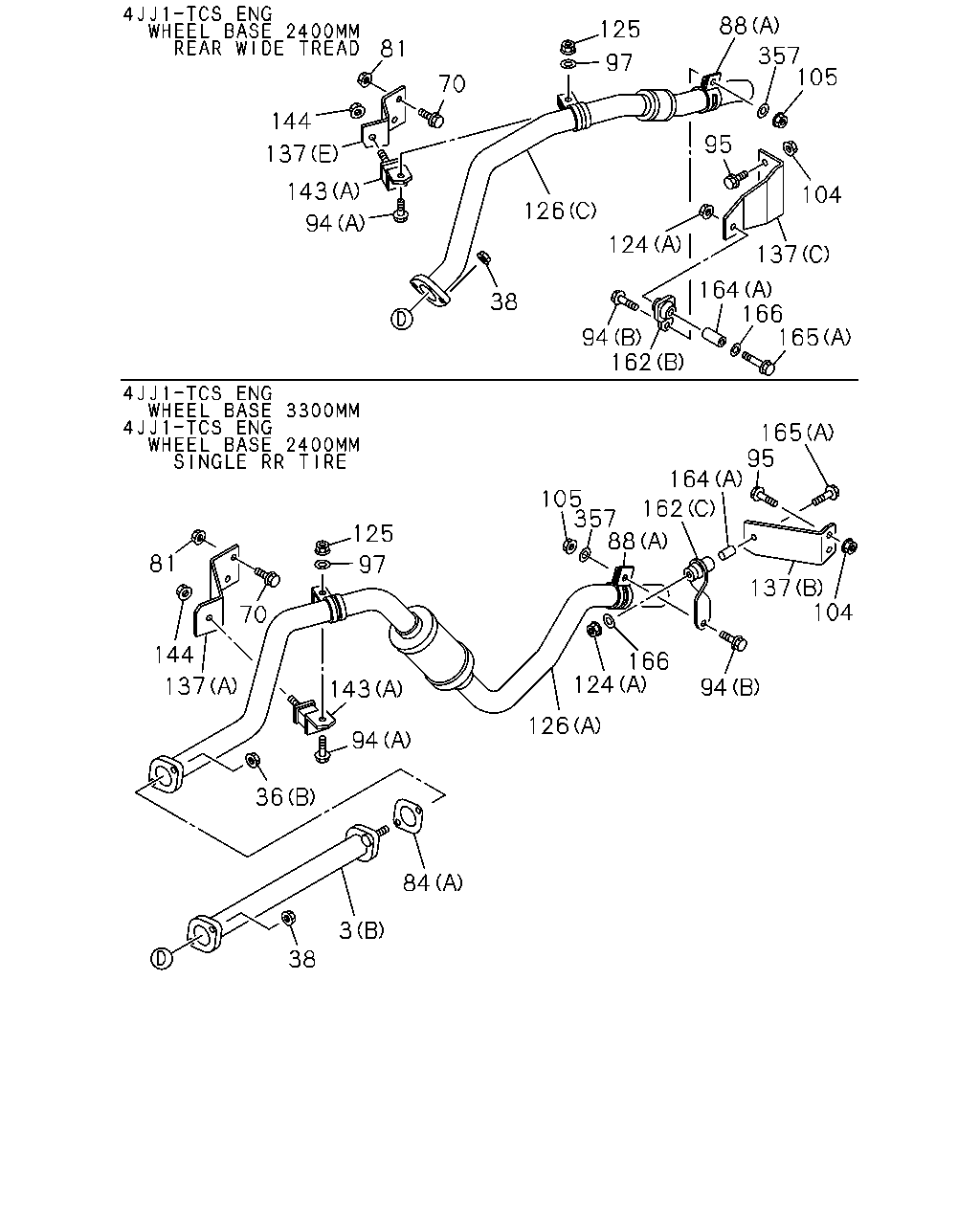

126 |

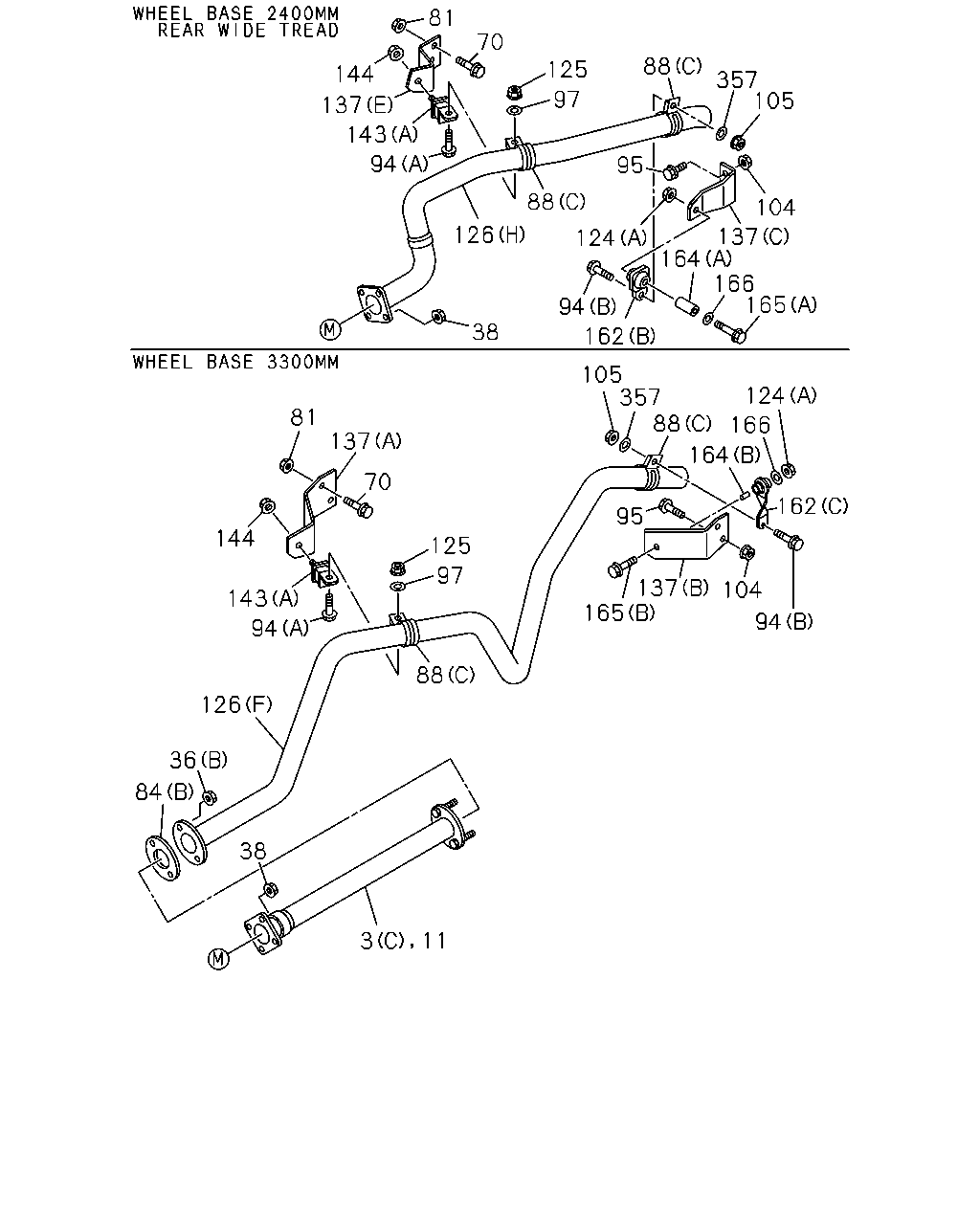

03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(D)
|
8-98116-727-0 |
01 |
1 |
0804- |
● |
● |
● |
● |
| |
126 |
03.705 PIPE; EXH,RR
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(I)
|
8-98072-130-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
SMALL DOUBLE RR TIRE(6YE)
(I)
|
8-98072-131-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(G)
|
8-98072-136-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(C)
|
8-98072-128-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
(C)
|
8-98072-128-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(C)
|
8-98072-128-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(A)
|
8-98072-126-0 |
01 |
1 |
0804- |
● |
|
|
|
| |

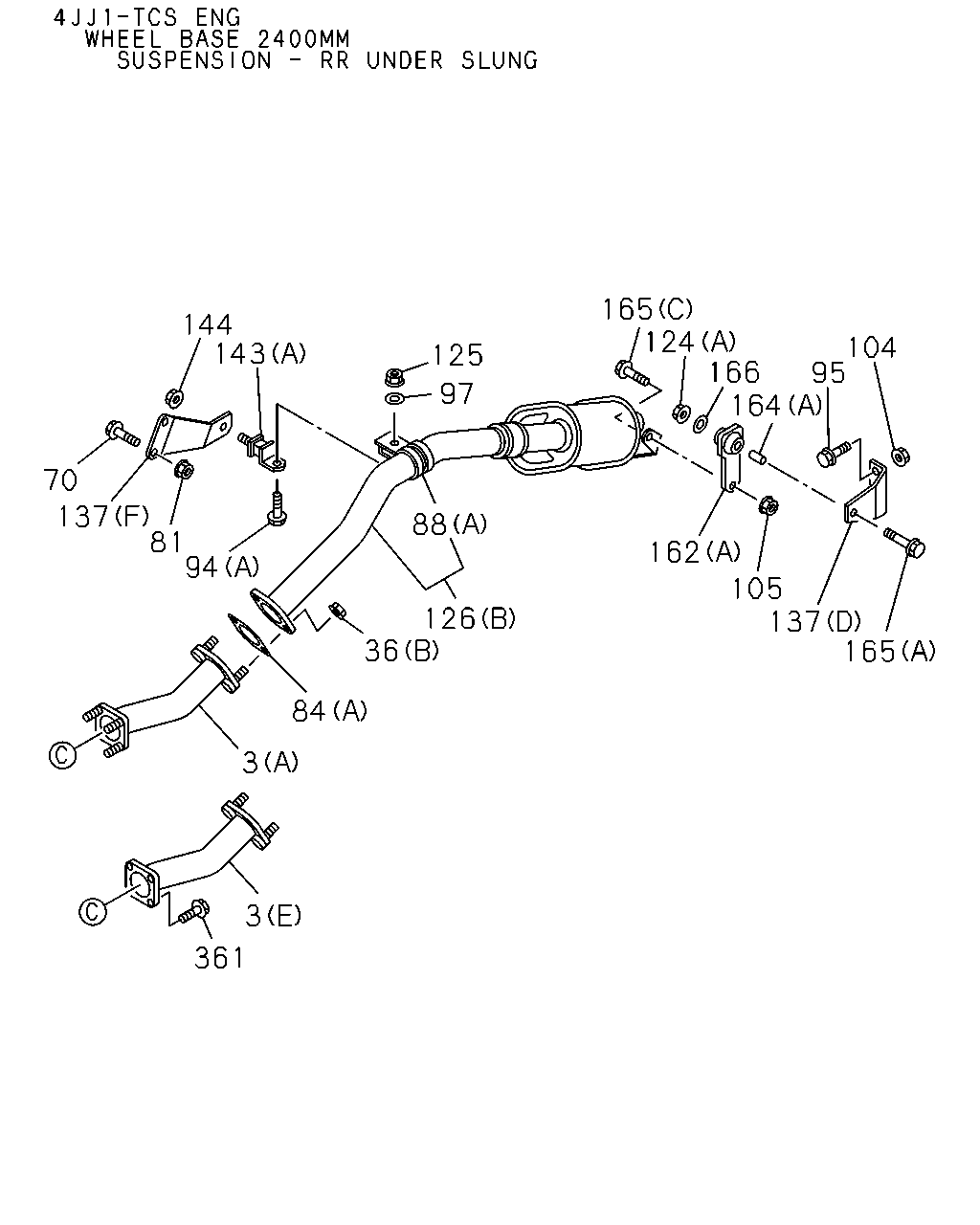

126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(B)
|
8-98072-127-2 |
01 |
1 |
0710-1308 |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(B)
|
8-98254-812-0 |
01 |
1 |
1309- |
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(H)
|
8-98072-132-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(F)
|
8-98072-133-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(A)
|
8-98072-129-0 |
01 |
1 |
0710-0903 |
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(A)
|
8-98072-129-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
126 |

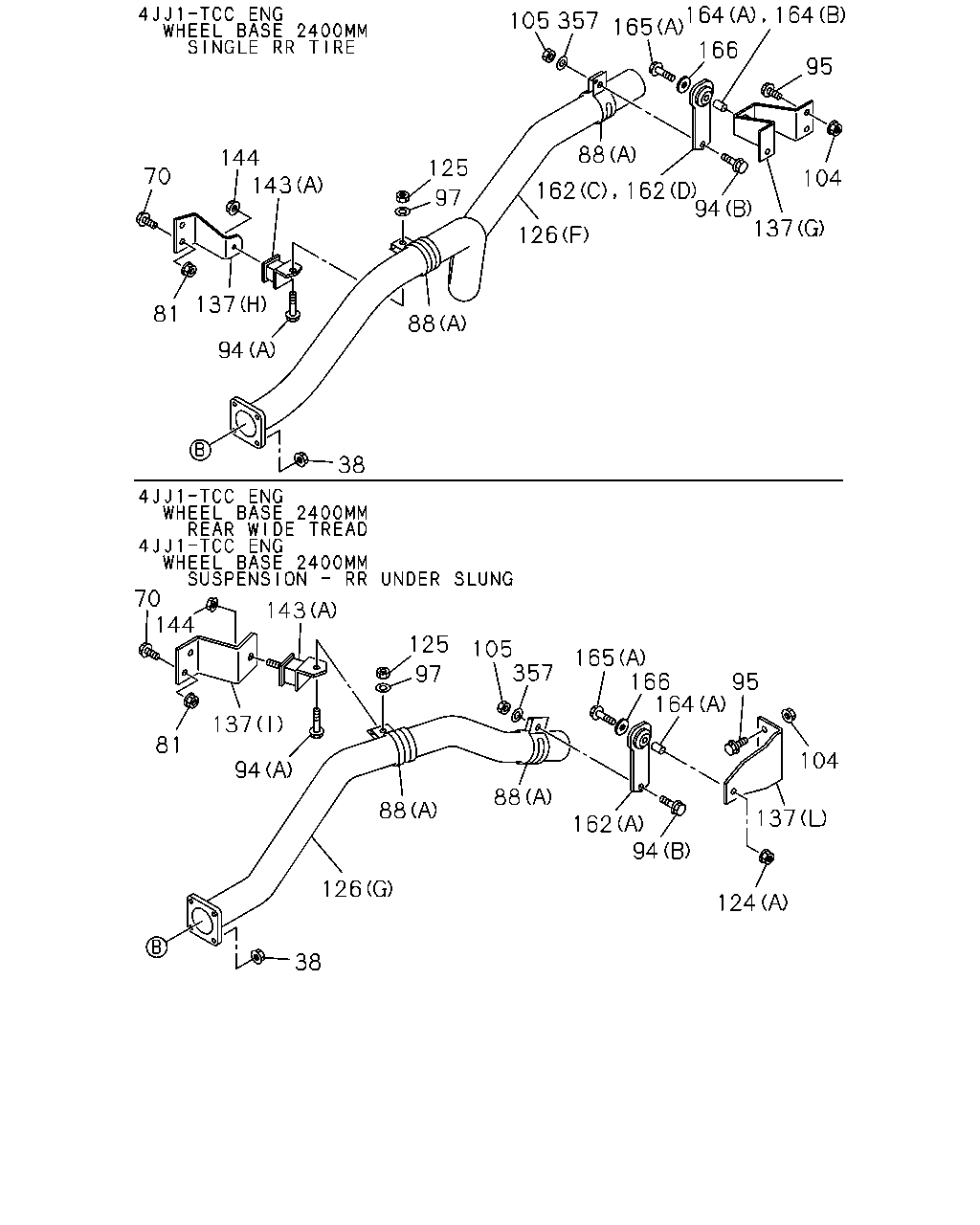

03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(G)
|
8-98072-138-0 |
01 |
1 |
0804- |
● |
● |
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(F)
|
8-98072-135-0 |
01 |
1 |
0804- |
● |
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
TAILPIPE SINGLE SHORT TYPE<8JJ>
(E)
|
8-98072-137-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU)
(E)
|
8-98072-137-0 |
01 |
1 |
0804- |
|
|
|
● |
| |
137 |
03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(H)
|
8-98001-893-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(H)
|
8-98001-893-1 |
01 |
1 |
0804- |
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(G)
|
8-98001-903-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(G)
|
8-98001-903-0 |
01 |
1 |
0804- |
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(L)
|
8-98072-153-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(E)
|
8-98001-895-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
(E)
|
8-98001-895-1 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(E)
|
8-98001-895-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(C)
|
8-98038-762-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
(C)
|
8-98038-762-1 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(C)
|
8-98038-762-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(C)
|
8-98038-762-1 |
01 |
1 |
0804- |
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(F)
|
8-98001-896-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(F)
|
8-98001-896-1 |
01 |
1 |
0804- |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(D)
|
8-98001-908-1 |
01 |
1 |
0710- |
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(A)
|
8-98001-897-1 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(A)
|
8-98001-897-1 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(A)
|
8-98001-897-1 |
01 |
1 |
0904- |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
|
8-98001-913-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(B)
|
8-98001-913-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(B)
|
8-98001-913-0 |
01 |
1 |
0904-0908 |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(B)
|
8-98001-913-0 |
01 |
1 |
0909- |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W)
(B)
|
8-98001-913-0 |
01 |
1 |
0909- |
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(I)
|
8-98075-678-0 |
01 |
1 |
0804- |
● |
● |
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(J)
|
8-98075-674-0 |
01 |
1 |
0804- |
● |
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(J)
|
8-98075-674-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(K)
|
8-98075-675-1 |
01 |
1 |
0804- |
● |
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(K)
|
8-98075-675-1 |
01 |
1 |
0804- |
|
● |
|
|
| |
143 |

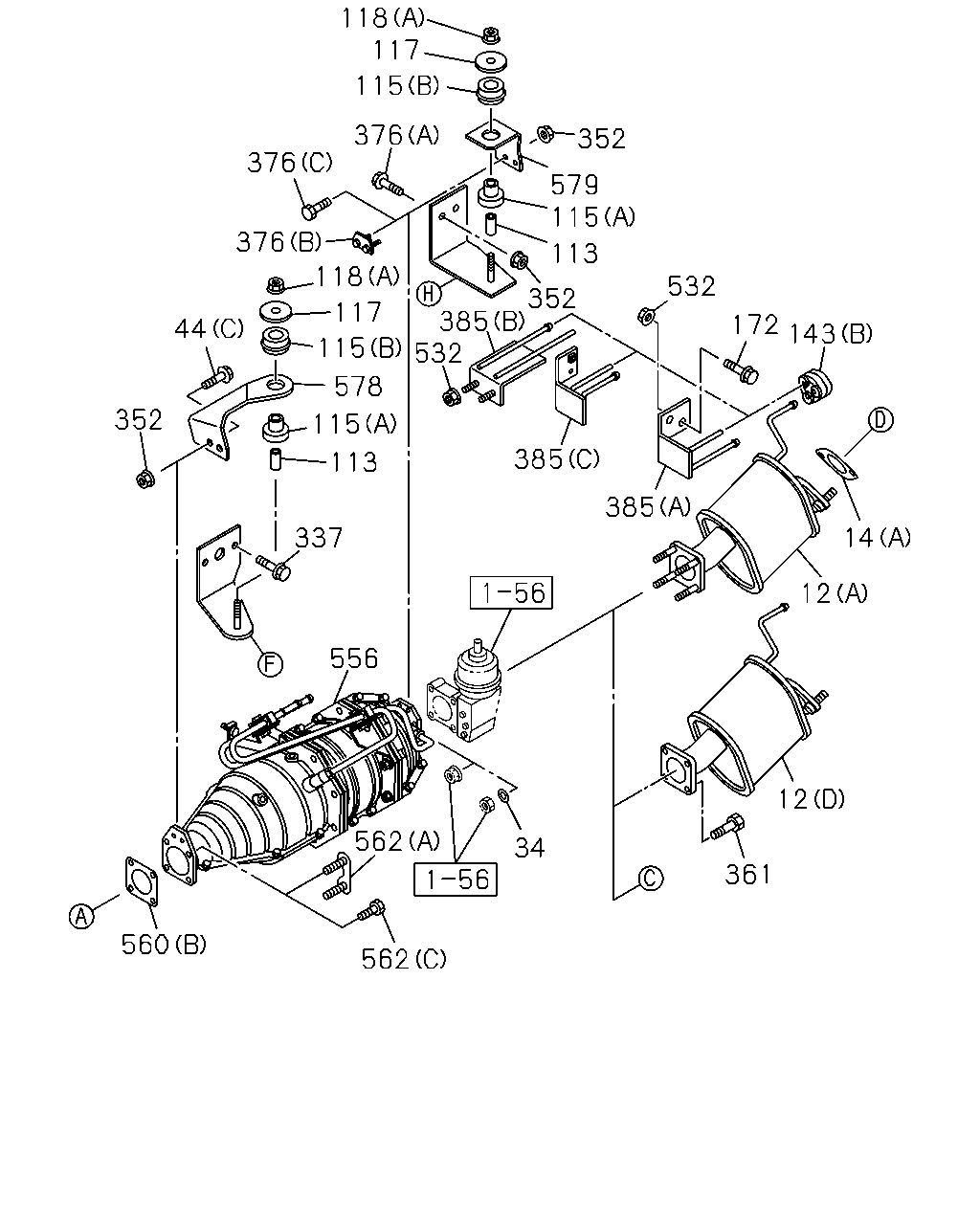

03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
(B)
|
8-97080-694-0 |
01 |
1 |
0710-0903 |
● |
|
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
|
8-97080-694-0 |
01 |
1 |
0710-0903 |
● |
|
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
(B)
|
8-97080-694-0 |
01 |
1 |
0710-0903 |
|
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
(B)
|
8-97080-694-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(B)
|
8-97080-694-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
(B)
|
8-97080-694-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
(A)
|
8-98034-767-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
(A)
|
8-98034-767-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-98034-767-0 |
01 |
1 |
0804- |
|
● |
● |
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
(A)
|
8-98034-767-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
144 |
03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
144 |
03.613 NUT; MTG RUBBER
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
144 |
03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804- |
|
● |
● |
|
| |
144 |
03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(B)
L=115
|
8-98032-151-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
(B)
L=115
|
8-98032-151-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
REAR WIDE TREAD(V4T)
(B)
L=115
|
8-98032-151-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(A)
|
8-98032-150-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EXC. SINGLE RR TIRE(6TD)
(A)
|
8-98032-150-0 |
01 |
1 |
0804- |
● |
|
● |
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
(A)
|
8-98032-150-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
(A)
|
8-98032-150-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
WHEEL BASE 3300MM(33W)
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0804-0903 |
|
|
● |
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0904- |
● |
|
● |
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(C)
L=115
|
8-98034-765-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD)
(D)
|
8-98032-149-0 |
01 |
1 |
0804- |
● |
|
● |
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(D)
|
8-98032-149-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
(A)
L=23
|
8-98006-011-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
WHEEL BASE 2400MM(24W)
(A)
L=23
|
8-98006-011-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
(A)
L=23
|
8-98006-011-0 |
01 |
1 |
0804- |
|
|
● |
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
WHEEL BASE 3300MM(33W)
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0804-0903 |
|
|
● |
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0904- |
● |
|
● |
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
SUSPENSION - RR UNDER SLUNG<V4U>
00.029
(C)
M10X30 FLANGE
|
0-28651-030-0 |
01 |
1 |
0710- |
● |
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
00.685
(A)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
WHEEL BASE 2400MM(24W)
00.685
(A)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
00.685
(A)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0804- |
|
|
● |
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
WHEEL BASE 3300MM(33W)
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0804-0903 |
|
|
● |
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0904- |
● |
|
● |
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB)
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
0804- |
● |
|
|
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
0804- |
|
● |
● |
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT)
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
0804- |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804-0903 |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JB1-TC ENG(RDT)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804-0903 |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0804-0903 |
|
|
● |
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
EXC. SUSPENSION - RR UNDER SLUNG<V4U>
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0904- |
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JB1-TC ENG(RDT)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0904- |
|
● |
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0904- |
|
|
● |
|
