15 |
03.162 CLIP; FUEL PIPE
(A)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
(A)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
(A)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0907- |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4JJ1-TCC ENG(RDU)
(A)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0907- |
|
|
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
02.559
(B)
ID=28 L=60
|
1-09700-585-1 |
02 |
1 |
0804- |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
08 |
1 |
0710-0803 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
08 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
08 |
1 |
0907-0911 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
04.930
(B)
ID=16
|
8-94238-568-0 |
08 |
1 |
0907-0911 |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=16
|
8-98008-098-0 |
08 |
1 |
0912- |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
(B)
ID=16
|
8-98008-098-0 |
08 |
1 |
0912- |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JB1-TC ENG(RDT)
09.242
(D)
ID=22 L=22
|
5-83574-045-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0710-0712 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0710-0712 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0801-0803 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0801-0803 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0804-1009 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0804-1009 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0804-1009 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0804-1009 |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0804-1009 |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1010- |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1010- |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1010- |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1010- |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1010- |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
POOR QUALITY DIESEL FUEL(KF0)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0804-0911 |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0804-0911 |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
POOR QUALITY DIESEL FUEL(KF0)
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCC ENG(RDU)
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4JB1-TC ENG(RDT)
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0710-0712 |
● |
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0801-0803 |
● |
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804-0903 |
● |
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0804-0903 |
● |
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0904- |
● |
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0904- |
● |
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0904- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
03.003
(A)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
03.003
(A)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. POOR QUALITY DIESEL FUEL(KF0)
03.003
(A)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB)
(B)
L=200
|
8-98081-038-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(B)
L=200
|
8-98081-038-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(B)
L=200
|
8-98081-038-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-98099-502-0 |
01 |
1 |
0804-1009 |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCC ENG(RDU)
(C)
|
8-98099-502-0 |
01 |
1 |
0804-1009 |
|
|
● |
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-98099-502-0 |
01 |
1 |
1010- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCC ENG(RDU)
(C)
|
8-98099-502-0 |
01 |
1 |
1010- |
|
|
● |
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(E)
|
8-98099-503-0 |
01 |
1 |
0804-1009 |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCC ENG(RDU)
(E)
|
8-98099-503-0 |
01 |
1 |
0804-1009 |
|
|
● |
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(E)
|
8-98099-503-0 |
01 |
1 |
1010- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCC ENG(RDU)
(E)
|
8-98099-503-0 |
01 |
1 |
1010- |
|
|
● |
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(D)
|
8-98105-710-0 |
01 |
1 |
0804-1009 |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCC ENG(RDU)
(D)
|
8-98105-710-0 |
01 |
1 |
0804-1009 |
|
|
● |
● |
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
POOR QUALITY DIESEL FUEL(KF0)
(D)
|
8-98105-710-0 |
01 |
1 |
1010- |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4JJ1-TCC ENG(RDU)
(D)
|
8-98105-710-0 |
01 |
1 |
1010- |
|
|
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-580-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-580-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JJ1-TCS ENG(LFB)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-579-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JJ1-TCS ENG(LFB)
(A)
|
8-97389-579-3 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-579-3 |
01 |
1 |
0804- |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
(A)
|
8-97389-579-3 |
01 |
1 |
0804- |
|
|
● |
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4JB1-TC ENG(RDT)
(B)
L=744
|
8-98069-488-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
(A)
|
8-98066-114-3 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(A)
|
8-98066-114-3 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00)
(A)
|
8-98066-114-3 |
01 |
1 |
0804-1311 |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10),HEAVY DUTY FRAME<6WB>
(A)
|
8-98066-114-3 |
01 |
1 |
1312- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(A)
|
8-98066-114-3 |
01 |
1 |
1312- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),HEAVY
DUTY FRAME<6WB>
(A)
|
8-98066-114-3 |
01 |
1 |
1312- |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=638.3
|
8-98021-484-2 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=638.3
|
8-98021-484-2 |
01 |
1 |
0804- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98073-448-0 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0)
(A)
|
8-98073-448-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-98073-448-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98073-448-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98073-448-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0)
(A)
|
8-98110-839-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-98110-839-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-839-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-839-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-839-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0),HEAVY DUTY FRAME<6WB>
(A)
|
8-98110-839-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-98110-839-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-839-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
HEAVY DUTY FRAME<6WB>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0)
(A)
|
8-98110-839-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-594-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-97389-594-3 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0),TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-594-3 |
01 |
1 |
0804-1005 |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
EXC. FRT INDEPENDENT SUSPENSION(FF0),
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-594-3 |
01 |
1 |
0804-1005 |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-594-3 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97389-594-3 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0),TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1006-1309 |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
EXC. FRT INDEPENDENT SUSPENSION(FF0),
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1006-1309 |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
HEAVY DUTY FRAME<6WB>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0),TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1310- |
● |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0),HEAVY DUTY FRAME<6WB>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1310- |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
EXC. FRT INDEPENDENT SUSPENSION(FF0),
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1310- |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
SINGLE RR TIRE(6TD)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98110-833-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=679
|
8-98020-778-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
(B)
L=679
|
8-98020-778-3 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=679
|
8-98020-778-3 |
01 |
1 |
0804- |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(B)
L=679
|
8-98020-778-3 |
01 |
1 |
0804- |
|
|
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0)
(A)
|
8-98064-631-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98064-631-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0)
(A)
|
8-98163-295-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98163-295-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98163-295-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0),HEAVY DUTY
FRAME<6WB>
(A)
|
8-98163-295-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
(B)
L=690
|
8-98083-666-2 |
01 |
1 |
0804- |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
(A)
|
8-98113-761-2 |
01 |
1 |
0804-1311 |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(A)
|
8-98113-761-2 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. HEAVY DUTY FRAME<6WB>
(A)
|
8-98113-761-2 |
01 |
1 |
1312- |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
HEAVY DUTY FRAME<6WB>
(A)
|
8-98113-761-2 |
01 |
1 |
1312- |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. HEAVY DUTY FRAME<6WB>
(A)
|
8-98113-761-2 |
01 |
1 |
1312- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98064-630-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTR
OL-SMOOTHER(8GF)
(A)
|
8-98064-630-0 |
01 |
1 |
0804-1005 |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98064-630-0 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCC ENG(RDU)
SINGLE RR TIRE(6TD)
(A)
|
8-98064-630-0 |
01 |
1 |
0804-1005 |
|
|
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTR
OL-SMOOTHER(8GF)
(A)
|
8-98163-294-0 |
01 |
1 |
1006-1309 |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98163-294-0 |
01 |
1 |
1006-1309 |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCC ENG(RDU)
SINGLE RR TIRE(6TD)
(A)
|
8-98163-294-0 |
01 |
1 |
1006-1309 |
|
|
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98163-294-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0),HEAVY DUTY
FRAME<6WB>,TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98163-294-0 |
01 |
1 |
1310- |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),HEAVY DUTY FRAME<6WB>
(A)
|
8-98163-294-0 |
01 |
1 |
1310- |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCC ENG(RDU)
MALAYSIA EQUIPMENT(B10)
SINGLE RR TIRE(6TD)
(A)
|
8-98163-294-0 |
01 |
1 |
1310- |
|
|
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4JJ1-TCC ENG(RDU)
EXC. MALAYSIA EQUIPMENT(B10),HEAVY
DUTYFRAME<6WB>
(A)
|
8-98163-294-0 |
01 |
1 |
1310- |
|
|
● |
|
| |
51 |
03.162 NUT; CLIP,PIPE
00.787
(A)
M10
|
0-91111-510-0 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
51 |
03.162 NUT; CLIP,PIPE
00.787
(A)
M10
|
0-91111-510-0 |
02 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
51 |
03.162 NUT; CLIP,PIPE
00.787
(A)
M10
|
0-91111-510-0 |
02 |
1 |
0907- |
● |
● |
|
|
| |
51 |
03.162 NUT; CLIP,PIPE
4JJ1-TCC ENG(RDU)
00.787
(A)
M10
|
0-91111-510-0 |
02 |
1 |
0907- |
|
|
● |
● |
| |
51 |
03.162 NUT; CLIP,PIPE
4JJ1-TCS ENG(LFB)
(B)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0710-0802 |
● |
● |
|
|
| |
51 |
03.162 NUT; CLIP,PIPE
(B)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0803-0803 |
● |
● |
|
|
| |
51 |
03.162 NUT; CLIP,PIPE
(B)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
51 |
03.162 NUT; CLIP,PIPE
(B)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907- |
● |
● |
|
|
| |
51 |
03.162 NUT; CLIP,PIPE
4JJ1-TCC ENG(RDU)
(B)
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907- |
|
|
● |
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
|
8-98038-801-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4JJ1-TCS ENG(LFB)
|
8-98038-801-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
|
8-98038-801-0 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
|
8-98038-801-0 |
01 |
1 |
0804-0906 |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
|
8-98038-801-0 |
01 |
1 |
0804-0906 |
|
|
● |
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
|
8-98038-801-0 |
01 |
1 |
0907- |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
|
8-98038-801-0 |
01 |
1 |
0907- |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4JJ1-TCC ENG(RDU)
|
8-98038-801-0 |
01 |
1 |
0907- |
|
|
● |
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4JJ1-TCC ENG(RDU)
|
8-98038-801-0 |
01 |
1 |
0907- |
|
|
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JB1-TC ENG(RDT)
(F)
|
8-97222-766-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JB1-TC ENG(RDT)
03.003
(G)
L=120
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JB1-TC ENG(RDT)
(H)
|
8-98070-044-1 |
01 |
1 |
0804-0808 |
● |
● |
|
|
| |

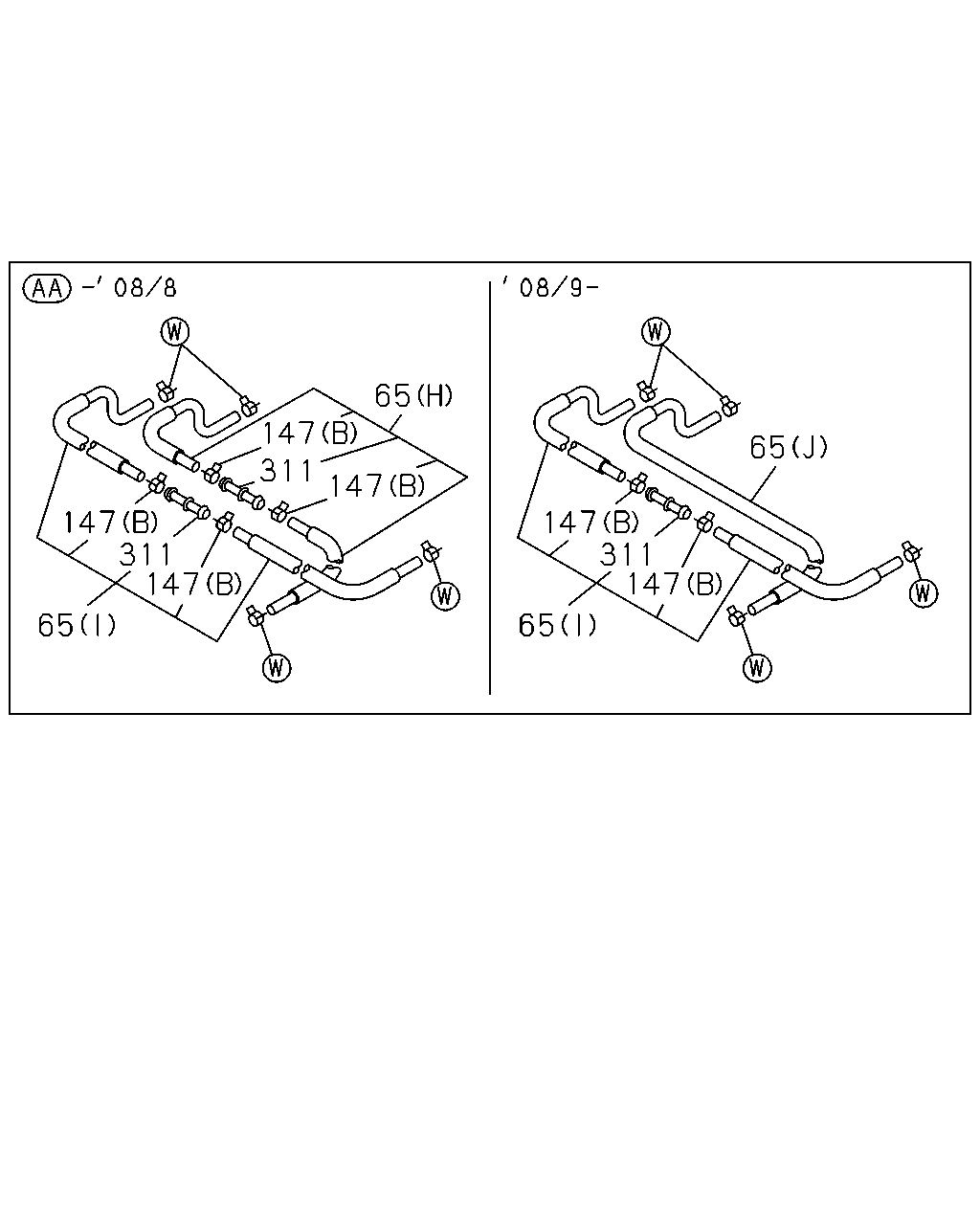

65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JB1-TC ENG(RDT)
(J)
|
8-98127-107-0 |
01 |
1 |
0809- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
(I)
|
8-98075-495-1 |
01 |
1 |
0804-0810 |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
(I)
|
8-98132-679-1 |
01 |
1 |
0811- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(I)
|
8-98075-496-2 |
01 |
1 |
0804- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
(A)
|
8-97389-772-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
(A)
|
8-97389-772-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
(A)
|
8-97389-772-0 |
01 |
1 |
0804- |
|
|
● |
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
(B)
|
8-97389-796-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(B)
|
8-97389-796-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
(B)
|
8-97389-796-0 |
01 |
1 |
0804- |
|
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
|
8-97389-790-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(B)
|
8-97389-790-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(B)
|
8-97389-790-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(D)
|
8-98098-175-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-98098-176-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(E)
|
8-98077-174-4 |
01 |
1 |
0804- |
|
|
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(A)
L=120
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(A)
L=120
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(A)
L=120
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907- |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU)
(A)
L=120
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907- |
|
|
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
(B)
L=350
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W)
(B)
L=380
|
8-97389-805-1 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(B)
L=380
|
8-97389-805-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(B)
L=500
|
8-98057-029-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(B)
L=500
|
8-98057-029-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
(B)
L=500
|
8-98057-029-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(B)
L=400
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
(B)
L=400
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
(C)
L=630
|
8-97389-802-1 |
01 |
1 |
0804- |
|
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(D)
L=960
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804- |
|
|
● |
● |
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
03.890
(B)
|
8-98107-351-2 |
01 |
1 |
0804- |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
(A)
|
8-98028-752-2 |
01 |
1 |
0710-0712 |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
(A)
|
8-98028-752-2 |
01 |
1 |
0801-0803 |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98028-752-2 |
01 |
1 |
0804-0804 |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98028-752-2 |
01 |
1 |
0804-0804 |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-98107-370-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-98107-370-0 |
01 |
1 |
0804-0903 |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-98107-370-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(C)
|
8-98107-370-0 |
01 |
1 |
0904- |
● |
● |
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0710-0712 |
● |
● |
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0801-0803 |
● |
● |
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
EXC. POOR QUALITY DIESEL FUEL(KF0)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
● |
● |
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0804-0903 |
● |
● |
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. POOR QUALITY DIESEL FUEL(KF0)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
● |
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0904- |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
(B)
L=170
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(B)
L=170
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00)
(B)
L=170
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0804-1311 |
|
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10),HEAVY DUTY FRAME<6WB>
(B)
L=170
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1312- |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(B)
L=170
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1312- |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),HEAVY
DUTY FRAME<6WB>
(B)
L=170
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1312- |
|
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB)
(A)
|
8-97389-777-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-97389-777-1 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0)
(A)
|
8-97389-777-1 |
01 |
1 |
0804-1005 |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97389-777-1 |
01 |
1 |
0804-1005 |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97389-777-1 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(A)
|
8-97389-777-1 |
01 |
1 |
0804-1005 |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
(A)
|
8-98147-758-0 |
01 |
1 |
1006- |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
(A)
|
8-98147-758-0 |
01 |
1 |
1006- |
|
|
● |
● |
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
(B)
|
8-98113-810-0 |
01 |
1 |
0804-1311 |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(B)
|
8-98113-810-0 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. HEAVY DUTY FRAME<6WB>
(B)
|
8-98113-810-0 |
01 |
1 |
1312- |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
HEAVY DUTY FRAME<6WB>
(B)
|
8-98113-810-0 |
01 |
1 |
1312- |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. HEAVY DUTY FRAME<6WB>
(B)
|
8-98113-810-0 |
01 |
1 |
1312- |
● |
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98064-802-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0)
(A)
|
8-98064-802-0 |
01 |
1 |
0804-1005 |
● |
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(A)
|
8-98064-802-0 |
01 |
1 |
0804-1005 |
● |
|
● |
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
4JJ1-TCC ENG(RDU)
EXC. MALAYSIA EQUIPMENT(B10)
(A)
|
8-98064-802-0 |
01 |
1 |
0804-1005 |
|
|
● |
● |
| |
97 |
03.162 BRACKET; CLIP
(C)
|
8-98064-442-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
(C)
|
8-98064-442-0 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
97 |
03.162 BRACKET; CLIP
(C)
|
8-98064-442-1 |
01 |
1 |
0907- |
● |
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
4JJ1-TCC ENG(RDU)
(C)
|
8-98064-442-1 |
01 |
1 |
0907- |
|
|
● |
● |
| |
97 |
03.162 BRACKET; CLIP
(B)
|
8-98039-929-1 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
(B)
|
8-98039-929-1 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
97 |
03.162 BRACKET; CLIP
(B)
|
8-98039-929-1 |
01 |
1 |
0907- |
● |
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
4JJ1-TCC ENG(RDU)
(B)
|
8-98039-929-1 |
01 |
1 |
0907- |
|
|
● |
● |
| |
97 |
03.162 BRACKET; CLIP
(A)
|
8-98006-480-1 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
(A)
|
8-98006-480-1 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
97 |
03.162 BRACKET; CLIP
(A)
|
8-98006-480-1 |
01 |
1 |
0907- |
● |
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
4JJ1-TCC ENG(RDU)
(A)
|
8-98006-480-1 |
01 |
1 |
0907- |
|
|
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(A)
ID=12
|
8-94238-610-0 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(A)
ID=12
|
8-94238-610-0 |
02 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(A)
ID=12
|
8-94238-610-0 |
02 |
1 |
0907-0911 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCC ENG(RDU)
01.219
(A)
ID=12
|
8-94238-610-0 |
02 |
1 |
0907-0911 |
|
|
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
(A)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCC ENG(RDU)
01.240
(A)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
|
|
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(A)
ID=12
|
8-94238-610-0 |
04 |
1 |
0710-0803 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(A)
ID=12
|
8-94238-610-0 |
04 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(A)
ID=12
|
8-94238-610-0 |
04 |
1 |
0907-0911 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCC ENG(RDU)
01.219
(A)
ID=12
|
8-94238-610-0 |
04 |
1 |
0907-0911 |
|
|
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
(A)
ID=12
|
8-98150-358-0 |
04 |
1 |
0912- |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCC ENG(RDU)
01.240
(A)
ID=12
|
8-98150-358-0 |
04 |
1 |
0912- |
|
|
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JB1-TC ENG(RDT)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0804-0808 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JB1-TC ENG(RDT)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0804-0808 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0804-0808 |
|
|
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JB1-TC ENG(RDT)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0809-0911 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0809-0911 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JB1-TC ENG(RDT)
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0804-0911 |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912- |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
(B)
|
8-98066-113-4 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(B)
|
8-98066-113-4 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00)
(B)
|
8-98066-113-4 |
01 |
1 |
0804-1311 |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10),HEAVY DUTY FRAME<6WB>
(B)
|
8-98066-113-4 |
01 |
1 |
1312- |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(B)
|
8-98066-113-4 |
01 |
1 |
1312- |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
EXC. INDONESIA EQUIPMENT(B00),HEAVY
DUTY FRAME<6WB>
(B)
|
8-98066-113-4 |
01 |
1 |
1312- |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB)
(A)
|
8-97389-589-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-97389-589-1 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0)
(A)
|
8-97389-589-1 |
01 |
1 |
0804-1309 |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97389-589-1 |
01 |
1 |
0804-1309 |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97389-589-1 |
01 |
1 |
0804-1309 |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(A)
|
8-97389-589-1 |
01 |
1 |
0804-1309 |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
HEAVY DUTY FRAME<6WB>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0)
(A)
|
8-97389-589-1 |
01 |
1 |
1310- |
● |
● |
● |
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE
NSION(FF0),HEAVY DUTY FRAME<6WB>
(A)
|
8-97389-589-1 |
01 |
1 |
1310- |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
EXC. FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97389-589-1 |
01 |
1 |
1310- |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
SINGLE RR TIRE(6TD)
(A)
|
8-97389-589-1 |
01 |
1 |
1310- |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
FRT INDEPENDENT SUSPENSION(FF0)
(A)
|
8-97389-589-1 |
01 |
1 |
1310- |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
(B)
|
8-98113-756-2 |
01 |
1 |
0804-1311 |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
(B)
|
8-98113-756-2 |
01 |
1 |
0804-1311 |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
WHEEL BASE 3300MM(33W)
INDONESIA EQUIPMENT(B00)
EXC. HEAVY DUTY FRAME<6WB>
(B)
|
8-98113-756-2 |
01 |
1 |
1312- |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
HEAVY DUTY FRAME<6WB>
(B)
|
8-98113-756-2 |
01 |
1 |
1312- |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JB1-TC ENG(RDT)
WHEEL BASE 2400MM(24W)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. HEAVY DUTY FRAME<6WB>
(B)
|
8-98113-756-2 |
01 |
1 |
1312- |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>
(A)
|
8-98064-632-1 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0)
(A)
|
8-98064-632-1 |
01 |
1 |
0804-1309 |
● |
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(A)
|
8-98064-632-1 |
01 |
1 |
0804-1309 |
● |
|
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCC ENG(RDU)
EXC. MALAYSIA EQUIPMENT(B10)
(A)
|
8-98064-632-1 |
01 |
1 |
0804-1309 |
|
|
● |
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
INDONESIA EQUIPMENT(B00),MALAYSIA
EQUIPMENT(B10)
G.V.W. 3.5-4.0TON(RPQ)
SINGLE RR TIRE(6TD)
(A)
|
8-98064-632-1 |
01 |
1 |
1310- |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT
INDEPENDENT SUSPENSION(FF0),HEAVY DUTY
FRAME<6WB>
(A)
|
8-98064-632-1 |
01 |
1 |
1310- |
● |
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER& PASSENGER<AK5>,INDONESIA
EQUIPMENT(B00),HEAVY DUTY FRAME<6WB>
(A)
|
8-98064-632-1 |
01 |
1 |
1310- |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCC ENG(RDU)
MALAYSIA EQUIPMENT(B10)
SINGLE RR TIRE(6TD)
(A)
|
8-98064-632-1 |
01 |
1 |
1310- |
|
|
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
4JJ1-TCC ENG(RDU)
EXC. MALAYSIA EQUIPMENT(B10),HEAVY
DUTYFRAME<6WB>
(A)
|
8-98064-632-1 |
01 |
1 |
1310- |
|
|
● |
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0907- |
● |
● |
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCC ENG(RDU)
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0907- |
|
|
● |
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(A)
OD=16.5 L=50
|
8-97214-235-0 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(A)
OD=16.5 L=50
|
8-97214-235-0 |
01 |
1 |
0804-0906 |
● |
● |
● |
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(A)
OD=16.5 L=50
|
8-97214-235-0 |
01 |
1 |
0907- |
● |
● |
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCC ENG(RDU)
(A)
OD=16.5 L=50
|
8-97214-235-0 |
01 |
1 |
0907- |
|
|
● |
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCS ENG(LFB)
(A)
OD=16.5 L=50
|
8-97214-235-0 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
(A)
OD=16.5 L=50
|
8-97214-235-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
270 |
03.900 PUMP ASM; FUEL
4JJ1-TCS ENG(LFB)
|
8-98018-187-2 |
01 |
1 |
0710-0803 |
● |
● |
|
|
| |
270 |
03.900 PUMP ASM; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
|
8-98018-187-4 |
01 |
1 |
0804-1408 |
● |
● |
● |
● |
| |
270 |
03.900 PUMP ASM; FUEL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
|
8-97948-892-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
| |
311 |
03.163 JOINT; HOSE
4JB1-TC ENG(RDT)
|
8-97353-668-0 |
01 |
1 |
0804-0808 |
● |
● |
|
|
| |
311 |
03.163 JOINT; HOSE
4JB1-TC ENG(RDT)
|
8-97353-668-0 |
01 |
1 |
0804-0808 |
● |
● |
|
|
| |
311 |
03.163 JOINT; HOSE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
|
8-97353-668-0 |
01 |
1 |
0804-0808 |
|
|
● |
● |
| |
311 |
03.163 JOINT; HOSE
4JB1-TC ENG(RDT)
|
8-97353-668-0 |
01 |
1 |
0809- |
● |
● |
|
|
| |
311 |
03.163 JOINT; HOSE
4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W)
|
8-97353-668-0 |
01 |
1 |
0809- |
● |
● |
|
|
| |
311 |
03.163 JOINT; HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2400MM(24W)
POOR QUALITY DIESEL FUEL(KF0)
|
8-97353-668-0 |
02 |
1 |
0804- |
● |
● |
|
|
| |
426 |
03.330 BOLT; FUEL PUMP
4JJ1-TCS ENG(LFB)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0801-0803 |
● |
● |
|
|
| |
426 |
03.330 BOLT; FUEL PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0804- |
● |
● |
● |
● |
