Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#53917) — 147 parça

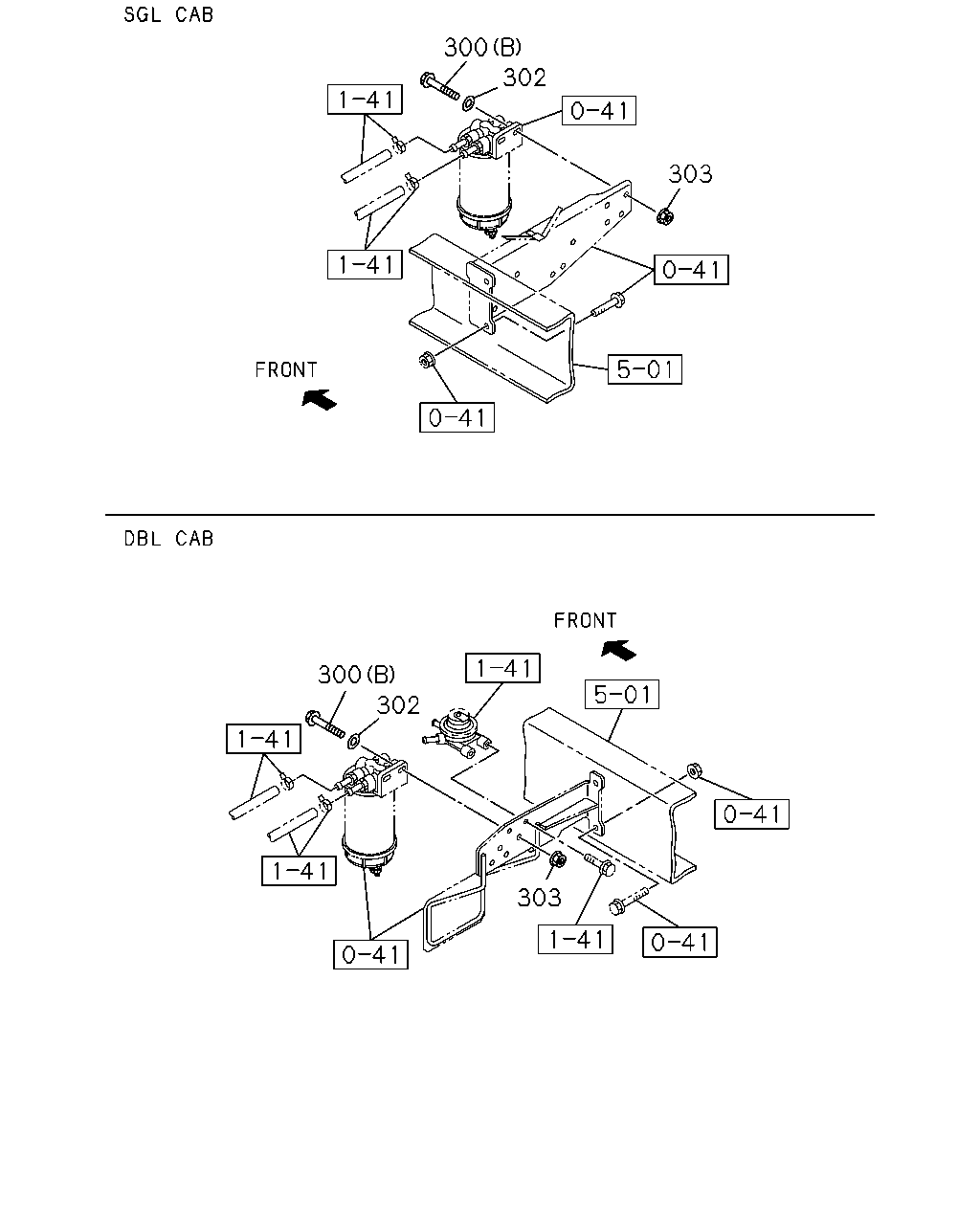

300 302 303 300 302 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0804-0903	●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0804-0903			●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0904-	●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0904-			●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
300	03.162 BOLT; BRKT TO BODY 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-			●	●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0804-0903	●	●
302	03.162 WASHER; PL,SEDIMENTER 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0804-0903			●	●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0904-	●	●
302	03.162 WASHER; PL,SEDIMENTER 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0904-			●	●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	0804-0903	●	●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0804-0903			●	●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	0904-	●	●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0904-			●	●

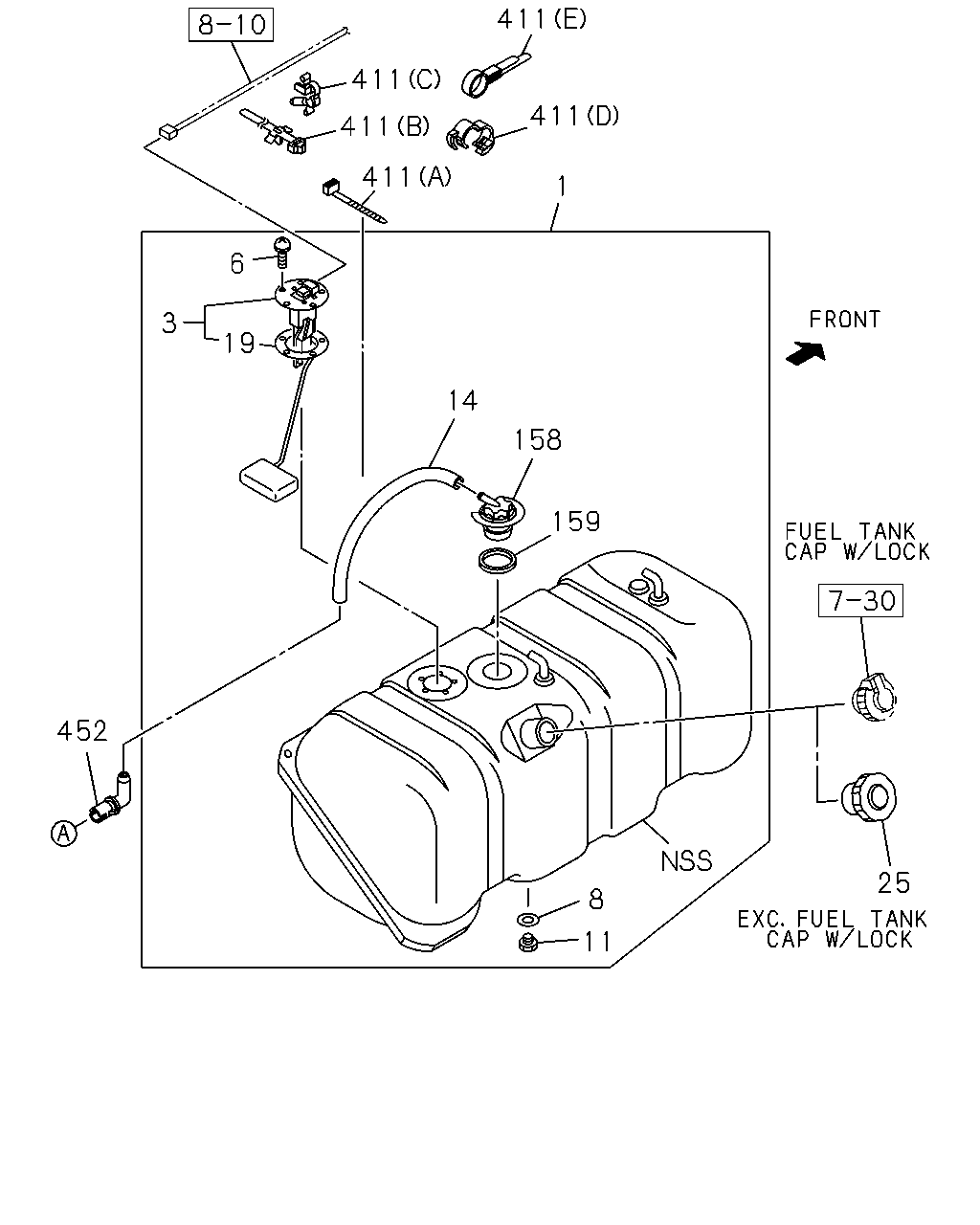

411 411 411 411 411 1 6 3 19 14 158 159 452 25 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 1003X375X380 100L	8-98021-295-6	01	1	0710-	●	●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0710-0803	●	●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0804-	●	●	●
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	0804-				●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98021-293-4	01	1	0804-1205	●		●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98218-966-1	01	1	1206-	●		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-704-0	01	1	0710-	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER<7GX>	8-98056-703-0	01	1	0710-0803	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER<7GX>	8-98056-703-0	01	1	0804-	●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-703-0	01	1	0804-				●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-98056-702-0	01	1	0804-1205	●		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-98213-753-0	01	1	1206-	●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	0710-0803	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	0804-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0710-0803	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0804-	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	0710-	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF>,FUEL TANK 75 LITTER<7GX> L=320	8-98157-805-0	01	1	0710-	●		●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 75 LITTER<7GX> L=320	8-98157-805-0	01	1	0710-		●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	0710-				●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	0710-0803	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	0804-	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	0710-0803		●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	0804-	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 75 LITTER<7GX> EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	0804-			●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	0804-				●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0710-0803	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0804-	●	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0710-0803	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0804-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) 02.557 (E) ID=10	5-09700-318-0	01	1	0810-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2) (D) ID=20	8-94241-972-0	02	1	0804-0804	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2) (D) ID=20	8-94241-972-0	02	1	0804-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	02	1	0804-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2400MM(24W) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0903			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0710-0803	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0804-0903	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0904-	●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 03.162 (A) L=140	5-09707-031-1	02	1	0904-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	0710-0803	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	0804-	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0804-0807	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0808-0809	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0808-0809	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0810-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) (D) ID=20	8-94241-972-0	01	1	0804-0804	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	01	1	0804-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCS ENG(LFB) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0710-0710	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0710-0803	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0804-0906	●	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0907-	●	●
452	03.028 BREATHER; FUEL TANK 4JJ1-TCC ENG(RDU)	8-97357-261-0	01	1	0907-			●	●

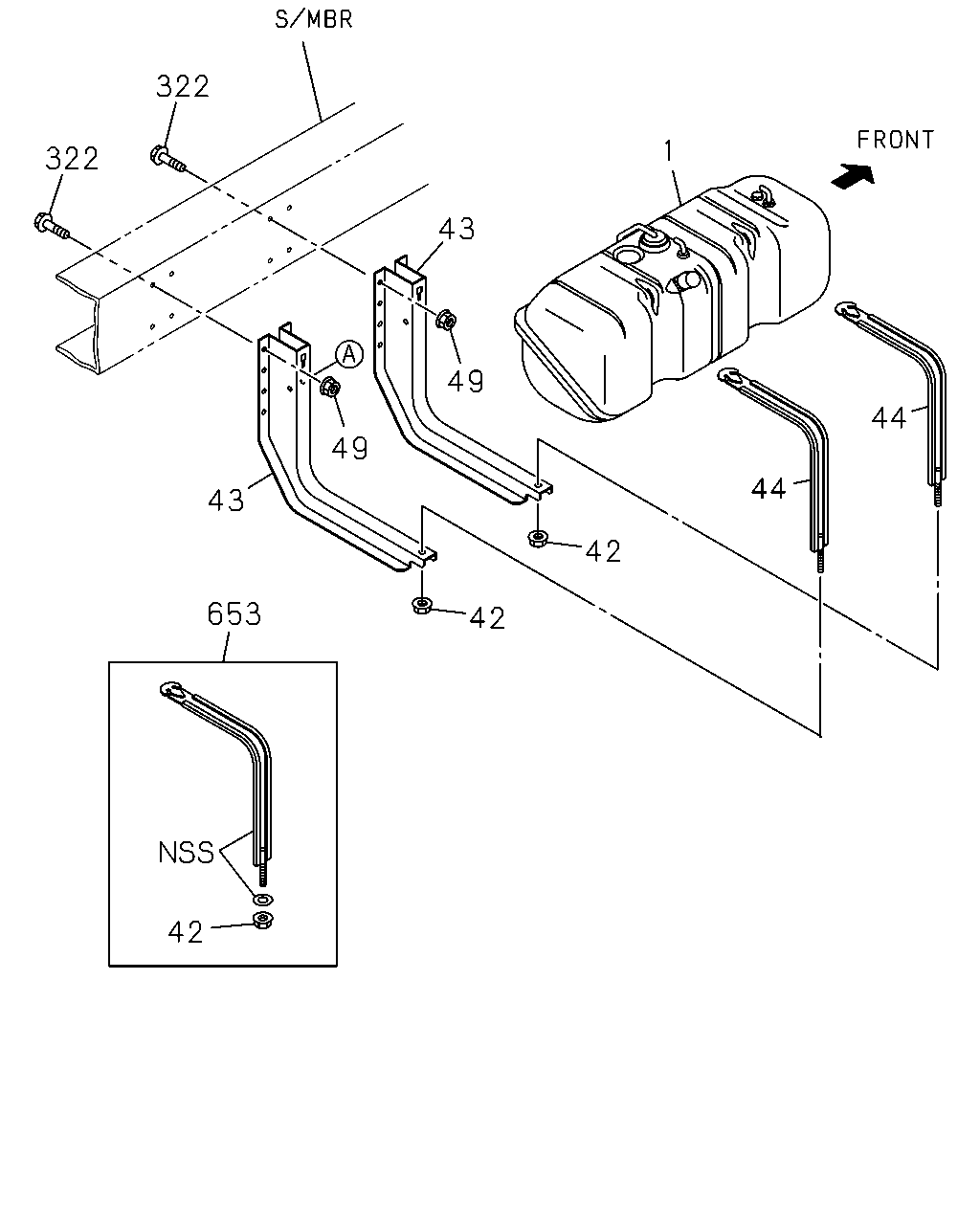

1 43 322 322 43 653 49 49 42 42 44 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 1003X375X380 100L	8-98021-295-6	01	1	0710-	●	●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0710-0803	●	●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0804-	●	●	●
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	0804-				●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98021-293-4	01	1	0804-1205	●		●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98218-966-1	01	1	1206-	●		●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0710-0803	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0804-0906	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0907-	●	●
42	03.023 NUT; SUPPORT BELT 4JJ1-TCC ENG(RDU) M8 FLANGE	9-09130-408-0	02	1	0907-			●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> EXC. INDONESIA EQUIPMENT(B00) FRONT	8-97384-055-1	01	1	0804-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> FRONT	8-97384-055-1	01	1	0804-			●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> EXC. INDONESIA EQUIPMENT(B00) REAR	8-97384-061-2	01	1	0804-	●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FRONT	8-97384-056-1	01	1	0710-0803	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> FRONT	8-97384-056-1	01	1	0710-0803	●	●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. INDONESIA EQUIPMENT(B00) FRONT	8-97384-056-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK INDONESIA EQUIPMENT(B00) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> FRONT	8-97384-056-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) FRONT	8-97384-056-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> FRONT	8-97384-056-1	01	1	0804-			●
43	03.015 BRACKET; FUEL TANK FRONT	8-97384-056-1	01	1	0804-				●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> REAR	8-97384-081-1	01	1	0710-0803	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> REAR	8-97384-081-1	01	1	0710-0803	●	●
43	03.015 BRACKET; FUEL TANK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. INDONESIA EQUIPMENT(B00) REAR	8-97384-081-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK INDONESIA EQUIPMENT(B00) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> REAR	8-97384-081-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) REAR	8-97384-081-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> REAR	8-97384-081-1	01	1	0804-			●
43	03.015 BRACKET; FUEL TANK REAR	8-97384-081-1	01	1	0804-				●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> FRONT	8-98061-738-1	01	1	0710-0803	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) FRONT	8-98061-738-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> REAR	8-98061-739-1	01	1	0710-0803	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00) REAR	8-98061-739-1	01	1	0804-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> REAR	8-98055-905-2	01	1	0804-			●
44	03.023 BAND; FUEL TANK FUEL TANK 63L<6EF> L=613	8-97169-230-2	02	1	0804-1312	●		●
44	03.023 BAND; FUEL TANK FUEL TANK 63L<6EF> L=613	8-98245-202-0	02	1	1401-	●		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0710-0803	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0804-0906	●	●	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0907-	●	●
49	03.023 NUT; BRKT 4JJ1-TCC ENG(RDU) 04.085 M10 FLANGE	0-91180-210-0	08	1	0907-			●	●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0710-0803	●	●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0804-0906	●	●	●	●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0907-	●	●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0907-			●	●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	0710-0803	●	●
653	03.022 BAND KIT; FUEL TANK EXC. FUEL TANK 63L<6EF>	5-87411-970-0	02	1	0804-0906	●		●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	0804-0906		●		●
653	03.022 BAND KIT; FUEL TANK EXC. FUEL TANK 63L<6EF>	5-87411-970-0	02	1	0907-	●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	0907-		●
653	03.022 BAND KIT; FUEL TANK 4JJ1-TCC ENG(RDU) EXC. FUEL TANK 63L<6EF>	5-87411-970-0	02	1	0907-			●
653	03.022 BAND KIT; FUEL TANK 4JJ1-TCC ENG(RDU)	5-87411-970-0	02	1	0907-				●

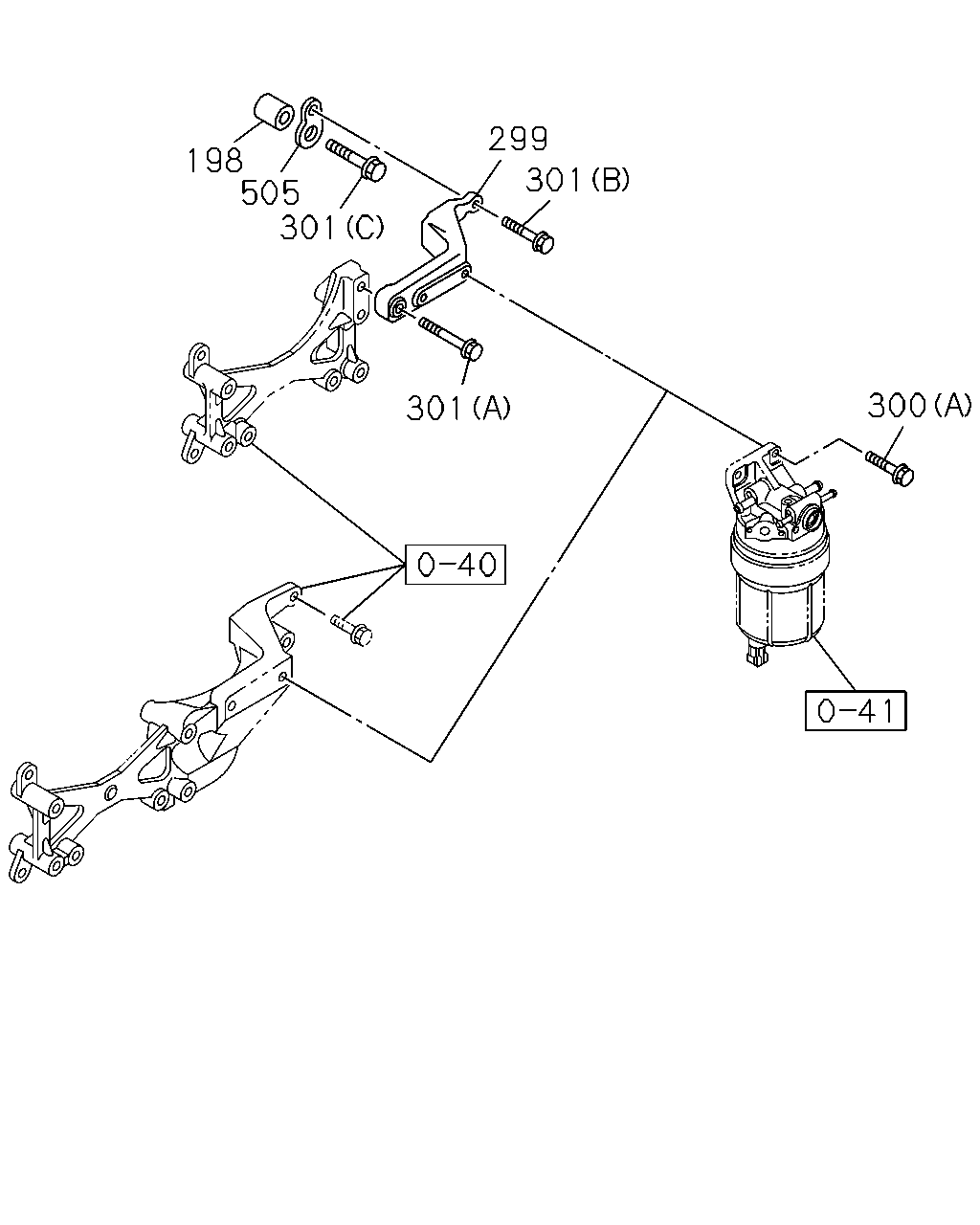

299 198 505 301 301 300 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
198	03.107 SPACER 4JJ1-TCS ENG(LFB)	8-98081-509-0	01	1	0710-0803	●	●
198	03.107 SPACER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98081-509-0	01	1	0804-1001	●	●
198	03.107 SPACER	8-98081-509-0	01	1	0804-1001			●	●
299	03.162 BRACKET; FUEL FILTER 4JJ1-TCS ENG(LFB)	8-98009-087-4	01	1	0710-0803	●	●
299	03.162 BRACKET; FUEL FILTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98009-087-4	01	1	0804-1001	●	●
299	03.162 BRACKET; FUEL FILTER	8-98009-087-4	01	1	0804-1001			●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0804-0903	●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0804-0903			●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0904-	●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0904-			●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
300	03.162 BOLT; BRKT TO BODY 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (B) M8X40 FLANGE	0-28060-840-0	01	1	0710-0803	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) M8X40 FLANGE	0-28060-840-0	01	1	0804-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (B) M8X40 FLANGE	0-28060-840-0	01	1	0804-1001			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (A) M8X66 FLANGE	8-98081-507-0	01	1	0710-0803	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) M8X66 FLANGE	8-98081-507-0	01	1	0804-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (A) M8X66 FLANGE	8-98081-507-0	01	1	0804-1001			●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (C) M14X58 FLANGE	8-98081-508-0	01	1	0710-0803	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M14X58 FLANGE	8-98081-508-0	01	1	0804-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER (C) M14X58 FLANGE	8-98081-508-0	01	1	0804-1001			●	●
505	03.163 BRACKET 4JJ1-TCS ENG(LFB)	8-98081-486-0	01	1	0710-0803	●	●
505	03.163 BRACKET 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98081-486-0	01	1	0804-1001	●	●
505	03.163 BRACKET	8-98081-486-0	01	1	0804-1001			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
