◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶

1-10 — RADIATOR (#53912) — 127 parça

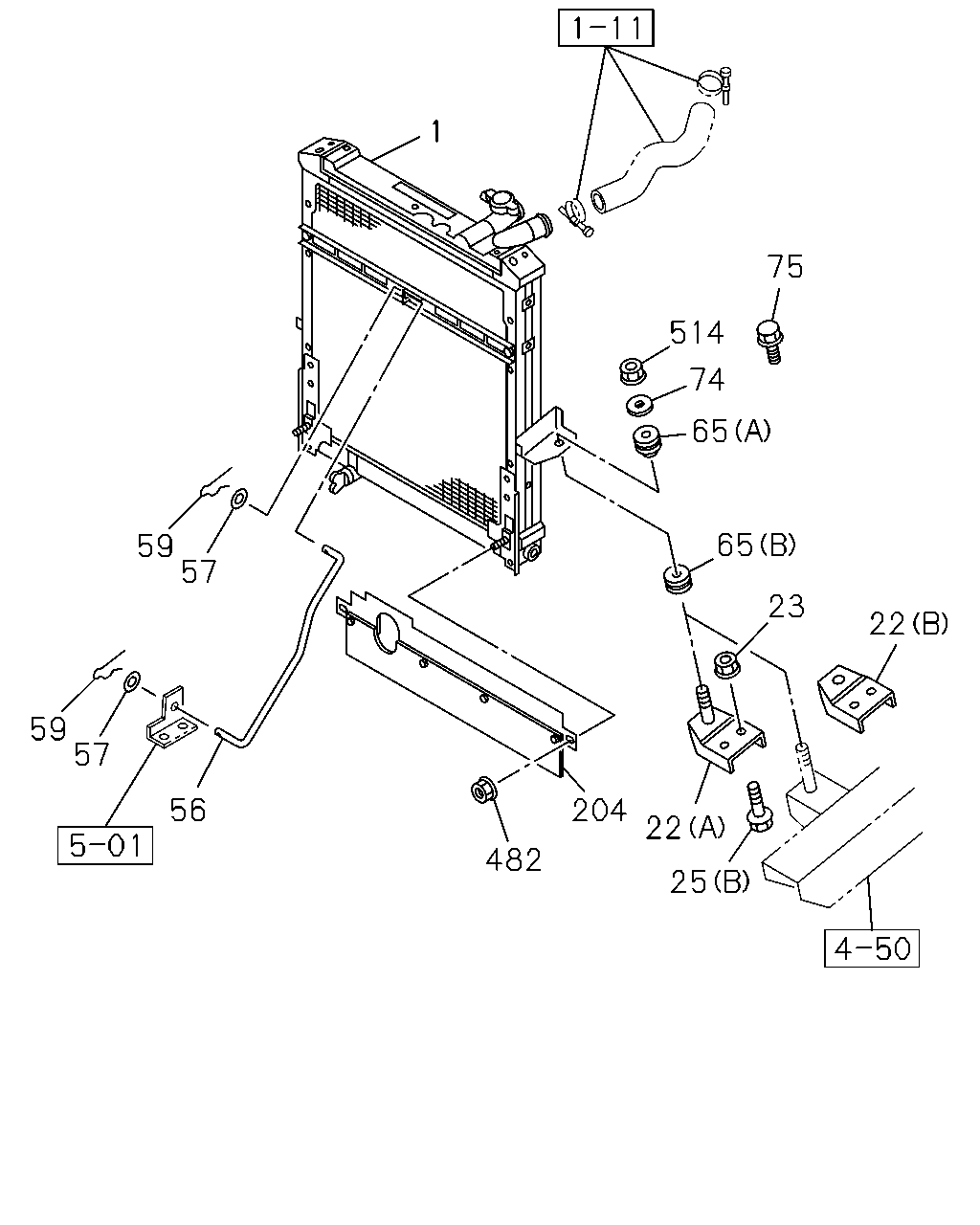

1 57 75 65 514 74 22 65 23 204 22 25 59 59 57 56 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98090-739-1	01	1	0804-1410	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98090-739-1	01	1	0804-1410		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98259-936-0	01	1	1411-	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98259-936-0	01	1	1411-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-470-2	01	1	0710-0803	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-470-2	01	1	0804-1312	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98253-685-0	02	1	1401-	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-468-1	01	1	0710-0803	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-97387-468-1	01	1	0710-0803		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-468-1	01	1	0804-1312	●	●
1	01.219 RADIATOR ASM	8-97387-468-1	01	1	0804-1312			●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98253-684-0	02	1	1401-	●	●
1	01.219 RADIATOR ASM	8-98253-684-0	02	1	1401-			●	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98040-359-0	01	1	0804-	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT) (B)	8-98040-359-0	01	1	0804-		●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98040-358-0	01	1	0804-	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT) (B)	8-98040-358-0	01	1	0804-		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) (A)	8-97383-952-0	01	1	0710-0803		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97383-952-0	01	1	0804-	●	●
22	01.270 BRACKET; RAD MTG (A)	8-97383-952-0	01	1	0804-			●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) (A)	8-97383-951-0	01	1	0710-0803		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97383-951-0	01	1	0804-	●	●
22	01.270 BRACKET; RAD MTG (A)	8-97383-951-0	01	1	0804-			●	●
23	01.271 NUT; RAD MTG 04.085 M10 FLANGE	0-91180-210-0	04	1	0710-0803		●
23	01.271 NUT; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	0804-0909	●
23	01.271 NUT; RAD MTG 04.085 M10 FLANGE	0-91180-210-0	04	1	0804-0909		●	●	●
23	01.271 NUT; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-		●	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0710-0803	●	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0804-	●	●	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-0803		●
25	01.271 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	0804-	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	0804-		●	●	●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT)	8-98039-485-0	01	1	0804-	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB)	8-97383-947-1	01	1	0710-0803	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-947-1	01	1	0804-	●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	0710-0803	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	0804-	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	0710-0803	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	0804-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	0710-0803	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	0804-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	0710-0803	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	0804-	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	0710-0803	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	0804-	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JB1-TC ENG(RDT) ID=10.5	0-91610-710-0	01	1	0804-	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JB1-TC ENG(RDT) 01.274 M8X63	8-94249-446-0	01	1	0804-	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-0	01	1	0710-0803	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	0804-	●	●	●	●
482	01.277 NUT; AIR GUIDE 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0803	●	●
482	01.277 NUT; AIR GUIDE 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0803	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●

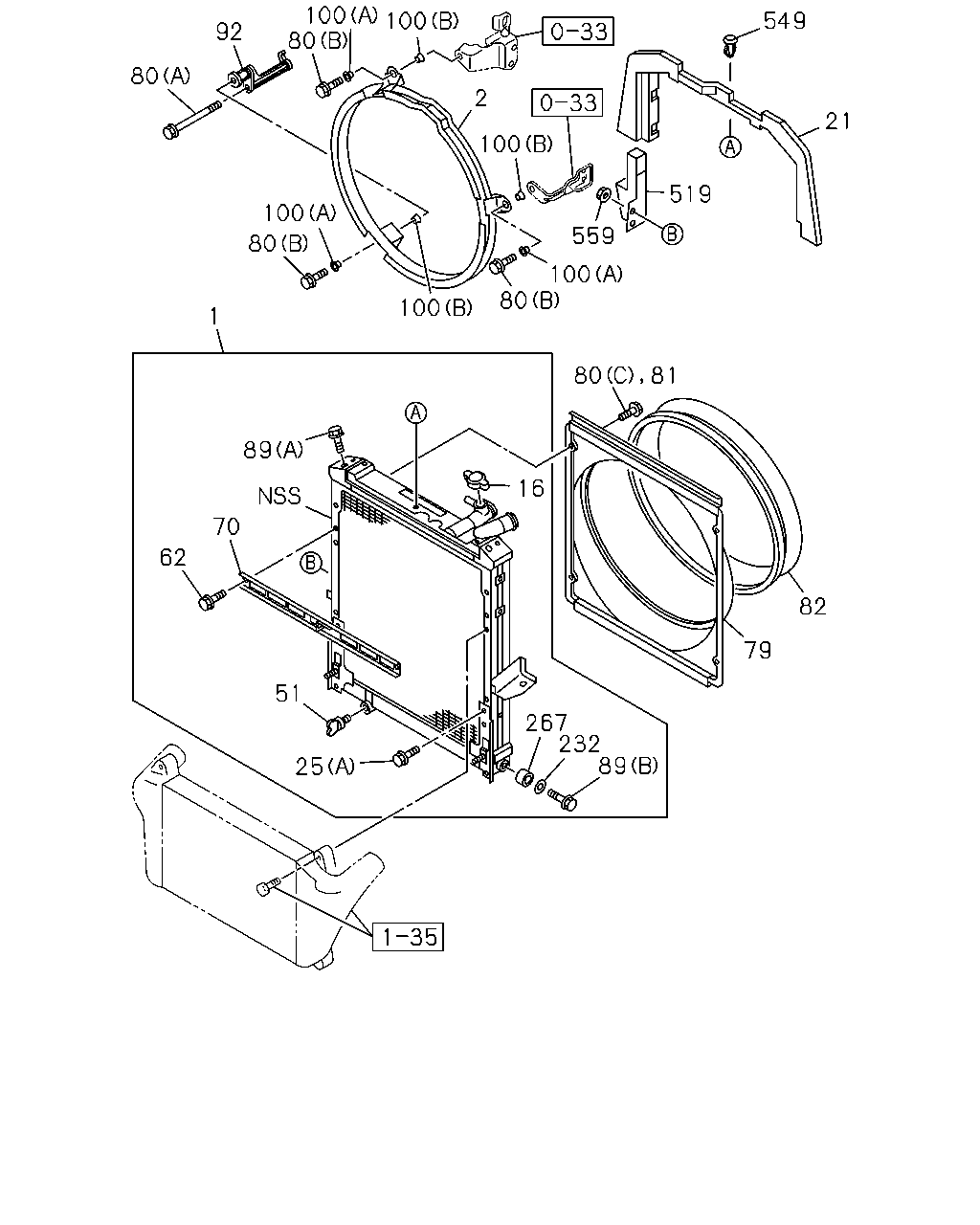

100 80 100 549 92 80 2 21 100 519 100 559 80 100 80 100 1 89 16 70 62 82 79 51 267 232 89 25 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98090-739-1	01	1	0804-1410	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98090-739-1	01	1	0804-1410		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98259-936-0	01	1	1411-	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98259-936-0	01	1	1411-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-470-2	01	1	0710-0803	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-470-2	01	1	0804-1312	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98253-685-0	02	1	1401-	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-468-1	01	1	0710-0803	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-97387-468-1	01	1	0710-0803		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-468-1	01	1	0804-1312	●	●
1	01.219 RADIATOR ASM	8-97387-468-1	01	1	0804-1312			●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98253-684-0	02	1	1401-	●	●
1	01.219 RADIATOR ASM	8-98253-684-0	02	1	1401-			●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB)	8-98054-659-0	01	1	0710-0803	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	0804-	●	●	●	●
16	01.203 CAP; RAD 4JJ1-TCS ENG(LFB)	8-97239-187-0	01	1	0710-0803	●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0804-	●	●	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB)	8-98000-816-0	01	1	0710-0803	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98000-816-0	01	1	0804-	●	●	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0710-0803	●	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0804-	●	●	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-0803		●
25	01.271 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	0804-	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	0804-		●	●	●
51	08.951 PLUG; DRAIN 4JJ1-TCS ENG(LFB) W/GASKET	8-97171-437-0	01	1	0710-0803	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0804-	●	●	●	●
62	01.271 BOLT; STAY 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0710-0803	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0804-	●	●	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB)	8-98018-940-0	01	1	0710-0803	●	●
70	01.271 STAY; RAD	8-98018-940-0	01	1	0804-	●	●	●	●
79	01.277 GUIDE; FAN,RAD 4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98090-742-0	01	1	0804-	●
79	01.277 GUIDE; FAN,RAD 4JB1-TC ENG(RDT)	8-98090-742-0	01	1	0804-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-081-1	01	1	0710-0803	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	0804-1312	●	●
79	01.277 GUIDE; FAN,RAD	8-97387-081-1	01	1	0804-1312			●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98234-712-0	01	1	1401-	●	●
79	01.277 GUIDE; FAN,RAD	8-98234-712-0	01	1	1401-			●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	0710-0803	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	0804-	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0803	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0804-	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (C) M6X12	8-98039-672-0	02	1	0710-0803	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	02	1	0804-1312	●	●
80	01.277 BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	02	1	0804-1312			●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	04	1	1401-	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97088-810-0	02	1	0804-	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT)	8-97088-810-0	02	1	0804-		●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-085-1	01	1	0710-0803	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	0804-	●	●
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	0804-			●	●
89	01.277 BOLT 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-0803	●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0804-	●	●	●	●
89	01.277 BOLT 4JJ1-TCS ENG(LFB) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	0710-0803	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	0804-	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB)	8-97381-550-1	01	1	0710-0803	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97381-550-1	01	1	0804-1303	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98237-770-0	01	1	1304-	●	●	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	0710-0803	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	0804-	●	●	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (A) OD=32	8-98058-502-1	03	1	0710-0803	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) OD=32	8-98058-502-1	03	1	0804-	●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB)	1-87410-723-0	02	1	0710-0803	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	0804-1312	●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1401-1410	●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1411-	●	●	●	●
267	01.277 RUBBER; CUSHION 4JJ1-TCS ENG(LFB)	1-21467-023-0	02	1	0710-0803	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	0804-	●	●	●	●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB)	8-98038-591-0	01	1	0710-0803	●	●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98038-591-0	01	1	0804-	●	●	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB) 01.276	8-97228-568-0	05	1	0710-0803	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	0804-	●	●	●	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
