Sayfa 1-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶

1-01 — ACCELERATOR PEDAL AND CONTROL (#53911) — 137 parça

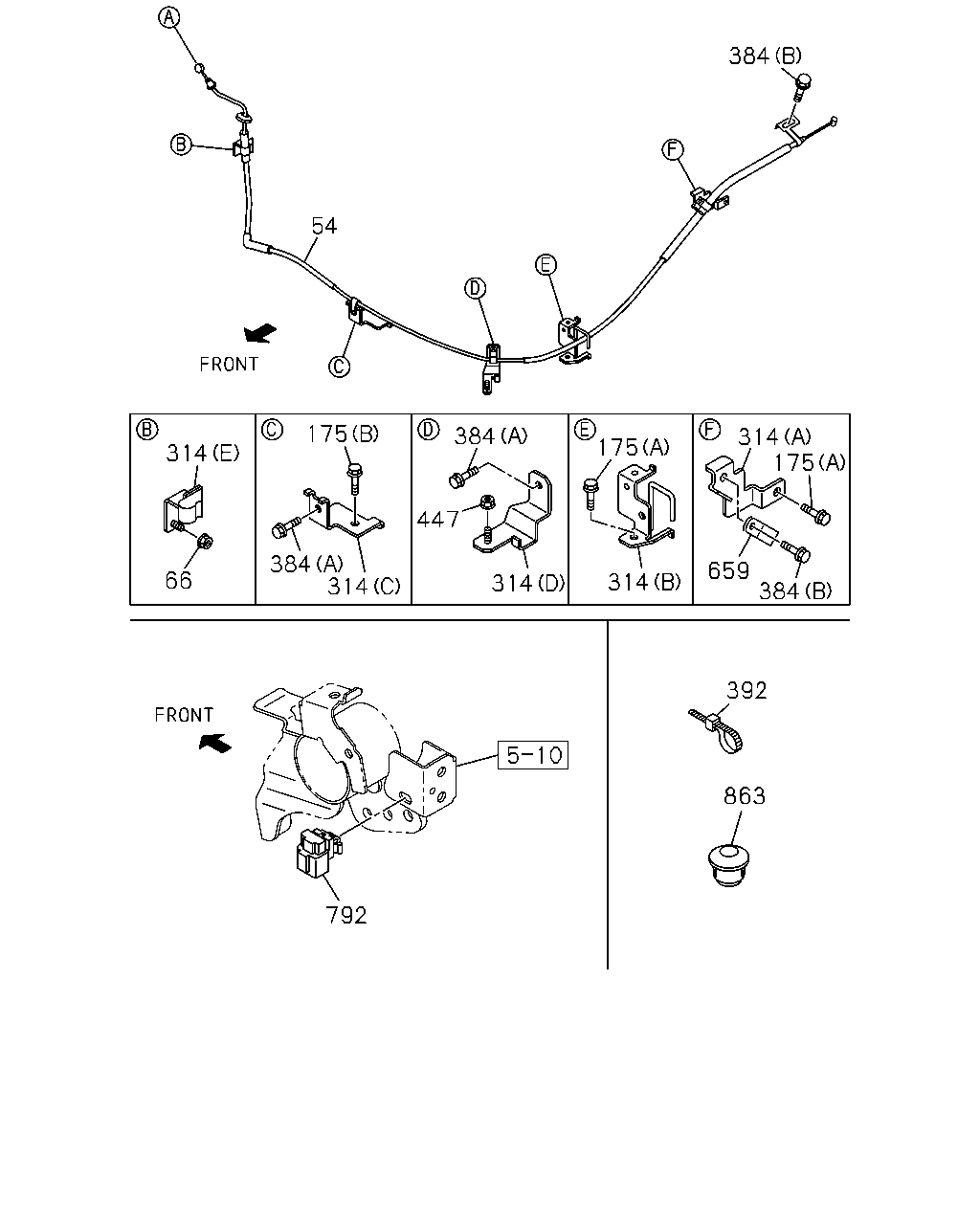

384 54 175 175 384 314 175 314 447 384 314 659 384 66 314 314 392 863 792

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-458-4	01	1	0804-	●	●
66	03.452 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (C)	8-98072-002-2	01	1	0804-0808	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (C)	8-98131-406-0	01	1	0809-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (D)	8-98072-003-2	01	1	0804-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (E)	8-98094-801-1	01	1	0804-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (A)	8-98106-754-1	01	1	0804-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (B)	8-98114-289-0	01	1	0804-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	0804-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 03.162 L=140	5-09707-031-1	01	1	0804-0804	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 02.559 L=250	5-09707-030-1	01	1	0805-	●	●
447	03.452 NUT; BRKT,CONT WIRE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 ID=16 L=28	0-95235-552-0	01	1	0804-	●	●
792	03.483 RESISTOR; IDLE EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0710-0710	●	●
792	03.483 RESISTOR; IDLE EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0710-0801	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0802-0803	●
792	03.483 RESISTOR; IDLE 4JB1-TC ENG(RDT)	8-98013-906-0	01	1	0804-0806	●	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0804-0806	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0807-1012	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	1101-	●	●
863	03.463 COVER; SENSOR EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0710-0710	●	●
863	03.463 COVER; SENSOR EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0710-0801	●
863	03.463 COVER; SENSOR 4JJ1-TCS ENG(LFB) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0802-0803	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	0804-1012	●	●
863	03.463 COVER; SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0804-1012	●
863	03.463 COVER; SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	1101-	●	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	1101-	●	●

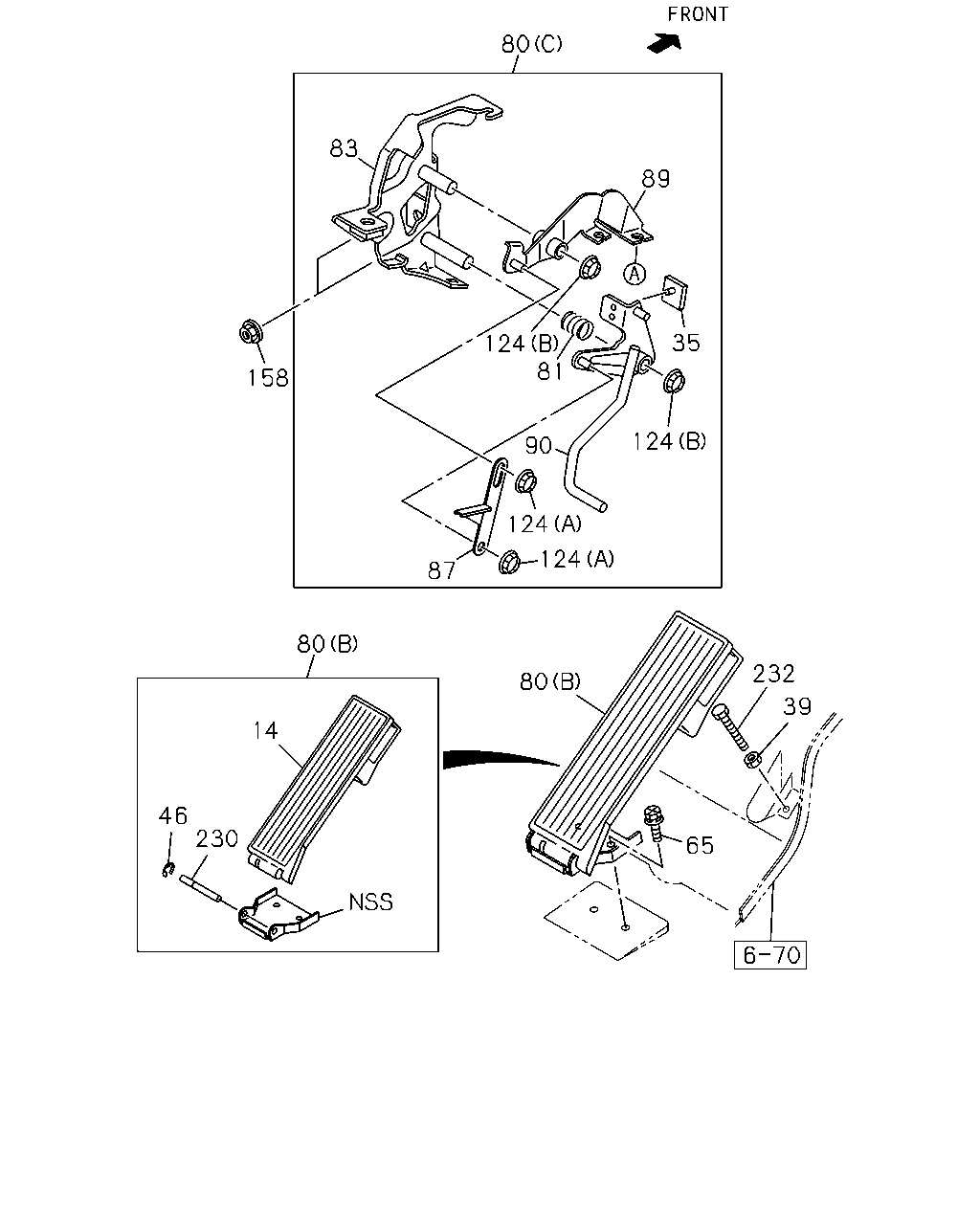

80 83 89 35 124 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0710-0803	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0804-	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT)	8-97302-305-0	01	1	0804-	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0710-0803	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0804-	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0710-0803	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0804-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0710-0803	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0804-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) (C)	8-98124-928-1	01	1	1108-	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0710-0803	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0804-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) (C)	8-98038-416-1	01	1	0804-1107	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC) (C)	8-98038-416-1	01	1	1108-	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB) (A)	8-97387-358-1	01	1	0710-0803	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	0804-	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT)	8-98031-665-0	01	1	0804-	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1108-	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-900-0	01	1	0804-1107	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1108-	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB)	8-98023-885-2	01	1	0710-0803	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0804-	●	●	●	●
87	03.454 LINK; ENG CONT 4JB1-TC ENG(RDT)	8-97853-204-1	01	1	0804-	●	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1108-	●	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT)	8-97868-042-0	01	1	0804-1107	●	●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1108-	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT)	8-98059-513-0	01	1	0804-	●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0804-	●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0804-	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB) 03.452 (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0710-0803	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.452 (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0804-	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0710-0803	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0804-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0710-0803	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0804-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0710-0803	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0804-	●	●	●	●

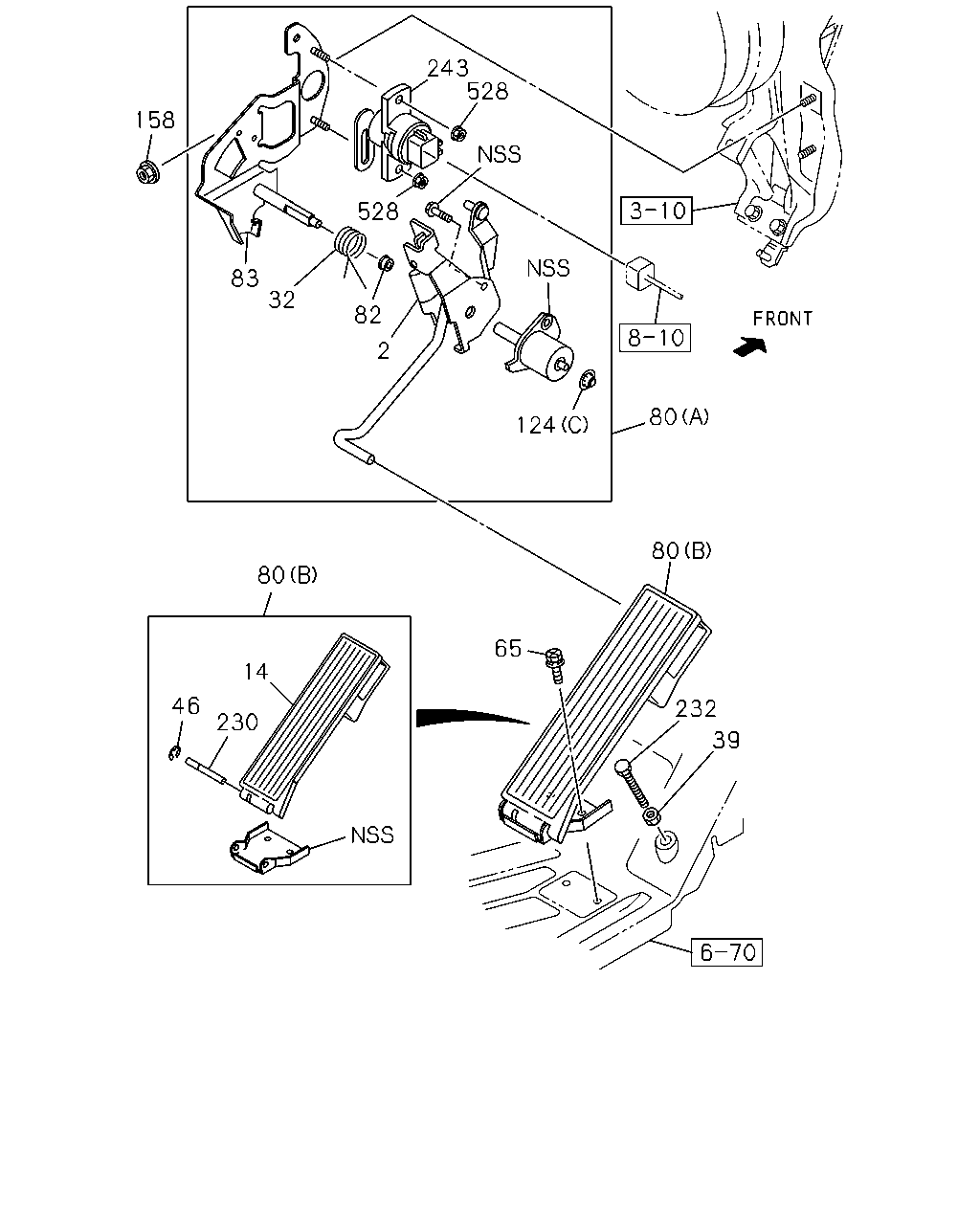

243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.454 LEVER; ENG CONT 4JJ1-TCS ENG(LFB)	8-98002-158-2	01	1	0710-0803	●	●
2	03.454 LEVER; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98002-158-2	01	1	0804-	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0710-0803	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0804-	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1-TCS ENG(LFB)	8-98031-665-0	01	1	0710-0803	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98031-665-0	01	1	0804-	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0710-0803	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0804-	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0710-0803	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0804-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0710-0803	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0804-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) (C)	8-98124-928-1	01	1	1108-	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0710-0803	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0804-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) (C)	8-98038-416-1	01	1	0804-1107	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC) (C)	8-98038-416-1	01	1	1108-	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB) (A)	8-97387-358-1	01	1	0710-0803	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	0804-	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR 4JJ1-TCS ENG(LFB)	8-97581-053-0	01	1	0710-0803	●	●
82	03.463 BUSHING; ENG CONT LVR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97581-053-0	01	1	0804-	●	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1108-	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT)	8-98093-900-0	01	1	0804-1107	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1108-	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB)	8-98023-885-2	01	1	0710-0803	●	●
83	03.452 BRACKET; CONT LINK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	0804-	●	●	●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0804-	●	●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0804-	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB) 03.452 (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0710-0803	●	●
124	03.463 NUT; LEVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.452 (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0804-	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0710-0803	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0804-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0710-0803	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0804-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0710-0803	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0804-	●	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCS ENG(LFB)	8-97602-416-0	01	1	0710-0803	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97602-416-0	01	1	0804-0910	●	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98131-263-0	01	1	0911-	●	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1-TCS ENG(LFB) 12.183 M5	8-94169-022-0	02	1	0710-0803	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 12.183 M5	8-94169-022-0	02	1	0804-	●	●	●	●

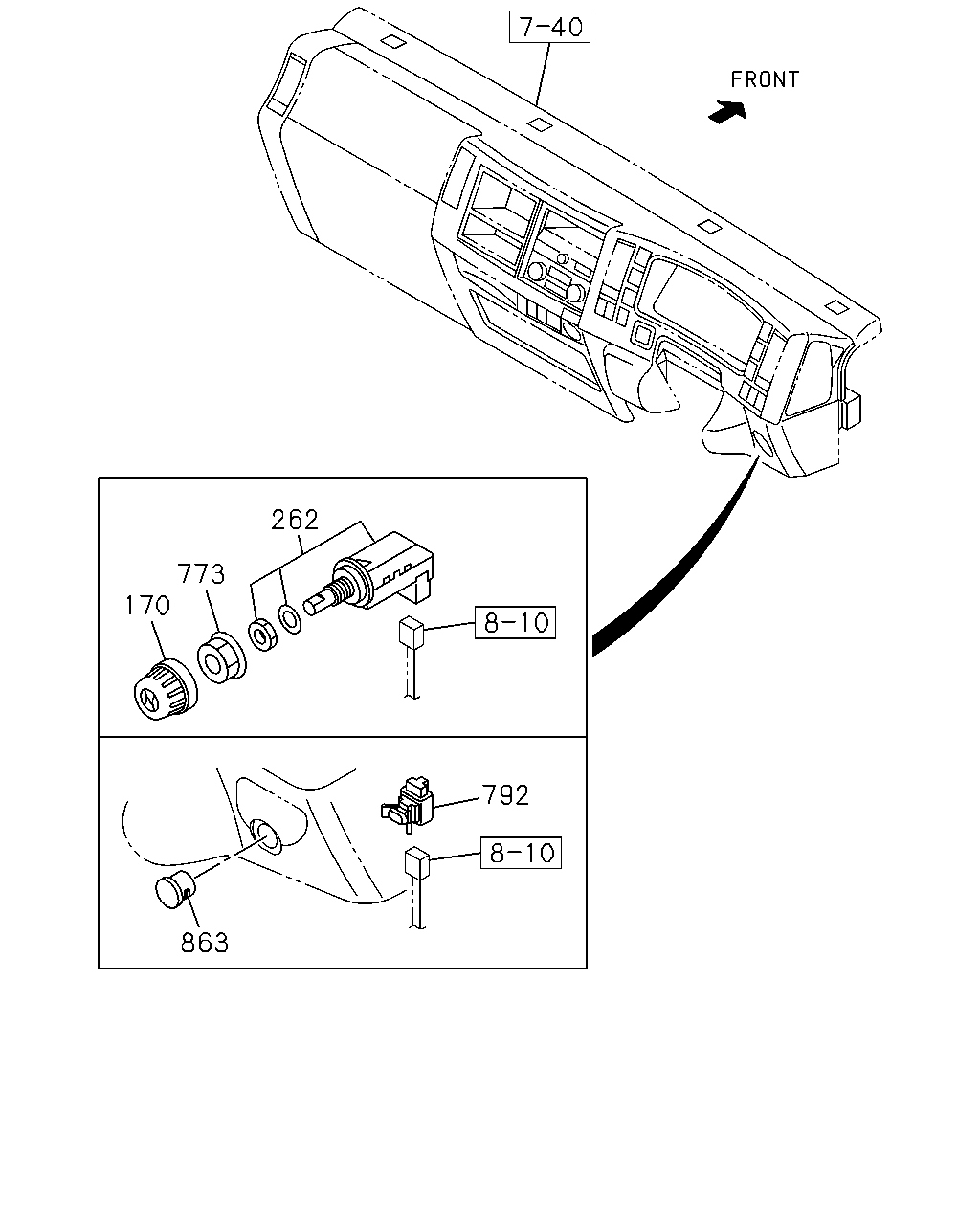

262 773 170 792 863

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
170	03.480 KNOB SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-420-0	01	1	0710-0710	●	●
170	03.480 KNOB SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-420-0	01	1	0710-0801	●
170	03.480 KNOB	8-98013-420-0	01	1	0710-0801		●
170	03.480 KNOB 4JJ1-TCS ENG(LFB) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-420-0	01	1	0802-0803	●	●
170	03.480 KNOB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-420-0	01	1	0804-	●	●	●	●
262	03.452 SWITCH; ACCEL,IDLE SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-418-0	01	1	0710-0710	●	●
262	03.452 SWITCH; ACCEL,IDLE SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-418-0	01	1	0710-0801	●
262	03.452 SWITCH; ACCEL,IDLE	8-98013-418-0	01	1	0710-0801		●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCS ENG(LFB) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-418-0	01	1	0802-0803	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98013-418-0	01	1	0804-	●	●	●	●
773	03.452 HOLDER; ACCEL PEDAL SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-97352-127-0	01	1	0710-0710	●	●
773	03.452 HOLDER; ACCEL PEDAL SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-97352-127-0	01	1	0710-0801	●
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0710-0801		●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCS ENG(LFB) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-97352-127-0	01	1	0802-0803	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-97352-127-0	01	1	0804-	●	●	●	●
792	03.483 RESISTOR; IDLE EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0710-0710	●	●
792	03.483 RESISTOR; IDLE EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0710-0801	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0802-0803	●
792	03.483 RESISTOR; IDLE 4JB1-TC ENG(RDT)	8-98013-906-0	01	1	0804-0806	●	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0804-0806	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	0807-1012	●
792	03.483 RESISTOR; IDLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT>	8-98013-906-0	01	1	1101-	●	●
863	03.463 COVER; SENSOR EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0710-0710	●	●
863	03.463 COVER; SENSOR EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0710-0801	●
863	03.463 COVER; SENSOR 4JJ1-TCS ENG(LFB) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0802-0803	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	0804-1012	●	●
863	03.463 COVER; SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	0804-1012	●
863	03.463 COVER; SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY	8-97408-816-0	01	1	1101-	●	●
863	03.463 COVER; SENSOR 4JB1-TC ENG(RDT) GRAY	8-97408-816-0	01	1	1101-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
