4-11 — FRONT HUB AND DRUM OR ROTOR (#5391) — 108 parça

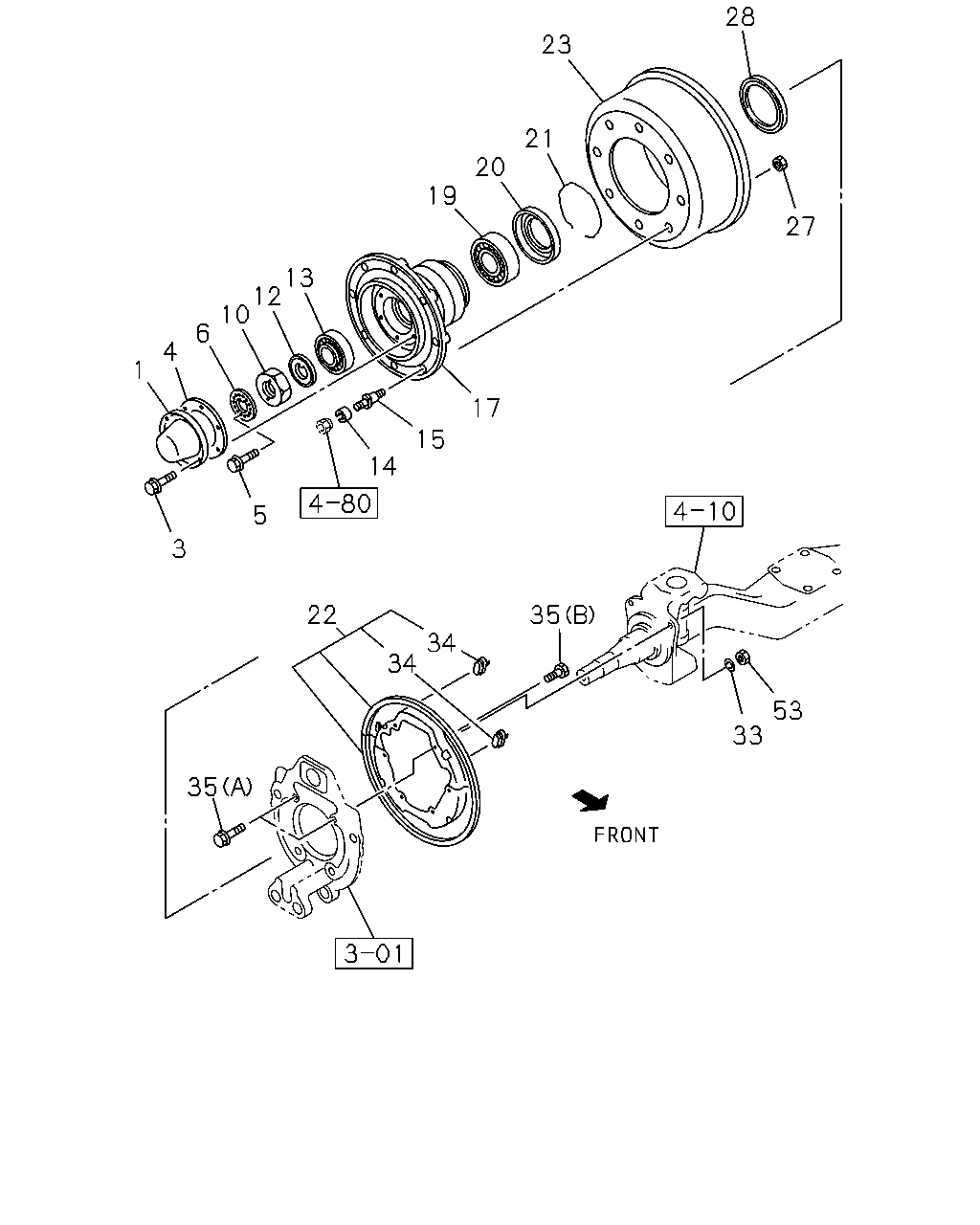

çizim 39728
28 23 21 20 19 27 13 12 10 6 4 1 17 15 14 5 3 22 35 34 34 53 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9603-9901 ● ● ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9902-9904 ● ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9905- ● ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9603-9901 ● ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9902-9904 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9905- ● ● ●
4 GASKET; HUB CAP,FRT WHEEL
ID=114 OD=150 		1-42319-029-0 02 1 9603-9901 ● ● ●
4 GASKET; HUB CAP,FRT WHEEL
ID=114 OD=150 		1-42319-029-0 02 1 9902-9904 ● ●
4 GASKET; HUB CAP,FRT WHEEL
ID=114 OD=150 		1-42319-029-0 02 1 9905-9906 ● ● ●
4 GASKET; HUB CAP,FRT WHEEL
ID=114 OD=150 		1-42319-185-0 02 1 9907- ● ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9603-9701 ● ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9702-9901 ● ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9902-9904 ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9905- ● ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9603-9901 ● ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9902-9904 ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9905- ● ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 9603-9901 ● ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 9902-9904 ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 9905- ● ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9603-9901 ● ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9902-9904 ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9905- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
ID=50 OD=114.3 T=44.45 NSK 		1-09812-084-0 02 1 9603-9809 ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
ID=50 OD=114.3 T=44.45 JTEKT 		1-09812-234-0 02 1 9810-9901 ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
ID=50 OD=114.3 T=44.45 JTEKT 		1-09812-234-0 02 1 9902-9904 ● ●
13 BEARING; HUB OUTER,FRT AXLE
ID=50 OD=114.3 T=44.45 JTEKT 		1-09812-234-0 02 1 9905- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
ID=50 OD=114.3 T=44.45 JTEKT 		1-09812-085-0 02 1 9603-9809 ● ● ●
14 RING; SPR,FRT WHEEL
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42339-025-1 20 1 9603-9704 ● ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24,M22 L=99.5 M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 9603-9901 ● ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24,M22 L=99.5 M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 9603-9901 ● ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24,M22 L=99.5 M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 9905-0006 ● ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 0007- ● ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24,M22 L=99.5 M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 9905-0006 ● ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 0007- ● ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22,M22 L=103.5 M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9603-9901 ● ●
15 PIN; WHEEL,FRT AXLE
M22,M22 L=103.5 M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9902-9904 ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22,M22 L=103.5 M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9905-9912 ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0001-0006 ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0007- ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0007- ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE FRT 12.00R20<72X> M22X42.8,M22X75.5 RH THREAD 		1-42337-058-0 20 1 0001- ●
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 8-STUD 		1-42312-128-0 02 1 9603-9901 ● ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 8-STUD 		1-42312-128-2 02 1 9905-0006 ● ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42312-128-2 02 1 0007- ● ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 10-STUD 		1-42312-100-0 02 1 9603-9901 ● ●
17 HUB; FRT AXLE
10-STUD 		1-42312-100-0 02 1 9902-9904 ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 10-SRUD 		1-42312-100-0 02 1 9905-9912 ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> 		1-42312-100-0 02 1 0001-0006 ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42312-100-1 02 1 0007- ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> 		1-42312-100-1 02 1 0007- ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE FRT 12.00R20<72X> 		1-42312-136-0 02 1 0001- ●
19 BEARING; HUB INNER,FRT AXLE
ID=68.26 OD=136.53 T=41.28 NSK 		1-09812-142-0 02 1 9603-9809 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
ID=68.26 OD=136.53 T=41.28 JTEKT 		1-09812-231-0 02 1 9810-9901 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
ID=68.26 OD=136.53 T=41.28 JTEKT 		1-09812-231-0 02 1 9902-9904 ● ●
19 BEARING; HUB INNER,FRT AXLE
ID=68.26 OD=136.53 T=41.28 JTEKT 		1-09812-231-0 02 1 9905- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
ID=68.26 OD=136.53 T=41.28 JTEKT 		1-09812-143-0 02 1 9603-9809 ● ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9603-9901 ● ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9902-9904 ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9905- ● ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 9603-9901 ● ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 9902-9904 ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 9905- ● ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47151-458-1 02 1 9603-9901 ● ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47151-458-1 02 1 9905- ● ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47151-459-1 02 1 9603-9901 ● ●
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 9902-9904 ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47151-459-1 02 1 9905- ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 8-STUS 		1-42315-336-1 02 1 9603-9901 ● ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 8-STUD 		1-42315-336-1 02 1 9905-0006 ● ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42315-336-1 02 1 0007- ● ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 10-STUD 		1-42315-337-0 02 1 9603-9901 ● ●
23 DRUM; BRK,FRT
10-STUD 		1-42315-337-0 02 1 9902-9904 ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 10-STUD 		1-42315-337-0 02 1 9905-0006 ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42315-337-0 02 1 0007- ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> 		1-42315-337-0 02 1 0007- ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 		9-09110-522-0 16 1 9603-9609 ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE 		1-09440-055-0 16 1 9610-9812 ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE 		1-09440-065-0 16 1 9901-9901 ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE 		1-09440-055-0 16 1 9905-9905 ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE 		1-09440-065-0 16 1 9906-0006 ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE 		1-09440-065-0 16 1 0007- ● ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 		1-09400-071-0 20 1 9603-9901 ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 9902-9904 ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22 		1-09400-071-0 20 1 9905-0006 ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-09400-071-0 20 1 0007- ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> M22 		1-09400-071-0 20 1 0007- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9603-9901 ● ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9902-9904 ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9905- ● ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 9603-9901 ● ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 9902-9904 ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 9905- ● ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9603-9901 ● ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9902-9904 ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9905- ● ● ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 9603-9901 ● ● ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 9902-9904 ● ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 9905- ● ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16X52 FLANGE 		1-09044-001-1 04 1 9603-9901 ● ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16X52 FLANGE 		1-09044-001-2 04 1 9905- ● ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X59 FLANGE 		1-09044-002-1 04 1 9603-9901 ● ●
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 9902-9904 ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X59 FLANGE 		1-09044-002-2 04 1 9905- ● ●
53 NUT; DRUM COVER
M16 		9-99110-416-0 04 1 9603-9901 ● ● ●
53 NUT; DRUM COVER
M16 		9-99110-416-0 04 1 9902-9902 ● ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 9903-9904 ● ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 9905- ● ● ●
