Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#5390) — 252 parça

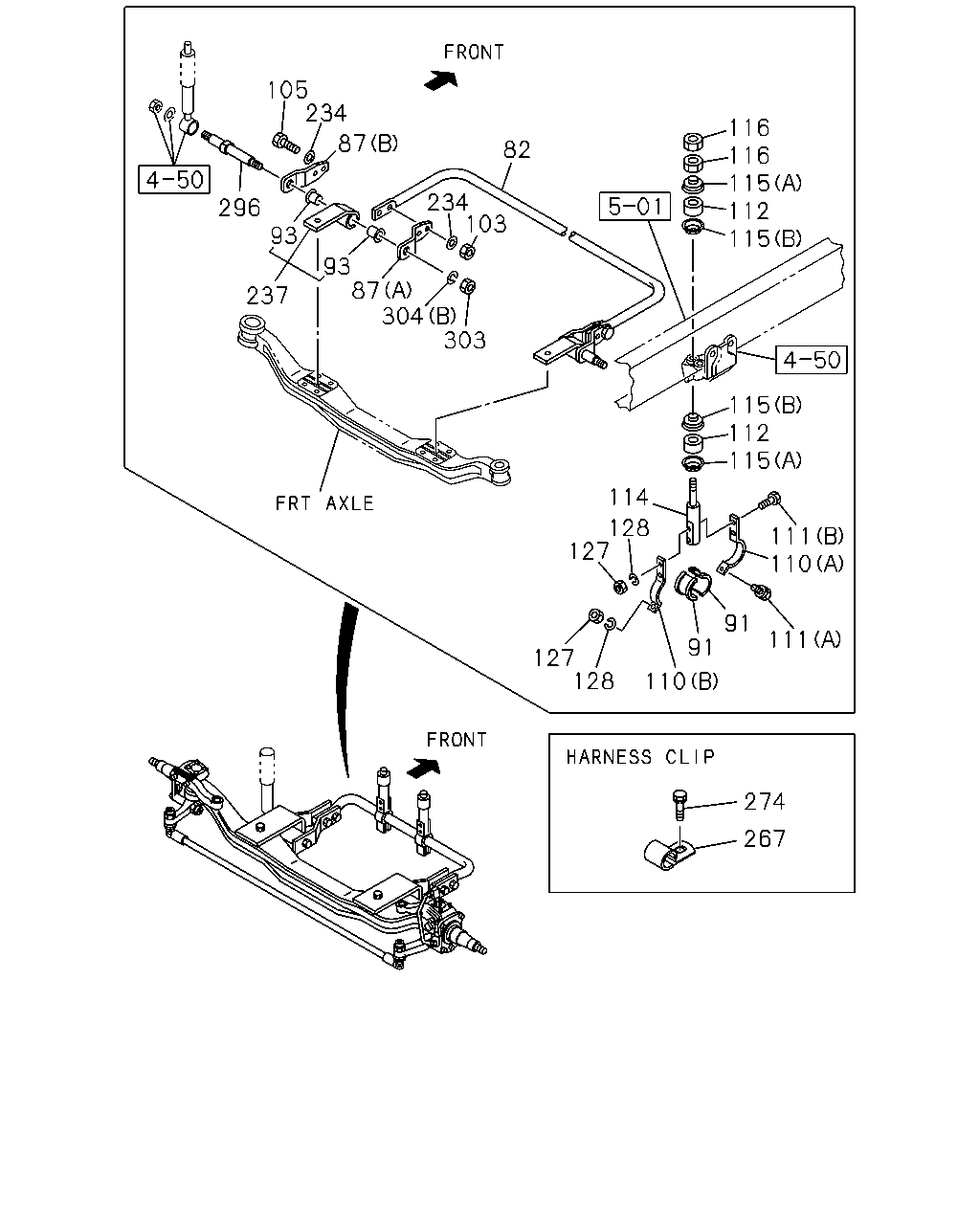

105 234 116 116 115 112 115 87 82 234 103 296 93 93 87 304 303 237 115 112 115 114 128 127 111 110 91 111 91 127 128 110 274 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-0	01	1	9603-9901	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-0	01	1	9905-	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-0	02	1	9603-9709	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-0	02	1	9603-9709	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	9710-9901	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	9710-9901	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	9905-	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	9905-	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-0	04	1	9603-9901	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-0	04	1	9905-	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59> ID=28 L=38	1-51689-015-0	04	1	9603-9901	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59> ID=28 L=38	1-51689-015-1	04	1	9905-	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9603-9901	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9905-	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9603-9901	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9905-	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	9603-9901	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9603-9901	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	9905-	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9905-	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9603-9901	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9603-9901	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9905-	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9905-	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59> ID=16 OD=45 T=25	9-51631-039-0	04	1	9603-9901	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59> ID=16 OD=45 T=25	9-51631-039-0	04	1	9905-	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	9603-9901	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	9905-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) OUTER ID=16.5	9-51631-040-0	04	1	9603-9901	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) INNER ID=20.8	9-51631-041-0	04	1	9603-9901	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) OUTER ID=16.5	9-51631-040-0	04	1	9905-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) INNER ID=20.8	9-51631-041-0	04	1	9905-	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9603-9901	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9905-	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9603-9901	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9905-	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9603-9901	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9905-	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9603-9901	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9905-	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	9603-9901	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	9905-	●
267	CLIP; HARNESS REAR AXLE RT260<C2B> FINAL GEAR 41/6 17.5"(W4W) ID=11 L=16	9-09525-025-0	04	1	9902-9902		●	●
274	BOLT; CLIP REAR AXLE RT260<C2B> FINAL GEAR 41/6 17.5"(W4W) M8X12 W/LK WASHER	0-50040-812-0	04	1	9902-9902		●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	9603-9901	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	9905-	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9603-9901	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9905-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) STABILIZER BAR ID=21	9-09164-520-0	02	1	9603-9901	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) STABILIZER BAR ID=21	9-09164-520-0	02	1	9905-	●
304	WASHER; PL (A) TIE ROD ID=12.5	9-09164-512-0	04	1	9603-9901	●	●	●
304	WASHER; PL (A) TIE ROD ID=12.5	9-09164-512-0	04	1	9902-9904		●	●
304	WASHER; PL (A) TIE ROD ID=12.5	9-09164-512-0	04	1	9905-	●	●	●

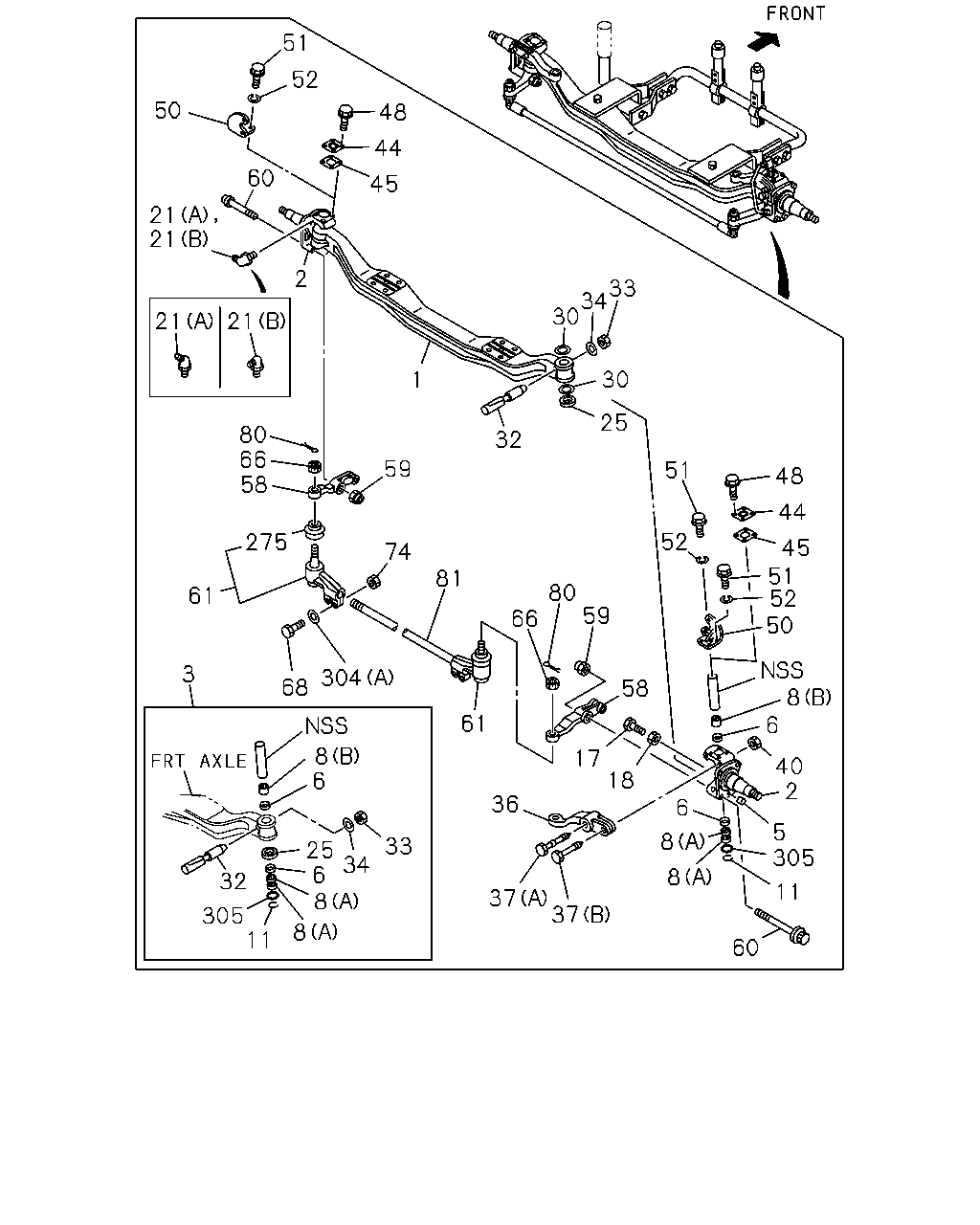

51 52 50 48 44 60 45 21 21 2 33 34 30 21 21 30 1 25 80 66 58 32 59 51 48 44 52 275 45 51 52 50 74 81 80 59 61 66 8 6 3 304 68 58 61 8 6 17 18 40 2 36 6 5 305 8 33 25 34 6 8 8 32 11 37 37 305 11 8 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT	1-43111-107-3	01	1	9603-9901	●	●	●
1	AXLE; FRT	1-43111-107-3	01	1	9902-9904		●	●
1	AXLE; FRT	1-43111-107-4	01	1	9905-	●	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9603-9901	●	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9902-9904		●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9905-	●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9603-9901	●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9902-9904		●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9905-	●	●	●
3	KING PIN SET	1-87830-738-0	02	1	9603-9901	●	●	●
3	KING PIN SET	1-87830-738-0	02	1	9902-9904		●	●
3	KING PIN SET	1-87830-738-1	02	1	9905-	●	●	●
5	PIN; KNUCKLE TO DRUM COVER OD=18 L=20	1-09740-072-0	02	1	9603-9901	●	●	●
5	PIN; KNUCKLE TO DRUM COVER OD=18 L=20	1-09740-072-0	02	1	9902-9904		●	●
5	PIN; KNUCKLE TO DRUM COVER OD=18 L=20	1-09740-072-0	02	1	9905-	●	●	●
6	SEAL; KING PIN ID=49.3 OD=62 T=5	9-09926-024-0	04	1	9603-9901	●	●	●
6	SEAL; KING PIN ID=49.3 OD=62 T=5	9-09926-024-0	04	1	9902-9904		●	●
6	SEAL; KING PIN ID=49.3 OD=62 T=5	9-09926-024-0	04	1	9905-	●	●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	9603-9901	●	●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	9902-9904		●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	9905-	●	●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	9603-9901	●	●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	9902-9904		●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	9905-	●	●	●
11	RING; SNAP,KNUCKLE PLUG OD=68	9-09950-204-0	02	1	9603-9901	●	●	●
11	RING; SNAP,KNUCKLE PLUG OD=68	9-09950-204-0	02	1	9902-9904		●	●
11	RING; SNAP,KNUCKLE PLUG OD=68	9-09950-204-0	02	1	9905-	●	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9603-9901	●	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9902-9904		●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9905-9912	●	●	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M18X43	1-09009-065-0	02	1	0001-0006	●	●	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> M18X43	1-09009-065-0	02	1	0001-0006		●	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M18X43	1-09009-065-0	02	1	0007-	●	●	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X> M18X43	1-09009-065-0	02	1	0007-		●	●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE FRT 12.00R20<72X> M18X53	1-09009-066-0	02	1	0001-0006			●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) INTERNATIONAL STANDARD ISO 10STUD<B3V> M18X53	1-09009-066-0	02	1	0007-	●		●
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE FRT 12.00R20<72X> M18X53	1-09009-066-0	02	1	0007-			●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9603-9901	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9902-9904		●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9905-	●	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9603-9704	●	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-9901	●	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9902-9904		●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9905-	●	●	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9603-9704	●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9603-9901	●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9902-9904		●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9905-	●	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9603-9901	●	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9902-9904		●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9905-	●	●	●
32	BOLT; KEY,KING PIN M10 L=106	1-43116-002-1	02	1	9603-9901	●	●	●
32	BOLT; KEY,KING PIN M10 L=106	1-43116-002-1	02	1	9902-9904		●	●
32	BOLT; KEY,KING PIN M10 L=106	1-43116-002-1	02	1	9905-	●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9603-9901	●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9902-9904		●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9905-	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9603-9901	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9902-9904		●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9905-	●	●	●
36	ARM; KNUCKLE	1-43133-063-1	01	1	9603-9901	●	●	●
36	ARM; KNUCKLE	1-43133-063-1	01	1	9902-9904		●	●
36	ARM; KNUCKLE	1-43133-063-2	01	1	9905-	●	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	9603-9901	●	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	9902-9904		●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	9905-	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	9603-9901	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	9902-9904		●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	9905-	●	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9603-9901	●	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9902-9904		●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9905-	●	●	●
44	COVER; KING PIN	1-43175-014-1	02	1	9603-9901	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9603-9901		●	●
44	COVER; KING PIN	1-43175-014-1	02	1	9905-9912	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9905-9912		●	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	0001-	●	●	●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	9603-9901	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9603-9901		●	●
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	9905-9912	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9905-9912		●	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	0001-	●	●	●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9603-9901	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9603-9901		●	●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9905-9912	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9905-9912		●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	0001-	●	●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-2	01	1	9603-9901		●	●
50	BRACKET; POWER CHAMBER	1-43145-010-2	01	1	9902-9904		●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	9905-		●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-2	01	1	9603-9901		●	●
50	BRACKET; POWER CHAMBER	1-43145-009-2	01	1	9902-9904		●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	9905-		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	0-10806-260-0	02	1	9603-9901		●	●
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	9902-9904		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	0-10806-260-0	02	1	9905-0004		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28081-260-0	02	1	0005-		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	0-20801-228-0	06	1	9603-9901		●	●
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	9902-9904		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	0-20801-228-0	06	1	9905-0004		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28681-225-0	06	1	0005-		●	●
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9603-9901		●	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9902-9904		●	●
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9905-0004		●	●
58	ARM; TIE ROD	1-43134-042-0	01	1	9603-9901	●	●	●
58	ARM; TIE ROD	1-43134-042-0	01	1	9902-9904		●	●
58	ARM; TIE ROD	1-43134-042-0	01	1	9905-9912	●	●	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43134-042-2	01	1	0001-	●	●	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X>	1-43134-042-2	01	1	0001-		●	●
58	ARM; TIE ROD	1-43135-042-0	01	1	9603-9901	●	●	●
58	ARM; TIE ROD	1-43135-042-0	01	1	9902-9904		●	●
58	ARM; TIE ROD	1-43135-042-0	01	1	9905-9912	●	●	●
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43135-042-2	01	1	0001-	●	●	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE FRT 12.00R20<72X>	1-43135-042-2	01	1	0001-		●	●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE FRT 12.00R20<72X>	1-43134-049-3	01	1	0001-			●
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE FRT 12.00R20<72X>	1-43135-049-3	01	1	0001-			●
59	NUT; TIE ROD ARM SELF LOCK M22	9-09844-670-1	04	1	9603-9901	●	●	●
59	NUT; TIE ROD ARM SELF LOCK M22	9-09844-670-1	04	1	9902-9904		●	●
59	NUT; TIE ROD ARM SELF LOCK M22	9-09844-670-1	04	1	9905-	●	●	●
60	BOLT; TIE ROD ARM 12PO1NT HEAD W/FLANGE M22X193	1-09000-154-2	04	1	9603-9901	●	●	●
60	BOLT; TIE ROD ARM 12PO1NT HEAD W/FLANGE M22X193	1-09000-154-2	04	1	9902-9904		●	●
60	BOLT; TIE ROD ARM 12PO1NT HEAD W/FLANGE M22X193	1-09000-154-2	04	1	9905-	●	●	●
61	ROD END; TIE ROD	1-43150-737-1	01	1	9603-9812	●	●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-9901	●	●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	9902-9904		●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	9905-	●	●	●
61	ROD END; TIE ROD	1-43150-736-1	01	1	9603-9812	●	●	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-9901	●	●	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	9902-9904		●	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	9905-	●	●	●
66	NUT; TIE ROD END W/SLOTTED M24 SLOTTED	1-09442-020-0	02	1	9603-9901	●	●	●
66	NUT; TIE ROD END W/SLOTTED M24 SLOTTED	1-09442-020-0	02	1	9902-9904		●	●
66	NUT; TIE ROD END W/SLOTTED M24 SLOTTED	1-09442-020-0	02	1	9905-	●	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9603-9901	●	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9902-9904		●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9905-	●	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9603-9901	●	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9902-9904		●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9905-	●	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9603-9901	●	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9902-9904		●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9905-	●	●	●
81	ROD; TIE	1-43151-118-0	01	1	9603-9901	●	●	●
81	ROD; TIE	1-43151-118-0	01	1	9902-9904		●	●
81	ROD; TIE	1-43151-118-0	01	1	9905-	●	●	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9603-9812	●	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-9901	●	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9902-9904		●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9905-	●	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) STABILIZER BAR ID=21	9-09164-520-0	02	1	9603-9901	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) STABILIZER BAR ID=21	9-09164-520-0	02	1	9905-	●
304	WASHER; PL (A) TIE ROD ID=12.5	9-09164-512-0	04	1	9603-9901	●	●	●
304	WASHER; PL (A) TIE ROD ID=12.5	9-09164-512-0	04	1	9902-9904		●	●
304	WASHER; PL (A) TIE ROD ID=12.5	9-09164-512-0	04	1	9905-	●	●	●
305	COVER; KNUCKLE OD=63	1-43175-021-0	02	1	9603-9901	●	●	●
305	COVER; KNUCKLE OD=63	1-43175-021-0	02	1	9902-9904		●	●
305	COVER; KNUCKLE OD=63	1-43175-021-0	02	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
