Sayfa 4-55 - Isuzu EPC

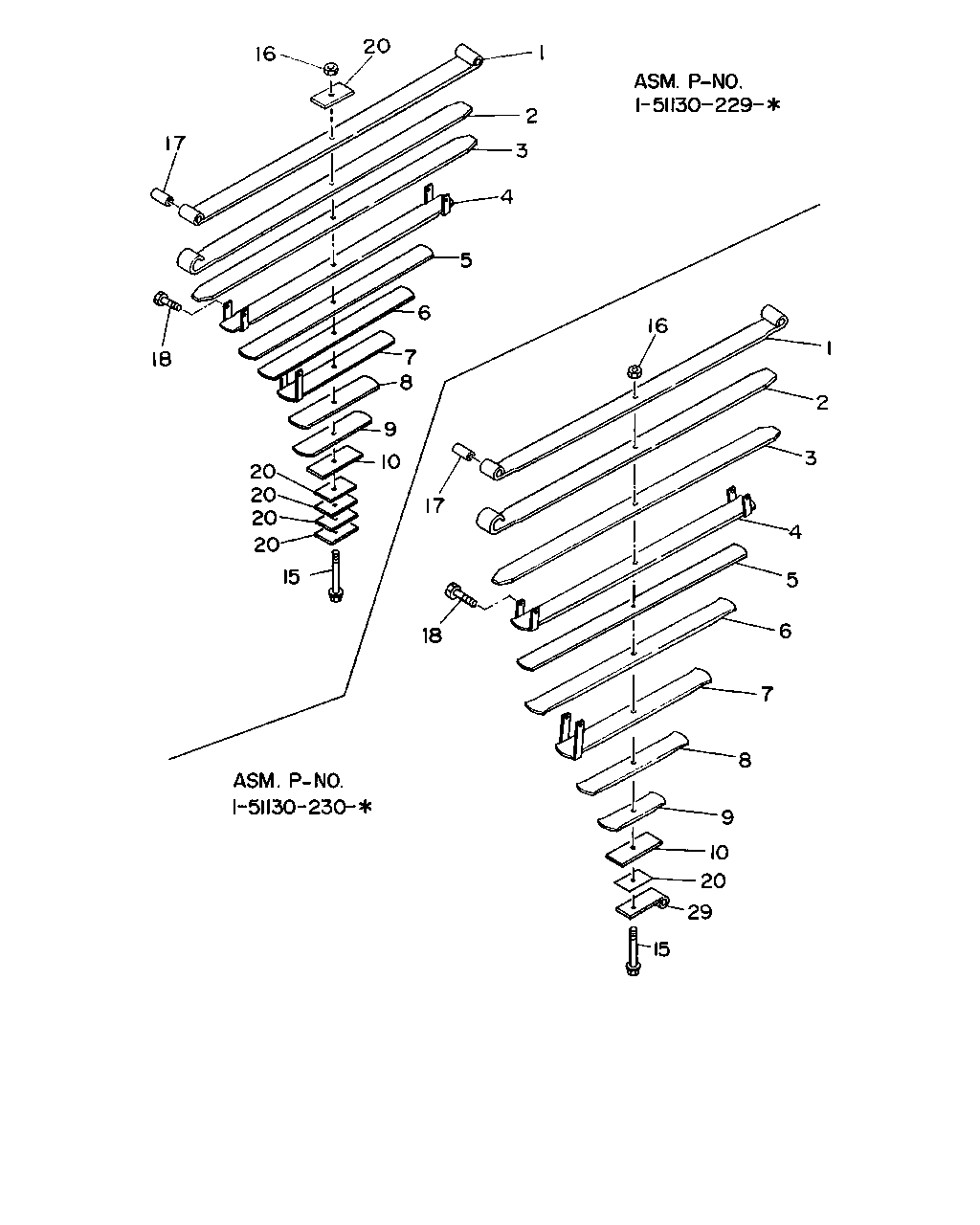

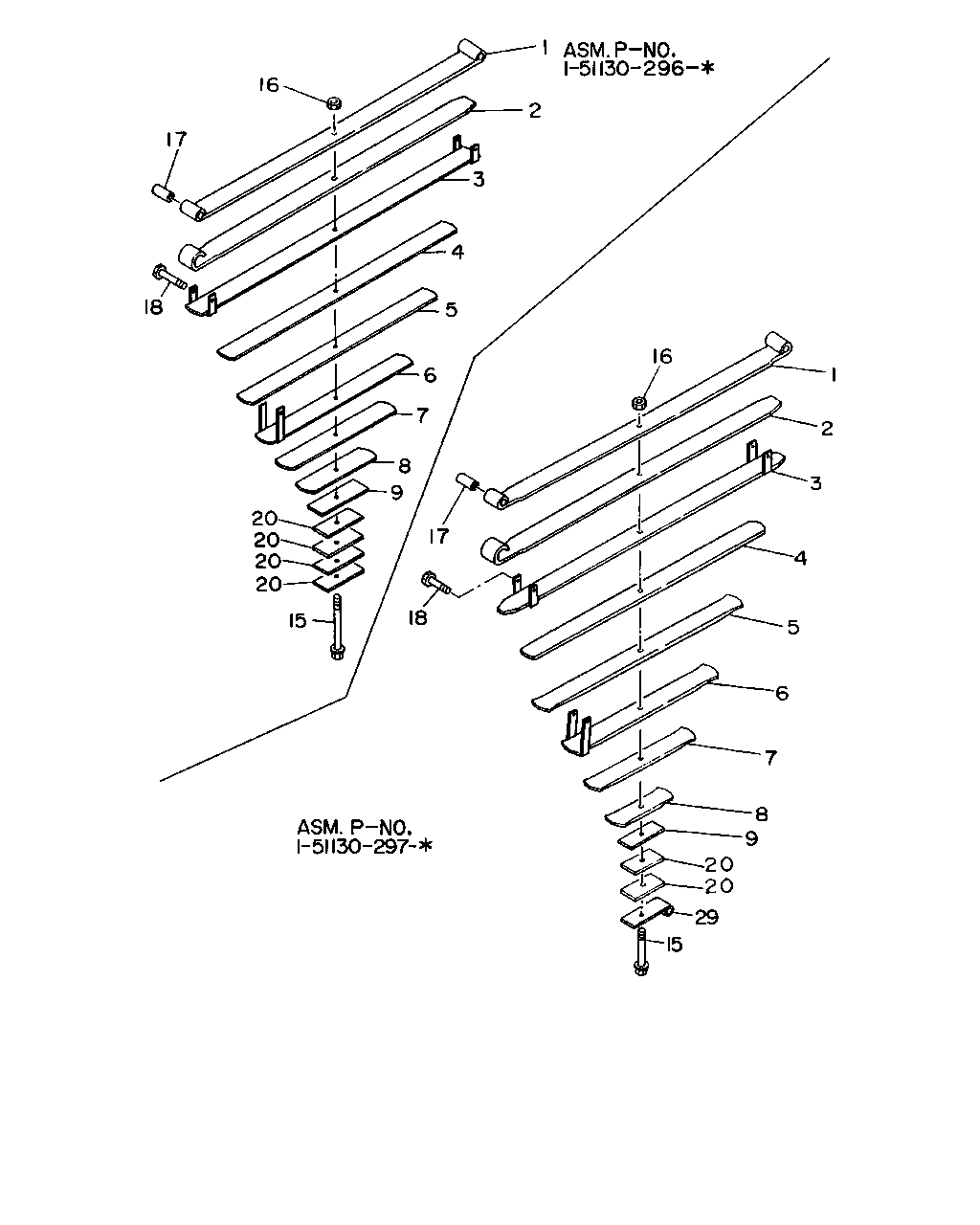

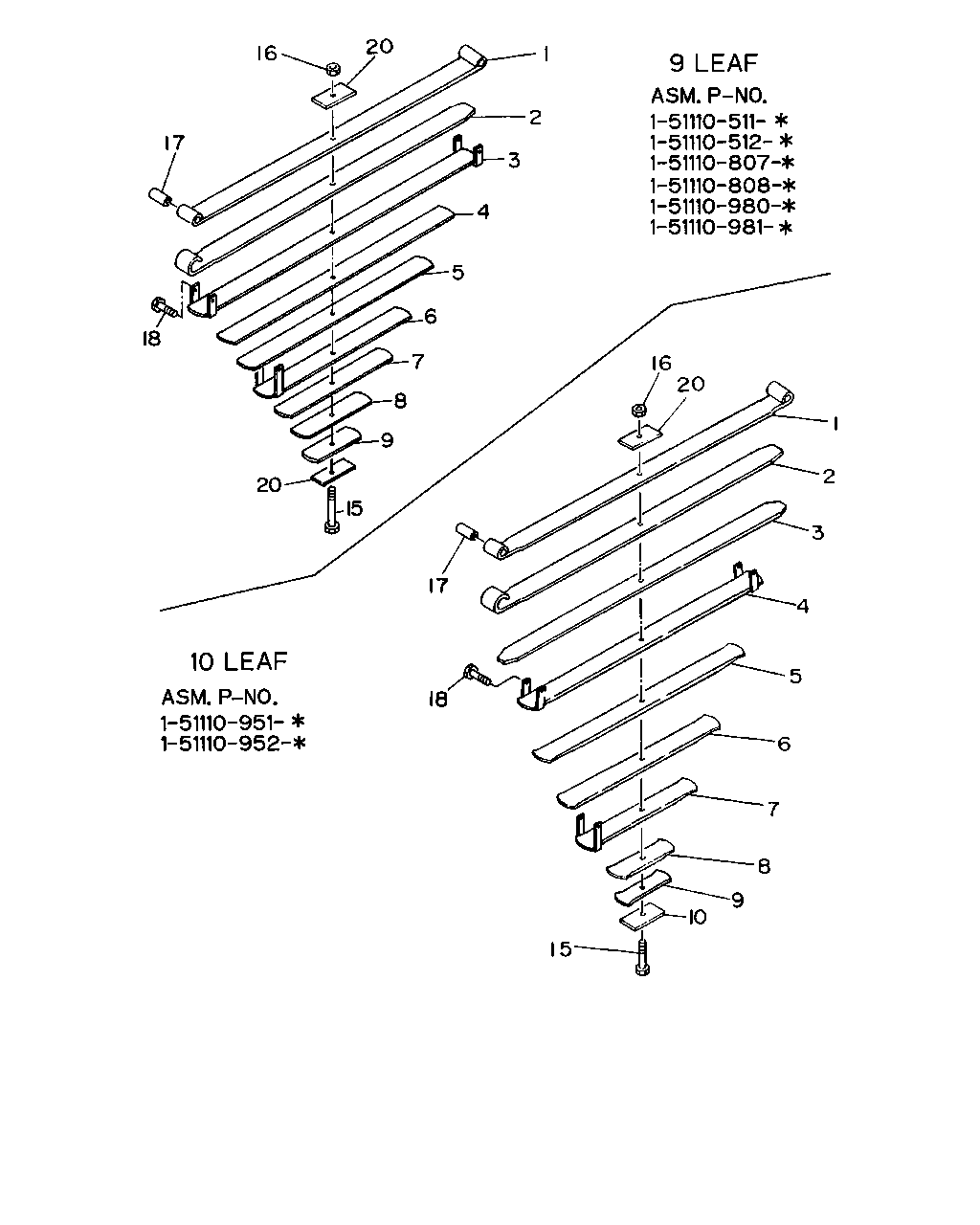

4-55 — FRONT LEAF SPRING (#539) — 406 parça

15 29 20 10 9 8 7 6 5 4 3 2 1 16 17 18 15 20 20 20 20 10 9 8 7 6 5 4 3 2 1 20 16 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-511-0	1-51111-511-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-512-0	1-51111-512-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-807-1	1-51111-807-1	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51110-808-1	1-51111-808-1	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51110-951-0	1-51111-951-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: F = 1-51110-952-0	1-51111-952-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 1-51110-980-0	1-51111-980-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 1-51110-981-0	1-51111-981-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: I = 1-51130-229-0	1-51131-229-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: J = 1-51130-230-0	1-51131-230-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: K = 1-51130-296-0	1-51131-296-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: L = 1-51130-297-0	1-51131-297-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-511-0	1-51112-511-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-512-0	1-51112-512-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-807-1	1-51112-807-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51110-808-1	1-51112-808-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51110-951-0	1-51112-951-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: F = 1-51110-952-0	1-51112-952-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 1-51110-980-0	1-51112-980-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 1-51110-981-0	1-51112-981-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: I = 1-51130-229-0	1-51132-229-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: J = 1-51130-230-0	1-51132-230-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: K = 1-51130-296-0	1-51132-296-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: L = 1-51130-297-0	1-51132-297-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-511-0	1-51113-511-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51110-512-0	1-51113-512-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-807-1	1-51113-807-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51110-808-1	1-51113-808-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 1-51110-951-0	1-51113-951-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: F = 1-51110-952-0	1-51113-952-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 1-51110-980-0	1-51113-980-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 1-51110-981-0	1-51113-981-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: I = 1-51130-229-0	1-51133-229-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: J = 1-51130-230-0	1-51133-230-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: K = 1-51130-296-0	1-51133-296-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: L = 1-51130-297-0	1-51133-297-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-511-0	1-51114-511-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51110-512-0	1-51114-512-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-807-1	1-51114-807-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51110-808-1	1-51114-808-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: E = 1-51110-951-0	1-51114-951-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: F = 1-51110-952-0	1-51114-952-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: G = 1-51110-980-0	1-51114-980-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: H = 1-51110-981-0	1-51114-981-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: I = 1-51130-229-0	1-51134-229-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: J = 1-51130-230-0	1-51134-230-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: K = 1-51130-296-0	1-51134-296-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: L = 1-51130-297-0	1-51134-297-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-511-0	1-51115-511-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-512-0	1-51115-512-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-807-1	1-51115-807-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51110-808-1	1-51115-808-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: E = 1-51110-951-0	1-51115-951-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: F = 1-51110-952-0	1-51115-952-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: G = 1-51110-980-0	1-51115-980-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: H = 1-51110-981-0	1-51115-981-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: I = 1-51130-229-0	1-51135-229-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: J = 1-51130-230-0	1-51135-230-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: K = 1-51130-296-0	1-51135-296-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: L = 1-51130-297-0	1-51135-297-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-511-0	1-51116-511-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-512-0	1-51116-512-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-807-1	1-51116-807-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51110-808-1	1-51116-808-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: E = 1-51110-951-0	1-51116-951-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: F = 1-51110-952-0	1-51116-952-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: G = 1-51110-980-0	1-51116-980-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: H = 1-51110-981-0	1-51116-981-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: I = 1-51130-229-0	1-51136-229-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: J = 1-51130-230-0	1-51136-230-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: K = 1-51130-296-0	1-51136-296-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: L = 1-51130-297-0	1-51136-297-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51110-511-0	1-51117-511-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51110-512-0	1-51117-512-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51110-807-1	1-51117-807-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51110-808-1	1-51117-808-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: E = 1-51110-951-0	1-51117-951-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: F = 1-51110-952-0	1-51117-952-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: G = 1-51110-980-0	1-51117-980-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: H = 1-51110-981-0	1-51117-981-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: I = 1-51130-229-0	1-51137-229-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: J = 1-51130-230-0	1-51137-230-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: K = 1-51130-296-0	1-51137-296-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: L = 1-51130-297-0	1-51137-297-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51110-511-0	1-51118-511-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51110-512-0	1-51118-512-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51110-807-1	1-51118-807-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51110-808-1	1-51118-808-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: E = 1-51110-951-0	1-51118-951-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: F = 1-51110-952-0	1-51118-952-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: G = 1-51110-980-0	1-51118-980-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: H = 1-51110-981-0	1-51118-981-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: I = 1-51130-229-0	1-51138-229-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: J = 1-51130-230-0	1-51138-230-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: K = 1-51130-296-0	1-51138-296-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: L = 1-51130-297-0	1-51138-297-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51110-511-0	1-51119-511-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51110-512-0	1-51119-512-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51110-807-1	1-51119-807-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: D = 1-51110-808-1	1-51119-808-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: E = 1-51110-951-0	1-51119-951-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: F = 1-51110-952-0	1-51119-952-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: G = 1-51110-980-0	1-51119-980-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: H = 1-51110-981-0	1-51119-981-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: I = 1-51130-229-0	1-51139-229-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: J = 1-51130-230-0	1-51139-230-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: K = 1-51130-296-0	1-51139-296-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: L = 1-51130-297-0	1-51139-297-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: E = 1-51110-951-0	1-51121-951-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: F = 1-51110-952-0	1-51121-952-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: I = 1-51130-229-0	1-51141-229-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: J = 1-51130-230-0	1-51141-230-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=125 ASM PART: A = 1-51110-511-0	1-51156-055-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: B = 1-51110-512-0	1-51156-068-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51110-807-1	1-51156-100-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: G = 1-51110-980-0, H = 1-51110-981-0	1-51156-112-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: E = 1-51110-951-0	1-51156-190-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 1-51130-230-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: L = 1-51130-297-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: K = 1-51130-296-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: I = 1-51130-229-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: D = 1-51110-808-1, F = 1-51110-952-0	1-51356-122-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0	9-99110-116-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0, C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51110-512-0	1-51177-033-0	01	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: K = 1-51130-296-0	1-51177-107-0	04	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: I = 1-51130-229-0	1-51177-107-0	05	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: E = 1-51110-951-0	1-51177-109-0	01	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: D = 1-51110-808-1	1-51177-109-0	01	1	9001-
20	SEAT; LEAF SPR,FRT T=6 ASM PART: G = 1-51110-980-0, H = 1-51110-981-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT ASM PART: D = 1-51110-808-1	1-51177-231-0	01	1	-8912
20	SEAT; LEAF SPR,FRT T=8 ASM PART: L = 1-51130-297-0	1-51177-259-0	02	1	-
20	SEAT; LEAF SPR,FRT T=5 ASM PART: J = 1-51130-230-0	1-51177-306-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: J = 1-51130-230-0, L = 1-51130-297-0	1-51681-650-0	01	1	-

15 29 20 20 9 8 7 9 5 4 3 1 2 16 1 2 3 4 5 6 7 8 9 18 17 15 20 20 20 20 18 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-511-0	1-51111-511-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-512-0	1-51111-512-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-807-1	1-51111-807-1	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51110-808-1	1-51111-808-1	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51110-951-0	1-51111-951-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: F = 1-51110-952-0	1-51111-952-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 1-51110-980-0	1-51111-980-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 1-51110-981-0	1-51111-981-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: I = 1-51130-229-0	1-51131-229-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: J = 1-51130-230-0	1-51131-230-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: K = 1-51130-296-0	1-51131-296-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: L = 1-51130-297-0	1-51131-297-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-511-0	1-51112-511-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-512-0	1-51112-512-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-807-1	1-51112-807-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51110-808-1	1-51112-808-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51110-951-0	1-51112-951-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: F = 1-51110-952-0	1-51112-952-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 1-51110-980-0	1-51112-980-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 1-51110-981-0	1-51112-981-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: I = 1-51130-229-0	1-51132-229-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: J = 1-51130-230-0	1-51132-230-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: K = 1-51130-296-0	1-51132-296-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: L = 1-51130-297-0	1-51132-297-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-511-0	1-51113-511-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51110-512-0	1-51113-512-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-807-1	1-51113-807-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51110-808-1	1-51113-808-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 1-51110-951-0	1-51113-951-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: F = 1-51110-952-0	1-51113-952-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 1-51110-980-0	1-51113-980-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 1-51110-981-0	1-51113-981-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: I = 1-51130-229-0	1-51133-229-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: J = 1-51130-230-0	1-51133-230-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: K = 1-51130-296-0	1-51133-296-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: L = 1-51130-297-0	1-51133-297-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-511-0	1-51114-511-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51110-512-0	1-51114-512-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-807-1	1-51114-807-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51110-808-1	1-51114-808-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: E = 1-51110-951-0	1-51114-951-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: F = 1-51110-952-0	1-51114-952-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: G = 1-51110-980-0	1-51114-980-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: H = 1-51110-981-0	1-51114-981-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: I = 1-51130-229-0	1-51134-229-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: J = 1-51130-230-0	1-51134-230-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: K = 1-51130-296-0	1-51134-296-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: L = 1-51130-297-0	1-51134-297-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-511-0	1-51115-511-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-512-0	1-51115-512-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-807-1	1-51115-807-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51110-808-1	1-51115-808-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: E = 1-51110-951-0	1-51115-951-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: F = 1-51110-952-0	1-51115-952-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: G = 1-51110-980-0	1-51115-980-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: H = 1-51110-981-0	1-51115-981-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: I = 1-51130-229-0	1-51135-229-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: J = 1-51130-230-0	1-51135-230-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: K = 1-51130-296-0	1-51135-296-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: L = 1-51130-297-0	1-51135-297-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-511-0	1-51116-511-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-512-0	1-51116-512-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-807-1	1-51116-807-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51110-808-1	1-51116-808-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: E = 1-51110-951-0	1-51116-951-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: F = 1-51110-952-0	1-51116-952-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: G = 1-51110-980-0	1-51116-980-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: H = 1-51110-981-0	1-51116-981-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: I = 1-51130-229-0	1-51136-229-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: J = 1-51130-230-0	1-51136-230-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: K = 1-51130-296-0	1-51136-296-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: L = 1-51130-297-0	1-51136-297-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51110-511-0	1-51117-511-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51110-512-0	1-51117-512-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51110-807-1	1-51117-807-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51110-808-1	1-51117-808-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: E = 1-51110-951-0	1-51117-951-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: F = 1-51110-952-0	1-51117-952-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: G = 1-51110-980-0	1-51117-980-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: H = 1-51110-981-0	1-51117-981-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: I = 1-51130-229-0	1-51137-229-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: J = 1-51130-230-0	1-51137-230-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: K = 1-51130-296-0	1-51137-296-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: L = 1-51130-297-0	1-51137-297-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51110-511-0	1-51118-511-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51110-512-0	1-51118-512-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51110-807-1	1-51118-807-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51110-808-1	1-51118-808-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: E = 1-51110-951-0	1-51118-951-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: F = 1-51110-952-0	1-51118-952-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: G = 1-51110-980-0	1-51118-980-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: H = 1-51110-981-0	1-51118-981-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: I = 1-51130-229-0	1-51138-229-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: J = 1-51130-230-0	1-51138-230-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: K = 1-51130-296-0	1-51138-296-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: L = 1-51130-297-0	1-51138-297-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51110-511-0	1-51119-511-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51110-512-0	1-51119-512-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51110-807-1	1-51119-807-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: D = 1-51110-808-1	1-51119-808-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: E = 1-51110-951-0	1-51119-951-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: F = 1-51110-952-0	1-51119-952-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: G = 1-51110-980-0	1-51119-980-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: H = 1-51110-981-0	1-51119-981-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: I = 1-51130-229-0	1-51139-229-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: J = 1-51130-230-0	1-51139-230-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: K = 1-51130-296-0	1-51139-296-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: L = 1-51130-297-0	1-51139-297-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=125 ASM PART: A = 1-51110-511-0	1-51156-055-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: B = 1-51110-512-0	1-51156-068-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51110-807-1	1-51156-100-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: G = 1-51110-980-0, H = 1-51110-981-0	1-51156-112-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: E = 1-51110-951-0	1-51156-190-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 1-51130-230-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: L = 1-51130-297-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: K = 1-51130-296-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: I = 1-51130-229-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: D = 1-51110-808-1, F = 1-51110-952-0	1-51356-122-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0	9-99110-116-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0, C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51110-512-0	1-51177-033-0	01	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: K = 1-51130-296-0	1-51177-107-0	04	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: I = 1-51130-229-0	1-51177-107-0	05	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: E = 1-51110-951-0	1-51177-109-0	01	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: D = 1-51110-808-1	1-51177-109-0	01	1	9001-
20	SEAT; LEAF SPR,FRT T=6 ASM PART: G = 1-51110-980-0, H = 1-51110-981-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT ASM PART: D = 1-51110-808-1	1-51177-231-0	01	1	-8912
20	SEAT; LEAF SPR,FRT T=8 ASM PART: L = 1-51130-297-0	1-51177-259-0	02	1	-
20	SEAT; LEAF SPR,FRT T=5 ASM PART: J = 1-51130-230-0	1-51177-306-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: J = 1-51130-230-0, L = 1-51130-297-0	1-51681-650-0	01	1	-

15 9 10 8 7 6 5 4 3 2 1 20 16 17 18 20 18 17 16 20 1 2 3 4 5 6 7 8 9 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51110-511-0	1-51111-511-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51110-512-0	1-51111-512-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51110-807-1	1-51111-807-1	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51110-808-1	1-51111-808-1	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51110-951-0	1-51111-951-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: F = 1-51110-952-0	1-51111-952-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 1-51110-980-0	1-51111-980-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 1-51110-981-0	1-51111-981-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: I = 1-51130-229-0	1-51131-229-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: J = 1-51130-230-0	1-51131-230-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: K = 1-51130-296-0	1-51131-296-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: L = 1-51130-297-0	1-51131-297-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51110-511-0	1-51112-511-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51110-512-0	1-51112-512-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51110-807-1	1-51112-807-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51110-808-1	1-51112-808-1	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51110-951-0	1-51112-951-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: F = 1-51110-952-0	1-51112-952-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 1-51110-980-0	1-51112-980-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 1-51110-981-0	1-51112-981-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: I = 1-51130-229-0	1-51132-229-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: J = 1-51130-230-0	1-51132-230-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: K = 1-51130-296-0	1-51132-296-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: L = 1-51130-297-0	1-51132-297-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51110-511-0	1-51113-511-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51110-512-0	1-51113-512-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51110-807-1	1-51113-807-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51110-808-1	1-51113-808-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 1-51110-951-0	1-51113-951-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: F = 1-51110-952-0	1-51113-952-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 1-51110-980-0	1-51113-980-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 1-51110-981-0	1-51113-981-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: I = 1-51130-229-0	1-51133-229-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: J = 1-51130-230-0	1-51133-230-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: K = 1-51130-296-0	1-51133-296-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: L = 1-51130-297-0	1-51133-297-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51110-511-0	1-51114-511-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51110-512-0	1-51114-512-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51110-807-1	1-51114-807-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51110-808-1	1-51114-808-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: E = 1-51110-951-0	1-51114-951-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: F = 1-51110-952-0	1-51114-952-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: G = 1-51110-980-0	1-51114-980-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: H = 1-51110-981-0	1-51114-981-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: I = 1-51130-229-0	1-51134-229-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: J = 1-51130-230-0	1-51134-230-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: K = 1-51130-296-0	1-51134-296-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: L = 1-51130-297-0	1-51134-297-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51110-511-0	1-51115-511-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51110-512-0	1-51115-512-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51110-807-1	1-51115-807-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51110-808-1	1-51115-808-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: E = 1-51110-951-0	1-51115-951-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: F = 1-51110-952-0	1-51115-952-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: G = 1-51110-980-0	1-51115-980-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: H = 1-51110-981-0	1-51115-981-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: I = 1-51130-229-0	1-51135-229-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: J = 1-51130-230-0	1-51135-230-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: K = 1-51130-296-0	1-51135-296-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: L = 1-51130-297-0	1-51135-297-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51110-511-0	1-51116-511-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51110-512-0	1-51116-512-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51110-807-1	1-51116-807-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51110-808-1	1-51116-808-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: E = 1-51110-951-0	1-51116-951-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: F = 1-51110-952-0	1-51116-952-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: G = 1-51110-980-0	1-51116-980-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: H = 1-51110-981-0	1-51116-981-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: I = 1-51130-229-0	1-51136-229-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: J = 1-51130-230-0	1-51136-230-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: K = 1-51130-296-0	1-51136-296-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: L = 1-51130-297-0	1-51136-297-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51110-511-0	1-51117-511-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51110-512-0	1-51117-512-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51110-807-1	1-51117-807-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51110-808-1	1-51117-808-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: E = 1-51110-951-0	1-51117-951-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: F = 1-51110-952-0	1-51117-952-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: G = 1-51110-980-0	1-51117-980-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: H = 1-51110-981-0	1-51117-981-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: I = 1-51130-229-0	1-51137-229-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: J = 1-51130-230-0	1-51137-230-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: K = 1-51130-296-0	1-51137-296-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: L = 1-51130-297-0	1-51137-297-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51110-511-0	1-51118-511-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51110-512-0	1-51118-512-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51110-807-1	1-51118-807-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51110-808-1	1-51118-808-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: E = 1-51110-951-0	1-51118-951-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: F = 1-51110-952-0	1-51118-952-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: G = 1-51110-980-0	1-51118-980-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: H = 1-51110-981-0	1-51118-981-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: I = 1-51130-229-0	1-51138-229-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: J = 1-51130-230-0	1-51138-230-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: K = 1-51130-296-0	1-51138-296-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: L = 1-51130-297-0	1-51138-297-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51110-511-0	1-51119-511-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51110-512-0	1-51119-512-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51110-807-1	1-51119-807-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: D = 1-51110-808-1	1-51119-808-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: E = 1-51110-951-0	1-51119-951-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: F = 1-51110-952-0	1-51119-952-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: G = 1-51110-980-0	1-51119-980-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: H = 1-51110-981-0	1-51119-981-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: I = 1-51130-229-0	1-51139-229-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: J = 1-51130-230-0	1-51139-230-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: K = 1-51130-296-0	1-51139-296-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: L = 1-51130-297-0	1-51139-297-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: E = 1-51110-951-0	1-51121-951-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: F = 1-51110-952-0	1-51121-952-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: I = 1-51130-229-0	1-51141-229-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: J = 1-51130-230-0	1-51141-230-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=125 ASM PART: A = 1-51110-511-0	1-51156-055-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: B = 1-51110-512-0	1-51156-068-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51110-807-1	1-51156-100-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: G = 1-51110-980-0, H = 1-51110-981-0	1-51156-112-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: E = 1-51110-951-0	1-51156-190-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 1-51130-230-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: L = 1-51130-297-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: K = 1-51130-296-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: I = 1-51130-229-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: D = 1-51110-808-1, F = 1-51110-952-0	1-51356-122-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0	9-99110-116-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0, C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: A = 1-51110-511-0, B = 1-51110-512-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: C = 1-51110-807-1, D = 1-51110-808-1, E = 1-51110-951-0, F = 1-51110-952-0, G = 1-51110-980-0, H = 1-51110-981-0, I = 1-51130-229-0, J = 1-51130-230-0, K = 1-51130-296-0, L = 1-51130-297-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51110-512-0	1-51177-033-0	01	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: K = 1-51130-296-0	1-51177-107-0	04	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: I = 1-51130-229-0	1-51177-107-0	05	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: E = 1-51110-951-0	1-51177-109-0	01	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: D = 1-51110-808-1	1-51177-109-0	01	1	9001-
20	SEAT; LEAF SPR,FRT T=6 ASM PART: G = 1-51110-980-0, H = 1-51110-981-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT ASM PART: D = 1-51110-808-1	1-51177-231-0	01	1	-8912
20	SEAT; LEAF SPR,FRT T=8 ASM PART: L = 1-51130-297-0	1-51177-259-0	02	1	-
20	SEAT; LEAF SPR,FRT T=5 ASM PART: J = 1-51130-230-0	1-51177-306-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
