◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#53897) — 84 parça

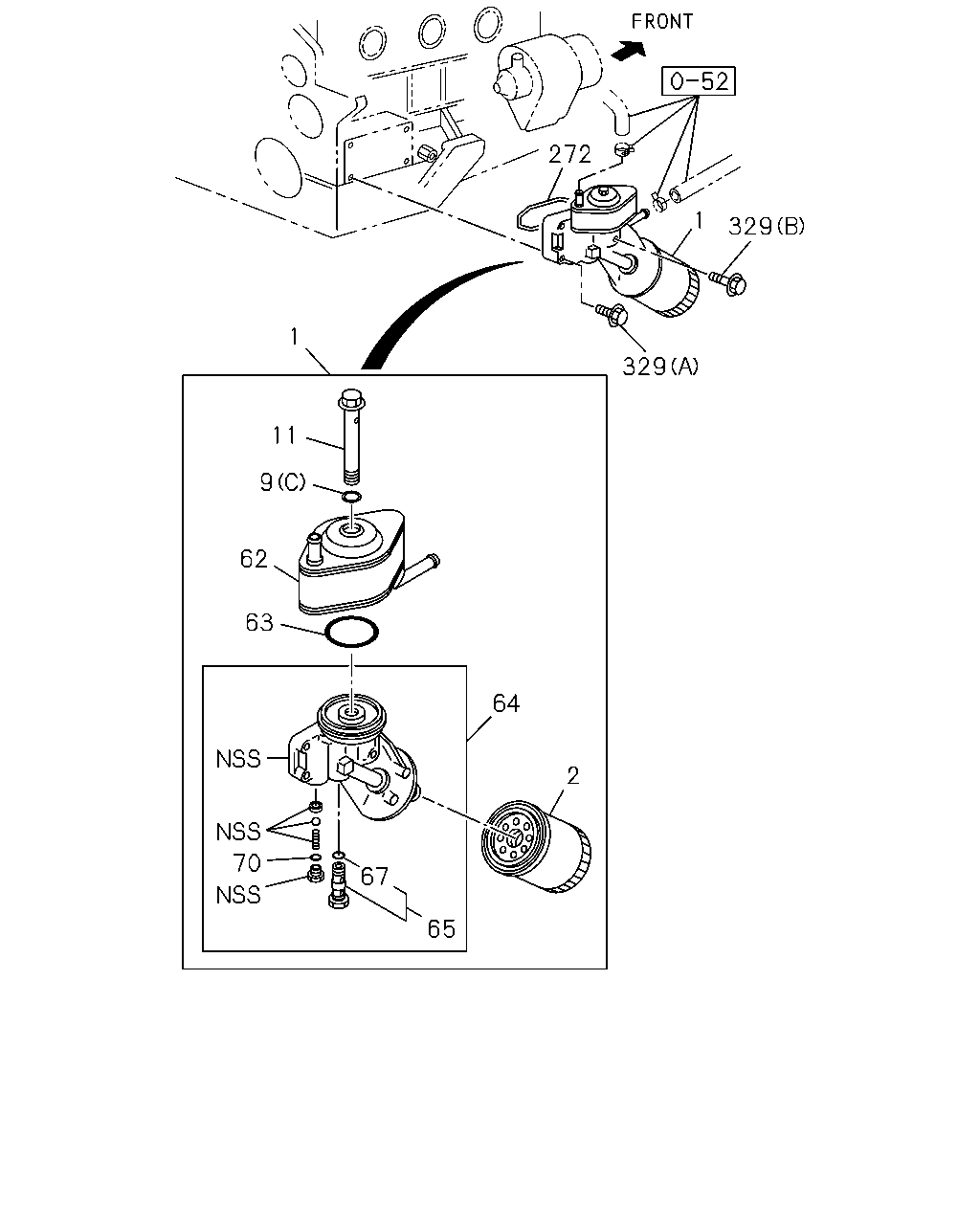

çizim 154593
272 1 329 1 329 11 9 62 63 64 2 70 67 65
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.540 FILTER & COOLER ASM; OIL 8-98003-929-6 01 1 0710-0803 ●
1 01.540 FILTER & COOLER ASM; OIL 8-98003-929-9 01 1 0804-1208 ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-98196-739-0 01 1 1209-1504 ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-98270-496-0 01 1 1505- ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-97224-298-2 01 1 0804- ●
2 01.836 ELEMENT; OIL FILTER 8-98018-858-0 01 1 0710-0803 ●
2 01.836 ELEMENT; OIL FILTER 8-98018-858-0 01 1 0804- ● ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 0804- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 0804- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-118-0 01 1 0710-0803 ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-118-0 01 1 0804- ● ●
9 01.840 GASKET; CENTER BOLT
(A) 		1-09623-500-0 01 1 0710-0803 ●
9 01.840 GASKET; CENTER BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-500-0 01 1 0804- ● ●
9 01.840 GASKET; CENTER BOLT
01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-226-0 02 1 0710-0803 ●
9 01.840 GASKET; CENTER BOLT
01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-226-0 02 1 0804- ● ●
9 01.840 GASKET; CENTER BOLT
(C) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 0804- ●
11 01.840 BOLT; CENTER 8-98018-847-0 01 1 0710-0803 ●
11 01.840 BOLT; CENTER 8-98018-847-0 01 1 0804- ● ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 0804- ●
62 01.540 COOLER ASM; OIL 8-97226-391-0 01 1 0804- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 0804- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97166-497-2 01 1 0804- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0804- ●
67 01.550 GASKET; VLV 9-09562-215-0 01 1 0710-0803 ●
67 01.550 GASKET; VLV 9-09562-215-0 01 1 0804- ● ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 0804- ●
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 0804- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 0804- ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 0804- ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0804- ●

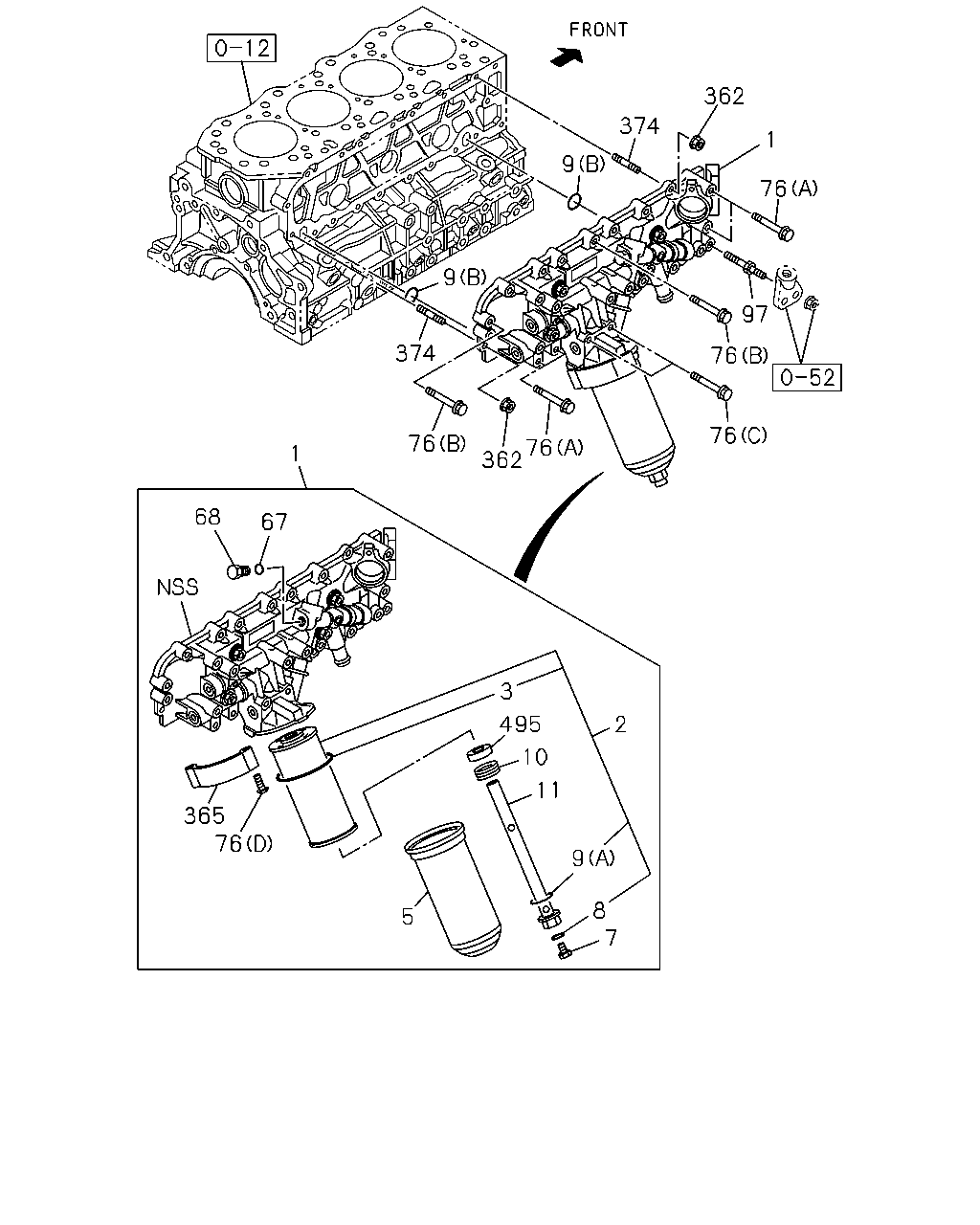

çizim 154690
362 374 1 9 76 9 97 374 76 76 76 76 362 1 68 67 3 495 2 10 11 365 76 9 8 7 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.540 FILTER & COOLER ASM; OIL 8-98003-929-6 01 1 0710-0803 ●
1 01.540 FILTER & COOLER ASM; OIL 8-98003-929-9 01 1 0804-1208 ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-98196-739-0 01 1 1209-1504 ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-98270-496-0 01 1 1505- ● ●
1 01.540 FILTER & COOLER ASM; OIL 8-97224-298-2 01 1 0804- ●
2 01.836 ELEMENT; OIL FILTER 8-98018-858-0 01 1 0710-0803 ●
2 01.836 ELEMENT; OIL FILTER 8-98018-858-0 01 1 0804- ● ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 0804- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 0804- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-118-0 01 1 0710-0803 ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-118-0 01 1 0804- ● ●
3 01.540 GASKET 8-98024-708-0 01 1 0710-0803 ●
3 01.540 GASKET 8-98024-708-0 01 1 0804- ● ●
5 01.837 CASE; OIL FILTER 8-98018-862-0 01 1 0710-0803 ●
5 01.837 CASE; OIL FILTER 8-98018-862-0 01 1 0804- ● ●
7 01.840 PLUG; CENTER BOLT 8-98018-846-0 01 1 0710-0803 ●
7 01.840 PLUG; CENTER BOLT 8-98018-846-0 01 1 0804- ● ●
8 01.840 GASKET; PLUG
03.417 ID=9.8 		1-09623-055-0 01 1 0710-0803 ●
8 01.840 GASKET; PLUG
03.417 ID=9.8 		1-09623-055-0 01 1 0804- ● ●
9 01.840 GASKET; CENTER BOLT
(A) 		1-09623-500-0 01 1 0710-0803 ●
9 01.840 GASKET; CENTER BOLT
(A) ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-500-0 01 1 0804- ● ●
9 01.840 GASKET; CENTER BOLT
01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-226-0 02 1 0710-0803 ●
9 01.840 GASKET; CENTER BOLT
01.550 (B) ID=26.2 ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-226-0 02 1 0804- ● ●
9 01.840 GASKET; CENTER BOLT
(C) ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 0804- ●
10 01.840 SPRING; ELEMENT 8-98018-850-0 01 1 0710-0803 ●
10 01.840 SPRING; ELEMENT 8-98018-850-0 01 1 0804- ● ●
11 01.840 BOLT; CENTER 8-98018-847-0 01 1 0710-0803 ●
11 01.840 BOLT; CENTER 8-98018-847-0 01 1 0804- ● ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 0804- ●
67 01.550 GASKET; VLV 9-09562-215-0 01 1 0710-0803 ●
67 01.550 GASKET; VLV 9-09562-215-0 01 1 0804- ● ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 0804- ●
68 01.837 PLUG; VLV 8-98063-778-0 01 1 0710-0803 ●
68 01.837 PLUG; VLV 8-98063-778-0 01 1 0804-0804 ● ●
68 01.837 PLUG; VLV
01.540 		9-13263-010-0 01 1 0804- ● ●
76 01.840 BOLT; OIL FILTER
00.206 (A) M8X70 FLANGE 		0-28050-870-0 04 1 0710-0803 ●
76 01.840 BOLT; OIL FILTER
00.206 (A) M8X70 FLANGE 		0-28050-870-0 04 1 0804- ● ●
76 01.840 BOLT; OIL FILTER
02.100 (C) M8X90 FLANGE 		0-28050-890-0 02 1 0710-0803 ●
76 01.840 BOLT; OIL FILTER
02.100 (C) M8X90 FLANGE 		0-28050-890-0 02 1 0804- ● ●
76 01.840 BOLT; OIL FILTER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 11 1 0710-0803 ●
76 01.840 BOLT; OIL FILTER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 11 1 0804- ● ●
76 01.840 BOLT; OIL FILTER
(D) 		8-98041-912-0 02 1 0710-0803 ●
76 01.840 BOLT; OIL FILTER
(D) 		8-98041-912-0 02 1 0804- ● ●
97 01.540 STUD; OIL COOLER BRKT
M6X13,M8X35 L=53 		8-98045-481-0 01 1 0710-0803 ●
97 01.540 STUD; OIL COOLER BRKT
M6X13,M8X35 L=53 		8-98045-481-0 01 1 0804- ● ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 0710-0803 ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 0804- ● ●
365 01.840 PROTECTOR; OIL FILTER 8-98018-857-0 01 1 0710-0803 ●
365 01.840 PROTECTOR; OIL FILTER 8-98018-857-0 01 1 0804- ● ●
374 01.840 STUD; OIL FILTER
01.428 M8X18 L=30 		0-41010-818-0 02 1 0710-0803 ●
374 01.840 STUD; OIL FILTER
01.428 M8X18 L=30 		0-41010-818-0 02 1 0804-0807 ● ●
374 01.840 STUD; OIL FILTER
02.510 M8X20 L=32 		0-41010-820-0 02 1 0808- ● ●
495 03.680 PLATE; OIL FILTER 8-98018-853-0 01 1 0710-0803 ●
495 03.680 PLATE; OIL FILTER 8-98018-853-0 01 1 0804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
