Sayfa 0-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

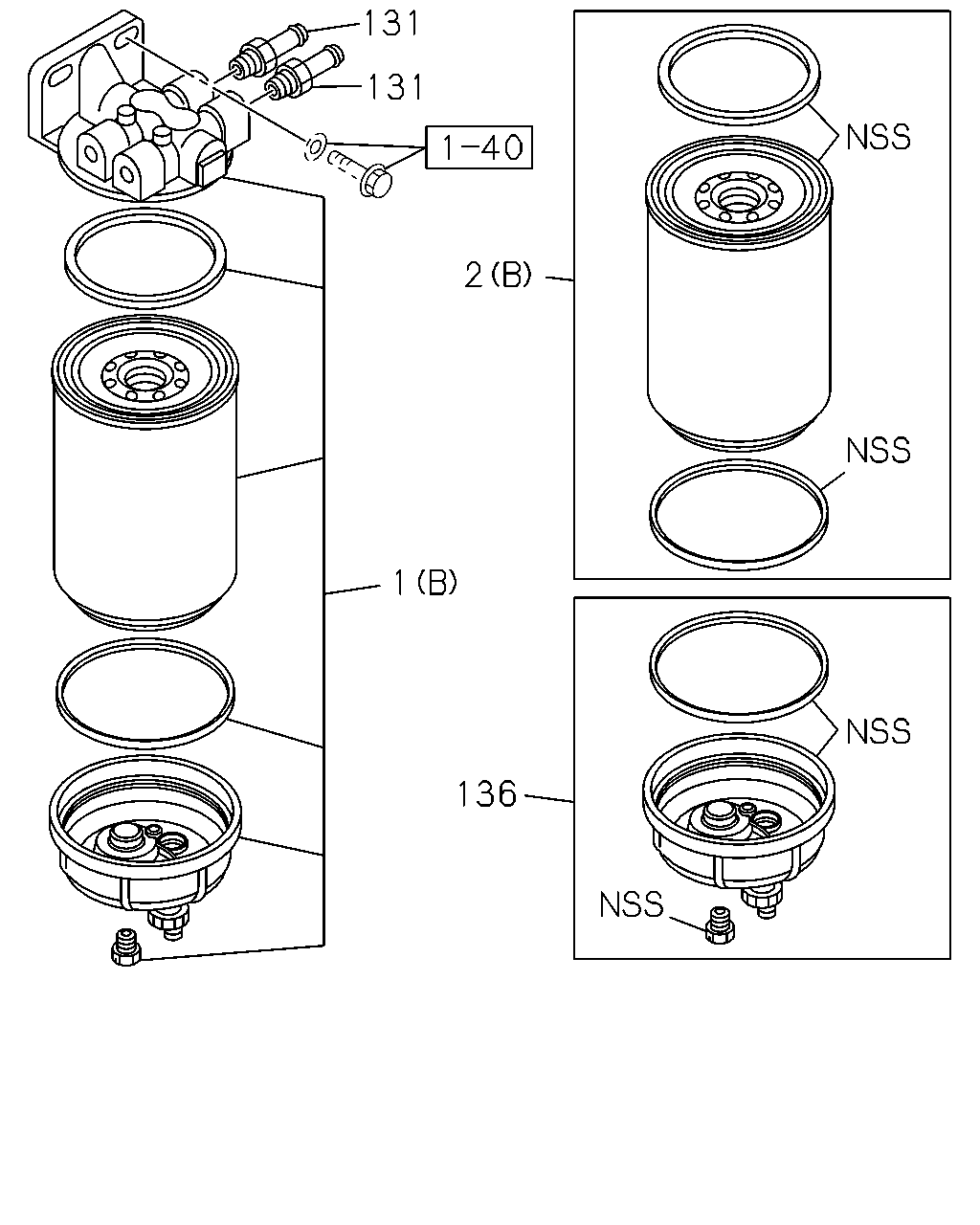

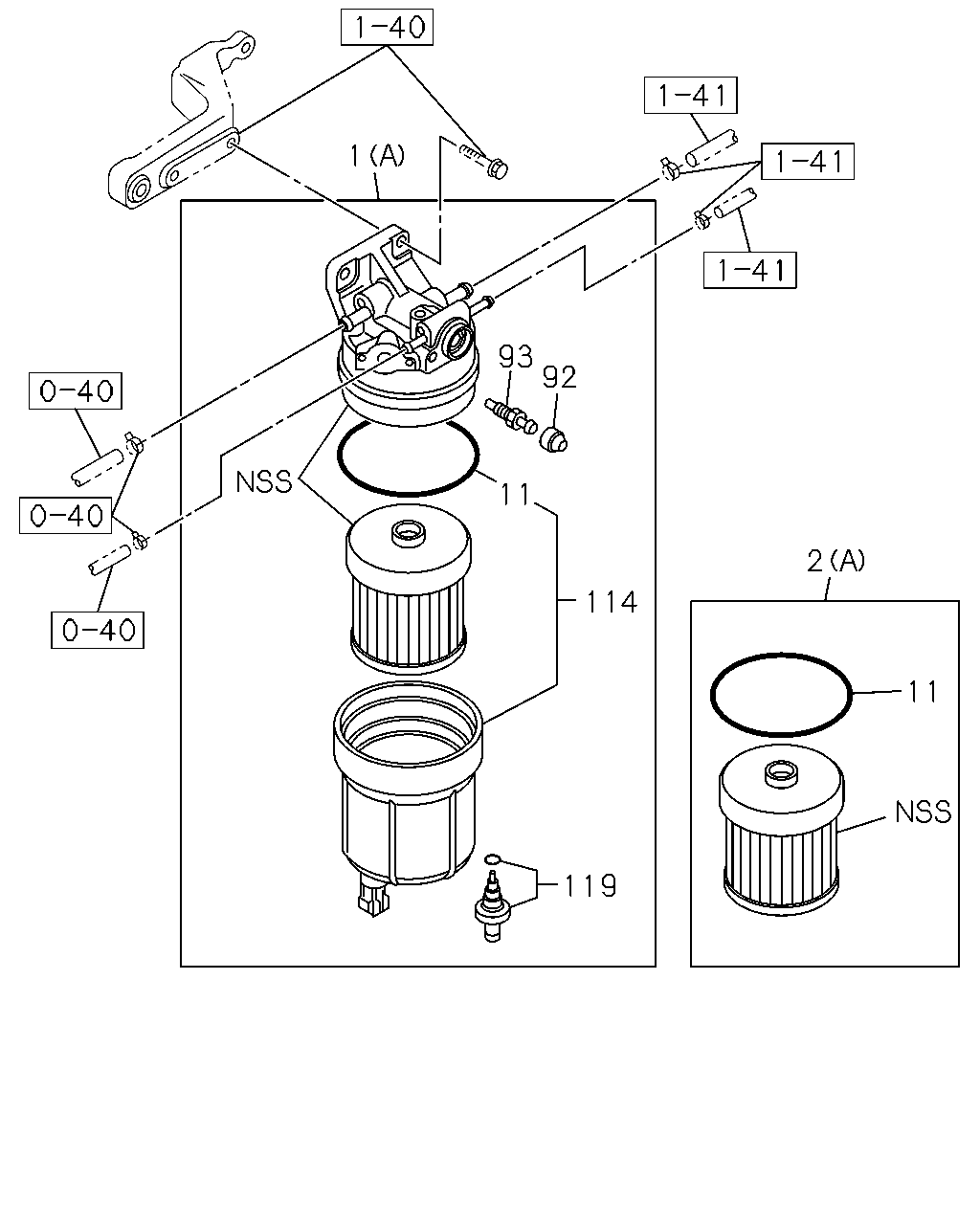

0-41 — FUEL FILTER AND BRACKET (#53896) — 140 parça

131 131 2 1 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0710-0803	●
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0804-1002	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-0	01	1	0804-1011		●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-	●	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98106-710-0	01	1	0804-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98106-176-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0710-0803	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0804-1002	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	0804-1011		●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	1012-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98037-481-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (C) BEST VALUE PARTS	5-87610-157-0	01	1	0804-			●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) 01.153	8-97358-699-0	02	1	0804-0908		●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0909-1011		●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1012-	●	●	●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98096-004-0	01	1	0804-1011		●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98096-004-0	01	1	1012-1408	●	●	●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98279-324-0	01	1	1409-	●	●	●

1 93 92 11 2 114 11 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0710-0803	●
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0804-1002	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-0	01	1	0804-1011		●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-	●	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98106-710-0	01	1	0804-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98106-176-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0710-0803	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0804-1002	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	0804-1011		●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	1012-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98037-481-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (C) BEST VALUE PARTS	5-87610-157-0	01	1	0804-			●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0710-0803	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0804-1112	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-	●	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0710-0803	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0804-	●	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0804-			●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0710-0803	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0804-	●	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0804-			●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-0	01	1	0710-0803	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	0804-	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0710-0803	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0804-	●	●

92 93 5 129 1 6 5 112 66 7 3 2 112 66 7 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0710-0803	●
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0804-1002	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-0	01	1	0804-1011		●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-	●	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98106-710-0	01	1	0804-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98106-176-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0710-0803	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0804-1002	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	0804-1011		●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	1012-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98037-481-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (C) BEST VALUE PARTS	5-87610-157-0	01	1	0804-			●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98004-758-0	01	1	0804-			●
3	03.890 SENSOR ASM; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98009-886-0	01	1	0804-			●
5	03.890 BOLT; FUEL FILTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0804-			●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94132-674-0	01	1	0804-			●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0804-			●
7	03.890 PLUG; SENSOR,FUEL FILTER	8-98004-899-0	01	1	0804-			●
66	03.890 GASKET; PLUG,FUEL FILTER	8-98004-898-0	01	1	0804-			●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0710-0803	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0804-	●	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0804-			●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0710-0803	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0804-	●	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0804-			●
112	06.605 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0804-			●
129	03.890 HARNESS; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> 02.480	8-97372-339-0	01	1	0804-			●

1 92 93 5 112 66 7 3 2 112 66 7 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0710-0803	●
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0804-1002	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-0	01	1	0804-1011		●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-	●	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98106-710-0	01	1	0804-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98106-176-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0710-0803	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0804-1002	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	0804-1011		●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	1012-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98037-481-0	01	1	0804-			●
2	03.890 ELEMENT KIT; FUEL FILTER (C) BEST VALUE PARTS	5-87610-157-0	01	1	0804-			●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98004-758-0	01	1	0804-			●
3	03.890 SENSOR ASM; FUEL FILTER EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98009-886-0	01	1	0804-			●
5	03.890 BOLT; FUEL FILTER 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0804-			●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94132-674-0	01	1	0804-			●
7	03.890 PLUG; SENSOR,FUEL FILTER	8-98004-899-0	01	1	0804-			●
66	03.890 GASKET; PLUG,FUEL FILTER	8-98004-898-0	01	1	0804-			●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0710-0803	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0804-	●	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0804-			●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0710-0803	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0804-	●	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0804-			●
112	06.605 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0804-			●

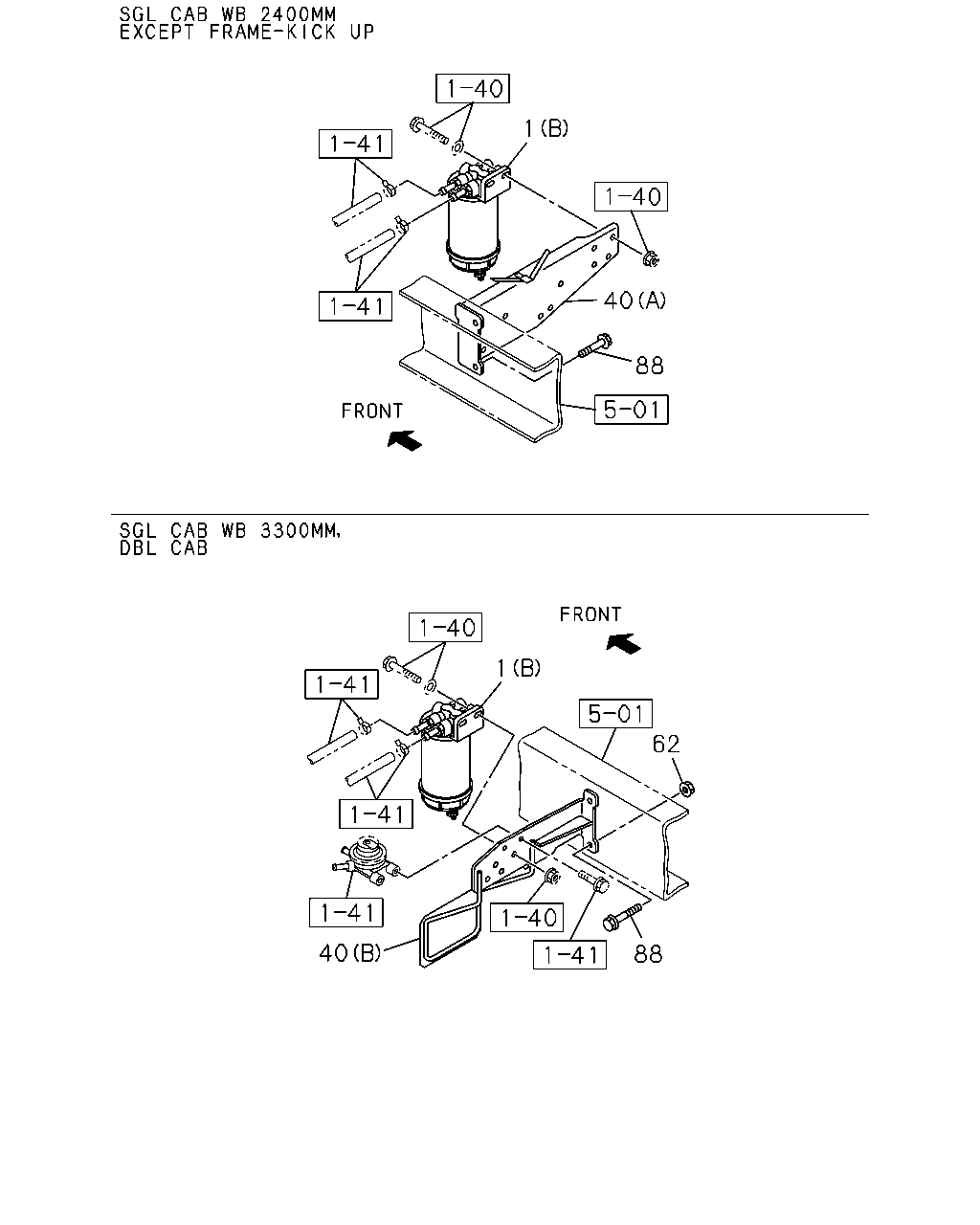

1 40 88 1 62 40 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0710-0803	●
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0804-1002	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1003-	●	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-0	01	1	0804-1011		●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	1012-	●	●	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98106-710-0	01	1	0804-			●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-98106-176-0	01	1	0804-			●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98107-351-2	01	1	0804-0903	●	●	●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98107-351-2	01	1	0904-	●	●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-354-3	01	1	0804-0903	●	●	●
40	03.890 BRACKET; FUEL FILTER NLR DBL CAB(NM**WE) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-354-3	01	1	0804-0903	●	●	●
40	03.890 BRACKET; FUEL FILTER NMR DBL CAB(NM**WN) (B)	8-98107-354-3	01	1	0804-0903	●	●	●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-354-3	01	1	0904-0909	●	●
40	03.890 BRACKET; FUEL FILTER NLR DBL CAB(NM**WE) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-354-3	01	1	0904-0909		●
40	03.890 BRACKET; FUEL FILTER NMR DBL CAB(NM**WN) (B)	8-98107-354-3	01	1	0904-0909		●
40	03.890 BRACKET; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-354-3	01	1	0910-	●	●
40	03.890 BRACKET; FUEL FILTER NLR DBL CAB(NM**WE) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-354-3	01	1	0910-		●
40	03.890 BRACKET; FUEL FILTER NMR DBL CAB(NM**WN) (B)	8-98107-354-3	01	1	0910-		●
62	03.895 NUT; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-0903	●	●	●
62	03.895 NUT; FUEL FILTER NLR DBL CAB(NM**WE) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-0903	●	●	●
62	03.895 NUT; FUEL FILTER NMR DBL CAB(NM**WN) 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-0903	●	●	●
62	03.895 NUT; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0909	●	●
62	03.895 NUT; FUEL FILTER NLR DBL CAB(NM**WE) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0909		●
62	03.895 NUT; FUEL FILTER NMR DBL CAB(NM**WN) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0909		●
62	03.895 NUT; FUEL FILTER SGL CAB(NM*S) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-	●	●
62	03.895 NUT; FUEL FILTER NLR DBL CAB(NM**WE) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-		●
62	03.895 NUT; FUEL FILTER NMR DBL CAB(NM**WN) 03.162 M10 FLANGE	0-91180-110-0	02	1	0910-		●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-0903	●	●	●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-	●	●
