Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#53893) — 282 parça

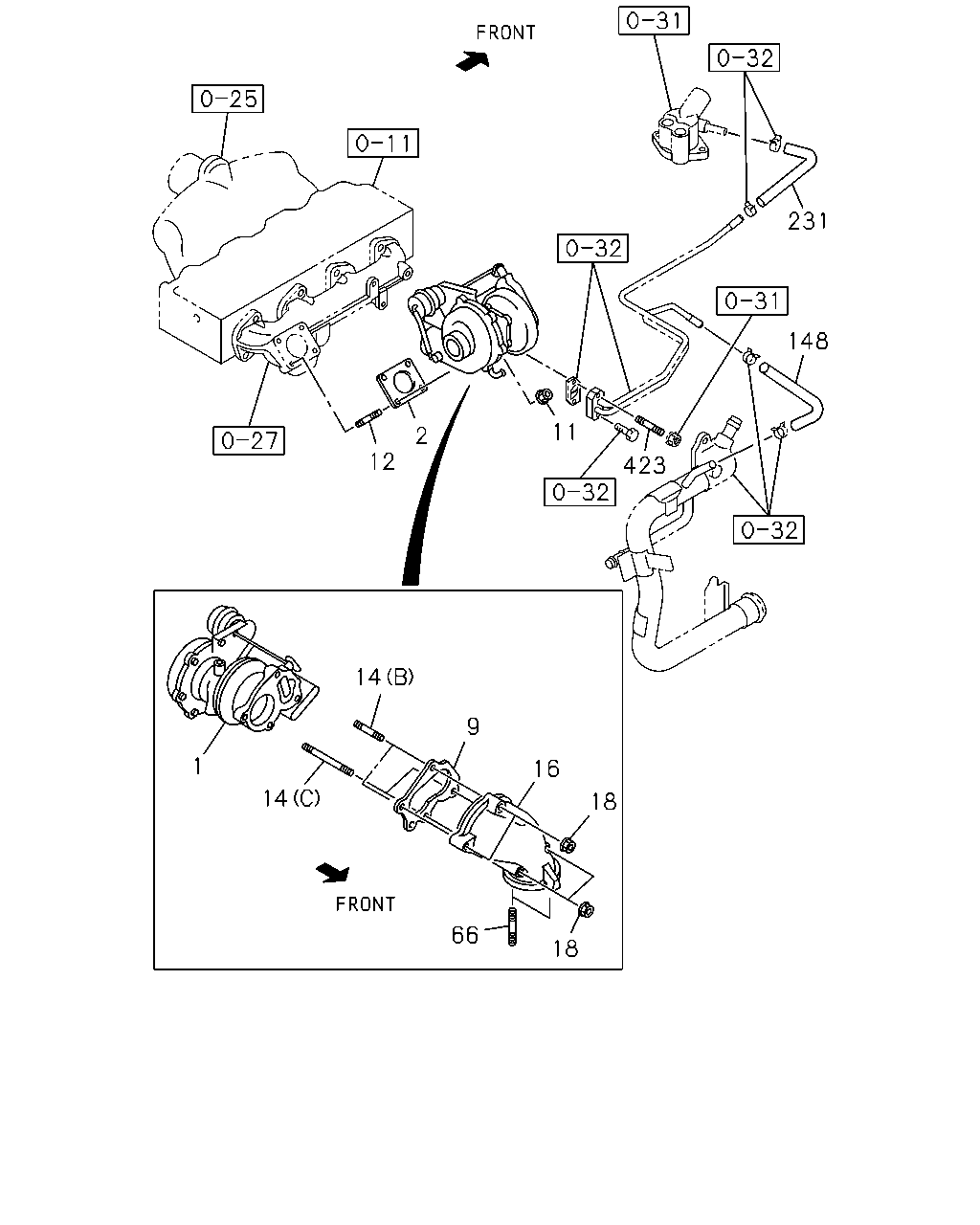

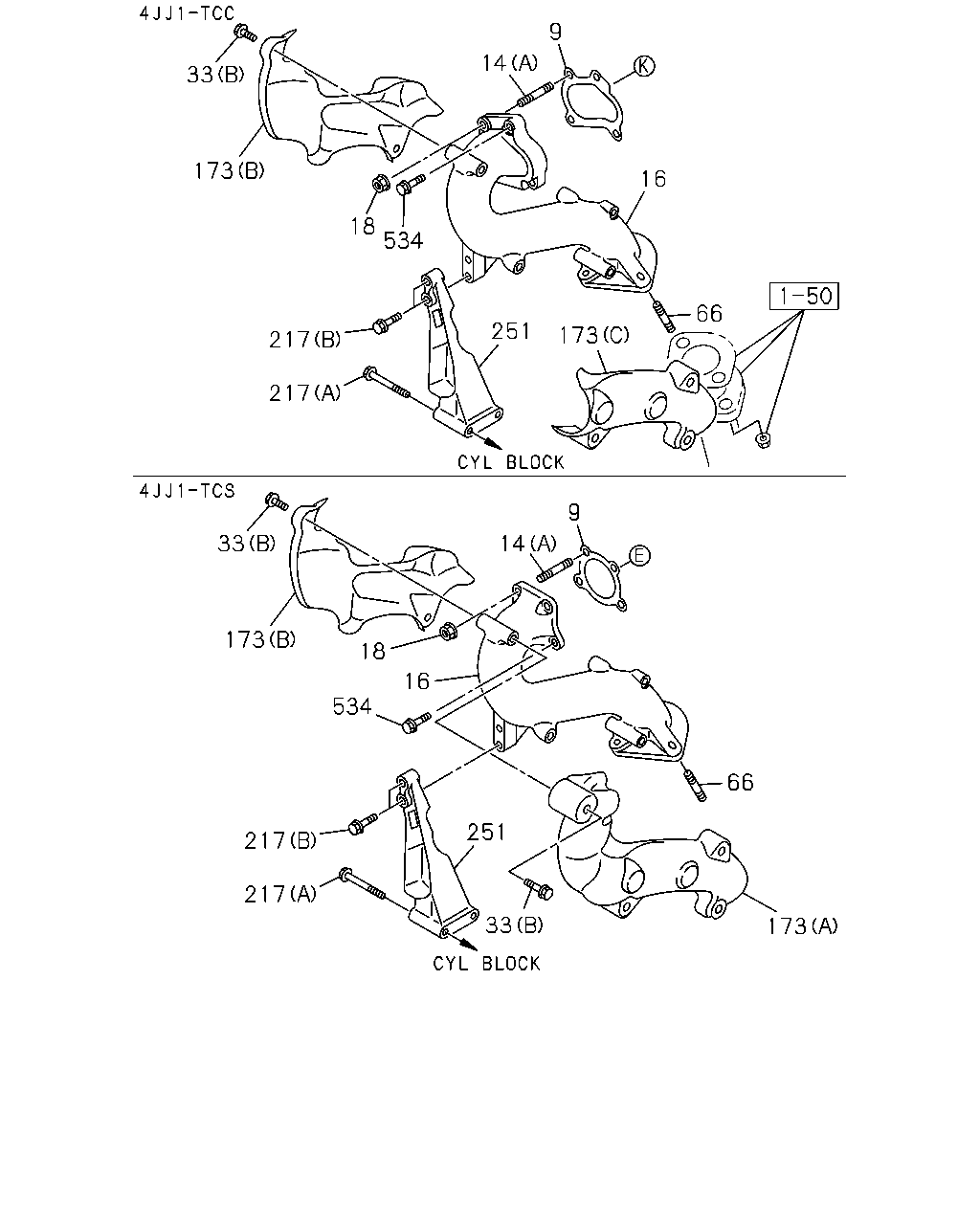

9 14 33 173 16 18 534 66 251 173 217 217 9 33 14 173 18 16 534 66 251 217 217 33 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0710-0803	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) 03.611	8-98011-532-0	01	1	0804-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-98015-116-1	01	1	0804-1008		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-98015-116-1	02	1	1009-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	0804-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	03	1	0710-0803	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.601 (A) M8X25 L=36	8-97378-062-0	03	1	0804-0903	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	0904-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	0804-0903		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0804-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97378-069-0	02	1	0804-			●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0710-0803	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98009-717-3	01	1	0804-0910	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98147-897-1	01	1	0911-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	0804-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	0804-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0710-0803	●
18	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) M8 FLANGE	8-97161-607-0	03	1	0804-0903	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-	●	●
18	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) M8 FLANGE	8-97161-607-0	02	1	0804-0903		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0804-			●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0804-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0804-	●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	0804-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0710-0803	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0804-	●	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0804-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-2	01	1	0710-0803	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO4 SPECIFICATION(NT4) (A)	8-98032-022-3	01	1	0804-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-2	01	1	0710-0803	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0804-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98032-023-1	01	1	0804-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0803	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0804-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0710-0803	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0804-	●	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0710-0803	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0804-	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0710-0803	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0804-0903	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) M8X35 FLANGE	8-98053-224-0	02	1	0804-		●

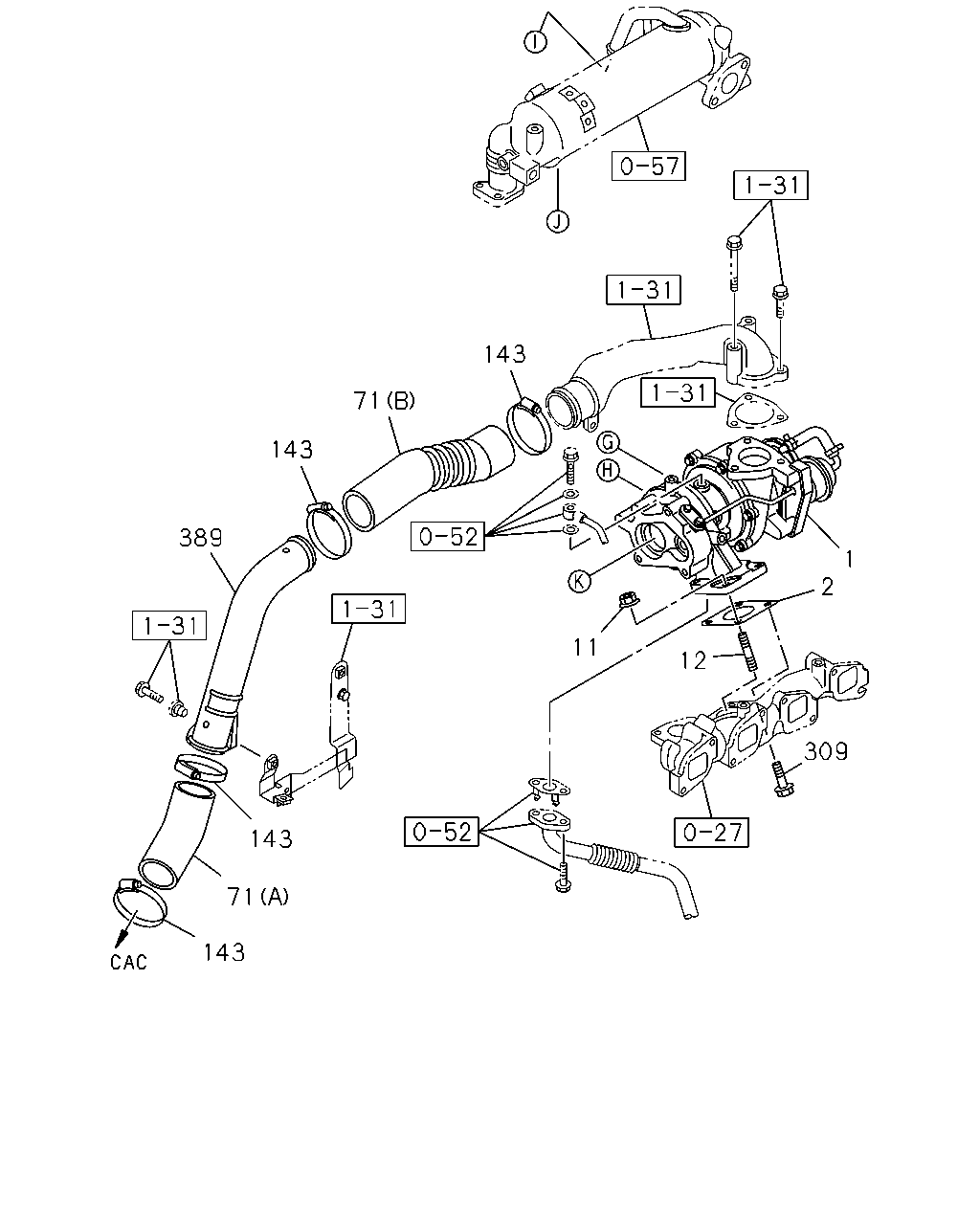

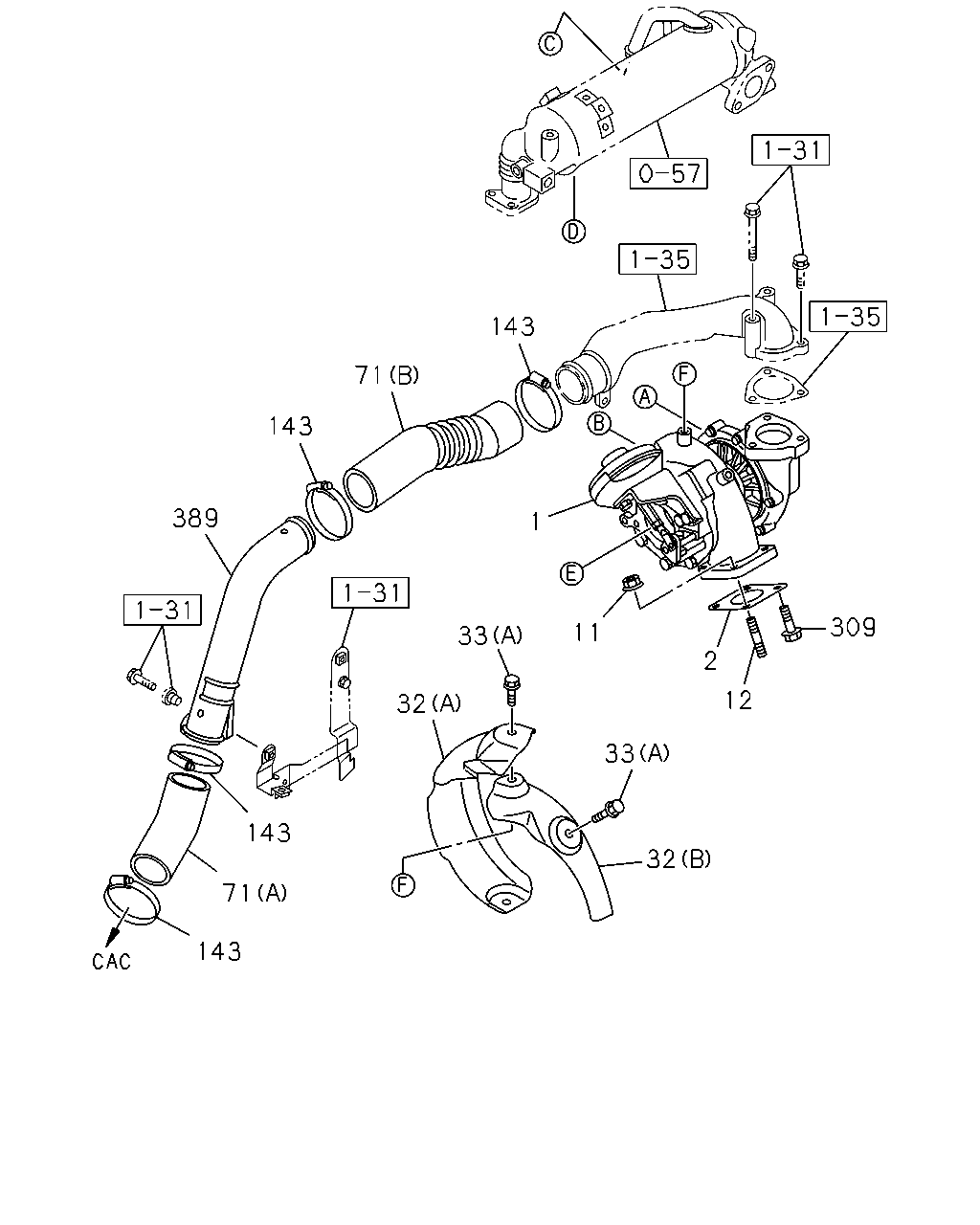

143 71 143 389 1 309 11 33 2 12 32 33 143 32 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97381-507-3	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0804-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0710-0803	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0804-	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	0804-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0804-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0804-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-1	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (A)	8-98034-990-3	01	1	0804-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-0	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98034-991-1	01	1	0804-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0804-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0804-	●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	0804-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2) (B)	8-98159-280-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER SGL CAB(NM*S) (A)	8-98036-513-2	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER SGL CAB(NM*S) (B)	8-98050-918-0	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-0	01	1	0804-1001	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98050-918-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	0804-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	0804-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=44-57	1-09707-207-0	04	1	0808-0809			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=44-57	1-09707-207-0	06	1	0810-0810			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=40-50	8-98133-347-0	04	1	0811-1001			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1002-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1002-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NM*S) ID=50-65	1-09707-204-0	04	1	0710-0803	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0804-0807	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0808-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1002-	●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0710-0803	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC SGL CAB(NM*S)	8-98038-996-1	01	1	0710-0803	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	0804-			●

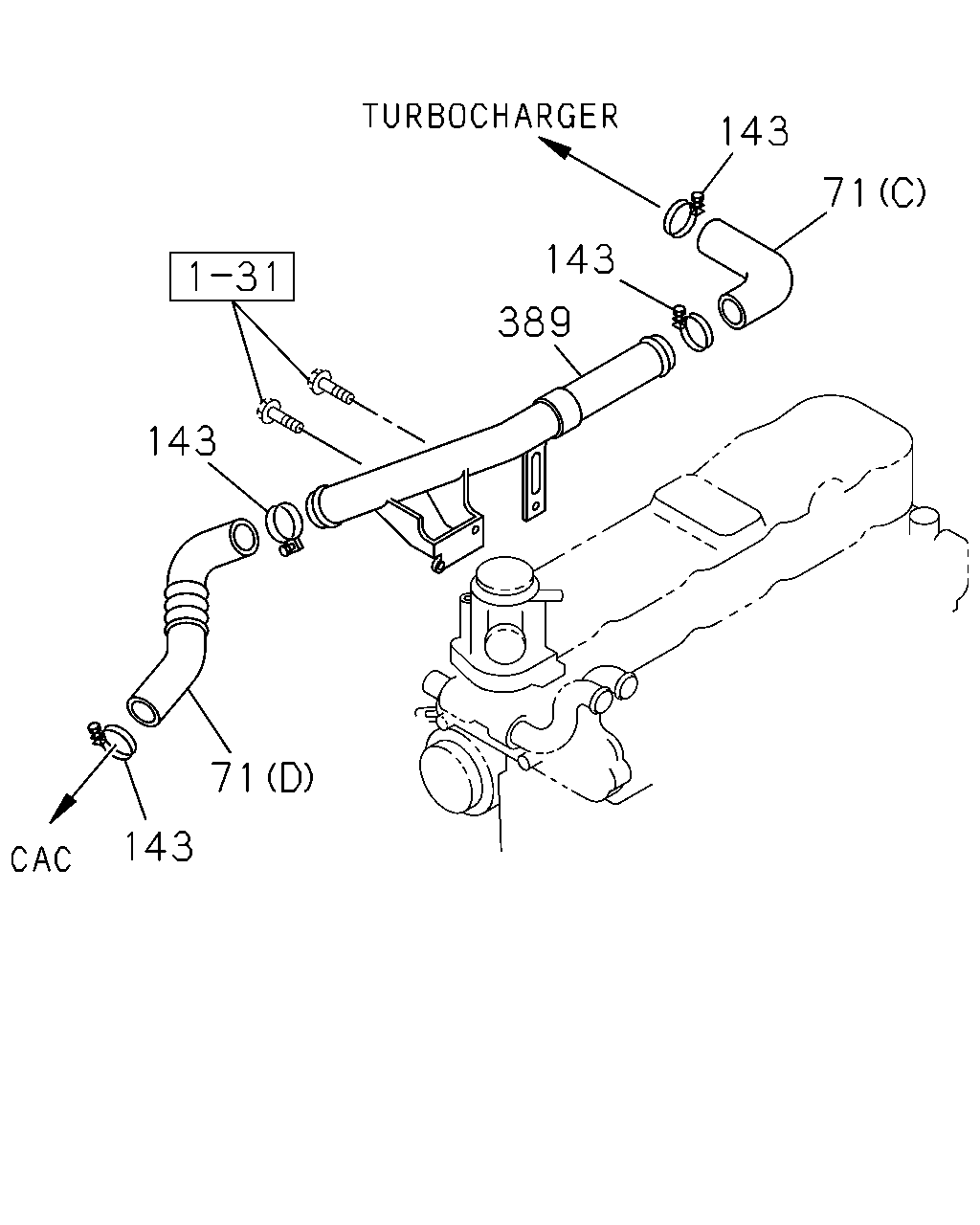

143 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97381-507-3	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0804-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0710-0803	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0804-	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	0804-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0804-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0804-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2) (B)	8-98159-280-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER SGL CAB(NM*S) (A)	8-98036-513-2	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER SGL CAB(NM*S) (B)	8-98050-918-0	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-0	01	1	0804-1001	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98050-918-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	0804-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	0804-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=44-57	1-09707-207-0	04	1	0808-0809			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=44-57	1-09707-207-0	06	1	0810-0810			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=40-50	8-98133-347-0	04	1	0811-1001			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1002-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1002-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NM*S) ID=50-65	1-09707-204-0	04	1	0710-0803	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0804-0807	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0808-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1002-	●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0710-0803	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC SGL CAB(NM*S)	8-98038-996-1	01	1	0710-0803	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	0804-			●

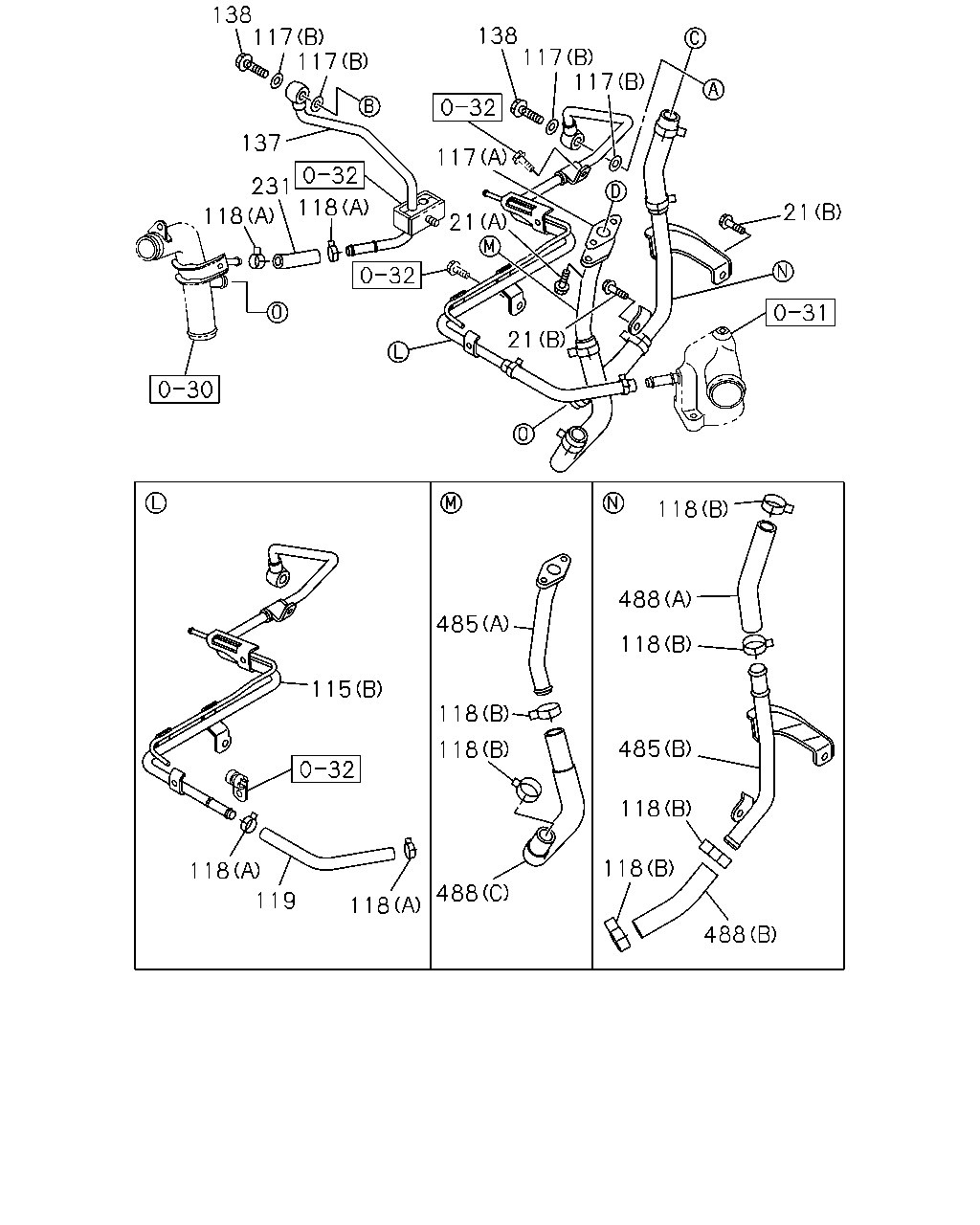

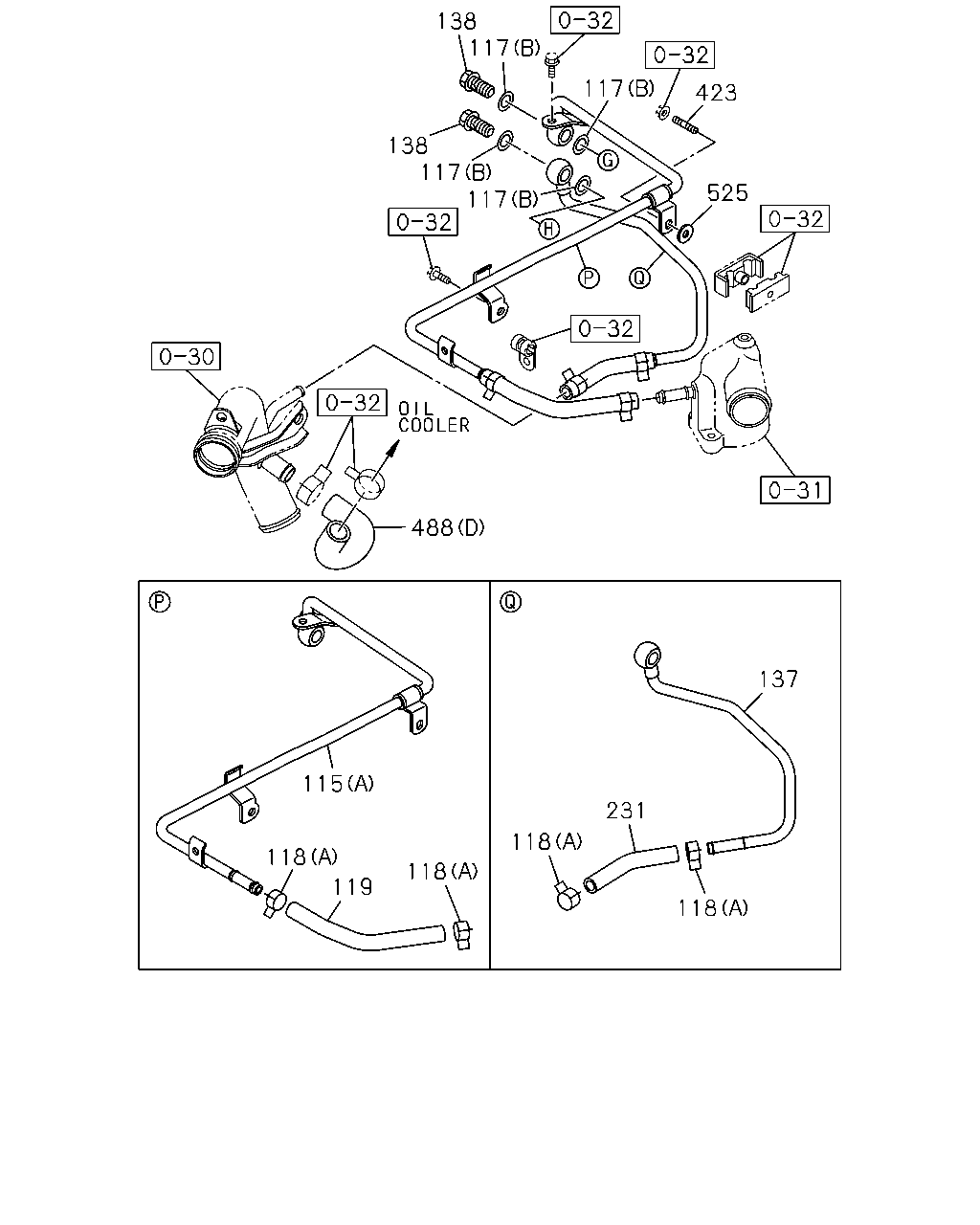

138 117 117 138 117 117 137 117 231 118 21 118 21 21 118 488 485 118 115 118 485 118 32 118 118 118 488 119 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-	●
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0710-0803	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0804-0809	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0810-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-1	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (A)	8-98034-990-3	01	1	0804-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-0	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98034-991-1	01	1	0804-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98091-838-0	01	1	0710-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-333-0	01	1	0803-0803	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98113-333-0	01	1	0804-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (A)	8-98113-710-0	01	1	0804-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0710-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (A)	8-97262-117-0	01	1	0804-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0710-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0804-0904	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (B) ID=22	8-94382-401-0	06	1	0804-1003	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (B) ID=22	8-97359-141-0	06	1	1004-	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0710-0802	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-0803	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0710-0803	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0804-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0804-			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (A)	8-97381-651-0	01	1	0804-	●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (B)	8-97381-652-0	01	1	0804-	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0804-	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0804-	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	0804-	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	0804-		●

138 117 117 423 138 117 117 525 488 137 115 231 118 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98091-838-0	01	1	0710-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98113-333-0	01	1	0803-0803	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98113-333-0	01	1	0804-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (A)	8-98113-710-0	01	1	0804-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0710-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (A)	8-97262-117-0	01	1	0804-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0710-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0804-0904	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0905-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (B) ID=22	8-94382-401-0	06	1	0804-1003	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (B) ID=22	8-97359-141-0	06	1	1004-	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0710-0802	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-0803	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0710-0803	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0804-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0804-			●
423	03.373 STUD; WATER PIPE EURO2 SPECIFICATION(NT2) 00.206 M6X16 L=25	0-41010-616-0	01	1	0804-		●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	0804-			●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0804-	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0804-	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	0804-	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	0804-		●
525	03.373 PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	0804-		●

231 148 11 2 423 12 14 9 1 16 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97381-507-3	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804		●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0804-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0710-0803	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0804-	●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	0804-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0710-0803	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) 03.611	8-98011-532-0	01	1	0804-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-98015-116-1	01	1	0804-1008		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-98015-116-1	02	1	1009-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	0804-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0804-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0804-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	03	1	0710-0803	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.601 (A) M8X25 L=36	8-97378-062-0	03	1	0804-0903	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	0904-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	0804-0903		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0804-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97378-069-0	02	1	0804-			●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0710-0803	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98009-717-3	01	1	0804-0910	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98147-897-1	01	1	0911-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	0804-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	0804-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0710-0803	●
18	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) M8 FLANGE	8-97161-607-0	03	1	0804-0903	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-	●	●
18	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) M8 FLANGE	8-97161-607-0	02	1	0804-0903		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0804-			●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0710-0803	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0804-	●	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0804-			●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	0804-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0804-			●
423	03.373 STUD; WATER PIPE EURO2 SPECIFICATION(NT2) 00.206 M6X16 L=25	0-41010-616-0	01	1	0804-		●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	0804-			●

143 71 143 389 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2) (B)	8-98159-280-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER SGL CAB(NM*S) (A)	8-98036-513-2	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER SGL CAB(NM*S) (B)	8-98050-918-0	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-0	01	1	0804-1001	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98050-918-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	0804-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	0804-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=44-57	1-09707-207-0	04	1	0808-0809			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=44-57	1-09707-207-0	06	1	0810-0810			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=40-50	8-98133-347-0	04	1	0811-1001			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1002-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1002-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NM*S) ID=50-65	1-09707-204-0	04	1	0710-0803	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0804-0807	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	04	1	0808-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1002-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC SGL CAB(NM*S)	8-98038-996-1	01	1	0710-0803	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
