0-25 — INLET MANIFOLD (#53885) — 67 parça

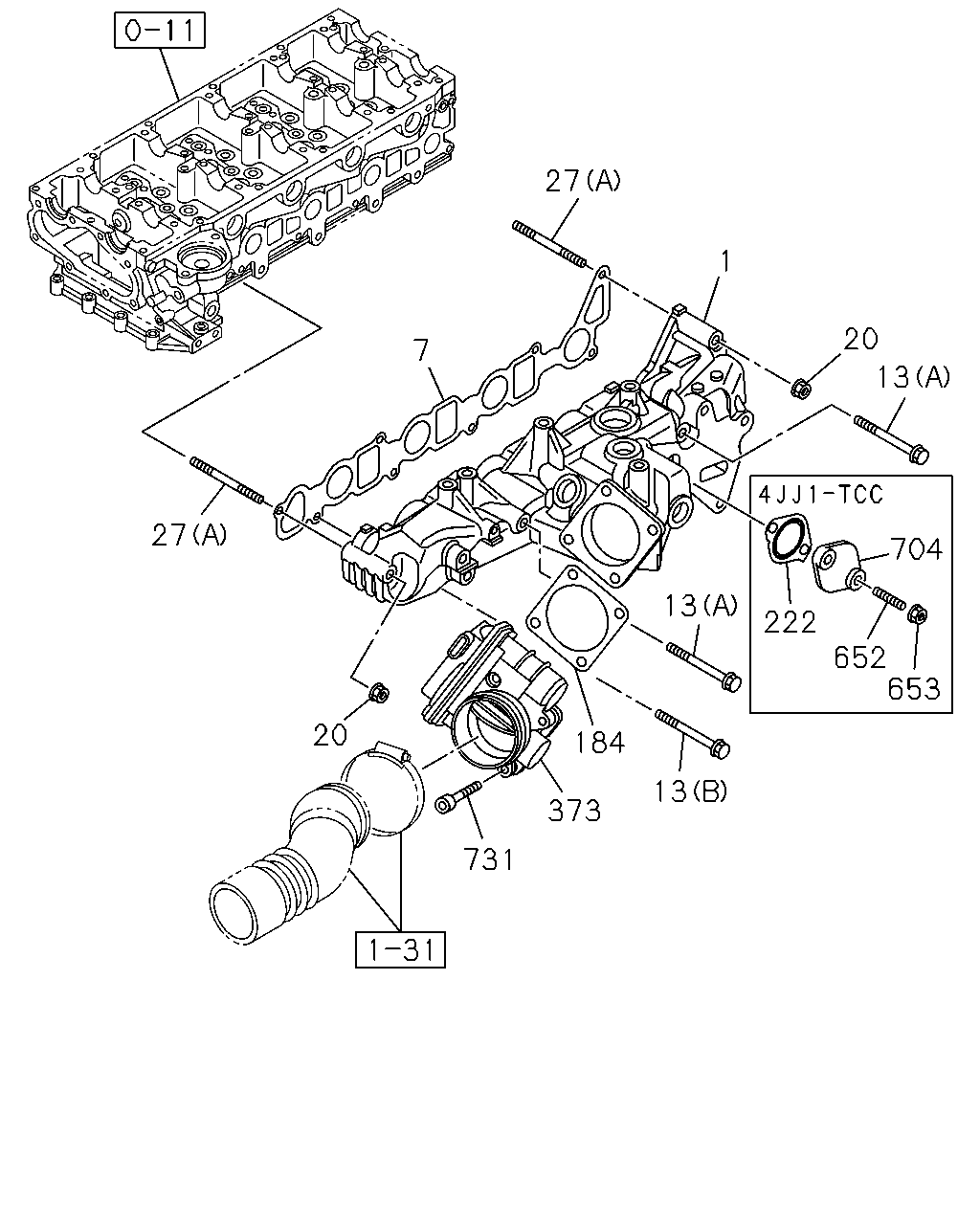

27 1 20 7 13 27 704 13 222 652 653 20 184 13 373 731

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-98024-411-0	01	1	0710-0803	●
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	0804-	●	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0804-1006			●
1	03.265 MANIFOLD; INL	8-98156-575-0	01	1	1007-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0710-0803	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0804-0902	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98063-396-0	01	1	0903-1211	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1212-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0804-			●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	0710-0803	●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	0804-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0710-0803	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0804-	●	●
13	03.275 BOLT; INL MANIF 09.008 (C) M8X25 W/LK WASHER	0-50540-825-0	05	1	0804-			●
13	03.275 BOLT; INL MANIF 09.171 (C) M8X30 W/LK WASHER	0-50540-830-0	01	1	0804-			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0710-0803	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0804-0805			●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-			●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-98017-063-0	02	1	0710-0803	●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-98017-063-0	02	1	0804-	●	●
27	03.275 STUD; INL MANIF (B) M8X25 L=37	0-41010-825-0	01	1	0804-			●
27	03.275 STUD; INL MANIF 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0804-			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0710-0803	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0804-0902	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	0903-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0804-			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) 03.665	8-97357-684-3	01	1	0804-		●
373	03.265 THROTTLE ASM; INT	8-98040-003-1	01	1	0710-0803	●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	0804-	●	●
652	03.275 STUD; DUCT,AIR INLET EURO2 SPECIFICATION(NT2) M8X25 L=41	0-40210-825-0	02	1	0804-		●
653	03.265 NUT; DUCT,AIR INLET EURO2 SPECIFICATION(NT2) 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-		●
704	03.270 COVER EURO2 SPECIFICATION(NT2)	8-98056-986-0	01	1	0804-		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0710-0803	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0804-	●	●

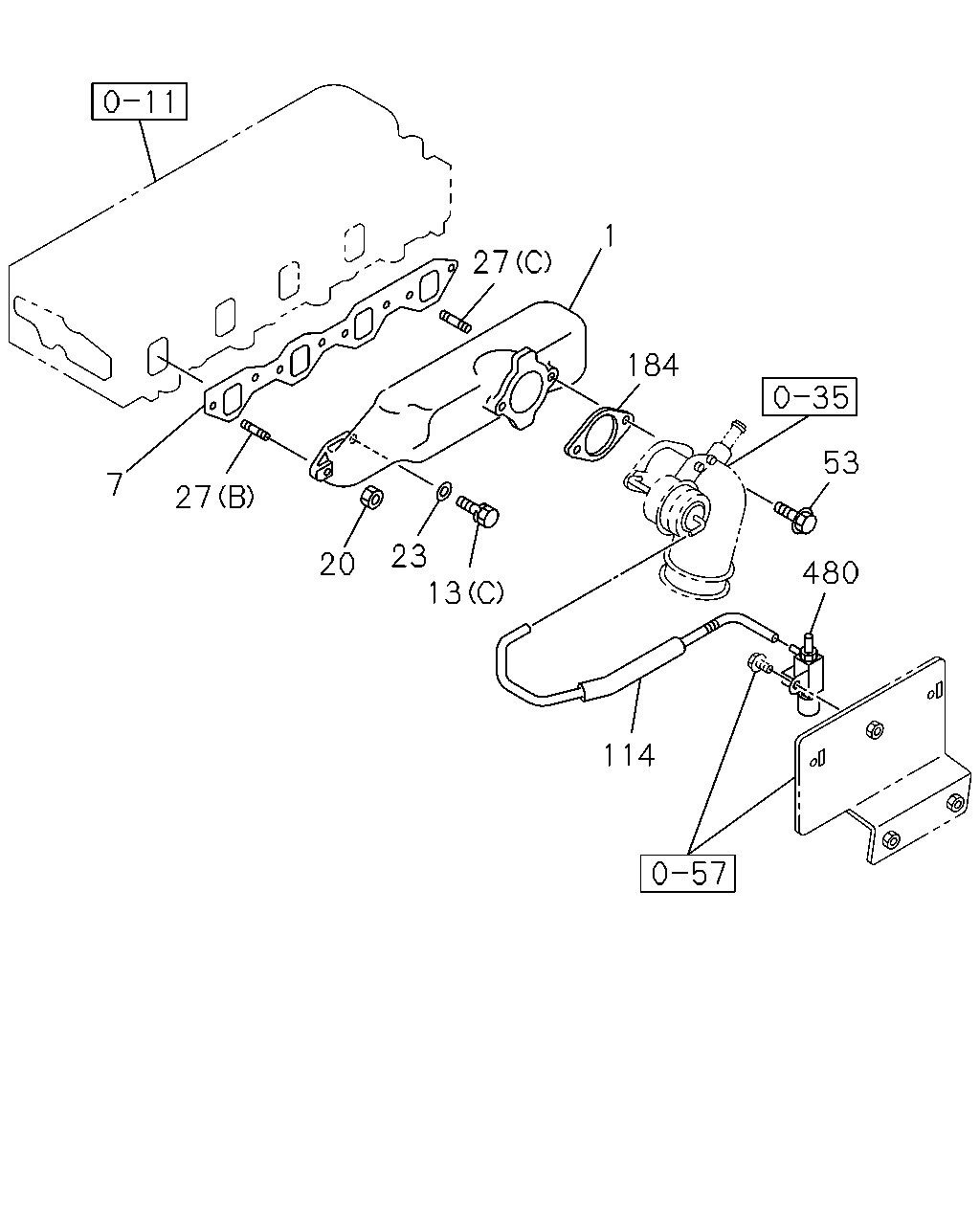

1 27 184 53 7 27 23 13 20 480 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-98024-411-0	01	1	0710-0803	●
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	0804-	●	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0804-1006			●
1	03.265 MANIFOLD; INL	8-98156-575-0	01	1	1007-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0710-0803	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0804-0902	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98063-396-0	01	1	0903-1211	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1212-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0804-			●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	0710-0803	●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	0804-	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0710-0803	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0804-	●	●
13	03.275 BOLT; INL MANIF 09.008 (C) M8X25 W/LK WASHER	0-50540-825-0	05	1	0804-			●
13	03.275 BOLT; INL MANIF 09.171 (C) M8X30 W/LK WASHER	0-50540-830-0	01	1	0804-			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0710-0803	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0804-0805			●
20	03.275 NUT; INL MANIF 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-			●
23	03.275 WASHER; PL,INL MANIF 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	0804-			●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-98017-063-0	02	1	0710-0803	●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-98017-063-0	02	1	0804-	●	●
27	03.275 STUD; INL MANIF (B) M8X25 L=37	0-41010-825-0	01	1	0804-			●
27	03.275 STUD; INL MANIF 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0804-			●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0804-			●
114	03.265 HOSE; VAC,INT THROTTLE L=433	8-98089-751-1	01	1	0804-			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0710-0803	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0804-0902	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	0903-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0804-			●
480	03.314 VALVE ASM; VAC SW 03.670	8-94144-597-1	01	1	0804-			●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

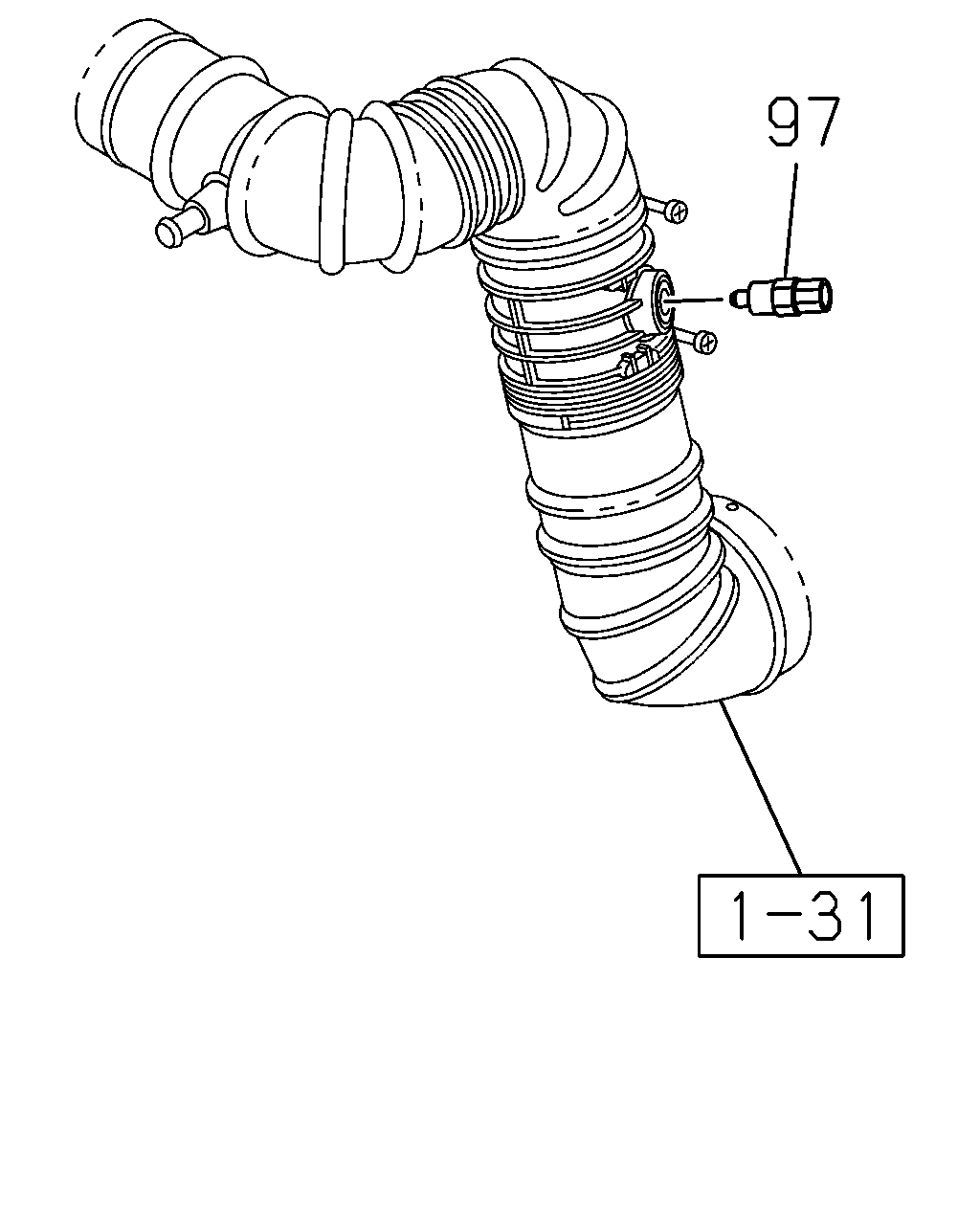

	97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150	8-12146-830-0	01	1	0804-		●
