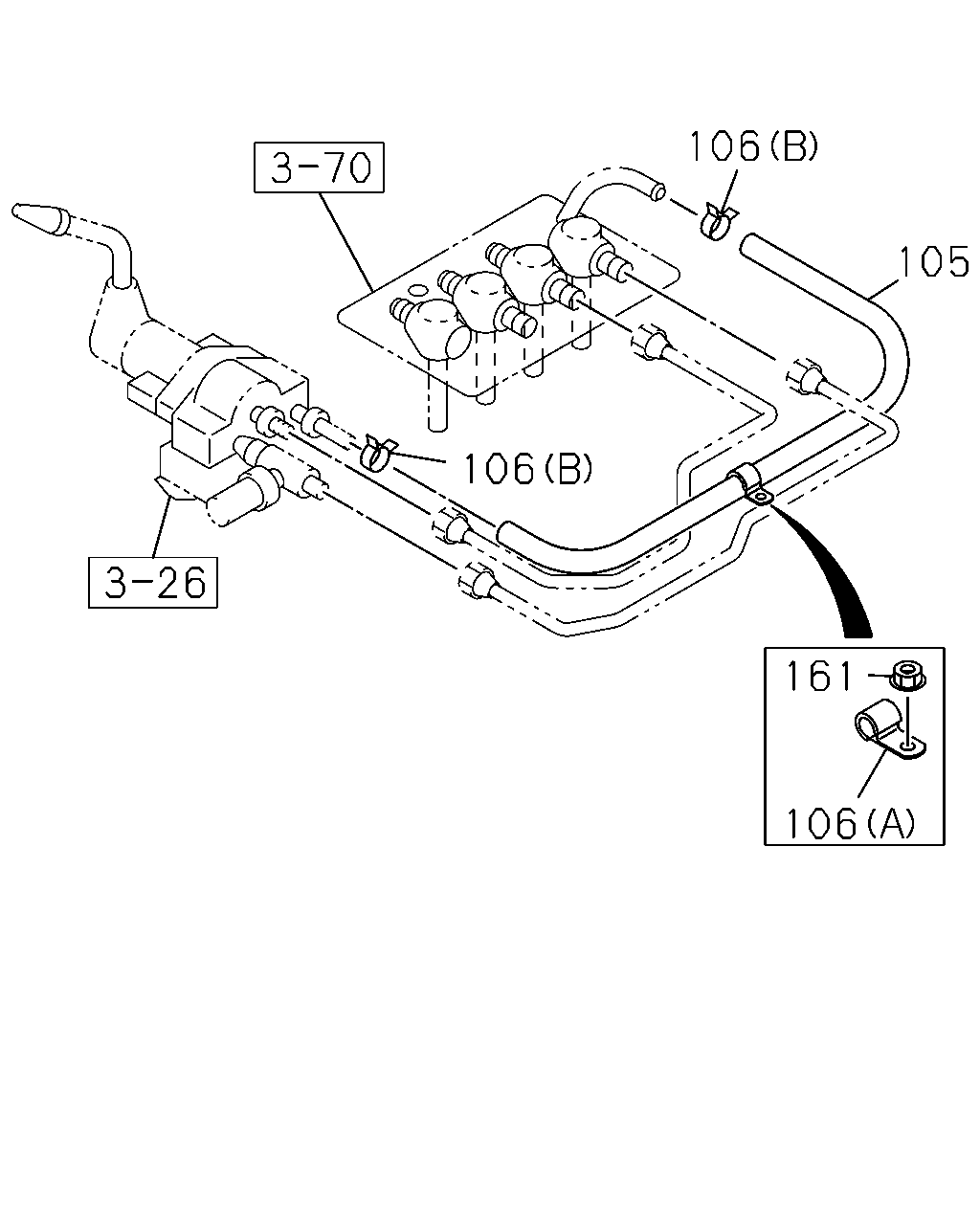

3-80 — BRAKE PIPING; TRAILER
(#5387) — 18 parça
Tümü
A - CXZ6MC
B - CXZ6MF
106
105
106
161
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE REGULATION ECE<TDV> L=350 SERVICED BY L=10000
9-09914-701-0
01
1
9706-9901
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000
9-09914-701-0
01
1
9902-9904
●
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=350 SERVICED BY L=10000
9-09914-701-0
01
1
9905-
●
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=650 SERVICED BY L=10000
9-09914-701-0
01
1
9603-9705
●
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> L=650 SERVICED BY L=10000
9-09914-701-0
01
1
9706-9901
●
●
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=650 SERVICED BY L=10000
9-09914-701-0
01
1
9905-
●
●
106
CLIP; PIPE
BRAKE REGULATION ECE<TDV> (A) ID=16 L=20
9-09525-536-0
01
1
9706-9901
●
106
CLIP; PIPE
(A) ID=16 L=20
9-09525-536-0
01
1
9902-9904
●
●
106
CLIP; PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=16 L=20
9-09525-536-0
01
1
9905-
●
●
106
CLIP; PIPE
SPRING BRAKE(SU9) (B) ID=14
8-94238-572-0
02
1
9706-9901
●
●
106
CLIP; PIPE
BRAKE REGULATION ECE<TDV> (B) ID=14
8-94238-572-0
02
1
9706-9901
●
106
CLIP; PIPE
(B) ID=14
8-94238-572-0
02
1
9902-9904
●
●
106
CLIP; PIPE
(B) ID=14
8-94238-572-0
02
1
9902-9904
●
●
106
CLIP; PIPE
SPRING BRAKE(SU9) (B) ID=14
8-94238-572-0
02
1
9905-
●
●
106
CLIP; PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=14
8-94238-572-0
02
1
9905-
●
●
161
NUT; CLIP,VINYL PIPE
BRAKE REGULATION ECE<TDV> M8 FLANGE
0-91150-108-0
01
1
9706-9901
●
161
NUT; CLIP,VINYL PIPE
M8 FLANGE
0-91150-108-0
01
1
9902-9904
●
●
161
NUT; CLIP,VINYL PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE
0-91150-108-0
01
1
9905-
●
●
