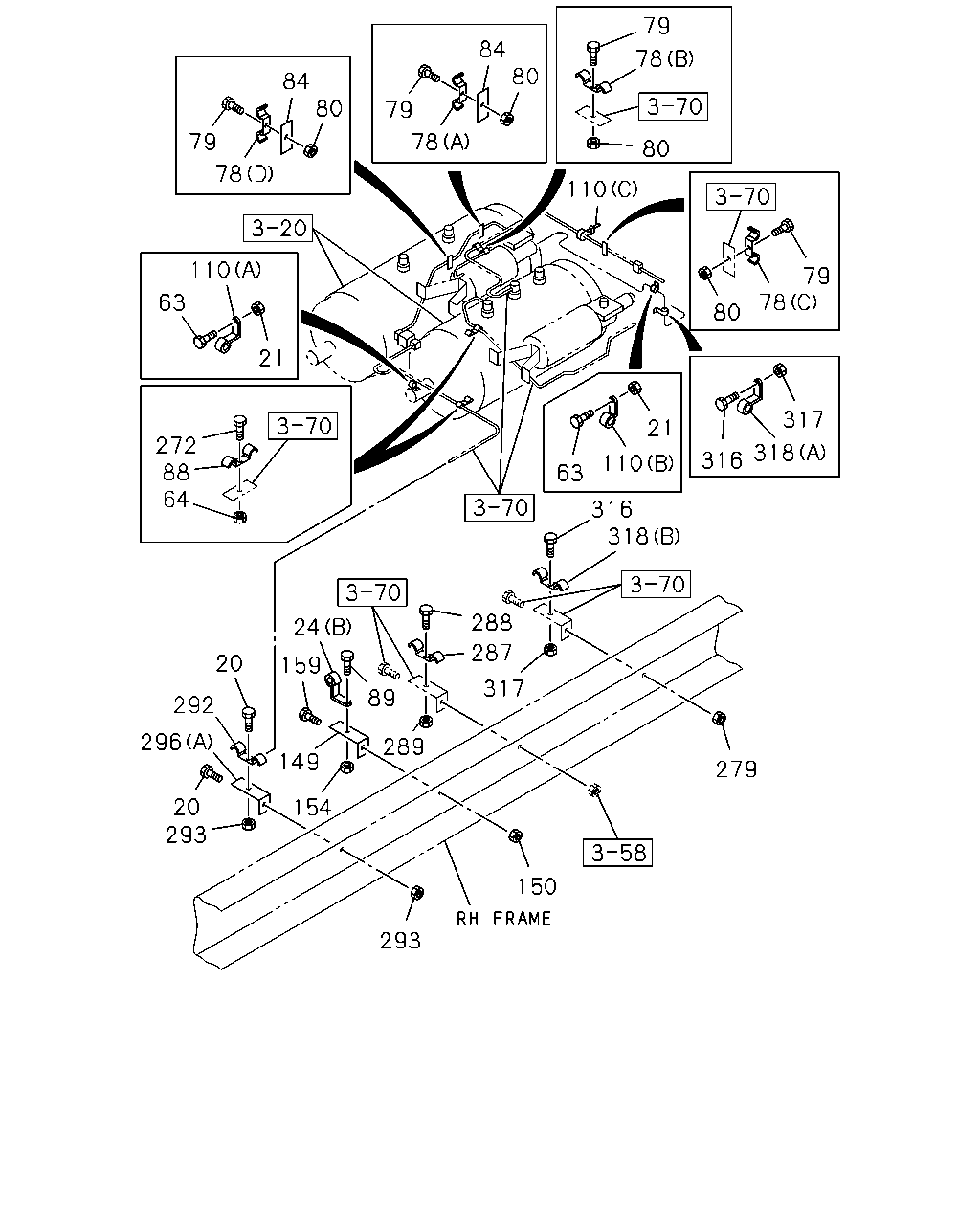

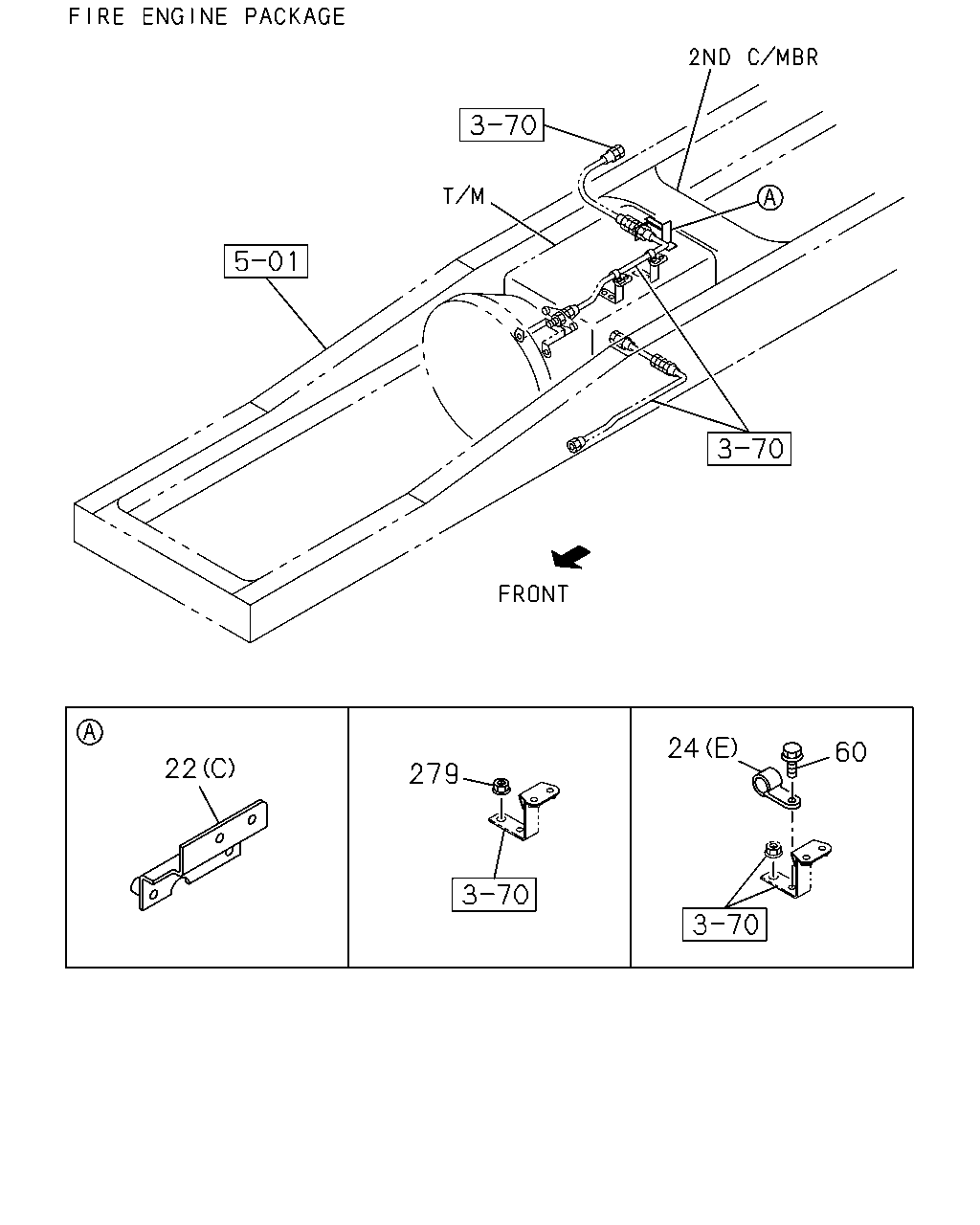

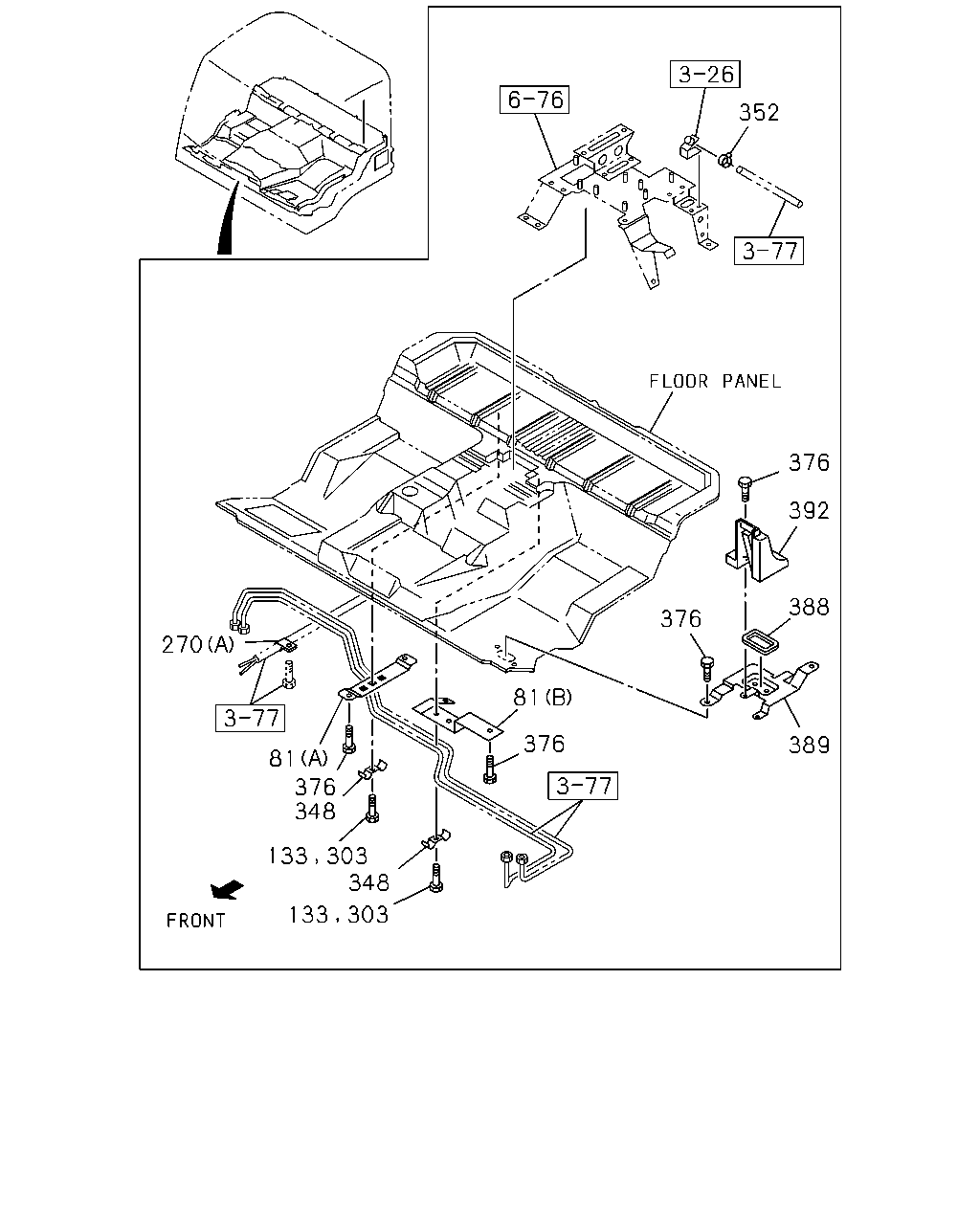

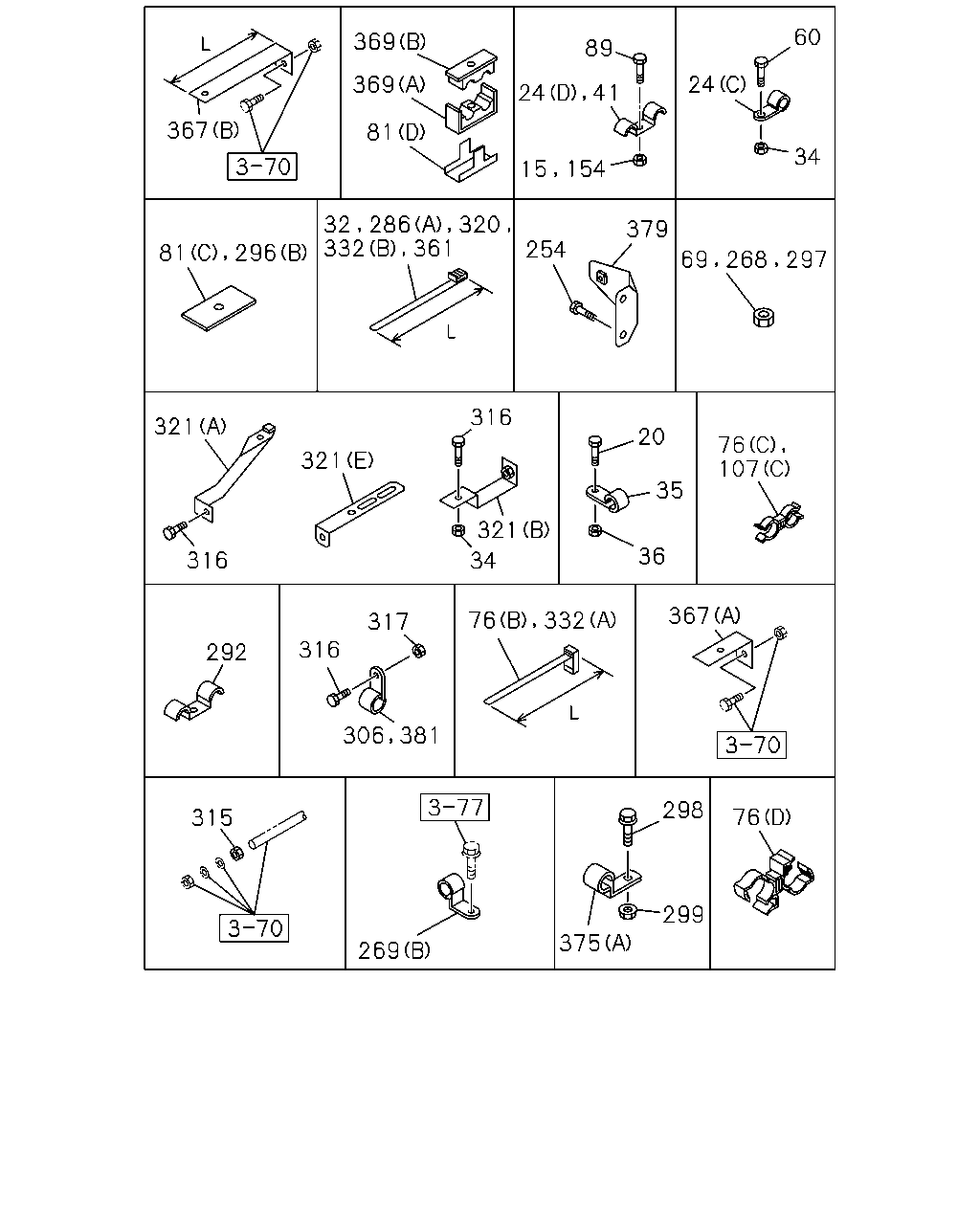

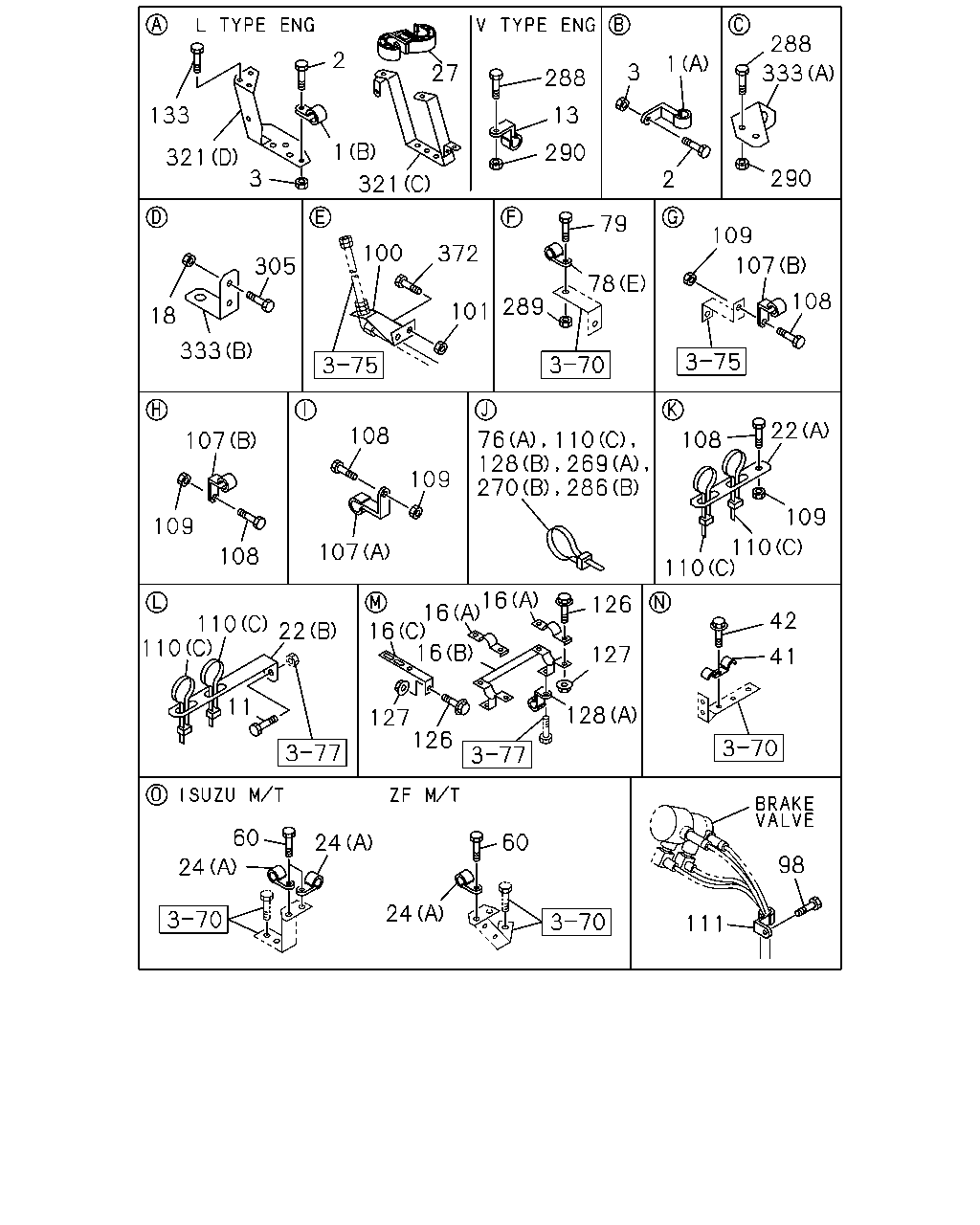

3-78 — FIXING PARTS; AIR PIPING (#5386) — 1087 parça

60 369 89 24 369 367 81 34 15 154 379 254 316 321 20 76 107 321 35 321 36 316 34 367 317 316 292 298 76 315 299 375 269 24 41 69 268 297 320 286 32 332 361 296 81 76 332 306 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	NUT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8	9-09110-508-0	02	1	9603-9606	●
15	NUT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9707-9901	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9607-9901	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9905-	●	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●		●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●		●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●		●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9902-9904	●		●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901	●		●
24	CLIP; PIPE MJA7U M/T(X6G) (A) ID=16 L=20	9-09525-535-0	02	1	9902-9904	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9905-		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) (A) ID=16 L=20	9-09525-535-0	02	1	9905-	●		●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 L=32	9-09524-665-0	01	1	9603-9604	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9605-9901	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9603-9608	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9701-9901	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9905-9908	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),MAP5T M/T(Y4J) (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●		●
24	CLIP; PIPE L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E) ID=18 L=28	1-09701-067-0	01	1	9910-	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=40	9-09525-576-0	01	1	9603-9608	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=28	9-09525-556-0	01	1	9701-9909	●		●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) ID=16 L=28	9-09525-556-0	01	1	9910-	●		●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9603-9901	●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9905-9908	●
24	CLIP; PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9909-	●
32	CLIP; BAND,RUBBER SLEEVE FIRE ENGINE PACKAGE<WS2> L=250	5-09707-030-0	01	1	9603-9901	●
32	CLIP; BAND,RUBBER SLEEVE FIRE ENGINE PACKAGE<WS2> L=250	5-09707-030-1	01	1	9905-9908	●
32	CLIP; BAND,RUBBER SLEEVE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> L=250	5-09707-030-1	01	1	9909-	●
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9603-9606	●	●	●
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
34	NUT; BRKT FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	01	1	9603-9901	●
34	NUT; BRKT FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	01	1	9905-9908	●
34	NUT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	01	1	9909-	●
35	CLIP; AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9603-9606	●		●
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8	9-09110-408-0	03	1	9603-9606	●		●
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	03	1	9607-9607	●		●
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-9904	●		●
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
41	CLIP; AIR PIPE V TYPE ENG<91L> GOVERNOR CONTROL<W69> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9603-9901	●
60	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9603-9606		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●		●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9901		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●		●
60	BOLT; CLIP FIX MJA7U M/T(X6G) M8X25 FLANGE	0-28680-825-0	02	1	9902-9904	●		●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X25 FLANGE	0-28680-825-0	01	1	9905-9908	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),MAP5T M/T(Y4J) M8X25 FLANGE	0-28680-825-0	01	1	9909-9909	●		●
60	BOLT; CLIP FIX L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> M8X25 FLANGE	0-28680-825-0	01	1	9909-9909	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S221 OD(Y1U), MAP5T M/T(Y4J) M8X25 FLANGE	0-28680-825-0	01	1	9910-	●		●
60	BOLT; CLIP FIX L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> M8X25 FLANGE	0-28680-825-0	01	1	9910-	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●		●
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9902-9909	●		●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	9910-	●		●
60	BOLT; CLIP FIX FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9603-9901	●
60	BOLT; CLIP FIX FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9905-9908	●
60	BOLT; CLIP FIX V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9909-	●
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9603-9901	●	●	●
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9902-9904	●		●
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-9901	●	●	●
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9904	●		●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9603-9901	●		●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	08	1	9902-9904	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=350	8-94152-256-0	01	1	9603-9901	●		●
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	9902-9904	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=350	8-94152-256-1	01	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-9901	●		●
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9902-9904	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9603-9705	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9706-9901	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (D) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-	●		●
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-79996-133-2	01	1	9603-9901	●		●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	9902-9904	●		●
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-79996-133-2	01	1	9905-	●		●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9603-9705	●		●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9706-9901	●		●
81	BRACKET; CLIP BRAKE REGULATION ECE<TDV> (A)	1-79996-127-2	01	1	9706-9901			●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9902-9904	●		●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9902-9904	●		●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9905-	●		●
81	BRACKET; CLIP PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-127-2	01	1	9905-	●		●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (C) L=50	1-47475-299-2	01	1	9603-9901	●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (D)	1-47475-427-1	01	1	9603-9901	●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●	●
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606			●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28680-820-0	01	1	9607-9901			●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X40 FLANGE	0-28680-840-0	01	1	9607-9901	●
107	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9603-9901	●	●	●
107	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9902-9902	●		●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9903-9904	●		●
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9903-9904	●		●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-	●	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-	●	●	●
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12 H=24 L=20	1-09700-605-0	02	1	9603-9901	●	●	●
107	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12 H=24 L=20	1-09700-605-0	02	1	9905-	●	●	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9603-9901	●		●
107	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9902-9902	●		●
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9903-9904	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9603-9901	●		●
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9902-9904	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9905-	●		●
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9903-9904	●		●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-	●	●	●
154	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
154	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
154	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
254	BOLT; PIPE CLIP SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9901	●		●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9904	●		●
254	BOLT; PIPE CLIP SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●		●
268	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9603-9606	●	●	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9902-9904	●		●
268	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9905-	●		●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9603-9901			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=250	1-09707-126-0	14	1	9902-9903	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=250	1-09707-126-0	15	1	9904-9904	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9905-	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	14	1	9905-			●
269	CLIP; BAND,NYLON TUBE POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	9906-9910			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	12	1	9603-9901			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=250	1-09707-126-0	12	1	9902-9903			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=250	1-09707-126-0	13	1	9904-9904			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9905-			●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	14	1	9603-9901	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	01	1	9605-9901	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=250	1-09707-126-0	01	1	9902-9904	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=250	1-09707-126-0	01	1	9905-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9603-9901	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	16	1	9905-	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-0	01	1	9603-9901	●	●	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	9902-9904	●		●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	9905-0001	●	●	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0002-	●	●	●
286	CLIP; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250	5-09707-030-1	01	1	0002-	●		●
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	9603-	●		●
292	CLIP; AIR PIPE ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9603-9706	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9707-9901	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9603	●	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-9904	●		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 & 9 L=15 & 15	1-09700-654-0	01	1	9905-	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9603	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9707-9901	●	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50	1-47475-299-2	01	1	9707-9901	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9902-9904	●		●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9905-	●	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55	1-47475-304-0	01	1	9603-9901	●	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55	1-47475-304-0	01	1	9905-	●	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●	●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9902-9904	●		●
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9908	●		●
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-	●		●
297	NUT; BRKT FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	02	1	9603-9901	●
297	NUT; BRKT FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	02	1	9905-9908	●
297	NUT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8	9-09110-508-0	02	1	9909-	●
298	BOLT; CLIP 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	01	1	9903-9904	●		●
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) M8X20 FLANGE	0-28680-820-0	01	1	9905-9909	●	●	●
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8X20 FLANGE	0-28680-820-0	01	1	9910-	●	●	●
299	NUT; CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	9903-9904	●		●
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) M8 FLANGE	0-91150-108-0	01	1	9905-9909	●	●	●
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M8 FLANGE	0-91150-108-0	01	1	9910-	●	●	●
306	CLIP; NYLON TUBE ID=24 L=32	1-09700-766-1	01	1	9902-9904	●		●
306	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24 L=32	1-09700-766-1	01	1	9905-9905	●	●	●
306	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION HONG KONG<TCZ> ID=24 L=32	1-09700-766-1	01	1	9905-	●		●
306	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION HONG KONG<TCZ> ID=21 L=24	8-94176-807-1	01	1	9905-	●		●
315	NUT; BRKT,FLEX HOSE FIRE ENGINE PACKAGE<WS2> M20	9-99111-420-0	02	1	9603-9901	●
315	NUT; BRKT,FLEX HOSE FIRE ENGINE PACKAGE<WS2> M20	9-99111-420-0	02	1	9905-9908	●
315	NUT; BRKT,FLEX HOSE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M20	9-99111-420-0	02	1	9909-	●
316	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●		●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9704	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	9607-9704	●		●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9705-9901	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9705-9708	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9709-9901	●		●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9905-9911	●	●	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9912-	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9607-9901	●		●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9902-9904	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9905-	●		●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●	●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9905-	●	●	●
317	NUT; CLIP M8	9-09110-408-0	01	1	9603-9606	●		●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9708	●		●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9709-9901	●		●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●		●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9905-9911	●	●	●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9912-	●		●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-0	01	1	9603-9901	●	●	●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9902-9904	●		●
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9905-0103	●	●	●
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0104-0104	●	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-632-0	01	1	9603-9901	●	●	●
321	BRACKET; CLIP EXC. CAB UP +110MM<TGG> (C)	1-47477-899-0	01	1	9902-9904	●		●
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (D)	1-47477-386-2	01	1	9905-	●	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-632-0	01	1	9905-	●	●	●
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-1	01	1	9603-9901	●	●	●
321	BRACKET; CLIP CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9902-9904	●		●
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9905-	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-1	01	1	9701-9704	●		●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=100 H=30	1-47477-645-2	01	1	9705-9901	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-2	01	1	9705-9901	●		●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-2	01	1	9902-9904	●		●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=100 H=30	1-47477-645-2	01	1	9905-9908	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-2	01	1	9905-9908	●		●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=100 H=30	1-47477-645-2	01	1	9909-	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (E) L=100 H=30	1-47477-645-2	01	1	9909-	●		●
321	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-746-0	01	1	9603-9901	●		●
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	9902-9904	●		●
321	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-746-0	01	1	9905-	●		●
332	CLIP; BAND 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) (A) L=250	1-09707-126-0	01	1	9603-9901			●
332	CLIP; BAND 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) (A) L=250	1-09707-126-0	01	1	9905-0001			●
332	CLIP; BAND POWER BRAKE LOCK SYSTEM(J50) (A) L=250	1-09707-126-0	01	1	0002-	●		●
332	CLIP; BAND FIRE ENGINE PACKAGE<WS2> (B) L=140	5-09707-031-0	01	1	9603-9901	●
332	CLIP; BAND FIRE ENGINE PACKAGE<WS2> (B) L=140	5-09707-031-1	01	1	9905-9908	●
332	CLIP; BAND V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B) L=140	5-09707-031-1	01	1	9909-	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=250	5-09707-030-0	01	1	9603-9901	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	9902-9904	●		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=250	5-09707-030-1	01	1	9905-	●	●	●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-42119-080-0	01	1	9906-	●		●
367	BRACKET ASM L TYPE ENG<90L> EXC. AIR DRYER<PS7> (A) L=55	1-47475-304-0	01	1	9603-9606	●		●
367	BRACKET ASM EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-42119-080-0	01	1	9809-9809	●		●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-42119-080-0	01	1	9809-9901	●		●
367	BRACKET ASM FIRE ENGINE PACKAGE<WS2> (B) L=125	1-47475-897-0	01	1	9603-9901	●
367	BRACKET ASM FIRE ENGINE PACKAGE<WS2> (B) L=125	1-47475-897-0	01	1	9905-9908	●
367	BRACKET ASM V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B) L=125	1-47475-897-0	01	1	9909-	●
369	CLIP; AIR PIPE FIRE ENGINE PACKAGE<WS2> (A)	1-09701-193-1	01	1	9603-9901	●
369	CLIP; AIR PIPE FIRE ENGINE PACKAGE<WS2> (B)	1-09701-194-0	01	1	9603-9901	●
369	CLIP; AIR PIPE FIRE ENGINE PACKAGE<WS2> (A)	1-09701-193-1	01	1	9905-9908	●
369	CLIP; AIR PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (A)	1-09701-193-1	01	1	9909-	●
369	CLIP; AIR PIPE FIRE ENGINE PACKAGE<WS2> (B)	1-09701-194-0	01	1	9905-9908	●
369	CLIP; AIR PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B)	1-09701-194-1	01	1	9909-	●
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9906-	●		●
375	CLIP; AIR PIPE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9809-9809	●		●
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9809-9901	●		●
375	CLIP; AIR PIPE 6WA1 TC-C(55L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9903-9904	●		●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-R(75L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-9909	●	●	●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9910-	●	●	●
379	BRACKET; NYLON TUBE SPRING BRAKE(SU9)	1-79996-110-1	01	1	9603-9901	●		●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9902-9904	●		●
379	BRACKET; NYLON TUBE SPRING BRAKE(SU9)	1-79996-110-2	01	1	9905-	●		●
381	PLATE; AIR PIPE ID=24 L=32	1-09700-766-1	01	1	9603-9708	●		●
381	PLATE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24 L=32	1-09700-766-1	01	1	9709-9901	●		●

79 84 80 78 84 80 79 79 78 80 78 110 110 79 78 63 80 21 317 21 272 88 64 318 316 110 63 316 318 288 24 287 20 159 317 89 292 296 289 149 279 20 293 154 150 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9707-9901	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9607-9901	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●
20	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9905-	●	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●		●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●		●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●		●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9902-9904	●		●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●		●
21	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9603-9606	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901	●		●
24	CLIP; PIPE MJA7U M/T(X6G) (A) ID=16 L=20	9-09525-535-0	02	1	9902-9904	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9905-		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) (A) ID=16 L=20	9-09525-535-0	02	1	9905-	●		●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 L=32	9-09524-665-0	01	1	9603-9604	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9605-9901	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9603-9608	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9701-9901	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9905-9908	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),MAP5T M/T(Y4J) (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●		●
24	CLIP; PIPE L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E) ID=18 L=28	1-09701-067-0	01	1	9910-	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=40	9-09525-576-0	01	1	9603-9608	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=28	9-09525-556-0	01	1	9701-9909	●		●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) ID=16 L=28	9-09525-556-0	01	1	9910-	●		●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9603-9901	●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9905-9908	●
24	CLIP; PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9909-	●
63	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
63	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●	●	●
63	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●		●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●		●
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●		●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●		●
64	NUT; CLIP 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8	9-09110-508-0	02	1	9603-9606			●
64	NUT; CLIP 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	02	1	9607-9901			●
64	NUT; CLIP 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	02	1	9905-0001			●
64	NUT; CLIP POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	02	1	0002-	●		●
64	NUT; CLIP V TYPE ENG<91L> POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	01	1	0002-	●		●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9603-9901	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9901	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9603-9901	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9905-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9905-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9905-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (D) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9603-9901			●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (D) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9905-0001			●
78	CLIP; AIR PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (D) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0002-	●		●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) ID=16 L=28	9-09525-556-0	01	1	9603-9901	●		●
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (E) ID=16 L=28	9-09525-556-0	01	1	9902-9904	●		●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) ID=16 L=28	9-09525-556-0	01	1	9905-	●		●
78	CLIP; AIR PIPE 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0002-	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9607-9901	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606			●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901			●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	01	1	9905-0001			●
79	BOLT; PIPE CLIP V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●		●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9905-	●		●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	03	1	9603-9606	●	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9607-9901	●	●	●
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●		●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9905-	●	●	●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606	●		●
80	NUT; CLIP,AIR PIPE POWER BRAKE LOCK SYSTEM(J50) M8	9-09110-508-0	01	1	9603-9606			●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-9901	●		●
80	NUT; CLIP,AIR PIPE POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	01	1	9607-9901			●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9905-0001	●		●
80	NUT; CLIP,AIR PIPE POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	01	1	9905-0001			●
80	NUT; CLIP,AIR PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	01	1	0002-	●		●
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0002-	●		●
80	NUT; CLIP,AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0002-	●		●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9603-9901	●	●	●
84	BRACKET; PIPE CLIP POWER BRAKE LOCK SYSTEM(J50) L=50	1-47475-299-2	01	1	9603-9901			●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9905-0001	●	●	●
84	BRACKET; PIPE CLIP POWER BRAKE LOCK SYSTEM(J50) L=50	1-47475-299-2	01	1	9905-0001			●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	0002-	●	●	●
84	BRACKET; PIPE CLIP L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) L=50	1-47475-299-2	01	1	0002-	●		●
84	BRACKET; PIPE CLIP V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	0002-	●		●
88	CLIP; AIR PIPE 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9603-9901			●
88	CLIP; AIR PIPE 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-0001			●
88	CLIP; AIR PIPE POWER BRAKE LOCK SYSTEM(J50) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0002-	●		●
88	CLIP; AIR PIPE V TYPE ENG<91L> POWER BRAKE LOCK SYSTEM(J50) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0002-	●		●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●	●
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606			●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28680-820-0	01	1	9607-9901			●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●
89	BOLT; PIPE CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> M8X40 FLANGE	0-28680-840-0	01	1	9607-9901	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	9603-9901	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9603-9901	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=31 L=30	1-09700-969-0	01	1	9603-9901	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	03	1	9603-9704	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	05	1	9705-9901	●	●	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=31 L=30	1-09700-969-0	01	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	05	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 L=40	1-09700-995-1	01	1	9603-9901	●		●
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	9902-9902	●		●
110	CLIP; BAND,NYLON TUBE (B) ID=25 L=40	1-09700-215-1	01	1	9903-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=25 L=40	1-09700-215-1	01	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	05	1	9603-9610	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	07	1	9611-9901	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	07	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	07	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	09	1	9603-9901	●		●
110	CLIP; BAND,NYLON TUBE FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	09	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	09	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	10	1	9603-9901	●		●
110	CLIP; BAND,NYLON TUBE EXC. FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	10	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	10	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	9604-9608	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	9609-9901	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	9609-9901	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	01	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	9905-0103	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	9905-0103	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	0104-	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	0104-	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	01	1	0104-	●		●
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=55	1-47475-304-0	01	1	9603-9901	●	●	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=55	1-47475-304-0	01	1	9905-	●	●	●
150	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
150	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
150	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
154	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
154	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
154	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●	●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9607-9901	●	●	●
159	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9905-	●	●	●
272	BOLT; CLIP 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606			●
272	BOLT; CLIP 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901			●
272	BOLT; CLIP 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	02	1	9905-0001			●
272	BOLT; CLIP POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	02	1	0002-	●		●
272	BOLT; CLIP V TYPE ENG<91L> POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●		●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9902-9904	●		●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9905-9908	●	●	●
279	NUT; BRKT MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	9909-	●	●	●
279	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	02	1	9603-9606	●		●
279	NUT; BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●		●
279	NUT; BRKT MAL5 M/T<X9F>,MAP5 M/T<Y9F> M10 FLANGE	0-91150-210-0	01	1	9909-	●		●
279	NUT; BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9905-	●		●
287	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
287	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
287	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9909-	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9905-9908	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9909-	●	●	●
288	BOLT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●		●
288	BOLT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●		●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●		●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9607-9901	●		●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●		●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9909-	●	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9603-9706	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9707-9901	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9603	●	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-9904	●		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 & 9 L=15 & 15	1-09700-654-0	01	1	9905-	●	●	●
293	NUT; CLIP M8	9-09110-508-0	01	1	9603-9606	●	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9706	●	●	●
293	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9706	●		●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9707-9901	●	●	●
293	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	03	1	9603-9606	●	●	●
293	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9607-9901	●	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●		●
293	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9905-	●		●
293	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9905-	●	●	●
293	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	05	1	9603-9606	●		●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9603	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9603-9706	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9707-9901	●	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50	1-47475-299-2	01	1	9707-9901	●	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9902-9904	●		●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9905-	●	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55	1-47475-304-0	01	1	9603-9901	●	●	●
296	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55	1-47475-304-0	01	1	9905-	●	●	●
316	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●		●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9704	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	9607-9704	●		●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9705-9901	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●	●
316	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9705-9708	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9709-9901	●		●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9905-9911	●	●	●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9912-	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28080-835-0	01	1	9603-9606	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9607-9901	●		●
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9902-9904	●		●
316	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	01	1	9905-	●		●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●	●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
317	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9905-	●	●	●
317	NUT; CLIP M8	9-09110-408-0	01	1	9603-9606	●		●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9708	●		●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9709-9901	●		●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●		●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9905-9911	●	●	●
317	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9912-	●		●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●	●	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-	●	●	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●

24 60 22 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9603-9901	●	●	●
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9902-9904	●		●
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9905-9910	●	●	●
22	BRACKET; CLIP TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-3	02	1	9911-	●		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (A)	1-47477-514-3	02	1	9911-	●		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9603-9901	●		●
22	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	02	1	9902-9904	●		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9905-9911	●	●	●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9912-	●		●
22	BRACKET; CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (C) L=125	1-47477-975-0	02	1	9910-9910	●		●
22	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=125	1-47477-975-0	02	1	9911-	●	●	●
22	BRACKET; CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (C) L=125	1-47477-975-0	02	1	9911-	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901	●		●
24	CLIP; PIPE MJA7U M/T(X6G) (A) ID=16 L=20	9-09525-535-0	02	1	9902-9904	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9905-		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) (A) ID=16 L=20	9-09525-535-0	02	1	9905-	●		●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 L=32	9-09524-665-0	01	1	9603-9604	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9605-9901	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9603-9608	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9701-9901	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9905-9908	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),MAP5T M/T(Y4J) (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●		●
24	CLIP; PIPE L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E) ID=18 L=28	1-09701-067-0	01	1	9910-	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=40	9-09525-576-0	01	1	9603-9608	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=28	9-09525-556-0	01	1	9701-9909	●		●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) ID=16 L=28	9-09525-556-0	01	1	9910-	●		●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9603-9901	●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9905-9908	●
24	CLIP; PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9909-	●
60	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9603-9606		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●		●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9901		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●		●
60	BOLT; CLIP FIX MJA7U M/T(X6G) M8X25 FLANGE	0-28680-825-0	02	1	9902-9904	●		●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X25 FLANGE	0-28680-825-0	01	1	9905-9908	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),MAP5T M/T(Y4J) M8X25 FLANGE	0-28680-825-0	01	1	9909-9909	●		●
60	BOLT; CLIP FIX L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> M8X25 FLANGE	0-28680-825-0	01	1	9909-9909	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S221 OD(Y1U), MAP5T M/T(Y4J) M8X25 FLANGE	0-28680-825-0	01	1	9910-	●		●
60	BOLT; CLIP FIX L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> M8X25 FLANGE	0-28680-825-0	01	1	9910-	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●		●
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9902-9909	●		●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	9910-	●		●
60	BOLT; CLIP FIX FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9603-9901	●
60	BOLT; CLIP FIX FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9905-9908	●
60	BOLT; CLIP FIX V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9909-	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
279	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●	●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9902-9904	●		●
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9905-9908	●	●	●
279	NUT; BRKT MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	9909-	●	●	●
279	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	02	1	9603-9606	●		●
279	NUT; BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●		●
279	NUT; BRKT MAL5 M/T<X9F>,MAP5 M/T<Y9F> M10 FLANGE	0-91150-210-0	01	1	9909-	●		●
279	NUT; BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9905-	●		●

288 2 1 3 27 333 288 13 133 1 290 321 290 3 2 321 79 109 100 372 107 305 78 289 108 101 18 333 22 108 76 110 108 107 109 109 109 110 110 107 108 16 126 16 16 16 42 110 110 22 127 41 11 128 127 126 60 60 24 98 24 24 111 128 270 269 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-9902	●		●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9903-9904	●		●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-9910	●	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=7 L=20	9-09524-635-0	01	1	9911-	●	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9603-9901	●	●	●
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9902-9902	●		●
1	CLIP; AIR PIPE V TYPE ENG<91L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-9910	●		●
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-		●
1	CLIP; AIR PIPE L TYPE ENG<90L>,V TYPE ENG<91L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-	●		●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●	●	●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9902-9903	●		●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9904-9904	●		●
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●
2	BOLT; CLIP FIX V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●		●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606	●	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9902-9904	●		●
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
3	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-	●		●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●		●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9605-9606	●		●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●		●
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	9902-9904	●		●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9905-9911	●	●	●
11	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9912-	●		●
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●		●
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901			●
13	CLIP; AIR PIPE EXC. GOVERNOR CONTROL<W69> ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	02	1	9905-	●		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9603-9901	●		●
16	BRACKET; PIPE CLIP (A)	1-47477-743-0	04	1	9902-9904	●		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9905-9911	●	●	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-743-0	04	1	9912-	●		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9603-9901	●		●
16	BRACKET; PIPE CLIP (B)	1-47477-744-0	02	1	9902-9904	●		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9905-9911	●	●	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-744-0	02	1	9912-	●		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=100 H=30	1-47477-645-1	02	1	9604-9604	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=100 H=30	1-47477-645-2	03	1	9605-9901	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=100 H=30	1-47477-645-2	03	1	9902-9904	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=100 H=30	1-47477-645-2	03	1	9905-9905	●
16	BRACKET; PIPE CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	01	1	9906-9910			●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) L=100 H=30	1-47477-645-2	03	1	9906-9910	●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=100 H=30	1-47477-645-2	03	1	9911-	●
18	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●		●
18	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-9901	●		●
18	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9905-	●		●
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9603-9901	●	●	●
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9902-9904	●		●
22	BRACKET; CLIP (A)	1-47477-514-3	02	1	9905-9910	●	●	●
22	BRACKET; CLIP TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-3	02	1	9911-	●		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (A)	1-47477-514-3	02	1	9911-	●		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9603-9901	●		●
22	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	02	1	9902-9904	●		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9905-9911	●	●	●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	02	1	9912-	●		●
22	BRACKET; CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (C) L=125	1-47477-975-0	02	1	9910-9910	●		●
22	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=125	1-47477-975-0	02	1	9911-	●	●	●
22	BRACKET; CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (C) L=125	1-47477-975-0	02	1	9911-	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9603-9901	●		●
24	CLIP; PIPE MJA7U M/T(X6G) (A) ID=16 L=20	9-09525-535-0	02	1	9902-9904	●		●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9905-		●
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) (A) ID=16 L=20	9-09525-535-0	02	1	9905-	●		●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 L=32	9-09524-665-0	01	1	9603-9604	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9605-9901	●	●	●
24	CLIP; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9603-9608	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16 L=20	9-09525-535-0	01	1	9609-9612	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9701-9901	●		●
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9905-9908	●		●
24	CLIP; PIPE MAL5T M/T(Y1K),MAP5T M/T(Y4J) (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●		●
24	CLIP; PIPE L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> (A) ID=16 L=20	9-09525-535-0	01	1	9909-	●
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E) ID=18 L=28	1-09701-067-0	01	1	9910-	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=40	9-09525-576-0	01	1	9603-9608	●		●
24	CLIP; PIPE ZF M/T<X9E> (A) ID=16 L=28	9-09525-556-0	01	1	9701-9909	●		●
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (A) ID=16 L=28	9-09525-556-0	01	1	9910-	●		●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9603-9901	●
24	CLIP; PIPE FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9905-9908	●
24	CLIP; PIPE V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (C) ID=18 L=50	1-09701-072-0	01	1	9909-	●
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ID=10 & 10	1-09709-277-1	01	1	0105-	●	●	●
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9901	●	●	●
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9902-9904	●		●
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-	●	●	●
41	CLIP; AIR PIPE V TYPE ENG<91L> GOVERNOR CONTROL<W69> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9603-9901	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●	●
42	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9903	●		●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9904-9904	●		●
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●	●
60	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9603-9606		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●		●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9901		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M) M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●		●
60	BOLT; CLIP FIX MJA7U M/T(X6G) M8X25 FLANGE	0-28680-825-0	02	1	9902-9904	●		●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL6Q M/T(Y1M),MJD7S M/T(Y2Y) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X25 FLANGE	0-28680-825-0	01	1	9905-9908	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),MAP5T M/T(Y4J) M8X25 FLANGE	0-28680-825-0	01	1	9909-9909	●		●
60	BOLT; CLIP FIX L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> M8X25 FLANGE	0-28680-825-0	01	1	9909-9909	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S221 OD(Y1U), MAP5T M/T(Y4J) M8X25 FLANGE	0-28680-825-0	01	1	9910-	●		●
60	BOLT; CLIP FIX L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> M8X25 FLANGE	0-28680-825-0	01	1	9910-	●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●		●
60	BOLT; CLIP FIX MAL5T M/T(Y1K),TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●		●
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9902-9909	●		●
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	9910-	●		●
60	BOLT; CLIP FIX FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9603-9901	●
60	BOLT; CLIP FIX FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9905-9908	●
60	BOLT; CLIP FIX V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8X16 FLANGE	0-28080-816-0	01	1	9909-	●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-9901	●	●	●
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9904	●		●
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9603-9901	●		●
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	08	1	9902-9904	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=350	8-94152-256-0	01	1	9603-9901	●		●
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	9902-9904	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=350	8-94152-256-1	01	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-9901	●		●
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9902-9904	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9603-9705	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9706-9901	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9905-	●		●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (D) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-	●		●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9603-9901	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9901	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9603-9901	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9905-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9905-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9905-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (D) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9603-9901			●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (D) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9905-0001			●
78	CLIP; AIR PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (D) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0002-	●		●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) ID=16 L=28	9-09525-556-0	01	1	9603-9901	●		●
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (E) ID=16 L=28	9-09525-556-0	01	1	9902-9904	●		●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) ID=16 L=28	9-09525-556-0	01	1	9905-	●		●
78	CLIP; AIR PIPE 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0002-	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9607-9901	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606			●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901			●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	01	1	9905-0001			●
79	BOLT; PIPE CLIP V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●		●
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●		●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9905-	●		●
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●	●	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●		●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-369-1	01	1	9603-9604	●		●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-770-0	01	1	9605-9901	●		●
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	9902-9904	●		●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-770-0	01	1	9905-	●		●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-365-0	01	1	9603-9901	●		●
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	9902-9904	●		●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-365-0	01	1	9905-	●		●
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	04	1	9603-9606	●		●
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9607-9901	●		●
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9902-9904	●		●
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9905-	●		●
107	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9603-9901	●	●	●
107	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9902-9902	●		●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9903-9904	●		●
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9903-9904	●		●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-	●	●	●
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-	●	●	●
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9905-	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12 H=24 L=20	1-09700-605-0	02	1	9603-9901	●	●	●
107	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12 H=24 L=20	1-09700-605-0	02	1	9905-	●	●	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9603-9901	●		●
107	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9902-9902	●		●
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9903-9904	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9603-9901	●		●
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9902-9904	●		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9905-	●		●
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9903-9904	●		●
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-	●	●	●
108	BOLT; TUBE CLIP L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	02	1	0104-	●		●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9902-9904	●		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9902-9904	●		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9905-0103	●	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9905-0103	●		●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	0104-	●	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9901	●	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9902-9904	●		●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9905-0103	●	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0104-	●	●	●
109	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9603-9606	●	●	●
109	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9603-9606	●		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9901	●		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9902-9904	●		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9902-9904	●		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-	●		●
109	NUT; TUBE CLIP M8	9-09110-408-0	03	1	9603-9606	●	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9901	●	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	9902-9904	●		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	9603-9901	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9603-9901	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=31 L=30	1-09700-969-0	01	1	9603-9901	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	03	1	9603-9704	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	05	1	9705-9901	●	●	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=31 L=30	1-09700-969-0	01	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=250	1-09707-126-0	05	1	9905-	●	●	●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 L=40	1-09700-995-1	01	1	9603-9901	●		●
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	9902-9902	●		●
110	CLIP; BAND,NYLON TUBE (B) ID=25 L=40	1-09700-215-1	01	1	9903-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=25 L=40	1-09700-215-1	01	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	05	1	9603-9610	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	07	1	9611-9901	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	07	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	07	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	09	1	9603-9901	●		●
110	CLIP; BAND,NYLON TUBE FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	09	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	09	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	10	1	9603-9901	●		●
110	CLIP; BAND,NYLON TUBE EXC. FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	10	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL FLOATING CAB(W16) (C) L=250	1-09707-126-0	10	1	9905-	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	9604-9608	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	9609-9901	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	9609-9901	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	01	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	9902-9904	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	9905-0103	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	9905-0103	●		●
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> (C) L=250	1-09707-126-0	01	1	0104-	●		●
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (C) L=250	1-09707-126-0	01	1	0104-	●		●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	01	1	0104-	●		●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9603-9901	●	●	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9902-9904	●		●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9905-	●	●	●
111	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=32 L=35	1-09701-244-0	01	1	9910-	●		●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	08	1	9603-9606	●		●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	08	1	9607-9901	●		●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	08	1	9902-9904	●		●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	08	1	9905-9911	●	●	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	08	1	9912-	●		●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28080-835-0	02	1	9604-9604	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28080-835-0	03	1	9605-9606	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28680-840-0	03	1	9607-9901	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY<F03> M8X40 FLANGE	0-28680-840-0	03	1	9902-9904	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M8X40 FLANGE	0-28680-840-0	03	1	9905-9905	●
126	BOLT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8X40 FLANGE	0-28680-840-0	01	1	9906-9910			●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8X40 FLANGE	0-28680-840-0	03	1	9906-9910	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M8X40 FLANGE	0-28680-840-0	03	1	9911-	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9603-9606	●		●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9607-9901	●		●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9902-9904	●		●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9905-9911	●	●	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9912-	●		●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9604-9604	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9605-9606	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9607-9901	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY<F03> M8 FLANGE	0-91150-108-0	03	1	9902-9904	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M8 FLANGE	0-91150-108-0	03	1	9905-9905	●
127	NUT; CLIP BRKT POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8 FLANGE	0-91150-108-0	03	1	9906-9910			●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8 FLANGE	0-91150-108-0	03	1	9906-9910	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M8 FLANGE	0-91150-108-0	03	1	9911-	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9603-9711	●		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9712-9901	●		●
128	CLIP; NYLON TUBE (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9902-9904	●		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24 H=40 L=24	1-09701-243-0	04	1	9905-9911	●	●	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-	●		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9912-	●		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9603-9901	●		●
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	08	1	9902-9904	●		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9905-9911	●	●	●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9912-	●		●
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9901	●	●	●
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●		●
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●
133	BOLT; BRKT ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●		●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9607-9901	●
133	BOLT; BRKT ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●		●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9905-9908	●
133	BOLT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9909-	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9603-9901			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=250	1-09707-126-0	14	1	9902-9903	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=250	1-09707-126-0	15	1	9904-9904	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9905-	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	14	1	9905-			●
269	CLIP; BAND,NYLON TUBE POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	9906-9910			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	12	1	9603-9901			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=250	1-09707-126-0	12	1	9902-9903			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=250	1-09707-126-0	13	1	9904-9904			●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9905-			●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	14	1	9603-9901	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	01	1	9605-9901	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=250	1-09707-126-0	01	1	9902-9904	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=250	1-09707-126-0	01	1	9905-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9603-9901	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	16	1	9905-	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	04	1	9603-9901			●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	04	1	9905-			●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 L=32	1-09701-107-1	04	1	9603-9705	●		●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=28 L=32	1-09701-107-1	04	1	9706-9901	●		●
270	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) ID=28 L=32	1-09701-107-1	04	1	9706-9901			●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	04	1	9902-9904	●		●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=28 L=32	1-09701-107-1	04	1	9905-	●		●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=28 L=32	1-09701-107-1	04	1	9905-	●		●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	08	1	9603-9901	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	08	1	9905-	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-0	01	1	9603-9901	●	●	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	9902-9904	●		●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	9905-0001	●	●	●
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0002-	●	●	●
286	CLIP; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=250	5-09707-030-1	01	1	0002-	●		●
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	9603-	●		●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9905-9908	●	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9909-	●	●	●
288	BOLT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●		●
288	BOLT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●		●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●		●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9607-9901	●		●
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9905-	●		●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-9908	●	●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9909-	●	●	●
290	NUT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8	9-09110-508-0	01	1	9603-9606	●		●
290	NUT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	01	1	9607-9901	●		●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-508-0	03	1	9603-9606	●		●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9607-9901	●		●
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9905-	●		●
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●		●
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●		●
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●		●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-632-0	01	1	9603-9901	●	●	●
321	BRACKET; CLIP EXC. CAB UP +110MM<TGG> (C)	1-47477-899-0	01	1	9902-9904	●		●
321	BRACKET; CLIP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (D)	1-47477-386-2	01	1	9905-	●	●	●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-632-0	01	1	9905-	●	●	●
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-1	01	1	9603-9901	●	●	●
321	BRACKET; CLIP CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9902-9904	●		●
321	BRACKET; CLIP L TYPE ENG<90L> CAB UP +110MM<TGG> (C)	1-47477-472-1	01	1	9905-	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-1	01	1	9701-9704	●		●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=100 H=30	1-47477-645-2	01	1	9705-9901	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-2	01	1	9705-9901	●		●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-2	01	1	9902-9904	●		●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=100 H=30	1-47477-645-2	01	1	9905-9908	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (E) L=100 H=30	1-47477-645-2	01	1	9905-9908	●		●
321	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=100 H=30	1-47477-645-2	01	1	9909-	●	●	●
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (E) L=100 H=30	1-47477-645-2	01	1	9909-	●		●
321	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-746-0	01	1	9603-9901	●		●
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	9902-9904	●		●
321	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-746-0	01	1	9905-	●		●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (A)	1-47477-254-0	01	1	9603-9702	●		●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (A)	1-47477-818-0	01	1	9703-9901	●		●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-337-0	01	1	9603-9901	●		●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-337-1	01	1	9905-	●		●
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (A)	1-47477-818-0	01	1	9905-	●		●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9603-9606	●		●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9607-9901	●		●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	9902-9904	●		●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9905-	●		●

322 375 357 376 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
322	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=50	1-47475-299-2	01	1	9906-	●		●
322	BRACKET; CLIP EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=50	1-47475-299-2	01	1	9809-9809	●		●
322	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=50	1-47475-299-2	01	1	9809-9901	●		●
357	BOLT; CLIP FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	01	1	9906-	●		●
357	BOLT; CLIP FIX EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	01	1	9809-9809	●		●
357	BOLT; CLIP FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	01	1	9809-9901	●		●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-42119-080-0	01	1	9906-	●		●
367	BRACKET ASM L TYPE ENG<90L> EXC. AIR DRYER<PS7> (A) L=55	1-47475-304-0	01	1	9603-9606	●		●
367	BRACKET ASM EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-42119-080-0	01	1	9809-9809	●		●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-42119-080-0	01	1	9809-9901	●		●
367	BRACKET ASM FIRE ENGINE PACKAGE<WS2> (B) L=125	1-47475-897-0	01	1	9603-9901	●
367	BRACKET ASM FIRE ENGINE PACKAGE<WS2> (B) L=125	1-47475-897-0	01	1	9905-9908	●
367	BRACKET ASM V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> (B) L=125	1-47475-897-0	01	1	9909-	●
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9906-	●		●
375	CLIP; AIR PIPE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9809-9809	●		●
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9809-9901	●		●
375	CLIP; AIR PIPE 6WA1 TC-C(55L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9903-9904	●		●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-R(75L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-9909	●	●	●
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9910-	●	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-9901	●	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-9904	●		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-	●	●	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9901	●	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9902-9904	●		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9902-9904	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-	●		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-	●		●
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908	●		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-	●		●
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	04	1	9906-	●		●
376	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	04	1	9809-9809	●		●
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	04	1	9809-9901	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-9705	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9901	●		●
376	BOLT; BRKT BRAKE REGULATION ECE<TDV> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9901			●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●		●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●
376	BOLT; BRKT SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9705	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9706-9901	●		●
376	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9706-9901			●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-9904	●		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-9904	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-	●		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-	●		●

352 376 392 388 376 270 81 376 389 81 376 348 348 133 303 133 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-79996-133-2	01	1	9603-9901	●		●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	9902-9904	●		●
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-79996-133-2	01	1	9905-	●		●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9603-9705	●		●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9706-9901	●		●
81	BRACKET; CLIP BRAKE REGULATION ECE<TDV> (A)	1-79996-127-2	01	1	9706-9901			●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9902-9904	●		●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	9902-9904	●		●
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9905-	●		●
81	BRACKET; CLIP PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-127-2	01	1	9905-	●		●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (C) L=50	1-47475-299-2	01	1	9603-9901	●
81	BRACKET; CLIP V TYPE ENG<91L> GOVERNOR CONTROL<W69> (D)	1-47475-427-1	01	1	9603-9901	●
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9901	●	●	●
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●		●
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●
133	BOLT; BRKT ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●		●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9607-9901	●
133	BOLT; BRKT ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-	●		●
133	BOLT; BRKT FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9905-9908	●
133	BOLT; BRKT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> M8X20 FLANGE	0-28080-820-0	02	1	9909-	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	04	1	9603-9901			●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	04	1	9905-			●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 L=32	1-09701-107-1	04	1	9603-9705	●		●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=28 L=32	1-09701-107-1	04	1	9706-9901	●		●
270	CLIP; NYLON TUBE BRAKE REGULATION ECE<TDV> (A) ID=28 L=32	1-09701-107-1	04	1	9706-9901			●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	04	1	9902-9904	●		●
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=28 L=32	1-09701-107-1	04	1	9905-	●		●
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=28 L=32	1-09701-107-1	04	1	9905-	●		●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	08	1	9603-9901	●
270	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	08	1	9905-	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-9901	●	●	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-9904	●		●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-	●	●	●
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9603-9901	●		●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9902-9904	●		●
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9905-	●		●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9603-9901	●	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9902-9904	●		●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9905-	●	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-9901	●	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-9904	●		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-	●	●	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9901	●	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9902-9904	●		●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9902-9904	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-	●		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-	●		●
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908	●		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-	●		●
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	04	1	9906-	●		●
376	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	04	1	9809-9809	●		●
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	04	1	9809-9901	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-9705	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9901	●		●
376	BOLT; BRKT BRAKE REGULATION ECE<TDV> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-9901			●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●		●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●
376	BOLT; BRKT SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9705	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9706-9901	●		●
376	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9706-9901			●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-9904	●		●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-9904	●		●
376	BOLT; BRKT SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-	●		●
376	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-	●		●
388	SEAL L=215	1-79738-794-1	01	1	9603-9901	●	●	●
388	SEAL L=215	1-79738-794-1	01	1	9902-9904	●		●
388	SEAL L=215	1-79738-794-1	01	1	9905-	●	●	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2>	1-79738-790-1	01	1	9603-9901	●	●	●
389	BRACKET; UNION	1-79738-790-1	01	1	9902-9904	●		●
389	BRACKET; UNION DUAL AIR GAUGE<UG2>	1-79738-790-1	01	1	9905-	●	●	●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9603-9901	●	●	●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9905-9905	●	●	●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9905-	●		●
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9603-9901	●	●	●
392	COVER; BRKT	1-73996-264-1	01	1	9902-9904	●		●
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
