Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#53857) — 283 parça

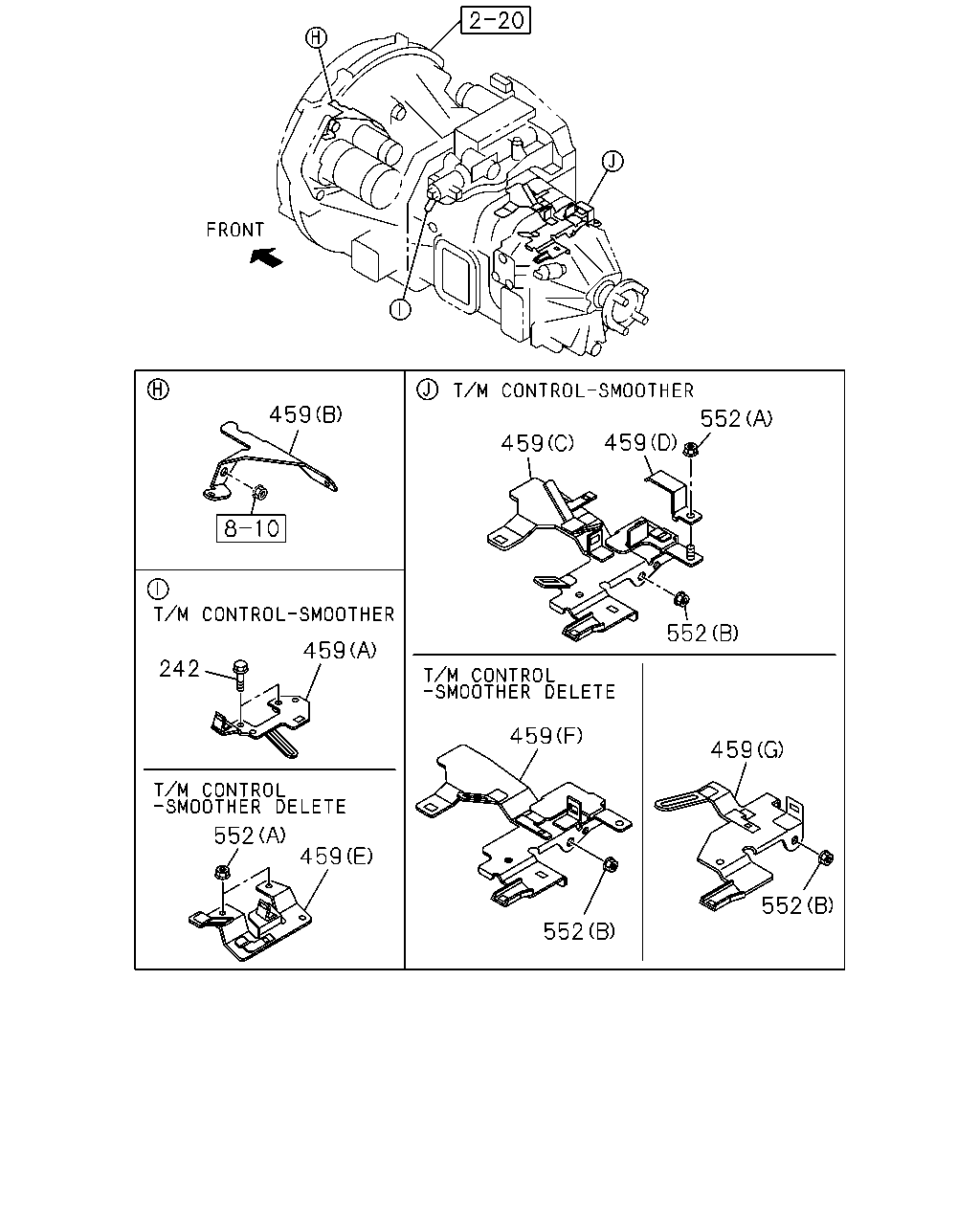

459 552 459 459 552 459 242 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0712-1109	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0712-	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●

22 22 570 617 16 488 488 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS 04.930 (K) L=91 ID=8.5	8-94329-956-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0712-0904	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0905-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 16.578 (L) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0712-0904	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0905-	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (M) L=250	5-09707-030-1	14	1	0712-	●		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (M) L=250	5-09707-030-1	14	1	0712-		●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0712-	●		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0712-		●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0712-			●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0712-			●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (H) ID=18 & 18	8-94323-068-0	01	1	0801-0801	●	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0712-	●	●	●
488	02.559 CLIP; CABLE,TRAILER (B) L=250	5-09707-030-1	04	1	0712-	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=170.3	1-09987-182-0	02	1	0712-1104	●	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0712-1308	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1309-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	0712-1308	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1309-	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0712-	●
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●	●

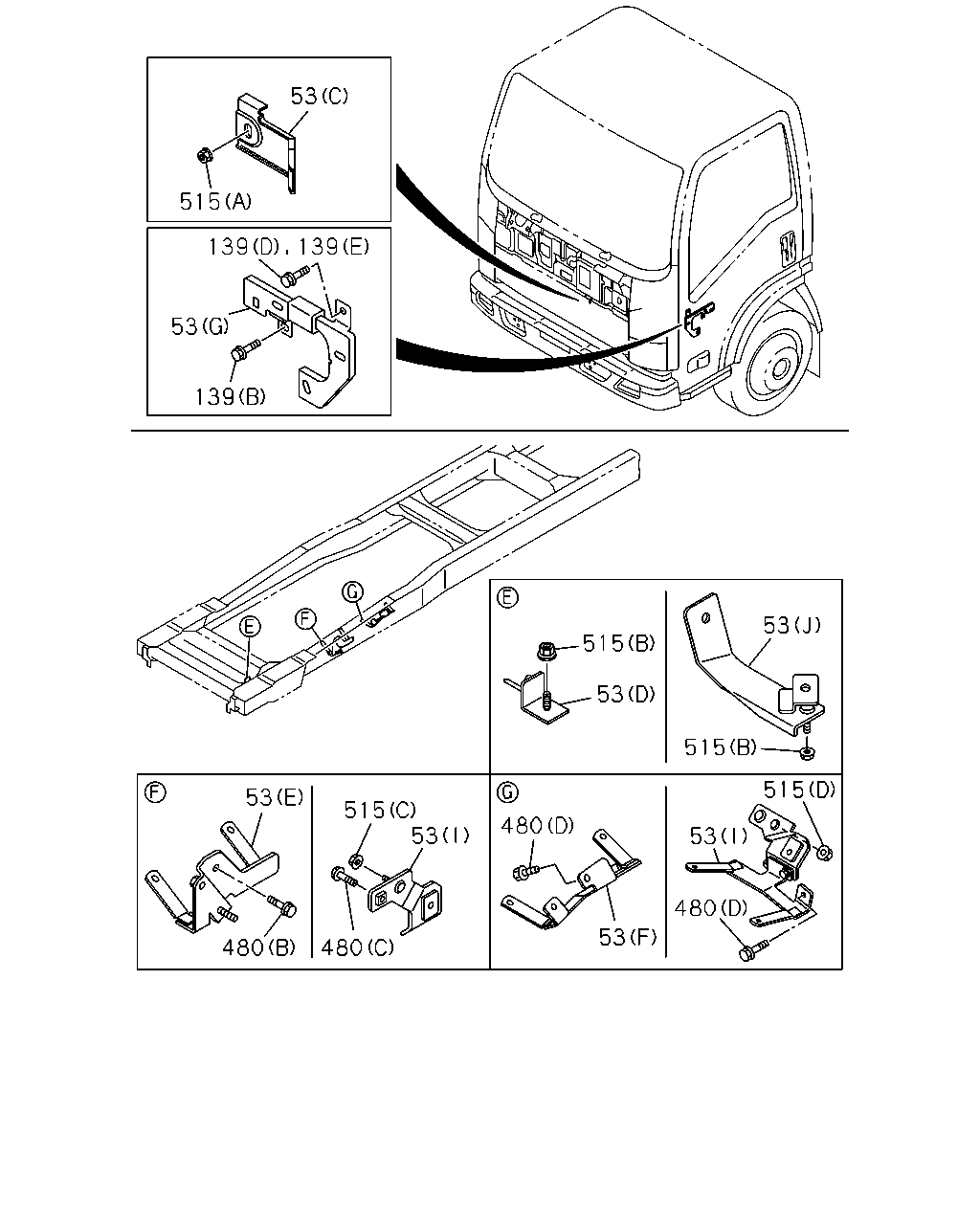

481 139 139 313 480 38 139 516 139 480 481 480 242 529 480 377 377 386 377 386 386 386 24 515 577 219 294 515 524 552 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
38	02.559 BOLT; CLIP,HARNESS PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0712-0809	●	●	●
139	02.559 BOLT; BRKT 03.604 (E) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	0712-1101	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	1301-	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0712-	●	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0712-	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0712-1004	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0712-1004	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0712-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0712-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803		●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-		●	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0712-0712	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712		●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
480	02.483 BOLT; BRKT 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0712-	●	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0903	●		●
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0903		●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0712-	●		●
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0712-		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0801-	●	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0712-0712	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0801-0802	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE	8-98040-024-0	01	1	0801-0802	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE	8-98040-024-0	01	1	0801-0802		●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-	●		●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-		●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●

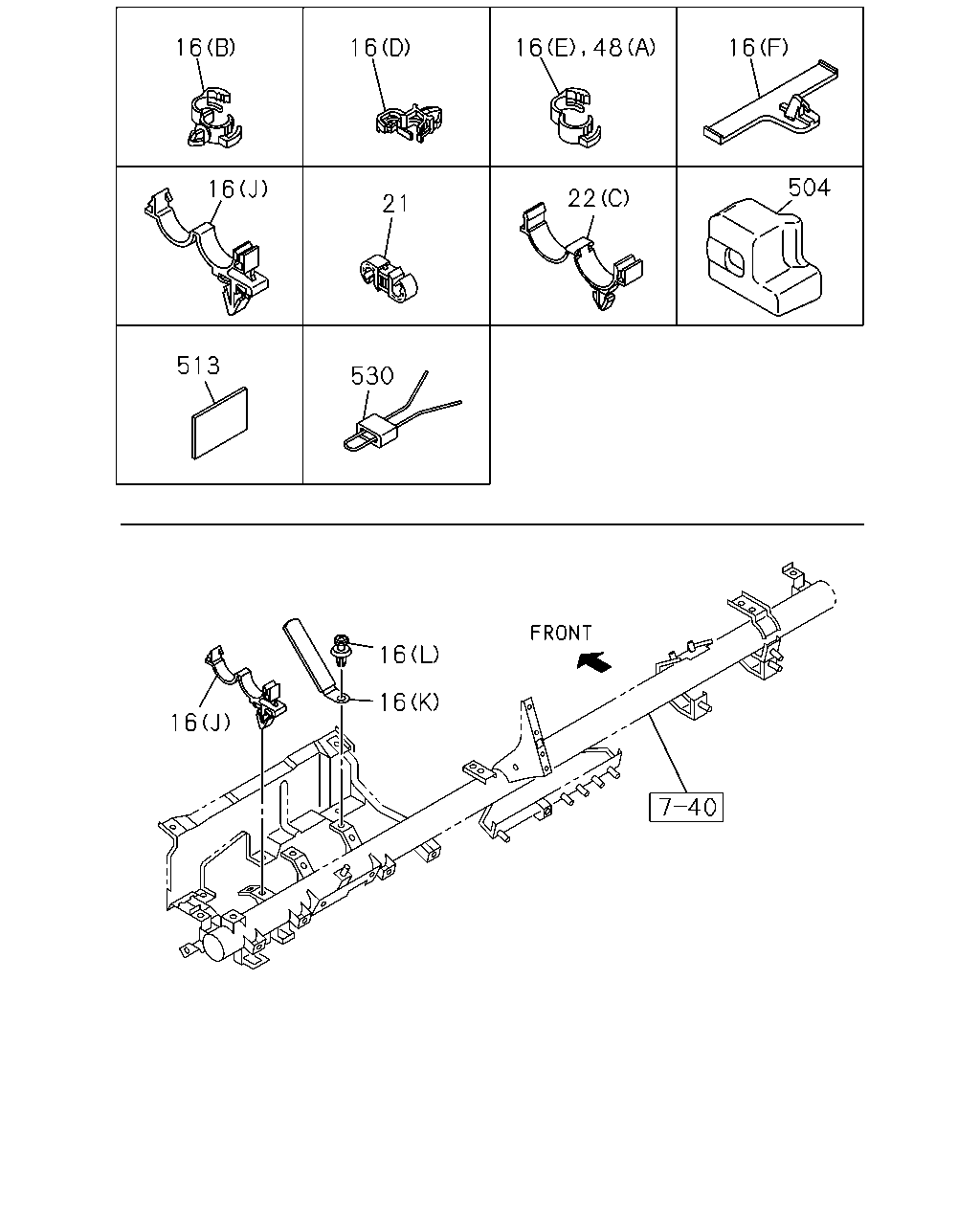

22 22 22 16 48 48 570 570 48 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS 04.930 (K) L=91 ID=8.5	8-94329-956-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0712-0904	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0905-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 16.578 (L) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0712-0904	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0905-	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (M) L=250	5-09707-030-1	14	1	0712-	●		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (M) L=250	5-09707-030-1	14	1	0712-		●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0712-	●		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0712-		●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0712-			●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0712-			●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (H) ID=18 & 18	8-94323-068-0	01	1	0801-0801	●	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0712-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (D) ID=14 L=47	5-09700-319-0	08	1	0904-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (C) T=5.5	8-97371-951-0	02	1	0904-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0712-0801	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0712-0801			●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0802-0802			●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0803-	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0803-			●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0712-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	0712-0903	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C) T=5.5	8-97371-951-0	01	1	0904-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-	●	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0712-1308	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1309-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	0712-1308	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1309-	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0712-	●

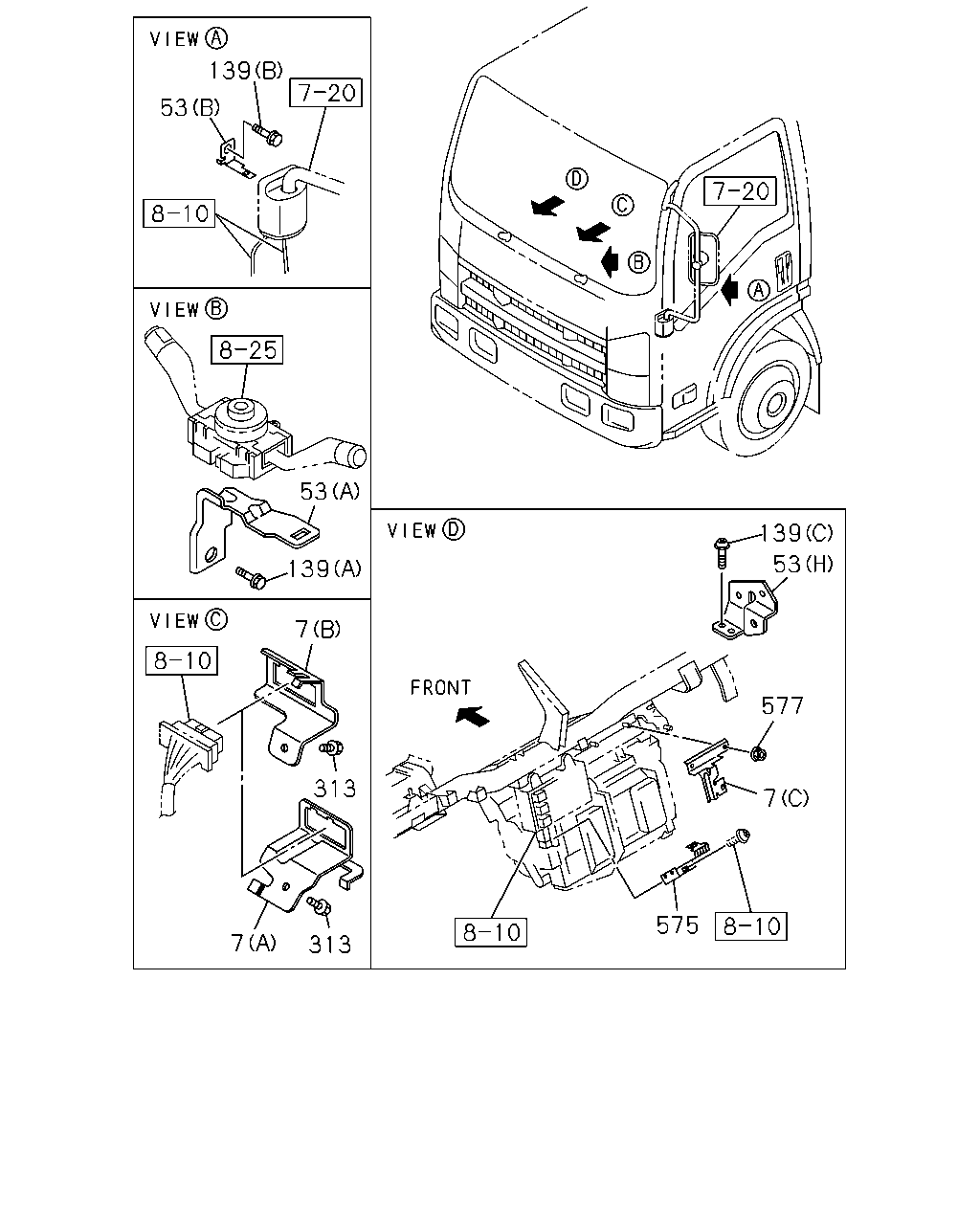

139 53 53 139 53 139 7 577 313 7 575 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR (C)	8-98056-073-3	01	1	0712-	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0712-	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-069-1	01	1	0712-0803	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (J)	8-98111-813-0	01	1	0801-	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	0712-0712	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	0712-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	0712-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	0712-0712	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	0712-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	0712-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0712-0803	●	●	●
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0804-0805	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-2	02	1	0806-	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0712-0809	●	●	●
139	02.559 BOLT; BRKT 03.604 (E) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	0712-1101	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	1301-	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0712-	●	●	●
575	02.559 BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	0809-	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-1	01	1	0712-0808	●	●	●
575	02.559 BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	0809-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●

16 16 16 504 16 22 21 513 530 16 16 16 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS 04.930 (K) L=91 ID=8.5	8-94329-956-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0712-0904	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0905-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0712-	●	●	●
16	02.559 CLIP; HARNESS 16.578 (L) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0712-0904	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0905-	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0712-	●	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> (M) L=250	5-09707-030-1	14	1	0712-	●		●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> (M) L=250	5-09707-030-1	14	1	0712-		●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0712-	●		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0712-		●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0712-			●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0712-			●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (H) ID=18 & 18	8-94323-068-0	01	1	0801-0801	●	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0712-	●	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0712-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (D) ID=14 L=47	5-09700-319-0	08	1	0904-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) (C) T=5.5	8-97371-951-0	02	1	0904-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0712-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0712-		●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0712-0801	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0712-0801			●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0802-0802			●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0803-	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0803-			●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0712-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=5.5	8-97371-951-0	01	1	0712-0903	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (C) T=5.5	8-97371-951-0	01	1	0904-	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0712-	●	●	●
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1201-	●	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	0808-1204	●	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1205-	●	●	●
513	02.559 TAPE; SOFT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 130X80	8-97304-373-0	01	1	1205-	●	●	●
530	02.559 SEAL; HARNESS 03.483	8-97382-876-0	02	1	0712-		●

53 515 139 139 53 139 53 515 53 515 515 53 515 53 53 480 480 53 480 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (J)	8-98111-813-0	01	1	0801-	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	0712-0712	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	0712-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	0712-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E)	8-98052-900-1	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	0712-0712	●	●	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	0712-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	0712-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (F)	8-98033-918-2	01	1	0712-		●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0712-	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0712-0803	●	●	●
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0804-0805	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-2	02	1	0806-	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0712-0809	●	●	●
139	02.559 BOLT; BRKT 03.604 (E) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	0712-1101	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING	0-72180-516-0	01	1	1301-	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803		●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-		●	●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0712-0712	●	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-0712		●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
480	02.483 BOLT; BRKT 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0712-	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0801-	●	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0712-0712	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0801-0802	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE	8-98040-024-0	01	1	0801-0802	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8 FLANGE	8-98040-024-0	01	1	0801-0802		●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0712-0802	●	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
