Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#5385) — 258 parça

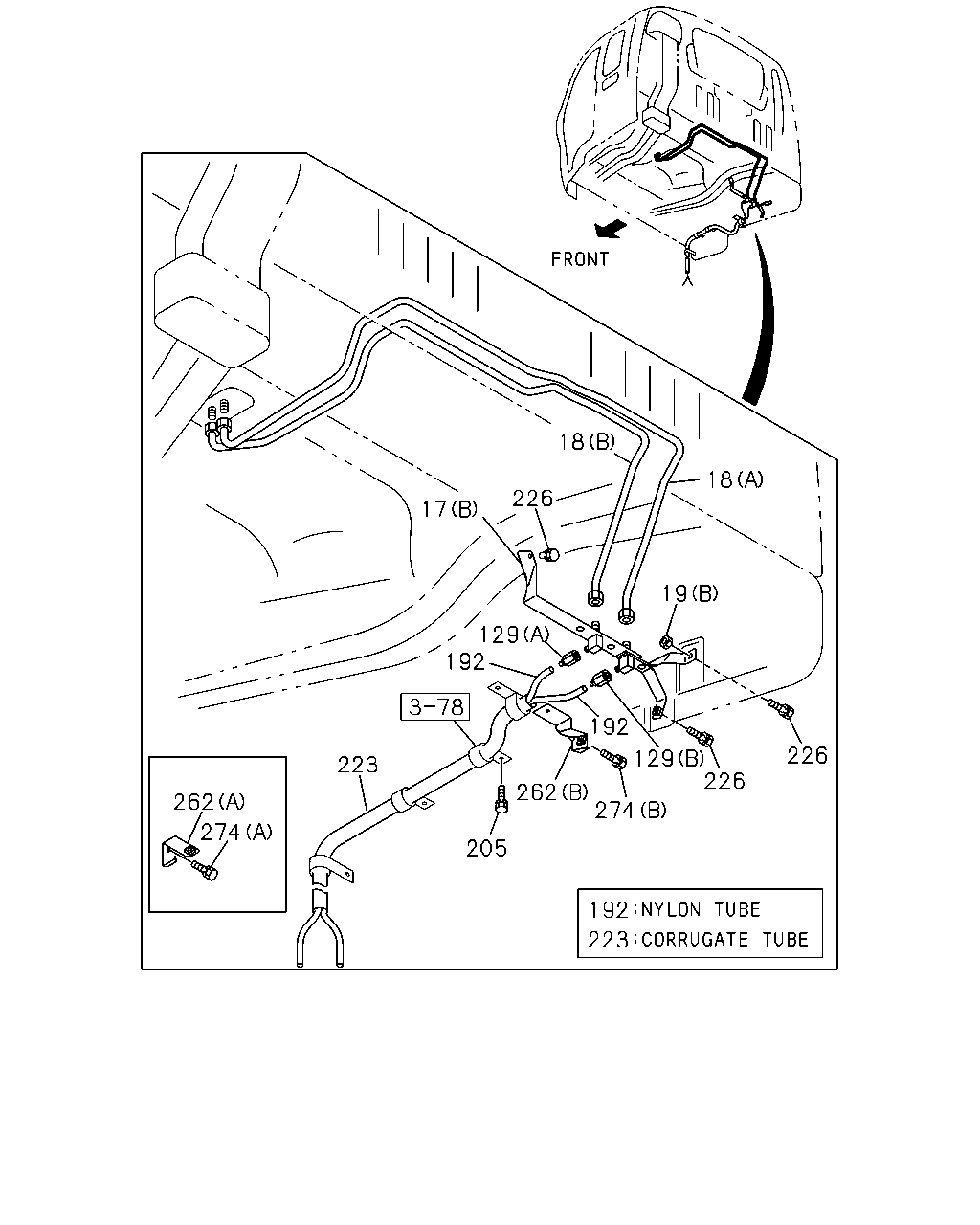

18 18 226 17 19 129 192 192 226 129 226 223 262 274 262 274 205 192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9603-9705	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9706-9901	●	●
17	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (A)	1-47470-418-2	01	1	9706-9901	●
17	UNION; AIR PIPE (A)	1-47470-418-2	01	1	9902-9904	●	●
17	UNION; AIR PIPE (A)	1-47470-418-2	01	1	9902-9904	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9905-	●	●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-418-2	01	1	9905-	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9603-9705	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9706-9901	●	●
17	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (B)	1-47470-464-3	01	1	9706-9901	●
17	UNION; AIR PIPE (B)	1-47470-464-3	01	1	9902-9904	●	●
17	UNION; AIR PIPE (B)	1-47470-464-3	01	1	9902-9904	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9905-	●	●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-464-3	01	1	9905-	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9705	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9706-9901	●	●
18	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9706-9901	●
18	PIPE; AIR,UNION TO UNION (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●	●
18	PIPE; AIR,UNION TO UNION (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9603-9705	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9706-9901	●	●
18	PIPE; AIR,UNION TO UNION BRAKE REGULATION ECE<TDV> (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9706-9901	●
18	PIPE; AIR,UNION TO UNION (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9902-9904	●	●
18	PIPE; AIR,UNION TO UNION (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9902-9904	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-	●	●
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9905-	●	●
19	NUT; PIPE UNION (A) M8 FLANGE	0-91150-108-0	02	1	9603-9901	●	●	●
19	NUT; PIPE UNION (A) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
19	NUT; PIPE UNION (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
19	NUT; PIPE UNION (B) M8	9-09110-408-0	01	1	9603-9901	●	●	●
19	NUT; PIPE UNION (B) M8	9-09110-408-0	01	1	9902-9904	●	●
19	NUT; PIPE UNION (B) M8	9-09110-408-0	01	1	9905-9910	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-408-0	01	1	9911-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9901	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9902-9904	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9901	●	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9902-9904	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9905-9910	●	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
129	CONNECTOR; NYLON TUBE SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-9910	●	●
129	CONNECTOR; NYLON TUBE SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9911-0007	●	●
129	CONNECTOR; NYLON TUBE SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9809-9901	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9906-	●	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-9705	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9901	●	●
205	BOLT; TUBE CLIP BRAKE REGULATION ECE<TDV> M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9901	●
205	BOLT; TUBE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-9904	●	●
205	BOLT; TUBE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-9904	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-	●	●
205	BOLT; TUBE CLIP PARKING BRAKE VALVE LEVER TYPE<W48> M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 W/LK WASHER	0-50040-816-0	03	1	9603-9702	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	03	1	9703-9705	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	03	1	9706-9901	●	●
205	BOLT; TUBE CLIP BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	03	1	9706-9901	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9902-9904	●	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9902-9904	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	03	1	9905-	●	●
205	BOLT; TUBE CLIP PARKING BRAKE VALVE LEVER TYPE<W48> M8X16 FLANGE	0-28080-816-0	03	1	9905-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9706-	●	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9901	●	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-9904	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-	●	●	●
262	BRACKET SPRING BRAKE(SU9) (A)	1-79996-143-0	01	1	9603-9705	●	●
262	BRACKET SPRING BRAKE(SU9) (A)	1-79996-143-0	01	1	9706-9901	●	●
262	BRACKET BRAKE REGULATION ECE<TDV> (A)	1-79996-143-0	01	1	9706-9901	●
262	BRACKET (A)	1-79996-143-0	01	1	9902-9904	●	●
262	BRACKET (A)	1-79996-143-0	01	1	9902-9904	●	●
262	BRACKET SPRING BRAKE(SU9) (A)	1-79996-143-0	01	1	9905-	●	●
262	BRACKET PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79996-143-0	01	1	9905-	●	●
262	BRACKET SPRING BRAKE(SU9) (B)	1-79996-258-1	01	1	9603-9705	●	●
262	BRACKET SPRING BRAKE(SU9) (B)	1-79996-258-1	01	1	9706-9901	●	●
262	BRACKET BRAKE REGULATION ECE<TDV> (B)	1-79996-258-1	01	1	9706-9901	●
262	BRACKET (B)	1-79996-258-1	01	1	9902-9904	●	●
262	BRACKET (B)	1-79996-258-1	01	1	9902-9904	●	●
262	BRACKET SPRING BRAKE(SU9) (B)	1-79996-258-1	01	1	9905-	●	●
262	BRACKET PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-258-1	01	1	9905-	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-9705	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9901	●	●
274	BOLT; BRKT BRAKE REGULATION ECE<TDV> (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9706-9901	●
274	BOLT; BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-9904	●	●
274	BOLT; BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9902-9904	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-0102	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9905-0102	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 W/LK WASHER	0-50040-816-0	01	1	9603-9702	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 FLANGE	0-28080-816-0	01	1	9703-9705	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 FLANGE	0-28080-816-0	01	1	9706-9901	●	●
274	BOLT; BRKT BRAKE REGULATION ECE<TDV> (B) M8X16 FLANGE	0-28080-816-0	01	1	9706-9901	●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9902-9904	●	●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	9902-9904	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●
274	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●

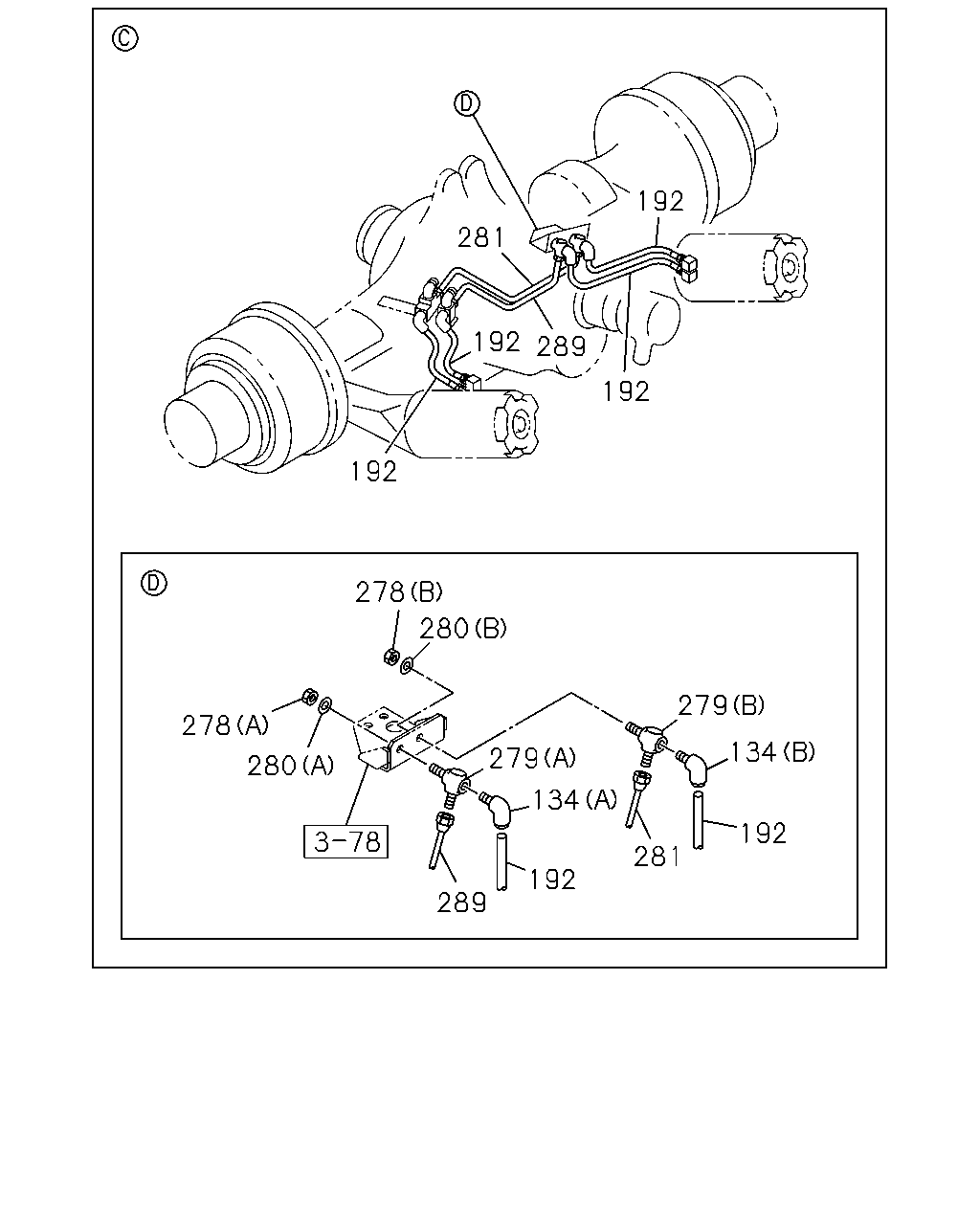

192 281 192 289 192 192 278 280 279 278 134 279 280 134 192 281 192 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-	●	●
134	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9809-9809	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9809-9901	●	●
134	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9809-9809	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9809-9901	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9809-9901	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9906-	●	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16	9-99111-416-0	01	1	9906-	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20	9-99111-420-0	01	1	9906-	●	●
278	NUT; UNION EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16	9-99111-416-0	01	1	9809-9809	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16	9-99111-416-0	01	1	9809-9901	●	●
278	NUT; UNION EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20	9-99111-420-0	01	1	9809-9809	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20	9-99111-420-0	01	1	9809-9901	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M14X35	1-09650-272-2	01	1	9906-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	9906-	●	●
279	UNION; AIR PIPE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M14X35	1-09650-272-2	01	1	9809-9809	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M14X35	1-09650-272-2	01	1	9809-9901	●	●
279	UNION; AIR PIPE EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	9809-9809	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	9809-9901	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=16.2	9-09150-516-0	01	1	9906-	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=20.2	9-09150-520-0	01	1	9906-	●	●
280	WASHER; LK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=16.2	9-09150-516-0	01	1	9809-9809	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=16.2	9-09150-516-0	01	1	9809-9901	●	●
280	WASHER; LK EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=20.2	9-09150-520-0	01	1	9809-9809	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=20.2	9-09150-520-0	01	1	9809-9901	●	●
281	PIPE; AIR,EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-109-0	01	1	9906-	●	●
281	PIPE; AIR,EMERGENCY EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-109-0	01	1	9809-9809	●	●
281	PIPE; AIR,EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-109-0	01	1	9809-9901	●	●
289	PIPE; AIR,MODULATOR TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-108-0	01	1	9906-	●	●
289	PIPE; AIR,MODULATOR TO RELAY VLV EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-108-0	01	1	9809-9809	●	●
289	PIPE; AIR,MODULATOR TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-108-0	01	1	9809-9901	●	●

192 192 172 172 64 71 60 37 37 46 192 172 192 64 71 185 37 223 37 192 223 192 223 192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9809-9901	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9809-9901	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	9809-9901	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	9809-9901	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9905-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9905-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	9905-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	9905-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9809-9901	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9905-9905	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M20	9-99111-420-0	02	1	9809-9901	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M20	9-99111-420-0	02	1	9905-	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=17.5	9-09572-515-0	02	1	9809-9901	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=17.5	9-09572-515-0	02	1	9809-9901	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=17.5	9-09572-515-0	02	1	9905-	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> ID=17.5	9-09572-515-0	02	1	9905-	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=550	0-07909-550-0	01	1	9809-9901	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=550	0-07909-550-0	01	1	9809-9901	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=550	0-07909-550-0	01	1	9905-	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> L=550	0-07909-550-0	01	1	9905-	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9809-9901	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9809-9901	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9905-	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
185	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M20	9-99111-420-0	01	1	9809-9901	●	●
185	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M20	9-99111-420-0	01	1	9905-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9809-9901	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9906-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9706-	●	●	●

192 223 5 19 217 220 72 17 42 81 291 194 73 73 193 192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	PIPE; AIR,UNION TO PARKING VLV BRAKE REGULATION ECE<TDV>	1-49118-158-0	01	1	9706-9901	●
5	PIPE; AIR,UNION TO PARKING VLV	1-49118-158-0	01	1	9902-9904	●	●
5	PIPE; AIR,UNION TO PARKING VLV PARKING BRAKE VALVE LEVER TYPE<W48>	1-49118-158-0	01	1	9905-	●	●
5	PIPE; AIR,UNION TO PARKING VLV SPRING BRAKE(SU9)	1-49114-638-1	01	1	9603-9705	●	●
5	PIPE; AIR,UNION TO PARKING VLV SPRING BRAKE(SU9) EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-638-1	01	1	9706-9901	●	●
5	PIPE; AIR,UNION TO PARKING VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-638-1	01	1	9905-	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9603-9705	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9706-9901	●	●
17	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (A)	1-47470-418-2	01	1	9706-9901	●
17	UNION; AIR PIPE (A)	1-47470-418-2	01	1	9902-9904	●	●
17	UNION; AIR PIPE (A)	1-47470-418-2	01	1	9902-9904	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9905-	●	●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-418-2	01	1	9905-	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9603-9705	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9706-9901	●	●
17	UNION; AIR PIPE BRAKE REGULATION ECE<TDV> (B)	1-47470-464-3	01	1	9706-9901	●
17	UNION; AIR PIPE (B)	1-47470-464-3	01	1	9902-9904	●	●
17	UNION; AIR PIPE (B)	1-47470-464-3	01	1	9902-9904	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9905-	●	●
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-464-3	01	1	9905-	●	●
19	NUT; PIPE UNION (A) M8 FLANGE	0-91150-108-0	02	1	9603-9901	●	●	●
19	NUT; PIPE UNION (A) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
19	NUT; PIPE UNION (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
19	NUT; PIPE UNION (B) M8	9-09110-408-0	01	1	9603-9901	●	●	●
19	NUT; PIPE UNION (B) M8	9-09110-408-0	01	1	9902-9904	●	●
19	NUT; PIPE UNION (B) M8	9-09110-408-0	01	1	9905-9910	●	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-408-0	01	1	9911-	●	●
42	GASKET; CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	01	1	9603-9603	●	●
42	GASKET; CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	02	1	9604-9605	●	●
42	GASKET; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	9604-9702	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9603-9604	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9605-9606	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9905-9911	●	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9912-	●	●
73	BOLT; CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8X40 FLANGE	0-28680-840-0	02	1	9906-9910	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9603-9605	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9606-9606	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9607-9901	●	●
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	9902-9904	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9905-9911	●	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9912-	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9603-9605	●	●
81	CONNECTOR; NYLON TUBE,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9702	●	●
81	CONNECTOR; NYLON TUBE,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9703-9901	●	●
81	CONNECTOR; NYLON TUBE,FRAME DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9902-9904	●	●
81	CONNECTOR; NYLON TUBE,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005	●	●
81	CONNECTOR; NYLON TUBE,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●	●
192	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9809-9901	●	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9906-	●	●	●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9603-	●	●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9603-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION BRAKE REGULATION ECE<TDV>	1-49118-159-0	01	1	9706-9901	●
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49118-159-0	01	1	9902-9904	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION PARKING BRAKE VALVE LEVER TYPE<W48>	1-49118-159-0	01	1	9905-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION SPRING BRAKE(SU9)	1-49114-639-0	01	1	9603-9705	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION SPRING BRAKE(SU9) EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-639-0	01	1	9706-9901	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-639-0	01	1	9905-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9603	●	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9706-	●	●	●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
