◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51148 - NLR/NMR(EU)-LHD EU4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#53846) — 30 parça

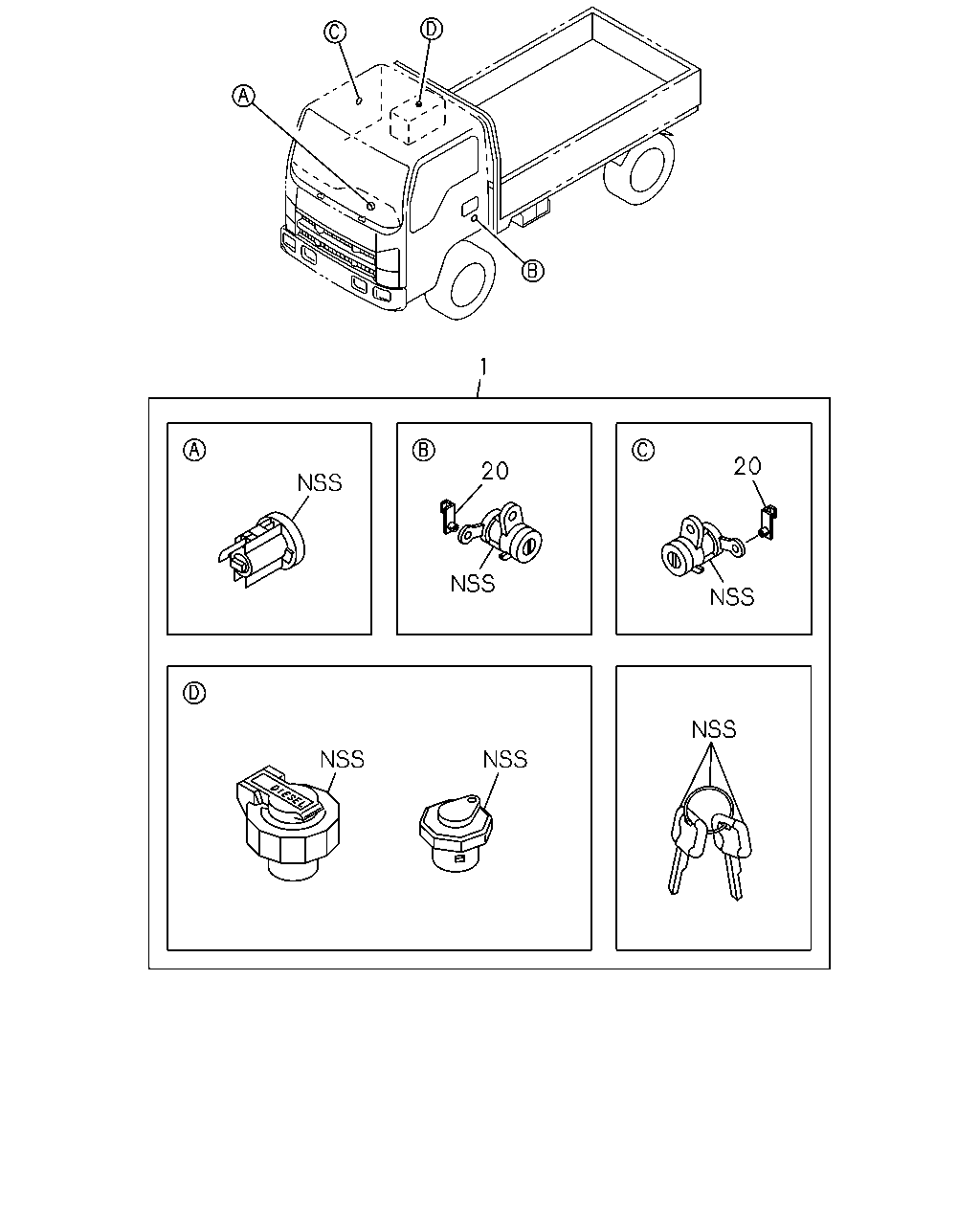

çizim 154520
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.188 CYLINDER SET; CAR LOCK 8-98029-406-1 01 1 0712-0804 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 75L<7GX> 		8-98029-406-1 01 1 0712-0804 ●
1 02.188 CYLINDER SET; CAR LOCK 8-98088-949-0 01 1 0805-0912 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 75L<7GX> 		8-98088-949-0 01 1 0805-0912 ●
1 02.188 CYLINDER SET; CAR LOCK 8-98145-977-0 01 1 1001-1203 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 75L<7GX> 		8-98145-977-0 01 1 1001-1203 ●
1 02.188 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1204- ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 75L<7GX> 		8-98201-214-0 01 1 1204- ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 63L<6EF> 		8-98032-917-1 01 1 0712-0804 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 63L<6EF> 		8-98088-952-0 01 1 0805-1203 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 63L<6EF> 		8-98201-185-0 01 1 1204- ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0712- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0712- ● ● ●

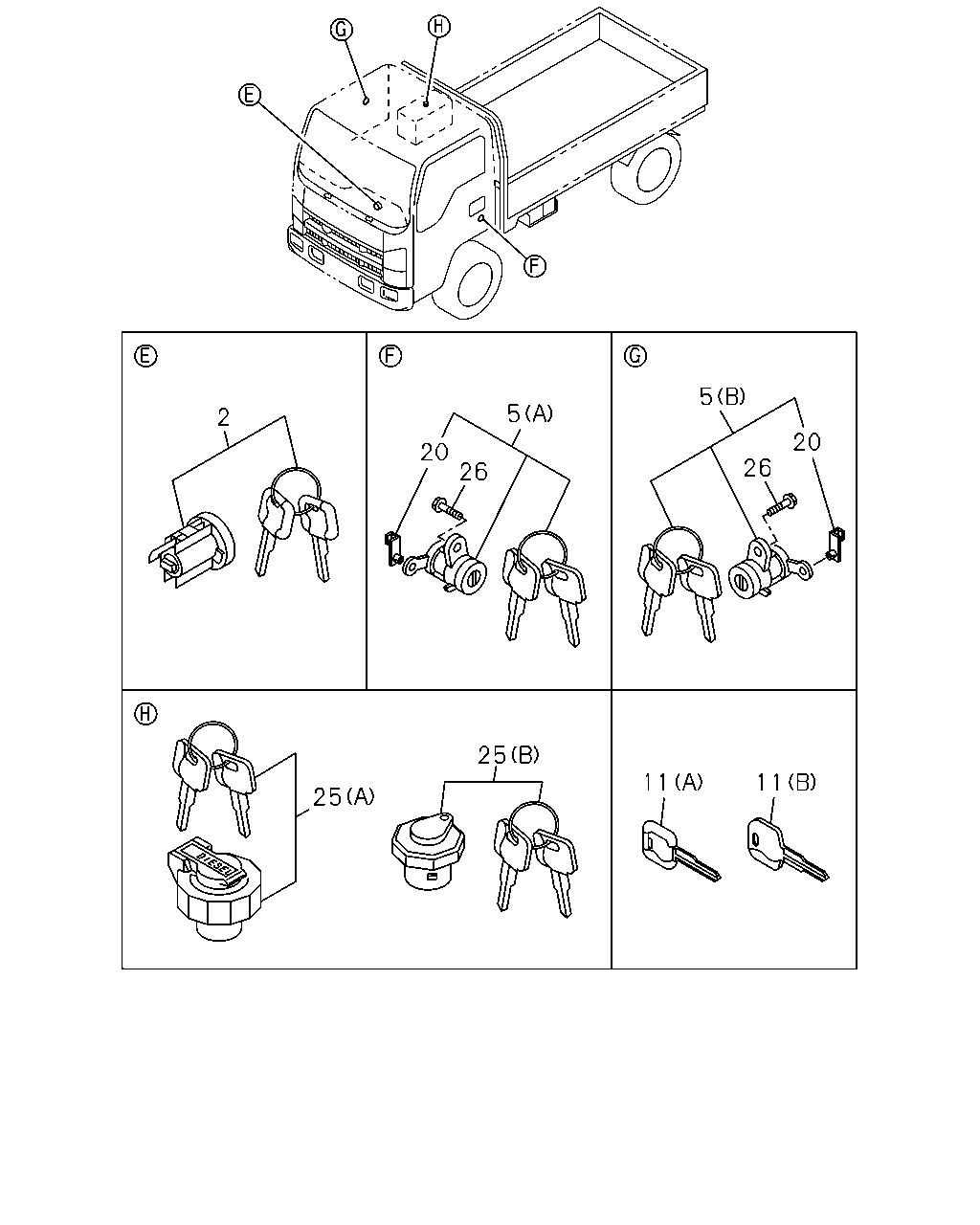

çizim 154521
5 5 2 20 20 26 26 25 11 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 0712-1203 ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1204- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0712- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0712- ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0712- ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0712- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0712- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0712- ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
(A) 		8-98033-157-0 01 1 0712-0804 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 75L<7GX> (A) 		8-98033-157-0 01 1 0712-0804 ●
25 03.028 CAP; FUEL TANK,W/KEY
(A) 		8-98088-982-0 01 1 0805-0912 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 75L<7GX> (A) 		8-98088-982-0 01 1 0805-0912 ●
25 03.028 CAP; FUEL TANK,W/KEY
(A) 		8-98146-010-0 01 1 1001- ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 75L<7GX> (A) 		8-98146-010-0 01 1 1001- ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 63L<6EF> (B) 		8-98055-153-0 01 1 0712-0804 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 63L<6EF> (B) 		8-98088-979-0 01 1 0805- ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
