◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51148 - NLR/NMR(EU)-LHD EU4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#53844) — 46 parça
çizim 154509
96 2 96 48 38 5 1 9 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.017 PLATE; CAUTION,SHIFT PATTERN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-983-0 01 1 0712- ● ● ●
2 03.680 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> (A) 		8-98083-876-0 01 1 0712- ● ● ●
2 03.680 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> 08.808 (A) 		8-98036-252-0 01 1 0712- ● ● ●
2 03.680 LABEL; FUEL CAUTION
FUEL TANK 63L<6EF> (B) 		8-97203-837-0 01 1 0712- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 0712- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 0712- ●
9 08.808 PLATE; NAME,SPD RANGE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98095-246-2 01 1 0712- ●
9 08.808 PLATE; NAME,SPD RANGE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98095-247-2 01 1 0712- ●
38 08.808 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<6PH> 		8-98022-848-1 01 1 0712- ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98017-873-0 01 1 0712- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-104-0 01 1 0712- ●
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-98017-874-0 01 1 0712- ●
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98091-103-0 01 1 0712- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 0712-0712 ● ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 0801- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 0712-0712 ● ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 0801- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0712-0712 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0801- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 0712-0712 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 0801- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 0712- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 0712- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 0712- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 0712- ● ● ●

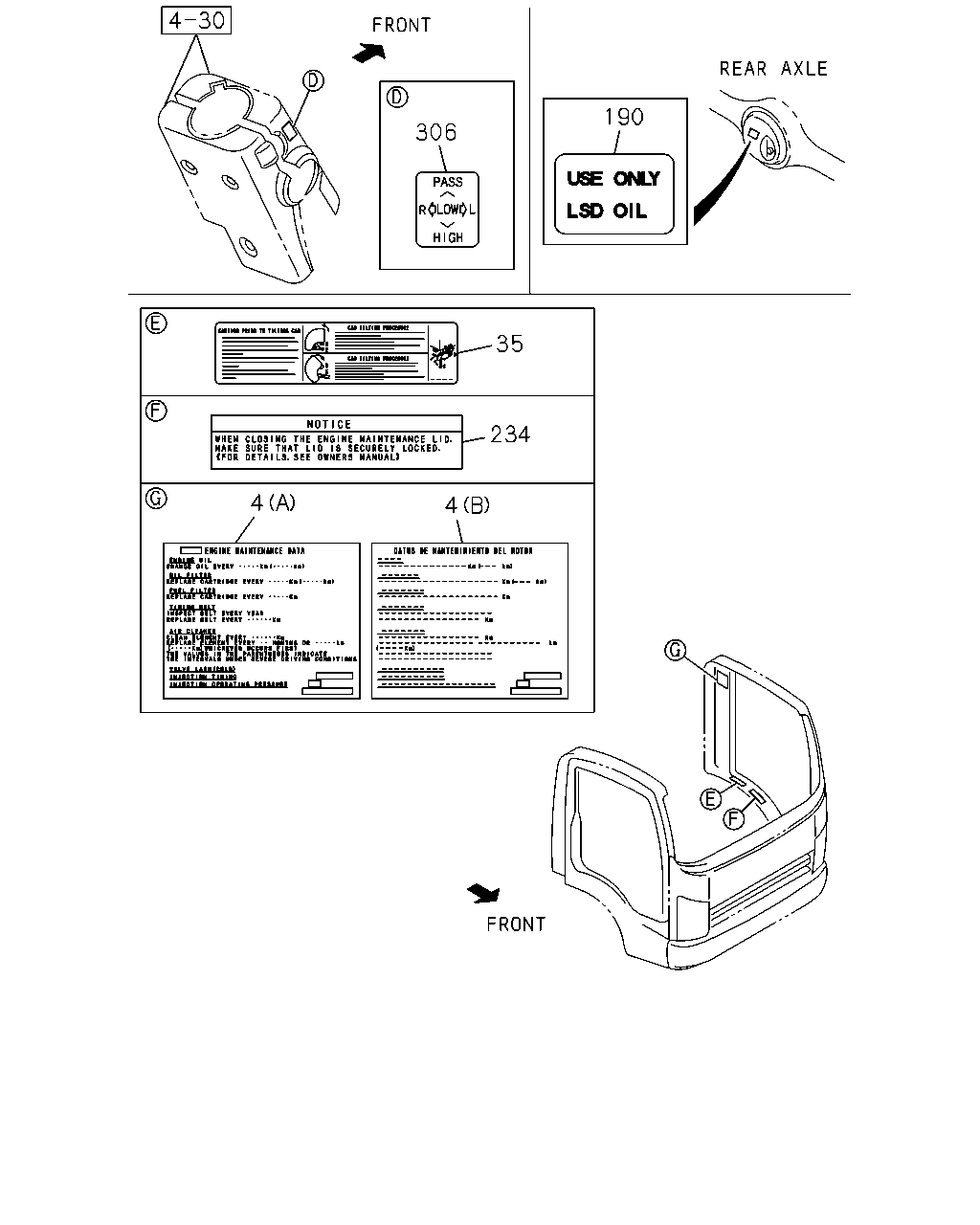

çizim 154513
190 306 35 234 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 0712- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 0712- ● ● ●
35 08.808 PLATE; CAUTION,CAB
CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0712-0801 ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0802- ● ●
35 08.808 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 0712-0801 ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 0802- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0712- ● ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 0712-0801 ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0802- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 0802- ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0712-0801 ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0802- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0802- ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 0712- ● ● ●

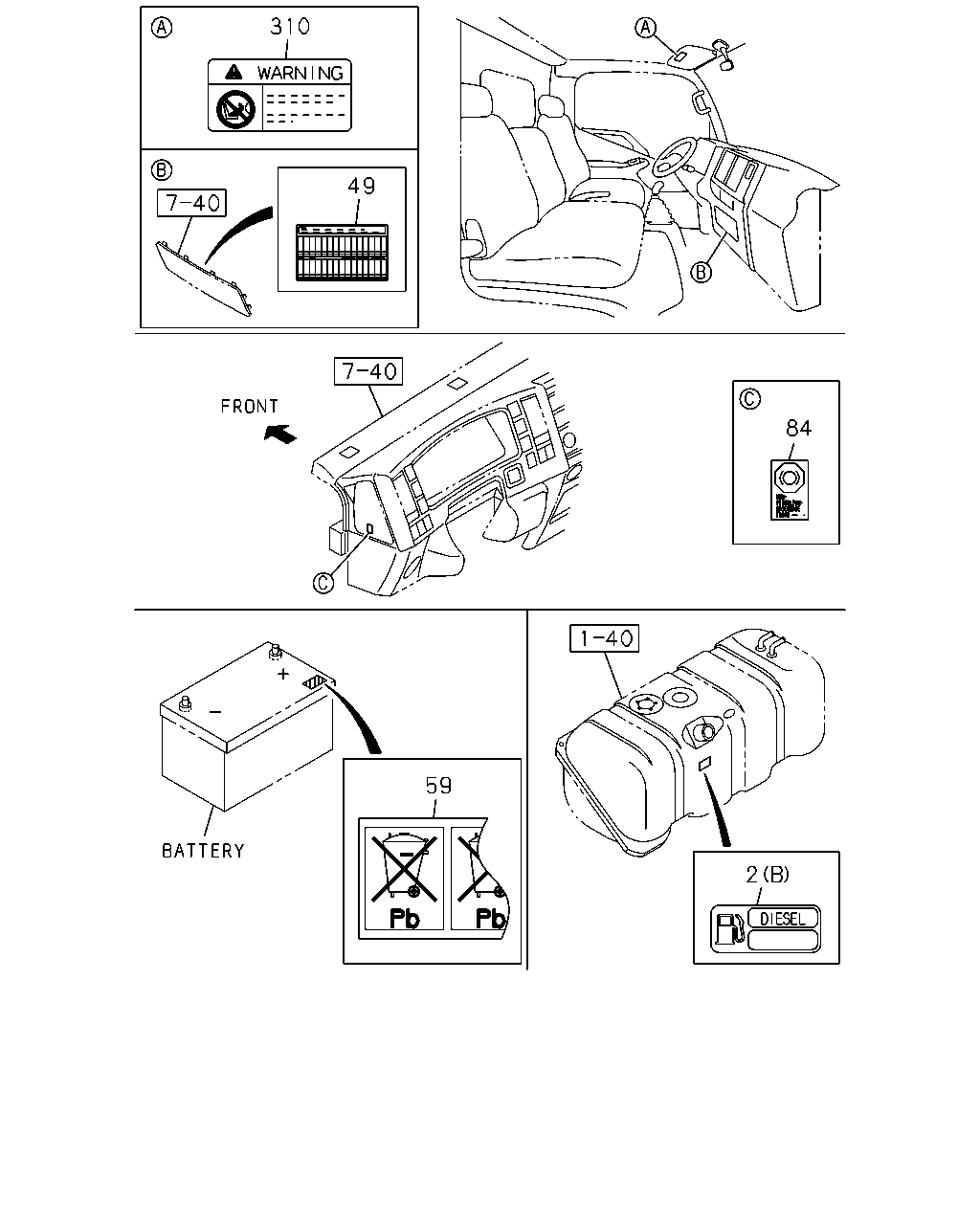

çizim 154522
310 49 84 59 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 03.680 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> (A) 		8-98083-876-0 01 1 0712- ● ● ●
2 03.680 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> 08.808 (A) 		8-98036-252-0 01 1 0712- ● ● ●
2 03.680 LABEL; FUEL CAUTION
FUEL TANK 63L<6EF> (B) 		8-97203-837-0 01 1 0712- ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0712- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 0712- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 0712- ● ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 0712- ● ● ●
