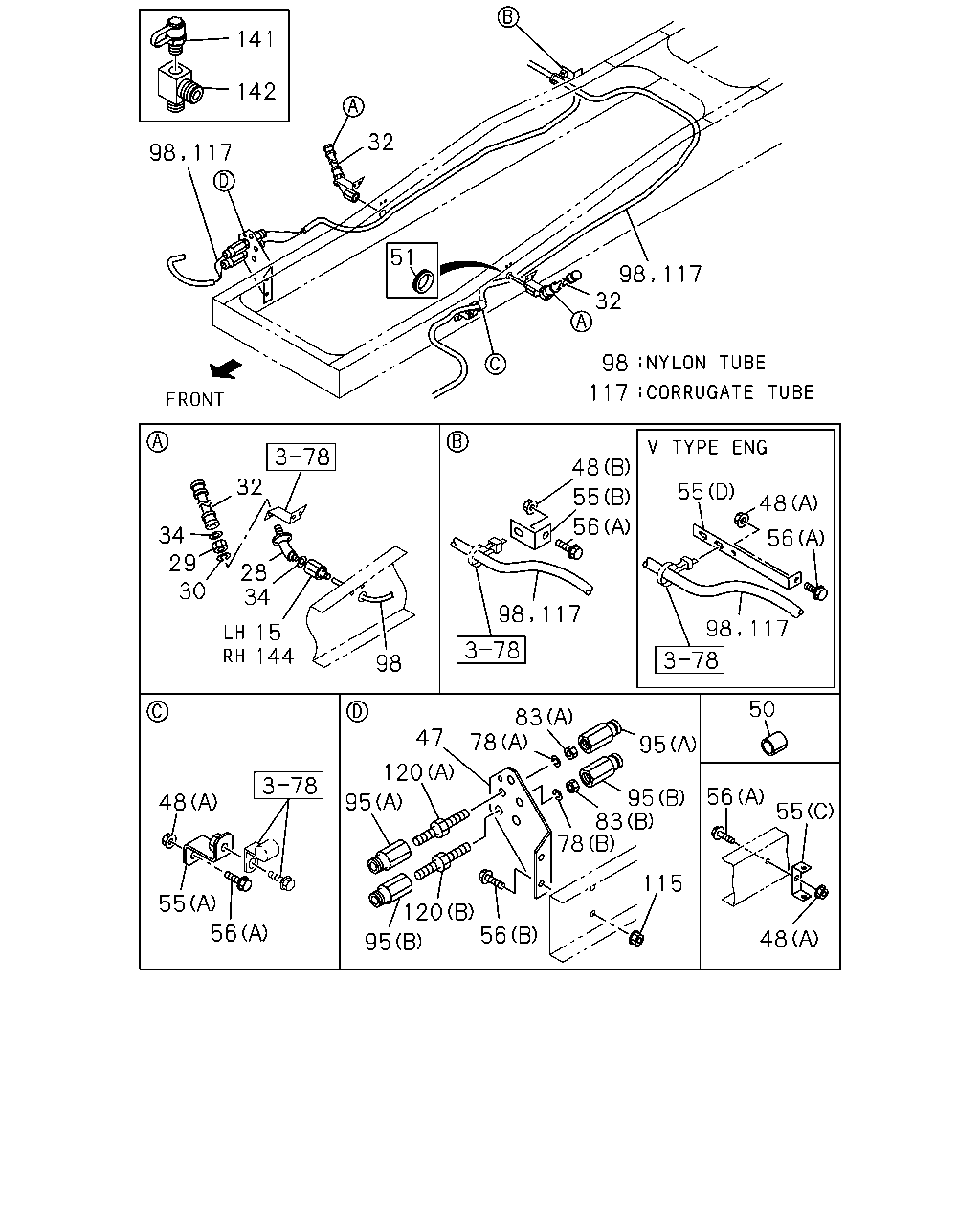

3-75 — BRAKE PIPING; AIR,FRONT (#5384) — 126 parça

141 142 32 51 32 98 117 48 32 55 55 48 56 34 29 30 56 28 34 15 144 98 50 83 78 47 95 120 56 95 83 78 95 48 55 115 55 120 56 56 48 95 98 117 98 117 98 117 98 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9901	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-9904	●	●
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
28	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	1-09654-199-2	02	1	9603-9901	●	●
28	NIPPLE; AIR PIPE M20	1-09654-199-2	02	1	9902-9904	●	●
28	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	1-09654-199-2	02	1	9905-	●	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9603-9901	●	●
29	NUT; NIPPLE M20	9-99111-420-0	02	1	9902-9904	●	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9905-	●	●
30	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9603-9901	●	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9902-9904	●	●
30	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9905-	●	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	0-07847-500-1	02	1	9603-9901	●	●
32	HOSE; FLEX,FRT L=500	0-07847-500-1	02	1	9902-9904	●	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	0-07847-500-1	02	1	9905-	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	04	1	9603-9901	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9902-9904	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	04	1	9905-	●	●
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-600-2	01	1	9603-9901	●	●
47	BRACKET; PIPE UNION	1-47477-600-2	01	1	9902-9904	●	●
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-600-2	01	1	9905-	●	●
48	NUT; UNION BRKT (A) M8	9-09110-408-0	01	1	9603-9606	●	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> (A) M8	9-09110-408-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●
48	NUT; UNION BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
48	NUT; UNION BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9905-0103	●	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> (A) M8 FLANGE	0-91150-108-0	01	1	9905-0103	●	●
48	NUT; UNION BRKT (A) M8 FLANGE	0-91150-108-0	01	1	0104-	●	●	●
48	NUT; UNION BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	01	1	0104-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-508-0	01	1	9603-9606	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 FLANGE	0-91150-212-0	01	1	9611-9901	●	●
48	NUT; UNION BRKT (B) M12 FLANGE	0-91150-212-0	01	1	9902-9904	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 FLANGE	0-91150-212-0	01	1	9905-	●	●
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=29 OD=39 L=40	1-09337-013-0	02	1	9603-9901	●	●	●
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=29 OD=39 L=40	1-09337-013-0	02	1	9905-0103	●	●	●
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=50	1-09337-014-0	02	1	0104-	●	●	●
51	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	02	1	9902-9904	●	●
51	GROMMET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9905-	●	●
51	GROMMET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	01	1	9607-9901	●	●
55	BRACKET; TUBE UNION (A)	1-47476-200-0	01	1	9603-9901	●	●	●
55	BRACKET; TUBE UNION (A)	1-47476-200-0	01	1	9902-9904	●	●
55	BRACKET; TUBE UNION (A)	1-47476-200-0	01	1	9905-	●	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-694-0	01	1	9603-9901	●	●
55	BRACKET; TUBE UNION (B)	1-47477-694-0	01	1	9902-9904	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-694-0	01	1	9905-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47477-895-1	01	1	9611-9901	●	●
55	BRACKET; TUBE UNION (C)	1-47477-895-1	01	1	9902-9904	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47477-895-1	01	1	9905-	●	●
55	BRACKET; TUBE UNION V TYPE ENG<91L> (D) L=100 H=30	1-47477-645-2	01	1	9603-9901	●	●
55	BRACKET; TUBE UNION V TYPE ENG<91L> (D) L=100 H=30	1-47477-645-2	01	1	9905-0103	●	●
55	BRACKET; TUBE UNION V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=100 H=30	1-47477-645-2	01	1	0104-	●	●
56	BOLT; UNION BRKT (A) M8X25 FLANGE	0-28080-825-0	01	1	0104-	●	●	●
56	BOLT; UNION BRKT (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●	●
56	BOLT; UNION BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●	●
56	BOLT; UNION BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●	●
56	BOLT; UNION BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0103	●	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-0103	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	01	1	0104-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X35 FLANGE	0-28081-035-0	02	1	9603-9606	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X40 FLANGE	0-28681-040-0	02	1	9607-9901	●	●
56	BOLT; UNION BRKT (B) M10X40 FLANGE	0-28681-040-0	02	1	9902-9904	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X40 FLANGE	0-28681-040-0	02	1	9905-	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> (A) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> (A) M8X35 FLANGE	0-28680-835-0	01	1	9607-9901	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> (A) M8X35 FLANGE	0-28680-835-0	01	1	9905-0103	●	●
56	BOLT; UNION BRKT V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X35 FLANGE	0-28680-835-0	01	1	0104-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2	9-09150-514-0	01	1	9603-9901	●	●
78	WASHER; LK,PIPE UNION (A) ID=14.2	9-09150-514-0	01	1	9902-9904	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2	9-09150-516-0	01	1	9603-9901	●	●
78	WASHER; LK,PIPE UNION (B) ID=16.2	9-09150-516-0	01	1	9902-9904	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2	9-09150-516-0	01	1	9905-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	9-99111-414-0	01	1	9603-9901	●	●
83	NUT; PIPE UNION (A) M14	9-99111-414-0	01	1	9902-9904	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	9-99111-414-0	01	1	9905-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	9-99111-416-0	01	1	9603-9901	●	●
83	NUT; PIPE UNION (B) M16	9-99111-416-0	01	1	9902-9904	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	9-99111-416-0	01	1	9905-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9603-9901	●	●
95	ADAPTER; BRKT (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9902-9904	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9905-0007	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9603-9901	●	●
95	ADAPTER; BRKT (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9902-9904	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	02	1	9905-0007	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9603-	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9911-	●	●	●
115	NUT; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	02	1	9603-9606	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9603-	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9910-	●	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	9-09223-308-1	01	1	9603-9901	●	●
120	UNION; AIR PIPE (A) M14	9-09223-308-1	01	1	9902-9904	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14	9-09223-308-1	01	1	9905-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 L=74	9-09233-310-1	01	1	9603-9901	●	●
120	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	01	1	9902-9904	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 L=74	9-09233-310-1	01	1	9905-	●	●
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-47459-014-0	01	1	9706-9901	●	●
141	CONNECTOR; TEST BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-014-0	01	1	9902-9912	●	●
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV>	1-47459-014-0	01	1	0001-	●	●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-09660-838-0	01	1	9706-9901	●	●
142	UNION; 3-WAY BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-09660-838-0	01	1	9902-9912	●	●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV>	1-09660-838-0	01	1	0001-	●	●
144	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9901	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-9904	●	●
144	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007	●	●
144	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●	●
