Isuzu WW
▶
TRUCKS
▶
NLR
▶
51148 - NLR/NMR(EU)-LHD EU4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#53836) — 26 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
◀

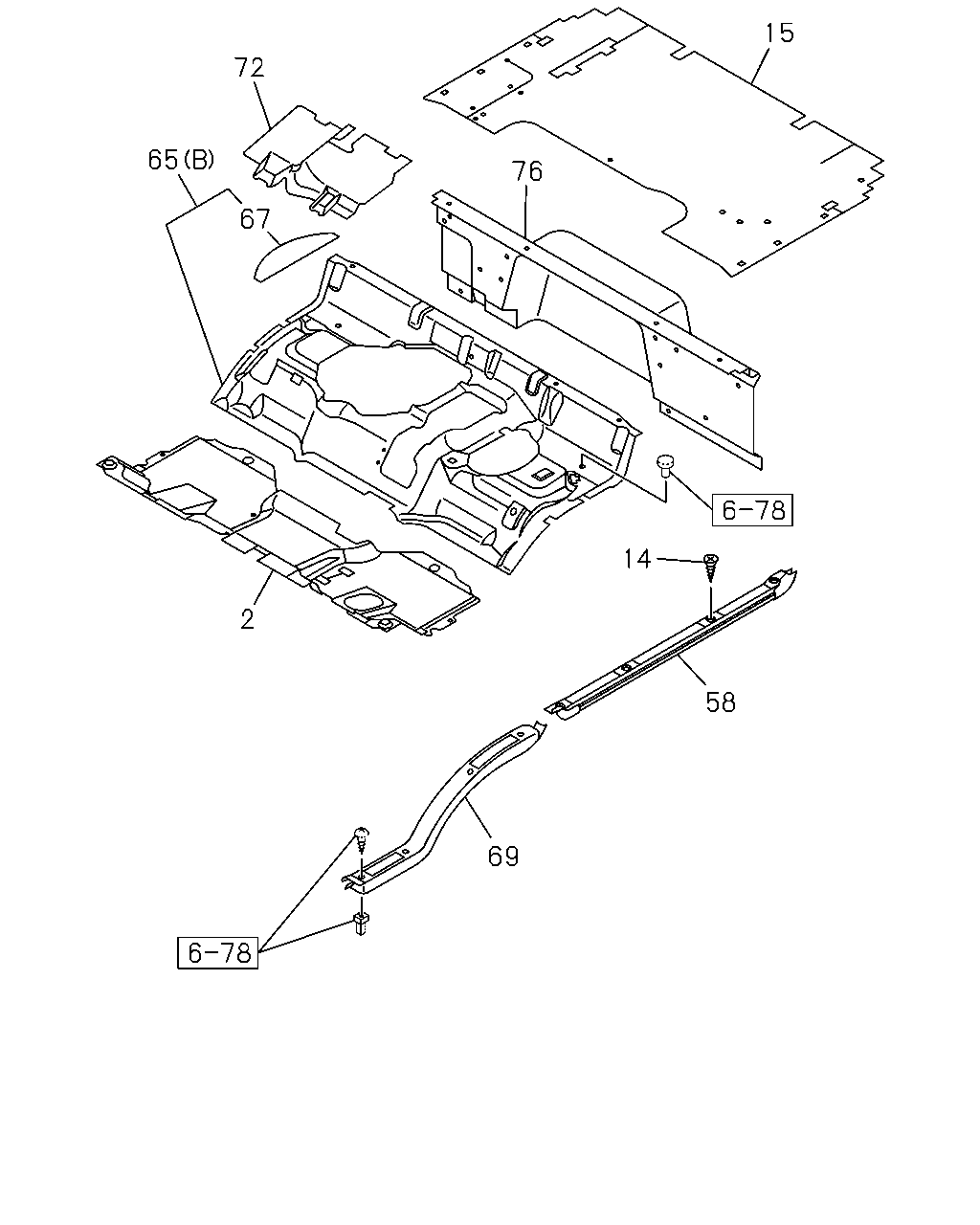

[675A] DBL CAB (19 parça)
[675A] SGL CAB (7 parça)
▶
15
72
65
76
67
14
2
58
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
GRAY
8-97411-668-3
01
1
0712-
●
●
●
14
16.870 SCREW; PLATE
04.681 M5X12 TAPPING
0-72180-512-0
08
1
0712-
●
15
16.800 MAT; FLOOR REAR
GRAY
8-97412-598-3
01
1
0712-
●
58
08.153 PLATE; GUARD,RR FLOOR MAT
GRAY
8-97405-981-1
02
1
0712-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97411-678-5
01
1
0802-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(A) GRAY
8-97411-677-4
01
1
0712-0801
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97411-677-5
01
1
0802-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY
8-97411-679-5
01
1
0712-
●
67
16.549 LID; COVER
GRAY
8-97408-863-0
01
1
0712-0801
●
67
16.549 LID; COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97408-863-0
01
1
0802-0904
●
●
67
16.549 LID; COVER
GRAY
8-97408-863-0
01
1
0802-0904
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
0712-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
0712-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97414-561-1
01
1
0712-0801
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97414-561-1
01
1
0802-0911
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97414-561-1
01
1
0802-0911
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97417-598-1
01
1
0912-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97417-598-1
01
1
0912-
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY
8-97412-597-2
01
1
0712-
●
65
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
GRAY
8-97411-668-3
01
1
0712-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97411-678-5
01
1
0802-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(A) GRAY
8-97411-677-4
01
1
0712-0801
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97411-677-5
01
1
0802-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY
8-97411-679-5
01
1
0712-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
0712-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
0712-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
