4-25 — REAR FINAL DRIVE (#53831) — 140 parça

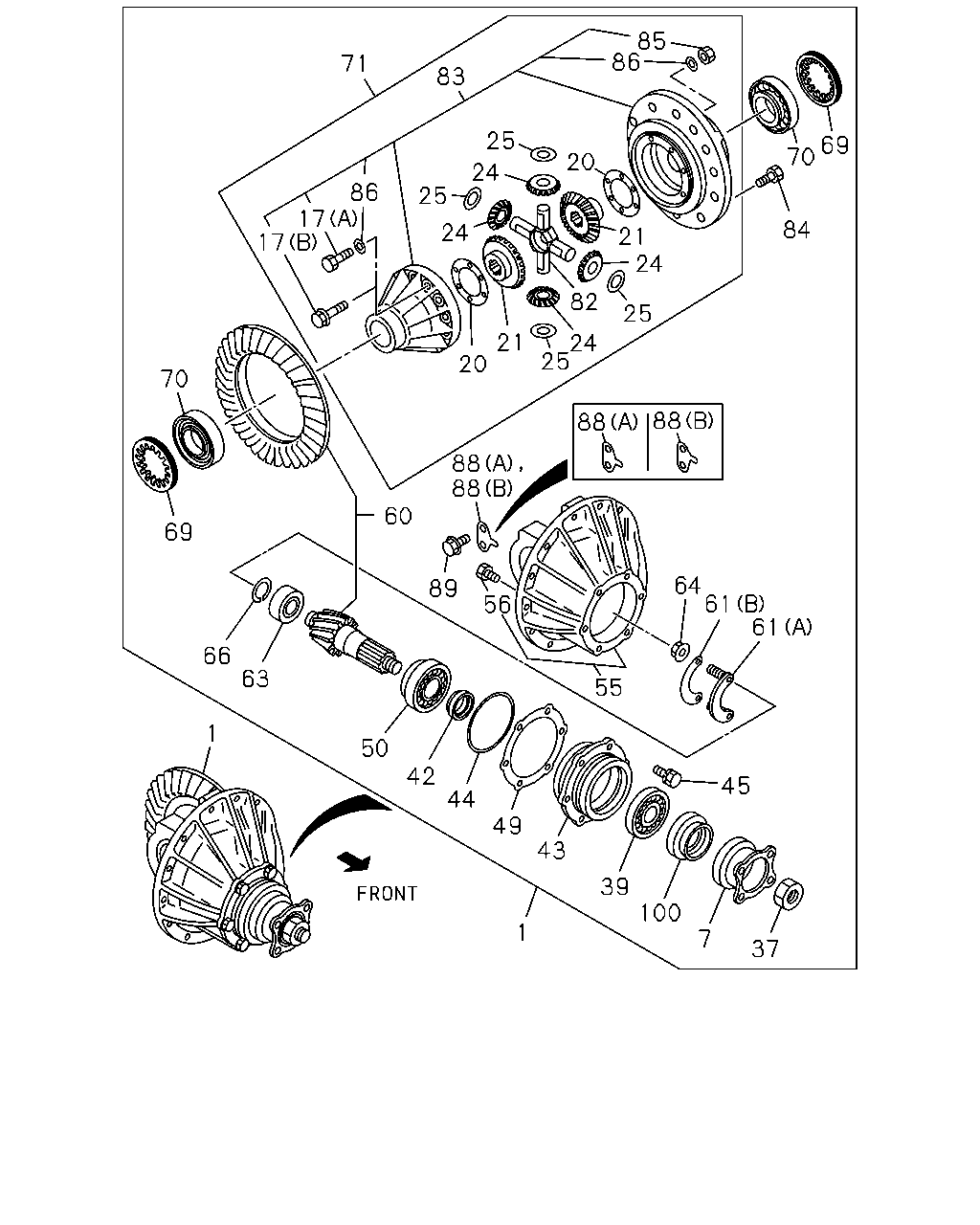

85 86 71 83 25 69 70 20 24 86 25 17 17 84 24 21 24 82 25 21 20 24 25 70 88 88 88 88 60 69 64 61 61 89 56 66 63 55 1 50 42 45 44 49 43 39 100 1 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	0804-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	0804-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	0804-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	0804-
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0804-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0804-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0804-1208
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0804-
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0804-1004
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0804-1004
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0804-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0804-
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0804-
39	05.484 BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0804-1002
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0804-
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0804-
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0804-
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0804-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0804-
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0804-
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0804-
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0804-
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0804-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	0804-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0804-1505
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0804-
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0804-
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0804-
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0804-
64	05.476 NUT; RET 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0804-
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0804-
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0804-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	0804-
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0804-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-2	01	1	0804-1208
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-98219-707-0	01	1	1209-
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0804-
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0804-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0804-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0804-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0804-
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0804-
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0804-
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0804-

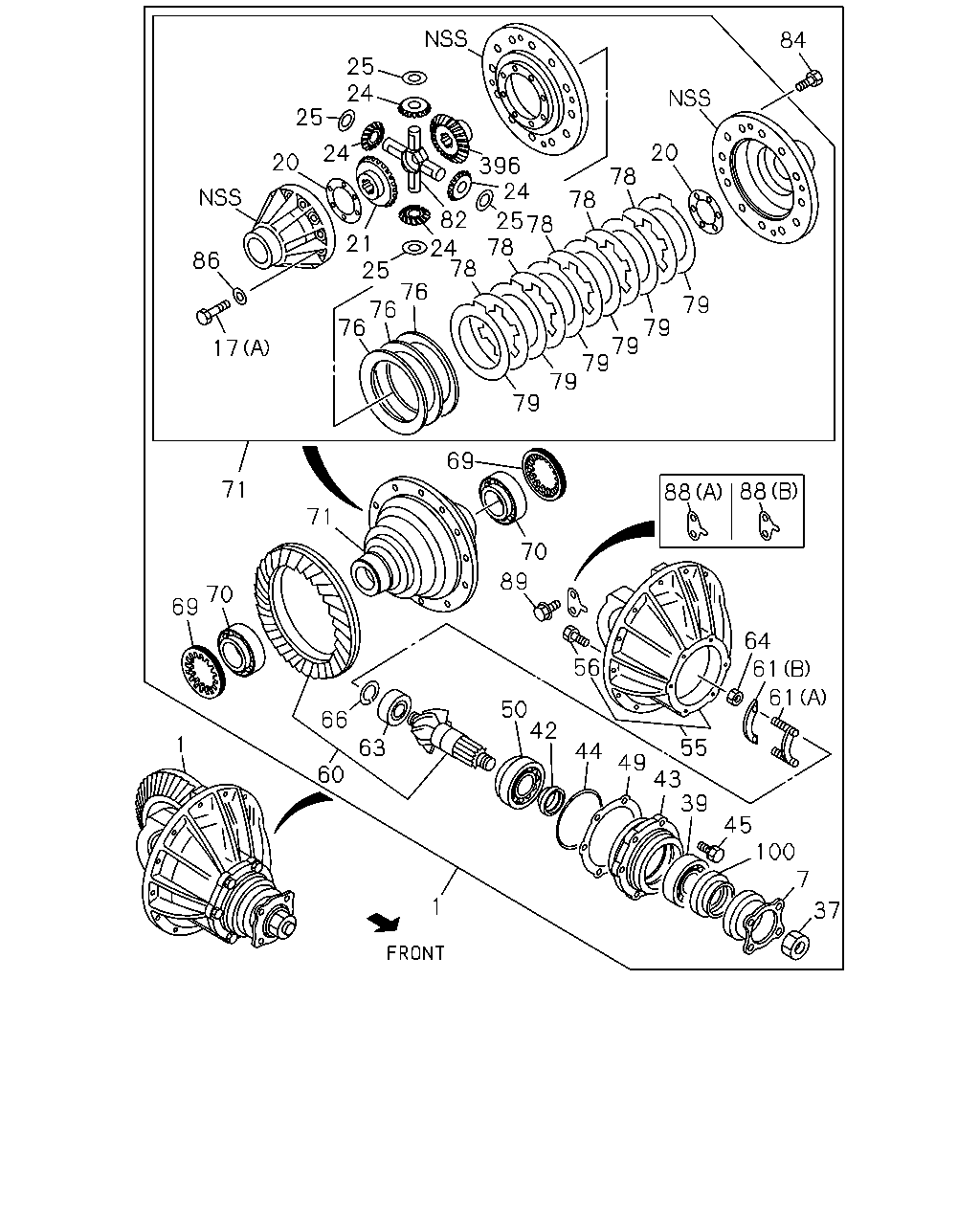

84 25 24 25 20 24 20 396 24 78 78 25 78 78 82 24 78 21 25 86 76 76 76 79 79 79 79 79 17 79 69 71 88 88 71 70 89 70 69 64 61 56 61 50 42 66 1 55 63 44 49 43 39 60 45 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	0804-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	0804-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	0804-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	0804-
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0804-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0804-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0804-1208
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0804-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0804-
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0804-1004
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0804-1004
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0804-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0804-
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0804-
39	05.484 BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0804-1002
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0804-
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0804-
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0804-
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0804-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0804-
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0804-
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0804-
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0804-
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0804-
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0804-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	0804-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0804-1505
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0804-
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0804-
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0804-
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0804-
64	05.476 NUT; RET 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0804-
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0804-
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0804-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0804-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	0804-
76	05.511 DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0804-
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0804-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0804-
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0804-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0804-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0804-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0804-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0804-
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0804-
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0804-
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0804-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-97142-805-0	01	1	0804-1004
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-98169-195-0	01	1	1005-
