1 |
HOSE; FLEX,AIR TANK
L=490
|
0-07846-490-1 |
01 |
1 |
9603-9608 |
● |
|
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
ISUZU M/T<X9A>,ZF M/T<X9E>
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
9609-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
ISUZU M/T<X9A>,ZF M/T<X9E>
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
ISUZU M/T<X9A>,ZF M/T<X9E>
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MIXER TRUCK<RA2>
MJD7 M/T<X9J>
L=490
|
0-07846-490-1 |
01 |
1 |
9905-9909 |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MIXER TRUCK<RA2>
MJD7 M/T<X9J>
L=490
|
0-07846-490-1 |
01 |
1 |
9910-9910 |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
9910-0002 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
9910-0002 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MIXER TRUCK<RA2>
MJD7 M/T<X9J>
L=490
|
0-07846-490-1 |
01 |
1 |
9910-0002 |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
0003- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
L=490
|
0-07846-490-1 |
01 |
1 |
0003- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L=360
|
0-07847-360-1 |
01 |
1 |
9609-9609 |
● |
|
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ISUZU M/T<X9A>
L=360
|
0-07847-360-1 |
01 |
1 |
9609-9609 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L=360
|
0-07846-360-1 |
01 |
1 |
9610-9901 |
● |
|
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ISUZU M/T<X9A>
L=360
|
0-07846-360-1 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>,ZF M/T<X9E>
L=360
|
0-07846-360-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>,ZF M/T<X9E>,MJD7 M/T<X9J>
L=360
|
0-07846-360-1 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>,ZF M/T<X9E>,MJD7 M/T<X9J>,
MAP5 M/T<Y9F>
L=360
|
0-07846-360-1 |
01 |
1 |
9910- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MJD7 M/T<X9J>
EXC. MIXER TRUCK<RA2>
L=440
|
0-07846-440-1 |
01 |
1 |
9905-9908 |
● |
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MJD7 M/T<X9J>,MAP5 M/T<Y9F>
EXC. MIXER TRUCK<RA2>
L=440
|
0-07846-440-1 |
01 |
1 |
9909-0006 |
● |
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MJD7 M/T<X9J>,MAP5 M/T<Y9F>
EXC. MIXER TRUCK<RA2>
L=440
|
0-07846-440-1 |
01 |
1 |
0007- |
● |
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. MAL5 M/T<X9F>
L=440
|
0-07846-440-1 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MIXER TRUCK<RA2>
MJD7 M/T<X9J>
L=470
L=470
|
0-07846-470-1 |
01 |
1 |
0003- |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MAL5 M/T<X9F>
L=610
|
0-07816-610-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MAL5 M/T<X9F>
L=610
|
0-07816-610-1 |
01 |
1 |
9905-0006 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. MAL5 M/T<X9F>
L=640
|
0-07816-540-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MAL5 M/T<X9F>
L=580
|
0-07846-580-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MAL5 M/T<X9F>
L=580
|
0-07846-580-1 |
01 |
1 |
9905-0002 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
L=580
|
0-07846-580-1 |
01 |
1 |
0003- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MAL5 M/T<X9F>
L=580
|
0-07846-580-1 |
01 |
1 |
0003- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. ZF M/T<X9E>,MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ZF M/T<X9E>
L=400
|
0-07846-400-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
AIR DRYER<PS7>
ZF M/T<X9E>
L=400
|
0-07846-400-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
AIR DRYER<PS7>
MIXER TRUCK<RA2>
ISUZU M/T<X9A>
L=400
|
0-07846-400-1 |
01 |
1 |
9902-9904 |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ZF M/T<X9E>
L=400
|
0-07846-400-1 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
MIXER TRUCK<RA2>
ISUZU M/T<X9A>
L=400
|
0-07846-400-1 |
01 |
1 |
9905-9909 |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ZF M/T<X9E>
L=400
|
0-07846-400-1 |
01 |
1 |
9910-0006 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
ISUZU M/T<X9A>
L=400
|
0-07846-400-1 |
01 |
1 |
9910-0006 |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
AIR DRYER<PS7>
L=400
|
0-07846-400-1 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
ISUZU M/T<X9A>
L=400
|
0-07846-400-1 |
01 |
1 |
0007- |
|
● |
|
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
L=630
|
0-07846-630-1 |
01 |
1 |
0001-0002 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. MAL5 M/T<X9F>
L=640
|
0-07816-540-1 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
L=630
|
0-07846-630-1 |
01 |
1 |
9610-9709 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
L=630
|
0-07846-630-1 |
01 |
1 |
9710-9901 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
L=630
|
0-07846-630-1 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. ZF M/T<X9E>,MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
9907-9909 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
L=530
|
0-07846-530-1 |
01 |
1 |
9910-9912 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
9910-9912 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
0001-0006 |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MAL5 M/T<X9F>
L=530
|
0-07846-530-1 |
01 |
1 |
0007- |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
M22
|
9-09111-422-0 |
01 |
1 |
9603-9609 |
● |
|
|
| |
2 |
NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M22
|
9-09111-422-0 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L TYPE ENG<90L>
AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9610-9901 |
● |
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
V TYPE ENG<91L>
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M22
|
9-09111-422-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
M22
|
9-09111-422-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9907-9909 |
● |
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9910-0001 |
● |
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
M22
|
9-09111-422-0 |
01 |
1 |
9910-0001 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
0002-0006 |
● |
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
M22
|
9-09111-422-0 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M22
|
9-09111-422-0 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
0007- |
● |
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
M22
|
9-09111-422-0 |
01 |
1 |
0007- |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
2 |
NUT; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9907- |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9603-9609 |
● |
|
|
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L TYPE ENG<90L>
AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9610-9901 |
● |
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
V TYPE ENG<91L>
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9904-9904 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9905-9906 |
● |
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9907-9909 |
● |
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9910-0001 |
● |
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9910-0001 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
0002-0006 |
● |
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
0007- |
● |
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
0007- |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
3 |
WASHER; LK,FLEX HOSE,AIR TANK
V TYPE ENG<91L>
AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9907- |
|
● |
● |
| |
4 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
02 |
1 |
9603-9606 |
● |
● |
● |
| |
4 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
01 |
1 |
9607-9706 |
● |
● |
● |
| |
4 |
GASKET; FLEX HOSE
V TYPE ENG<91L>
ID=11 OD=18
|
9-09572-510-0 |
01 |
1 |
9607-9706 |
|
● |
● |
| |
4 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
02 |
1 |
9707-9901 |
● |
● |
● |
| |
4 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
4 |
GASKET; FLEX HOSE
ID=11 OD=18
|
9-09572-510-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
4 |
GASKET; FLEX HOSE
V TYPE ENG<91L>
ID=11 OD=18
|
9-09572-510-0 |
01 |
1 |
9707-9901 |
|
● |
● |
| |
4 |
GASKET; FLEX HOSE
V TYPE ENG<91L>
ID=11 OD=18
|
9-09572-510-0 |
01 |
1 |
9905- |
|
● |
● |
| |
6 |

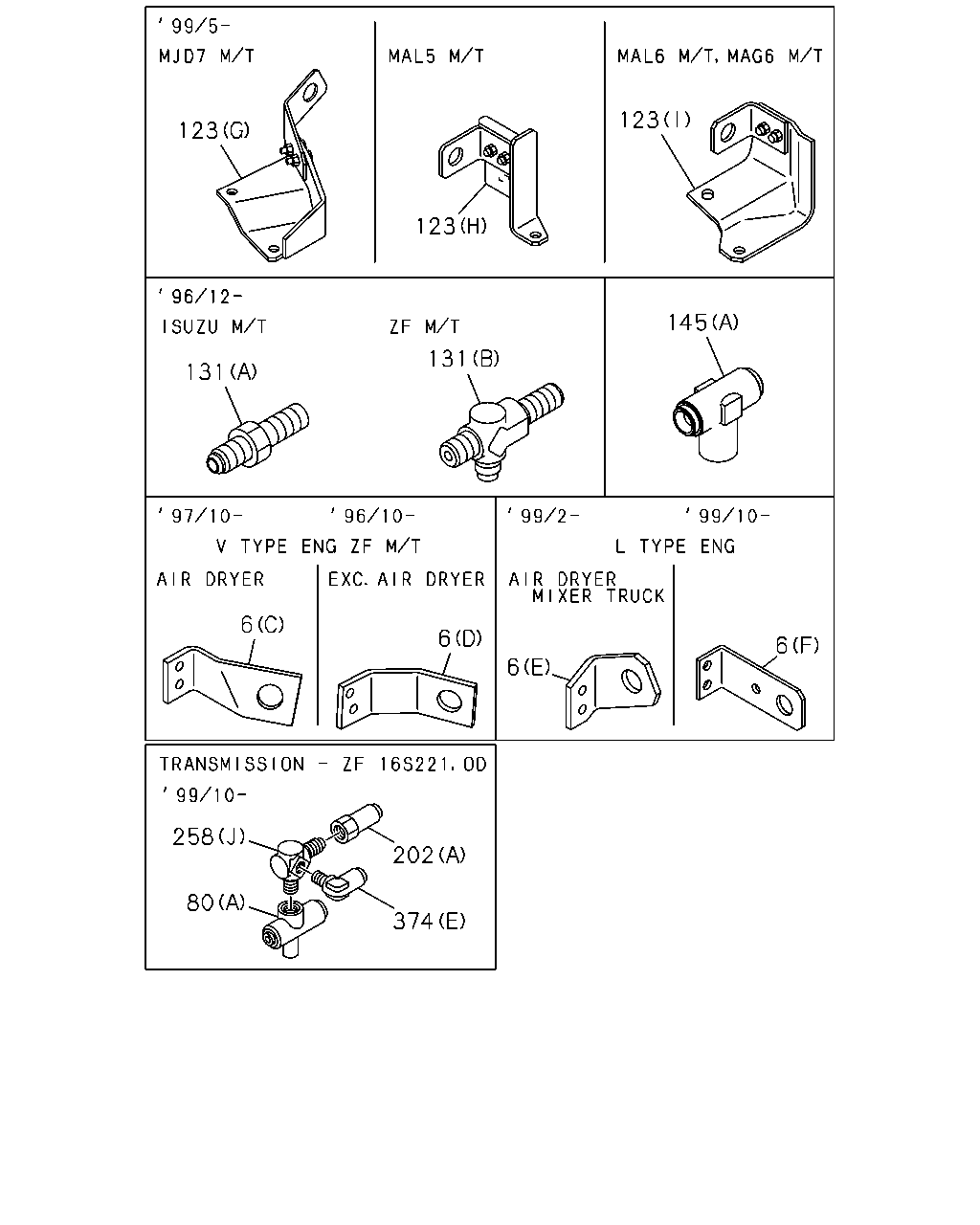

BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-198-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(E)
|
1-47477-809-0 |
01 |
1 |
9902-9904 |
|
● |
|
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(E)
|
1-47477-809-0 |
01 |
1 |
9905-9910 |
|
● |
|
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(E)
|
1-47477-809-0 |
01 |
1 |
9911- |
|
● |
|
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ZF M/T<X9E>
(C)
|
1-47478-053-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
(D)
|
1-47477-888-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
(B)
|
1-47477-606-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
EXC. AIR DRYER<PS7>
(B)
|
1-47477-606-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
(B)
|
1-47477-606-0 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
(B)
|
1-47477-606-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
EXC. AIR DRYER<PS7>
(B)
|
1-47477-606-0 |
01 |
1 |
9910- |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
(B)
|
1-47477-606-0 |
01 |
1 |
9910- |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(A)
|
1-47477-432-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
(A)
|
1-47477-432-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-432-0 |
01 |
1 |
9905-9909 |
● |
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
(A)
|
1-47477-432-0 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-432-0 |
01 |
1 |
9910-9910 |
● |
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
(A)
|
1-47477-432-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-432-0 |
01 |
1 |
9910-0006 |
● |
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
(A)
|
1-47477-432-0 |
01 |
1 |
9910-0006 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ISUZU M/T<X9A>
AIR DRYER<PS7>
(A)
|
1-47477-432-0 |
01 |
1 |
9910-0006 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-432-0 |
01 |
1 |
0007- |
● |
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
(A)
|
1-47477-432-0 |
01 |
1 |
0007- |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ISUZU M/T<X9A>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
(A)
|
1-47477-432-0 |
01 |
1 |
0007- |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
TRANSMISSION-ZF 16S221 OD(Y1U)
(F)
|
1-47478-674-0 |
01 |
1 |
9910- |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47477-232-0 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. ZF M/T<X9E>
(A)
|
1-47477-232-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ZF M/T<X9E>
(C)
|
1-47478-053-0 |
01 |
1 |
9710-9901 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
(D)
|
1-47477-888-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. ZF M/T<X9E>
(A)
|
1-47477-232-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
(A)
|
1-47477-232-0 |
01 |
1 |
9907-0001 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47477-232-0 |
01 |
1 |
0002- |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
10PE1N(61L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-198-1 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
6 |
BRACKET; FLEX HOSE,AIR TANK
10PE1N(61L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-661-0 |
01 |
1 |
0007- |
|
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9603-9606 |
● |
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9603-9606 |
● |
|
|
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9709 |
● |
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9709 |
● |
|
|
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9710-9901 |
● |
|
|
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9902-9903 |
|
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9904-9904 |
|
|
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9603-9606 |
|
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
9607-9709 |
|
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
9710-9901 |
|
● |
● |
| |
7 |
BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY<F03>
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
9902- |
|
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
M8
|
9-09110-508-0 |
02 |
1 |
9603-9606 |
● |
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
9-09110-508-0 |
02 |
1 |
9603-9606 |
● |
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9901 |
● |
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9901 |
● |
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-9906 |
● |
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-9906 |
● |
● |
● |
| |
8 |
NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9907- |
● |
● |
● |
| |
12 |
NUT; UNION
M20
|
9-99111-420-0 |
01 |
1 |
9603-9702 |
● |
● |
● |
| |
12 |
NUT; UNION
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
9603-9702 |
|
● |
● |
| |
12 |
NUT; UNION
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
M20
|
9-99111-420-0 |
01 |
1 |
9603-9702 |
|
|
● |
| |
12 |
NUT; UNION
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
9703-9901 |
● |
● |
● |
| |
12 |
NUT; UNION
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
M20
|
9-99111-420-0 |
01 |
1 |
9703-9901 |
|
|
● |
| |
12 |
NUT; UNION
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
12 |
NUT; UNION
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
9905-9908 |
● |
● |
● |
| |
12 |
NUT; UNION
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
M20
|
9-99111-420-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
12 |
NUT; UNION
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
9909-9909 |
● |
● |
● |
| |
12 |
NUT; UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
M20
|
9-99111-420-0 |
01 |
1 |
9909-9909 |
|
|
● |
| |
12 |
NUT; UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
12 |
NUT; UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
M20
|
9-99111-420-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
12 |
NUT; UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
M20
|
9-99111-420-0 |
01 |
1 |
9910-9910 |
|
|
● |
| |
12 |
NUT; UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
9910-0006 |
● |
● |
● |
| |
12 |
NUT; UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
M20
|
9-99111-420-0 |
01 |
1 |
9910-0006 |
|
● |
● |
| |
12 |
NUT; UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
M20
|
9-99111-420-0 |
01 |
1 |
9910-0006 |
|
|
● |
| |
12 |
NUT; UNION
ISUZU M/T<X9A>
M20
|
9-99111-420-0 |
01 |
1 |
0007- |
● |
● |
● |
| |
12 |
NUT; UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
M20
|
9-99111-420-0 |
01 |
1 |
0007- |
|
● |
● |
| |
12 |
NUT; UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
M20
|
9-99111-420-0 |
01 |
1 |
0007- |
|
|
● |
| |
12 |
NUT; UNION
V TYPE ENG<91L>
M12
|
9-09840-280-0 |
01 |
1 |
9703-9901 |
|
● |
● |
| |
12 |
NUT; UNION
V TYPE ENG<91L>
M12
|
9-09840-280-0 |
01 |
1 |
9905- |
|
● |
● |
| |
12 |
NUT; UNION
ZF M/T<X9E>
M14
|
9-99111-414-0 |
01 |
1 |
9603-9909 |
|
● |
● |
| |
12 |
NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
M14
|
9-99111-414-0 |
01 |
1 |
9910- |
|
● |
● |
| |
16 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M22
|
9-09233-315-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
16 |
UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09233-315-1 |
01 |
1 |
9603-9901 |
|
|
● |
| |
16 |
UNION; AIR PIPE
EXC. AIR DRYER<PS7>
M22
|
9-09233-315-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
16 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M22
|
9-09233-315-1 |
01 |
1 |
9905-9908 |
|
● |
● |
| |
16 |
UNION; AIR PIPE
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09233-315-1 |
01 |
1 |
9905-9908 |
|
|
● |
| |
16 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M22
|
9-09233-315-1 |
01 |
1 |
9909-9909 |
|
● |
● |
| |
16 |
UNION; AIR PIPE
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09233-315-1 |
01 |
1 |
9909-9909 |
|
|
● |
| |
16 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
M22
|
9-09233-315-1 |
01 |
1 |
9910- |
|
● |
● |
| |
16 |
UNION; AIR PIPE
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09233-315-1 |
01 |
1 |
9910- |
|
|
● |
| |
17 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
17 |
NUT; UNION
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09111-422-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
17 |
NUT; UNION
EXC. AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
17 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9905-9908 |
|
● |
● |
| |
17 |
NUT; UNION
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09111-422-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
17 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9909-9909 |
|
● |
● |
| |
17 |
NUT; UNION
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09111-422-0 |
01 |
1 |
9909-9909 |
|
|
● |
| |
17 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
M22
|
9-09111-422-0 |
01 |
1 |
9910- |
|
● |
● |
| |
17 |
NUT; UNION
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
M22
|
9-09111-422-0 |
01 |
1 |
9910- |
|
|
● |
| |
18 |
WASHER; LK,UNION
ISUZU M/T<X9A>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
18 |
WASHER; LK,UNION
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
18 |
WASHER; LK,UNION
ISUZU M/T<X9A>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
18 |
WASHER; LK,UNION
ISUZU M/T<X9A>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9905-9908 |
● |
● |
● |
| |
18 |
WASHER; LK,UNION
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
18 |
WASHER; LK,UNION
ISUZU M/T<X9A>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9909-9909 |
● |
● |
● |
| |
18 |
WASHER; LK,UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9909-9909 |
|
|
● |
| |
18 |
WASHER; LK,UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
ISUZU M/T<X9A>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
18 |
WASHER; LK,UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
18 |
WASHER; LK,UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910-9910 |
|
|
● |
| |
18 |
WASHER; LK,UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
ISUZU M/T<X9A>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910-9912 |
● |
● |
● |
| |
18 |
WASHER; LK,UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910-9912 |
|
● |
● |
| |
18 |
WASHER; LK,UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910-9912 |
|
|
● |
| |
18 |
WASHER; LK,UNION
ISUZU M/T<X9A>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
0001- |
● |
● |
● |
| |
18 |
WASHER; LK,UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
ID=20.2
|
9-09150-520-0 |
01 |
1 |
0001- |
|
● |
● |
| |
18 |
WASHER; LK,UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
0001- |
|
|
● |
| |
18 |
WASHER; LK,UNION
ZF M/T<X9E>
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9603-9909 |
|
● |
● |
| |
18 |
WASHER; LK,UNION
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9910- |
|
● |
● |
| |
18 |
WASHER; LK,UNION
FIRE ENGINE PACKAGE<WS2>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
18 |
WASHER; LK,UNION
FIRE ENGINE PACKAGE<WS2>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
18 |
WASHER; LK,UNION
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9909- |
|
|
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
|
1-49117-172-0 |
01 |
1 |
9603-9612 |
● |
|
|
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
|
1-49117-897-0 |
01 |
1 |
9701-9901 |
● |
|
|
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49116-281-0 |
01 |
1 |
9902-9903 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49116-281-0 |
01 |
1 |
9904-9904 |
|
|
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49116-281-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,ZF M/T<X9E>
|
1-49116-281-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>,V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49116-281-0 |
01 |
1 |
9907-9909 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49116-281-0 |
01 |
1 |
9910-0006 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49116-281-0 |
01 |
1 |
9910-0006 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,MIXER
TRUCK<RA2>
|
1-49116-281-0 |
01 |
1 |
0007- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ISUZU M/T<X9A>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,MIXER
TRUCK<RA2>
|
1-49116-281-0 |
01 |
1 |
0007- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49116-281-0 |
01 |
1 |
0007- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
|
1-49121-639-0 |
01 |
1 |
9905- |
● |
|
|
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7>
MIXER TRUCK<RA2>
|
1-49117-469-0 |
01 |
1 |
9902-9904 |
|
● |
|
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
AIR DRYER<PS7>
MIXER TRUCK<RA2>
|
1-49117-469-0 |
01 |
1 |
9905-9910 |
|
● |
|
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
|
1-49117-469-0 |
01 |
1 |
9911- |
|
● |
|
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=549
|
1-49116-241-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
|
1-49116-272-0 |
01 |
1 |
9603-9709 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L TYPE ENG<90L>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
|
1-49116-272-0 |
01 |
1 |
9710-9901 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
V TYPE ENG<91L>
AIR DRYER<PS7>
EXC. ZF M/T<X9E>
|
1-49116-272-0 |
01 |
1 |
9710-9901 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
|
1-49116-272-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
|
1-49116-272-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
EXC. ZF M/T<X9E>
|
1-49116-272-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
EXC. MIXER TRUCK<RA2>
|
1-49116-272-0 |
01 |
1 |
9907-9909 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
|
1-49116-272-0 |
01 |
1 |
9907-9909 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. MIXER TRUCK<RA2>
|
1-49116-272-0 |
01 |
1 |
9910- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
|
1-49116-272-0 |
01 |
1 |
9910- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49121-640-0 |
01 |
1 |
9905- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
TRANSMISSION-ZF 16S221 OD(Y1U)
AIR DRYER<PS7>
|
1-49122-295-0 |
01 |
1 |
9910- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
L=549
|
1-49116-241-0 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
|
1-49122-714-0 |
01 |
1 |
0007- |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ZF M/T<X9E>
|
1-49118-841-0 |
01 |
1 |
9710-9901 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ZF M/T<X9E>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
|
1-49118-842-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
AIR DRYER<PS7>
ZF M/T<X9E>
|
1-49118-841-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
|
1-49116-512-0 |
01 |
1 |
9603-9612 |
|
|
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
|
1-49116-512-0 |
01 |
1 |
9701-9901 |
|
|
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
|
1-49116-512-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
21 |
PIPE; AIR,UNION TO AIR DRYER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
|
1-49116-512-0 |
01 |
1 |
9909- |
|
|
● |
| |
23 |
BOLT; BRKT,AIR PIPE
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9603-9606 |
● |
|
|
| |
23 |
BOLT; BRKT,AIR PIPE
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9901 |
● |
|
|
| |
23 |
BOLT; BRKT,AIR PIPE
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9905- |
● |
|
|
| |
23 |
BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9603-9606 |
|
● |
● |
| |
23 |
BOLT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9603-9606 |
|
|
● |
| |
23 |
BOLT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9607-9901 |
|
|
● |
| |
23 |
BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9905- |
|
● |
● |
| |
23 |
BOLT; BRKT,AIR PIPE
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-9607 |
|
● |
● |
| |
23 |
BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-9607 |
|
● |
● |
| |
23 |
BOLT; BRKT,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-9901 |
|
● |
● |
| |
23 |
BOLT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
23 |
BOLT; BRKT,AIR PIPE
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9909- |
|
|
● |
| |
24 |
NUT; BRKT,AIR PIPE
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
M8
|
9-09110-408-0 |
01 |
1 |
9603-9606 |
|
● |
● |
| |
24 |
NUT; BRKT,AIR PIPE
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9607 |
|
● |
● |
| |
24 |
NUT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2>
M8
|
9-09110-508-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
24 |
NUT; BRKT,AIR PIPE
FIRE ENGINE PACKAGE<WS2>
M8
|
9-09110-508-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
24 |
NUT; BRKT,AIR PIPE
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
M8
|
9-09110-508-0 |
01 |
1 |
9909- |
|
|
● |
| |
25 |
VALVE; CHECK
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
25 |
VALVE; CHECK
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9603-9609 |
|
|
● |
| |
25 |
VALVE; CHECK
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
25 |
VALVE; CHECK
V TYPE ENG<91L>
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
|
1-48410-138-1 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
25 |
VALVE; CHECK
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9610-9901 |
|
|
● |
| |
25 |
VALVE; CHECK
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
25 |
VALVE; CHECK
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
25 |
VALVE; CHECK
V TYPE ENG<91L>
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
|
1-48410-138-1 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
25 |
VALVE; CHECK
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9905-9906 |
|
|
● |
| |
25 |
VALVE; CHECK
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9907-9908 |
|
● |
● |
| |
25 |
VALVE; CHECK
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9907-9908 |
|
|
● |
| |
25 |
VALVE; CHECK
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9909-9909 |
|
● |
● |
| |
25 |
VALVE; CHECK
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
|
1-48410-138-1 |
01 |
1 |
9909-9909 |
|
|
● |
| |
25 |
VALVE; CHECK
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
|
1-48410-138-2 |
01 |
1 |
9910- |
|
● |
● |
| |
25 |
VALVE; CHECK
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
|
1-48410-138-2 |
01 |
1 |
9910- |
|
|
● |
| |
26 |
NUT; CHECK VLV
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9603-9609 |
|
|
● |
| |
26 |
NUT; CHECK VLV
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
V TYPE ENG<91L>
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
M20
|
9-99111-420-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9610-9901 |
|
|
● |
| |
26 |
NUT; CHECK VLV
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
V TYPE ENG<91L>
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
M20
|
9-99111-420-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9905-9906 |
|
|
● |
| |
26 |
NUT; CHECK VLV
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9907-9908 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9907-9908 |
|
|
● |
| |
26 |
NUT; CHECK VLV
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9909-9909 |
|
● |
● |
| |
26 |
NUT; CHECK VLV
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9909-9909 |
|
|
● |
| |
26 |
NUT; CHECK VLV
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9910- |
|
● |
● |
| |
26 |
NUT; CHECK VLV
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
M20
|
9-99111-420-0 |
01 |
1 |
9910- |
|
|
● |
| |
27 |
WASHER; LK,CHECK VLV
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9603-9609 |
|
|
● |
| |
27 |
WASHER; LK,CHECK VLV
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
V TYPE ENG<91L>
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9610-9901 |
|
|
● |
| |
27 |
WASHER; LK,CHECK VLV
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
V TYPE ENG<91L>
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9905-9906 |
|
|
● |
| |
27 |
WASHER; LK,CHECK VLV
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9907-9908 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9907-9908 |
|
|
● |
| |
27 |
WASHER; LK,CHECK VLV
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9909-9909 |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9909-9909 |
|
|
● |
| |
27 |
WASHER; LK,CHECK VLV
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910- |
|
● |
● |
| |
27 |
WASHER; LK,CHECK VLV
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
EXC. AIR DRYER<PS7>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9910- |
|
|
● |
| |
35 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8
|
9-09110-508-0 |
01 |
1 |
9603-9606 |
|
● |
● |
| |
35 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9901 |
|
● |
● |
| |
35 |
NUT; BRKT
EXC. AIR DRYER<PS7>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
35 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905- |
|
● |
● |
| |
51 |
UNION
AIR DRYER<PS7>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9603-9612 |
|
● |
● |
| |
51 |
UNION
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9603-9612 |
|
|
● |
| |
51 |
UNION
AIR DRYER<PS7>
V TYPE ENG<91L>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9701-9901 |
|
● |
● |
| |
51 |
UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9701-9901 |
|
|
● |
| |
51 |
UNION
L TYPE ENG<90L>
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
51 |
UNION
L TYPE ENG<90L>
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9610-9611 |
|
● |
● |
| |
51 |
UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9610-9611 |
|
● |
● |
| |
51 |
UNION
L TYPE ENG<90L>
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9612-9709 |
● |
● |
● |
| |
51 |
UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. ZF M/T<X9E>
(A)
|
1-09654-202-1 |
01 |
1 |
9612-9709 |
|
● |
● |
| |
51 |
UNION
L TYPE ENG<90L>
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9710-9901 |
● |
● |
● |
| |
51 |
UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
(A)
|
1-09654-202-1 |
01 |
1 |
9710-9901 |
|
● |
● |
| |
51 |
UNION
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
51 |
UNION
L TYPE ENG<90L>
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9905-9906 |
● |
● |
● |
| |
51 |
UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
(A)
|
1-09654-202-1 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
51 |
UNION
L TYPE ENG<90L>
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9907-9909 |
● |
● |
● |
| |
51 |
UNION
L TYPE ENG<90L>
AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9910- |
● |
● |
● |
| |
51 |
UNION
L TYPE ENG<90L>
TRANSMISSION-ZF 16S221 OD(Y1U)
EXC. AIR DRYER<PS7>
(A)
|
1-09654-202-1 |
01 |
1 |
9910- |
|
● |
● |
| |
51 |
UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
AIR DRYER<PS7>
(D)
|
1-48320-028-2 |
01 |
1 |
9910- |
|
● |
● |
| |
51 |
UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9905-9908 |
|
● |
● |
| |
51 |
UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9905-9908 |
|
|
● |
| |
51 |
UNION
V TYPE ENG<91L>
AIR DRYER<PS7>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9909- |
|
● |
● |
| |
51 |
UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
(B)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9909- |
|
|
● |
| |
51 |
UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
(C)
|
1-09654-173-1 |
01 |
1 |
9701-9901 |
|
|
● |
| |
51 |
UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
(B)
|
1-09654-173-1 |
01 |
1 |
9905-9908 |
|
|
● |
| |
51 |
UNION
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
FIRE ENGINE PACKAGE<WS2>
(B)
|
1-09654-173-1 |
01 |
1 |
9909- |
|
|
● |
| |
55 |
GASKET; AIR PIPE
V TYPE ENG<91L>
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
55 |
GASKET; AIR PIPE
V TYPE ENG<91L>
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
9905- |
|
● |
● |
| |
72 |
UNION; AIR PIPE
(A)
|
1-09654-097-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
72 |
UNION; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
(A)
|
1-09654-097-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
72 |
UNION; AIR PIPE
(A)
|
1-09654-097-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
72 |
UNION; AIR PIPE
6WA1 TC-S(56L)
AIR COMPRESSOR HEAVY DUTY(E1Q)
(A)
|
1-09654-318-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
72 |
UNION; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
(A)
|
1-09654-318-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
72 |
UNION; AIR PIPE
6WA1 TC-S(56L)
AIR COMPRESSOR HEAVY DUTY(E1Q)
(A)
|
1-09654-318-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
72 |
UNION; AIR PIPE
V TYPE ENG<91L>
(B)
|
1-09656-292-1 |
01 |
1 |
9603-9702 |
|
● |
● |
| |
72 |
UNION; AIR PIPE
V TYPE ENG<91L>
(B)
M12 3WAY
|
9-09228-906-1 |
01 |
1 |
9703-9901 |
|
● |
● |
| |
72 |
UNION; AIR PIPE
V TYPE ENG<91L>
(B)
M12 3WAY
|
9-09228-906-1 |
01 |
1 |
9905- |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=55
|
1-47475-304-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=55
|
1-47475-304-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
ISUZU M/T<X9A>
(B)
|
1-47477-190-2 |
02 |
1 |
9603-9612 |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
ISUZU M/T<X9A>
(B)
|
1-47477-840-0 |
02 |
1 |
9701-9901 |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
ISUZU M/T<X9A>
(B)
|
1-47477-840-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
ISUZU M/T<X9A>
(B)
|
1-47477-840-0 |
02 |
1 |
9905-9908 |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B),
MAL6Q M/T(Y1M),MJD7S M/T(Y2Y)
(B)
|
1-47477-840-0 |
02 |
1 |
9909- |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
L TYPE ENG<90L>
(C)
|
1-47477-385-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
(F)
|
1-47477-471-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
L TYPE ENG<90L>
(F)
|
1-47477-471-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
98 |
BRACKET; AIR PIPE
10PE1S(60L)
POWER BRAKE LOCK SYSTEM(J50)
(E)
L=50
|
1-47475-299-2 |
02 |
1 |
9603-9901 |
|
● |
|
| |
98 |
BRACKET; AIR PIPE
10PE1S(60L)
POWER BRAKE LOCK SYSTEM(J50)
(E)
L=50
|
1-47475-299-2 |
02 |
1 |
9905-0001 |
|
● |
|
| |
98 |
BRACKET; AIR PIPE
POWER BRAKE LOCK SYSTEM(J50)
(E)
L=50
|
1-47475-299-2 |
02 |
1 |
0002- |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
MAL5 M/T<X9F>,MAP5 M/T<Y9F>
(B)
|
1-47477-840-0 |
01 |
1 |
9909- |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
L TYPE ENG<90L>
FIRE ENGINE PACKAGE<WS2>
MAP5 M/T<Y9F>
(B)
|
1-47477-840-0 |
01 |
1 |
9909- |
|
|
● |
| |
98 |
BRACKET; AIR PIPE
V TYPE ENG<91L>
POWER BRAKE LOCK SYSTEM(J50)
(E)
L=50
|
1-47475-299-2 |
01 |
1 |
0002- |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
ZF M/T<X9E>
(A)
|
1-47477-693-0 |
01 |
1 |
9603-9612 |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
ZF M/T<X9E>
(A)
|
1-47477-902-0 |
01 |
1 |
9701-9909 |
|
● |
● |
| |
98 |
BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
(A)
|
1-47477-902-0 |
01 |
1 |
9910- |
|
● |
● |
| |
123 |
BRACKET; UNION
(B)
|
1-47477-045-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
123 |
BRACKET; UNION
(B)
|
1-47477-045-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
123 |
BRACKET; UNION
(B)
|
1-47477-045-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
123 |
BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
(D)
|
1-47477-187-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
123 |
BRACKET; UNION
MJA7 M/T<X9Q>
(D)
|
1-47477-187-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
123 |
BRACKET; UNION
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
(D)
|
1-47477-187-0 |
01 |
1 |
9905- |
|
● |
● |
| |
123 |
BRACKET; UNION
MJD7 M/T<X9J>
(G)
|
1-47477-396-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
123 |
BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47477-654-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
123 |
BRACKET; UNION
(A)
|
1-47477-654-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
123 |
BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47477-654-1 |
01 |
1 |
9905- |
|
● |
● |
| |
123 |
BRACKET; UNION
MAL5 M/T<X9F>
(D)
|
1-47477-189-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
123 |
BRACKET; UNION
MAL5 M/T<X9F>
(H)
|
1-47477-189-0 |
01 |
1 |
9905-9908 |
|
● |
● |
| |
123 |
BRACKET; UNION
MAL5 M/T<X9F>,MAP5 M/T<Y9F>
(H)
|
1-47477-189-0 |
01 |
1 |
9909- |
|
● |
● |
| |
123 |
BRACKET; UNION
MAL6 M/T<X9G>,MAG6 M/T<X9T>
(D)
|
1-47477-188-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
123 |
BRACKET; UNION
MAL6 M/T<X9G>,MAG6 M/T<X9T>
(I)
|
1-47477-188-1 |
01 |
1 |
9905- |
|
● |
● |
| |
123 |
BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
(E)
|
1-47478-632-0 |
01 |
1 |
0001- |
|
● |
● |
| |
123 |
BRACKET; UNION
ZF M/T<X9E>
(E)
|
1-47477-588-0 |
01 |
1 |
9603-9909 |
|
● |
● |
| |
123 |
BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
(E)
|
1-47477-588-0 |
01 |
1 |
9910- |
|
● |
● |
| |
123 |
BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FIRE ENGINE PACKAGE<WS2>
(J)
|
1-47477-532-0 |
01 |
1 |
9701-9901 |
|
|
● |
| |
123 |
BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FIRE ENGINE PACKAGE<WS2>
(J)
|
1-47477-532-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
123 |
BRACKET; UNION
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FIRE ENGINE PACKAGE<WS2>
(J)
|
1-47477-532-0 |
01 |
1 |
9909- |
|
|
● |
| |
123 |
BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FIRE ENGINE PACKAGE<WS2>
(C)
|
1-47477-660-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
123 |
BRACKET; UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FIRE ENGINE PACKAGE<WS2>
(C)
|
1-47477-660-0 |
01 |
1 |
9909- |
|
|
● |
| |
123 |
BRACKET; UNION
FIRE ENGINE PACKAGE<WS2>
(F)
|
1-47477-432-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
123 |
BRACKET; UNION
FIRE ENGINE PACKAGE<WS2>
(C)
|
1-47477-660-0 |
01 |
1 |
9603-9612 |
|
|
● |
| |
123 |
BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FIRE ENGINE PACKAGE<WS2>
(C)
|
1-47477-660-0 |
01 |
1 |
9701-9901 |
|
|
● |
| |
123 |
BRACKET; UNION
FIRE ENGINE PACKAGE<WS2>
(F)
|
1-47477-432-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
123 |
BRACKET; UNION
V TYPE ENG<91L>
FIRE ENGINE PACKAGE<WS2>
(F)
|
1-47477-432-0 |
01 |
1 |
9909- |
|
|
● |
| |
124 |
BOLT; BRKT
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9603-9606 |
● |
|
|
| |
124 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9901 |
● |
|
|
| |
124 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9905- |
● |
|
|
| |
124 |
BOLT; BRKT
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9603-9606 |
● |
● |
● |
| |
124 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9901 |
● |
● |
● |
| |
124 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
124 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
124 |
BOLT; BRKT
L TYPE ENG<90L>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9603-9606 |
● |
● |
● |
| |
124 |
BOLT; BRKT
L TYPE ENG<90L>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9901 |
● |
● |
● |
| |
124 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
124 |
BOLT; BRKT
L TYPE ENG<90L>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
124 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9603-9606 |
|
● |
● |
| |
124 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-9901 |
|
● |
● |
| |
124 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9905- |
|
● |
● |
| |
124 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9603-9606 |
|
● |
● |
| |
124 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9901 |
|
● |
● |
| |
124 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
124 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905- |
|
● |
● |
| |
150 |
WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9603-9903 |
|
● |
● |
| |
150 |
WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9603-9903 |
|
● |
● |
| |
150 |
WASHER; LK,UNION
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9904-9904 |
|
● |
● |
| |
150 |
WASHER; LK,UNION
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9904-9904 |
|
● |
● |
| |
150 |
WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
ID=12.2
|
9-09150-512-0 |
02 |
1 |
9905- |
|
● |
● |
| |
150 |
WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9905- |
|
● |
● |
| |
150 |
WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9905- |
|
● |
● |
| |
163 |
BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=50
|
1-47475-299-2 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
163 |
BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=55
|
1-47475-304-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
163 |
BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
L=55
|
1-47475-304-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
163 |
BRACKET; AIR PIPE
EXC. AIR DRYER<PS7>
(A)
L=55
|
1-47475-304-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
163 |
BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=55
|
1-47475-304-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
163 |
BRACKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
L=55
|
1-47475-304-0 |
01 |
1 |
9905- |
|
● |
● |
| |
163 |
BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=50
|
1-47475-299-2 |
02 |
1 |
9905-9908 |
● |
● |
● |
| |
163 |
BRACKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=50
|
1-47475-299-2 |
03 |
1 |
9909- |
● |
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN12 & R1/4 ELBOW
|
1-09660-655-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
SILENCER SINGLE VERTICAL<N28>
(A)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
9902-9903 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
MIXER TRUCK<RA2>
(A)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
9902-9903 |
|
● |
|
| |
175 |
CONNECTOR; AIR PIPE
MIXER TRUCK<RA2>
(A)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
9904-9904 |
|
● |
|
| |
175 |
CONNECTOR; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MIXER TRUCK<RA2>
(A)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
9905-9905 |
|
● |
|
| |
175 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
(A)
DIN8 & M12 STRAIGHT
|
1-09661-093-0 |
01 |
1 |
9905-0005 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
(A)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0006- |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) 3-WAY
DIN12 & R3/8 & RC1/4 3WAY
|
1-09660-845-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
SILENCER SINGLE VERTICAL<N28>
(B)
DIN12 & RC1/4 & R3/8 3WAY
|
1-09661-132-0 |
01 |
1 |
9902-9903 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
MIXER TRUCK<RA2>
(B)
DIN12 & RC1/4 & R3/8 3WAY
|
1-09661-132-0 |
01 |
1 |
9902-9903 |
|
● |
|
| |
175 |
CONNECTOR; AIR PIPE
MIXER TRUCK<RA2>
(B)
DIN12 & RC1/4 & R3/8 3WAY
|
1-09661-132-0 |
01 |
1 |
9904-9904 |
|
● |
|
| |
175 |
CONNECTOR; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MIXER TRUCK<RA2>
(B)
DIN12 & RC1/4 & R3/8 3WAY
|
1-09661-132-0 |
01 |
1 |
9905-9905 |
|
● |
|
| |
175 |
CONNECTOR; AIR PIPE
EXC. SILENCER SINGLE VERTICAL<N28>,MIXER
TRUCK<RA2>
(C) DOUBLE ELBOW
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
9902-9903 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
EXC. MIXER TRUCK<RA2>
(C) DOUBLE ELBOW
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
9904-9904 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MIXER TRUCK<RA2>
(C) DOUBLE ELBOW
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) DOUBLE ELBOW
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>
(C) DOUBLE ELBOW
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
9905- |
|
● |
● |
| |
175 |
CONNECTOR; AIR PIPE
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) DOUBLE ELBOW
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
9905- |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-49116-239-0 |
01 |
1 |
9603-9603 |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-49117-292-0 |
01 |
1 |
9603-9604 |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=823
|
1-49117-411-0 |
01 |
1 |
9605-9612 |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
EXC. FIRE TRUCK<RA9>
L=823
|
1-49117-411-0 |
01 |
1 |
9701-9901 |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
SILENCER SINGLE VERTICAL<N28>
L=564
|
1-49121-579-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
L=564
|
1-49121-579-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
L=562
|
1-49121-896-0 |
01 |
1 |
9905-9908 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
L=540
|
1-49122-246-0 |
01 |
1 |
9909- |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. FIRE TRUCK<RA9>
L=828
SERVICED BY L=900
|
1-47428-813-0 |
01 |
1 |
9905-9905 |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. FIRE TRUCK<RA9>
L=823
SERVICED BY L=900
|
1-47428-813-0 |
01 |
1 |
9905-9908 |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. MIXER TRUCK<RA2>
L=803
|
1-49122-235-0 |
01 |
1 |
9909-0001 |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. MIXER TRUCK<RA2>
L=803
|
1-49122-235-0 |
01 |
1 |
0002- |
● |
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2>
L=628
SERVICED BY L=650
|
1-47428-810-0 |
01 |
1 |
9902-9904 |
|
● |
|
| |
177 |
PIPE; AIR,UNION TO UNION
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MIXER TRUCK<RA2>
L=628
SERVICED BY L=650
|
1-47428-810-0 |
01 |
1 |
9905- |
|
● |
|
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-49116-140-0 |
01 |
1 |
9603-9603 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
'960325-
L=568
SERVICED BY L=600
|
1-47428-809-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
EXC. SILENCER SINGLE VERTICAL<N28>,MIXER
TRUCK<RA2>
L=568
SERVICED BY L=600
|
1-47428-809-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>,MIXER
TRUCK<RA2>
L=568
SERVICED BY L=600
|
1-47428-809-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>,MIXER
TRUCK<RA2>
L=565
|
1-49121-898-0 |
01 |
1 |
9905-9908 |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>,MIXER
TRUCK<RA2>
L=548
|
1-49122-243-0 |
01 |
1 |
9909- |
|
● |
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FIRE TRUCK<RA9>
L=807
SERVICED BY L=900
|
1-47428-813-0 |
01 |
1 |
9701-9901 |
|
|
● |
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FIRE TRUCK<RA9>
L=807
SERVICED BY L=900
|
1-47428-813-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
177 |
PIPE; AIR,UNION TO UNION
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MIXER TRUCK<RA2>
L=855
|
1-49122-237-0 |
01 |
1 |
9909-0001 |
|
● |
|
| |
177 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
MIXER TRUCK<RA2>
L=855
|
1-49122-237-0 |
01 |
1 |
0002- |
|
● |
|
| |
179 |
NUT; UNION
M22
|
9-09111-422-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
179 |
NUT; UNION
M22
|
9-09111-422-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
179 |
NUT; UNION
M22
|
9-09111-422-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
180 |
WASHER; LK,UNION
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
180 |
WASHER; LK,UNION
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
180 |
WASHER; LK,UNION
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
180 |
WASHER; LK,UNION
V TYPE ENG<91L>
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9603-9702 |
|
● |
● |
| |
180 |
WASHER; LK,UNION
V TYPE ENG<91L>
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9703-9901 |
|
● |
● |
| |
180 |
WASHER; LK,UNION
V TYPE ENG<91L>
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9905- |
|
● |
● |
| |
184 |
HOSE; FLEX,AIR GOV
V TYPE ENG<91L>
L=370
|
0-07532-370-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
184 |
HOSE; FLEX,AIR GOV
V TYPE ENG<91L>
L=370
|
0-07532-370-1 |
01 |
1 |
9905- |
|
● |
● |
| |
185 |
NUT; FLEX HOSE,AIR GOV
M12
|
9-09840-280-0 |
01 |
1 |
9603-9711 |
● |
● |
● |
| |
185 |
NUT; FLEX HOSE,AIR GOV
L TYPE ENG<90L>
M12
|
9-09840-280-0 |
01 |
1 |
9712-9901 |
● |
● |
● |
| |
185 |
NUT; FLEX HOSE,AIR GOV
M12
|
9-09840-280-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
185 |
NUT; FLEX HOSE,AIR GOV
L TYPE ENG<90L>
M12
|
9-09840-280-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
186 |
WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9603-9711 |
● |
● |
● |
| |
186 |
WASHER; LK,FLEX HOSE,AIR GOV
L TYPE ENG<90L>
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9712-9901 |
● |
● |
● |
| |
186 |
WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
186 |
WASHER; LK,FLEX HOSE,AIR GOV
L TYPE ENG<90L>
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
193 |
BOLT; EYE,FLEX HOSE,GOV LINE
V TYPE ENG<91L>
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
193 |
BOLT; EYE,FLEX HOSE,GOV LINE
V TYPE ENG<91L>
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
9905- |
|
● |
● |
| |
202 |
ADAPTER
(A)
DIN12 & M16 STRAIGHT
|
1-09660-876-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
202 |
ADAPTER
(A)
DIN12 & M16 STRAIGHT
|
1-09661-096-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
202 |
ADAPTER
(A)
DIN12 & M16 STRAIGHT
|
1-09661-096-0 |
01 |
1 |
9905-0007 |
● |
|
|
| |
202 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN12 & M16 STRAIGHT
|
1-09661-096-0 |
01 |
1 |
9905-0007 |
|
● |
● |
| |
202 |
ADAPTER
(A)
DIN12 & M16 STRAIGHT
|
1-09660-876-0 |
01 |
1 |
0008- |
● |
|
|
| |
202 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN12 & M16 STRAIGHT
|
1-09660-876-0 |
01 |
1 |
0008- |
|
● |
● |
| |
202 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M12 & RC3/8 STRAIGHT
|
1-09660-879-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
202 |
ADAPTER
(B)
M12 & RC3/8 STRAIGHT
|
1-09660-879-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
202 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M12 & RC3/8 STRAIGHT
|
1-09660-879-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
202 |
ADAPTER
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>
(B)
M12 & RC3/8 STRAIGHT
|
1-09660-879-0 |
01 |
1 |
9905- |
|
● |
● |
| |
202 |
ADAPTER
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M12 & RC3/8 STRAIGHT
|
1-09660-879-0 |
01 |
1 |
9905- |
|
● |
● |
| |
213 |
UNION; AIR PIPE
(B)
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9603-9901 |
● |
|
|
| |
213 |
UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16)
(B)
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
213 |
UNION; AIR PIPE
(B)
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
213 |
UNION; AIR PIPE
(B)
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9905- |
● |
|
|
| |
213 |
UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16)
(B)
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9905- |
|
● |
● |
| |
213 |
UNION; AIR PIPE
FULL FLOATING CAB(W16)
(A)
M12 3WAY
|
9-09228-906-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
213 |
UNION; AIR PIPE
FULL FLOATING CAB(W16)
(A)
M12 3WAY
|
9-09228-906-1 |
01 |
1 |
9905- |
|
● |
● |
| |
214 |
NUT; UNION,AIR PIPE
M12
|
9-09840-280-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
214 |
NUT; UNION,AIR PIPE
M12
|
9-09840-280-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
214 |
NUT; UNION,AIR PIPE
M12
|
9-09840-280-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
215 |
WASHER; LK,UNION,AIR PIPE
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
215 |
WASHER; LK,UNION,AIR PIPE
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
215 |
WASHER; LK,UNION,AIR PIPE
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L>
(C)
L=1670
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
9603-9701 |
● |
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L>
(C)
L=1663
SERVICED BY L=1700
|
1-47428-821-0 |
01 |
1 |
9702-9901 |
● |
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
L TYPE ENG<90L>
(C)
L=1663
SERVICED BY L=1700
|
1-47428-821-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
6WA1 TC-R(93L)
EXC. CAB UP +110MM<TGG>
(C)
L=1663
SERVICED BY L=1700
|
1-47428-821-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
6WA1 TC-N(54L),6WA1 TC-R(93L)
EXC. CAB UP +110MM<TGG>
(C)
L=1663
SERVICED BY L=1700
|
1-47428-821-0 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
6WA1 TC-N(54L),6WA1 TC-R(93L)
EXC. CAB UP +110MM<TGG>
(C)
L=666
|
1-49121-249-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
6WA1 TC-N(54L),6WA1 TC-R(93L)
EXC. CAB UP +110MM<TGG>
(C)
L=1643
|
1-49122-249-0 |
01 |
1 |
9911- |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L>
(B)
L=748
SERVICED BY L=800
|
1-47428-812-0 |
01 |
1 |
9603-9702 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L>
(B)
L=752
SERVICED BY L=800
|
1-47428-812-0 |
01 |
1 |
9703-9901 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L>
(A)
L=336
|
1-47499-145-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L>
(B)
L=572
SERVICED BY L=600
|
1-47428-809-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L>
(A)
L=552
|
1-49121-876-0 |
01 |
1 |
9905- |
|
● |
● |
| |
217 |
PIPE; VAC,UNION TO MAG VLV
V TYPE ENG<91L>
(C)
L=620
|
1-49121-778-0 |
01 |
1 |
9905- |
|
● |
● |
| |
221 |
BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
221 |
BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2>
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
221 |
BOLT; BRKT
DUAL AIR GAUGE<UG2>
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
221 |
BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
221 |
BOLT; BRKT
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
221 |
BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
EXC. AIR BAG(TFQ)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9905-9905 |
● |
● |
● |
| |
221 |
BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2>
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9905-9905 |
● |
● |
● |
| |
221 |
BOLT; BRKT
DUAL AIR GAUGE<UG2>
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL),AIR BAG(TFQ)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9905-9905 |
|
● |
● |
| |
221 |
BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
EXC. AIR BAG(TFQ)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9905-9912 |
● |
● |
● |
| |
221 |
BOLT; BRKT
DUAL AIR GAUGE<UG2>
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL),AIR BAG(TFQ)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9905-9912 |
|
● |
● |
| |
221 |
BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2>
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9905-9912 |
|
● |
● |
| |
221 |
BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
EXC. AIR BAG(TFQ)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
0001- |
● |
● |
● |
| |
221 |
BOLT; BRKT
DUAL AIR GAUGE<UG2>
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N)
DUAL AIR GAUGE<UG2>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL),AIR BAG(TFQ)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
0001- |
|
● |
● |
| |
221 |
BOLT; BRKT
EXC. DUAL AIR GAUGE<UG2>
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
0001- |
|
● |
● |
| |
221 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9603-9606 |
|
● |
● |
| |
221 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-9901 |
|
● |
● |
| |
221 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
221 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9905- |
|
● |
● |
| |
224 |
PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L>
L=480
SERVICED BY L=500
|
1-47428-807-0 |
01 |
1 |
9603-9702 |
|
● |
● |
| |
224 |
PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L>
L=494
SERVICED BY L=500
|
1-47428-807-0 |
01 |
1 |
9703-9901 |
|
● |
● |
| |
224 |
PIPE; AIR,UNION TO FLEX HOSE
V TYPE ENG<91L>
L=494
SERVICED BY L=500
|
1-47428-807-0 |
01 |
1 |
9905- |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
(A)
DIN8 & M12 STRAIGHT
|
1-09661-093-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN8 & M12 STRAIGHT
|
1-09661-093-0 |
01 |
1 |
9905-0005 |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0006- |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(B)
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
EXC. AIR DRYER<PS7>
(B)
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(B)
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9902-9904 |
|
● |
|
| |
229 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(B)
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(B)
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9905-9905 |
|
● |
|
| |
229 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>,AIR DRYER<PS7>
(B)
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9905- |
|
● |
● |
| |
229 |
ADAPTER; NYLON TUBE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(B)
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9905- |
|
● |
|
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
L=495
|
1-49117-170-0 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
(A)
L=495
|
1-49117-170-0 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9603-9609 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L>
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9610-9901 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L>
ZF M/T<X9E>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9907-9909 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9910-0001 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
9910-0001 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
0002-0006 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
0007- |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
L TYPE ENG<90L>
ISUZU M/T<X9A>
EXC. AIR DRYER<PS7>
(A)
L=373
|
1-49116-157-1 |
01 |
1 |
0007- |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>,ZF M/T<X9E>
(A)
L=495
|
1-49117-170-0 |
01 |
1 |
9905-9906 |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
L=495
|
1-49117-170-0 |
01 |
1 |
9907- |
|
● |
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FIRE ENGINE PACKAGE<WS2>
(A)
|
1-49115-954-0 |
01 |
1 |
9701-9901 |
|
|
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
FIRE ENGINE PACKAGE<WS2>
(B)
L=751
|
1-49116-511-0 |
01 |
1 |
9603-9612 |
|
|
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FIRE ENGINE PACKAGE<WS2>
(B)
L=751
|
1-49116-511-0 |
01 |
1 |
9701-9901 |
|
|
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
10PE1S(60L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FIRE ENGINE PACKAGE<WS2>
(B)
L=751
|
1-49116-511-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FIRE ENGINE PACKAGE<WS2>
(B)
L=751
|
1-49116-511-0 |
01 |
1 |
9909- |
|
|
● |
| |
237 |
PIPE; AIR,FLEX HOSE TO UNION
6WG1 TC-R(75L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FIRE ENGINE PACKAGE<WS2>
(B)
|
1-49119-855-0 |
01 |
1 |
9905-9908 |
|
|
● |
| |
247 |
UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12 L=40
|
9-09223-006-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
247 |
UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12 L=40
|
9-09223-006-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
247 |
UNION; AIR PIPE
L TYPE ENG<90L>
(B)
M12 L=66.5
|
9-09223-306-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
247 |
UNION; AIR PIPE
(B)
M12 L=66.5
|
9-09223-306-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
247 |
UNION; AIR PIPE
L TYPE ENG<90L>
(B)
M12 L=66.5
|
9-09223-306-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
247 |
UNION; AIR PIPE
V TYPE ENG<91L>
(C)
M12
|
1-09654-087-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
247 |
UNION; AIR PIPE
V TYPE ENG<91L>
(C)
M12
|
1-09654-087-1 |
01 |
1 |
9905- |
|
● |
● |
| |
248 |
NUT; PIPE UNION
M12
|
9-09840-280-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
248 |
NUT; PIPE UNION
M12
|
9-09840-280-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
248 |
NUT; PIPE UNION
M12
|
9-09840-280-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
249 |
WASHER; LK,PIPE UNION
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
249 |
WASHER; LK,PIPE UNION
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
249 |
WASHER; LK,PIPE UNION
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
250 |
PIPE; AIR,UNION TO FLEX HOSE
FIRE ENGINE PACKAGE<WS2>
|
1-49116-514-0 |
01 |
1 |
9603-9612 |
|
|
● |
| |
262 |
PIPE; AIR,UNION TO FLEX
6WA1 TC-S(56L)
L=871
|
1-49114-257-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
262 |
PIPE; AIR,UNION TO FLEX
CAB UP +110MM<TGG>
|
1-49119-635-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
262 |
PIPE; AIR,UNION TO FLEX
L TYPE ENG<90L>
CAB UP +110MM<TGG>
|
1-49121-783-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
262 |
PIPE; AIR,UNION TO FLEX
EXC. CAB UP +110MM<TGG>
L=869
|
1-49119-629-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
262 |
PIPE; AIR,UNION TO FLEX
L TYPE ENG<90L>
EXC. CAB UP +110MM<TGG>
L=896
|
1-49121-787-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
284 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-99111-412-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
284 |
NUT; UNION
M12
|
9-99111-412-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
284 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-99111-412-0 |
01 |
1 |
9905- |
|
● |
● |
| |
291 |
NUT; UNION
M16
|
9-99110-516-0 |
01 |
1 |
9603-9901 |
● |
|
|
| |
291 |
NUT; UNION
M16
|
9-99110-516-0 |
01 |
1 |
9905- |
● |
|
|
| |
291 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-09840-280-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
291 |
NUT; UNION
M12
|
9-09840-280-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
291 |
NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-09840-280-0 |
01 |
1 |
9905- |
|
● |
● |
| |
304 |
BRACKET; UNION
(C)
|
1-47477-182-1 |
01 |
1 |
9603-9901 |
● |
|
|
| |
304 |
BRACKET; UNION
ISUZU M/T<X9A>
EXC. ENGINE REAR PTO(SV1)
(C)
|
1-47477-182-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
304 |
BRACKET; UNION
ISUZU M/T<X9A>
EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN
PLATESTRAP DRIVE(TBV)
(C)
|
1-47477-182-1 |
01 |
1 |
9902-9907 |
|
● |
● |
| |
304 |
BRACKET; UNION
L TYPE ENG<90L>
ISUZU M/T<X9A>
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
(C)
|
1-47477-182-1 |
01 |
1 |
9908-9908 |
|
● |
● |
| |
304 |
BRACKET; UNION
V TYPE ENG<91L>
ISUZU M/T<X9A>
EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN
PLATESTRAP DRIVE(TBV)
(C)
|
1-47477-182-1 |
01 |
1 |
9908-9908 |
|
● |
● |
| |
304 |
BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
8S151 OD(Y3N)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
|
1-47477-182-1 |
01 |
1 |
9909- |
|
● |
● |
| |
304 |
BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U)
WHEEL BASE 5900MM(59W)
PTO ZF TRANS RR(BDM)
(C)
|
1-47477-182-1 |
01 |
1 |
9909- |
|
|
● |
| |
304 |
BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
(A)
|
1-71117-210-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
304 |
BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2>
(A)
|
1-71117-210-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
304 |
BRACKET; UNION
DUAL AIR GAUGE<UG2>
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
(A)
|
1-71117-210-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
304 |
BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
(A)
|
1-71117-210-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
304 |
BRACKET; UNION
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL)
(A)
|
1-71117-210-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
304 |
BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
EXC. AIR BAG(TFQ)
(A)
|
1-71117-210-0 |
01 |
1 |
9905-9905 |
● |
● |
● |
| |
304 |
BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2>
(A)
|
1-71117-210-0 |
01 |
1 |
9905-9905 |
● |
● |
● |
| |
304 |
BRACKET; UNION
DUAL AIR GAUGE<UG2>
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL),AIR BAG(TFQ)
(A)
|
1-71117-210-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
304 |
BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
EXC. AIR BAG(TFQ)
(A)
|
1-71117-210-0 |
01 |
1 |
9905-9912 |
● |
● |
● |
| |
304 |
BRACKET; UNION
DUAL AIR GAUGE<UG2>
ZF M/T<X9E>
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL),AIR BAG(TFQ)
(A)
|
1-71117-210-0 |
01 |
1 |
9905-9912 |
|
● |
● |
| |
304 |
BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2>
(A)
|
1-71117-210-0 |
01 |
1 |
9905-9912 |
|
● |
● |
| |
304 |
BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)
DUAL AIR GAUGE<UG2>
EXC. AIR BAG(TFQ)
(A)
|
1-71117-210-0 |
01 |
1 |
0001- |
● |
● |
● |
| |
304 |
BRACKET; UNION
DUAL AIR GAUGE<UG2>
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF
16S151 OD(Y2N)
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM
REST(SLL),AIR BAG(TFQ)
(A)
|
1-71117-210-0 |
01 |
1 |
0001- |
|
● |
● |
| |
304 |
BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2>
(A)
|
1-71117-210-0 |
01 |
1 |
0001- |
|
● |
● |
| |
304 |
BRACKET; UNION
ENGINE REAR PTO(SV1)
(C)
|
1-47477-184-1 |
01 |
1 |
9603-9901 |
|
● |
|
| |
304 |
BRACKET; UNION
ENGINE REAR PTO(SV1)
ISUZU M/T<X9A>
(C)
|
1-47477-184-1 |
01 |
1 |
9902-9907 |
|
● |
|
| |
304 |
BRACKET; UNION
V TYPE ENG<91L>
ENGINE REAR PTO(SV1)
ISUZU M/T<X9A>
(C)
|
1-47477-184-1 |
01 |
1 |
9908- |
|
● |
|
| |
304 |
BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47476-556-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
304 |
BRACKET; UNION
(B)
|
1-47476-556-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
304 |
BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47476-556-0 |
01 |
1 |
9905- |
|
● |
● |
| |
304 |
BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
ISUZU M/T<X9A>
(C)
|
1-47477-183-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
304 |
BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
ISUZU M/T<X9A>
(C)
|
1-47477-183-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
304 |
BRACKET; UNION
ZF M/T<X9E>
(D)
|
1-47477-436-0 |
01 |
1 |
9603-9704 |
|
● |
● |
| |
304 |
BRACKET; UNION
ZF M/T<X9E>
(E)
|
1-47477-757-1 |
01 |
1 |
9705- |
|
● |
● |
| |
304 |
BRACKET; UNION
L TYPE ENG<90L>
FIRE TRUCK<RA9>
MAP5 M/T<Y9F>
(F)
|
1-47478-723-0 |
01 |
1 |
9909- |
|
|
● |
| |
328 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
328 |
UNION; AIR PIPE
(A)
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
328 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
9905- |
|
● |
● |
| |
328 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
328 |
UNION; AIR PIPE
EXC. AIR DRYER<PS7>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
328 |
UNION; AIR PIPE
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9902-9904 |
|
● |
|
| |
328 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9905-9905 |
|
● |
● |
| |
328 |
UNION; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9905-9905 |
|
● |
|
| |
328 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>,AIR DRYER<PS7>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9905- |
|
● |
● |
| |
328 |
UNION; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
MIXER TRUCK<RA2>
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9905- |
|
● |
|
| |
341 |
BOLT; BRKT
ZF M/T<X9E>
M16X35 FLANGE
|
0-28881-635-0 |
02 |
1 |
9603-9704 |
|
● |
● |
| |
345 |
UNION; AIR PIPE
MIXER TRUCK<RA2>
M12 2WAY
|
1-09654-257-1 |
01 |
1 |
9902-9904 |
|
● |
|
| |
345 |
UNION; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MIXER TRUCK<RA2>
M12 2WAY
|
1-09654-257-1 |
01 |
1 |
9905- |
|
● |
|
| |
345 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
345 |
UNION; AIR PIPE
EXC. MIXER TRUCK<RA2>
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
345 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
SILENCER SINGLE VERTICAL<N28>
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9905- |
|
● |
● |
| |
345 |
UNION; AIR PIPE
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9905- |
|
● |
● |
| |
345 |
UNION; AIR PIPE
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. SILENCER SINGLE VERTICAL<N28>,MIXER
TRUCK<RA2>
M12 ELBOW
|
9-09225-206-1 |
01 |
1 |
9905- |
|
● |
● |
| |
357 |
PIPE; AIR,UNION TO UNION
FIRE ENGINE PACKAGE<WS2>
|
1-49116-515-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
357 |
PIPE; AIR,UNION TO UNION
10PE1S(60L),10PE1N(61L),10PE1H(68L)
FIRE ENGINE PACKAGE<WS2>
|
1-49116-515-0 |
01 |
1 |
9905- |
|
|
● |
| |
374 |
CONNECTOR
(C)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9603-9611 |
● |
|
|
| |
374 |
CONNECTOR
ISUZU M/T<X9A>
(C)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9603-9611 |
|
● |
● |
| |
374 |
CONNECTOR
(B)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-671-0 |
01 |
1 |
9603-9702 |
|
● |
● |
| |
374 |
CONNECTOR
(B)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-671-0 |
01 |
1 |
9703-9901 |
● |
● |
● |
| |
374 |
CONNECTOR
ZF M/T<X9E>
(B)
M16 PT3/8X2 3WAY
|
1-09656-418-2 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
374 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ZF M/T<X9E>
(B)
M16 PT3/8X2 3WAY
|
1-09656-418-2 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
374 |
CONNECTOR
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
M16 PT3/8X2 3WAY
|
1-09656-418-2 |
01 |
1 |
9910- |
|
● |
● |
| |
374 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ISUZU M/T<X9A>
(A)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-677-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
374 |
CONNECTOR
ISUZU M/T<X9A>
(A)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-677-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
374 |
CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ISUZU M/T<X9A>
(A)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-677-0 |
01 |
1 |
9905- |
|
● |
● |
| |
374 |
CONNECTOR
TRANSMISSION-ZF 16S221 OD(Y1U)
(C)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
9910-0006 |
|
● |
● |
| |
374 |
CONNECTOR
ISUZU M/T<X9A>
(C)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
0007- |
● |
● |
● |
| |
374 |
CONNECTOR
TRANSMISSION-ZF 16S221 OD(Y1U)
(C)
M20 & M22 STRAIGHT
|
1-09654-166-1 |
01 |
1 |
0007- |
|
● |
● |
| |
374 |
CONNECTOR
TRANSMISSION-ZF 16S221 OD(Y1U)
(E)
|
1-09660-597-0 |
01 |
1 |
9910-9910 |
|
● |
● |
| |
374 |
CONNECTOR
TRANSMISSION-ZF 16S221 OD(Y1U)
(E) '991025-
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
9910- |
|
● |
● |
| |
374 |
CONNECTOR
ZF M/T<X9E>
(D)
|
1-09654-203-1 |
01 |
1 |
9603-9611 |
|
● |
● |
| |
374 |
CONNECTOR
ZF M/T<X9E>
(F)
|
1-09654-203-1 |
01 |
1 |
0007- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
L=639
|
1-49112-566-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q>
L=639
|
1-49112-566-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
L=639
|
1-49112-566-0 |
01 |
1 |
9905-9907 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
L=639
|
1-49112-566-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
EXC. ENGINE REAR PTO(SV1)
L=639
|
1-49112-566-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MJD7 M/T<X9J>
EXC. ENGINE REAR PTO(SV1)
L=778
|
1-49112-564-0 |
01 |
1 |
9905-9907 |
● |
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
MJD7 M/T<X9J>
L=778
|
1-49112-564-0 |
01 |
1 |
9908-0002 |
● |
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
MJD7 M/T<X9J>
EXC. ENGINE REAR PTO(SV1)
L=778
|
1-49112-564-0 |
01 |
1 |
9908-0002 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
MJD7 M/T<X9J>
L=778
|
1-49112-564-0 |
01 |
1 |
0003- |
● |
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
MJD7 M/T<X9J>
EXC. ENGINE REAR PTO(SV1)
L=778
|
1-49112-564-0 |
01 |
1 |
0003- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1)
MAG6 M/T<X9T>
L=685
|
1-49112-569-0 |
01 |
1 |
9603-9901 |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1)
MAG6 M/T<X9T>
L=685
|
1-49112-569-0 |
01 |
1 |
9905-9907 |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
ENGINE REAR PTO(SV1)
MAG6 M/T<X9T>
L=685
|
1-49112-569-0 |
01 |
1 |
9908- |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1)
MAL5 M/T<X9F>
|
1-49116-274-0 |
01 |
1 |
9603-9702 |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1)
MAL5 M/T<X9F>
L=519
|
1-49118-232-0 |
01 |
1 |
9703-9901 |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1)
MAL5 M/T<X9F>
L=519
|
1-49118-232-0 |
01 |
1 |
9905-9907 |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
ENGINE REAR PTO(SV1)
MAL5 M/T<X9F>
L=519
|
1-49118-232-0 |
01 |
1 |
9908- |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1)
MJD7 M/T<X9J>
|
1-49119-786-0 |
01 |
1 |
9905-9907 |
|
● |
|
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
MJD7 M/T<X9J>
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
L=741
|
1-49112-563-0 |
01 |
1 |
0003- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
MJD7 M/T<X9J>
EXC. ENGINE REAR PTO(SV1),CLUTCH 15.5" TWIN
PLATESTRAP DRIVE(TBV)
L=741
|
1-49112-563-0 |
01 |
1 |
0003- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T>
EXC. ENGINE REAR PTO(SV1)
L=643
|
1-49112-568-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T>
EXC. ENGINE REAR PTO(SV1)
L=643
|
1-49112-568-0 |
01 |
1 |
9905-9907 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
MAG6 M/T<X9T>
L=643
|
1-49112-568-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
MAG6 M/T<X9T>
EXC. ENGINE REAR PTO(SV1)
L=643
|
1-49112-568-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MAL5 M/T<X9F>
EXC. ENGINE REAR PTO(SV1)
L=476
|
1-49112-572-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MAL5 M/T<X9F>
EXC. ENGINE REAR PTO(SV1)
L=476
|
1-49112-572-0 |
01 |
1 |
9905-9907 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
MAL5 M/T<X9F>
L=476
|
1-49112-572-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
MAL5 M/T<X9F>
EXC. ENGINE REAR PTO(SV1)
L=476
|
1-49112-572-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MAL6 M/T<X9G>
L=580
|
1-49112-570-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
MAL6 M/T<X9G>
L=580
|
1-49112-570-0 |
01 |
1 |
9905-9907 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
MAL6 M/T<X9G>
L=580
|
1-49112-570-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
V TYPE ENG<91L>
MAL6 M/T<X9G>
EXC. ENGINE REAR PTO(SV1)
L=580
|
1-49112-570-0 |
01 |
1 |
9908- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U)
|
1-49117-287-0 |
01 |
1 |
9910-9912 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U)
|
1-49122-469-0 |
01 |
1 |
0001- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
ZF M/T<X9E>
|
1-49116-862-0 |
01 |
1 |
9603-9608 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
ZF M/T<X9E>
L=552
|
1-49117-764-0 |
01 |
1 |
9609-9909 |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
L=552
|
1-49117-764-0 |
01 |
1 |
9910- |
|
● |
● |
| |
376 |
PIPE; AIR,FLEX HOSE
L TYPE ENG<90L>
FIRE TRUCK<RA9>
MAP5 M/T<Y9F>
L=468
|
1-49122-224-0 |
01 |
1 |
9909- |
|
|
● |
| |
377 |
BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9603-9606 |
|
● |
● |
| |
377 |
BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
9607-9901 |
|
● |
● |
| |
377 |
BOLT; BRKT FIX
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
377 |
BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
9905- |
|
● |
● |
| |
377 |
BOLT; BRKT FIX
ZF M/T<X9E>
M12X16
|
0-28181-216-0 |
01 |
1 |
9603-9909 |
|
● |
● |
| |
377 |
BOLT; BRKT FIX
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
M12X16
|
0-28181-216-0 |
01 |
1 |
9910- |
|
● |
● |
| |
421 |
NUT; BRKT
ISUZU M/T<X9A>
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9603-9606 |
● |
● |
● |
| |
421 |
NUT; BRKT
ISUZU M/T<X9A>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9607-9704 |
● |
● |
● |
| |
421 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9705-9901 |
● |
|
|
| |
421 |
NUT; BRKT
ISUZU M/T<X9A>,ZF M/T<X9E>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9705-9901 |
|
● |
● |
| |
421 |
NUT; BRKT
ISUZU M/T<X9A>,ZF M/T<X9E>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
421 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9905- |
● |
|
|
| |
421 |
NUT; BRKT
ISUZU M/T<X9A>,ZF M/T<X9E>
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9905- |
|
● |
● |
| |
428 |
NUT; BRKT
M8
|
9-09110-508-0 |
02 |
1 |
9603-9605 |
● |
● |
● |
| |
428 |
NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8
|
9-09110-508-0 |
02 |
1 |
9603-9605 |
|
● |
● |
| |
428 |
NUT; BRKT
M8
|
9-09110-508-0 |
02 |
1 |
9606-9606 |
● |
● |
● |
| |
428 |
NUT; BRKT
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8
|
9-09110-508-0 |
02 |
1 |
9606-9606 |
|
● |
● |
| |
428 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9901 |
● |
● |
● |
| |
428 |
NUT; BRKT
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9901 |
|
● |
● |
| |
428 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
428 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
428 |
NUT; BRKT
V TYPE ENG<91L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905- |
|
● |
● |
