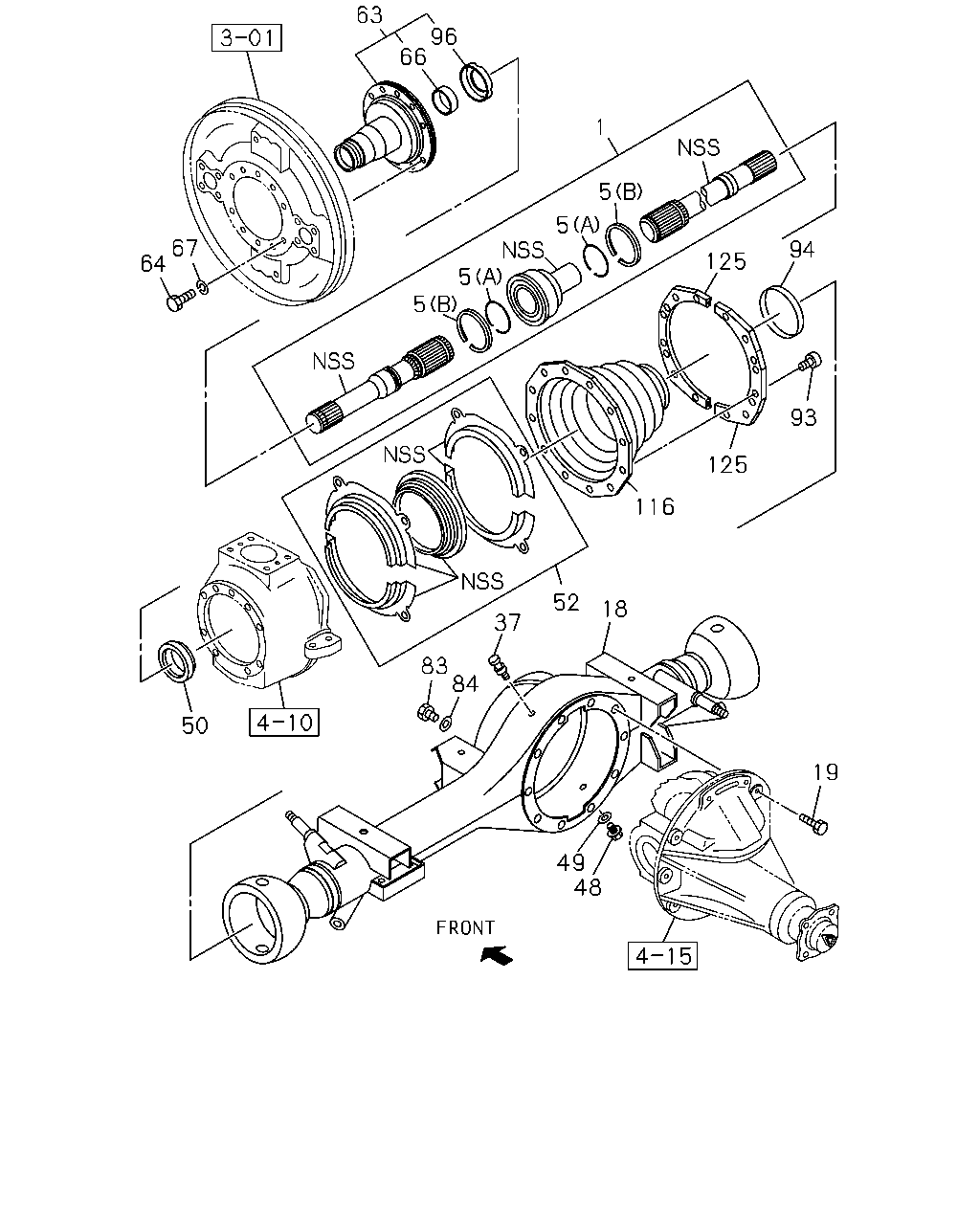

4-12 — FRONT DRIVE SHAFT (#53827) — 23 parça

63 5 5 5 5 125 94 93 125 116 52 37 83 84 19 49 48 50 18 96 66 67 64 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.055 SHAFT ASM; FRT DRIVE	8-97043-026-0	01	1	0804-
1	06.055 SHAFT ASM; FRT DRIVE	8-97043-027-0	01	1	0804-
5	06.061 RING; RET,FRT DRIVE SHAFT (A)	8-97106-944-0	04	1	0804-
5	06.061 RING; RET,FRT DRIVE SHAFT (B)	8-97106-945-0	04	1	0804-
18	06.008 CASE; FRT AXLE	8-97073-899-1	01	1	0804-
19	06.156 BOLT; FRT AXLE 05.387 M10X40 W/LK WASHER	0-50061-040-0	10	1	0804-0909
19	06.156 BOLT; FRT AXLE M10X40 W/LK WASHER IDN	0-50561-040-0	10	1	0910-
37	06.008 BREATHER; FRT AXLE CASE 05.387 L=29	8-98006-960-0	01	1	0804-
48	05.400 PLUG; DRAIN,AXLE CASE 05.508 M16X12.5	8-97307-060-0	01	1	0804-
49	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0804-
50	06.061 SEAL; OIL,SHAFT,FRT AXLE	8-94459-416-0	02	1	0804-
52	06.061 SEAL; OIL,KNUCKLE	8-97125-754-0	02	1	0804-
63	06.020 SPINDLE; KNUCKLE,FRT AXLE SHAFT	8-94440-882-0	02	1	0804-
64	06.050 BOLT; SPINDLE	8-98049-683-0	18	1	0804-
66	06.021 BUSHING; SPINDLE,FRT AXLE SHAFT	8-97116-630-0	02	1	0804-
67	06.022 WASHER; LK,SPINDLE 07.347 ID=12.2	0-91510-812-0	18	1	0804-
83	06.330 PLUG; OIL FILLER 05.400 M20X10.5	8-98009-333-0	01	1	0804-
84	06.326 GASKET; PLUG,OIL FILLER 05.400 ID=20 OD=30	8-94462-734-0	01	1	0804-
93	06.330 SCREW; TUBE END BOOT HOLDER,FRT 06.321 M6X12	8-94477-783-0	24	1	0804-
94	06.330 BAND; TUBE END BOOT,FRT AXLE	8-94447-698-0	02	1	0804-
96	06.056 WASHER; THRUST,SPINDLE,FRT AXLE	8-94440-903-0	02	1	0804-
116	06.061 BOOT; TUBE END,FRT AXLE	8-94321-407-0	02	1	0804-
125	06.061 HOLDER; TUBE END BOOT,FRT AXLE	8-98049-388-0	04	1	0804-
