4-01 — PROPELLER SHAFT (#53824) — 36 parça

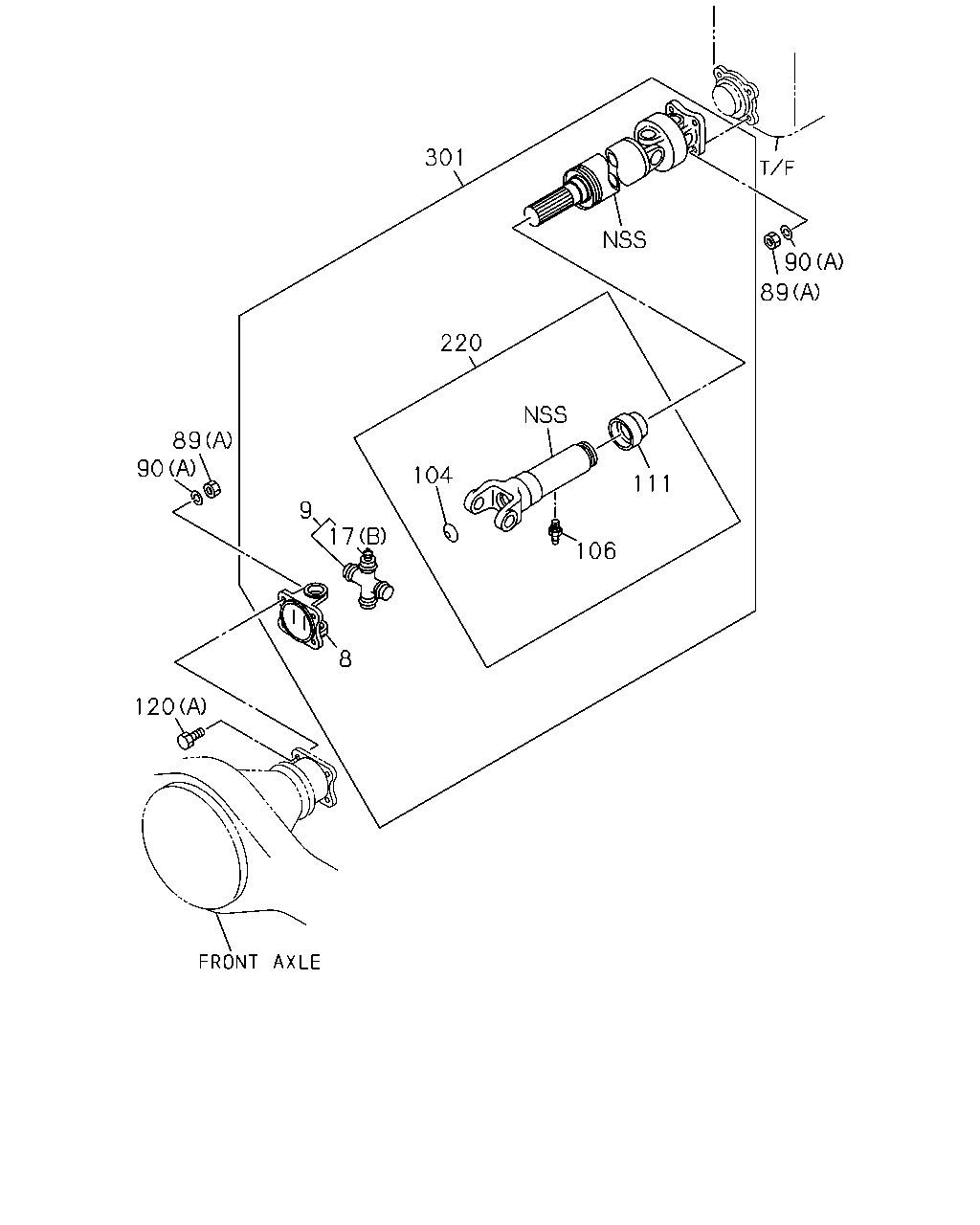

301 90 89 220 89 90 104 111 9 17 106 8 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT REAR D=80	1-37211-037-4	02	1	0804-
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT	8-97178-365-0	01	1	0804-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT	8-97167-317-0	01	1	0804-
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-98020-789-1	02	1	0804-
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT IDN	0-90301-406-0	01	1	0804-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0804-
89	05.586 NUT; YOKE TO RR AXLE (B) M12	8-97365-450-1	12	1	0804-
89	05.586 NUT; YOKE TO RR AXLE (A) M10 IDN	8-98056-949-0	08	1	0804-
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (A) ID=10.2 IDN	0-91510-610-0	08	1	0804-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (B) ID=12.2	0-91510-812-0	12	1	0804-
104	05.556 PLUG; SLEEVE YOKE	8-97020-598-0	01	1	0804-
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0804-
111	05.545 RING; SLEEVE IDN	8-97020-597-1	01	1	0804-
120	05.586 BOLT; YOKE TO RR AXLE (B) M12X35	8-97365-451-1	08	1	0804-
120	05.586 BOLT; YOKE TO RR AXLE (A) M10X29 IDN	8-98056-948-0	04	1	0804-
220	05.544 YOKE; SPLINED 05.545	8-97167-316-0	01	1	0804-
301	05.544 SHAFT ASM; PROP,FRT L=774	8-98090-720-0	01	1	0804-

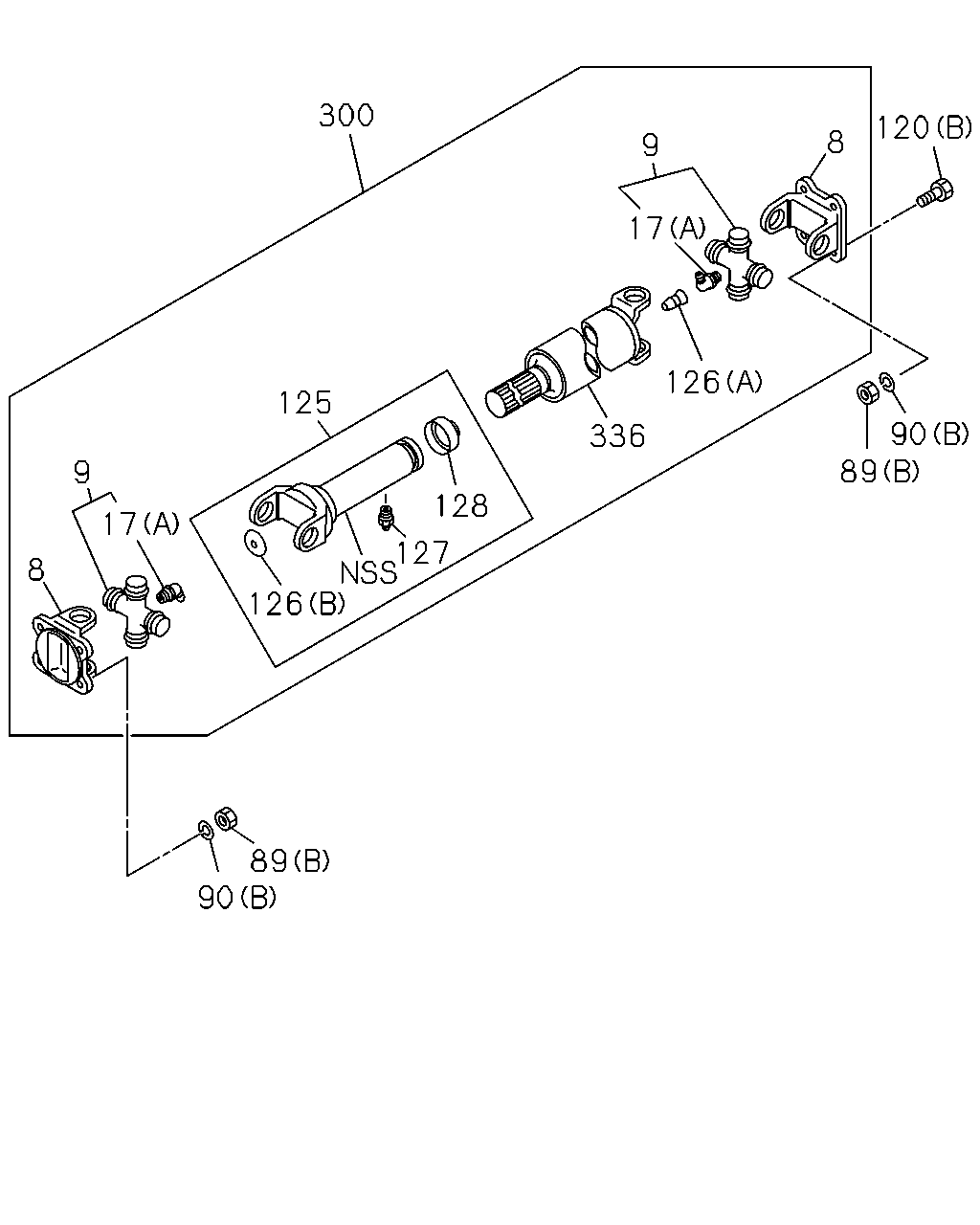

300 120 8 9 17 126 125 90 89 336 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT REAR D=80	1-37211-037-4	02	1	0804-
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT	8-97178-365-0	01	1	0804-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT	8-97167-317-0	01	1	0804-
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-98020-789-1	02	1	0804-
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT IDN	0-90301-406-0	01	1	0804-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0804-
89	05.586 NUT; YOKE TO RR AXLE (B) M12	8-97365-450-1	12	1	0804-
89	05.586 NUT; YOKE TO RR AXLE (A) M10 IDN	8-98056-949-0	08	1	0804-
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (A) ID=10.2 IDN	0-91510-610-0	08	1	0804-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (B) ID=12.2	0-91510-812-0	12	1	0804-
120	05.586 BOLT; YOKE TO RR AXLE (B) M12X35	8-97365-451-1	08	1	0804-
120	05.586 BOLT; YOKE TO RR AXLE (A) M10X29 IDN	8-98056-948-0	04	1	0804-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0804-
126	05.556 PLUG; SPLINED YOKE (A) IDN	1-09600-023-0	01	1	0804-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0804-
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0804-
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0804-
300	05.544 SHAFT ASM; PROP,RR L=1506	8-98049-839-1	01	1	0804-
336	05.600 TUBE; PROP SHAFT	8-98077-518-0	01	1	0804-
