Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#53823) — 231 parça

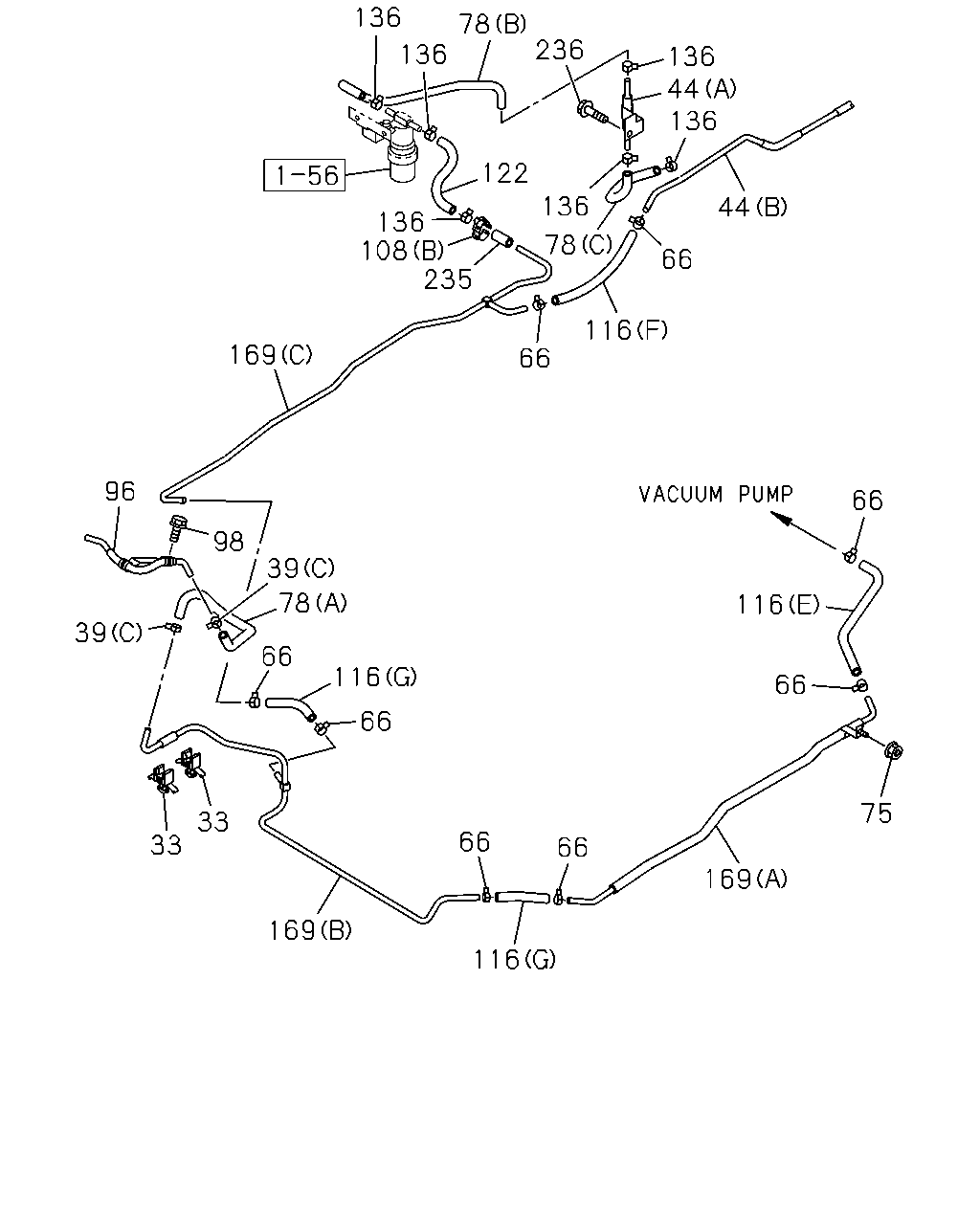

136 78 236 136 136 44 136 122 136 44 136 108 235 78 66 116 169 66 96 66 98 39 78 116 39 66 116 66 66 75 33 66 33 66 169 169 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE ID=10 H=40 IDN	8-94462-219-0	02	1	0804-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98070-194-0	01	1	0804-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98103-009-0	01	1	0804-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16 IDN	8-94238-568-0	02	1	0804-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16 IDN	8-94238-568-0	06	1	0804-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	06	1	0912-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98063-819-2	01	1	0804-1008
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1009-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0804-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98034-103-2	01	1	0804-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE 04.930 ID=16 IDN	8-94238-568-0	06	1	0804-0911
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	0912-
169	04.930 PIPE; VAC,BOOSTER SIDE (A)	8-98041-052-2	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98041-053-4	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98041-054-3	01	1	0804-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0804-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-

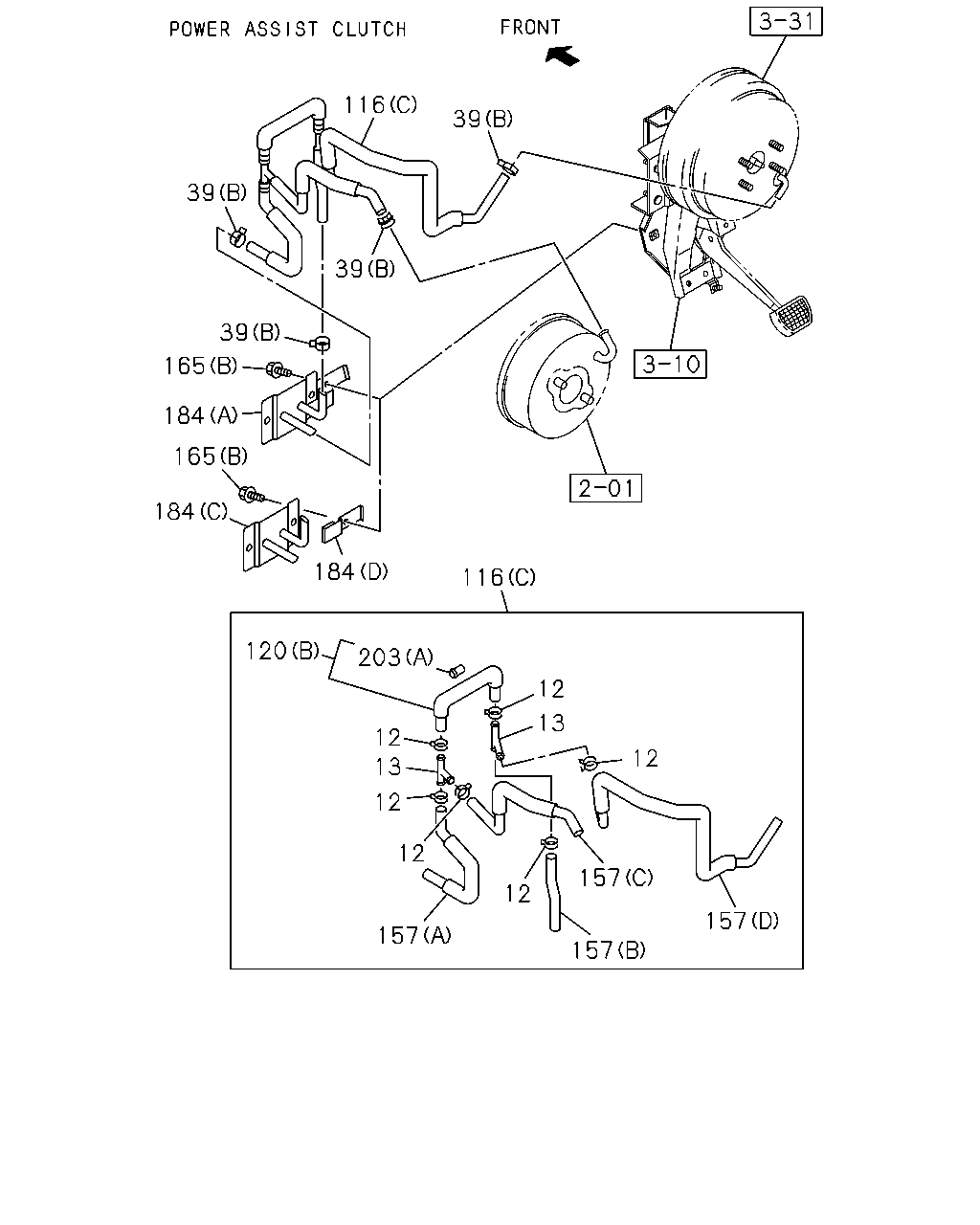

39 39 165 184 165 184 184 116 39 116 120 12 13 12 12 157 12 157 157 12 13 12 157 39 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	0804-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0804-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B) IDN	8-98017-628-1	01	1	0804-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-

116 39 39 184 184 184 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B) IDN	8-98017-628-1	01	1	0804-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-

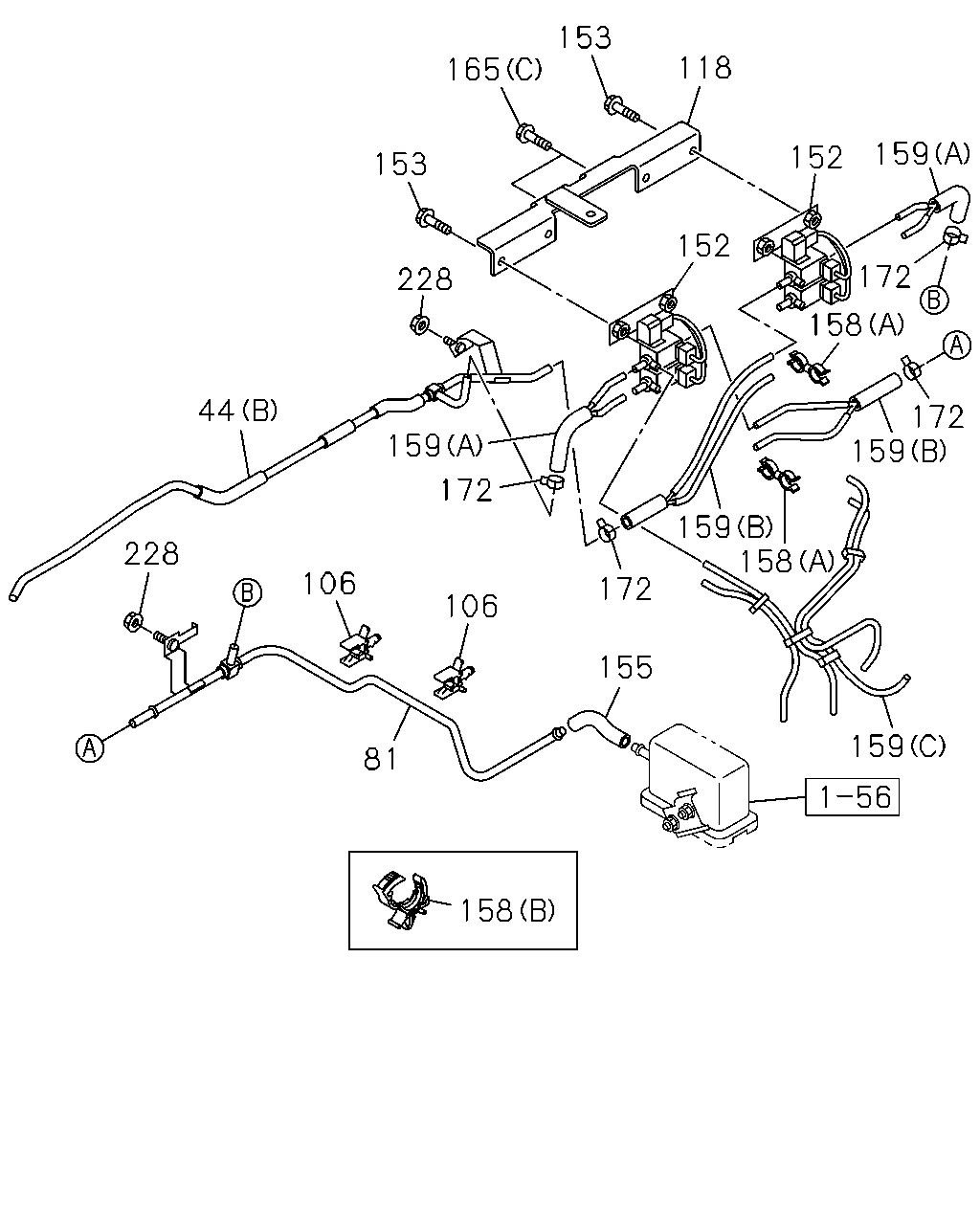

153 118 165 159 152 153 152 172 228 158 44 172 159 159 172 159 158 228 106 172 106 155 159 81 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV (A)	8-98070-194-0	01	1	0804-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98103-009-0	01	1	0804-
81	04.930 PIPE; VAC,VSV	8-98060-407-3	01	1	0804-
106	04.930 CLIP; PIPE ID=10 H=40 IDN	8-94462-219-0	02	1	0804-
118	04.930 BRACKET; VSV	8-98069-541-3	01	1	0804-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	02	1	0804-1302
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98222-432-0	02	1	1303-
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE IDN	0-28651-025-0	04	1	0804-
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
158	04.681 CLIP; HOSE 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	0804-
158	04.681 CLIP; HOSE 02.559 (B) ID=14-20	8-97061-603-0	01	1	0804-
159	04.931 HOSE ASM; VAC (B)	8-98070-137-2	02	1	0804-
159	04.931 HOSE ASM; VAC (A)	8-98070-138-1	02	1	0804-
159	04.931 HOSE ASM; VAC (C)	8-98093-010-0	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
172	04.930 CLIP; VAC HOSE ID=16 IDN	8-94238-568-0	04	1	0804-0911
172	04.930 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	04	1	0912-
228	04.930 NUT; PIPE 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-
228	04.930 NUT; PIPE 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-

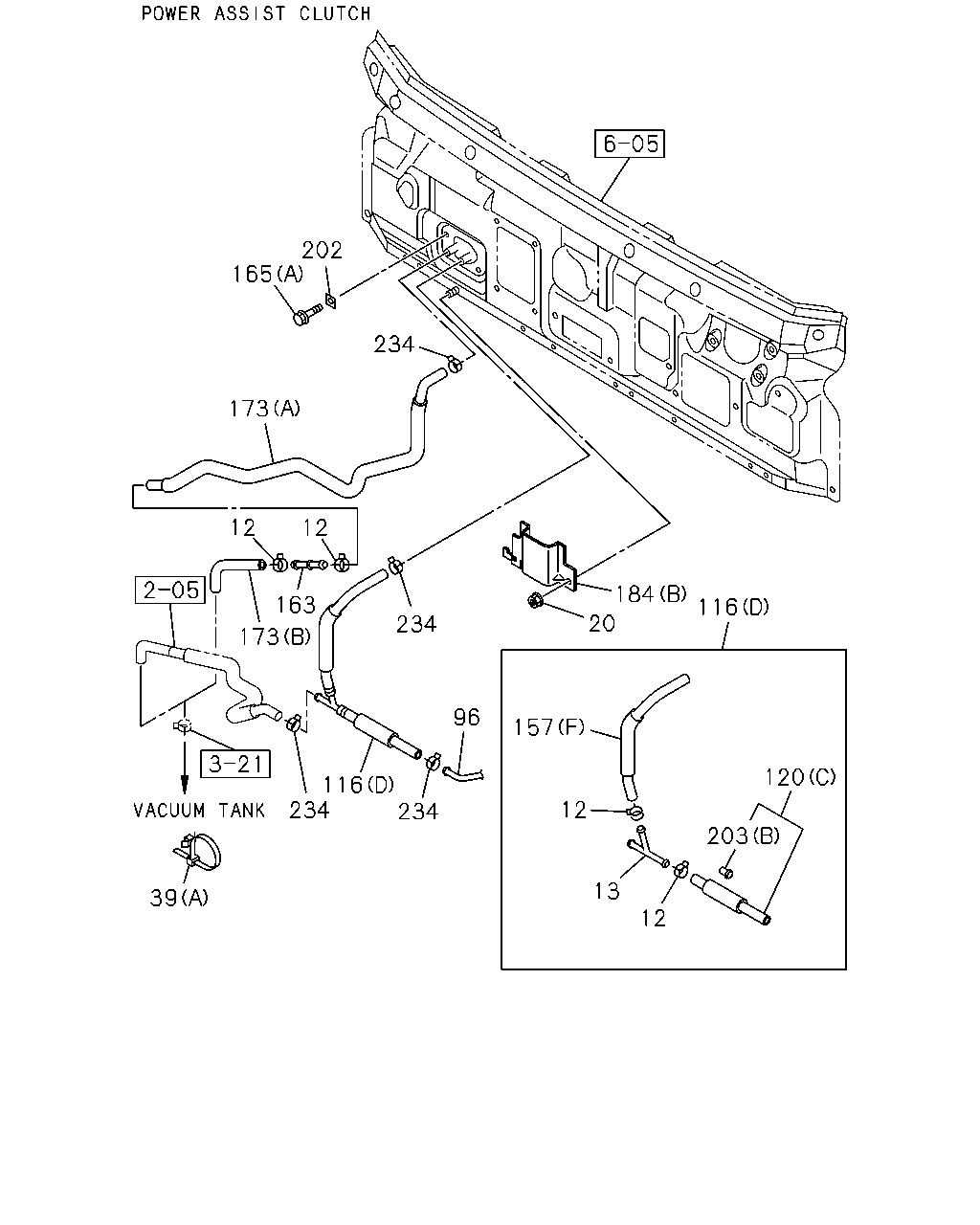

202 165 234 173 39 108 184 20 234 116 96 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	0804-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0804-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-
20	04.686 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0804-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0804-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0804-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0804-1012
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B) IDN	8-98017-628-1	01	1	0804-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-
202	04.686 SEAL 08.845 IDN	8-97856-616-0	02	1	0804-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	04	1	0804-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	03	1	0804-

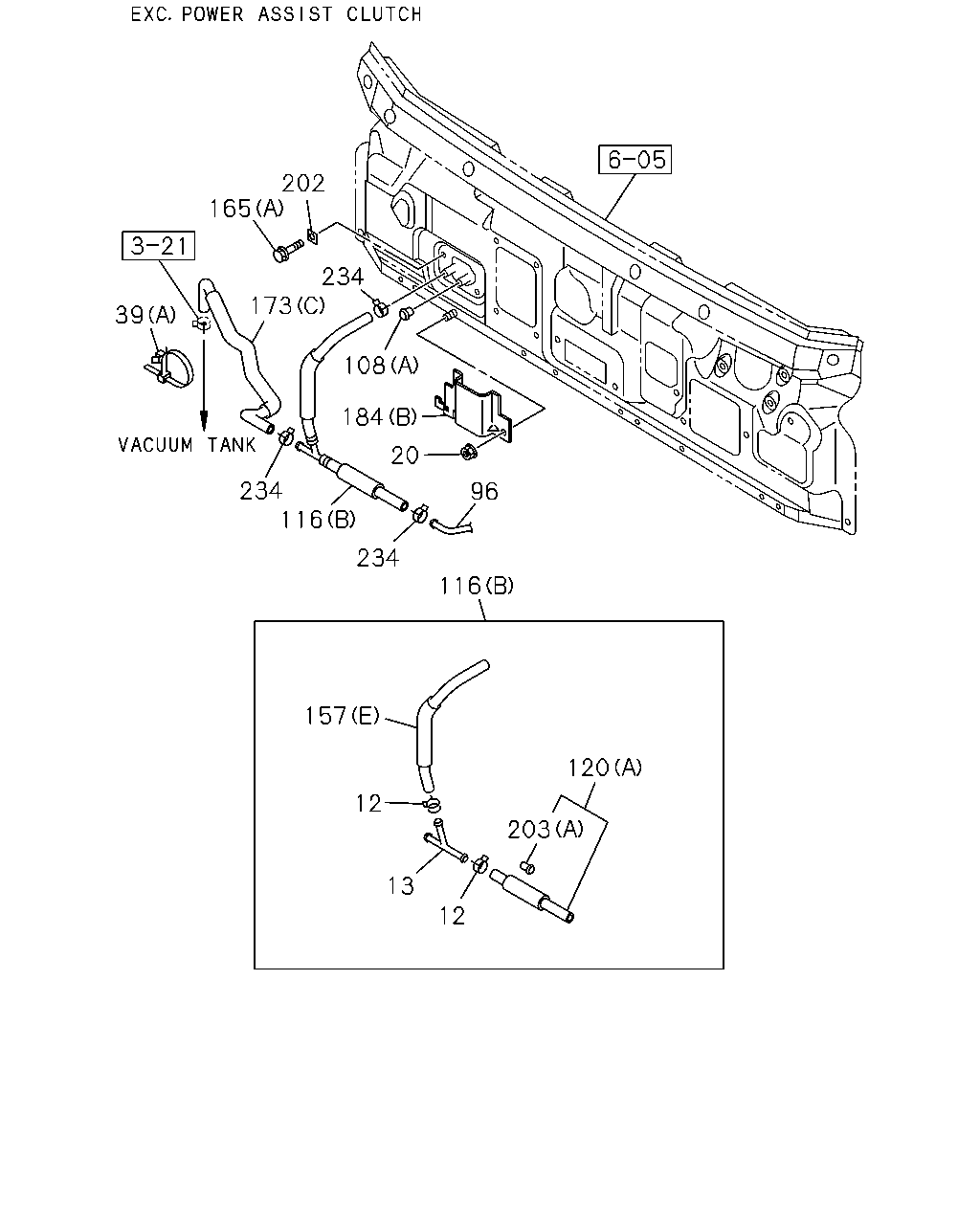

202 165 234 173 12 12 184 163 116 20 234 173 96 157 120 116 234 234 12 203 13 39 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	0804-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0804-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-
20	04.686 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0804-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (E)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	0912-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0804-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0804-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0804-1012
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B) IDN	8-98017-628-1	01	1	0804-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-
202	04.686 SEAL 08.845 IDN	8-97856-616-0	02	1	0804-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	04	1	0804-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	03	1	0804-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
