Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#5382) — 273 parça

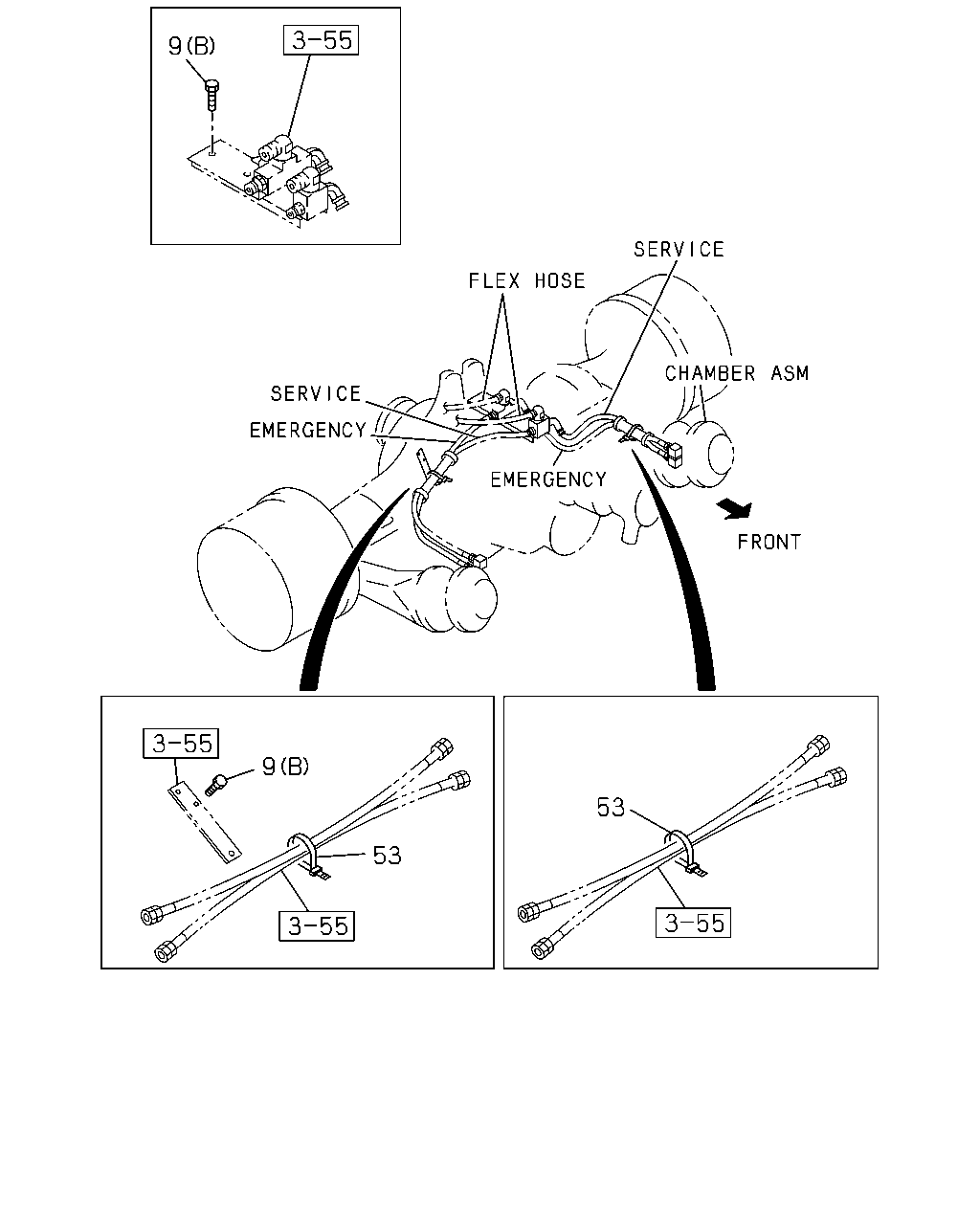

9 9 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
9	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●
9	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9901		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X16 FLANGE	0-28080-816-0	04	1	9603-9901		●	●
9	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	04	1	9902-9902		●	●
9	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X16 FLANGE	0-28080-816-0	04	1	9903-9904		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X16 FLANGE	0-28080-816-0	04	1	9905-9910		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X16 FLANGE	0-28080-816-0	04	1	9911-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M8X16 FLANGE	0-28080-816-0	02	1	9906-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M8X16 FLANGE	0-28080-816-0	02	1	9809-9901		●	●
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9603-9901		●	●
53	CLIP; UNION L=250	1-09707-126-0	01	1	9902-9902		●	●
53	CLIP; UNION EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> L=250	1-09707-126-0	01	1	9903-9904		●	●
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> L=250	1-09707-126-0	01	1	9905-9910		●	●
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9911-		●	●

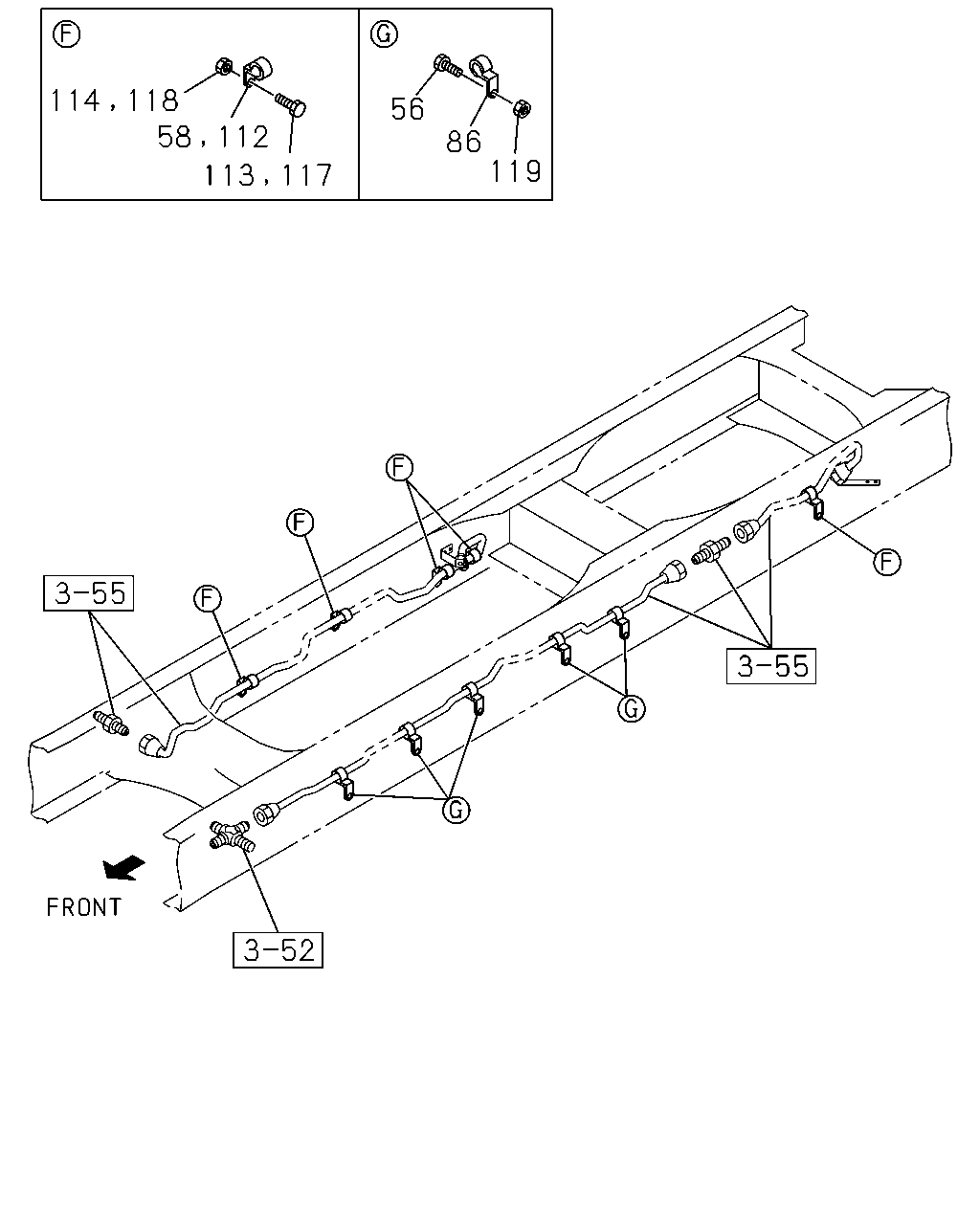

118 58 114 56 112 86 119 113 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
56	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28680-830-0	03	1	9607-9901	●
56	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●
56	BOLT; CLIP WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28080-825-0	05	1	9603-9606	●
56	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	05	1	9603-9606		●	●
56	BOLT; CLIP WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28680-830-0	05	1	9607-9807	●
56	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	05	1	9607-9807		●	●
56	BOLT; CLIP WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28680-830-0	05	1	9808-9901	●
56	BOLT; CLIP WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	05	1	9808-9901			●
56	BOLT; CLIP WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28680-830-0	05	1	9905-	●
56	BOLT; CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	05	1	9905-		●	●
56	BOLT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	04	1	9808-9901			●
56	BOLT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	04	1	9905-0006			●
56	BOLT; CLIP WHEEL BASE 6100MM(61W) M8X30 FLANGE	0-28680-830-0	04	1	0007-	●
56	BOLT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	04	1	0007-			●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	08	1	9603-9612	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	09	1	9701-9901	●
58	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	09	1	9905-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	9603-9901		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	9905-9910		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9911-9911		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9911-		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=6 H=20 L=20	1-09700-603-0	04	1	9911-		●
58	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-9911		●
58	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> ID=6 H=20 L=20	1-09700-603-0	01	1	9911-		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	11	1	9603-9901			●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	11	1	9905-			●
86	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9603-9901	●
86	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-	●
86	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) ID=6 H=20 L=20	1-09700-603-0	05	1	9603-9807	●
86	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	9603-9807		●	●
86	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) ID=6 H=20 L=20	1-09700-603-0	05	1	9808-9901	●
86	CLIP; OIL PIPE WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	9808-9901			●
86	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) ID=6 H=20 L=20	1-09700-603-0	05	1	9905-	●
86	CLIP; OIL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	9905-		●	●
86	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9808-9901			●
86	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9905-0006			●
86	CLIP; OIL PIPE WHEEL BASE 6100MM(61W) ID=6 H=20 L=20	1-09700-603-0	04	1	0007-	●
86	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	0007-			●
112	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9603-9807	●
112	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9808-9901	●
112	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	9808-9901			●
112	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-9910	●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 5900MM(59W) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-9910			●
112	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9911-	●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6300MM(63W) ID=6 H=20 L=20	1-09700-603-0	03	1	9911-			●
112	CLIP; OIL PIPE WHEEL BASE 6100MM(61W) ID=6 H=20 L=20	1-09700-603-0	04	1	0007-	●
112	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) ID=6 H=20 L=20	1-09700-603-0	05	1	9603-9901	●
112	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) ID=6 H=20 L=20	1-09700-603-0	05	1	9905-	●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9603-9807			●
112	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9808-9901			●
112	CLIP; OIL PIPE WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9905-9910			●
112	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	02	1	9911-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28680-830-0	03	1	9607-9807	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28680-830-0	03	1	9808-9901	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	9808-9901			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6100MM(61W) M8X30 FLANGE	0-28680-830-0	04	1	0007-	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28080-825-0	05	1	9603-9606	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28680-830-0	05	1	9607-9901	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28680-830-0	05	1	9905-	●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9603-9606			●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9607-9807			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9808-9901			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	03	1	9905-9910			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	9911-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9905-9910			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	03	1	9911-			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8	9-09110-508-0	03	1	9603-9606	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9607-9807	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9808-9901	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9808-9901			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9905-9910	●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	03	1	9905-9910			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9911-	●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	9911-			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6100MM(61W) M8 FLANGE	0-91150-108-0	04	1	0007-	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8	9-09110-508-0	05	1	9603-9606	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	9607-9901	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	9905-	●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	04	1	9603-9606			●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9607-9807			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9808-9901			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9905-9910			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-			●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	08	1	9603-9606	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	08	1	9607-9612	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	09	1	9701-9901	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	09	1	9905-	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	05	1	9603-9606		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	05	1	9607-9901		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	05	1	9905-9910		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9911-		●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9911-9911		●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	01	1	9911-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	04	1	9911-		●	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28680-825-0	04	1	9911-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	11	1	9603-9606			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28680-840-0	11	1	9607-9901			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28680-840-0	11	1	9905-			●
118	NUT; CLIP,OIL PIPE M8	9-09110-508-0	08	1	9603-9606	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	08	1	9607-9901	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	08	1	9905-	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	05	1	9603-9606		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	9607-9901		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	9905-9910		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9911-9911		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9911-		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8 FLANGE	0-91150-108-0	04	1	9911-		●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-9911		●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> M8 FLANGE	0-91150-108-0	01	1	9911-		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	11	1	9603-9606			●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	11	1	9607-9901			●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	11	1	9905-			●
119	NUT; CLIP WHEEL BASE 5700MM(57W) M8	9-09110-508-0	03	1	9603-9606	●
119	NUT; CLIP WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9607-9901	●
119	NUT; CLIP WHEEL BASE 5700MM(57W) M8 FLANGE	0-91150-108-0	03	1	9905-	●
119	NUT; CLIP WHEEL BASE 6600MM(66W) M8	9-09110-508-0	05	1	9603-9606	●
119	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	05	1	9603-9606		●	●
119	NUT; CLIP WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	9607-9807	●
119	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	9607-9807		●	●
119	NUT; CLIP WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	9808-9901	●
119	NUT; CLIP WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	9808-9901			●
119	NUT; CLIP WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	9905-	●
119	NUT; CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	9905-		●	●
119	NUT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9808-9901			●
119	NUT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9905-0006			●
119	NUT; CLIP WHEEL BASE 6100MM(61W) M8 FLANGE	0-91150-108-0	04	1	0007-	●
119	NUT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	0007-			●

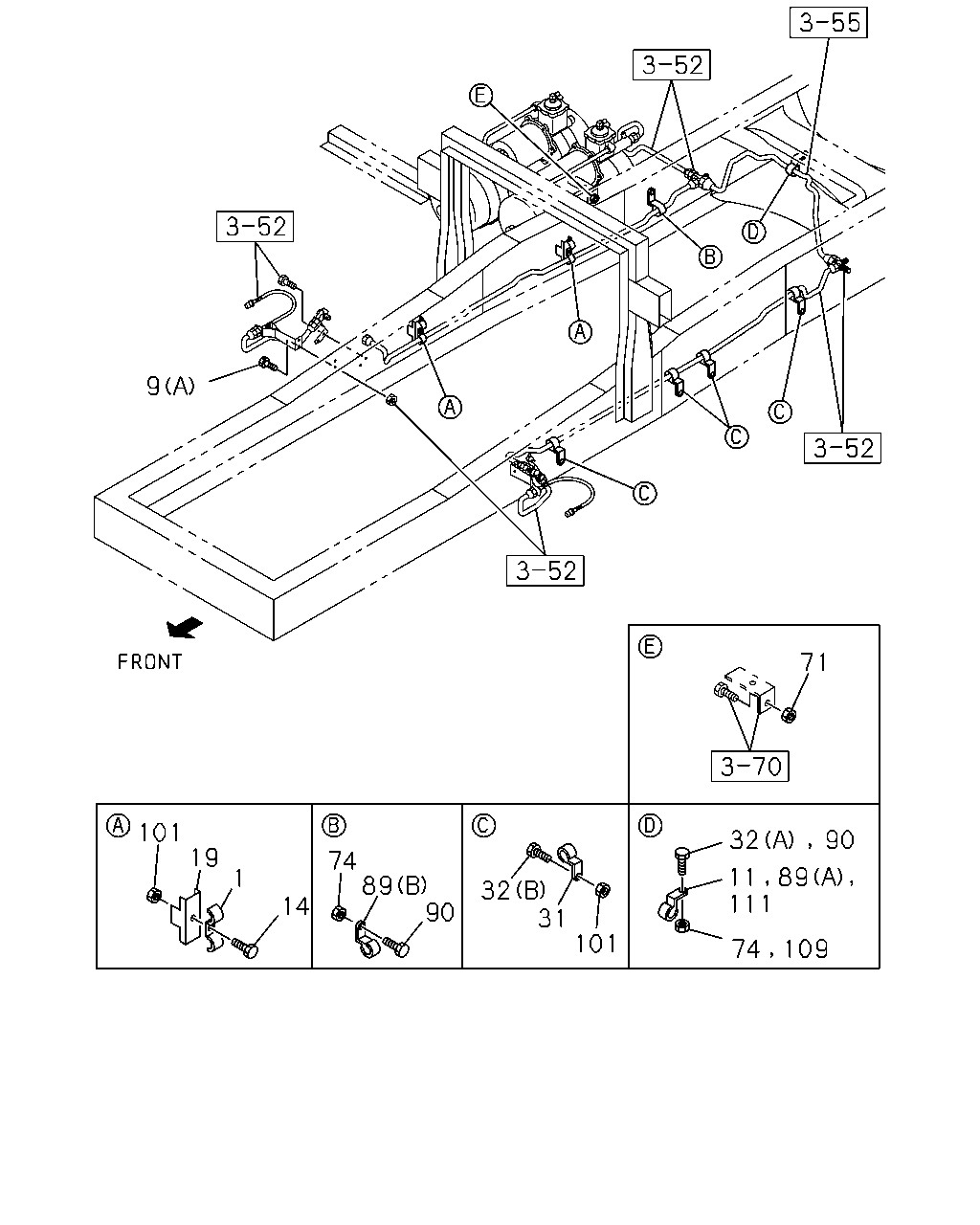

9 71 101 32 90 19 74 89 90 111 1 32 31 14 101 74 109 11 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9603-9901	●	●	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9905-0004	●	●	●
1	CLIP; OIL PIPE TO BODY ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0005-	●
1	CLIP; OIL PIPE TO BODY L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0005-		●	●
1	CLIP; OIL PIPE TO BODY V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	0005-		●	●
9	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
9	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●
9	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9901		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X16 FLANGE	0-28080-816-0	04	1	9603-9901		●	●
9	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	04	1	9902-9902		●	●
9	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X16 FLANGE	0-28080-816-0	04	1	9903-9904		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) M8X16 FLANGE	0-28080-816-0	04	1	9905-9910		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X16 FLANGE	0-28080-816-0	04	1	9911-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M8X16 FLANGE	0-28080-816-0	02	1	9906-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M8X16 FLANGE	0-28080-816-0	02	1	9809-9901		●	●
11	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●
11	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	02	1	9603-9901	●	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	9905-0004	●	●	●
14	BOLT; CLIP,OIL PIPE M8X45 FLANGE	0-28080-845-0	01	1	0005-	●
14	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	0005-		●	●
14	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	02	1	0005-		●	●
19	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	02	1	9603-9901	●	●	●
19	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	9905-0004	●	●	●
19	BRACKET; OIL PIPE	1-47475-427-1	01	1	0005-	●
19	BRACKET; OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	0005-		●	●
19	BRACKET; OIL PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	02	1	0005-		●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9603-9901	●	●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-0001	●	●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	0002-	●	●	●
32	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
32	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●
32	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28080-825-0	04	1	9603-9606	●
32	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	04	1	9607-9901	●
32	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●
32	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	03	1	9905-0001	●
32	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	04	1	0002-	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X30 FLANGE	0-28080-830-0	04	1	9603-9606		●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X35 FLANGE	0-28680-835-0	04	1	9607-9901		●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X35 FLANGE	0-28680-835-0	03	1	9905-0001		●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X35 FLANGE	0-28680-835-0	04	1	0002-		●	●
71	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
71	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
71	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606	●	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9603-9606		●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901		●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-0004	●	●	●
74	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-	●
74	NUT; CLIP,OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0005-		●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-0004		●	●
74	NUT; CLIP,OIL PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0005-		●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0005-		●	●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901	●	●	●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9901			●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-0004	●	●	●
89	CLIP; OIL PIPE (B) ID=6 H=20 L=20	1-09700-603-0	02	1	0005-	●
89	CLIP; OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	02	1	0005-		●	●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9901		●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-		●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0004			●
89	CLIP; OIL PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-		●	●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-			●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
90	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
90	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9607-9901	●
90	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9905-9910	●
90	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9911-	●
90	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9905-9910	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9905-9910		●
90	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9911-	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	9911-		●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9607-9901		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9905-		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	9905-0004		●	●
90	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0005-		●	●
90	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	0005-		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606			●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901			●
101	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0005-	●
101	NUT; CLIP,OIL PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0005-		●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	06	1	9603-9606	●	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	06	1	9607-9901	●	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9905-0001	●	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	0002-0004	●	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	0005-	●	●	●
101	NUT; CLIP,OIL PIPE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0005-		●	●
109	NUT; CLIP,OIL PIPE M8	9-09110-508-0	04	1	9603-9606	●
109	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9607-9901	●
109	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	9905-	●
109	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606			●
109	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901			●
109	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-9910			●
109	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9911-			●
111	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9603-9901	●
111	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9905-9910	●
111	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9911-	●
111	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	9911-		●
111	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	02	1	9603-9901			●
111	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-9910			●

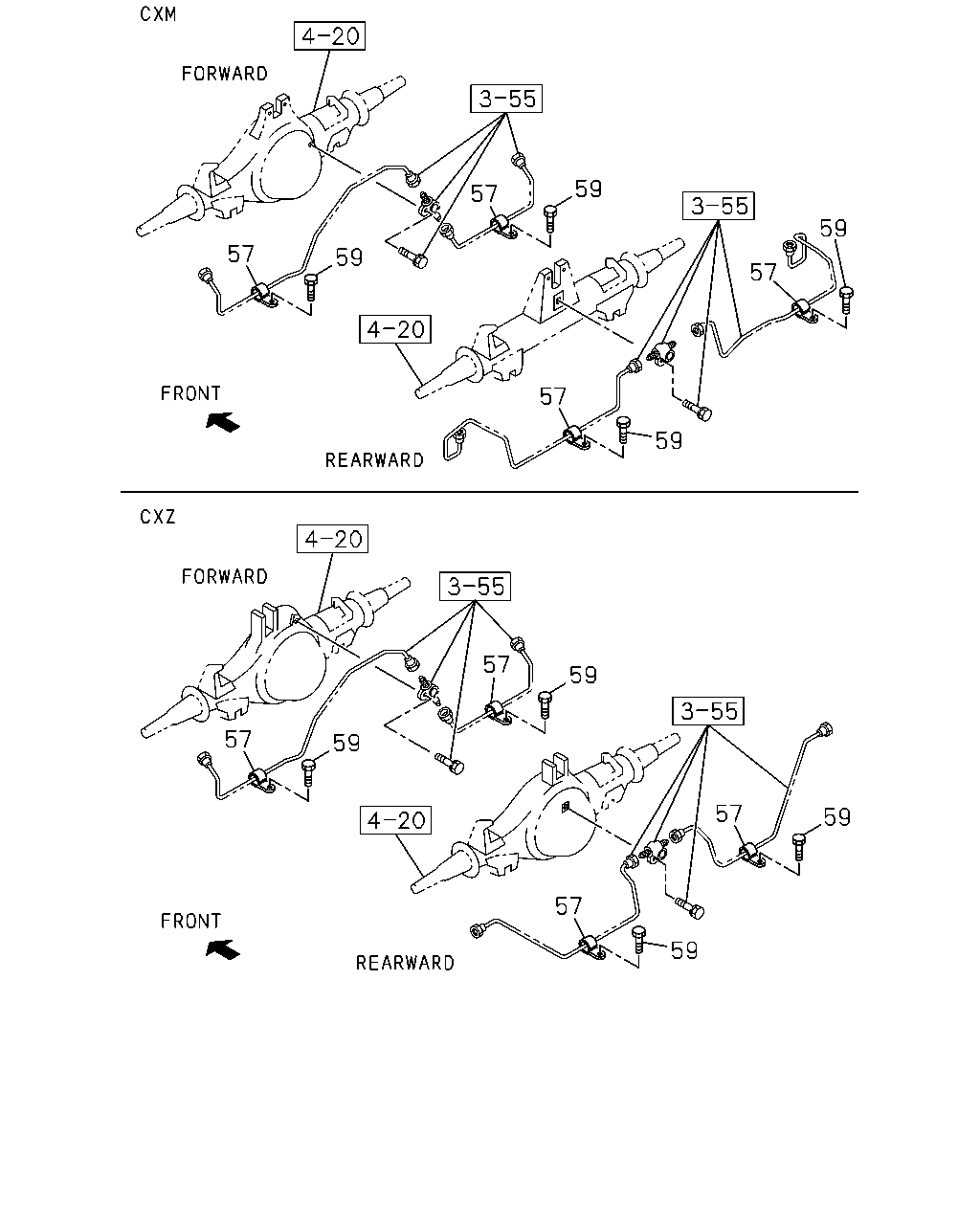

59 57 59 57 59 57 57 59 57 59 57 59 57 59 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9603-9901	●	●	●
57	CLIP; BRK PIPE,RR AXLE REAR AXLE RT260<C2B> FINAL GEAR 41/6 17.5"(W4W) ID=7 L=20	9-09524-635-0	03	1	9902-9902		●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9905-0006	●	●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	03	1	0007-		●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	03	1	9603-9901		●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	03	1	9905-0006		●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	0007-		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9603-9901	●	●	●
59	BOLT; BRK PIPE,RR AXLE REAR AXLE RT260<C2B> FINAL GEAR 41/6 17.5"(W4W) M8X12 W/LK WASHER	0-50040-812-0	03	1	9902-9902		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, REAR AXLE RT260<C2B> M8X12 W/LK WASHER	0-50040-812-0	04	1	9905-9905	●	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9905-9911	●	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	04	1	9912-0006	●	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	03	1	0007-		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	03	1	9603-9901		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	03	1	9905-9911		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	03	1	9912-0006		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	04	1	0007-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
