3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#53819) — 37 parça

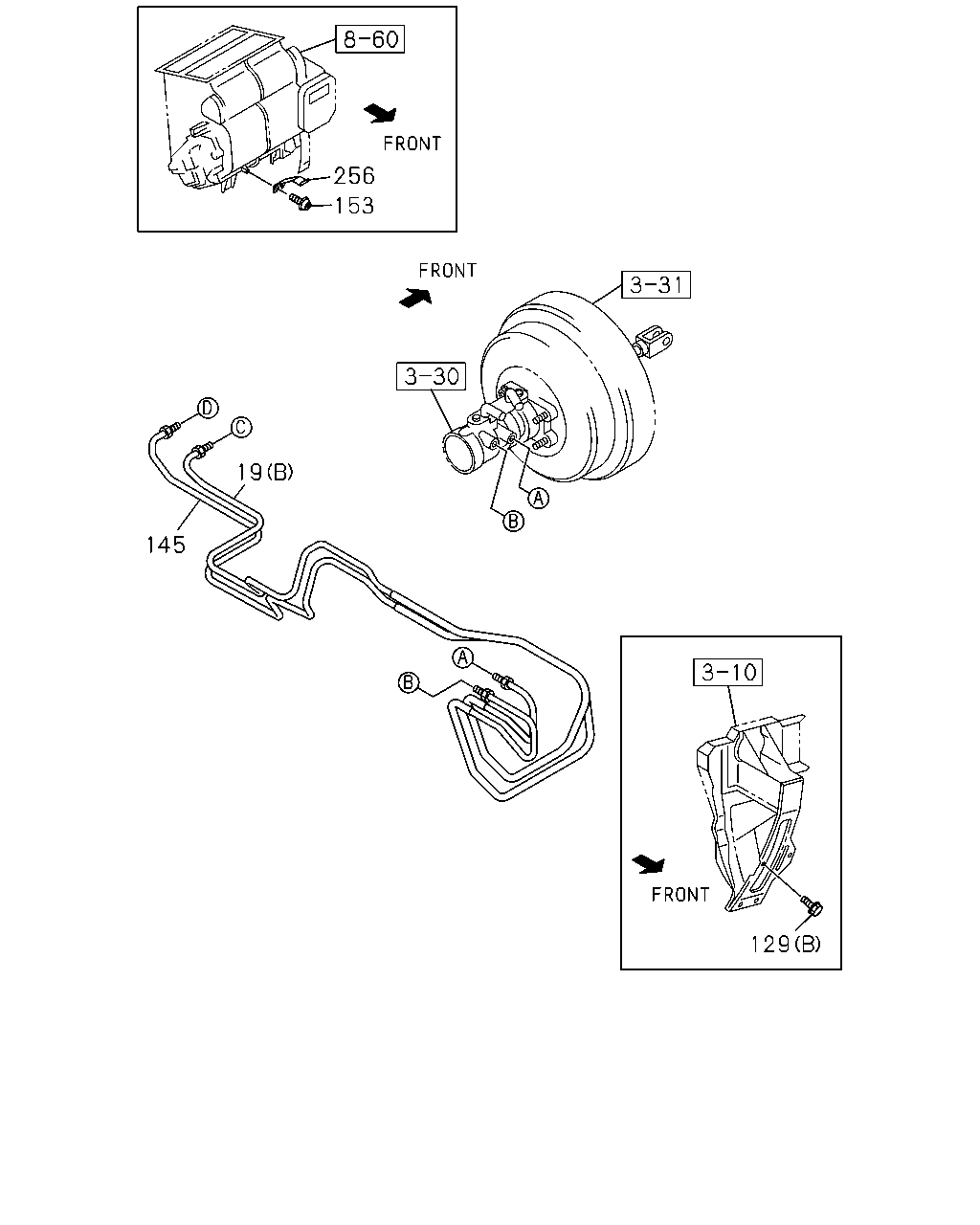

çizim 149935
256 153 19 145 129
BalonParca AdiParca NoAdetTipApplied Date
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0804-
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 0804-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0804-0809
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0804-
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97389-295-3 01 1 0804-
153 04.730 SCREW; BRKT FIX
04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0804-0808
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0809-0809
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0810-
256 04.840 BRACKET; BRK PIPE 8-98034-784-1 01 1 0804-0808
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98034-784-1 01 1 0809-0809
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98034-784-1 01 1 0810-1005
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98163-521-0 01 1 1006-
çizim 149938
35 11
BalonParca AdiParca NoAdetTipApplied Date
11 04.686 VALVE; BRK CONT
04.730 		8-94427-224-2 01 1 0804-
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98057-271-0 01 1 0804-

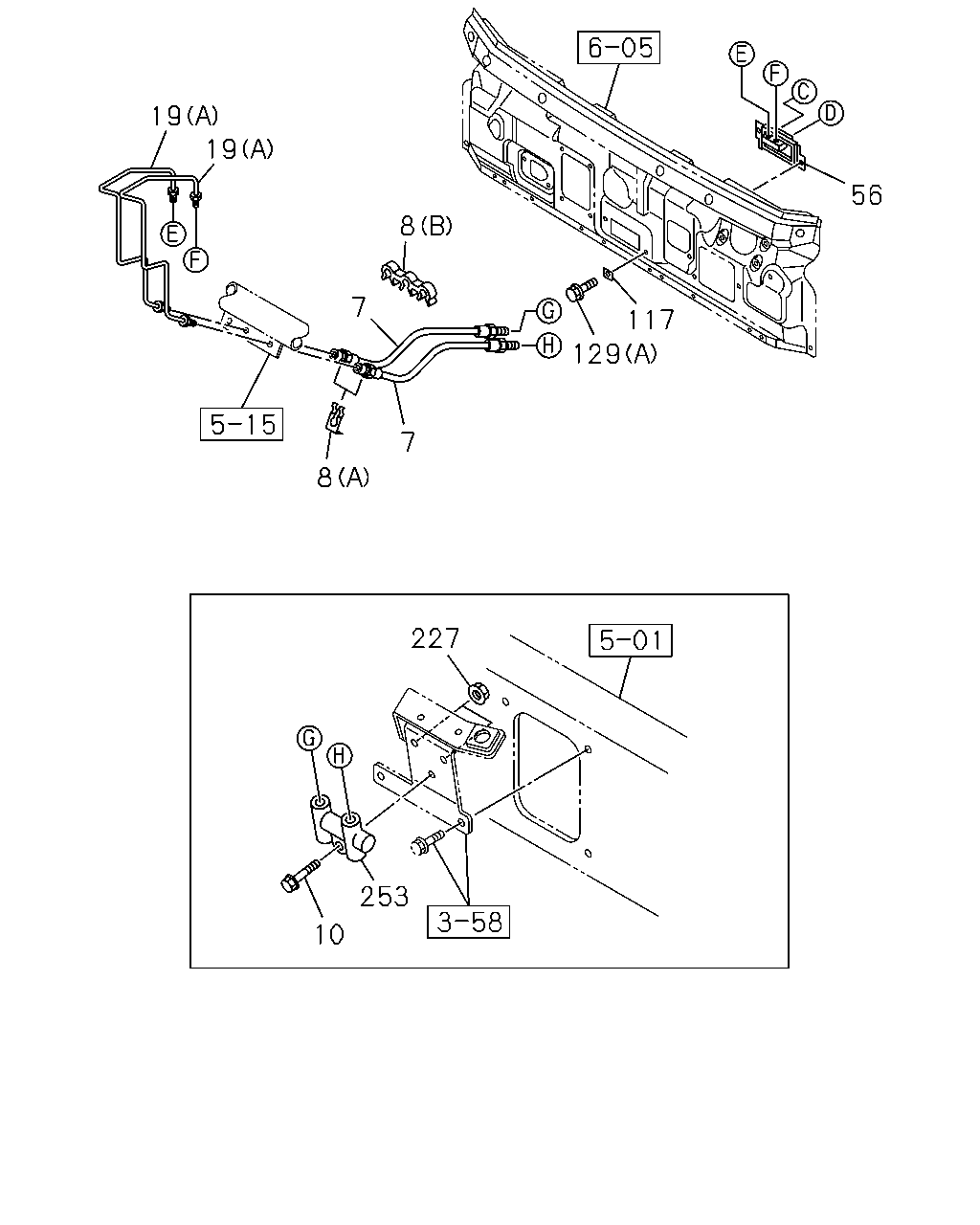

çizim 149948
19 19 56 8 7 117 129 7 8 227 253 10
BalonParca AdiParca NoAdetTipApplied Date
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 0804-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 0804-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0804-
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0804-
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0804-
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-97389-366-1 02 1 0804-
56 04.686 BRACKET; UNION,BRK 8-97389-281-1 01 1 0804-1005
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1006-
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 IDN 		8-97856-616-0 02 1 0804-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0804-0809
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0804-
227 04.685 NUT; JOINT
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804-
253 04.840 JOINT
04.686 		8-97120-033-2 01 1 0804-

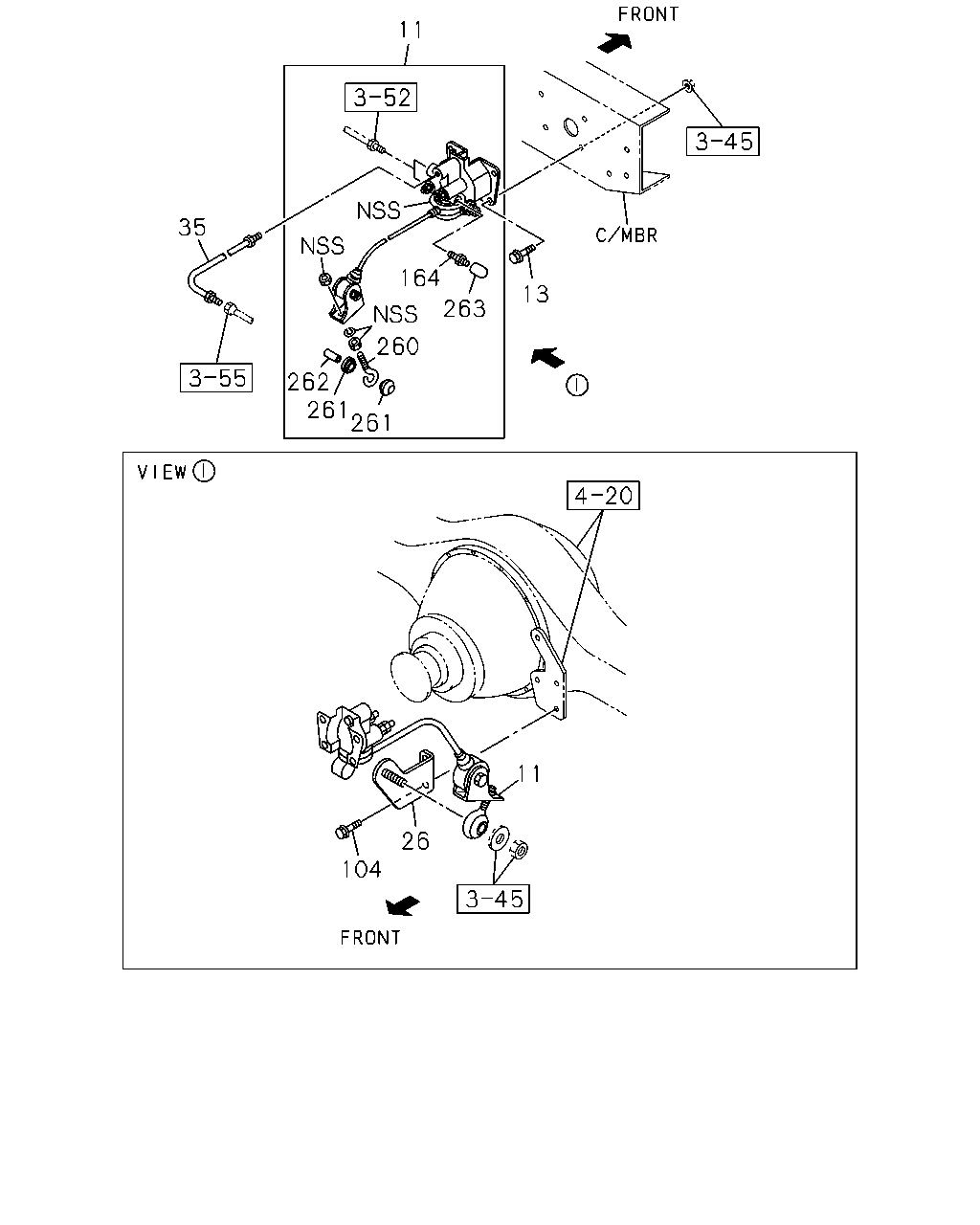

çizim 149951
11 35 164 13 263 260 262 261 261 11 26 104
BalonParca AdiParca NoAdetTipApplied Date
11 04.686 VALVE; BRK CONT
04.730 		8-94427-224-2 01 1 0804-
13 04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0804-
26 04.730 BRACKET; PROPORTIONING VLV 8-98057-012-0 01 1 0804-
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98057-271-0 01 1 0804-
104 04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0804-
164 04.730 SCREW; BLEEDER
04.685 		8-97093-663-0 01 1 0804-
260 04.685 SHACKLE; LSPV
04.710 		8-97173-366-0 01 1 0804-
261 04.685 BUSHING; LSPV
04.710 		8-97145-631-0 02 1 0804-
262 04.685 COLLAR; LSPV
04.710 		8-97139-186-0 01 1 0804-
263 04.685 CAP; BLEEDER 8-97093-662-0 01 1 0804-
