1 |

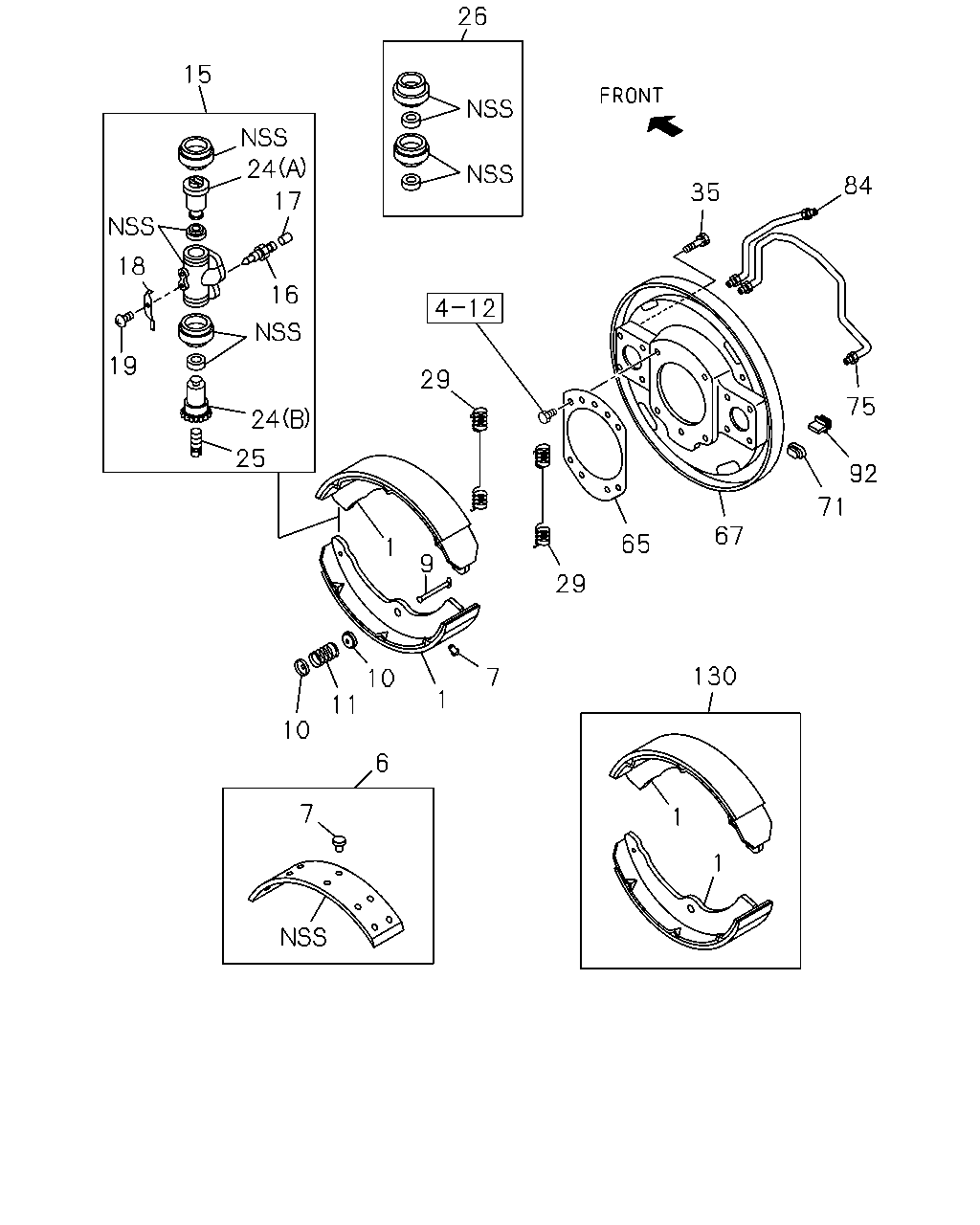

05.017 SHOE; BRK,FRT
|
8-97287-778-0 |
04 |
1 |
0804- |
| |
6 |
05.018 LINING KIT; FRT BRK
|
5-87831-801-0 |
01 |
1 |
0804- |
| |
6 |
05.018 LINING KIT; FRT BRK
BEST VALUE PARTS
|
5-87610-121-0 |
01 |
1 |
0804- |
| |
7 |
05.019 RIVET; LINING,FRT BRK
|
1-09732-029-0 |
40 |
1 |
0804- |
| |
9 |
05.026 PIN; SHOE HOLDER
05.043
|
5-47162-001-0 |
04 |
1 |
0804- |
| |
10 |
05.043 CUP; SHOE HOLDING
|
9-47165-096-0 |
08 |
1 |
0804- |
| |
11 |
05.027 SPRING; SHOE HOLDING
05.043
|
5-09580-101-1 |
04 |
1 |
0804- |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
FRONT
ID=30.16(1 3/16")
|
8-97139-814-0 |
01 |
1 |
0804- |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
FRONT
ID=30.16(1 3/16")
|
8-97139-815-0 |
01 |
1 |
0804- |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
REAR
ID=30.16(1 3/16")
|
8-97139-816-0 |
01 |
1 |
0804- |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
REAR
ID=30.16(1 3/16")
|
8-97139-817-0 |
01 |
1 |
0804- |
| |
16 |
04.666 SCREW; BLEEDER,FRT BRK
IDN
|
8-98050-476-0 |
02 |
1 |
0804- |
| |
17 |
04.666 CAP; BLEEDER,FRT WHEEL CYL
IDN
|
8-98050-479-0 |
02 |
1 |
0804- |
| |
18 |
05.107 STOPPER; ADJ SCREW
|
8-94128-486-0 |
04 |
1 |
0804- |
| |
19 |
05.107 SCREW; STOPPER SETTING
|
8-94128-727-0 |
04 |
1 |
0804- |
| |
24 |
04.668 PISTON; FRT WHEEL CYL
(A)
|
8-94414-700-1 |
04 |
1 |
0804- |
| |
24 |
04.668 PISTON; FRT WHEEL CYL
(B)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0804-0810 |
| |
24 |
04.668 PISTON; FRT WHEEL CYL
(B)
|
8-97078-045-0 |
04 |
1 |
0811- |
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
04.666
|
8-94414-702-0 |
04 |
1 |
0804- |
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
04.665
|
5-87831-598-0 |
02 |
1 |
0804- |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
|
5-09583-118-0 |
04 |
1 |
0804- |
| |
35 |
04.665 BOLT; FRT WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
0804- |
| |
65 |
05.815 COVER; OIL SHIELD,FRT
|
8-94438-775-1 |
02 |
1 |
0804- |
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-595-0 |
01 |
1 |
0804- |
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-596-0 |
01 |
1 |
0804- |
| |
71 |
05.002 GROMMET; CHECK HOLE
|
8-94171-287-0 |
02 |
1 |
0804- |
| |
75 |
04.685 PIPE; OIL,FWD,FRT BRK
|
8-94473-818-0 |
02 |
1 |
0804- |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
|
8-94473-819-1 |
01 |
1 |
0804- |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
|
8-94473-820-1 |
01 |
1 |
0804- |
| |
92 |
05.002 GROMMET; ADJ HOLE
IDN
|
9-09756-034-0 |
04 |
1 |
0804- |
| |
130 |
05.017 SHOE KIT; BRK,FRT
|
5-87832-047-0 |
01 |
1 |
0804- |
