Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#5381) — 544 parça

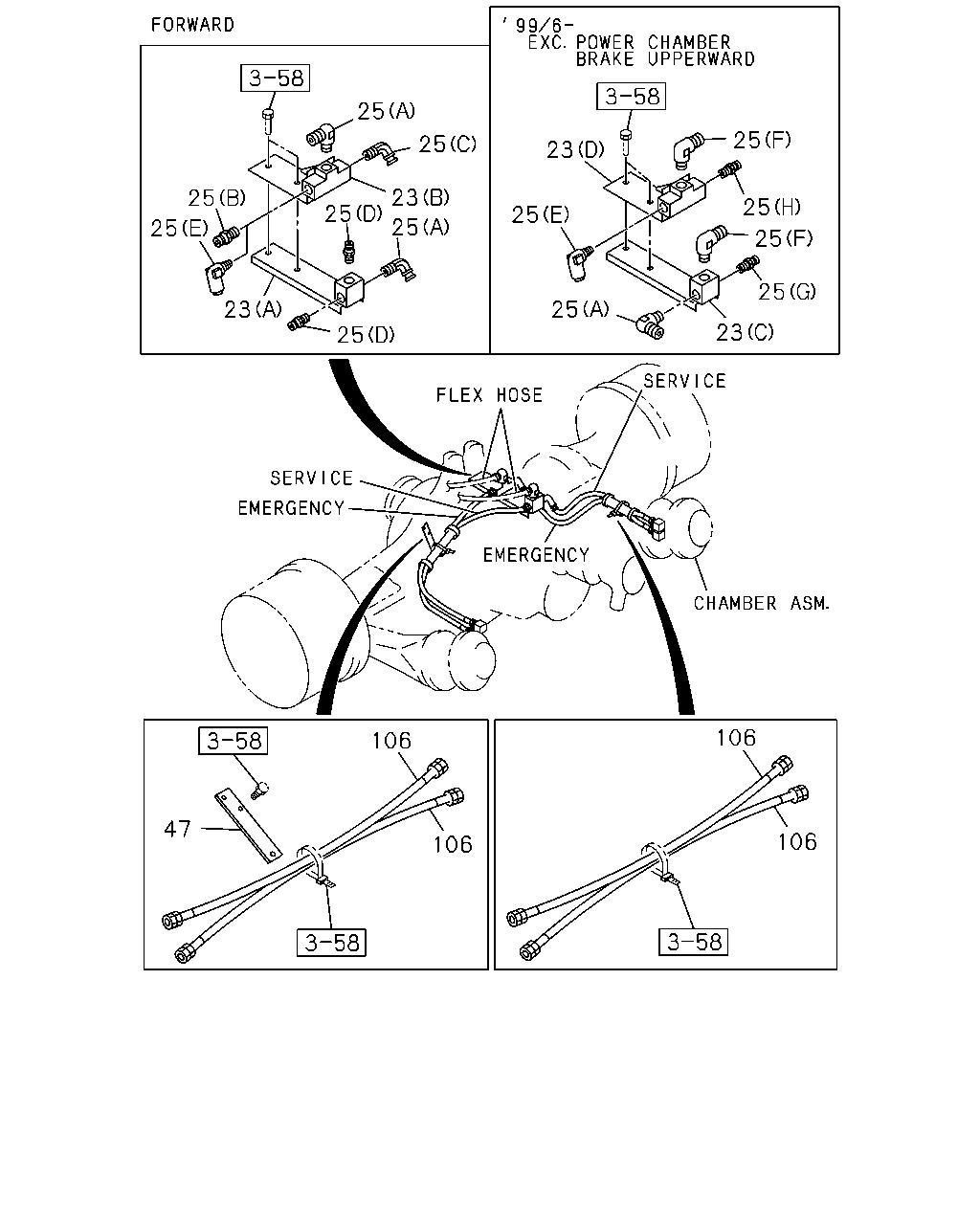

106 100 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	TUBE ASM; NYLON,RWD AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> L=580 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9707-9901	●	●
100	TUBE ASM; NYLON,RWD AXLE BRAKE REGULATION ECE<TDV> L=580 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9902-9904	●	●
100	TUBE ASM; NYLON,RWD AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> L=580 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9905-9910	●	●
100	TUBE ASM; NYLON,RWD AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> L=580 SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	9911-	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-9706	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) REARWAED SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9707-9901	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9706	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9707-9901	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9905-9910	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9911-	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-	●	●

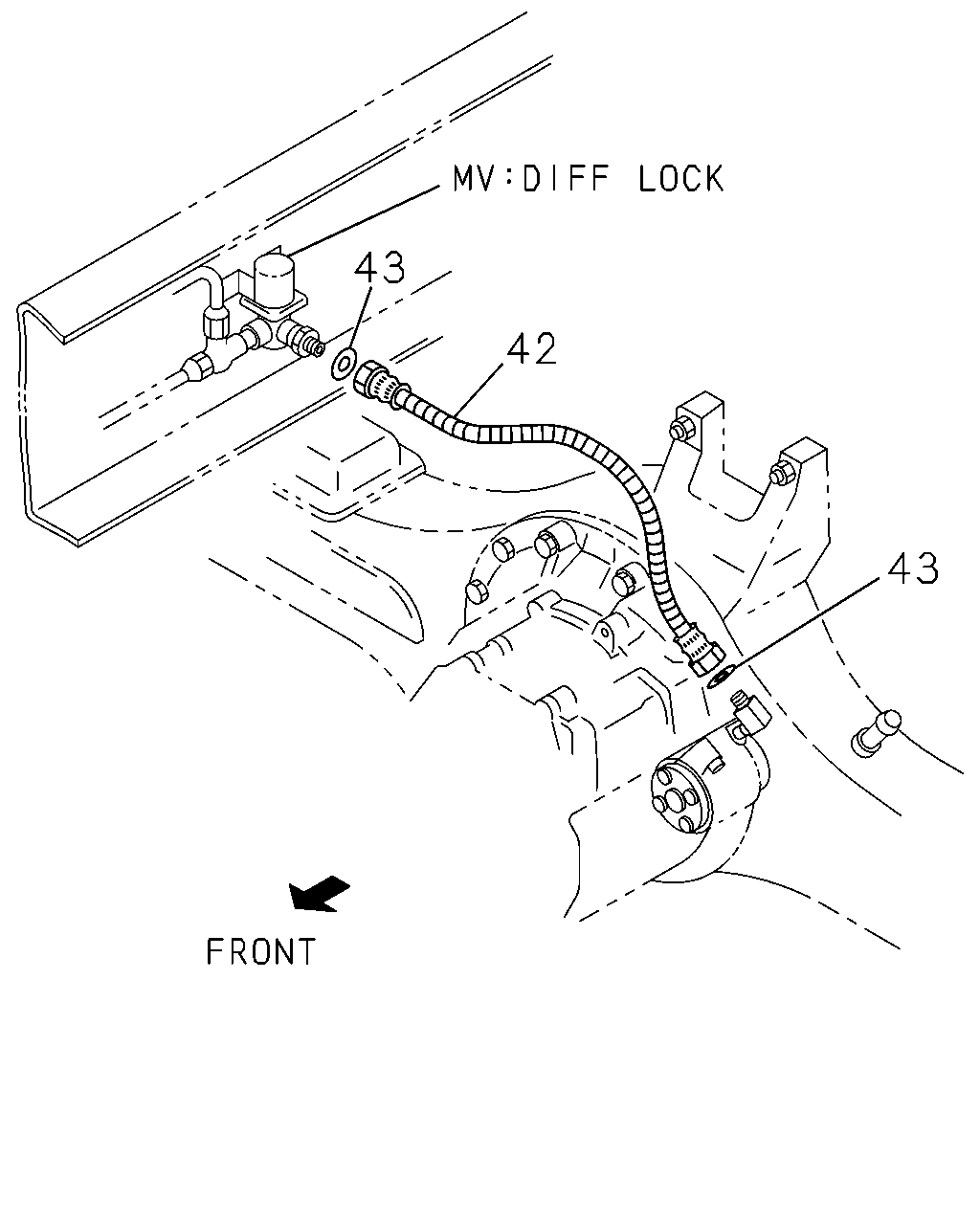

43 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,DIFF LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=560	0-07151-560-0	01	1	9603-9702	●	●
42	HOSE; FLEX,DIFF LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=580	1-09363-641-0	01	1	9703-9901	●	●
42	HOSE; FLEX,DIFF LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=580	1-09363-641-0	01	1	9905-	●	●
43	GASKET; FLEX TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	02	1	9603-9702	●	●

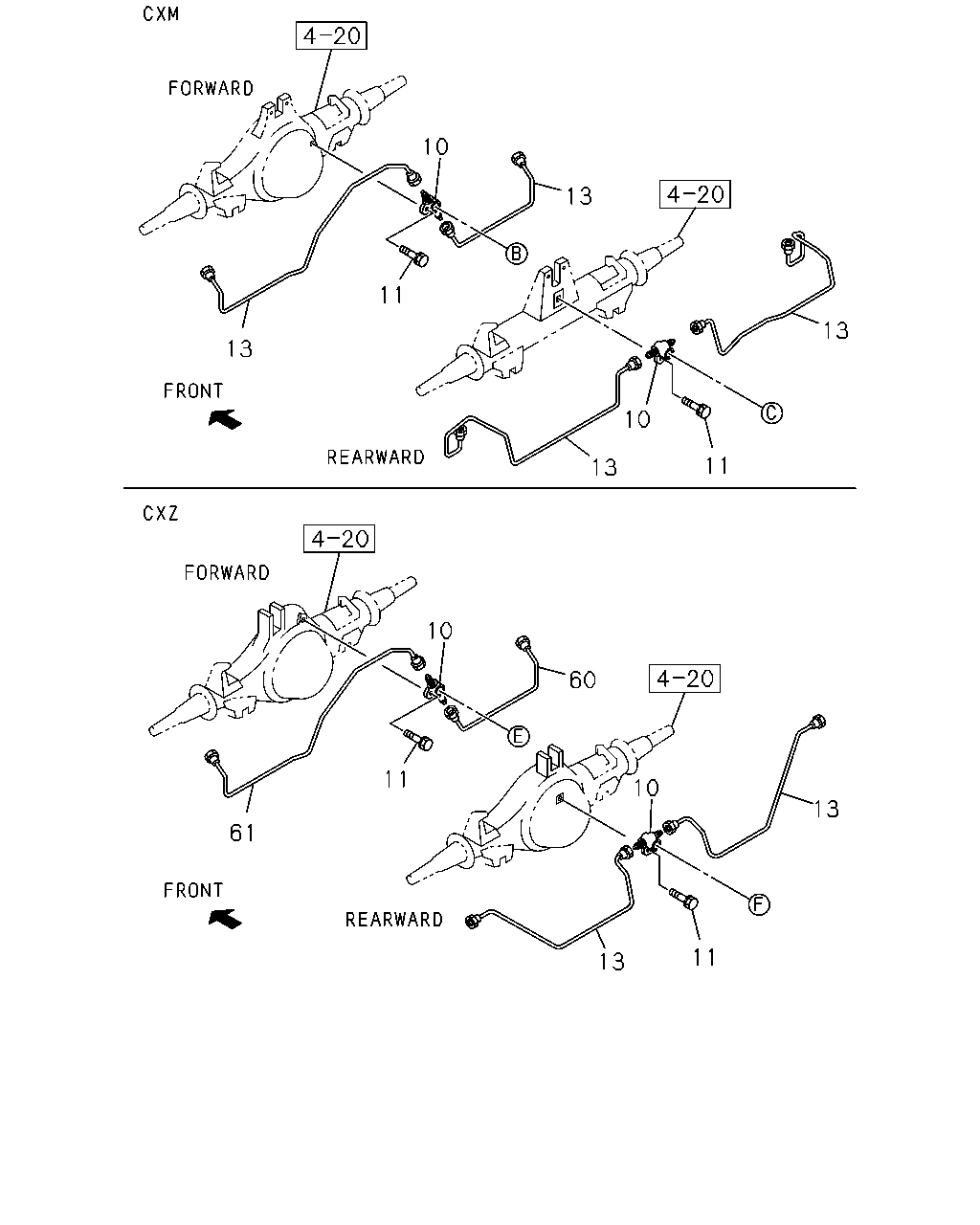

10 13 11 13 13 10 11 13 10 60 11 10 13 61 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9603-9901	●	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9603-9901	●	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9905-	●	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9905-	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9603-9901	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9603-9901	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9905-	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9905-	●	●	●
13	PIPE; BRK,RR AXLE REARWARD	1-47415-518-0	01	1	9603-9901			●
13	PIPE; BRK,RR AXLE FORWARD	1-47426-933-0	01	1	9603-9603			●
13	PIPE; BRK,RR AXLE FORWARD	1-47429-461-0	01	1	9604-9901			●
13	PIPE; BRK,RR AXLE REARWARD	1-47415-517-0	01	1	9603-9901			●
13	PIPE; BRK,RR AXLE FORWARD	1-47426-932-0	01	1	9603-9603			●
13	PIPE; BRK,RR AXLE FORWARD	1-47429-460-0	01	1	9604-9901			●
13	PIPE; BRK,RR AXLE REARWARD	1-47415-518-0	01	1	9905-			●
13	PIPE; BRK,RR AXLE FORWARD	1-47429-461-0	01	1	9905-			●
13	PIPE; BRK,RR AXLE REARWARD	1-47415-517-0	01	1	9905-			●
13	PIPE; BRK,RR AXLE FORWARD	1-47429-460-0	01	1	9905-			●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=857	1-47426-902-0	01	1	9603-9901	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=988	1-47426-901-0	01	1	9603-9901	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. REAR AXLE RT260<C2B> REARWARD L=857	1-47426-902-0	01	1	9905-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. REAR AXLE RT260<C2B> REARWARD L=988	1-47426-901-0	01	1	9905-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=871	1-47426-907-0	01	1	9905-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=1002	1-47426-906-0	01	1	9905-0001	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=1002	1-47426-906-0	01	1	0002-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=871	1-47426-907-0	01	1	9603-9901	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=1002	1-47426-906-0	01	1	9603-9901	●	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=779	1-47427-915-0	01	1	9603-9901	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=779	1-47427-915-0	01	1	9905-	●	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=793	1-47427-916-0	01	1	9603-9901	●	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=793	1-47427-916-0	01	1	9905-	●	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=1193	1-47426-899-0	01	1	9603-9901	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=1193	1-47426-899-0	01	1	9905-	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=1207	1-47426-905-0	01	1	9603-9901	●	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD L=1207	1-47426-905-0	01	1	9905-	●	●

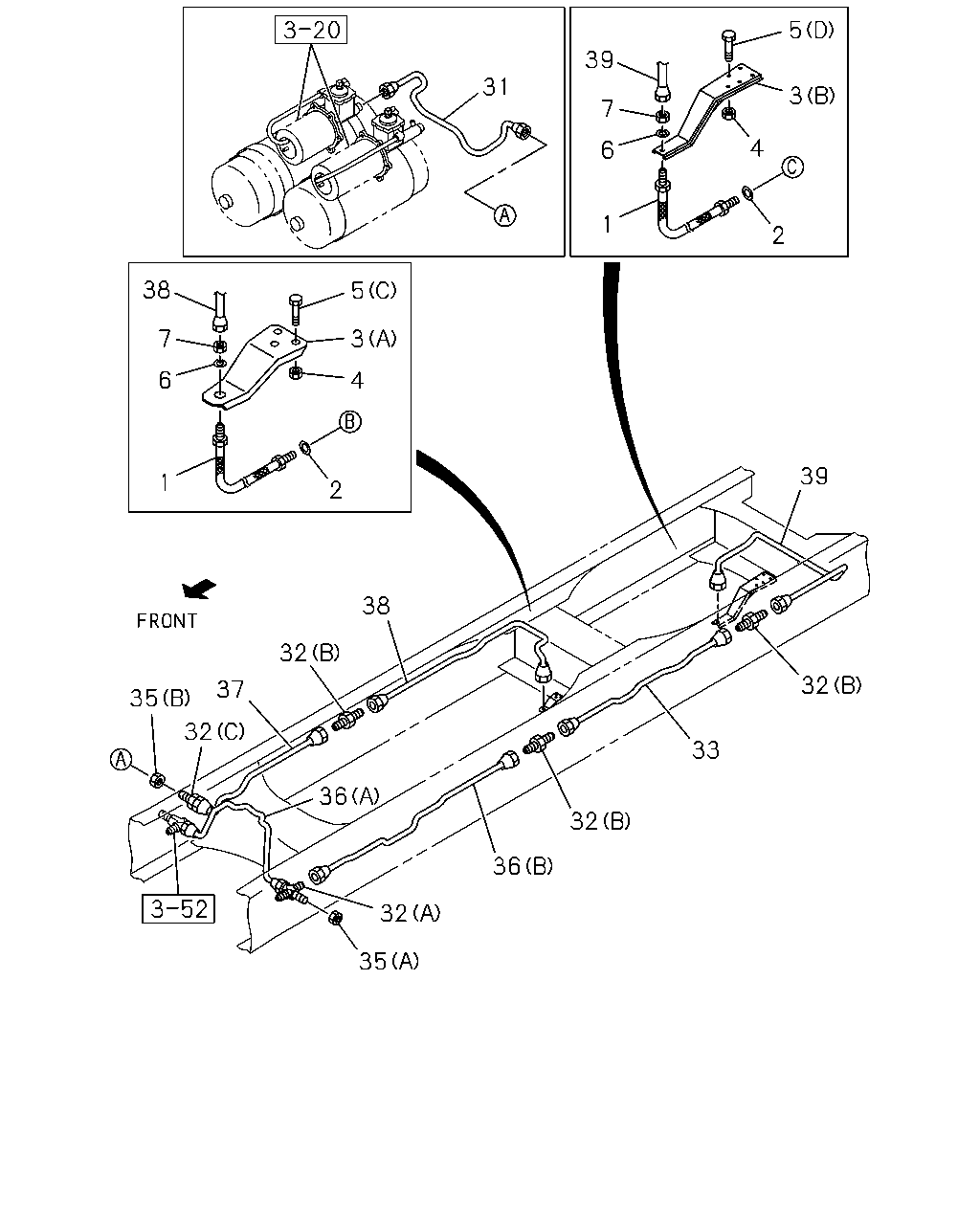

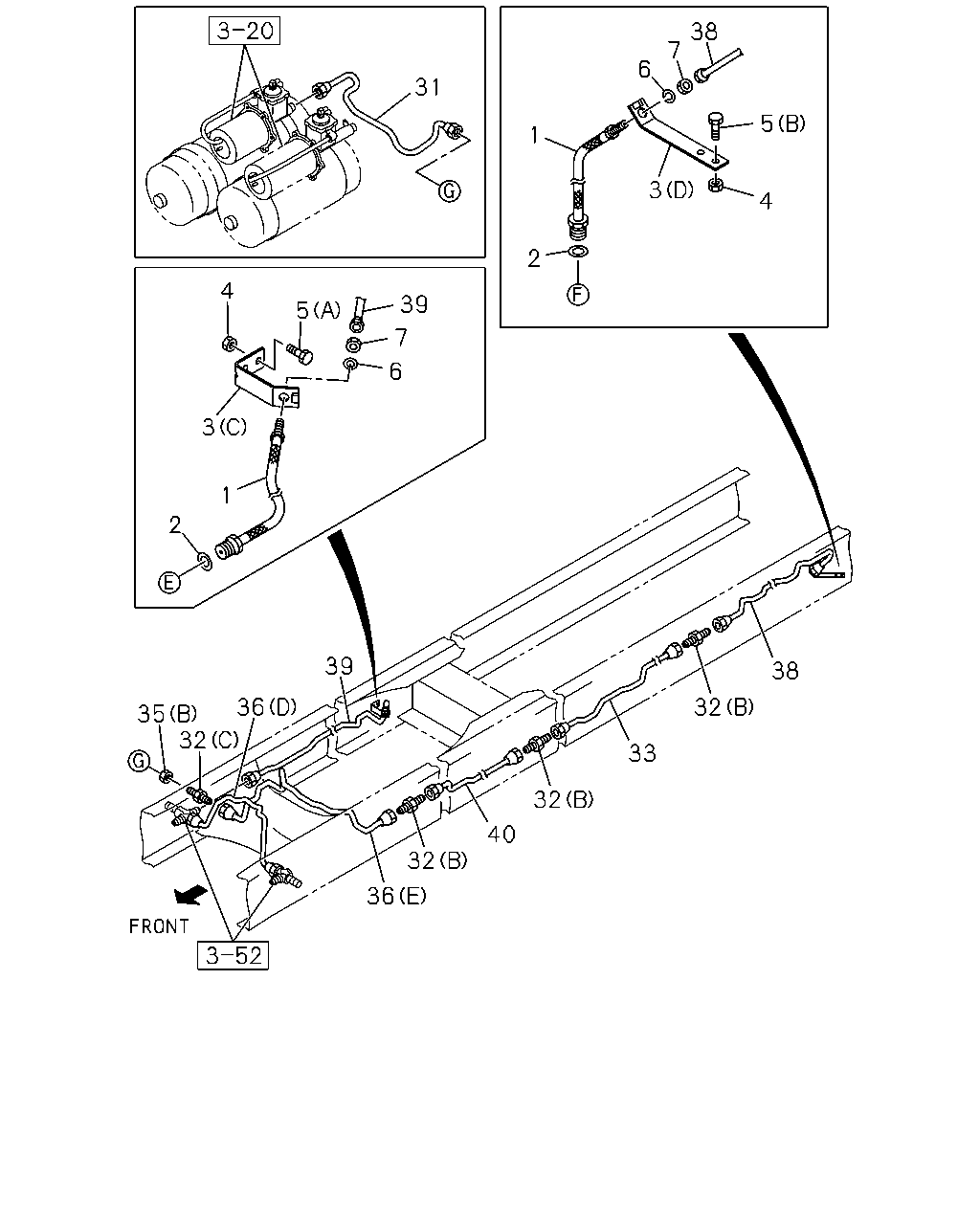

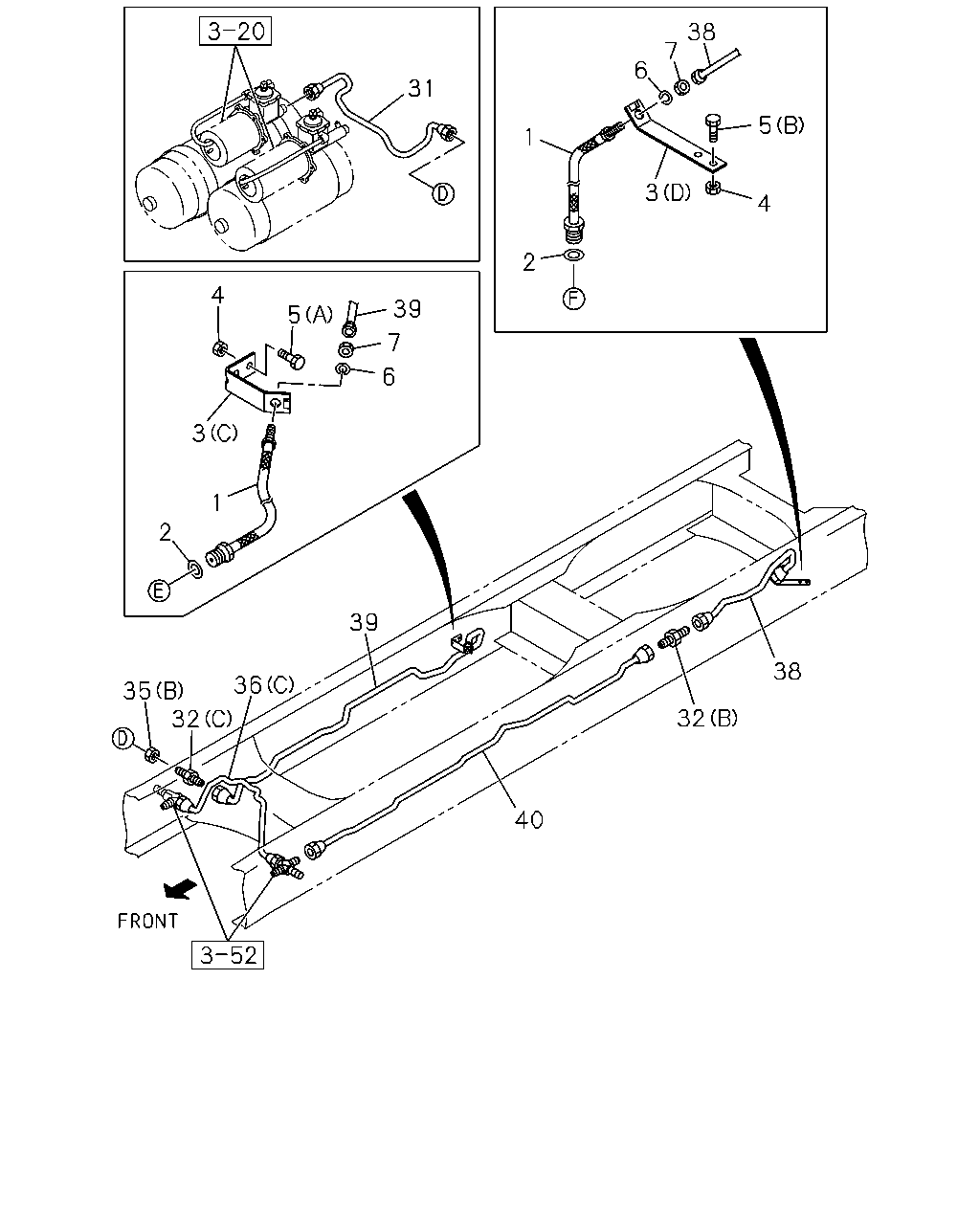

38 7 6 31 5 1 3 4 2 4 39 5 7 6 3 1 2 39 38 32 36 35 32 33 32 40 32 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9603-9901			●
1	HOSE; FLEX,RR BRK FORWARD L=525	1-09364-191-0	01	1	9603-9901			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9905-9910			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9911-			●
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD L=500	1-09364-190-0	01	1	9911-	●
1	HOSE; FLEX,RR BRK FORWARD L=525	1-09364-191-0	01	1	9905-			●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9603-9901	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9905-9910	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> L=450	1-09364-188-0	01	1	9911-	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9603-9901	●	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9905-	●	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9603-9901			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47477-101-0	01	1	9603-9901			●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9905-			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47477-101-0	01	1	9905-			●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47475-357-2	01	1	9603-9901	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47476-573-1	01	1	9603-9901	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47475-357-2	01	1	9905-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=140	1-47476-573-1	01	1	9905-9910	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=140	1-47476-573-1	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (D) L=140	1-47476-573-1	01	1	9911-	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (D) L=65	1-47476-570-1	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) L=65	1-47476-570-1	01	1	9911-	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-508-0	04	1	9603-9606			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	04	1	9607-9901			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	04	1	9905-			●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X25 FLANGE	0-28680-825-0	04	1	9607-9901			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (C) M8X25 FLANGE	0-28080-825-0	02	1	9603-9901			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (C) M8X25 FLANGE	0-28080-825-0	02	1	9905-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X25 FLANGE	0-28680-825-0	04	1	9905-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9603-9901	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9905-9910	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (D) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9607-9901		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9905-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9603-9901	●	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9905-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9603-9901	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9905-	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION	1-47426-964-0	01	1	9603-9901			●
31	PIPE; OIL,AIR MASTER TO UNION	1-47426-964-0	01	1	9905-			●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=656	1-47429-259-0	01	1	9603-9901	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=656	1-47429-259-0	01	1	9905-0001	●	●
31	PIPE; OIL,AIR MASTER TO UNION 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=656	1-47429-259-0	01	1	0002-	●	●
31	PIPE; OIL,AIR MASTER TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-311-0	01	1	0002-	●	●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9603-9901			●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9905-			●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 L=66.5	9-09223-306-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9905-	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9905-		●	●
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	9905-		●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 L=66.5	9-09223-306-1	01	1	9905-	●	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) L=1883 SERVICED BY L=2000	1-47426-359-0	01	1	9603-9901			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) L=1883 SERVICED BY L=2000	1-47426-359-0	01	1	9905-			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6100MM(61W) L=2212 SERVICED BY L=2200	1-47426-360-0	01	1	0007-			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6600MM(66W) L=2711 SERVICED BY L=2900	1-47426-364-0	01	1	9603-9901			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6600MM(66W) L=2711 SERVICED BY L=2900	1-47426-364-0	01	1	9905-			●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	9603-9807		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	9808-9901		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1317 SERVICED BY L=1370	1-47426-354-0	01	1	9808-9901		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1317 SERVICED BY L=1370	1-47426-354-0	01	1	9905-9910		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1338 SERVICED BY L=1370	1-47426-354-0	01	1	9911-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	9905-		●
35	NUT; UNION (A) M12	9-99110-512-0	01	1	9603-9606			●
35	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-9901			●
35	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-			●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	01	1	9603-9901	●	●	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	01	1	9905-	●	●	●
36	PIPE; OIL,UNION TO UNION (B) L=2260 SERVICED BY L=2350	1-47426-361-0	01	1	9603-9901			●
36	PIPE; OIL,UNION TO UNION (A) L=1246 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9901			●
36	PIPE; OIL,UNION TO UNION (B) L=2260 SERVICED BY L=2350	1-47426-361-0	01	1	9905-9908			●
36	PIPE; OIL,UNION TO UNION (B) L=2262 SERVICED BY L=2350	1-47426-361-0	01	1	9909-			●
36	PIPE; OIL,UNION TO UNION (A) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	9905-			●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1071	1-47429-691-0	01	1	9603-9901	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	9905-9910	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	9911-0001	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	0002-	●
36	PIPE; OIL,UNION TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1271 SERVICED BY L=1370	1-47426-354-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=767	1-49165-312-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=1075 SERVICED BY L=1100	1-47426-351-0	01	1	9603-9901		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1711 SERVICED BY L=1820	1-47426-358-0	01	1	9603-9901		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	9905-0001		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) (D) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	0002-		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1777 SERVICED BY L=1820	1-47426-358-0	01	1	9905-9912		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1769	1-49165-226-0	01	1	0001-0001		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) (E) L=1769	1-49165-226-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE	1-47429-265-0	01	1	9603-9612			●
38	PIPE; OIL,UNION TO FLEX HOSE L=2382	1-49161-331-0	01	1	9701-9901			●
38	PIPE; OIL,UNION TO FLEX HOSE L=2382	1-49161-331-0	01	1	9905-			●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9603-9901	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9905-9910	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9911-9911	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=903	1-47429-644-0	01	1	9911-0001	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> WHEEL BASE 4500MM(45W) L=903	1-47429-644-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W) L=903	1-47429-644-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) L=1284	1-49165-062-0	01	1	9911-0001	●	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	9911-0001	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2612	1-47429-267-0	01	1	9603-9901		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2612	1-47429-267-0	01	1	9905-9910		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	9911-0001		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	0002-0003		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) L=2612	1-47429-267-0	01	1	0002-0003		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	0004-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=2597	1-49164-965-0	01	1	0004-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47434-392-0	01	1	9603-9901			●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47426-356-0	01	1	9905-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9603-9901	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9905-9910	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9911-0001	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	0002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W) L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1992 SERVICED BY L=2200	1-47426-360-0	01	1	9603-9901		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	9905-0003		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	0004-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	0004-		●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	9603-9901	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	9905-9912	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	0001-0001	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) L=2623	1-47429-736-0	01	1	0002-	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W)	1-49165-384-0	01	1	0002-	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47429-264-0	01	1	9603-9807		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47429-264-0	01	1	9808-9901		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49162-905-0	01	1	9808-9901		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49162-905-0	01	1	9905-9912		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-224-0	01	1	0001-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47429-264-0	01	1	9905-9912		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-225-0	01	1	0001-		●

38 7 6 31 5 1 3 4 2 4 39 5 7 6 3 1 2 39 38 36 35 32 32 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9603-9901			●
1	HOSE; FLEX,RR BRK FORWARD L=525	1-09364-191-0	01	1	9603-9901			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9905-9910			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9911-			●
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD L=500	1-09364-190-0	01	1	9911-	●
1	HOSE; FLEX,RR BRK FORWARD L=525	1-09364-191-0	01	1	9905-			●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9603-9901	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9905-9910	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> L=450	1-09364-188-0	01	1	9911-	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9603-9901	●	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9905-	●	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9603-9901			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47477-101-0	01	1	9603-9901			●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9905-			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47477-101-0	01	1	9905-			●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47475-357-2	01	1	9603-9901	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47476-573-1	01	1	9603-9901	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47475-357-2	01	1	9905-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=140	1-47476-573-1	01	1	9905-9910	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=140	1-47476-573-1	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (D) L=140	1-47476-573-1	01	1	9911-	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (D) L=65	1-47476-570-1	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) L=65	1-47476-570-1	01	1	9911-	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-508-0	04	1	9603-9606			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	04	1	9607-9901			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	04	1	9905-			●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X25 FLANGE	0-28680-825-0	04	1	9607-9901			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (C) M8X25 FLANGE	0-28080-825-0	02	1	9603-9901			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (C) M8X25 FLANGE	0-28080-825-0	02	1	9905-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X25 FLANGE	0-28680-825-0	04	1	9905-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9603-9901	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9905-9910	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (D) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9607-9901		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9905-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9603-9901	●	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9905-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9603-9901	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9905-	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION	1-47426-964-0	01	1	9603-9901			●
31	PIPE; OIL,AIR MASTER TO UNION	1-47426-964-0	01	1	9905-			●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=656	1-47429-259-0	01	1	9603-9901	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=656	1-47429-259-0	01	1	9905-0001	●	●
31	PIPE; OIL,AIR MASTER TO UNION 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=656	1-47429-259-0	01	1	0002-	●	●
31	PIPE; OIL,AIR MASTER TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-311-0	01	1	0002-	●	●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9603-9901			●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9905-			●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 L=66.5	9-09223-306-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9905-	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9905-		●	●
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	9905-		●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 L=66.5	9-09223-306-1	01	1	9905-	●	●	●
35	NUT; UNION (A) M12	9-99110-512-0	01	1	9603-9606			●
35	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-9901			●
35	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-			●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	01	1	9603-9901	●	●	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	01	1	9905-	●	●	●
36	PIPE; OIL,UNION TO UNION (B) L=2260 SERVICED BY L=2350	1-47426-361-0	01	1	9603-9901			●
36	PIPE; OIL,UNION TO UNION (A) L=1246 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9901			●
36	PIPE; OIL,UNION TO UNION (B) L=2260 SERVICED BY L=2350	1-47426-361-0	01	1	9905-9908			●
36	PIPE; OIL,UNION TO UNION (B) L=2262 SERVICED BY L=2350	1-47426-361-0	01	1	9909-			●
36	PIPE; OIL,UNION TO UNION (A) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	9905-			●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1071	1-47429-691-0	01	1	9603-9901	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	9905-9910	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	9911-0001	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	0002-	●
36	PIPE; OIL,UNION TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1271 SERVICED BY L=1370	1-47426-354-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=767	1-49165-312-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=1075 SERVICED BY L=1100	1-47426-351-0	01	1	9603-9901		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1711 SERVICED BY L=1820	1-47426-358-0	01	1	9603-9901		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	9905-0001		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) (D) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	0002-		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1777 SERVICED BY L=1820	1-47426-358-0	01	1	9905-9912		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1769	1-49165-226-0	01	1	0001-0001		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) (E) L=1769	1-49165-226-0	01	1	0002-		●
38	PIPE; OIL,UNION TO FLEX HOSE	1-47429-265-0	01	1	9603-9612			●
38	PIPE; OIL,UNION TO FLEX HOSE L=2382	1-49161-331-0	01	1	9701-9901			●
38	PIPE; OIL,UNION TO FLEX HOSE L=2382	1-49161-331-0	01	1	9905-			●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9603-9901	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9905-9910	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9911-9911	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=903	1-47429-644-0	01	1	9911-0001	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> WHEEL BASE 4500MM(45W) L=903	1-47429-644-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W) L=903	1-47429-644-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) L=1284	1-49165-062-0	01	1	9911-0001	●	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	9911-0001	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2612	1-47429-267-0	01	1	9603-9901		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2612	1-47429-267-0	01	1	9905-9910		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	9911-0001		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	0002-0003		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) L=2612	1-47429-267-0	01	1	0002-0003		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	0004-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=2597	1-49164-965-0	01	1	0004-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47434-392-0	01	1	9603-9901			●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47426-356-0	01	1	9905-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9603-9901	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9905-9910	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9911-0001	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	0002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W) L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1992 SERVICED BY L=2200	1-47426-360-0	01	1	9603-9901		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	9905-0003		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	0004-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	0004-		●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	9603-9901	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	9905-9912	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2623	1-47429-736-0	01	1	0001-0001	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) L=2623	1-47429-736-0	01	1	0002-	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W)	1-49165-384-0	01	1	0002-	●
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47429-264-0	01	1	9603-9807		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47429-264-0	01	1	9808-9901		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49162-905-0	01	1	9808-9901		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49162-905-0	01	1	9905-9912		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-224-0	01	1	0001-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47429-264-0	01	1	9905-9912		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-225-0	01	1	0001-		●

5 39 31 3 7 4 6 1 2 38 5 3 7 6 4 39 1 2 38 32 32 37 35 32 33 36 32 36 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9603-9901			●
1	HOSE; FLEX,RR BRK FORWARD L=525	1-09364-191-0	01	1	9603-9901			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9905-9910			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9911-			●
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD L=500	1-09364-190-0	01	1	9911-	●
1	HOSE; FLEX,RR BRK FORWARD L=525	1-09364-191-0	01	1	9905-			●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9603-9901	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9905-9910	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	9911-	●	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> L=450	1-09364-188-0	01	1	9911-	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9603-9901	●	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9905-	●	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9603-9901			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47477-101-0	01	1	9603-9901			●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9905-			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47477-101-0	01	1	9905-			●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47475-357-2	01	1	9603-9901	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47476-573-1	01	1	9603-9901	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47475-357-2	01	1	9905-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=140	1-47476-573-1	01	1	9905-9910	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=140	1-47476-573-1	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (D) L=140	1-47476-573-1	01	1	9911-	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (D) L=65	1-47476-570-1	01	1	9911-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) L=65	1-47476-570-1	01	1	9911-	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-508-0	04	1	9603-9606			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	04	1	9607-9901			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	04	1	9905-			●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X25 FLANGE	0-28680-825-0	04	1	9607-9901			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (C) M8X25 FLANGE	0-28080-825-0	02	1	9603-9901			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (C) M8X25 FLANGE	0-28080-825-0	02	1	9905-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK (D) M8X25 FLANGE	0-28680-825-0	04	1	9905-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9603-9901	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9905-9910	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (B) M8X40 FLANGE	0-28080-840-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (D) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> (D) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9607-9901		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	9905-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9603-9901	●	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9905-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9603-9901	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9905-	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION	1-47426-964-0	01	1	9603-9901			●
31	PIPE; OIL,AIR MASTER TO UNION	1-47426-964-0	01	1	9905-			●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=656	1-47429-259-0	01	1	9603-9901	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=656	1-47429-259-0	01	1	9905-0001	●	●
31	PIPE; OIL,AIR MASTER TO UNION 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=656	1-47429-259-0	01	1	0002-	●	●
31	PIPE; OIL,AIR MASTER TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-311-0	01	1	0002-	●	●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9603-9901			●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9905-			●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9603-9901	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 L=66.5	9-09223-306-1	01	1	9603-9901	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9905-	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=40	9-09223-006-1	01	1	9905-		●	●
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	9905-		●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 L=66.5	9-09223-306-1	01	1	9905-	●	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) L=1883 SERVICED BY L=2000	1-47426-359-0	01	1	9603-9901			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) L=1883 SERVICED BY L=2000	1-47426-359-0	01	1	9905-			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6100MM(61W) L=2212 SERVICED BY L=2200	1-47426-360-0	01	1	0007-			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6600MM(66W) L=2711 SERVICED BY L=2900	1-47426-364-0	01	1	9603-9901			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6600MM(66W) L=2711 SERVICED BY L=2900	1-47426-364-0	01	1	9905-			●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	9603-9807		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	9808-9901		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1317 SERVICED BY L=1370	1-47426-354-0	01	1	9808-9901		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1317 SERVICED BY L=1370	1-47426-354-0	01	1	9905-9910		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1338 SERVICED BY L=1370	1-47426-354-0	01	1	9911-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	9905-		●
35	NUT; UNION (A) M12	9-99110-512-0	01	1	9603-9606			●
35	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-9901			●
35	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9905-			●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	01	1	9603-9901	●	●	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12	9-09840-280-0	01	1	9905-	●	●	●
36	PIPE; OIL,UNION TO UNION (B) L=2260 SERVICED BY L=2350	1-47426-361-0	01	1	9603-9901			●
36	PIPE; OIL,UNION TO UNION (A) L=1246 SERVICED BY L=1400	1-47426-389-0	01	1	9603-9901			●
36	PIPE; OIL,UNION TO UNION (B) L=2260 SERVICED BY L=2350	1-47426-361-0	01	1	9905-9908			●
36	PIPE; OIL,UNION TO UNION (B) L=2262 SERVICED BY L=2350	1-47426-361-0	01	1	9909-			●
36	PIPE; OIL,UNION TO UNION (A) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	9905-			●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1071	1-47429-691-0	01	1	9603-9901	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	9905-9910	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	9911-0001	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> (C) L=1377 SERVICED BY L=1400	1-47426-389-0	01	1	0002-	●
36	PIPE; OIL,UNION TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=1271 SERVICED BY L=1370	1-47426-354-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=767	1-49165-312-0	01	1	0002-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=1075 SERVICED BY L=1100	1-47426-351-0	01	1	9603-9901		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1711 SERVICED BY L=1820	1-47426-358-0	01	1	9603-9901		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	9905-0001		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) (D) L=1387 SERVICED BY L=1500	1-47426-355-0	01	1	0002-		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1777 SERVICED BY L=1820	1-47426-358-0	01	1	9905-9912		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=1769	1-49165-226-0	01	1	0001-0001		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) (E) L=1769	1-49165-226-0	01	1	0002-		●
37	PIPE; BRK,UNION TO UNION WHEEL BASE 5700MM(57W)	1-47429-640-0	01	1	9603-9901			●
37	PIPE; BRK,UNION TO UNION WHEEL BASE 5700MM(57W)	1-47429-640-0	01	1	9905-			●
37	PIPE; BRK,UNION TO UNION WHEEL BASE 6100MM(61W)	1-49165-755-0	01	1	0007-			●
37	PIPE; BRK,UNION TO UNION WHEEL BASE 6600MM(66W)	1-47429-641-0	01	1	9603-9901			●
37	PIPE; BRK,UNION TO UNION WHEEL BASE 6600MM(66W)	1-47429-641-0	01	1	9905-			●
38	PIPE; OIL,UNION TO FLEX HOSE	1-47429-265-0	01	1	9603-9612			●
38	PIPE; OIL,UNION TO FLEX HOSE L=2382	1-49161-331-0	01	1	9701-9901			●
38	PIPE; OIL,UNION TO FLEX HOSE L=2382	1-49161-331-0	01	1	9905-			●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9603-9901	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9905-9910	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903	1-47429-644-0	01	1	9911-9911	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=903	1-47429-644-0	01	1	9911-0001	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> WHEEL BASE 4500MM(45W) L=903	1-47429-644-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W) L=903	1-47429-644-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) L=1284	1-49165-062-0	01	1	9911-0001	●	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 4500MM(45W) FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	9911-0001	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1284	1-49165-062-0	01	1	0002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2612	1-47429-267-0	01	1	9603-9901		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2612	1-47429-267-0	01	1	9905-9910		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	9911-0001		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	0002-0003		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) L=2612	1-47429-267-0	01	1	0002-0003		●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=2612	1-47429-267-0	01	1	0004-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=2597	1-49164-965-0	01	1	0004-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47434-392-0	01	1	9603-9901			●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47426-356-0	01	1	9905-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9603-9901	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9905-9910	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	9911-0001	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 6WG1 TC-R(75L) WHEEL BASE 4500MM(45W) L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	0002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) WHEEL BASE 4500MM(45W) L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1992 SERVICED BY L=2200	1-47426-360-0	01	1	9603-9901		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	9905-0003		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F03> L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	0004-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY<F01> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	0004-		●

25 25 25 23 23 25 25 25 25 25 25 25 25 25 23 23 25 106 106 47 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47470-373-1	01	1	9603-9901	●	●
23	NIPPLE; W/BRKT (A)	1-47470-373-1	01	1	9902-9902	●	●
23	NIPPLE; W/BRKT EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-47470-373-1	01	1	9903-9904	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-47470-373-1	01	1	9905-9910	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47470-373-1	01	1	9911-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47475-536-0	01	1	9603-9706	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) (B)	1-47475-536-0	01	1	9707-9901	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-47475-536-1	01	1	9905-9910	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-47475-536-1	01	1	9911-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-47470-500-0	01	1	9906-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D)	1-47477-703-1	01	1	9906-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-47470-500-0	01	1	9809-9901	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9706	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9707-9901	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9706	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9707-9901	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9604	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9604	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9605-9808	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9809-9809	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9809-9809	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9809-9901	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9809-9901	●	●
25	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9902-9902	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9903-9904	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9905-9905	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9905	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9603-9901	●	●
25	CONNECTOR (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9902-9902	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9903-9904	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9905-9905	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9905-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9605-9706	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9707-9901	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9905-9905	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9905-9905	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9905	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9905-9905	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9905-9910	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9911-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (H) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9906-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (G) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9906-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9906-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9906-	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) M16 & PT3/8 STRAIGHT	1-09650-032-1	01	1	9809-9809	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) M16 & PT3/8 STRAIGHT	1-09650-032-1	01	1	9809-9901	●	●
25	CONNECTOR EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9809-9809	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9809-9901	●	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42119-065-0	01	1	9603-9901	●	●
47	BRACKET	1-42119-065-0	01	1	9902-9902	●	●
47	BRACKET EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-42119-065-0	01	1	9903-9904	●	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-065-0	01	1	9905-9910	●	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-065-0	01	1	9911-	●	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-123-0	01	1	9905-		●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-9706	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) REARWAED SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9707-9901	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9706	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9707-9901	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9905-9910	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9911-	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. BRAKE REGULATION ECE<TDV> REARWAED SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
