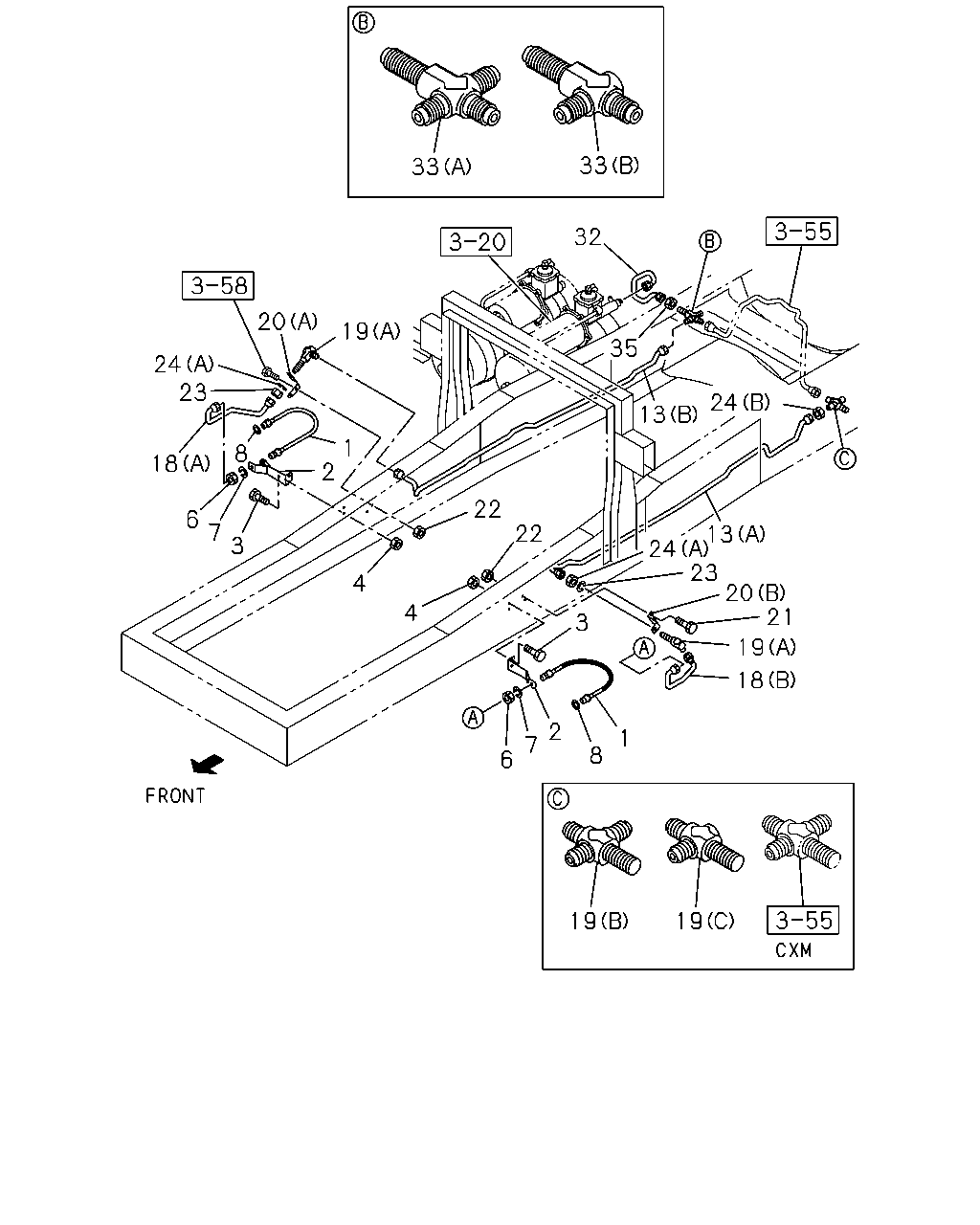

1 |
HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=600
|
1-09364-197-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
1 |
HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=600
|
1-09364-197-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
2 |
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47477-553-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
2 |
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47477-553-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
2 |
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47477-553-0 |
01 |
1 |
9911- |
● |
● |
● |
| |
2 |
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47477-343-1 |
01 |
1 |
9911- |
● |
● |
● |
| |
3 |
BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28080-825-0 |
04 |
1 |
9603-9606 |
● |
● |
● |
| |
3 |
BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
9607-9901 |
● |
● |
● |
| |
3 |
BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
4 |
NUT; FLEX HOSE BRKT,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
9-09110-508-0 |
04 |
1 |
9603-9606 |
● |
● |
● |
| |
4 |
NUT; FLEX HOSE BRKT,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9901 |
● |
● |
● |
| |
4 |
NUT; FLEX HOSE BRKT,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
6 |
NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
9-09840-280-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
6 |
NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
9-09840-280-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
7 |
WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
9-09150-512-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
7 |
WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
9-09150-512-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
8 |
GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=9 OD=17
|
9-09920-472-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
8 |
GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=9 OD=17
|
9-09920-472-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
(A)
L=1799
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
9603-9901 |
● |
|
|
| |
13 |
PIPE; OIL,UNION TO UNION
(B)
L=1694
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
9603-9603 |
● |
|
|
| |
13 |
PIPE; OIL,UNION TO UNION
(B)
L=1633
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
9604-9901 |
● |
|
|
| |
13 |
PIPE; OIL,UNION TO UNION
(B)
L=1633
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
9905- |
● |
|
|
| |
13 |
PIPE; OIL,UNION TO UNION
(A)
L=1710
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
9905-0001 |
● |
|
|
| |
13 |
PIPE; OIL,UNION TO UNION
(A)
L=1712
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
0002- |
● |
|
|
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=1793
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
9603-9901 |
|
● |
|
| |
13 |
PIPE; OIL,UNION TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=1793
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
0004-0104 |
|
● |
|
| |
13 |
PIPE; OIL,UNION TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=1795
SERVICED BY L=2000
|
1-47426-359-0 |
01 |
1 |
0105- |
|
● |
|
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=1690
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=1639
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
9905-0001 |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY<F03>
(B)
L=1639
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
0002-0003 |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
LIGHT DUTY PACKAGE TRUCK<Y21>
(B)
L=1639
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
0002-0003 |
|
|
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT
HEAVY DUTY<F03>
(B)
L=1639
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
0004-0004 |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L TYPE ENG<90L>
FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT
HEAVY DUTY<F03>
(B)
L=1639
SERVICED BY L=1700
|
1-47426-357-0 |
01 |
1 |
0005- |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=1717
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
9905-0001 |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY<F03>
(A)
L=1719
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
0002-0003 |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
LIGHT DUTY PACKAGE TRUCK<Y21>
(A)
L=1719
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
0002-0003 |
|
|
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L TYPE ENG<90L>
FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT
HEAVY DUTY<F03>
(A)
L=1719
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
0004- |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
V TYPE ENG<91L>
(A)
L=1719
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
0004- |
|
|
● |
| |
13 |
PIPE; OIL,UNION TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=1690
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
0005- |
|
● |
● |
| |
13 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=1785
SERVICED BY L=1820
|
1-47426-358-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
18 |
PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=437
|
1-47425-854-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
18 |
PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=417
|
1-47429-250-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
18 |
PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=437
|
1-47425-854-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
18 |
PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=417
|
1-47429-250-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
19 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12 ELBOW
|
9-09225-206-1 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
19 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12 ELBOW
|
9-09225-206-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
19 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-09656-232-1 |
01 |
1 |
9603-9901 |
|
● |
|
| |
19 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-09656-232-1 |
01 |
1 |
9905-0001 |
|
● |
|
| |
19 |
UNION; OIL PIPE
6WG1 TC-R(75L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-09656-232-1 |
01 |
1 |
0002- |
|
● |
|
| |
19 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
9603-9901 |
|
|
● |
| |
19 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
9905-0001 |
|
|
● |
| |
19 |
UNION; OIL PIPE
10PE1N(61L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
0002- |
|
● |
|
| |
19 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
0002- |
|
|
● |
| |
20 |
BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47475-222-5 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
20 |
BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-47476-168-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
20 |
BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47475-222-5 |
01 |
1 |
9905- |
● |
● |
● |
| |
20 |
BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-47476-168-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
21 |
BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9603-9606 |
● |
● |
● |
| |
21 |
BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9901 |
● |
● |
● |
| |
21 |
BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
22 |
NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
9-09110-508-0 |
04 |
1 |
9603-9606 |
● |
● |
● |
| |
22 |
NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9901 |
● |
● |
● |
| |
22 |
NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
23 |
WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
9-09150-512-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
23 |
WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
9-09150-512-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
24 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12
|
9-09840-280-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
24 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12
|
9-09840-280-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
24 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12
|
9-99110-512-0 |
01 |
1 |
9603-9606 |
|
● |
● |
| |
24 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12 FLANGE
|
0-91150-212-0 |
01 |
1 |
9607-9901 |
|
● |
● |
| |
24 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12 FLANGE
|
0-91150-212-0 |
01 |
1 |
9905- |
|
● |
● |
| |
32 |
PIPE; OIL,AIR MASTER TO UNION
L=398
|
1-47429-243-0 |
01 |
1 |
9603-9901 |
● |
|
|
| |
32 |
PIPE; OIL,AIR MASTER TO UNION
L=398
|
1-47429-243-0 |
01 |
1 |
9905- |
● |
|
|
| |
32 |
PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=404
|
1-47429-242-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
32 |
PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=404
|
1-47429-242-0 |
01 |
1 |
9905-0001 |
|
● |
● |
| |
32 |
PIPE; OIL,AIR MASTER TO UNION
6WG1 TC-R(75L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY<F03>
L=404
|
1-47429-242-0 |
01 |
1 |
0002- |
|
● |
● |
| |
32 |
PIPE; OIL,AIR MASTER TO UNION
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=559
|
1-49165-308-0 |
01 |
1 |
0002- |
|
● |
● |
| |
33 |
UNION; OIL PIPE
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
9603-9901 |
● |
|
|
| |
33 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
9603-9901 |
|
● |
|
| |
33 |
UNION; OIL PIPE
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
9905-9910 |
● |
|
|
| |
33 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
9905-9910 |
|
● |
|
| |
33 |
UNION; OIL PIPE
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
9911-0001 |
● |
|
|
| |
33 |
UNION; OIL PIPE
WHEEL BASE 4500MM(45W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
9911-0001 |
|
● |
|
| |
33 |
UNION; OIL PIPE
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
0002- |
● |
|
|
| |
33 |
UNION; OIL PIPE
6WG1 TC-R(75L)
WHEEL BASE 4500MM(45W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M12 & M14X2 3WAY
|
1-09656-231-1 |
01 |
1 |
0002- |
|
● |
|
| |
33 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09656-019-1 |
01 |
1 |
9603-9901 |
|
|
● |
| |
33 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09656-019-1 |
01 |
1 |
9905-0001 |
|
|
● |
| |
33 |
UNION; OIL PIPE
10PE1N(61L)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09656-019-1 |
01 |
1 |
0002- |
|
● |
|
| |
33 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09656-019-1 |
01 |
1 |
0002- |
|
|
● |
| |
35 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14
|
9-99111-414-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
35 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14
|
9-99111-414-0 |
01 |
1 |
9905- |
● |
● |
● |
