Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#538) — 245 parça

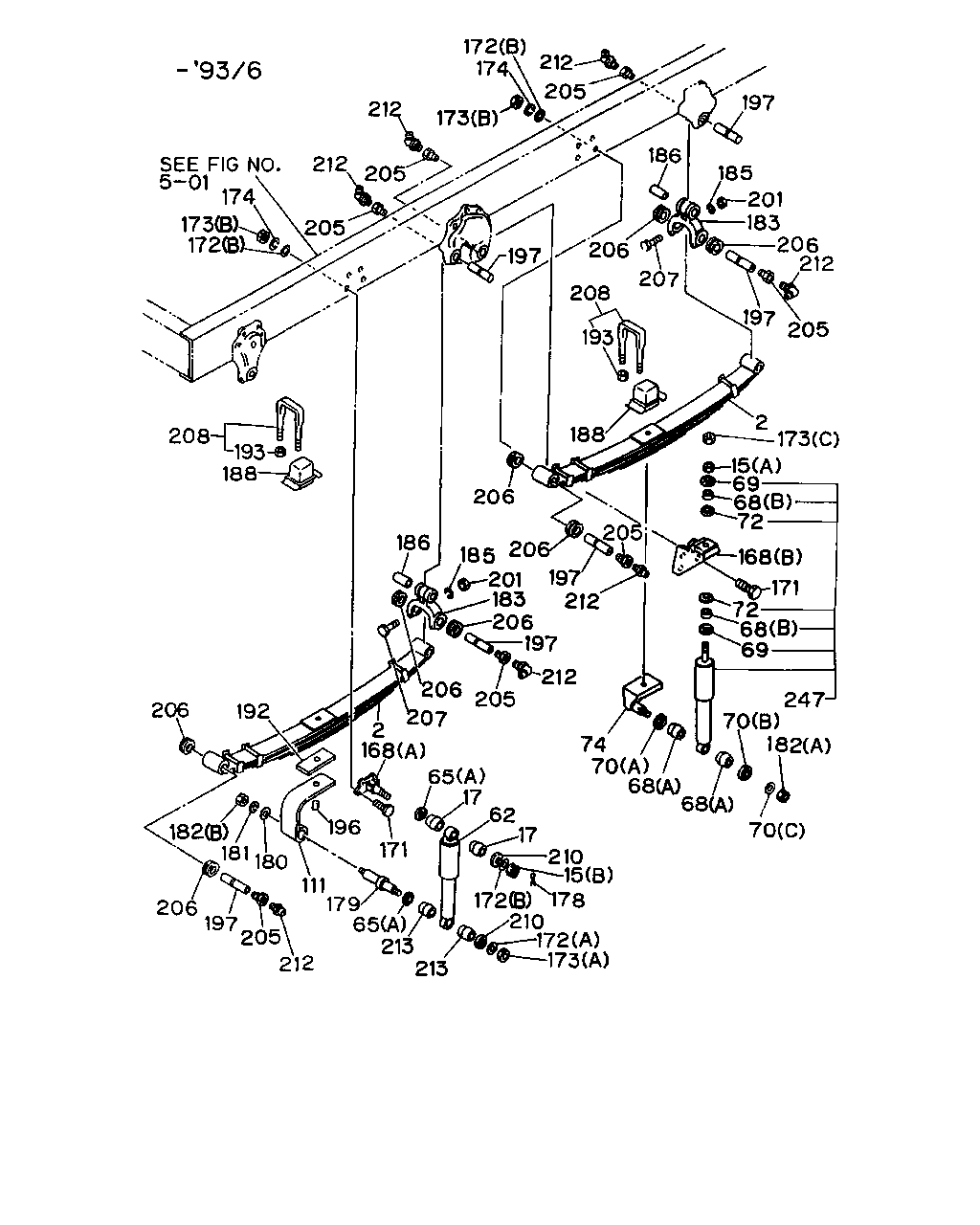

212 197 205 173 174 172 205 212 172 173 174 197 208 206 186 185 201 183 206 212 207 197 205 193 2 168 180 181 173 206 186 206 185 206 197 206 212 201 183 206 197 212 205 2 208 193 188 206 206 197 205 212 75 65 68 68 73 63 173 210 65 62 171 192 178 15 211 68 68 211 168 179 71 178 390 172 247 171 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> FORWARD	1-51110-807-0	02	1	8712-9001
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> REARWARD	1-51110-808-0	02	1	8712-9001
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) FORWARD	1-51110-980-0	02	1	9002-9107
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1)	1-51110-980-0	04	1	9108-9108
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60>	1-51110-980-0	04	1	9109-9112
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) REARWARD	1-51110-981-0	02	1	9002-9107
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) FORWARD	1-51110-807-1	02	1	9002-9108
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) REARWARD	1-51110-808-1	02	1	9002-9108
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> FORWARD	1-51110-511-0	02	1	8712-9004
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60>,FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51110-511-0	02	1	9005-9112
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51110-511-0	02	1	9201-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> REARWARD	1-51110-512-0	02	1	8712-9004
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60>,FRONT SPRING HEAVY DUTY<YA5> REARWARD	1-51110-512-0	02	1	9005-9112
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> REARWARD	1-51110-512-0	02	1	9201-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51110-951-0	02	1	9005-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> REARWARD	1-51110-952-0	02	1	9005-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51130-229-0	02	1	9307-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> REARWARD 10-LEAF	1-51130-230-0	02	1	9307-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51130-296-0	02	1	9307-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> REAREARD	1-51130-297-0	02	1	9307-
15	NUT; S/ABS,UPR (A) M14	9-99111-414-0	02	1	8712-9306
15	NUT; S/ABS,UPR (B) M20 SLOTTED	9-99116-420-0	02	1	8712-
62	ABSORBER ASM; SHOCK,FRT	1-51630-206-1	02	1	8712-9306
62	ABSORBER ASM; SHOCK,FRT	1-51630-397-0	02	1	9307-
63	WASHER; PL,S/ABS,LWR ID=21	9-09160-520-0	02	1	9307-
65	WASHER; S/ABS (A) ID=27	9-51631-027-0	04	1	8712-9306
65	WASHER; S/ABS (A) ID=27	9-51631-027-0	02	1	9307-
65	WASHER; S/ABS (B) ID=21	9-51631-028-0	02	1	9307-
68	BUSHING; S/ABS (A)	9-51631-026-0	04	1	8712-9306
68	BUSHING; S/ABS (A)	9-51631-026-0	08	1	9307-
68	BUSHING; S/ABS (B)	9-51631-039-0	04	1	8712-9306
71	NUT; LK,S/ABS,UPR M20 SLOTTED	9-99116-420-0	02	1	9307-
73	NUT; BRKT,SHOCK M20	9-99110-420-0	02	1	9307-
75	BRACKET; FRT S/ABS	1-51681-598-1	01	1	9307-
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-214-1	02	1	8712-9306
168	BRACKET; S/ABS,FRT SUSP (A)	1-51681-321-2	02	1	8712-
168	BRACKET; S/ABS,FRT SUSP (C)	1-51681-634-0	02	1	9307-
171	BOLT; S/ABS BRKT M14X40	9-92061-440-0	08	1	8712-8801
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-91066-445-0	08	1	8712-9001
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	08	1	8802-9001
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	08	1	9307-
171	BOLT; S/ABS BRKT L TYPE ENG<90L> M14X45	9-92061-445-0	08	1	9307-
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-91066-440-0	04	1	8712-9001
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X45	9-91066-445-0	04	1	8712-9001
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	16	1	9002-9306
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-92061-440-0	08	1	8802-8912
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-92061-440-0	12	1	9002-9107
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	04	1	9002-9107
171	BOLT; S/ABS BRKT L TYPE ENG<90L> M14X45	9-92061-445-0	04	1	9108-9306
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-92061-440-0	08	1	9108-
171	BOLT; S/ABS BRKT L TYPE ENG<90L> M14X40	9-92061-440-0	04	1	9108-9306
171	BOLT; S/ABS BRKT V TYPE ENG<91L> M14X50	9-92061-450-0	08	1	9307-
172	WASHER; PL,S/ABS BRKT (A) ID=21	9-09160-520-0	02	1	8712-
172	WASHER; PL,S/ABS BRKT (B) ID=15	9-09651-069-0	16	1	8712-
173	NUT; S/ABS (A) M20	9-99110-420-0	02	1	8712-
173	NUT; S/ABS (B) M14	9-99110-514-0	16	1	8712-9404
173	NUT; S/ABS (B) M14	9-99110-514-0	08	1	9405-
173	NUT; S/ABS (C) M14	9-99111-414-0	02	1	8712-9107
173	NUT; S/ABS (C) M14	9-99111-414-0	04	1	9108-9306
174	WASHER; LK,S/ABS ID=14.2	9-09150-614-0	16	1	8712-
178	PIN; SPLIT,S/ABS OD=3.7 L=35	9-08114-035-0	02	1	8712-9306
178	PIN; SPLIT,S/ABS OD=3.7 L=35	9-08114-035-0	04	1	9307-
179	PIN	1-51682-094-0	02	1	8712-
180	WASHER; PL,PIN	1-09503-169-0	02	1	8712-
181	WASHER; LK,PIN ID=24.5	9-09150-524-0	02	1	8712-
183	SHACKLE; FRT SUSP	1-51162-029-4	04	1	8712-
185	WASHER; LK,PIN ID=12.2	9-09150-512-0	24	1	8712-9209
185	WASHER; LK,PIN ID=12.2	9-09150-612-0	24	1	9210-
186	BUSHING; SHACKLE OD=38	1-51351-009-0	04	1	8712-
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=55	1-51172-022-1	02	1	8712-9001
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=70	1-51172-030-1	02	1	8712-9001
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-088-0	04	1	9307-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) T=83	1-51172-054-0	04	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> T=83	1-51172-054-0	04	1	9109-9112
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) T=55	1-51172-022-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=55	1-51172-022-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=55	1-51172-022-1	02	1	9109-9112
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=55	1-51172-022-1	02	1	9201-9306
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) T=70	1-51172-030-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=70	1-51172-030-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=70	1-51172-030-1	02	1	9109-9112
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=70	1-51172-030-1	02	1	9201-9306
192	PIECE; DIST	1-51177-077-1	02	1	8712-9306
192	PIECE; DIST	1-51177-281-0	02	1	9307-
193	NUT; U BOLT M22	9-09112-822-0	16	1	8712-
197	PIN; FRT SPR,FRT	1-51161-014-0	12	1	8712-8812
197	PIN; FRT SPR,FRT	1-51161-031-0	12	1	8901-
201	NUT; PIN LK M12	9-99110-412-0	24	1	8712-9304
201	NUT; PIN LK M12	9-99110-512-0	24	1	9305-9306
201	NUT; PIN LK M24	9-99110-424-0	02	1	9307-
201	NUT; PIN LK M12	9-99110-512-0	24	1	9307-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	12	1	8712-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	24	1	8712-
207	BOLT; SPR TO SHACKLE M12X80	9-91056-280-0	24	1	8712-9005
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	24	1	9006-
208	U-BOLT SET; FRT SPRING L=210	1-87870-287-0	08	1	8712-9001
208	U-BOLT SET; FRT SPRING L=210	1-87870-118-3	08	1	9002-9004
208	U-BOLT SET; FRT SPRING L=210	1-87870-118-3	04	1	9005-9306
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<YA5> L=210	1-87870-118-3	04	1	9005-9306
208	U-BOLT SET; FRT SPRING L=210	1-87870-376-0	04	1	9307-
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) FORWARD L=230	1-87870-269-1	04	1	9002-9112
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) FORWARD L=210	1-87870-118-3	04	1	9002-9112
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> FORWARD L=210	1-87870-118-3	04	1	9002-9112
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<YA5> FORWARD L=250	1-87870-343-0	04	1	9005-9306
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<YA5> L=270	1-87870-327-0	04	1	9307-
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<YA5> L=230	1-87870-269-1	04	1	9307-
210	WASHER; S/ABS,OUTER ID=21	9-51631-028-0	04	1	8712-9306
210	WASHER; S/ABS,OUTER ID=21	9-09160-520-0	02	1	9307-
211	WASHER; BRKT,SHOCK (A) ID=27	9-51631-027-0	02	1	9307-
211	WASHER; BRKT,SHOCK (B) ID=21	9-51631-028-0	02	1	9307-
212	NIPPLE; GREASE,ELBOW L TYPE ENG<90L> STRAIGHT PT1/8 STRAIGHT	9-09031-010-0	09	1	8712-
212	NIPPLE; GREASE,ELBOW L TYPE ENG<90L> ELBOW PT1/8 ELBOW	9-09031-210-0	03	1	8712-
212	NIPPLE; GREASE,ELBOW V TYPE ENG<91L> STRAIGHT PT1/8 STRAIGHT	9-09031-010-0	07	1	8712-
212	NIPPLE; GREASE,ELBOW V TYPE ENG<91L> ELBOW PT1/8 ELBOW	9-09031-210-0	05	1	8712-
247	ABSORBER ASM; SHOCK,RWD FRT	1-51630-053-3	02	1	8712-9003
247	ABSORBER ASM; SHOCK,RWD FRT	1-51630-171-0	02	1	9004-9306
247	ABSORBER ASM; SHOCK,RWD FRT	1-51630-400-0	02	1	9307-
390	WASHER; PL,S/ABS,UPR ID=21	9-09160-520-0	02	1	9307-

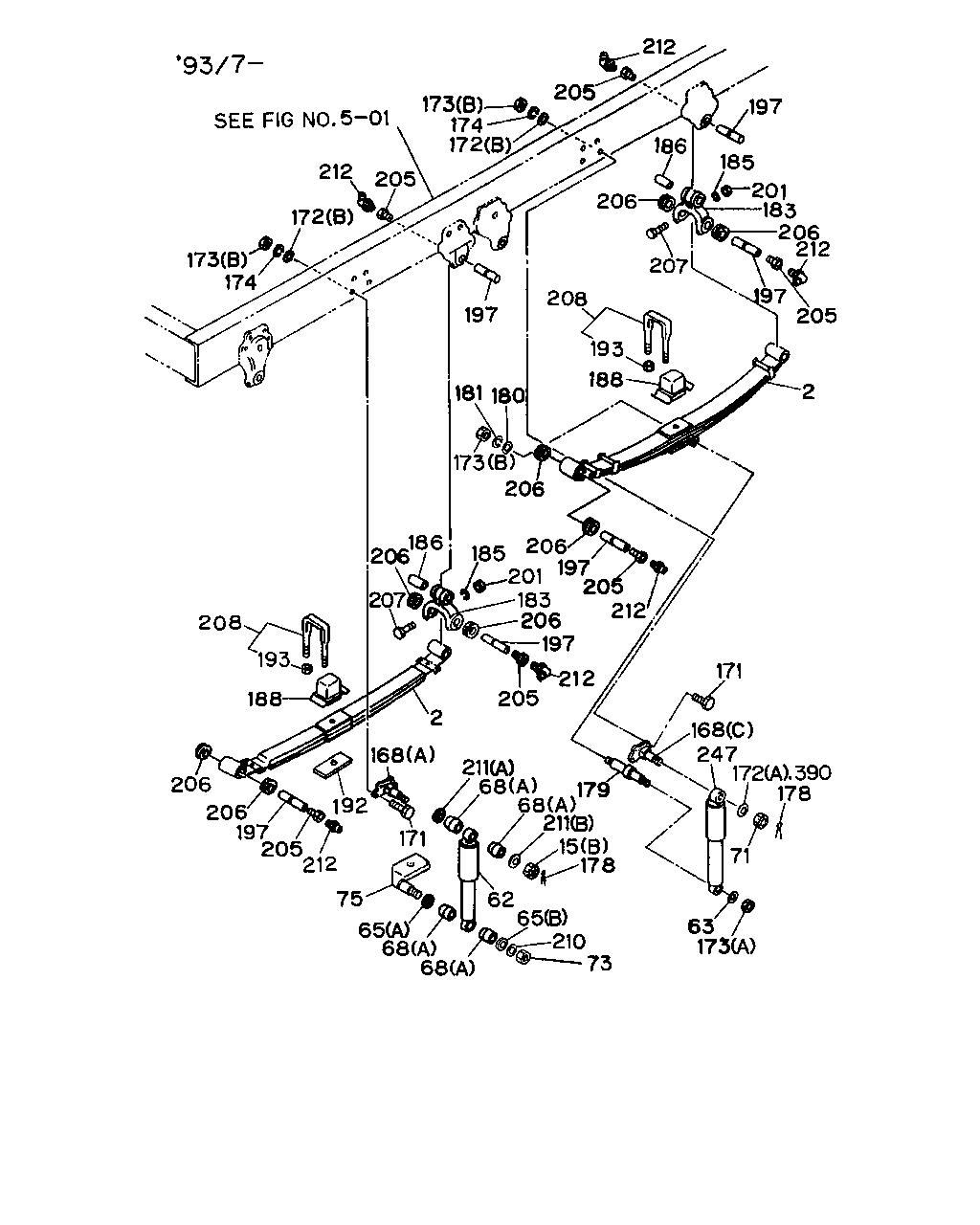

197 201 185 186 183 206 212 207 206 193 208 197 197 205 2 173 188 15 69 68 72 205 206 186 206 185 197 201 183 212 206 197 212 168 171 72 69 247 182 70 70 68 68 70 74 205 206 207 2 168 65 17 62 17 210 15 17 172 210 172 173 213 213 65 179 111 212 205 197 206 171 196 180 181 182 206 192 188 193 208 172 173 174 205 212 205 212 173 174 172 212 205 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> FORWARD	1-51110-807-0	02	1	8712-9001
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> REARWARD	1-51110-808-0	02	1	8712-9001
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) FORWARD	1-51110-980-0	02	1	9002-9107
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1)	1-51110-980-0	04	1	9108-9108
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60>	1-51110-980-0	04	1	9109-9112
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) REARWARD	1-51110-981-0	02	1	9002-9107
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) FORWARD	1-51110-807-1	02	1	9002-9108
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) REARWARD	1-51110-808-1	02	1	9002-9108
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> FORWARD	1-51110-511-0	02	1	8712-9004
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60>,FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51110-511-0	02	1	9005-9112
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51110-511-0	02	1	9201-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60> REARWARD	1-51110-512-0	02	1	8712-9004
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<F60>,FRONT SPRING HEAVY DUTY<YA5> REARWARD	1-51110-512-0	02	1	9005-9112
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> REARWARD	1-51110-512-0	02	1	9201-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51110-951-0	02	1	9005-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> REARWARD	1-51110-952-0	02	1	9005-9306
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51130-229-0	02	1	9307-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<YA5> REARWARD 10-LEAF	1-51130-230-0	02	1	9307-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> FORWARD	1-51130-296-0	02	1	9307-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY<YA5> REAREARD	1-51130-297-0	02	1	9307-
15	NUT; S/ABS,UPR (A) M14	9-99111-414-0	02	1	8712-9306
15	NUT; S/ABS,UPR (B) M20 SLOTTED	9-99116-420-0	02	1	8712-
17	BUSHING; RUBBER,S/ABS	9-51631-026-0	04	1	8712-9306
62	ABSORBER ASM; SHOCK,FRT	1-51630-206-1	02	1	8712-9306
62	ABSORBER ASM; SHOCK,FRT	1-51630-397-0	02	1	9307-
65	WASHER; S/ABS (A) ID=27	9-51631-027-0	04	1	8712-9306
65	WASHER; S/ABS (A) ID=27	9-51631-027-0	02	1	9307-
65	WASHER; S/ABS (B) ID=21	9-51631-028-0	02	1	9307-
68	BUSHING; S/ABS (A)	9-51631-026-0	04	1	8712-9306
68	BUSHING; S/ABS (A)	9-51631-026-0	08	1	9307-
68	BUSHING; S/ABS (B)	9-51631-039-0	04	1	8712-9306
69	WASHER; UPR,S/ABS ID=16.5	9-51631-040-0	04	1	8712-9306
70	WASHER; LWR,S/ABS (C) ID=21	9-09160-520-0	02	1	8712-9306
70	WASHER; LWR,S/ABS (A) ID=27	9-51631-027-0	02	1	8712-9306
70	WASHER; LWR,S/ABS (B) ID=21	9-51631-028-0	02	1	8712-9306
72	WASHER; CENTER,S/ABS UPR BUSHING ID=20.8	9-51631-041-0	02	1	9004-9306
74	BRACKET; S/ABS,RWD RR	1-51681-106-2	01	1	8712-8901
74	BRACKET; S/ABS,RWD RR	1-51681-551-0	01	1	8902-9003
74	BRACKET; S/ABS,RWD RR	1-51681-105-2	01	1	8712-8901
74	BRACKET; S/ABS,RWD RR	1-51681-550-0	01	1	8902-9003
74	BRACKET; S/ABS,RWD RR	1-51681-550-0	02	1	9004-9306
111	SUPPORTER; S/ABS,FRT SUSP	1-51681-517-0	02	1	9002-9306
111	SUPPORTER; S/ABS,FRT SUSP HONG KONG EQUIPMENT(PQ1)	1-51681-517-0	02	1	8712-9001
111	SUPPORTER; S/ABS,FRT SUSP EXC. HONG KONG EQUIPMENT(PQ1)	1-51681-432-0	02	1	8712-9001
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-214-1	02	1	8712-9306
168	BRACKET; S/ABS,FRT SUSP (A)	1-51681-321-2	02	1	8712-
168	BRACKET; S/ABS,FRT SUSP (C)	1-51681-634-0	02	1	9307-
171	BOLT; S/ABS BRKT M14X40	9-92061-440-0	08	1	8712-8801
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-91066-445-0	08	1	8712-9001
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	08	1	8802-9001
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	08	1	9307-
171	BOLT; S/ABS BRKT L TYPE ENG<90L> M14X45	9-92061-445-0	08	1	9307-
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-91066-440-0	04	1	8712-9001
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X45	9-91066-445-0	04	1	8712-9001
171	BOLT; S/ABS BRKT HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	16	1	9002-9306
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-92061-440-0	08	1	8802-8912
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-92061-440-0	12	1	9002-9107
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X45	9-92061-445-0	04	1	9002-9107
171	BOLT; S/ABS BRKT L TYPE ENG<90L> M14X45	9-92061-445-0	04	1	9108-9306
171	BOLT; S/ABS BRKT EXC. HONG KONG EQUIPMENT(PQ1) M14X40	9-92061-440-0	08	1	9108-
171	BOLT; S/ABS BRKT L TYPE ENG<90L> M14X40	9-92061-440-0	04	1	9108-9306
171	BOLT; S/ABS BRKT V TYPE ENG<91L> M14X50	9-92061-450-0	08	1	9307-
172	WASHER; PL,S/ABS BRKT (A) ID=21	9-09160-520-0	02	1	8712-
172	WASHER; PL,S/ABS BRKT (B) ID=15	9-09651-069-0	16	1	8712-
173	NUT; S/ABS (A) M20	9-99110-420-0	02	1	8712-
173	NUT; S/ABS (B) M14	9-99110-514-0	16	1	8712-9404
173	NUT; S/ABS (B) M14	9-99110-514-0	08	1	9405-
173	NUT; S/ABS (C) M14	9-99111-414-0	02	1	8712-9107
173	NUT; S/ABS (C) M14	9-99111-414-0	04	1	9108-9306
174	WASHER; LK,S/ABS ID=14.2	9-09150-614-0	16	1	8712-
179	PIN	1-51682-094-0	02	1	8712-
180	WASHER; PL,PIN	1-09503-169-0	02	1	8712-
181	WASHER; LK,PIN ID=24.5	9-09150-524-0	02	1	8712-
182	NUT; S/ABS LWR (A) M20	9-99110-420-0	02	1	8712-9306
182	NUT; S/ABS LWR (B) M24	9-99110-424-0	02	1	8712-9306
183	SHACKLE; FRT SUSP	1-51162-029-4	04	1	8712-
185	WASHER; LK,PIN ID=12.2	9-09150-512-0	24	1	8712-9209
185	WASHER; LK,PIN ID=12.2	9-09150-612-0	24	1	9210-
186	BUSHING; SHACKLE OD=38	1-51351-009-0	04	1	8712-
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=55	1-51172-022-1	02	1	8712-9001
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=70	1-51172-030-1	02	1	8712-9001
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-088-0	04	1	9307-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) T=83	1-51172-054-0	04	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> T=83	1-51172-054-0	04	1	9109-9112
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) T=55	1-51172-022-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=55	1-51172-022-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=55	1-51172-022-1	02	1	9109-9112
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=55	1-51172-022-1	02	1	9201-9306
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) T=70	1-51172-030-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=70	1-51172-030-1	02	1	9002-9108
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRONT SPRING HEAVY DUTY<F60> T=70	1-51172-030-1	02	1	9109-9112
188	RUBBER; CLAMP,U-BOLT,FRT SPR T=70	1-51172-030-1	02	1	9201-9306
192	PIECE; DIST	1-51177-077-1	02	1	8712-9306
192	PIECE; DIST	1-51177-281-0	02	1	9307-
193	NUT; U BOLT M22	9-09112-822-0	16	1	8712-
196	PIN; KNOCK,S/ABS BRKT L=20	9-09878-622-0	02	1	8712-9306
197	PIN; FRT SPR,FRT	1-51161-014-0	12	1	8712-8812
197	PIN; FRT SPR,FRT	1-51161-031-0	12	1	8901-
201	NUT; PIN LK M12	9-99110-412-0	24	1	8712-9304
201	NUT; PIN LK M12	9-99110-512-0	24	1	9305-9306
201	NUT; PIN LK M24	9-99110-424-0	02	1	9307-
201	NUT; PIN LK M12	9-99110-512-0	24	1	9307-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	12	1	8712-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	24	1	8712-
207	BOLT; SPR TO SHACKLE M12X80	9-91056-280-0	24	1	8712-9005
207	BOLT; SPR TO SHACKLE M12X80	0-10806-280-0	24	1	9006-
208	U-BOLT SET; FRT SPRING L=210	1-87870-287-0	08	1	8712-9001
208	U-BOLT SET; FRT SPRING L=210	1-87870-118-3	08	1	9002-9004
208	U-BOLT SET; FRT SPRING L=210	1-87870-118-3	04	1	9005-9306
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<YA5> L=210	1-87870-118-3	04	1	9005-9306
208	U-BOLT SET; FRT SPRING L=210	1-87870-376-0	04	1	9307-
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> HONG KONG EQUIPMENT(PQ1) FORWARD L=230	1-87870-269-1	04	1	9002-9112
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> EXC. HONG KONG EQUIPMENT(PQ1) FORWARD L=210	1-87870-118-3	04	1	9002-9112
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<F60> FORWARD L=210	1-87870-118-3	04	1	9002-9112
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<YA5> FORWARD L=250	1-87870-343-0	04	1	9005-9306
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<YA5> L=270	1-87870-327-0	04	1	9307-
208	U-BOLT SET; FRT SPRING EXC. FRONT SPRING HEAVY DUTY<YA5> L=230	1-87870-269-1	04	1	9307-
210	WASHER; S/ABS,OUTER ID=21	9-51631-028-0	04	1	8712-9306
210	WASHER; S/ABS,OUTER ID=21	9-09160-520-0	02	1	9307-
212	NIPPLE; GREASE,ELBOW L TYPE ENG<90L> STRAIGHT PT1/8 STRAIGHT	9-09031-010-0	09	1	8712-
212	NIPPLE; GREASE,ELBOW L TYPE ENG<90L> ELBOW PT1/8 ELBOW	9-09031-210-0	03	1	8712-
212	NIPPLE; GREASE,ELBOW V TYPE ENG<91L> STRAIGHT PT1/8 STRAIGHT	9-09031-010-0	07	1	8712-
212	NIPPLE; GREASE,ELBOW V TYPE ENG<91L> ELBOW PT1/8 ELBOW	9-09031-210-0	05	1	8712-
213	BUSHING; RUBBER,LWR	9-51631-026-0	04	1	8712-9306
247	ABSORBER ASM; SHOCK,RWD FRT	1-51630-053-3	02	1	8712-9003
247	ABSORBER ASM; SHOCK,RWD FRT	1-51630-171-0	02	1	9004-9306
247	ABSORBER ASM; SHOCK,RWD FRT	1-51630-400-0	02	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
