Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#5379) — 313 parça

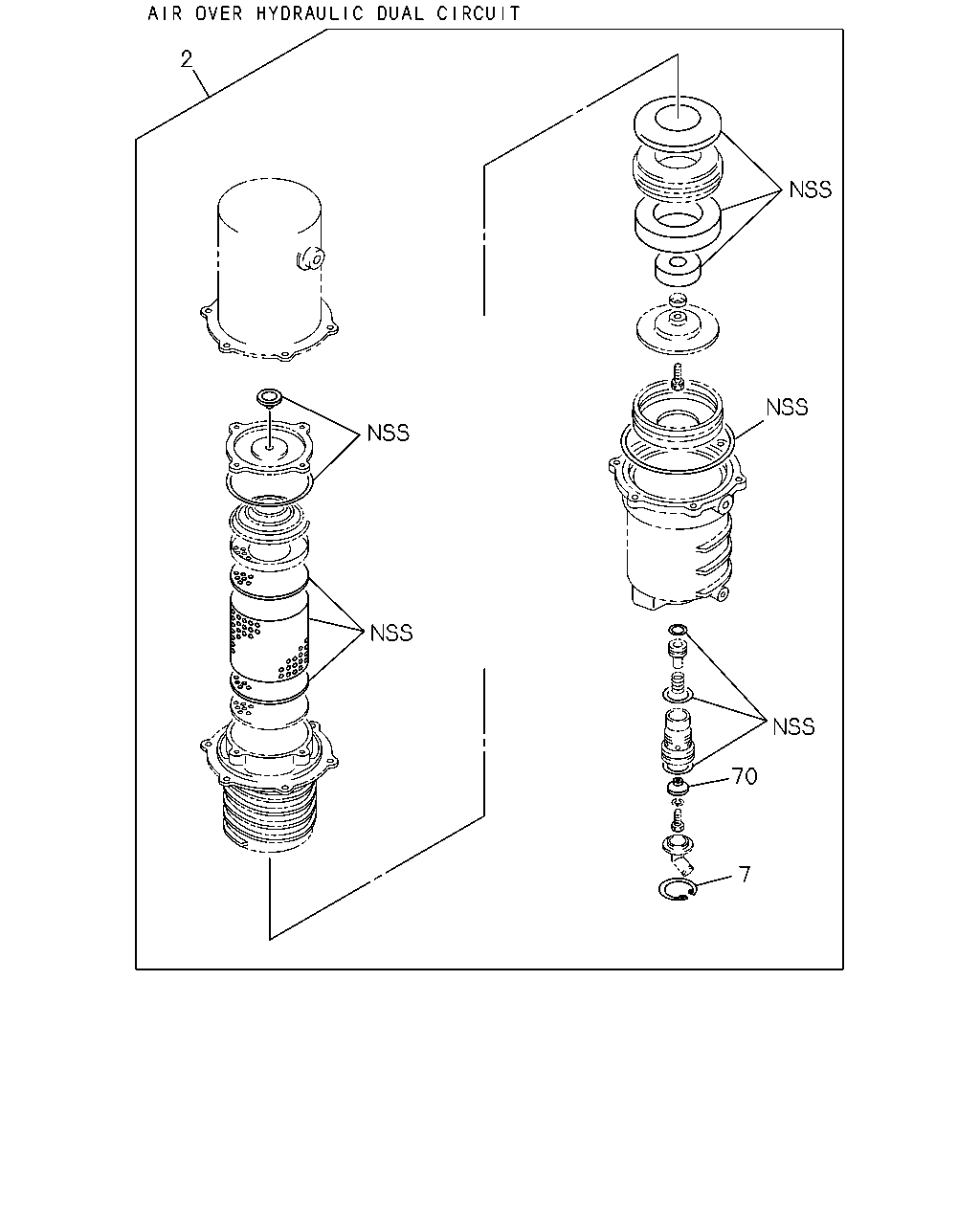

2 70 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-161-0	01	1	9603-9901	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-161-0	01	1	9905-	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9603-9901		●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-055-1	01	1	9902-9904		●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9905-		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9603-9901	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9905-	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9603-9901		●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9902-9904		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9905-		●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9603-9901	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9603-9901		●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9902-9904		●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9905-	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9905-		●	●

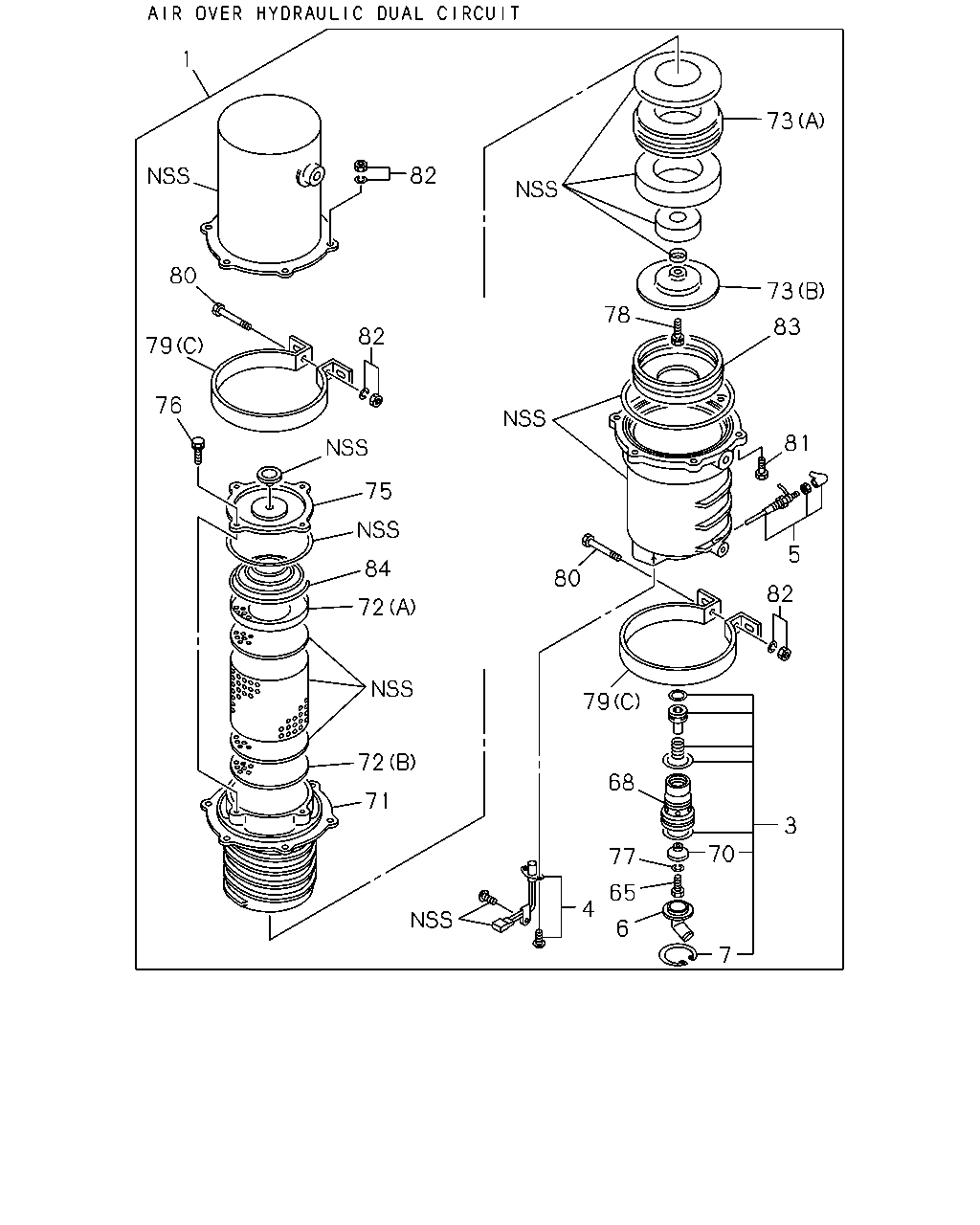

1 73 82 80 73 78 83 82 79 76 81 75 5 84 80 82 72 79 72 68 71 3 70 77 65 4 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9603-9901	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9905-	●	●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9603-9901		●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	9902-9904		●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9905-		●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-084-0	01	1	9603-9901	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-084-0	01	1	9905-	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9603-9901		●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-057-1	01	1	9902-9904		●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9905-		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-121-0	01	1	9603-9901	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-121-0	01	1	9905-	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9603-9901		●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-129-0	01	1	9902-9904		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9905-		●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-200-0	01	1	9603-9901	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-200-0	01	1	9905-	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9603-9901		●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	9902-9904		●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9905-		●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-132-0	01	1	9603-9901	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-132-0	01	1	9905-	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9603-9901		●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9902-9904		●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9905-		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9603-9901	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9905-	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9603-9901		●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9902-9904		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9905-		●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-102-0	01	1	9905-	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-102-0	01	1	9603-9901	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9603-9901		●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	9902-9904		●	●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9905-		●	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-216-0	01	1	9603-9901	●	●	●
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9603-9901		●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9902-9904		●	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-216-0	01	1	9905-	●	●	●
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9905-		●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9603-9901	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9603-9901		●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9902-9904		●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9905-	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9905-		●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-374-0	01	1	9603-9901	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-374-0	01	1	9905-	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9603-9901		●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-156-1	01	1	9902-9904		●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9905-		●	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-097-0	01	1	9603-9901	●	●	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-382-0	01	1	9603-9901	●	●	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-097-0	01	1	9905-	●	●	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-382-0	01	1	9905-	●	●	●
73	COVER; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-377-0	01	1	9603-9901	●	●	●
73	COVER; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-379-0	01	1	9603-9901	●	●	●
73	COVER; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-377-0	01	1	9905-	●	●	●
73	COVER; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-379-0	01	1	9905-	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-383-0	01	1	9603-9901	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-383-0	01	1	9905-	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9603-9901		●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-167-0	01	1	9902-9904		●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9905-		●	●
76	BOLT; COVER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-385-0	04	1	9603-9901	●	●	●
76	BOLT; COVER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-385-0	04	1	9905-	●	●	●
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-478-0	06	1	9902-9904		●	●
76	BOLT; COVER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-478-0	06	1	9905-		●	●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-103-0	01	1	9905-	●	●	●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-103-0	01	1	9603-9901	●	●	●
77	WASHER; LK,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-103-0	01	1	9603-9901		●	●
78	BOLT; OIL FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-380-0	01	1	9603-9901	●	●	●
78	BOLT; OIL FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-380-0	01	1	9905-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-209-0	02	1	9603-9901	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-209-0	02	1	9905-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9603-9901		●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9902-9904		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9905-		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9603-9901		●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9902-9904		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9905-		●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-212-0	02	1	9603-9901	●	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-212-0	02	1	9905-	●	●	●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9603-9901		●	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-190-0	02	1	9902-9904		●	●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9905-		●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-208-0	06	1	9603-9901	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-208-0	06	1	9905-	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9603-9901		●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-177-0	02	1	9902-9904		●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9905-		●	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-320-0	08	1	9603-9901	●	●	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-320-0	08	1	9905-	●	●	●
83	BAFFLE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-381-0	01	1	9603-9901	●	●	●
83	BAFFLE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-381-0	01	1	9905-	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-092-0	01	1	9603-9901	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-092-0	01	1	9905-	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9603-9901		●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-166-0	01	1	9902-9904		●	●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9905-		●	●

86 1 86 80 79 79 75 84 88 88 81 81 68 3 70 77 65 7 6 5 71 4 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9603-9901	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9905-	●	●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9603-9901		●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	9902-9904		●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9905-		●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-084-0	01	1	9603-9901	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-084-0	01	1	9905-	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9603-9901		●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-057-1	01	1	9902-9904		●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9905-		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-121-0	01	1	9603-9901	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-121-0	01	1	9905-	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9603-9901		●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-129-0	01	1	9902-9904		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9905-		●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-200-0	01	1	9603-9901	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-200-0	01	1	9905-	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9603-9901		●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	9902-9904		●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9905-		●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-132-0	01	1	9603-9901	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-132-0	01	1	9905-	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9603-9901		●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9902-9904		●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9905-		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9603-9901	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9905-	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9603-9901		●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9902-9904		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9905-		●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-102-0	01	1	9905-	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-102-0	01	1	9603-9901	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9603-9901		●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	9902-9904		●	●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9905-		●	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-216-0	01	1	9603-9901	●	●	●
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9603-9901		●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9902-9904		●	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-216-0	01	1	9905-	●	●	●
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9905-		●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9603-9901	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9603-9901		●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9902-9904		●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9905-	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9905-		●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-374-0	01	1	9603-9901	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-374-0	01	1	9905-	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9603-9901		●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-156-1	01	1	9902-9904		●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9905-		●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-383-0	01	1	9603-9901	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-383-0	01	1	9905-	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9603-9901		●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-167-0	01	1	9902-9904		●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9905-		●	●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-103-0	01	1	9905-	●	●	●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-103-0	01	1	9603-9901	●	●	●
77	WASHER; LK,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-103-0	01	1	9603-9901		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-209-0	02	1	9603-9901	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-209-0	02	1	9905-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9603-9901		●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9902-9904		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9905-		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9603-9901		●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9902-9904		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9905-		●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-212-0	02	1	9603-9901	●	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-212-0	02	1	9905-	●	●	●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9603-9901		●	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-190-0	02	1	9902-9904		●	●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9905-		●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-208-0	06	1	9603-9901	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-208-0	06	1	9905-	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9603-9901		●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-177-0	02	1	9902-9904		●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9905-		●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-092-0	01	1	9603-9901	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-092-0	01	1	9905-	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9603-9901		●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-166-0	01	1	9902-9904		●	●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9905-		●	●
86	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	9603-9901		●	●
86	NUT; BRKT AIR DRYER<PS7>	1-48199-320-0	02	1	9902-9904		●	●
86	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	9905-		●	●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9603-9901		●	●
88	PLATE; STOPPER AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9902-9904		●	●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9905-		●	●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9603-9901		●	●
88	PLATE; STOPPER AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9902-9904		●	●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9905-		●	●
94	NUT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-479-0	07	1	9902-9904		●	●
94	NUT; COVER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-479-0	07	1	9905-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-161-0	01	1	9603-9901	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-161-0	01	1	9905-	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9603-9901		●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-055-1	01	1	9902-9904		●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9905-		●	●

16 12 79 11 13 1 8 89 89 9 29 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9603-9901	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9905-	●	●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9603-9901		●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	9902-9904		●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9905-		●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9603-9901	●	●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9905-	●	●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9603-9901		●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9902-9904		●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-		●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9603-9901	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9603-9901		●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9902-9904		●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9905-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9905-		●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 3-WAY M12X2,PT1/4	1-09656-229-1	01	1	9603-9901	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 3-WAY M12X2,PT1/4	1-09656-229-1	01	1	9905-	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28081-025-0	04	1	9603-9606	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28081-025-0	04	1	9603-9606		●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9607-9901	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9607-9901		●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9902-9904		●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9905-	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9905-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-713-0	01	1	9603-9901	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-713-0	01	1	9905-	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28081-030-0	04	1	9603-9606	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	04	1	9607-9901	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	04	1	9905-	●	●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X35 FLANGE	0-28081-035-0	04	1	9603-9606		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9607-9901		●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9902-9904		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9905-		●	●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	06	1	9603-9606	●	●	●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	06	1	9607-9901	●	●	●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	06	1	9905-	●	●	●
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9603-9606		●	●
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9901		●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9902-9904		●	●
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9905-		●	●
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9603-9606		●	●
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9901		●	●
16	NUT; BRKT AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9902-9904		●	●
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9905-		●	●
29	UNION; 3 WAY,PURGE TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9603-9901		●	●
29	UNION; 3 WAY,PURGE TANK AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9902-9904		●	●
29	UNION; 3 WAY,PURGE TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9905-		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-209-0	02	1	9603-9901	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-209-0	02	1	9905-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9603-9901		●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9902-9904		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-189-0	02	1	9905-		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9603-9901		●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9902-9904		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-53497-540-1	01	1	9905-		●	●
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9901		●	●
89	ADAPTER AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9904		●	●
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-		●	●
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9603-9901		●	●
89	ADAPTER AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9902-9904		●	●
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005		●	●
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-		●	●

13 13 11 10 12 8 9 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9603-9901	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-168-1	01	1	9905-	●	●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9603-9901		●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	9902-9904		●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9905-		●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9603-9901	●	●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9905-	●	●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9603-9901		●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9902-9904		●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-		●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9603-9901	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9603-9901		●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9902-9904		●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9905-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ELBOW M12,PT1/2	1-09650-444-0	01	1	9905-		●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 3-WAY M12X2,PT1/4	1-09656-229-1	01	1	9603-9901	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 3-WAY M12X2,PT1/4	1-09656-229-1	01	1	9905-	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28081-025-0	04	1	9603-9606	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28081-025-0	04	1	9603-9606		●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9607-9901	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9607-9901		●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9902-9904		●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9905-	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9905-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-713-0	01	1	9603-9901	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-713-0	01	1	9905-	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28081-030-0	04	1	9603-9606	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	04	1	9607-9901	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	04	1	9905-	●	●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X35 FLANGE	0-28081-035-0	04	1	9603-9606		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9607-9901		●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9902-9904		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9905-		●	●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	06	1	9603-9606	●	●	●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	06	1	9607-9901	●	●	●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	06	1	9905-	●	●	●
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9603-9606		●	●
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9901		●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9902-9904		●	●
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9905-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
